Features	Details
Product type	Exercise bike
Dimensions	Not specified
Maximum user weight	Not specified
Resistance system	Magnetic
Training modes	Pre-recorded programs
Display	LCD screen
Screen functions	Time, distance, calories, heart rate
Connectivity	Not specified
Maintenance	Regular bolt checks and cleaning
Safety	Use on a flat surface, do not exceed maximum weight
Warranty	Not specified
Included accessories	Not specified
Usage tips	Start with short sessions and gradually increase duration

Frequently Asked Questions - BR5 Bremshey

How do I adjust the resistance on the Bremshey BR5?

To adjust the resistance, turn the adjustment knob located on the handlebar. The more you turn it to the right, the higher the resistance.

The Bremshey BR5 exercise bike makes noise during use. What should I do?

First, check that all bolts and screws are tightened properly. If the noise persists, inspect the belt and bearings for any signs of wear.

How do I set up the display on my Bremshey BR5?

The display configures automatically when powered on. To change settings, use the navigation buttons located below the screen to select the desired options.

What is the maximum weight capacity of the Bremshey BR5?

The Bremshey BR5 has a maximum weight capacity of 120 kg.

How do I clean my Bremshey BR5 exercise bike?

To clean the bike, use a soft, damp cloth. Avoid abrasive or chemical products that could damage the surfaces.

My bike won\'t turn on, what should I do?

First, check that the device is properly plugged in and that the outlet is working. If the problem persists, try resetting the device by unplugging and plugging the power cable back in.

The pedals on my Bremshey BR5 have come loose. How do I put them back on?

Make sure the threads on the pedals and crank are clean. Screw the pedals in clockwise for the right side and counterclockwise for the left, making sure to tighten them securely.

Can I use the Bremshey BR5 outdoors?

No, it is recommended to use the Bremshey BR5 indoors only, in a dry and temperate environment.

How do I adjust the saddle for better comfort?

To adjust the saddle height, loosen the clamp lever under the saddle, adjust to the desired height, then tighten the lever.

Is there an app compatible with the Bremshey BR5?

The Bremshey BR5 is not compatible with fitness apps. It offers basic features on its built-in display.

USER MANUAL BR5 Bremshey

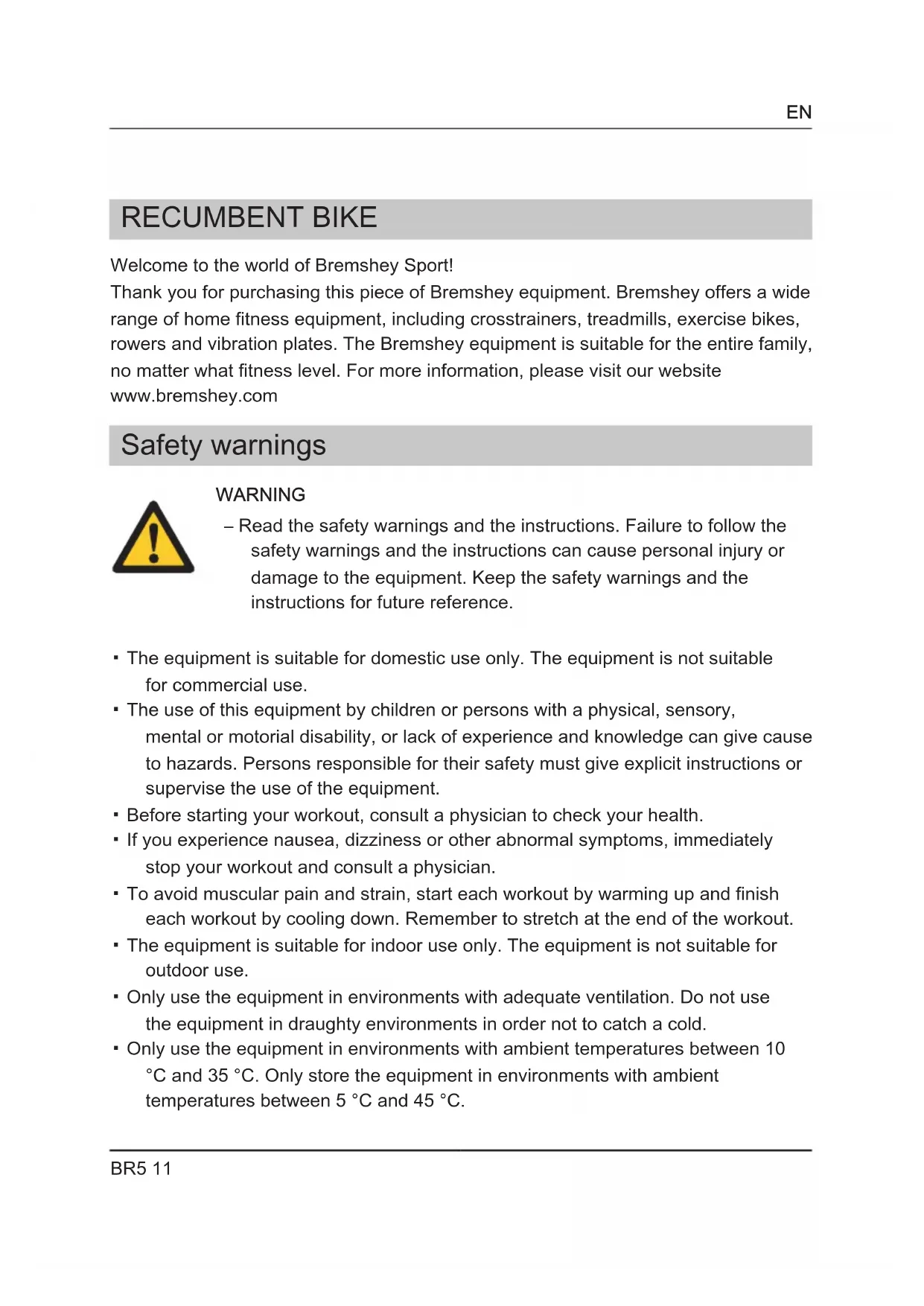

Welcome to the world of Bremshey Sport!

Thank you for purchasing this piece of Bremshey equipment. Bremshey offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes, rowers and vibration plates. The Bremshey equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.bremshey.com

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.

• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.

• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.

• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80% .

• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewelry and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 135kg (300 lbs).
• Do not open equipment without consulting your dealer.

Electrical safety (only applicable for equipment with electric power)

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the equipment.
• Do not use an extension cable.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not alter or modify the mains cable or the mains plug.
• Do not use the equipment if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, contact your dealer.
• Always fully unwind the mains cable.
• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.
• Make sure that the mains cable does not hang over the edge of a table. Make sure that the mains cable cannot be caught accidentally or tripped over.
• Do not leave the equipment unattended when the mains plug is inserted into the wall socket.
• Do not pull the mains cable to remove the mains plug from the wall socket.
• Remove the mains plug from the wall socket when the equipment is not in use, before assembly or disassembly and before cleaning and maintenance.

Package contents (fig. B & C)

The package contains the parts as shown in fig. B.
- The package contains the fasteners as shown in fig. C. Refer to the section "Description".

NOTE

• If a part is missing, contact your dealer.

Description (fig. A)

Your recumbent bike is a piece of stationary fitness equipment used to simulate cycling without causing excessive pressure to the joints.

1 Pedal 9 Seat handlebar
2 Pedal strap 10 Hand pulse sensor
3 Main housing 11 Handlebar
4 Seat 12 Handlebar adjustment knob
5 Seat adjustment lever 13 Support foot
6 Backrest 14 Transport wheel
7 Backrest height adjustment knob 15 Console
8 Backrest inclination adjustment 16 Console adjustment knob knob

Fasteners (fig. C)

17 Carriage bolt (M8^55) 23 Bushing (D14.8^25)
18 Washer (D8^19) 24 Screw (M5^14)
19 Locknut (M8) 25 Allen bolt (M8^35)
20 Allen bolt (M816) 26 Washer (D816)
21 Curved washer (D8^19) 27 Screw (M8^12)
22 Carriage bolt (M875) 28 Screw (M8*16)

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100~cm of clearance around the equipment.

Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain. As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Pulse rate measurement (hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time. Accurate pulse measurement requires that the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement will become less accurate.

NOTE

• Do not use the hand pulse sensors in combination with a heart rate chest belt.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Heart rate measurement (heart rate chest belt)

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

• If you have a pacemaker, consult a physician before using a heart rate chest belt.

CAUTION

• If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.
• If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the hand pulse sensors.
• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.
• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Category Heart rate zone Explanation
Beginner 50-60% of maximum heart rate		Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.
Advanced 60-70% of maximum heart rate		Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.
Expert 70-80% of maximum heart rate		Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet

The equipment is equipped with 4 support feet. If the equipment is not stable, the support feet can be adjusted.

1. Turn the support feet as required to put the equipment in a stable position.
2. Tighten the locknuts to lock the support feet.

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position. With the leg almost straight, the arch of the foot must touch the pedal at its furthermost point.

1. Raise the seat adjustment lever.
2. Move the seat to the required position.
3. Lower the seat adjustment lever.

Adjusting the backrest height

1. Loosen the backrest height adjustment knob.
2. Move the backrest to the required position.
3. Tighten the backrest height adjustment knob.

Adjusting the backrest inclination

1. Loosen the backrest inclination adjustment knob.
2. Move the backrest to the required position.
3. Tighten the backrest inclination adjustment knob.

Adjusting the handlebar

The handlebar can be adjusted according to the height and the exercise position of the user.

1. Loosen the handlebar adjustment knob.
2. Move the handlebar to the required position.
3. Tighten the handlebar adjustment knob.

Adjusting the console

The console can be adjusted according to the height and the exercise position of the user.

1. Loosen the console adjustment knob.
2. Move the console to the required position.
3. Tighten the console adjustment knob.

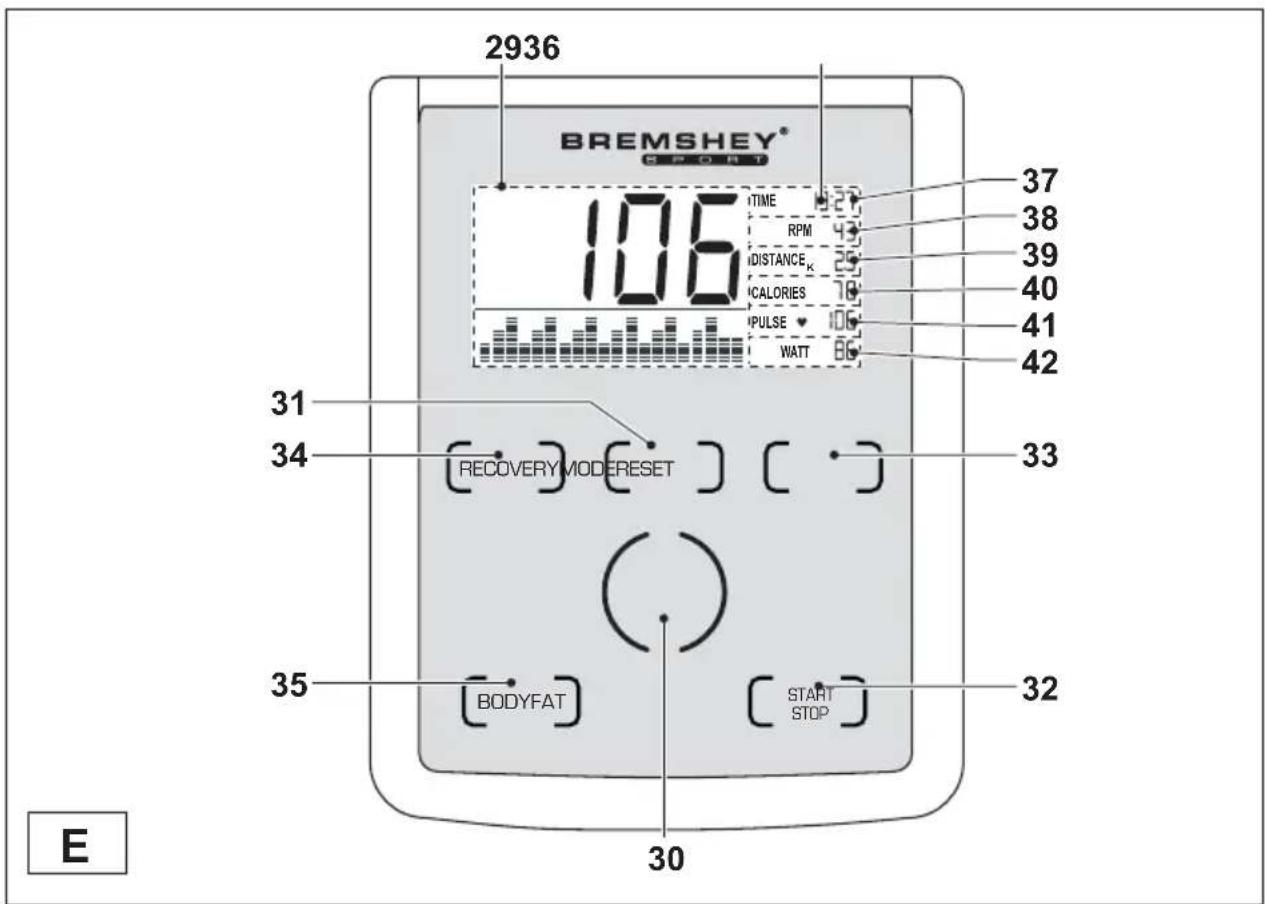

Console (fig. E)

29 Display

36 Menu

30 SELECTION dial

37 Menu item: TIME

31 MODE button

38 Menu item: SPEED/RPM

32 START/STOP button

39 Menu item: DISTANCE

33 RESET button

40 Menu item: CALORIES

34 RECOVERY button

41 Menu item: PULSE

35BODYFAT button

42 Menu item: LOAD WATT

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

• The console switches to standby mode when the equipment is not used for 4 minutes.

Explanation of buttons

Button Explanation
MODE Touch the button to	confirm your selection.
START/STOP Touch the button to start the training. Touch the button again to pause the training (max. 4 minutes). Touch the button again to continue the training. Touch and hold the button to stop the training.
RECOVERY Touch the button to calculate your recovery heart rate after a workout.
BODYFAT Touch the button to calculate your body mass index (BMI) and your body fat percentage.
RESET Touch the button to return to the menu. Touch and hold the button to reset the meter.

Explanation of menu items

Menu item Explanation
TIME Select the menu item	to set and show the duration(mm:ss) for the workout.
SPEED/RPM Select the menu	menu item to set and show the speed (km/h or mph) or the RPM (rev/min) for the workout.
DISTANCE Select the menu	item to set and show the distance (km or ml) for the workout.
CALORIES Select the menu	item to set and show the energy consumption (kcal) for the workout.
PULSE Select the menu item	to set and show the heart rate limit (bpm) for the workout.
LOAD WATT Select the menu	menu item to set and show the resistance (W) for the workout.

Before use

1. Turn the SELECTION dial to select a menu item.
2. Touch the MODE button to confirm.
3. Turn the SELECTION dial to change the value for the selected menu item.
4. Touch the MODE button to confirm.

During use

The menu constantly shows the values for the menu items. The different values flash on the display one after another every 6 seconds.

1. Touch the MODE button to stop automatic scanning of the values for the different menu items.
2. Touch the MODE button as many times as required to show information for a specific menu item.

Selecting a user

If you use the equipment for the first time or after you reset the meter, the user menu is shown on the display. Personal training data - time, distance, energy consumption and heart rate limit - are memorized and recalled when the user is selected. Modified personal training data are memorized automatically.

1. Turn the SELECTION dial to select a user. Touch the MODE button to confirm.
2. Turn the SELECTION dial to set your sex. Touch the MODE button to confirm.
3. Turn the SELECTION dial to set your age. Touch the MODE button to confirm.
4. Turn the SELECTION dial to set your height. Touch the MODE button to confirm.
5. Turn the SELECTION dial to set your weight. Touch the MODE button to confirm.

NOTE

• If you set target values, an alarm will sound and the training stops automatically when a specific target value reaches zero. You can restart the training by touching the START/STOP button.

Program menu

A program menu is shown on the display after selection of a user.

• Turn the SELECTION dial to select one of the programs.

Manual Program (MAN)

1. Turn the SELECTION dial to set the time. Touch the MODE button to confirm.
2. Turn the SELECTION dial to set the distance. Touch the MODE button to confirm.
3. Turn the SELECTION dial to set the energy consumption. Touch the MODE button to confirm.
4. Turn the SELECTION dial to set the heart rate limit. Touch the MODE button to confirm.
5. Touch the START/STOP button to start the workout. If you have set target values, the values start to count down.
6. Manually change the resistance during the workout: Turn the SELECTION dial to set the resistance. Touch the MODE button to confirm.

Preset Programs (PROG)

The user can select one of the preset programs on the display.

1. Turn the SELECTION dial to select the required preset program.

2. Set the time, the distance, the energy consumption and the heart rate limit as described in the section "Manual program".

3. Touch the START/STOP button to start the workout. If you have set target values, the values start to count down.
4. Manually change the resistance during the workout: Turn the SELECTION dial to set the resistance. Touch the MODE button to confirm.

User Program (USER)

The last used program profile is shown on the display.

1. Touch the START/STOP button to start the workout with your memorized personal training data.
2. Set the time, the distance, the energy consumption and the heart rate limit as described in the section "Manual program".
3. Touch the START/STOP button to start the workout. If you have set target values, the values start to count down.
4. Manually change the resistance during the workout: Turn the SELECTION dial to set the resistance. Touch the MODE button to confirm.

To modify a program:

1. Turn the SELECTION dial to select a bar in the program profile. Touch the MODE button to confirm. The bar starts to flash.
2. Turn the SELECTION dial to change the value. Touch the MODE button to confirm.
3. Repeat the above steps for other bars in the program profile.
4. Touch and hold the MODE button for 2 seconds to complete the modification of the program.

Heart Rate Control Program (H.R.C.)

1. Turn the SELECTION dial to select one of the workout intensities: (55%, 75%, 90% or TARGET).
2. If you select TARGET, insert the target heart rate.
3. Touch the START/STOP button to start the workout. If you have set target values, the values start to count down.
4. The resistance is adjusted automatically, so that your heart rate target will be reached and maintained.

Constant Watt Program (WATT)

1. Turn the SELECTION dial to set the target resistance. Touch the MODE button to confirm.
2. Set the time, the distance, the energy consumption and the heart rate limit as described in the section "Manual program".
3. Touch the START/STOP button to start the workout. If you have set target values, the values start to count down.
4. The resistance is adjusted depending on your speed, so that your target resistance will be reached and maintained.
5. Manually change the target resistance during the workout: Turn the SELECTION dial to set the resistance. Touch the MODE button to confirm.

Recovery

The recovery heart rate can be calculated after a workout. The recovery heart rate can only be calculated if the heart rate measurement is activated and the heart rate is shown on the display. The recovery heart rate can range from F1 to F6. F1 is the best recovery heart rate.

1. Touch the RECOVERY button. After 60 seconds, the display shows the recovery heart rate.
2. Touch the RECOVERY button again to go back to the main menu.

Body fat

1. Touch the BODY FAT button.
2. Hold both hands on the handgrips for 8 seconds. Make sure that your hands are constantly touching the hand pulse sensors. The display shows the body mass index (BMI) and the body fat percentage.
3. Touch the BODY FAT button again to go back to the main menu.

Metric system Imperial system

For speed and distance, metric units or imperial units can be used as default units of measurement.

1. Locate the KM/ML switch on the rear of the console.
2. Move the KM/ML switch to "KM" to use the metric system as the default system of measurement.

3. Move the KM/ML switch to "ML" to use the imperial system as the default system of measurement.

4. Wait until the display switches off and touch the RESET button to apply the changes.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Before cleaning and maintenance, remove the adapter.

• Do not use solvents to clean the equipment.

• Clean the equipment with a soft, absorbent cloth after each use.

• Regularly check that all screws and nuts are tight.
• If necessary, lubricate the joints.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

1. If the equipment does not function properly, immediately contact the dealer.
2. Provide the model number and the serial number of the equipment to the dealer.

State the nature of the problem, conditions of use and purchase date.

Transport and storage

WARNING

• Before transport and storage, remove the adapter.

• Carry and move the equipment with at least two persons.

• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Lift the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.

• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.

• Store the equipment in a dry place with as little temperature variation as possible.

Technical data

Parameter Unit of	measurement	Value
Length cm	inch	176 70
Width cm	inch	66 26
Height cm	inch	125 49
Weight kg	lbs	61 135
Max. user weight kg	lbs	135 300
Adapter
Voltage	V	6
Current	mA	500

Warranty

The product has a warranty from the date of delivery (to be documented by invoice or delivery note). Further information on warranty terms can be obtained from your local dealer. The warranty terms may vary from one country to another. Damages caused by normal wear, overloading or improper handling are excluded from the warranty. Damages caused by material or manufacturing faults are covered by the warranty and will repaired or replaced at no cost.

Declaration of the manufacturer

Accell Fitness Division BV declares that the product is in conformity with the following standards and directives: EN 957 (HA), 89/336/EEC. The product therefore carries the CE label.

04-2011

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2011 Accell Fitness Division BV

All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.

LIEGERAD

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Niederlande

Haftungsausschluss

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Nederland

Disclaimer

© 2011 Accell Fitness Division BV

Programme manuel (MAN)

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2011 Accell Fitness Division BV

Programa manual (MAN)

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Paesi Bassi

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

© 2011 Accell Fitness Division BV

Allarattigheterforbehalla.

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslauseke

© 2011 Accell Fitness Division BV

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

N2C 2E4

Kitchener, ON Canada

Tel: [phone]

Fax: [phone]

For contact information for other countries check our website:

www.accellfitness.com

www.bremshey.com
