DCO365B - Electric can opener BESTRON - Free user manual and instructions

Product type	Electric can opener
Brand	Bestron
Model	DCO365B
Nominal power	50 W
Supply voltage	230 V ~ 50 Hz
Main functions	Can opener, bottle opener, knife and scissors sharpener
Maximum can capacity	125 mm diameter
Opening	By motorized lever with magnetic lid holder
Maintenance and cleaning	Clean with a damp cloth; removable lever hand washable
Safety	Stops when lever is released; do not use for pressurized cans
Usage type	Household
Warranty	60 months (5 years)
Included accessories	Removable lever, sharpener, integrated bottle opener
Cord storage	Compartment at the back of the appliance
Repairability	BESTRON after-sales service

Frequently Asked Questions - DCO365B BESTRON

How to install the can opener lever?

Align the cams of the lever with the notches on the appliance, then slightly lower the lever to the right until it clicks into place. It should snap into place with a slight drop.

What type of cans can the appliance open?

The appliance is suitable for opening cans with a maximum diameter of 125 mm. Do not use the appliance for pressurized cans or those containing flammable liquids.

How to use the knife and scissors sharpener?

Remove the storage cover, place the sharpener in the notches and turn it a quarter turn until it clicks. Insert the blade into the appropriate slot, lower the lever to start the appliance, then slide the blade slowly.

How to clean the appliance?

Unplug the appliance. Remove the lever by pivoting it fully to the left. Clean the body with a damp cloth and the lever with a dish brush and a little detergent. Never put the appliance in the dishwasher and do not immerse the cord or plug.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified technical service. Do not attempt to repair the appliance yourself.

How to open a bottle with this appliance?

Place the bottle at an angle against the bottle opener, with the cap rim hooked behind the edge. Hold the appliance with one hand on top and lift the bottle to remove the cap.

Can the appliance be used by children?

No, this appliance must not be used by children or persons with limited abilities without supervision. Keep the appliance out of reach of children and ensure they do not play with it.

How to store the power cord?

The cord can be wound into the storage space provided for this purpose at the back of the appliance.

What to do in case of breakdown?

Contact BESTRON after-sales service. Never send the appliance without prior instructions. The contact details are in the manual.

How to remove the lid after opening?

The lid is held by a magnet in the lever. Gently raise the lever, grasp the can, then immediately remove the lid from the magnet, being careful of sharp edges.

USER MANUAL DCO365B BESTRON

Abstract black arrow symbol pointing right, no text or symbols present

BESTRON®

DCO365B

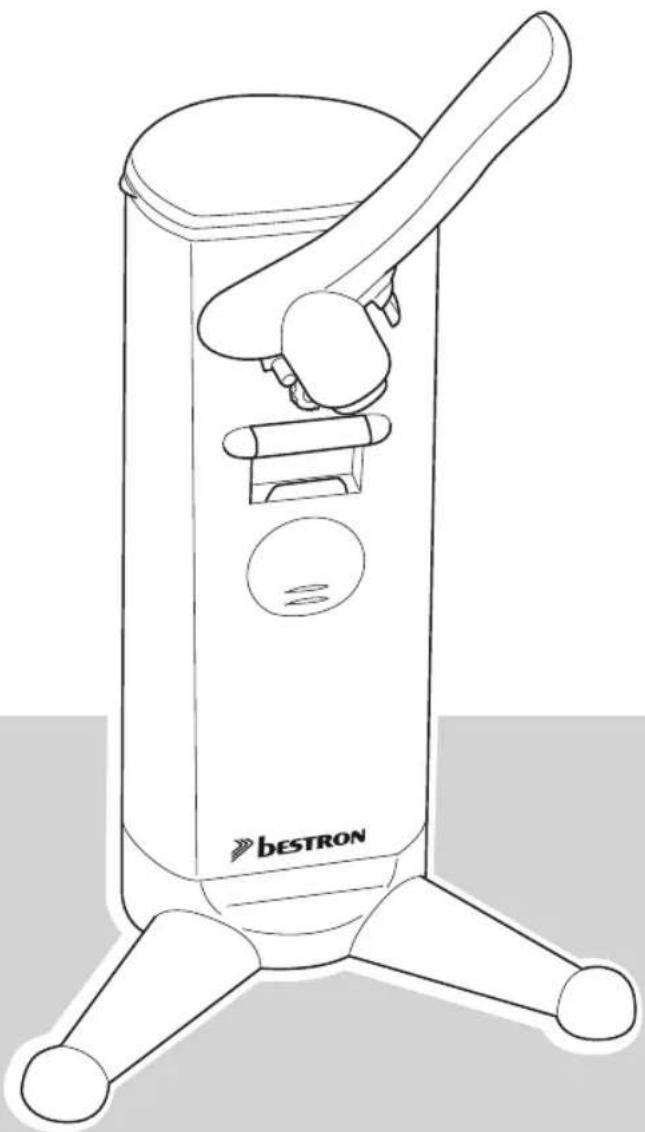

Line drawing of a BESTRON device with three legs and handle, no text or symbols present

Nederlands	Gebruikershandleiding multifunctionele opener
Deutsch	Gebrauchsanweisung Multifunktionsöffner
Français	L'ouvre-boîte multifonctions, mode d'emploi
English	User's instructions, multifunctional opener
Italiano	Apriscatole multifunzione - Istruzioni per l'uso
Español	Manual del usuario - Abrelatas multifunción

Line drawing of a portable device with a lever and handle, no text or symbols present

Line drawing of a bestmon vacuum cleaner with a lever and fan (no text or symbols)

Line drawing of a bestiron device with a lever and directional arrows (no text or symbols)

• Directive EMC 2004/108/EC

Congratulations on the purchase of your multifunctional opener. This electrical opener opens various sizes and types of can. In addition, with this appliance you also have a bottle opener, an electric knife and scissor sharpener, a handy storage space for the sharpener and a storage space for the cord. The appliance is easy to clean, thanks to the removable can opener handle.

! Safety instructions

General

• Please read these instructions carefully and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Electricity and heat

• Make sure that the mains voltage is the same as that indicated on the type plate on the appliance before use.
  • Always remove the plug from the wall socket when the appliance is not in use.
  • Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Regularly check the appliance's power cord to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
• Make sure that the appliance, the power cord or the plug do not come into contact with heat sources, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord or the plug do not come into contact with water.

Use

• Do not use this appliance to open any cans whose contents are pressurized.
• Do not use this appliance to open any cans with flammable contents, such as cigarette lighter fluid.
• Never use the appliance outdoors. • Never use the appliance in humid rooms.
• Place the appliance on a stable and flat surface where it cannot fall over.
• Do not let the power cord hang over the edge of the draining board, worktop or table.
  • Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Avoid contact with the rotating parts of the appliance.
• Switch the appliance off before changing any parts or accessories.
• Do not touch the appliance if it has fallen into water. Remove the plug from the plug socket immediately. Do not use the appliance anymore.
• Only use accessories specifically intended for this appliance.
• Clean the appliance thoroughly after use (see 'Cleaning and maintenance').
  • The appliance and its parts are dishwasher-proof unless stated otherwise.
  • Never immerse the appliance, the power cord or the plug in water or any other liquid
  • This appliance may not be used through an external timer or by means of a remote control.

Operation

General

The appliance is only intended for domestic use, not for professional use.

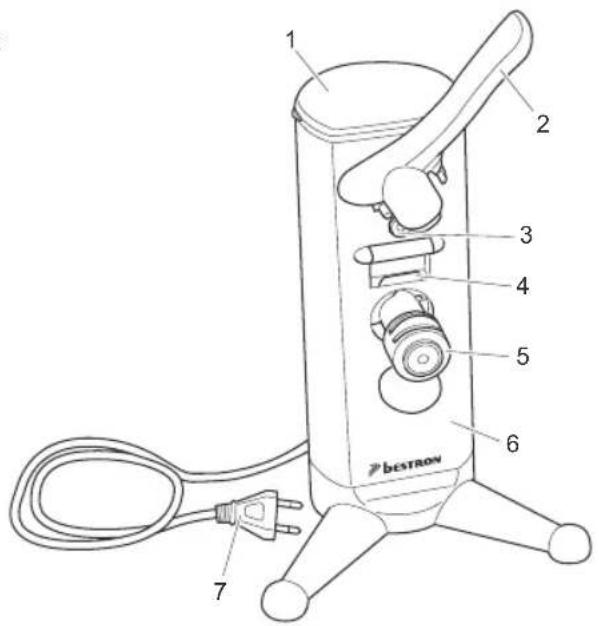

Figure 1

1. Cover for accessory storage
2. Can opener handle
3. Can opener drive wheel
4. Bottle opener
5. Knife and scissor sharpener
6. Housing
7. Power cord with plug

Using for the first time

1. Take the appliance and the accessories out of the packaging and remove all the packaging materials.
2. Clean the appliance before using it for the first time (see 'Cleaning and maintenance').

Use of the appliance

1. Place the appliance on a stable and flat surface where it cannot fall over.
2. Put the plug in the wall socket. If you are no longer using the appliance, remove the plug from the wall socket.
3. Clean the appliance after use according to the instructions in 'Cleaning and maintenance'.
4. Store the appliance.

Line drawing of a portable device with a lever and directional arrow (no text or symbols)

Opening a can

1. Place the can opener handle in the appliance by pushing the shaft of the handle into the hole with two grooves until the handle turns slightly clockwise and engages.

Figure 2 Positioning the can opener handle

1. Clean the top of the can to be opened.
2. Position the can vertically under the handle against the appliance with the edge of the can on the drive wheel.
3. Switch the appliance on by pushing the handle downwards.
4. Hold the handle until the can has made a full turn and the top of the can has come free. The top is held by the handle magnet.
5. Carefully allow the handle to raise and grasp the can immediately with your other hand.
6. Place the can out of the way on a level surface.
7. Remove the top of the can immediately from the magnet to prevent injury. Be careful of the sharp edges!

Note The appliance is suitable for cans with a diameter up to a max. 125mm.

Sharpening knives and scissors

1. Remove the cover of the accessories storage compartment and remove the knife and scissor sharpener.
2. Carefully press the stripes on the underside of the cover plate so that it comes free.
3. Remove the cover plate and let it hang downwards.

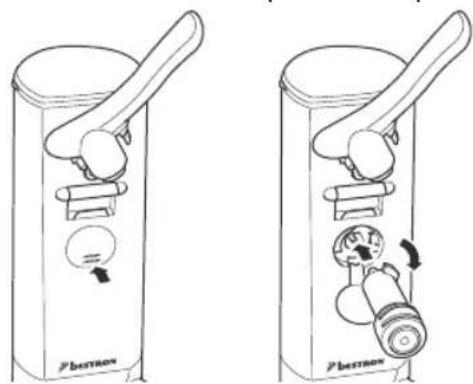

Figure 3 Positioning the knife and scissor sharpener

1. Position the knife and scissor sharpener with the shaft in the grooves of the hole and turn the sharpener a quarter turn clockwise until it clicks into position.
2. The sharpener has two grooves, one for the left side and one for the right cutting side of the knife or scissors. Position a knife or a pair of scissors with the cutting edge downwards in a groove in the knife and scissor sharpener.
3. Press the can opener handle inwards to operate the appliance.
4. Move the knife or scissors slowly with the whole cutting edge through the groove.
5. Release the handle again to stop the appliance.
6. Remove any remaining metal shavings from the knife or scissors with a cloth.

Note Test the sharpness of the knife or scissor with a vegetable or a piece of fruit or something similar, but not with your hands.

Opening bottles

1. Use the bottle opener to open bottles with a cap. Tilt the bottle against the bottle opener with the cap against the raised edge of the opener.
2. Place your other hand on top of the appliance to keep it balanced.
3. Remove the cap by tilting the bottle slightly upwards.

Cleaning and maintenance

1. Ensure the plug has been removed from the wall socket.
2. Remove the handle from the can opener. To do this, turn the handle anti-clockwise as far as possible and pull it carefully out of the appliance.
3. Clean the appliance with a damp cloth and then dry it.
4. Clean the can opener handle with a brush and soapy water.

Note The appliance and its parts are not dishwasher-proof.

Note You can stow the cord in the handy compartment at the rear of the appliance.

Technical details

Type: DCO365B

Output: 50W

Power supply: 230V \~ 50Hz

The environment

• Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.
• When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.
• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

Warranty terms

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:
   a. Accidents, incorrect use, wear and/or neglect.
   b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
   c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.
7. No claims may be made under this warranty for:
a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.
8. The guarantee does not cover power cords, lamps or glass parts.
9. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
10. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
11. This appliance is not suitable for professional use.

Service

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

BESTRON SERVICE

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE Declaration of conformity

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC

• Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

Line drawing of a portable device with a lever and handle, no text or symbols present

Line drawing of a bestmon vacuum cleaner with a lever and handle, showing airflow direction (no text or symbols)

_

| _

一

1

Line drawing of a cylindrical device with three legs and a handle, labeled 'Flume' at the base (no other text or symbols)

BESTRON®

DCO365B

v 100818-03
