Technical Features	Tripp Lite U280005ST battery charger, compatible with multiple types of batteries.
Supported Battery Types	AA, AAA, C, D, 9V, NiMH, NiCd batteries.
Charging Capacity	Up to 2800 mAh for AA batteries.
Charging Time	Approximately 4 to 8 hours depending on the battery type.
Usage	Ideal for recharging rechargeable batteries at home or in the office.
Maintenance	Regularly clean the charging contacts to ensure a good connection.
Safety	Protection against overcharging and short circuits.
General Information	Compact and lightweight, easy to carry.

Frequently Asked Questions - U280005ST Tripp Lite

How can I tell if the Tripp Lite U280005ST charger is working properly?

Check that the power indicator light turns on when the charger is plugged in. If the light does not turn on, try changing the outlet or cable.

What should I do if the charger does not charge my batteries?

Make sure the batteries are correctly inserted into the charger. Also check that the batteries are compatible with the U280005ST model.

The charger emits excessive heat during use, is this normal?

Slight warming is normal, but if the charger becomes very hot to the touch, unplug it immediately and contact customer service.

Can I use the U280005ST charger with batteries from different brands?

Yes, as long as the batteries are of a compatible type, the charger can work with different brands.

How do I clean the Tripp Lite U280005ST charger?

Unplug the charger, then use a soft, dry cloth to clean the exterior. Do not use water or chemicals.

Does the charger come with a warranty?

Yes, the Tripp Lite U280005ST generally comes with a limited warranty. Check the manual for more details.

How can I return the product if I am not satisfied?

Check the return policy of the seller where you purchased the charger and follow the instructions for the return.

Is it possible to use the charger while it is charging?

It is recommended not to use the charger while it is charging to avoid any risk of overheating or damage.

Where can I find the user manual for the Tripp Lite U280005ST?

The user manual is usually included in the packaging, but you can also download it from the Tripp Lite website.

Is the charger compatible with lithium-ion batteries?

Check the specifications of the batteries you are using. The Tripp Lite U280005ST is designed for specific types of batteries, so ensure compatibility.

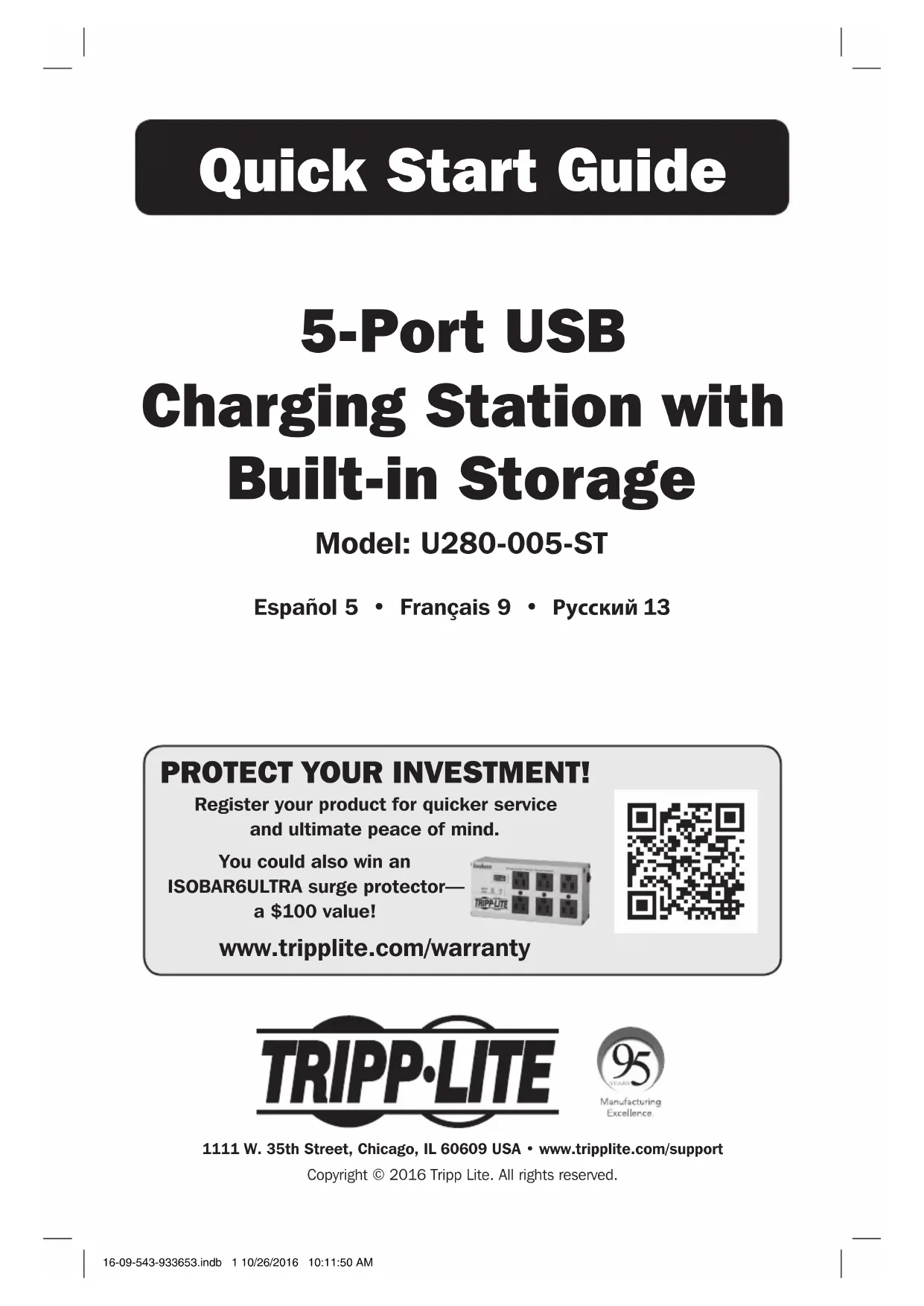

USER MANUAL U280005ST Tripp Lite

5-Port USB Charging Station with Built-in Storage

Model: U280-005-ST

Espanol 5 • Français 9 • Pycckn 13

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Copyright © 2016 Tripp Lite. All rights reserved.

Product Features

• Provides up to 5V, 2.4A of power per port
• USB Battery Charging (BC) Specification 1.2 compliant
• Removable brackets allow customization of unit's storage space according to number and size of devices being charged
• Doubles as a USB charger and storage device, providing space to neatly organize devices as they charge and to store divider brackets and power supply when charging is finished
• Provides overheating, overcurrent and overvoltage protection

Package Contents

U280-005-ST USB Charging Station with 5 Ports
- External Power Supply (Input: 100V-240V, 50/60Hz, 1.5A; Max Output: 12V, 4A)
C7 to 1-15P Power Cord, 5 ft. (1.5 m)
- Removable Storage Brackets (x 7)
- Quick Start Guide

Optional Accessories

M100-Series USB to Lightning® Cables
M110-Series USB to Apple® 30-Pin Cables
P012-006:C7 to 1-15P Power Cord, 6 ft.
U030-Series USB 5-Pin Mini-B Cables
- URO30-Series Reversible USB 5-Pin Mini-B Cables
- URO50-001-24G 24 AWG Reversible USB 2.0 Micro-B Cable, 1 ft.
- UR050-003-24G 24 AWG Reversible USB 2.0 Micro-B Cable, 3 ft.
- UR050-006-24G 24 AWG Reversible USB 2.0 Micro-B Cable, 6 ft.
- UR05C-Series 20 AWG Reversible USB Micro-B Charging-Only Cables
U326-Series USB 3.0 Micro-B Cables

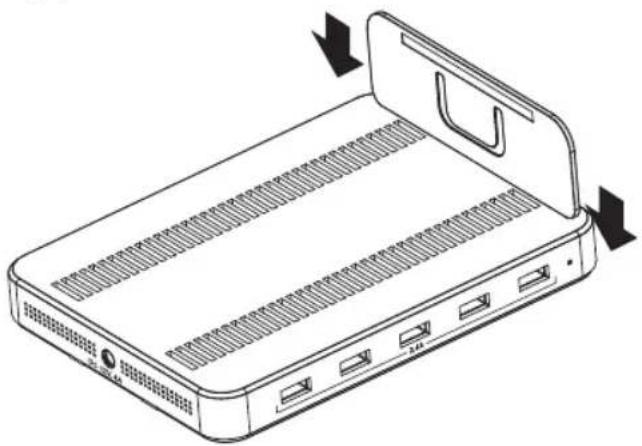

Removable Storage Brackets

Customize the unit's storage space according to the number and size of devices being charged. To install, simply insert a storage bracket into the desired slots.

USB Charging

To charge USB devices, simply connect the included external power supply and power cord to the U280-005-ST and to a power source, then plug devices into the available ports. The five USB-A ports provide a maximum of 5V, 2.4A of power.

Specifications

Ports
USB USB-A (Female x 5)
Protection
Overcurrent YES
Short Circuit YES
Overheating YES
Overvoltage YES
Environmental
Operating Temperature 41° to 95°F (5° to 35°C)
Operating Humidity 20-80%
Storage Temperature -4° to 122°F (-20° to 50°C)
Power Requirements
Power Input 100-240V, 50/60Hz, 1.5A
USB-A Port Power Output Up to 5V, 2.4A per port
Mechanical
Dimensions (H x W x D) 6.6 x 4.9 x 2.6 in. / 16.8 x 12.5 x 6.6 cm
Weight 1.5 lbs. / .68 kg
Regulatory Approvals CE, FCC

Warranty and Product Registration

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU · www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU · www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Supports de stockage amovibles

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

5-noptoBaj 3apdHa CTaHcNya (USB)

CO BCTpoeHHbIM

приссесобленьем дя

XpaHeHna 3apJkaembIX

yctpoiCTB

Modèle: U280-005-ST

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

OxpaHReTcA ABTopckn m npabom © 2016 Tripp Lite. Nepeneuatka zanpeaetcra.

XapakTepeNCTnKn npOdykTa

• 06ecneuBaet 3JeKtpOnnTaHne do 5 B / 2,4 A ha kaKdIb nOpT USB-A
• CoOTBeTCTByET Tpe6oBaHnIaM BepcN 1.2 K 3apJKe 6aTapei uepe3 pa3bem USB
  CbeMHbIe KPOHHTeINHbIOBecneuHBaOT BO3MOXHOCTb peRyINpOBKN OBeMa npocTpaHCTBa InJa XpaHEnHa NOD KOJIInueCTBO IN pa3Mep 3apJxAeMbIX yCTPOHCTB
  BbnoHnaretboHyu yHKcuiK kak 3apdHoe ycTpoiCtBO USB u ycTpoiCtBO xpaHeHn, oBeceuHBa npocTpaHCTBO dnyyopraOyeHHoro pa3MeueHn yctPoIcTB BO BpeM 3apdKn i XpaHeHn pa3deJIteIbHbIX depXaTeIeN n NCTOCHNk a NITAHN IocNe 3aBepSeHn 3apdKn
• 06ecneuBaet 3aunty ot neperpeBa, neperpy3ok no TOKy n nobblueHHbIX HanpiaeHn

Copexnmoe ynaKOBKn

3apndna ctaunia nla USB-yctrob mo. U280-005-STc 5 nopTaMn
BHeuHn HcToUHnK nTaHnB (BxoD: 100-240 B, 50/60 T, 1,5 A BbXoD: do 12 B, 4 A)
- UHyp ПИТАпЯДПИНОМ 1,5 М с раЗБЕмAMN C7 / 1-15P
- CbemHbIe KpoHHTeINHbI JIJI xpaHeHn (7 wT.)
KpaTkoe pykoBoIDCTBO nOJIb3OBaTeJRA

OnuHbHbIe KOMnJIekTyOuIne

• Ka6eIi cepnn M100 c pa3bemamn USB / Lightning
• Ka6eIncepnn M110 cpa3bemamn USB / Apple® 30-koHT.
  P012-006: shHyp nHTaHnI dIHHoI 1,8 M c pa3bemamn C7 / 1-15P
• Ka6eIncepn U030 c pa3bemamn USB 5-koHT. Mini-B
• Ka6eIi cepn UR030 c dByctOpOHHm pa3bEmaMn USB 5-koHT. Mini-B
• Ka6eIb UR050-001-24G 24 AWG dIHHoN 0,3 M c DBycToPOHHm pa3beMaMn USB 2.0 Micro-B
• Ka6eIb UR050-003-24G 24 AWG dIHHoN 0,9 M c DBycTOpOHnMn pa3beMaMn USB 2.0 Micro-B
• Ka6eIb UR050-006-24G 24 AWG dIHHo1,8 M c DBycTOpOHmM pa3beMaMn USB 2.0 Micro-B
• Kaßelen cepini UR05C 20 AWG c dBvctopohnmu pa3bemamn USB Micro-B (TOlbko Дпя зараздки)
  Ka6eIncepnU326cpa3bemamnUSB3.0 Micro-B

CbeMHbIe KpoHwTeiHbI dIЯ XpaHEnHa

ObecneuBAOT BO3MOXHOCbpeyIINPOBKn Osbema npoctpaHCTBa IpaHeHnnoKoJIueCTBO n pa3Mep 3apJXAeMbIX yctpoiCTB Ipynx yctAHOBKn cJeNyET npocTo BCTaBNTbKPOHTeH B HxHbIe npope3n.

3apяdka USB-устpoиctВ

ДяЗрдк USB-усторсВСпдуET npocTo NOKIOHHT BxOJaUe B KOMNKeT NOCTaBKN BHeHn NcTOHnK nITAHn I SHyP nITAHn K 3apdHO CTaHmU280-005-ST nNcTOHnky nITAHn, a 3aTeM NOKIOHtB 3apJXaEMbIe ySTPOICTBa K CBO6OHNbIM NOPTaM. 5 nOpTOB USB-A obecneuBAOT 3JIeKTPoINTaHne Do 5 B / 2,4 A.

TexHnueckne xapaKTepeNCTnKN
