| Product Type | Dual Wireless Fast Charging Stand |
| Brand | Tripp Lite |
| Model | U280-Q02FL-BK |
| Qi Compatibility | Yes, universal |
| Compatible Phones | Apple iPhone XS Max/XR/XS/X/8/8 Plus, Samsung Galaxy S10/S10+/S10e/S9/S9+/S8/S8+/Note9/Note8/S7/S7 Edge/S6 Edge Plus/Note5 |
| Output Power | 5W / 7.5W / 10W |
| Power Input | 12 V 2.5 A |
| Dimensions (L x W x H) | 19.5 x 9 x 1.2 cm |
| Weight | 143.5 g |
| Charge Through Case | Yes, up to 5 mm thick |
| Protection | Overheat and overload |
| LED Indicator | Two-color (blue for charging, green for error/overheat/foreign object) |
| Operating Temperature | 0 to 35 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 10 to 80% RH non-condensing |
| Warranty | 2-year limited |
| Package Contents | Charging stand, external power supply 12V 2.5A, quick start guide |
| Cleaning | With a soft, dry cloth |
| Repairability | No user-serviceable parts |
| Safety | Use only the included adapter; do not expose to water |
Frequently Asked Questions - U280Q02FLBK Tripp Lite
User questions about U280Q02FLBK Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery charger in PDF format for free! Find your manual U280Q02FLBK - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U280Q02FLBK by Tripp Lite.
USER MANUAL U280Q02FLBK Tripp Lite
Dual 10-Watt Wireless Fast-Charging Pad, Black
Model: U280-Q02FL-BK
Español 5 • Français 9 • Русский 13
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!
tripplite.com/warranty
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.

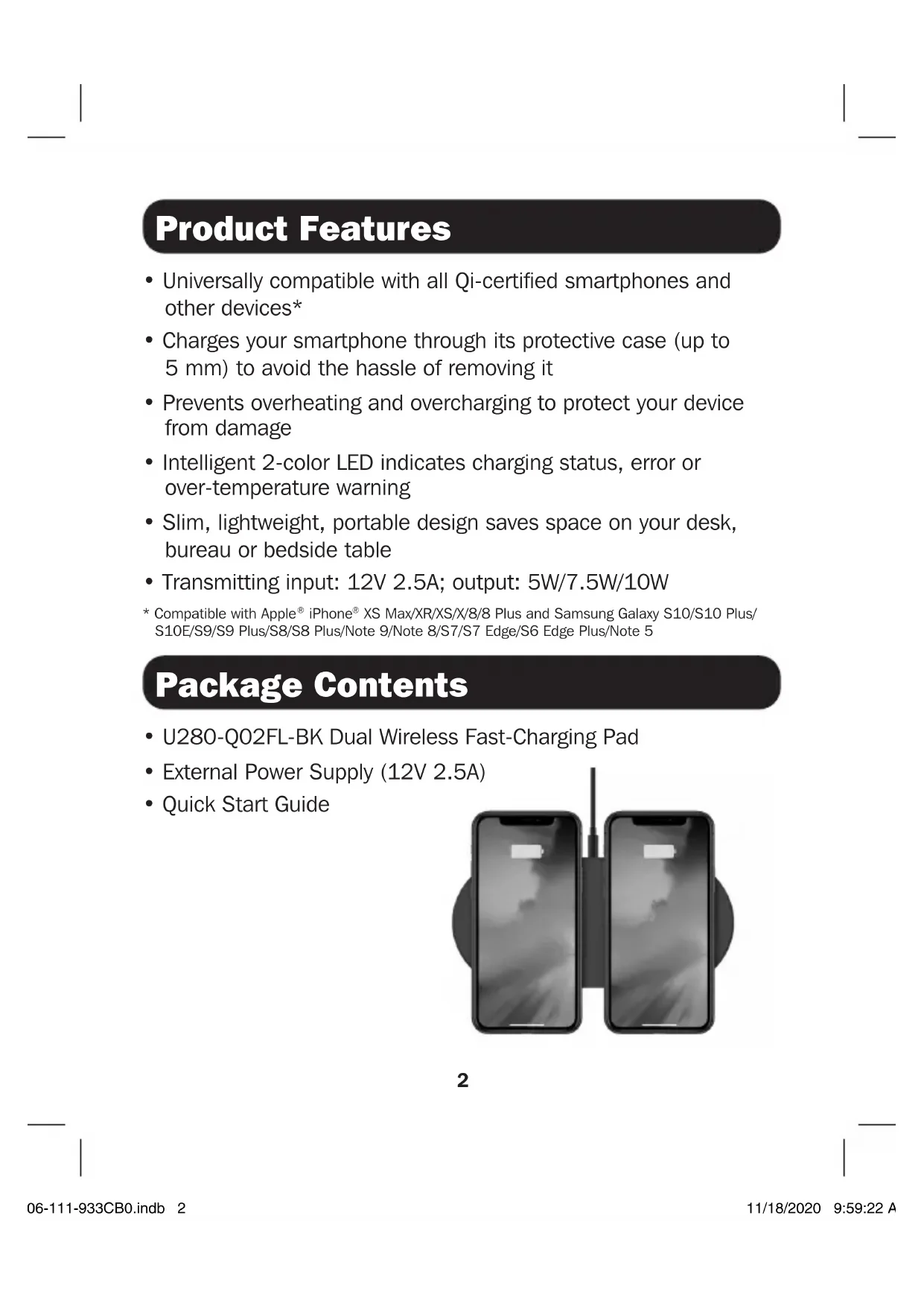

Product Features
- Universally compatible with all Qi-certified smartphones and other devices*
- Charges your smartphone through its protective case (up to 5 mm) to avoid the hassle of removing it
• Prevents overheating and overcharging to protect your device from damage - Intelligent 2-color LED indicates charging status, error or over-temperature warning
- Slim, lightweight, portable design saves space on your desk, bureau or bedside table
• Transmitting input: 12V 2.5A; output: 5W/7.5W/10W
* Compatible with Apple ^® iPhone ^® XS Max/XR/XS/X/8/8 Plus and Samsung Galaxy S10/S10 Plus/S10E/S9/S9 Plus/S8/S8 Plus/Note 9/Note 8/S7/S7 Edge/S6 Edge Plus/Note 5
Package Contents
• U280-Q02FL-BK Dual Wireless Fast-Charging Pad
• External Power Supply (12V 2.5A)
- Quick Start Guide

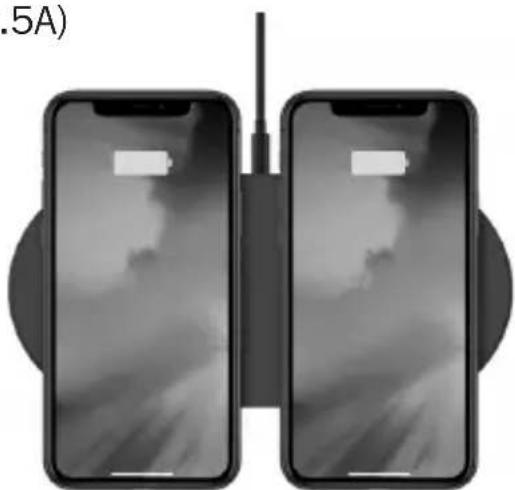

Operation
Notes:
• Phone cases thicker than 5 mm may result in slower charging speeds
- Magnetic or metal attachments will prevent charging
- Compatible with Apple iPhone XS Max/XR/XS/X/8/8 Plus and Samsung Galaxy S10/S10 Plus/S10E/S9/S9 Plus/S8/S8 Plus/Note 9/Note 8/S7/S7 Edge/S6 Edge Plus/Note 5
- Connect the included external power supply to the Dual Wireless Fast-Charging Pad. The intelligent LED will flash blue one time.
- Place your Qi-compatible device on the pad. The LED will flash continuously to indicate charging is in progress.*
- Remove your device from the pad when it is fully charged.
* The LED will flash green to indicate FOD (a foreign object), over-temperature protection or charging error.
Specifications
| Input 12V 2.5A | |
| Output 5V 1A (5W), 5V 1.5A (7.5W) or 9V 1.1A (10W) | |
| Qi Compatible Yes | |
| Switch Frequency 111K-205K | |
| Operating Temperature Range 32° to 95°F (0° to 35°C) | |
| Storage Temperature Range -4° to 158°F (-20° to 70°C) | |
| Operating Humidity Range 10% to 80% RH, Non-Condensing | |
| Storage Humidity Range 5% to 95% RH, Non-Condensing | |
| Size (H x W x D) 7.7 x 0.5 x 3.5 in. / 19.5 x 1.2 x 9 cm | |
| Weight 0.3 lb. / 143.5 g | |
Warranty and Product Registration
2-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of two (2) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
