USER MANUAL MBP3000 Mestic

Front view of a black electronic device with control buttons and an ALM RUN indicator (no text or symbols on the device itself)

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

Line drawing of a portable electronic device with control buttons and display screen (no text or symbols)

1

2

3

In de doos

1. Expansion battery pack
2. Expansion cable
3. Gebruikershandleiding

Parameters

Technical diagram showing two connected devices with power input and output ports, annotated with Chinese annotations.

Line drawing of a portable electronic device with control buttons and display screen (no text or symbols)

1

2

3

In the box

1. Expansion battery pack
2. Expansion cable
3. User manual

Parameters

General
Net weight 25,2kg
Dimension 536x270x255mm
Battery capacity 2560Wh; 51,2V	50Ah ---

Battery
Cell type Lithium iron phosphate (LiFePO4)
Life cycle 4000 cycles
Protection	Over temperature protection, low temperature protection, over discharge protection, over charge protection, over load protection, short circuit protection, over current protection

Operating temperature
Optimal operating temperature 20°C	~30°C
Discharge temperature range -20°C~45°C
Charge temperature range 0°C~45°C
Storage ambient temperature	-20°C~45°C (20°C~30°C preferred)

Note: Whether the product can be charged or discharged is subject to the actual battery pack temperature.

Safety instructions

1. Before using the expansion battery pack, please read this user manual to ensure understanding and proper use.
2. Do not place a working battery pack close to any heat source, such as fire or a heater.
3. Avoid allowing the battery pack to come into contact with any liquid.
4. Do not use the battery pack in a strong electrostatic or strong magnetic field environment.
5. Do not disassemble the battery pack in any way or pierce it with a sharp object.
6. Avoid short-circuiting the battery pack with wires or other metal objects.
7. It is forbidden to step on, sit, or climb on this product.

8. Do not use non-genuine parts or accessories. For part or accessory replacement, please visit the official sales channel for purchase information.

9. When using the battery pack, strictly follow the operating temperature defined in this user manual. If the temperature is too high, the battery may catch fire or even explode. If the temperature is too low, the battery pack's performance will be seriously impaired, and normal use may be impacted.

10. Do not stack heavy objects on the expansion battery pack, except the expansion battery pack.
11. Do not forcibly stop the fan or expose the battery pack to an unventilated or dusty environment when it is working.
12. Please avoid collisions, dropping, and violent vibrations. If a severe impact occurs, shut down the power supply immediately. Secure the battery pack firmly during transportation to prevent vibration and impact.
13. If the battery pack falls into water accidentally, place it in a safe and wide area, and keep yourself away from it until it's dry. The dried product is not to be used again. Dispose of it properly according to the discard instructions in this manual. If the battery pack is on fire, please use fire extinguishing equipment in the recommended order: water or water mist, sand, fire blanket, dry powder, carbon dioxide fire extinguisher.
14. If there is dirt on the battery pack, use a dry cloth to wipe it.
15. Place the battery pack carefully to prevent damage. If the battery pack is tipped over and seriously damaged, turn off the battery pack immediately, place the battery in a spacious area, keep it away from flammable materials and people, and discard it in accordance with the requirements of local laws and regulations.
16. Keep the battery pack out of the reach of children and pets.
17. Keep the battery pack in a dry and ventilated place.
18. Conditions permitting, be sure to discharge the battery completely, and then put the battery pack in the specified battery recycling bin.
19. The battery pack contains batteries, which are dangerous. It is strictly prohibited to discard them in ordinary dustbins. For details, follow local laws and regulations on battery recycling and disposal.
20. If the battery cannot be discharged completely due to a product failure, do not discard the battery directly in the battery recycling bin. Contact a professional battery recycling company for further disposal.

Warning

1. Do not overcharge the internal battery. See instruction manual.
2. Do not smoke, strike a match, or cause a spark in the vicinity of the battery pack.
3. Only charge the internal battery in a well-ventilated area.
4. CAUTION: Risk of electric shock. Connect only to properly grounded outlets.
5. CAUTION: Risk of injury to persons. Do not use this product if the power cord or the battery cables are damaged in any way.
6. CAUTION: Risk of electric shock. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
7. CAUTION: This device is not intended for use in a commercial repair facility.

Product overview

1. This product cannot be used alone. It needs to be used together with our 3000 W power station.
2. When combined with a 3000 W power station, the on/off function is controlled by the power button on the power station.
3. If this product is used alone, press the power switch button to display the current battery capacity. However, it cannot output power. It will automatically shut down after 2 minutes.

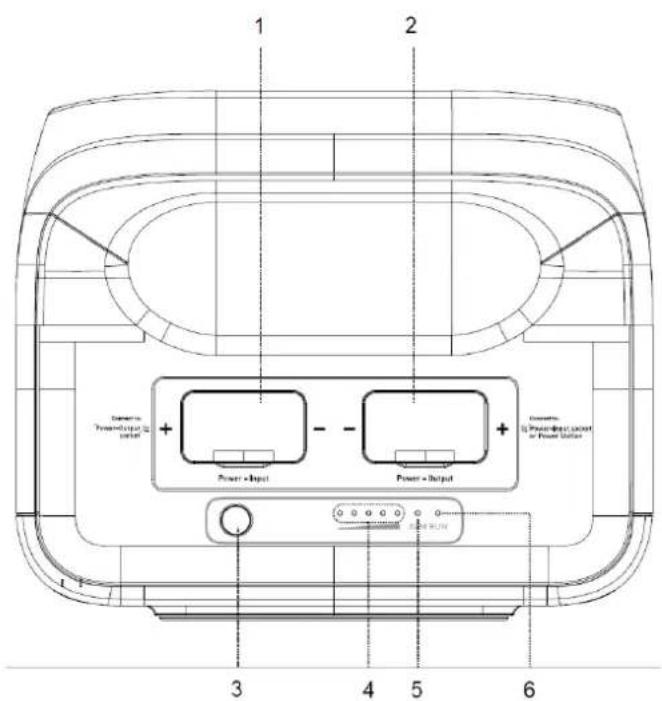

1 2 3 4 5 6 Dimension: Power+Input + - Power + Input + - Power + Output Duration: Power+Input or Power Input SINER RUN

1. Power input
2. Power output
3. Power button
4. Blue light SOC indicator
5. Red light Alarm indicator
6. Blue light Run indicator

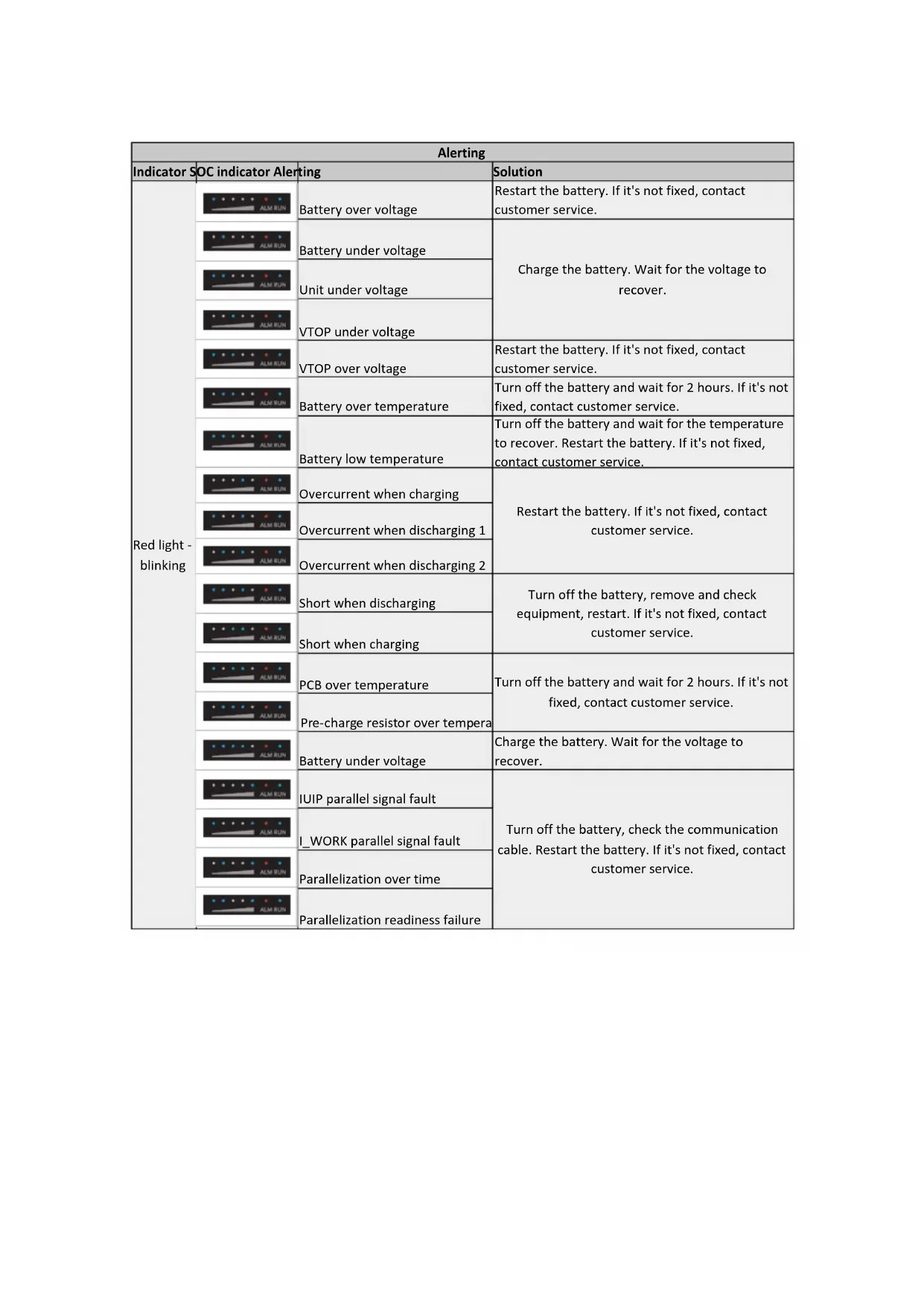

Alerting
Indicator SOC indicator Alerting			Solution
Red light - blinking		Battery over voltage	Restart the battery. If it's not fixed, contact customer service.
		Battery under voltage	Charge the battery. Wait for the voltage to recover.
		Unit under voltage
		VTOP under voltage
		VTOP over voltage	Restart the battery. If it's not fixed, contact customer service.
		Battery over temperature	Turn off the battery and wait for 2 hours. If it's not fixed, contact customer service.
		Battery low temperature	Turn off the battery and wait for the temperature to recover. Restart the battery. If it's not fixed, contact customer service.
		Overcurrent when charging	Restart the battery. If it's not fixed, contact customer service.
		Overcurrent when discharging 1
		Overcurrent when discharging 2
		Short when discharging	Turn off the battery, remove and check equipment, restart. If it's not fixed, contact customer service.
		Short when charging
		PCB over temperature	Turn off the battery and wait for 2 hours. If it's not fixed, contact customer service.
		Pre-charge resistor over tempera
		Battery under voltage	Charge the battery. Wait for the voltage to recover.
		IUIP parallel signal fault	Turn off the battery, check the communication cable. Restart the battery. If it's not fixed, contact customer service.
		I_WORK parallel signal fault
		Parallelization over time
		Parallelization readiness failure
Fault
Indicator	SOC indicator Alerting	Solution
Red light - always on		Battery voltage sampling wire broken	Restart the battery. If it's not fixed, contact customer service.
		MOS failure
		AFE communication failure
		EEPROM failure
		Voltage sensor failure
		Current sensor drift failure	Contact customer service.
		Main circuit fault
		Pre-charge over time	Restart the battery. If it's not fixed, contact customer service.
		Current sensor failure
		Dead battery
		Inverter communication failure	Turn off the battery. Check the communication cable. If it's not fixed, contact customer service.
		CAN bus failure
		RS485 bus failure
		Parallel address recognition failure
		Short circuit protection fuse circuit fault	Contact customer service.

Battery expansion

The power station supports connection with 6 expansion battery packs at the same time for larger capacity. Please refer to the user manual of the battery pack for details.

Note:

1. Before connecting the battery pack, please make sure both the power station and battery pack are off.
2. After the battery pack is connected, check if the battery icon is shown on the displays of both the power station and the battery pack.
3. While charging, please do not connect or remove the battery pack. If there is a need to connect or remove the battery pack, turn off the power station prior to using it.
4. Please do not touch the metal terminals. If there is foreign matter on the metal terminals, gently and carefully clean it with a dry cloth.

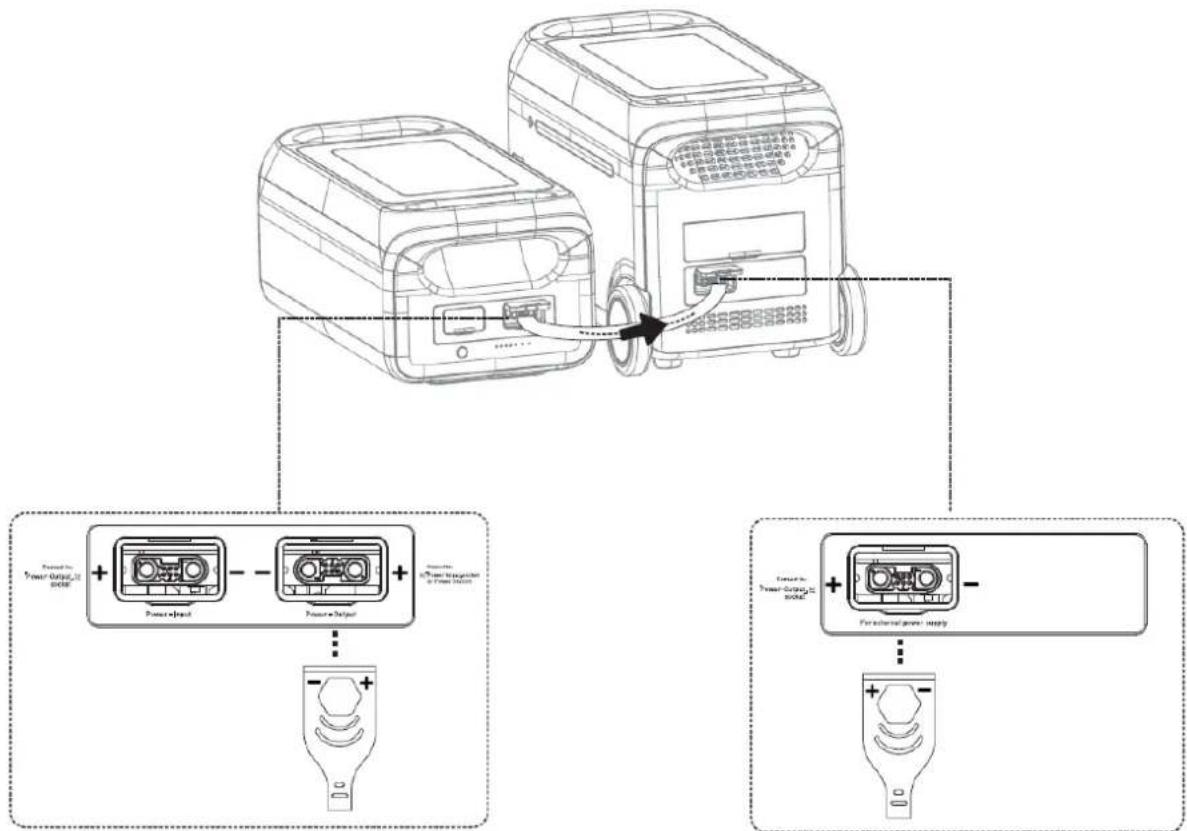

Parallel mode of the power station and 1 expansion battery pack:

1. Turn off the power station and the expansion battery pack.
2. Plug one end of the cable to the expansion port of the power station and the other and to the power output of the battery pack.
3. After parallel connection, press the power button of the power station to enable the power station and battery pack to show the current capacity. The power station shows the paralleled quantity, and capacity is expanded.
4. After parallel connection, connect ports of the power station for charging or discharging.

Technical diagram showing two devices connected to a power connector, with labeled ports and connections for power output and internal components.

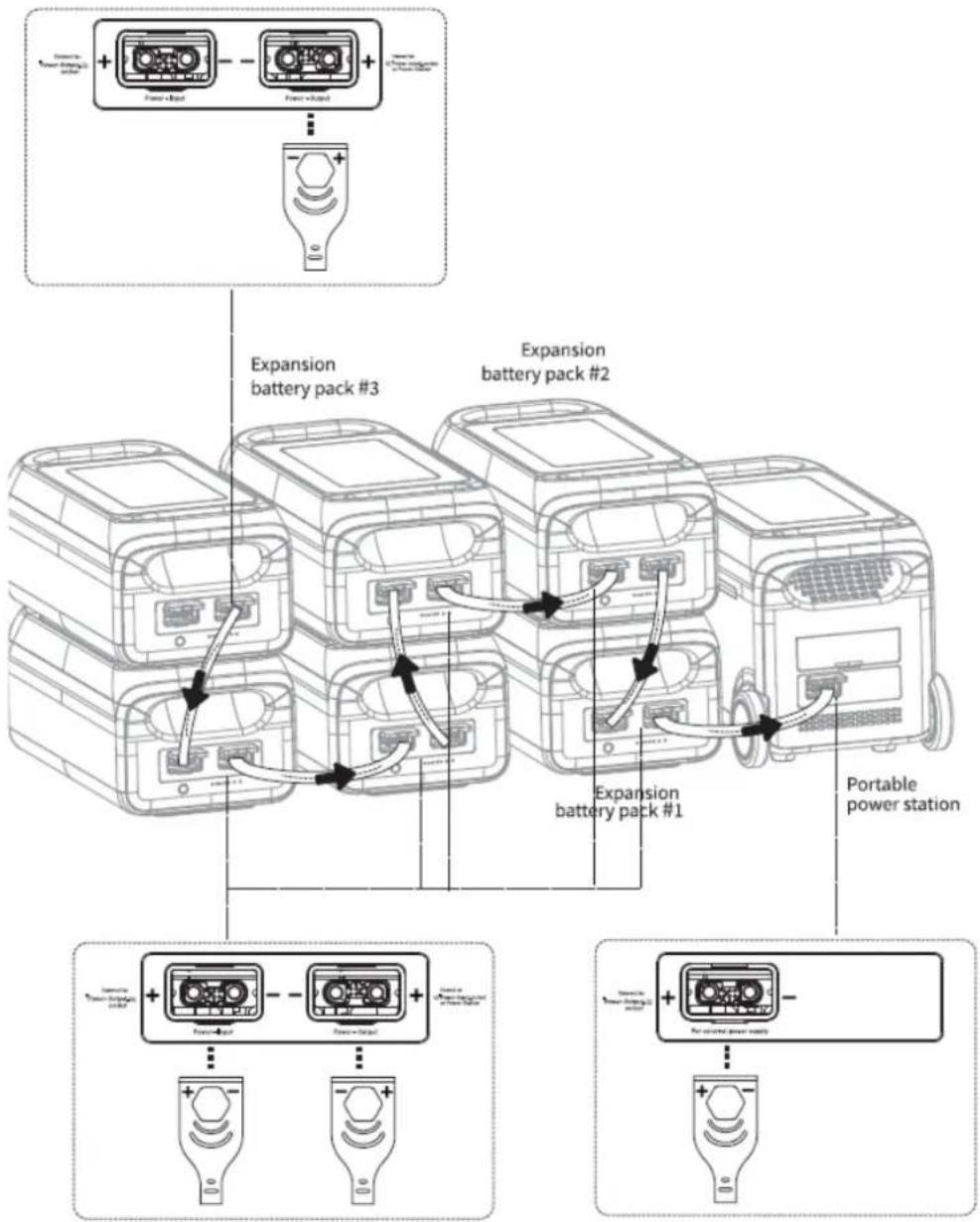

Parallel mode of the power station and multiple expansion battery packs:

1. Turn off the power station and expansion battery packs.
2. Plug one end of cable 1 To the expansion port of the power station and the other end to the power output of battery pack 1. Plug one end of cable 2 to the power input of battery pack 1 and the other end to the

power output of battery pack 2. Plug one end of cable 3 to the power input of battery pack 2 and the other end to the power output of battery pack 3. At most, 6 battery packs can be parallel connected.

1. After connecting, press the power button of the power station to enable the power station and battery pack to show their current capacity. The power station shows the paralleled quantity.
2. After parallel connection, connect the ports of the power station for charging or discharging.

Maintenance

1. It is recommended to use or store the expansion battery pack in an ambient temperature of 20\~30°C. Keep it away from water, heaters, and metal parts, and store it in a dry and ventilated place.
2. For long-term storage, charge and discharge every 3 months, i.e., discharge to 0% then charge to 100%.
3. For safety, do not store the expansion battery pack with a temperature above 45°C or below -10°C.
4. If the capacity is lower than 1%, please charge it to 60%. Long-term storage with a serious power shortage will cause irreversible damage to the cell and shorten the service life of the product.
5. If the capacity is seriously insufficient and idle time is too long, the product will enter deep sleep mode, and it can only be used after being charged.
6. After charging or discharging this product, wait for more than 30 minutes before using it.

Disclaimer

1. Before using the expansion battery pack, please read this user manual to ensure understanding and proper use. Keep the user manual for future reference. Improper operation may cause serious injury or result in product damage and property loss. By using the expansion battery pack, you are deemed to have understood and accepted all terms and contents herein. Users promise to be responsible for their actions and all consequences arising therefrom. The company shall not be liable for any loss arising from the user not following this user manual.
2. In compliance with laws and regulations, the manufacturer reserves the right of the final interpretation of this document and all related documents of this product. Subject to update, revision, or termination without prior notice, please visit the official website for the latest product information.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

DEUTSCH

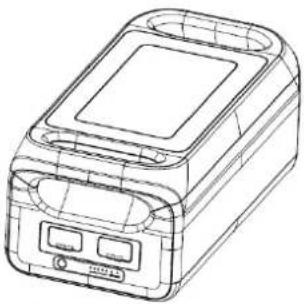

Line drawing of a portable electronic device with control buttons and display screen (no text or symbols)
