Technical Specifications	Model: SHX SHX301HEAT2022, Type: Electric Heater, Power: 3000 W, Voltage: 230 V, Frequency: 50 Hz
Usage	Ideal for heating spaces up to 50 m8, Quiet operation, Temperature adjustment
Maintenance and Repair	Regular filter cleaning, Annual professional inspection recommended, Replacement of worn parts
Safety	Overheat protection, Automatic shut-off in case of tipping, Certified compliant with current safety standards
General Information	Weight: 10 kg, Dimensions: 80 x 40 x 25 cm, Warranty: 2 years, Included accessories: remote control, user manual

Frequently Asked Questions - SHX301HEAT2022 SHX

How do I turn on the SHX SHX301HEAT2022 heater?

To turn on the heater, plug it into an electrical outlet, then press the power button located on the control panel.

What is the maximum heating power of the device?

The SHX SHX301HEAT2022 has a maximum heating power of 2000 watts.

How do I adjust the temperature on the heater?

Use the + and - buttons on the control panel to set the desired temperature between 15 0C and 30 0C.

Does the heater make noise during operation?

A slight noise may be normal during use, but loud noises may indicate a problem. In that case, contact customer service.

How do I clean the heater's filter?

Unplug the device, remove the filter located at the back, then clean it with lukewarm water and let it dry before putting it back in place.

Does the heater turn off automatically?

Yes, the SHX SHX301HEAT2022 is equipped with an automatic shut-off function after 12 hours of continuous use for safety reasons.

Is the heater equipped with a remote control?

Yes, the SHX SHX301HEAT2022 comes with a remote control for easy remote operation.

Can I use the heater in a bathroom?

No, it is not recommended to use the SHX SHX301HEAT2022 in damp areas such as bathrooms.

What should I do if the heater does not work?

First, check that the device is properly plugged in and that the outlet is working. If the problem persists, contact customer service.

What is the product warranty?

The SHX SHX301HEAT2022 is covered by a 2-year warranty from the date of purchase.

USER MANUAL SHX301HEAT2022 SHX

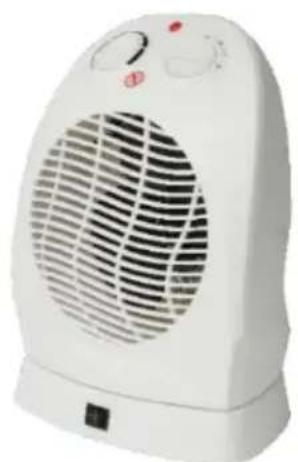

Fan Heater with Oscillating

CONGRATULATIONS!

THANK YOU FOR CHOOSING THIS PRODUCT FROM SHX.

This product is only suitable for well-insulated rooms or for occasional use.

TABLE OF CONTENTS

EN

Important information on safety, location and electrical connection

Recycling, disposal, declaration of conformity

Scope of delivery

Description of the unit

Location and connection

Commissioning and function

Protective devices

Cleaning and maintenance

Technical information

Required information on electric single room heaters

PLEASE READ THE OPERATING INSTRUCTIONS
CAREFULLY BEFORE STARTING ASSEMBLY,
INSTALLATION, OPERATION OR MAINTENANCE.
PROTECT YOURSELF AND OTHERS BY FOLLOWING
THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE AND/OR LOSS OF
WARRANTY COVERAGE!

Intended use

This appliance is intended for domestic space heating only and must not be used for any other purpose. The appliance may only be operated from 220-240 V AC/50-60 Hz (10/16A) earthed sockets.

IMPORTANT INFORMATION ON SAFETY, STANDARD AND ELECTRICAL CONNECTION

1. Use this appliance only in accordance with the guidelines in the instruction manual. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. This appliance is intended for domestic space heating only and must not be used for any other purpose.
3. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact your dealer.

4. Before connecting to the mains, you must check that the type of current and mains voltage correspond to the information on the appliance type plate.

5. The electrical socket in which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

6. Avoid using an extension cord as it could overheat and cause a fire.
7. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.
8. Do not twist or bend the power cable.
9. The appliance must not be placed directly under a wall socket. If in doubt, have your electrical installation checked by a qualified electrician.
10. It is forbidden to adapt or modify the characteristics of this appliance in any way. Use only spare parts and accessories recommended by the manufacturer (failure to do so may invalidate the warranty).
11. Do not use this heater if it shows visible signs of damage.
12. Always and only contact service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable.

13. This appliance must only be used by adults.

14. Children 3 years and younger than 8 years of age shall not turn the appliance on or off unless they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved, provided that the appliance is placed or installed in its normal position of use. Children aged 3 years and under 8 years shall not plug the appliance into the mains socket, regulate the appliance, clean the appliance and/or carry out user maintenance.

15. Do not leave the appliance unattended. If you leave the room, always switch off the appliance.
16. Do not use the appliance in small rooms where there are people who are not able to leave the room on their own, unless they are constantly supervised.
17. Children are not allowed to play with the appliance. Children under 3 years of age must be kept away from the unit unless you are supervised at all times.
18. Keep children away from packaging materials. Danger of choking if swallowed!
19. This appliance is not equipped with a device to control the room temperature.
20. The unit is not suitable for continuous and precision operation.

21. Do not use this heater if it has been dropped before.

22. This appliance is intended for dry indoor use only.

23. Do not use the unit near water or high humidity, e.g. in a damp basement, next to a swimming pool, bathtub or shower. Make sure that no water can enter the unit.

24. Do not use the appliance in the direct vicinity of petrol, gas, oil, alcohol or other explosive and highly flammable liquids or gases.

25. To reduce the risk of fire, keep a distance of at least one metre from the air outlet of the appliance to all easily flammable materials such as e.g:

a. vessels under pressure (e.g. spray containers)

b. Furniture

c. Textiles of any kind

1. Use this heater only on a level and stable surface.

2. Never cover the appliance during operation or when it is cooling down.

3. Make sure that no objects touching the heating surface get between the appliance and the mounting wall.

Always switch off the appliance before unplugging it from the mains.

1. Caution - Some parts of the product may become very hot and cause burns. Special care should be taken when children and vulnerable persons are present. Always allow the appliance to cool down before cleaning or disassembling it.
2. Unplug the appliance when not in use, before cleaning or when it needs maintenance.
3. Cleaning and user maintenance must not be carried out by children without supervision.
4. Do not handle the plug with wet hands to avoid electric shock.

ATTENTION	RISK OF INJURY The unit becomes hot during operation! Never touch the appliance during operation→ this could cause serious BURNS.
ATTENTION	FIRE HAZARD The unit must not be covered during operation!
ATTENTION	SAFETY DISTANCE Keep a safe distance of at least one metre from easily inflammable objects such as furniture, curtains, paper, etc.!LOCATION Always position the appliance so that the air can flow in and out unhindered. RISK OF BURNS The appliance becomes very hot during use and can cause burns. Special care should be taken when children and vulnerable persons are present. RISK OF OVERHEATING Do not heat rooms with a volume of less than 4m3.

Symbols on the unit

Symbol:

Meaning:

Attention! Do not cover!

The symbol on the unit indicates that it is not permitted to hang objects (e.g. towels, clothes, etc.) above the unit or directly in front of it. The heater must not be covered to avoid overheating and fire hazard!

Symbol:

Meaning:

Protection class 2

The symbol indicates that the unit is assigned to protection class 2.

Devices of protection class 2 are not connected to the protective conductor. Instead, they have reinforced or double insulation at the level of the rated insulation voltage between active and touchable parts. Electrically conductive surfaces or conductive touchable parts are thus separated from live parts by reinforced or double insulation.

Recycling, disposal, declaration of conformity

	RECYCLING The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSAL The symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
CE	DECLARATION OF CONFORMITY We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link: https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

Scope of delivery

Fan heater
- Operating instructions

Description of the unit

1) Indicator light
2) Thermostatic controller
3) Heating level
4) Pivot function On/Off

Location and connection

Remove all packaging material and keep it out of reach of children. After removing the packaging, check whether the unit shows any damage or signs of faults/defects/malfunctions. If in doubt, do not use the unit but contact your dealer for inspection/replacement.

Choose a suitable location for the fan heater, at least one metre away from all obstacles, walls and combustible materials (see also the safety instructions).

Make sure that the fan heater is always placed on a stable, flat and level floor.

Check that the control knob is in the OFF position (O).

Unroll the connecting cable completely and insert the plug into a suitable 230 V socket. To avoid overloading, do not connect other appliances to the same circuit.

Commissioning and function

Turn the thermostat knob (left) clockwise until it reaches the maximum setting.

Start the fan heater by turning the function control to one of the three positions.

• Summer mode (ventilation only): Turn on the switch (right).
  Heating at half power: Turn the switch (right) to level I (1000W).
  Heating at full power: Turn the switch (right) to level II (2000W).
• Switch off: Turn the switch (right) to level O.
• Pivot function: Press the on/off switch.

The indicator on the front now lights up. It is most economical to heat the room at full power and then switch to half power to regulate the temperature.

• The fan runs at the same speed at half or full power; the difference is in the number of heating elements used.
• When the desired temperature has been reached, slowly turn the thermostat control back until you hear a click. The temperature is now set.
• The fan heater switches on and off automatically to regulate the set temperature. When it switches off, the signal light goes out. To set a higher or lower temperature, turn the thermostat control clockwise/counterclockwise respectively.
• To switch off the fan heater, you must set the power control to OFF (O). The signal indicator goes out. The signal indicator therefore indicates that the fan heater is in operation, not whether it is connected to the mains or not.
• Then pull the plug out of the socket.

Protective devices

The fan heater is equipped with a tilt safety device that switches the appliance off if it should fall over unexpectedly. If you set it up straight again afterwards, it will resume operation.

However, first switch off the appliance, remove the plug from the socket and check the fan heater for damage. Do not use it if it is damaged or does not function properly, but bring it in for inspection/repair.

NOTE

The overheating protection switches the fan heater off if the unit becomes too hot!

This can happen if the fan heater does not emit its heat sufficiently or cannot draw in enough fresh air. Usually, causes include (partial) covering of the fan heater, blockage of the intake and/or exhaust grille, dirt, placement too close to e.g. a wall, etc.

If the overheating protection switches the fan heater off, you must set the function control to OFF (O), disconnect the plug from the socket and give the fan heater a chance to cool down. Remedy the cause of the overheating before restarting the fan heater.

If you cannot find the cause of the overheating and the problem persists, stop using the fan heater and return it for inspection/repair.

Cleaning and maintenance

Keep the fan heater clean. Deposits of dust and dirt in the appliance are one of the most common causes of overheating. So remove them regularly. For cleaning or maintenance, switch off the fan heater, remove the plug from the socket and let the fan heater cool down.

• Clean the outside of the unit regularly with a dry or slightly damp cloth. Do not use harsh soaps, sprays, cleaning or scouring agents, wax, polishes or other chemical solutions.

• Use the hoover to carefully remove dust and dirt from the grilles and check that the air inlets and outlets are clean. When cleaning, make sure that you do not touch or damage any internal parts.

• The fan heater does not contain any other parts that require maintenance.

• Put the fan heater away at the end of the season, if possible in its original packaging. Place it upright in a cool, dry and dust-free place.

• If the appliance needs to be disposed of after its expected lifetime, it does not belong in household waste. Take it to your local authority's designated collection point for electrical equipment, where care will be taken to recycle any materials that can still be used.

TECHNICAL INFORMATION

Item number:	SHX301HEAT2022
Input voltage:	220-240 V~
Frequency:	50-60 Hz
Performance area:	2000W
Setting options:	0 - 1000 - 2000W
Thermostat:	Yes
Oscillating:	Yes
Weight	1,2 kg
Dimensions	160 x 210 x 290 mm
Contact address for further information:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Service line: [phone] www.schuss-home.at FB-No: 236974 t / FB-Court: Vienna

Required information on electric single room heaters

Item number SHX301HEAT2022
Indication	Symbol	Value	Unit		Indication Unit
Heat output				Only for electric storage room heaters:Type of heat supply control
Nominal heat output	P nom	2,0	kW	Manual control of the heat supply with integrated thermostat	No
Minimum heat output(guide value)	P min	1,0	kW	Manual control of the heat supply with feedback of the room and/or outside temperature	No
Maximum continuous heat output	P max,c	2,0	kW	Electronic control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption				Heat output with fan support	No
AtNominal heat output	el max	0,000	kW	Type of heat output/room temperature control
AtMinimum heat output	el min	0,000	kW	Single-stage heat output, no room temperature control	No
AtStandby mode	el sB	0,000	kW	Two or more manually adjustable levels, no room temperature control	No
				Room temperature control with mechanical thermostat	Yes
				With electronic room temperature control	No
				Electronic room temperature control and time-of-day control	No
				Electronic room temperature control and weekday regulation	No
				Other regulatory options
				Room temperature control with presence detection	No
				Room temperature control with open window detection	No
				With remote control option (WiFi)	No
				With adaptive control of the heating start	No
				With operating time limit	No
				With black ball sensor	No
Contact details:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaAustria

GUARANTEE

With this quality product from SHX, you have made a decision for innovation, durability and reliability.

For this SHX unit we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany! If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair the device free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a credit note for the current value.

In any case, please contact the customer hotline as a first step (see instructions for use - "Contact addresses for further information and service line").

We would like to point out that repair work which has not been carried out by authorised contract workshops immediately terminates the validity of this guarantee.

This warranty does not cover:

• Damage due to non-observance of the operating instructions

Repair or replacement of parts due to normal wear and tear

Devices that are used - even only partially - for commercial purposes

• Mechanically damaged equipment due to external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.

• Equipment that has been improperly handled

• Units that have not been opened by our authorised service workshop

• Consumer expectations not met

• Damage attributable to force majeure, water, lightning, overvoltage

Units where the type designation and/or serial number on the unit has been altered, erased, made illegible or removed.

• Defects due to extraordinary pollution

Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60 (indexed basis CPI 2015, June 2020) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute< warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case.

You can find the contact address of the respective service workshop on our homepage www.schuss-home.at. Congratulations on your choice. We wish you much pleasure with your SHX unit!

ADDRESS

SHX Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3
