Product type	Pedestal fan
Brand	ProfiCare
Model	PCVL 3067 WM
Power supply	220-240 V~, 50/60 Hz
Power	120 W
Net weight	Approximately 5.5 kg
Protection class	I
Number of speeds	3 (low, medium, high)
Tilt adjustment	Yes, manual
Protective grille	Yes, removable for cleaning
Recommended use	Indoor only
Cleaning	Dry or slightly damp cloth, without harsh detergent
Storage	In a dry, well-ventilated place, out of reach of children
Control	Rotary switch on the back
Included accessories	No additional accessories (delivered assembled)

Frequently Asked Questions - PCVL 3067 WM ProfiCare

How to adjust the fan speed?

Use the rotary switch on the back of the device. The positions are: 0 for off, 1 for low speed, 2 for medium speed, and 3 for high speed.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not use it outdoors and protect it from moisture and direct sunlight.

How to clean the fan?

Before cleaning, always unplug the device. Clean the exterior with a dry cloth. For stubborn dirt, slightly dampen the cloth with water, then wipe with a dry cloth. Do not use harsh or abrasive detergents.

What to do if the fan does not work?

Check that the device is properly plugged in and the switch is in a position other than 0. Make sure the power outlet is live. If the problem persists, contact a qualified person for repair.

How to adjust the fan tilt?

To adjust the tilt angle, hold the fan head with both hands and tilt it forward or backward to the desired position.

Can children use this fan?

This device can be used by children aged 8 years and above under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision.

Can I repair the fan myself?

No, do not repair the device yourself. Contact a qualified person. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person.

How to store the fan in winter?

Clean the device as described. Wind the power cord around the two hooks on the back of the motor. Store it in a dry, well-ventilated place, preferably in its original packaging.

What does the trash symbol on the device mean?

This symbol indicates that the device must not be disposed of with household waste. Take it to a collection point for waste electrical and electronic equipment to contribute to recycling.

What is the power of the fan?

The rated power is 120 W at a voltage of 220-240 V~, 50/60 Hz. The device is protection class I.

USER MANUAL PCVL 3067 WM ProfiCare

PykoBODCTBO no 3KcNpyataun

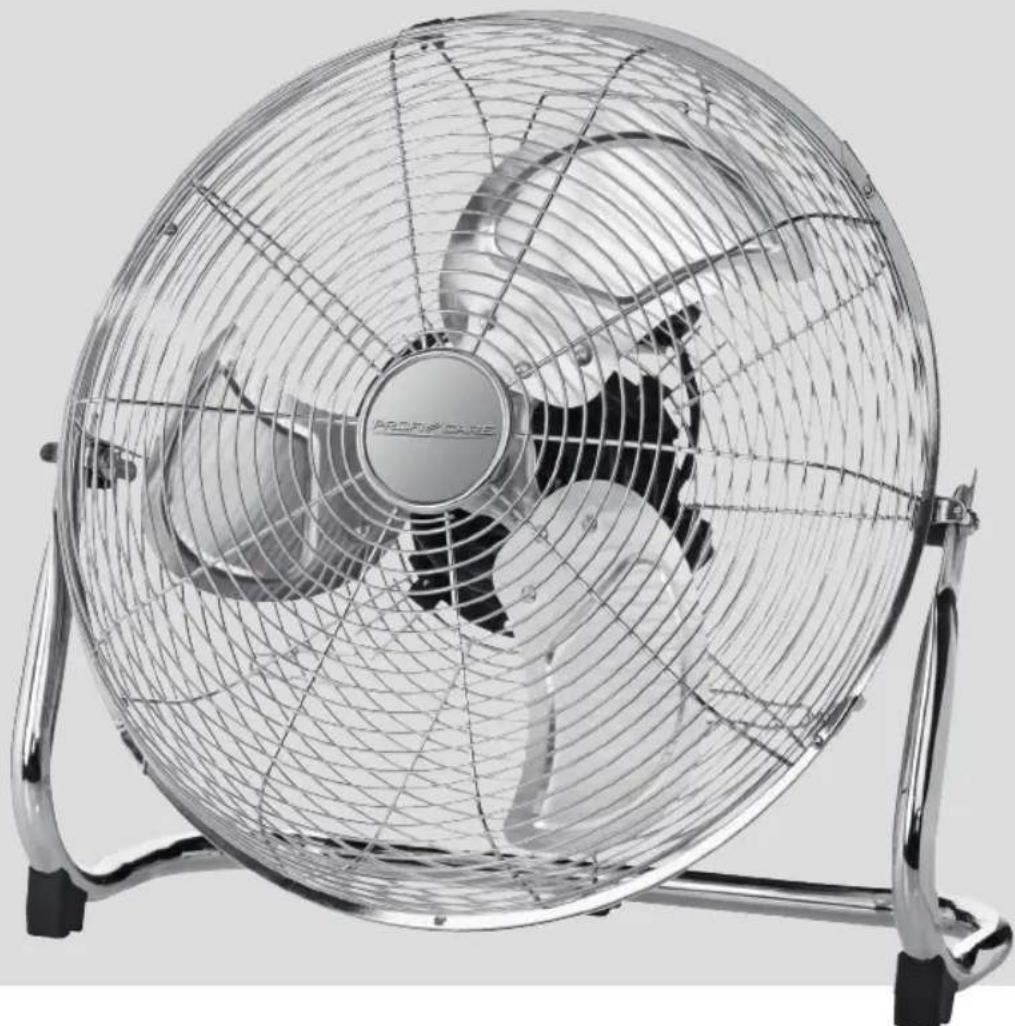

Windmaschine PC-VL 3067 WM

Ventilator · Ventilateur · Ventilador

Ventilatore · Wind Machine · Wiatrak

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special Safety Instructions for this Appliance

• Never stick fingers or other objects through the protection grid.
• Watch out for long hair! It can be caught in the fan owing to the air turbulence!
• Use the appliance only with the protection grids on!
• If you need to remove the fan guard, first switch off the appliance and disconnect the mains plug.
• Select a stable base to avoid the tipping of the fan during use!
• Do not place the appliance immediately next to stoves or other sources of heat.

• Do not repair the appliance by yourself. Please contact authorized personnel. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all of the packaging material such as foils, filling material, cable holders and cardboard packaging.
3. Check the appliance for any transport damage to prevent a hazard.

NOTE:

• The appliance comes fully assembled.
• There may still be dust or production residues on the surface of the appliance. We recommend that you quickly wipe off the housing with a damp cloth.

Putting into Service

Position

The ideal position is a non-slip, flat surface.

Mains Cable

Unwind the mains cable fully from the back of the appliance.

Electrical Connection

1. Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the appliance. You can find this information on the nameplate.
2. Connect the appliance to a duly installed protective contact socket

Use

Basic Settings

Set the blower inclination angle before starting the appliance. You can adjust the inclination angle by tipping the blower casing with both hands.

Operation

To select the speed, please use the push-button switch on the back:

0 off

1 slow
2 medium
3 fast

Cleaning

WARNING:

Always remove the mains plug before cleaning the appliance.
- If you need to remove the safety guard: Always switch the appliance off and remove the mains plug.
- Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise, this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Clean the outside of the appliance with a dry cloth without any additives.

• If the appliance is very dirty wet a cloth with water and then wipe the appliance dry once you have finished.

Storage

• Clean the appliance as described.
• There are two hooks on the back of the appliance below the motor. Wind the mains cable around the two hooks.
  We recommend that the appliance is kept in its original packaging if you do not intend to use it for long periods.
• Always store the appliance out of the reach of children, in a well-ventilated and dry place.

Technical Data

Model: PC-VL 3067 WM

Power supply: 220-240V\~,50/60Hz

Power consumption: 120 W

Protection class:

Net weight: approx. 5.5kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
