Product type	Automatic watch
Brand	Maurice Lacroix
Model	Pontos Day Date
Movement	Automatic (self-winding and manual winding)
Main functions	Display of hours, minutes, seconds, date and day
Case diameter (estimate)	40 mm
Case thickness (estimate)	12 mm
Weight (estimate)	150 g
Case material	Stainless steel (presumed)
Crystal	Sapphire with anti-reflective coating
Water resistance	At least 5 ATM (50 meters)
Power reserve (estimate)	Approximately 38 hours
Crown	Screwed (for reinforced water resistance) or standard depending on model
Warranty	2 years international (except US/Caribbean)
Maintenance	Service every 4-5 years; cleaning with toothbrush and soapy water for metal bracelets
Precautions	Avoid magnetic fields, shocks, extreme temperatures, chemicals

Frequently Asked Questions - Automatikuhr Pontos Day Date Maurice Lacroix

How to set the date and day on my Maurice Lacroix Pontos Day Date watch?

Pull the crown to position 1. Turn it in one direction to set the date, in the other for the day. Push the crown back to position 0. Avoid any adjustment between 8pm and 4am for automatic watches.

Can I swim with my Pontos Day Date watch?

Water resistance is at least 5 ATM, allowing bathing and swimming, but not diving. After contact with salt water, rinse with fresh water.

What is the duration of the warranty?

The international warranty is 2 years from the date of purchase, subject to a correctly filled warranty card. It does not cover the crystal, leather straps, or damage due to misuse.

How to manually wind the watch if I am not wearing it?

In position 0 (unscrew the crown if screwed), turn the crown clockwise about 20 to 30 times. The watch can also be wound by wrist movements.

How often should the watch be serviced?

It is recommended to have the watch serviced every 4 to 5 years to ensure proper functioning. Entrust it to an authorized Maurice Lacroix service center.

What to do if the watch is exposed to a magnetic field?

Magnetic fields (magnets, phones, speakers) can affect accuracy. Keep the watch away from these sources. If it is already magnetized, a professional demagnetizer is required.

How to clean a leather strap?

Avoid water and humidity. Clean with a soft dry cloth. Keep away from direct sunlight. For metal bracelets, use a toothbrush and soapy water.

Can I use the pushers underwater?

No, never use the pushers or crown underwater to avoid infiltration. Make sure the crown is fully pushed in or screwed down.

What to do if the crystal is scratched?

Micro-scratches on sapphire crystal are normal and not covered by warranty. For significant damage, contact an authorized service center for replacement.

How to use the chronograph function if my watch is equipped with it?

Press the upper pusher to start/stop, and the lower pusher to reset. Do not use underwater. Some Pontos Day Date models do not have a chronograph; check your dial.

USER MANUAL Automatikuhr Pontos Day Date Maurice Lacroix

USER MANUAL AND INTERNATIONAL WARRANTY AUTOMATIC AND QUARTZ WATCHES

MANUEL D'INSTRUCTIONS ET GARANTIE INTERNATIONALE

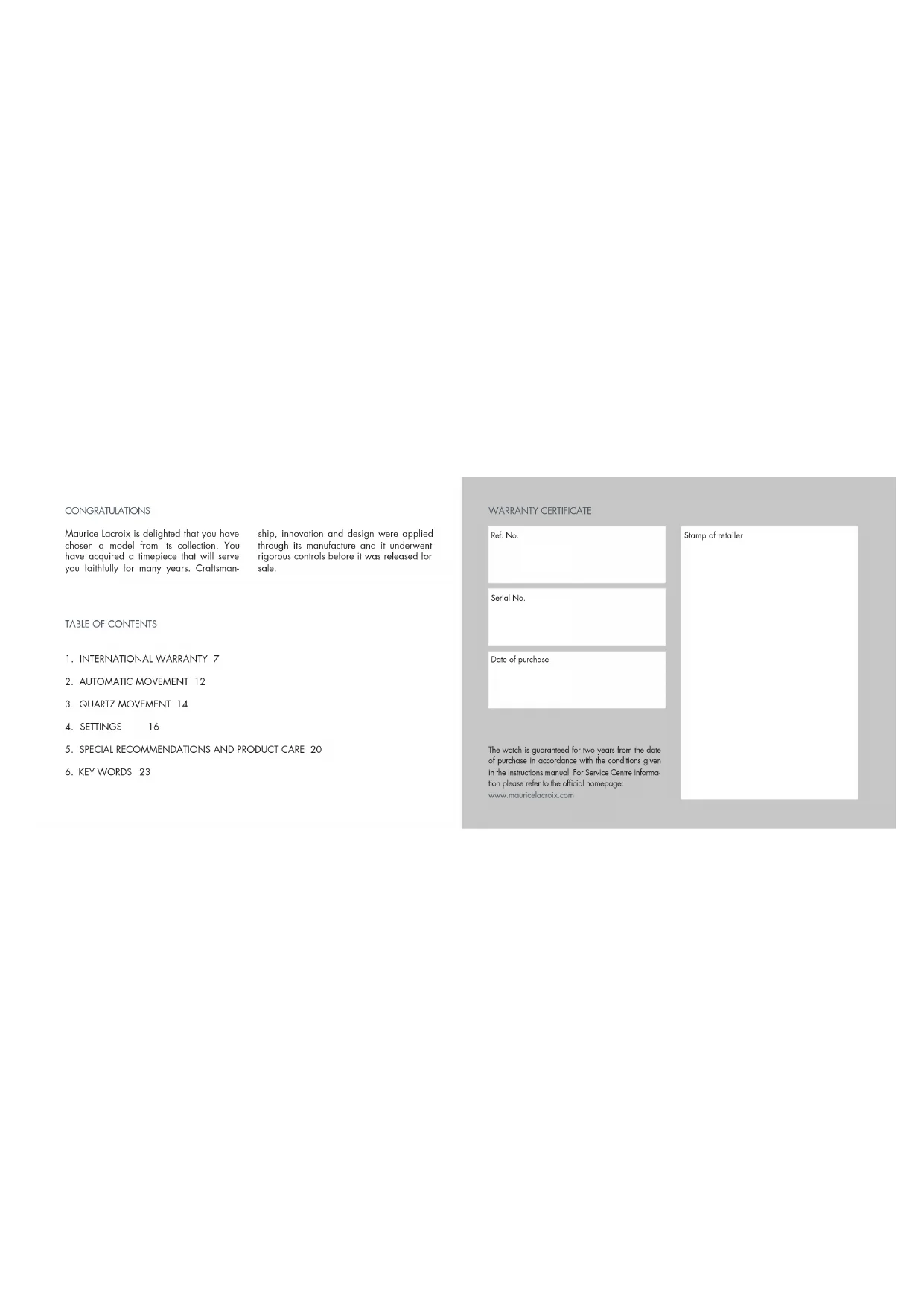

Maurice Lacroix is delighted that you have chosen a model from its collection. You have acquired a timepiece that will serve you faithfully for many years. Craftsman

ship, innovation and design were applied through its manufacture and it underwent rigorous controls before it was released for sale.

TABLE OF CONTENTS

1.INTERNATIONAL WARRANTY 7
2.AUTOMATIC MOVEMENT 12
3. QUARTZ MOVEMENT 14
4. SETTINGS 16
5. SPECIAL RECOMMENDATIONS AND PRODUCT CARE 20
6. KEY WORDS 23

WARRANTY CERTIFICATE

Ref. No.

Serial No.

Date of purchase

The watch is guaranteed for two years from the date of purchase in accordance with the conditions given in the instructions manual. For Service Centre information please refer to the official homepage: www.mauricolacrox.com

Stamp of retailer

We certify that your Maurice Lacroix watch is set with natural polished diamonds. These diamonds originate from a legal source that is not involved in the financing of armed conflicts and comply with the resolutions of the United Nations. The seller hereby confirms that - to the best of its knowledge and belief and/or based on written guarantees issued by the supplier of these stones - those diamonds are conflict-free.

1.INTERNATIONAL WARRANTY

1.1 LIMITED INTERNATIONAL WARRANTY FOR MAURICE LACROIX WATCHES (VALID IN ALL COUNTRIES) EXCEPT FOR THE U.S.A. AND THE CARIBBEAN

This limited warranty (hereinafter referred to as: the warranty) is extended by the manufacturer, Maurice Lacroix SA, Rue des Rangiers 21, CH-2350 Saignelogier (Switzerland). The limitations to the warranty are detailed below. Your Maurice Lacroix watch was manufactured using only quality materials and applying stringent production standards. Like all Maurice Lacroix watches, it was subjected to an individual quality control and complied with the demanding quality requirements stipulated by Maurice Lacroix SA.

For this reason, Maurice Lacroix SA extends a guarantee covering all manufacturing defects for a period of two 2 years from the date of purchase.

This warranty entitles you to claim for the repair of all production defects arising during

the period of warranty, on condition that they are communicated without delay. In addition, the watch may be replaced at the manufacturer's discretion.

You can claim your entitlement under this manufacturer warranty from any authorised Maurice Lacroix retailer, from any Maurice Lacroix representative or any regional service centre, or directly from Maurice Lacroix SA.

WARRANTY RESTRICTION

Please note that your international Maurice Lacroix warranty is only valid if your returned watch is accompanied by the Warranty Certificate located at the beginning of this manual. This Warranty Certificate must be completed in every part and signed by the authorised Maurice Lacroix retailer where you bought your watch. This Warranty Certificate must bear the serial number and the reference number of the watch and the exact date of purchase. It must also bear the stamp and signature of the authorised Maurice Lacroix retailer.

This warranty does not cover the crystal, leather straps or any damage caused by inappropriate use, such as sharp knocks, extreme heat or cold, or strong magnetic fields. Any repair or maintenance work carried out by unauthorised persons shall also automatically make this warranty null and void. In addition, this warranty does not cover the batteries that operate the quartz mechanism. Your watch is guaranteed to be water-resistant for a period of two (2) years from the date of pur chase, on condition that the crystal, face, case and crown are all undamaged.

Your attention is drawn expressly to the fact that Maurice Lacroix watches are not suitable for use while practising extreme sports.

APPLICABLE LAW AND OTHER RIGHTS

This manufacturer warranty gives you specific legal rights; in addition to these, you may also have other rights on the basis of invocable provisions established by other national laws, which may vary from country to country, according to the law

applicable at the time and in the place where your watch was purchased. In addition, this warranty does nothing to alter your rights with regard to the authorised Maurice Lacroix retailer from whom you purchased your watch, under which you may be entitled to claim as a consequence of the applicable national law governing the sale of consumer goods.

EXCLUSION AND RESTRICTION OF OTHER WARRANTYES

Insofar as allowed under current law, Maurice Lacroix SA excludes all and any other express or implied warranties. All implied warranties, i.e. including, though not exclusively, any implied warranty covering the relative characteristics for merchantability or a specific application, as may be imposed under a country's legislation, shall be limited to a duration of two (2) years. Some countries do not allow any limitation on the duration of an implied warranty, in which case the restriction in this clause may not apply to you.

EXCLUSION OF LIABILITY FOR

CONSEQUENTIAL DAMAGES

As far as applicable law allows, Maurice Lacroix SA or the authorised Maurice Lacroix retailers shall under no circumstances be liable to the purchaser or to any other persons for individual, consequential or incidental damages of any kind (including, but not limited to, loss of income or business or any other economic damage) that may arise out of a breach of the warranty, a breach of contract or otherwise, even if Maurice Lacroix SA has been informed about such a possibility.

Any recovery against Maurice Lacroix SA or the authorised Maurice Lacroix retailer shall in any case be limited expressly to the purchase price of the watch, regardless of whether the said recovery is based on the clauses of this warranty or on legal provisions. Some countries do not allow the limitation or exclusion of liability for incidental or consequential damages, in which case the limitations and exclusions in this clause may not apply to you.

The watch is guaranteed for two years from the date of purchase in accordance with the conditions given in the instructions manual. For Service Centre information please refer to the official homepage:

www.mauricelacroix.com

1.2 LIMITED WARRANTY FOR MAURICE LACROIX WATCHES (VALID IN THE U.S.A. AND THE CARIBBEAN ONLY)

DKSH Luxury & Lifestyle North America Inc., the exclusive United States importer and distributor of Maurice Lacroix brand watches, hereby extends to purchasers of Maurice Lacroix brand watches purchased within the United States of America and the Caribbean (first purchaser only) the following express warranty (which replaces and excludes any other express warrants of DKSH Luxury & Lifestyle North America Inc. or Maurice Lacroix Ltd., within the U.S.A. and the Caribbean):

For a period of two (2) years from the date of purchase, DKSH Luxury & Lifestyle North Amer -ica Inc., will repair any Maurice Lacroix brand watch purchased within the U.S.A. and the Car - ibbean if:

1. the watch is returned to one of the authorised U.S. Service Centres; and
2. the returned watch is accompanied by proof

of purchase, i.e. an authorised retailer purchase receipt with reference and serial number, date and place of purchase, or by the Warranty Certificate received with the watch at the time of purchase. This Warranty Certificate - located at the beginning of this manual - must be duly completed, stating name and full address of the authorised Maurice Lacroix retailer where the watch was purchased, date of purchase as well as the reference number and serial number of the watch purchased.

This limited warranty does not cover leather straps, crystals, batteries, wear and tear to the case or moisture damage if the timepiece is a non-water-resistant model, nor does it apply if there is evidence of misuse or abuse of the watch in a manner inconsistent with accompanying instrcions, including defects which result from servicing not carried out by authorised persons.

IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY IM

POSED ON THE SALE OF THIS MAURICE LACROIX WATCH UNDER STATE LAW, ARE LIMITED TO TWO [2] YEARS DURATION FOR THE WATCH. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, IN WHICH CASE, THE ABOVE LIMITATION DOES NOT APPLY.

Under no circumstances shall DKSH Luxury & Lifestyle North America Inc. or Maurice Lacroix Ltd. be liable to purchaser or any other person for any special or consequential damages, whether arising out of breach of warranty, breach of contract or otherwise. Any recovery against DKSH Luxury & Lifestyle North America Inc. or Maurice Lacroix Ltd. may not be greater than the purchase price of the watch. Some states do not allow the exclusion or limitation of incidental or consequential damages, in which case the above limitation or exclusion does not apply.

This warranty gives you specific legal rights and you may also have other rights which vary from

state to state. Any other form of warranty given by the retailer is entirely his own responsibility and no person is authorised to change the terms of this warranty.

Should your Maurice Lacroix timepiece need servicing, send it to one of the authorised U.S. Service Centres.

Exclusive importer and distributor in the United States of America:

Maurice Lacroix USA

DKSH Luxury & Lifestyle,

North America, Inc.
9 Princess Road Suite D

Lawrenceville, NJ 08648

Phone: [609] 750-8800

The watch is guaranteed for two years from the date of purchase in accordance with the conditions given in the instructions manual. For Service Centre information please refer to the official homepage:

www.mauricelacroix.com

2.AUTOMATIC MOVEMENT

The mechanism of the watch includes an oscillating rotor that winds the mainspring via the motion of your wrist. If necessary, the watch may be rewound manually. With

most of our models, the beauty of the inner workings of the watch movement can be admired through the transparent case back.

2.1 ILLUSTRATION KEYS FOR AUTOMATIC MOVEMENTS

A:Second
B:Minute
C:Hour
D:Date
E:Day
F:Power reserve
G: Moonphase
H:Month
I:60-seconds counter
K: 30-minutes counter
L: 12-hours counter

Crown
II: Start/Stop pusher
III: Reset pusher
M: Date corrector/pusher
V: Day corrector
VI: Month corrector
VII: Moonphase corrector

Co1ML15/ML32/ML55

Cal. ML143

Cal ML113

MIL37

Cal. ML37

CoI. ML57

Col. ML12

Pos.1

Pos. 2

Pos. 0 Normal position

Pos. 1 Date/doy setting

Pos. 2 Time setting

3. QUARTZ MOVEMENT

The electrical energy provided by the battery causes the quartz in the interior of the watch movement to oscillate 32,768 times

per second. This high frequency gives great accuracy. The seconds hand advances in steps.

3.1 ILLUSTRATION KEYS FOR QUARTZ MOVEMENTS

A:Second
B:Minute
C:Hour
D:Date
E:Day
G: Moonphase
I: 60-seconds counter
J: 1/10 of a second counter
K: 30-minutes counter

Crown
II: Start/Stop pusher
III: Reset pusher

Cal A Cal B Cal C

Cal. D

Col. E

Pos.0Pos.1Pos.2

Crown 1 positions

Pos. 0 Normal position

Pos.1 Date/day setting
Pos. 2 Time setting

4. SETTINGS

4.1 STANDARD SETTINGS FOR ALL WATCHES

Setting the time:

1. Pull the crown (I) right out completely to position 2. The seconds hand will stop.
2. Set the time by turning the crown (f) forwards or backwards.
3. To synchronise the watch with the official time signal (radio, telephone, etc.), push the crown (I) back into position O to coincide with the given time signal.

After settings, always push the crown (I) back into position 0 and avoid setting the time under water to prevent moisture from getting into the mechanism.

Setting the date and the day: Calibre A|B|C|D|E|ML115|ML132 |ML155|ML143|ML113|ML112
1. Pull the crown (I) right out to position 1.
2. Depending on the movement type, turn the crown (I) clockwise or anti-clockwise and set the current date.
3. Turn the crown (J) in the opposite direction to the date setting and set the day.
4. Push the crown (I) back into position O.

Automatic watches: do not make any adjustments when your watch shows a time between 8 p.m. and 4 a.m. If the watch has not been worn for 24 hours or more, wind it up with the crown (I) in position (O).
Do not set the date and the day under water to prevent moisture from getting into the mechanism.

4.2 SPECIAL SETTINGS

Setting the date, the day and the month: Calibre ML37

1. Set the date by activating the corrector () until the desired date is displayed by the hand (D)
2. Press the corrector V until the desired day of the week is displayed in (E)
3. Press the corrector (VJ) until the desired month is displayed in (H).

A: Setting the date, the day and the month; correction is not possible between 10 p.m. and 1 a.m.

Setting the date:
Calibre ML57
Set the date by pressing the corrector/pusher (IV) until the desired day is displayed in (D).
Quick date setting: correction is not possible between 8 p.m. and 4 a.m. Do not use the pusher (IV) under water to

prevent moisture from getting into the mechanism.

Setting the moonphase:
Calibre C
There is no quick-change correction for setting the moonphase.
1. Pull the crown (I) right out to position 2. The seconds hand will stop.
2. Turn the hands forward by turning the crown, until the current moonphase display appears.
3. Push the crown (I) back into position 1 and set the current date using the quick change correction.
4. Push the crown (f) back into position 0.

Calibre ML37

1. Press the corrector (VI) until the full moon appears in the centre of the aperture (G).
2. Press the corrector (M) as many times as there are days that have passed since the last full moon.

4.3 CHRONOGRAPH SETTINGS

4.3.1 SIMPLE TIMING FOR ALL CHRONOGRAPH WATCHES

1. Press the pusher (ill) to start the chronograph.
2. Press the pusher (ill), the chronograph is stopped and you can read the time measured.
3. Press the pusher (I) to restart the chronograph OR press the pusher (III) to reset to zero.

4.3.2 USING THE QUARTZ CHRONOGRAPH FUNCTIONS: Calibre D/E

Timing with intermediate times:

1. After the pusher (II) is pressed, the counter hands will turn to show the measured time.
2. After the pusher (III) is pressed to stop the chronograph, the 60-seconds counter hand (II), the 30-minutes counter hand (K) and the 1/10 of a second hand (U) will

stop running and the first intermediate time measured can be read.
3. Press the pusher (III), the chronograph will restart and catch up with the elapsed time
4. Press the pusher (III), the chronograph will stop running and the second intermediate time measured can be read.
5. Press the pusher (III), the chronograph will restart and catch up with the elapsed time
6. Press the pusher (I) to stop the timing and read the total time.
7. Press the pusher (III) to reset the chronograph.

N.B. After starting the chronograph, the 1/10 of a second hand will stop turning after 30 seconds to save battery life.

Adjusting the chronograph hands to the zero position:

For example, after a battery change or a violent shock, one or several chronograph hands (I), (J) or (K) are not in their correct zero positions and have to be adjusted.

1. Pull out the crown (l) to position (2).
2. Keep the pushers (I) and (III) pressed simultaneously for at least 2 seconds. The second counter hand (J) rotates by 360^ . The correct mode is activated
3. Adjust the second counter hand (I) by pressing the pusher (II) .
4. Press the pusher (III) to adjust the next hand.
5. Adjust the 1 / 10 of a second counter hand (I) in single steps by pressing the pusher (II) .
6. Press the pusher (III) to adjust the next hand.
7. Adjust the 30-minutes counter hand (K) by pressing the pusher (II).
8. Return the crown (I) to position (O).

N.B. The adjustments can be made in single steps by pressing the pusher (I) once or continuously by pressing the pusher (II) non-stop.

4.4 USING THE AUTOMATIC CHRONOGRAPH FUNCTIONS

Calibre ML57/ML112

1. Press the pusher (I), the counter hands will turn to show the measured time.
2. Press the pusher (I) to stop the chronograph, the 60-seconds counter hand (I), the 30-minutes counter hand (K) and the 12-hours counter hand (L) will stop running and the time measured can be read.
3. Press the pusher (ll), the chronograph will restart OR press the pusher (ll), the chronograph will be reset to zero.

Using the chronograph: do not adjust the pushers (II) and (III) under water to prevent moisture from getting into the mechanism.

5. SPECIAL RECOMMENDATIONS

AND PRODUCT CARE

MAGNETIC FIELDS

So as not to affect the running of your watch, avoid placing it near magnetic fields created by objects such as magnets, mobile phones, speakers, etc.

SHOCKS

Avoid all types of shocks, whether physical, thermal or other.

TEMPERATURE

Avoid exposing your watch to extreme temperatures (over 60^ or 140^ and under 0^ or 32^ ) or to sudden fluctuations in temperature.

SALT-WATER

Always rinse your watch with clear and fresh water afterwards.

CHEMICALPRODUCTS

Avoid all direct contact with all chemical products, solvents, detergents, perfumes, cosmetics, etc. which may damage the leather strap, the bracelet or the case.

ANTI-REFLECTIVE TREATMENT

The anti-reflective treatment of the sapphire crystal glass improves the visibility of the dial of the watch. Everyday wear can cause marks to appear (scratches, chips, etc.). These are considered normal and are not covered by the warranty.

CLEANING

Use a toothbrush and soapy water to clean met albracelets, rubber straps and waterresistant cases and a soft cloth to dry them off afterwards.

LEATHER STRAPS

Protect leather straps from grease, water and humidity and avoid excessive exposure to sun light.

BATTERIES

We recommend that you contact an official Maurice Lacroix service centre or official Maurice Lacroix retailer, as they are equipped with the tools and apparatus required to carry

out the work and the necessary checks in a professional manner. A worn-out battery should be replaced immediately in order to reduce the risk of leakage and consequent damage to the movement.

WHAT ARE THE SERVICE INTERVALS?

Like all micro-mechanical precision instruments, your watch should be serviced regularly to ensure that it runs perfectly. We cannot say how often you should have your watch serviced as this depends on the model, the climate where you live and how you look after the watch yourself. As a rule, a watch should be serviced every 4-5 years, depending on the conditions in which it is worn.

ENVIRONMENTAL PROTECTION*

This symbol indicates that this product should not be disposed of with household waste. It has to be returned to a local authorised collection system. By following this procedure you will contribute to the protection of the environment and human health. The recycling

of the materials will help to conserve natural resources.

• Valid in the EU member states and in any countries with corresponding legislation.

WATER-RESISTANCE

The water-resistance cannot be guaranteed permanently. Everyday wear, ageing of seals or accidental shocks adversely affect the water-resistance of the watch. We recommend that you have the water-resistance

of your watch checked regularly by an official Maurice Lacroix service centre.

All Maurice Lacroix watches are water-resistant to at least 3 ATM.

Métres (m)	Feet (ft)	Atmosphere (ATM)
30 98.5 3			✓	- - - -
50 164 5			✓	- - - -
100 328 10			✓✓	✓✓			-
300 984 30			✓✓	✓✓✓
600 196 8 60			✓✓	✓✓✓

• The values given in feet or metres of immersion in water are equivalent to the measurement of pressure applied in tests according to the ISO 22810 standard.

6. KEY WORDS

Screw-in crown:

Some watches - usually those water-resistant to more than 5 ATM - can have a screwin crown. Before being able to make any adjustments (change the date, set the time, etc.) the crown has to be unscrewed. To do so, please proceed as follows:

Power reserve indicator:

Some automatic watches have a power reserve indicator. If the watch is worn rarely or not at all the power reserve indicator will gradually decrease. When the watch is wound or worn the power reserve indicator will gradually increase.

End Of Life (EOL) function:

EOL function only features on some quartz movements and indicates the end of battery life. If the second hand starts to jump every 4 seconds, we recommend that you replace the battery immediately.

Tachymeter or tachymiler scale:

Some dials feature a tachymeter scale: it measures speed (in km per hour) for a covered distance of 1 km or 1 mile.

Example: 1000 meters covered in 45 seconds corresponds to a speed of 80km per hour.

Corgt:

The weight of a diamond is measured in carats, one carat being equal to 0.20 gram.

FÉLICITATIONS 1

9 Princess Road Suite D

Lawrenceville, NJ 08648

Telephone: [phone]

3. MOVEMENT A QUARTZ

9 Princess Road Suite D

Lawrenceville, NJ 08648

ML155ML143ML113ML112

North America, Inc. 9 Princess Rocad Suite D

Lawrenceville, NJ 08648

9 Princess Road Suite D

Lawrenceville, NJ 08648

Tanepon [phone]

Ha nacb npedctabnertc npaehntcpocpokm Dba roda c dtalny knohky hycnoibx, innoxoeehbs B pykoBDCTbe no akcyyatauyn. VInpOpaMaHIO o cepoHbXLeJTPax CM. H opAeMauhCBn Caire Maurice Locroix:

www.mauricelacroix.com

2.ABTOMATMUECKMEXAHUM3M

HHeHOJIHN C y 10rO MEXAHMA TOpT oI3aONDHT
hachy pRn DmXeHHB NBaee pyk. Pn IbeoXcHMO
CTN cHbMdoKHO 3ABeCTN TAKGE BpyHyuHO. HApIO

DatbSAPOBOT YACOPORO MEXAH3MA y 06nBHHCTBA HauHX MOJEB MOKHO CKBo3 npO3pHyo 3A1HIOK PKNIJK KONYCA.

2.1YCIOBHbIE O5O3HAEHHM IIN ABOTMATHECKNX HACOB

A:CEKVAHAAHCTPSIKHA
B:MyHyTHAaCTpeKs
C:Yacosan ctpenka
D:YkaaTeBbTaTb
E:YKJATENHHPDEM
F: HmKATOP sana cxa xpa
G:Yka3aTeNbΦBnHyHb
H: ykasaTeb Mecua
60-CEKYNHBNCHETNHK
K:30-MaHyTHbH CHUTHK
12-

3BOPHRAOIOKBA
H: KHONKa sanycka/OctaHOBKn
KHOHKA 06HyneHN
IV:KHONKa/KoppeKTop DaTbI
V:KoppekTop dHH HeDenn
VI: KoppeKTop Mecua
VII: KoppeKTOp 4a3n DyH

3.KBAPLIEBBIIMEXAHIM3M

3nKepnepn 3nEeHn 3nTnAaHn 3nAaBnEe cokaa Tcota daenae TaCbOyeh ToHHMn. KAp4 BHTpy HAcEORe MxAHmBA BbPpOBeBa CekyHnAn crpeKa nepeMeaetc HACKPHe TactoTo 32768 konEaBnA aCeKyn. TaKnB [uXkam].

3.1YCIOBHBIEOBO3HAUEHNRKBAPEBBIXACOB

A:CEKHYHHAHCTPSEIKHA
B:MyHyTHAaCTpenKa
C:Yacoban cTpenka
D: ykasetenb datbl
E:YK3A8TENHHEH
G:YkaaTeBbFagJyH
60-CEKvHnBnCHETHMK
J: CyeTnK 1/10 donee cekyHdb
K:30-MHHyTHHCHETNH

3AepnHnI0B
H:KHONKa aanycka/OctahOBKn
M:KhONKa 06HyBHH

4. YCTAHOBKA TOKA3AHIM

4.1 CTAHADPTHBEI DII BCEX HACOB YCTAHOKD

YCTAHOBKA BpemeHn

HOOeJHNOI NODAHN DNNB HNYD 26 MOENHMM

YCTAHOBKa paaHnHbI
KanmbpC
Yaohao HET dyhuan bdyctpon KoPPekn qpaBb PyuH.
1.Budinshito 2. Baudzyno 3. Bolyai 4. B. Notojekhina 5. Cekhnayn 6. CTENKIA OCTBNO7C
2. 3a0b0n0r0n0k0n0paa0t8cTpeNknNneepnDn 2. Tex nop, noka ykaasateBHe nokaxet npaaBnyK cyzdy Nyha.
3. NopoeaDnE TaouhyoToNkEy (1) BnIOXOHNH 1yCTHOBHTe PaaBTHyO DaTy CNOUMUbO yKHyKuCStPOKOPKOEMK
4. BepHnTe 3aOpDHyro rnoosky (1)B noonKeHHe 0

KaM6pML37

1. Haximavitte hao kopbertK [V]noka nhyhnnn nnck bHcyd 287BmBn IENKUMN LHNPrr OTEPBCTR [C].
2. Haxminka Hata Koppkopf (VII) stolcbo pa3, okolko Deh npoopu c daity tnochdeHero noonHohnyi.

4.3YCTAHOBKINXPOHOPTPA

4.3.1 IPOCTO XPOHOMETPAK HA BCEX YA-CAX CXPOHOTPAOM

1. HAKNTHE HA KHONKI (II), "TROSH 3ANCYTHN, XPOHORAP.
2. NaKMnITE HA KNOHky (U) - xpoHOrpaΦ octaHOBHTCH, Hb Hm MoXHO 6yD3CHTaTb 3M3pehHO HOK 42AHAHNE BOOMMOH.
   3.HaKNaHs HKnOy (I),YoBbCHOBa3anyCTxPOHOrpaD,INH KaHnTe HA KNoKy (II)TObbOHyHTe ERO NOKaSAH.

4.3.2 NIOI-2OBAHIEV DHYKHUKIMN KBAPLUEBOFO XPOHPOTAPA:KANOpD E/D

XPOHOMETPAX C npomexkyTOHBIMN10KA3aHHAMN:

1. Nocle HAKATINI H B KHONIK (T) CTPENK CHETH-KOHN DRA M3EHPN B EPMEHNA 247CBAKOTKA.
2. PONCe OCTAHNOKx PPOHORPAH HAKATHM Hb KHONKY (H) CTpenKIA 60-CeKHyTHHO CHTKNKA (J), CTpenKIA 30-MHHYTHO CHTKNKA (K) nCTpenKIA CHTKNKA /10 DnOe KcEyHbJ (J) octahab/InBaIOTCH INOKASBAIOT PPOMeKXYTOH hpeyTAT.

3.ПИМ ИСТАНУ.KHONКY [W] xPOHOrPAP CHOBA JANCYTCHN, CIPIKINI GRO CHETKINKO HAOHTI KOTJIeWEE C M OMTATA OCTOBHOK SPENM.
4. [Pn] HAKATMAH NAI KHONK (II) XHOPORAPCTO octAHBUTC BOK TIN KOKAET STOPR NOPEKOYTAH PESBYTAT.
5.Пин Манжатни Кнонок [И]хоэноград сюда Адгетсдс.TСТРКИЕС,ETOCHETKOBHAROHIT KSTOKECS C MOMENTA OCTOBHKOB SDMEN.
6.HaMMTe KHNKy (I)HTOb6IOCTAHOBITbXPOHO-METpax HcHTATb OUIeae POK3Aahne BPEMHN.
7. Haxmte Ha KhoNky [I], 406b oOHynhtb xpoHorpa.

Pmmeaane: nnn cbepehennn peycpa anemeta nntanha ctnepka chetchnka 1/10 doeneyceyndboctaaanaabaetcpee30 cekyHnncne zanycka xporohorpaia.

YCTAHOBKBA CTPNOK XPOHORPAKA B HNYBBO NO NOXHHIO:

Ecn cpenKn OHOH INH KecNkXc NcETKoO [I], [K] OKONKINbCt HynEBORO NNOEXHAR [HanPMep, NOcIe 3aMeHbIe IMITAHAR KIN CKNHOY yada, JX HYNHO BEPHTb HA HOJIb.

1.BbDmHbTe saoDHyo rnoKy (I) B noNoKeHMe (2).
2.YdpxkBnBeKHOKnI（II）n（II）OHOBNHn HAKATbIMnHEMeNEe2cKyn，CPTenKa CaYNDHOro ChTtNkU COEBPwEOTmH OOBOPHTA360° AKTHMBpyETCA KOPKEKTIPOBQBOHpexKM.
3. NnBdEInTe CTeKy cekyHIOHO CHETMKA (I) HAKATHEH HA KHOINK (II).
H. Kaohmata H KhoKny (JN), UTO60 NAOBECTU CENKOYUOCTPENKY.
5. IIOEeIe TcpeNky ChetNka 1/10 Odoen COKyHJU NOSAIROBO HAXATMRMA HA KHONKY (II).
6. Hakmatte HKHOKY [HJ], 1076bl NOBECTA cnepouyou ctpenyk.
7.NoBdEHTNE cTpeNky 30-MHHYTHORO CHTyNkA (K) HAKATHOM HA KHOTNY (II).
8.BepHTe 3aBDOHy rONOBky (I) BnIOHOKeHMe (O)

4.4TIOJIb3OBAHNEФYHKIMN

ABTOMATINECKOTO XPOHOTPAFA

Kanibp ML57/ML112

1. HAKIMTE HA KHOKY (0) -CTPENK CHETIKOK DRA HIMEHPA BIPMEHAN SANYKAOTAO
2. HAKMNTB HA KHOTKY (1), OCTAHOSBT BXPXOHOPaPc. CTePKI 60-CKxHJHORO CHT-NHKA II, CTPKI 30-MHNHYORO CHT-NHKA (II) INCTPKIA 12-HACOBORO C-THNKA (IV) OCTAHANBAHIOCTON INOK3A3bAolpnpOMEkyTOHbIpe3yMSTAT.
   3.HAKMHTB HKHOKY [H]TO6bI CHOBABAAYCTNTb XPOHOIPAD,ININ HAKMTRE HKHOKY [H]TO6bI 05HYMTB ERO NOKAAHN.

1nB3080HmEXPOHOORP@OMEHEHJXKMMJTEKHOHN 111111111111111111111111111111111

PnmuueHaeMa: TIOEaBCTTcPENKMOXHO NMOIPOBOHECKOBKMMKOPKMMHAKATMNN HA KHOKNY [1] KNH DEO3CTAOHOQOHDMN HNOPEpBuHMMAHAKATNM HA KHOKNY [1]

5.CNEIALbHbIEPEKOMEHNDAUINCOBETbIOXQDy

MAHTNTHBIE NOJH

Tc0bI He NoDBEAPrTa YacBblNHHMOHARHTbX NOH, CTAPAIIECTe HE DEKATbIX PNOOM C MHRHTAMM, MOOBINHIMATA TEPOCHAM, rpoKOROBOPOTANm IN DYPTMHMAGHRTHBMIVCTOUYHKAMM.

UOKOBBEBO3ENCTBNA

OoeepaTa Ta 01oBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxuOoBxu

TEMINEPATyPA

Oepearate YacbI OBOEaTBAH XKCTPEMaJIbHX TEmnepatyp (BbIe 60°C mN 140°F HmKe 0°C mN 32°F), a TaXke oT pe3kXn TeMnepatypbNepenao.

CONEHAR BODA

Iocne p6bBabHn B cnoHoe Bdoe Cbea Dcda OIO- nAOKBHBeHTNcHcTcPpeOHoBDOi

XMMNHECKNE BEUJECTBA

OsEBeRaeY TaCbI OT PnMFO TOKHTA C XMMKATA M, PACTBOHOTJIIMHO, MOOHUMC C6PCTBAMN, RAPFOMEHPKQ, KOCMTIKON M. I. BO V3562AHHNO 0

BpeKdHn KoxaHOro peMeuKa, MeTaNnueckoro 6paIaTn nn KpOyca Yacob.

AHTNEIMKOBOEIOKPBITVE

AHTN6NANKOBC NOKbIITcHaneDnCpIPOBOrOCTKeNA yNHy
BtAE TOTeTNMBOCT NoKa3aAHU KJXpePbNAta B peyTaNtate NOCNbEHEHOHO M3HC08 HA HEMOT N
BNTCR LAPANINHb, OTCNoEHBA NpyTHNE OTMeTHHB.
Vx NHOBENHE CHTATCB TROPAMHBM HBNHEHM
FapTNHnH HNX HE PBCNPCTPBHTCH.

OHNCTKA

MetaJIHHeCKHeOpacnTeB, KayyKoBbE peMeuKn I BOOHeHpONUaBmBIE KOpNcA ChIuaTBe 3yHOH JETKOH CMbIHOB DOIO N BtIPaNTe HAcYxo MIKKTKaHbO.

KOKAHBIE PEMELIKM

Oepeerai Te KooaJIbIe pemeKIO T JxM, BcD, BlnH nApkoIOn CInuHNO CBOTa

3JEMEHbIIMTAHIN

No NOOby TEXHNOHEKORO OcNCHKBAHAARACHQOBMbI pOKOMHUYEM oBpAHTbUH B yINJHOANOHUMHHN

cepBnchIeHTP Maurice Lacroix NIK yonnonHOHcHMy npodaby CneLHaNHNPOsAHBOH TropOBc cTn Maurice Lacroix, notomy qTO tolko 3dec bMIOCT Heo6xOmmbIy dRn BnONHHaPBOT nHCTpyMeHTb npnoOpby, a BCE npOBepKn 6uydt BnOIOHHe npocEcoHbHO. Pa3pXeHHbAn eNeMT nAHHn Heo6xOIMO Cp3yKe 3aMEHHTb BO K06ExAHne NOBnEHnTeN 3NEKpONITu NbIiBaHBO H3TN MNOBpKdHn YACOBOR MxHANmB

KAKACTO YACbI HJXIAOTCR C BEPBICHOMOBCBJYKBAHIN?

Kak IIOOBI BUCOKOTHMI MEXAHHECKNI HHTPYMERT, YABI HYKDAHOCTB PERYNAPOMCEPHCMOCNYXHBNAH DNE OBCENCHENHXN BYESYNEPHORO FyHKUHOHPOBAHM. MBI HE MOXEM HAATs TOHYI NEPNOIDHOCTCB PECMHORO OBCNYXBAHIN, NOTOMY 0TO OH A3BMCNT OT MDOJIYI HACOS, KIMMATA, B KOTOPAM DABKCNAYPTYKOCTA, ON TO UTAATEBHOCT YXDAI 38 ACAM. KAK npabnIO, CHAI pKOMENDEYETC NODEPRATB CEPCHOMY OBCNYXBAHIMO KAKDble 4-5 NET -B 3A3HCMOCTN OYCNBOH 3KJUHATAQAM.

3AUINTAOKPYKAIOUEN CPEDbla

3TOT 3HAK YKBAABET HA TO, YTO HADINHE HbAHR yTNIMNPAHT BMECTe C bHTBMSIbXrOaMD. ETo Heb6DIOOMCdABy TnYTAINSAHNAH HcNEHMHNb npMeHHN BYHK. BbONNHRA 3TO TpeBOaHHe, BbOHOCITE BKJAD, B aAHHTy OKyPAAIOUcpeBbHs DTOPOBBH JHOE. BTPOHHAR NepaBc0kTA KATEpHAno CScoC6BTy COPAHENIO pRipODbHx pecpyoc.

TBWTeBbHO DnCTpaH EC

IpyrTH cTnA C0BETCTYIOUIM 3AKOHDAETIELCTOBM.

BOJOHEHPOHNAEMOCtB

BODOHENPHOHNHAAEMOTbHEMOKETbIbTrapAHNTPOBAHA HABCBDA.ExADHOHBN KHCOC,CTAPHEINPOKNAOKCNyUHmIEYdApHOTpMIaTeNBOHNIOHTB ABDHOENPHOHNHAAEMOTbHACOB.MkpeMOnHdyEMPERYNPNO PNOEepARbEOHOHNPHoAEMOTbCAcO

B yONHOMOCHHOM cEBPHCHOM ueHTpe MaURice Lacroix.

BouaBaMouriceLacroixBoDOnHenpOnHuaBmKAK MHHmHaO 3toAtmoscpe(AtM).

Mertby [m]	Фуны [H]	Atмоверы (StM)
30 98.5 3			✓
50 164 5			✓
100 328 10			✓	✓	✓
300 984 30			✓	✓	✓	✓
600 1968 60			✓	✓	✓	✓

3AeHnHn rny6BnHn NorpyJENa B metpax nHn qyTAs kBaIaNENTbHb NOKa3aTeNnM DabEnBnBO apemr cnblteBNn No cndtapty ISO 22018.

6. TEPMHHbl

3aHbHbAouianr 3abOJHnRObonka: HekOTOpIe YacB-06bHHc CBODOHepnoHuaMoCmTOBtO 5aTMnBBuE-MoYT MHTb3aBNHbAOUOCH 3abOHyro rONBOy. Napd bblonneHemNIObHex pueamau [peoBDaTyt, yCTAHOBKa BpEmeHN HA qacax N, ] cNeyET OBAHTNTB 3abOHyo rONBOy. Jnra tOrO dKByTe nce yOoiMma

HnDKATOP 3anaXoDa
yHKOTopbX BOMATMHBCKHXACOB IMMEcT HnDK- KATOP 3anaXoDa, ECNHOCTb 4abpeKoIO HnHE HOCTb HX BOOIE, NOKAaAHIN HNDKATOpA 3anaCxa
xoda yBbAOt. IPO peryPnPHOM HOIeHNH YAcOB Nn
NXpyOH 3apoDE NnDKATOpA 3anaC
xoDA copa3MeHO YEENHBAOTc

ФИКИАнДКИКИАпацдгЕ [EOI]：ФИКИАN EOLIMeTOn YKeTOpTox KApIeBxHcOBo OHAnOKaBaIeT,ТоуЗлдзЕмERTAHTAHAR6n3aK KChOIy.ECINCEKHyNAR TcPENK HauHbNT

DnBtAton CCKaAMHepeK KaeHyHbMbe peKoMeHdyem, He OKTnlaBba, 3aMeHHTb 3neHENTnTHAH.

TaxiMeTn TAnxMeTpyeckar Ukana:
Ha HeKToTbX UkepePonata XMeTeCn TaxiMeTpHe- ckan Ukana. OAncnyknt nnn NmpeHncckopocn (B KM) no pBeHn npOxoKdHn DnCTAHn DN Hn H 1KMn1Mn

图MIMEP：EcnB ATOMOONbNpOeDQNlepACOTHRH B1000 METPOBa3A45 cekyH,ToOKoPcTb Ero DNKxHN CooaTaHb80 KMJ.

Kapat:

MACC8BpHJNHTOB HMBPRTCBK B KAPITAX. OAMH KAPAT PABEN 0,2 rPAMMA

13-1000000000000000000000000000000000000000000000000000000

-	-	-	-	✓	3	98.5	30
-	-	-	-	✓	5	164	50
-	✓	✓	✓	✓	10	328	100
✓	✓	✓	✓	✓	30	984	300
✓	✓	✓	✓	✓	60	1'968	600

J 100000000000000000000000000000000000000000000

y 1111111111111111111

J 1

yla
yall yla
yall yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll
yall yll

y y 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 1

iiill iill, iols pilai.5

(1) Let 12 ≤ 36, ( k) ≤ 40 ≤ 56

1

a

1

y

1111111111111111111111

S OBC = S COD + S BOC - S BOC

(1) jill bciiall ybcj

1111111111111111111

wicb

(III) 12 _____

（0）c#y1（0）cillc.8

biayiuyy (1) jilbcai

S OBC = S COD + S_ BOC

i 1

30 1

21 21

0 1

Xiaicicicuaa

（1）j（1）

104

4

(2) a1 = 1,an + 1 = an - an - 1

aui 1

1 1

1360 2

1 3

jckjjllbdoolac 4.3

4.3.1

jicc

jie jy jy11 11111111

1jg jgjj 2

i pi iill 1g j 1j dS

juiy (1) jilbcai 3

gai（）jbjcbioljjzjgS1

jiall

j1ylljicjysLilbgl.14.3.2

D/E:1,1

a

jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

A

ii jil (ll) jill lc biall 2

60.1e 23

jic(K) 30 jic

jill 1 j

4

iic jijgSll jai 11111111111.3

i 1

jzg jyS1 aaiy jy 111111111111111111

gaii 111 (V) jii jia i

jaiil jaljao

C Jull

2.1

jlll jie 2

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

ML37 JALL
Jll j111111111111111111111111111111111111111111111111111 000000000000000000000000000000000000000000000000000000000000000000000

Jolal Jaiali 4.2

y111, y211, y311

ML37 L

aannnnnnae aee

A
A
B
C
D
E
G
H
I
J
K

aall jll jy ySai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

A
A
B
C
D
E
F
G
H
I
J
K

25

Maurice Lacroix USA

DKSH Luxury & Lifestyle

Princess Road Suite D 9

Lawrenceville, NJ 08648

750-8800(609)

e lygel jaiy and riyana culln all a

i.ii.15.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.

aall jyI yie jiall lia g y
jiall aill cii, iaylll yilu kll
jiall ayi jyaiyaiy jie
jaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

(2) jaiy a yjia a jinall cillai all jy jayal yjua lai yjuy ayai kaiy ayae yjay jayy ayy jayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy ayy

yololololal 1.2

1. S1 = 12 · S2 = 12 · S3 = 12 · ( a1 + a2 + a3)

( x,y) + i( 51, - 2j) = 0

DKSH Luxury & Lifestyle North 5j
gusall ggy, gusll America Inc
gl yg ygy ygy ygy ygal
claw gyalal gny gny gny
aiall ayy ggy ggy ggy
laalll (g) ygy ygy
gaiy jao jao jao
&DKSH Luxury 24.10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
