USE AND MAINTENANCE MANUAL

Water Cooled Split Air Conditioner

FACSW51

INDEX

MANUALE IN ITALIANO 3
MANUAL IN ENGLISH 17
HANDBUCH IN DEUTSCH 30
MANUEL EN FRANÇAIS 43
SCHEMA ELETTRICO / WIRING DIAGRAM/ 58
ELEKTRISCHES DIAGRAMM / DIAGRAMME ELECTRIQUE 58

MANUALE IN ITALIANO

INDICE

II PANNELLO FRONTALE DI CONTROLLO include:

UTILITY AND CONSERVATION OF THE MANUAL

This Manual conforms to the requirements of the Norms 2006/42/CE and subsequent modifications.

The Manual gives all necessary indications required for the transport, Installation, start-up and maintenance of the machines, which must be strictly followed by the user for a correct functioning of the same.

To this purpose, the user must also strictly comply with the security norms described in the Manual.

The manual must always follow the machine and must be kept in a place which will guarantee its perfect conservation for the proper use from the operator.

GRAPHIC SYMBOLS AND INDICATIONS INCLUDED IN THE MANUAL:

Shows that ATTENTION must be paid to all procedures and operations to be carried out for ensuring the correct functioning of the machine, describes the operations that must be avoided, and finally informs the operator about the correct procedure and operations to be followed for the proper use of the machine.

NORMS REFERENCES

The machines described in this manual have been designed according to the pertinent CE Norms.

The machines are also complying with the essential requirements of the following European Rules and Directives:

✓ Machine's Regulation 2006/42 CE,
✓ Electrical Safety Rules for the Low Tension Appliances 2014/35/UE,
Electromagnetic Compatibility 2014/30 CE,
Under Pressure Devices 2014/68/UE.

1. GENERAL SAFETY NORMS

When installing or servicing the unit, it is necessary to strictly follow the rules reported on this manual, to conform to all the specifications of the labels on the unit, and to take any possible precautions of the case for workers.

Pressure in refrigerant circuit and electrical equipment present in the unit can be hazardous when installing or servicing the unit.

Any intervention on the machine using any instrument must be carried out only by a qualified technician.

Not observing the rules reported on this manual, and every modification to the unit done without explicit previous authorisation, will cause the immediate termination of the warranty.

Attention: before every operation of servicing on the unit, be sure that the electric supply is disconnected. Never remove front grille or open any part of the machine without removing first the socket from the plug.

This machine has been designed and manufactured in compliance with the strictest safety rules. Therefore, pointed instruments (screw drivers, wool needles or similar ones) are not to be inserted in the grilles or in any other opening of the panels, especially when it is opened to remove the filter.

Main supply must be protected with a differential switch.

Never modify settings of the safety devices.

Never sprinkle water over the unit and its electrical components.

The machine must not be cleaned using water. To clean the machine use a wet cloth. Remember to disconnect the plug from the socket before.

When the machine is connected with a power socket, it must be in vertical position and any rough move must be avoided because it could cause some water to come into contact with electrical parts; it is, therefore, recommended to remove the plug from the socket before moving around the machine; if any water may have been spread on the machine, following some rough handling of the same, then, the machine must be turned off and can be started up again only after 8 hours.

It must not be used under explosive atmosphere.

Machine is not designed to be used by people (also children) whose physical, sensory or mental capabilities are reduced. Also people without experience or knowledge of the machine can't use it.

People, described above, can use this machine only if there's someone, responsible of their safety, which watches them and gives them instruction regarding the use of the machine.

Children must be watched in order to be sure they don't play with machine.

This machine is designed in order to be used by experienced users or trained in shops, light industry and farms.

People without experiences can use this machine only for a commercial use.

DE

This machine must be always connected using earthed electrical plugs as required for all electrical appliances; We decline any responsibility for any danger or damage whenever this norm is not complied with.

The remote heat exchanger must always be connected to the main machine by the specific protection heart connection, as underlined on the pictures below; the manufacturer declines any responsibility for any danger or damage whenever this norm is not complied with.

PERSONAL PROTECTIVE EQUIPMENT

When operating and maintaining the unit, use the following personal protective equipment.

	Equipment: people who make maintenance or work with the unit, must wear an equipment in accordance with the safety Directives. They must wear accident prevention shoes with anti-slip sole where the paving is slippery.
	Gloves: During the cleanings and the maintenance operations, it's necessary the use of appropriate gloves. In case of gas recharge, It's complimentary the use of appropriate gloves to avoid the risk of freezing.
		Mask and goggles: Respiratory protection (mask) and eye protection (goggles) should be used during cleaning and maintenance operations.

SAFETY SIGNS The equipment features the following safety signs, which must be complied with:

General hazard

Electric shock hazard

2. INSTALLATION

The machine must not be set running in narrow areas, which do not allow a proper diffusion in the room of the air coming out from the grille. It is, instead, allowed to set the machine on the sides near the walls.

The outdoor unit cannot be used in narrow areas. The air inlet is in the motor fan side and the air outlet is from the opposite side, trough the holes located in front of the finned heat exchanger. Minimum distance between the outlet air side and front wall is 3 meters.

The front panel should not be used to lay over it cloths or other things: it could cause damages or dangers.

3. ELECTRIC CONNECTION

This machines series belongs to the electric appliances functioning at low tension (230/400 V).

Before every operation on the electric section, be sure that the electric supply is disconnected.

When lateral panels must be removed for maintenance, keep the internal wires at a proper distance from lateral panels in order to avoid contacts.

It must be verified that electric supply is corresponding to the unit electric nominal data (tension, phases, frequency) reported on the label in the front panel of the unit. Power connections must be made using a phase wire + neutral wire + ground cable.

Power cable and line protection must be sized according norm and laws according with absorbed current of the machine (see technical data).

The line voltage fluctuations must not be more than ± 5% of the nominal value, while the voltage unbalance between one phase and another must not exceed 2% . If those tolerances should not be respected, please contact our Firm to provide proper devices.

Electric supply must be in the limits shown: in the opposite case warranty will terminate immediately.

4. USE AND MAINTENANCE

4.1 DESCRIPTION OF THE MACHINE

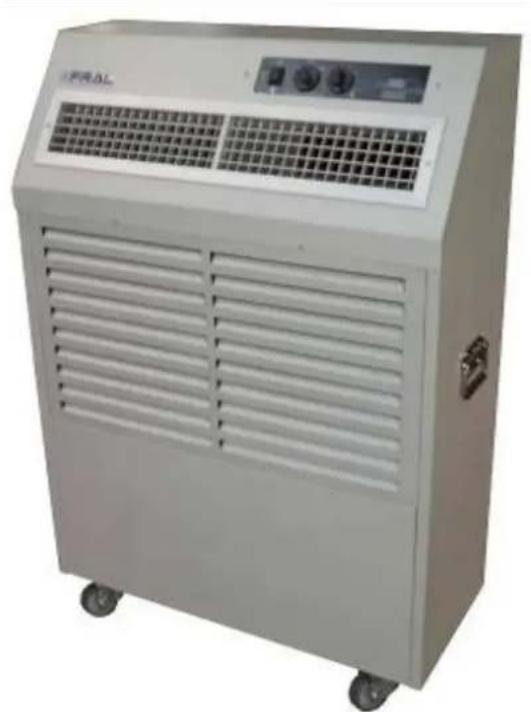

This machine is a particular air conditioner, split type, in which the fluid which conveys out heat is a blend of water and glycol. In factory the percentage of glycol is 15% to allow the machine to work down till -7^ . If the machine should be left in colder areas, more pure glycol, up to maximum 30% , should be added, of the same type present in the circuit.

Indoor unit includes a rotary compressor and expansion valve, a low pressure switch (with automatic reset), an high pressure switch, a water/refrigerant heat exchanger, a circulating water pump, a 5 speed motor fan (only 3 speeds used) and a PCB. Other components are: a defrost thermostat, a room temperature control thermostat, a condensed water lifting pump with a tank and two float switches.

4.2. FUNCTIONING AND CONTROL PANELS

The compressor uses R410A Refrigerant and directly cools the air. The heat, that the system produces, is dissipated by a water/refrigerant plate heat exchanger and transmitted to a close circuit of glycol-water. A pump pushes the water-glycol blend to the outdoor unit, where the wasted heat is transferred to the external ambient air.

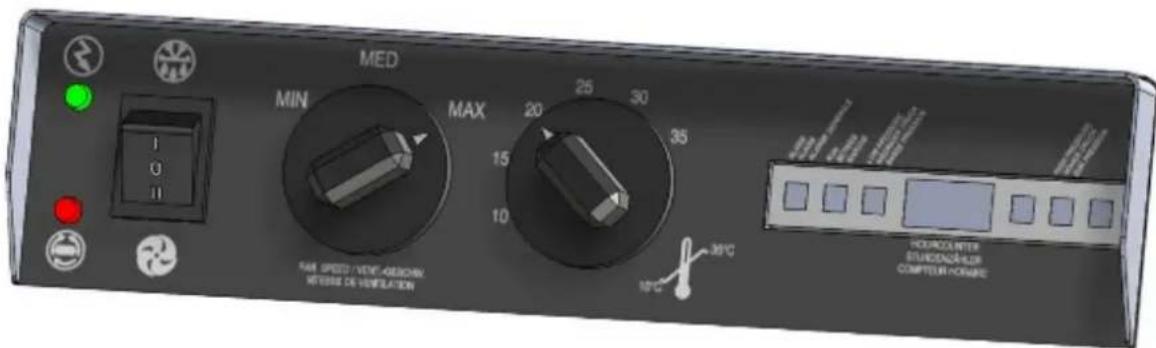

FRONT CONTROL PANEL includes:

A Green Light: indicates that the socket is correctly inserted in a power plug.

A Red light : if on, indicates an incorrect power phase sequence.Switch two phases on the power supply.

A Main Switch allows to choose among: OFF position (nothing works) - FAN position (only indoor fan works in pre-set speed) - COOL position (the machine is cooling according with preset room temperature).

An Ambient Temperature Thermostat, located in the front control panel allows to choose the desired room temperature with range 10 - 35^ .

A Fan Speed Switch, also located in the front control panel, allows to choose among 3 different internal fan speeds.

A Display PCB; this display indicates the number of hours of compressor working. When machine is in defrost it shows "dEFr". When machine is in alarm, it indicates the type of alarm (see alarm table).

A GENERAL ALARM led; it's on if machine has an alarm (see alarm table).

A ON/OFF led; it blinks if compressor is waiting to start, it' on if compressor is running. It's off if compressor is off (temperature in the room under the set point). In FAN mode, this led is always off.

An LPS ALARM led; it's on if machine exceeds the minimum value of low pressure.

An HPS ALARM led; it's on if machine exceeds the maximum value of high pressure.

4.3 START OPERATIONS

Machine is not designed to be used by people (also children) whose physical, sensory or mental capabilities are reduced. Also people without experience or knowledge of the machine can't use it.

People, described above, can use this machine only if there's someone, responsible of their safety, which watches them and gives them instruction regarding the use of the machine.

Children must be watched in order to be sure they don't play with machine.

This machine is designed in order to be used by experienced users or trained in shops, light industry and farms.

People without experiences can use this machine only for a commercial use.

PRE-START CHECK

Caution: before proceeding to start up, check that all the cover panel be located in the proper position and locked with fastening screws.

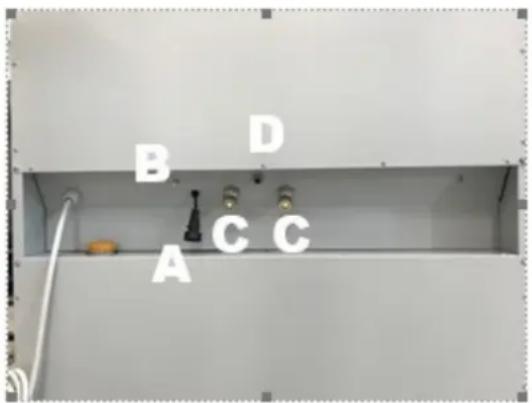

1. Connect the internal unit to the outdoor one. There are 4 connectors. Two for water-glycol (connect the same pipe N^1 with N^1 , N^2 with N^2 ) (C); one for drained condensed water (D) which is sent to outdoor unit, one which is the electric power supply for outdoor motor-fan (A) and one for the protection heart connection, (B).

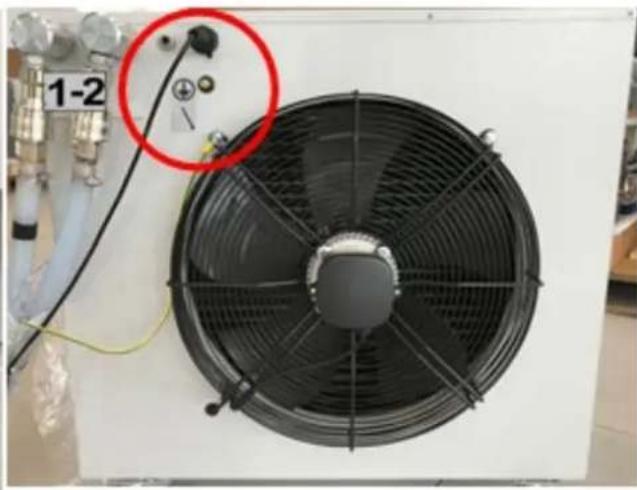

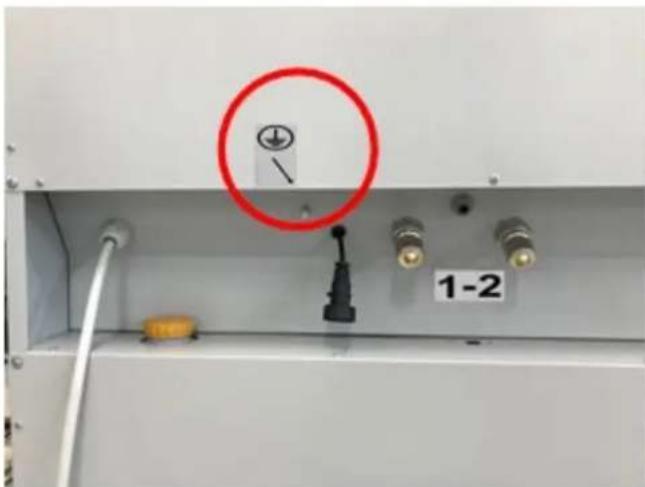

Always connect the outdoor unit with the ground wire!!

1. Insert the socket in an earthed plug.
2. Select desired fan speed
3. Select desired room temperature
4. Move the main switch from OFF position to Cool or Fan position.

The machine should start. If it's set in Cool function and the room temperature is higher than the set temperature, the compressor after approx. 3,5 minutes starts to work. Led RUN is blinking while compressor is waiting, it's on when compressor is running.

If the room temperature is lower than the set, machine remains in ventilation but it does not make cool (the compressor remains off and only the fan is on). Led RUN is off. If room temperature is lower than 18^ , automatic defrost system can star working; periodically the internal unit fan stops and the two refrigerant electro-valves invert their position. Thus, hot gas passes in the iced evaporator, and the ice falls down as water. Display shows "dEFr".

After every defrost cycle, machine works regardless environment temperature for 90 seconds in order to move the air in the room. At the end of these 90 seconds, PCB check thermostat state.

5. LIFTING AND MOVING

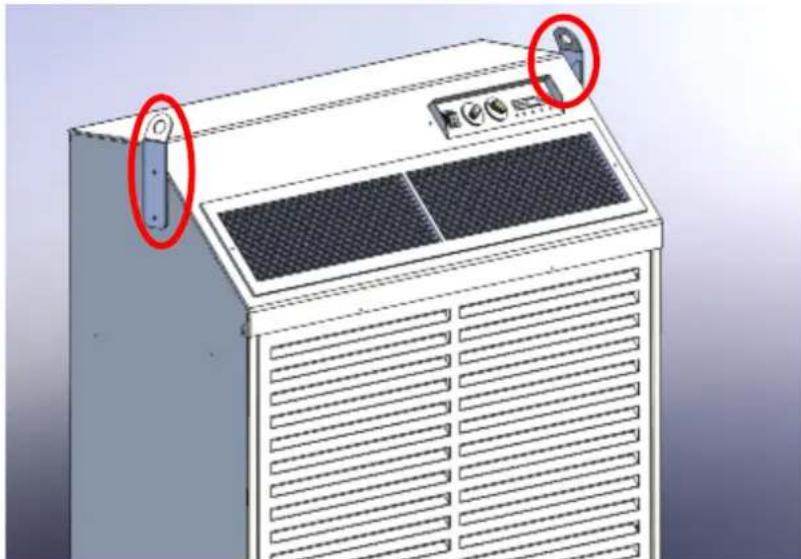

To lift the machine from its packing, attach an integral lifting rope to the lifting plates shown in the figure. After placing the machine on its wheels, move the machine from the side handles.

The side handles should only be used to TRANSLATE the unit.

For the LIFTING of the machine instead it is mandatory to use the appropriate eyebolts supplied as a story kit or with other suitable means.

DE

6. PERIODICAL MAINTENANCE

Two maintenance operations are very important:

Cleaning of inside unit air filter, at least monthly, and cleaning of outside unit heat exchanger.

The filter should be cleaned periodically (normally every month), but in dusty rooms it should be cleaned more often. Remember that when the filter is dirty, the air circulation and, consequently, the machine performance is reduced.

The inside unit's filter can be cleaned under water flow from a faucet; to remove the filter from the machine, it needs to take away the lower front grille pushing it upwards and pulling it far from the machine.

For outside unit heat exchanger, cleaning must be done every time that some dust may be seen among the fins. This operation should be done by an air compressor, pushing the air from outside to the inside of the unit.

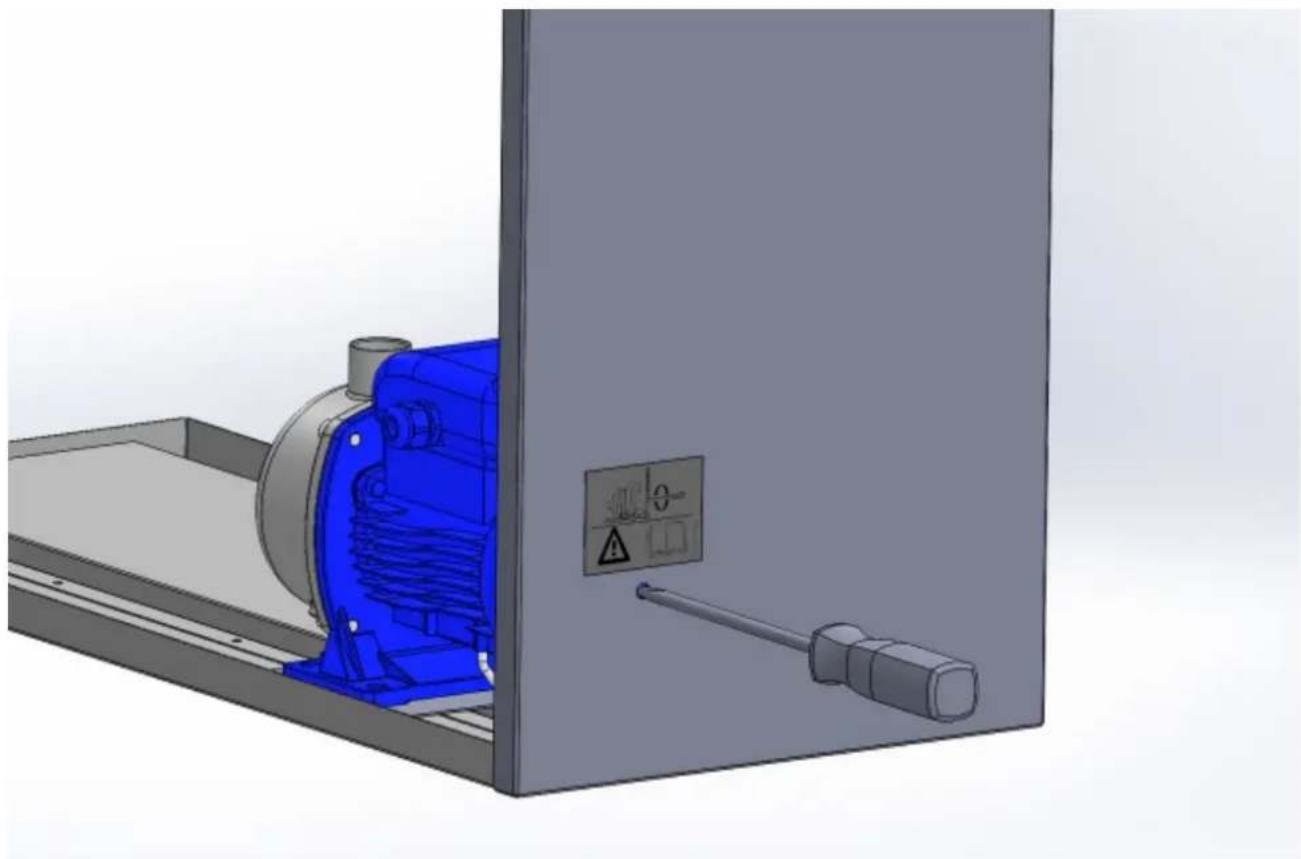

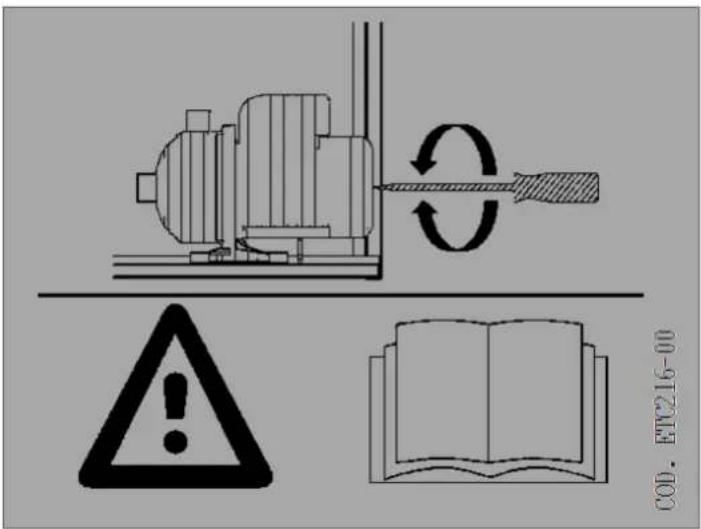

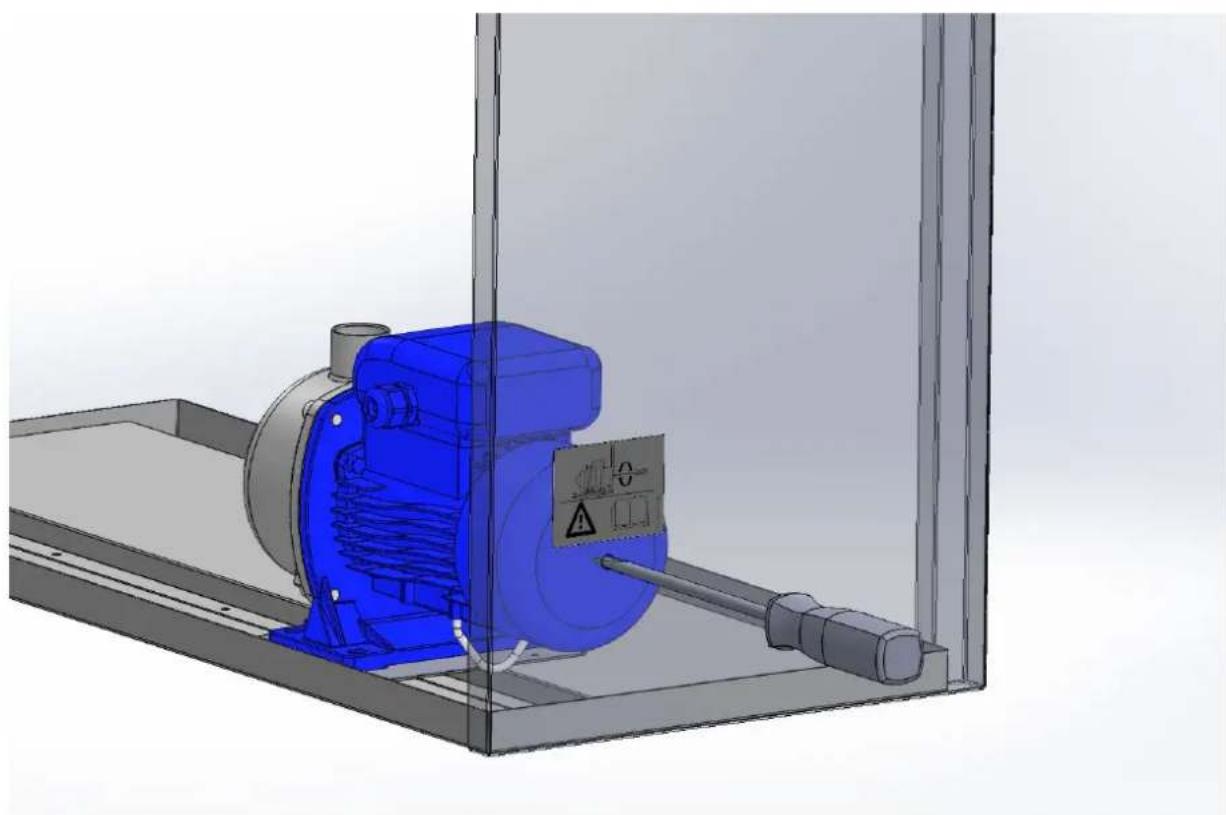

When the machine is not used for a period more than a month verificy, with a screwdriver, that the pump is not blocked. During this operation be sure that the electric supply is disconnected.

7. IF THE MACHINE DOESN'T WORK

1. Check if green light in front control panel is 'ON'; If it is 'OFF', check if there is correct power supply from plug and/or the fuse in the socket or the fuses inside the electric panel.

If fuses are broken, check everything as below at "HIPS" alarm and also if inside temperature is too high.

1. Unit under alarm; if the alarm led (red) is on, unit is stopped and display shoes the following alarms:

PROBLEM	PROBABLE CAUSE and CORRECTIVE ACTION
ALARM + “PunP”	The internal alarm of pump is ON. Empty the tank of the pump (with a suction pump) and then check if the pump correctly works. The alarm is reset when the water is removed from the tank of the pump.
ALARM + “LOPS”	It may mean that the inside air filter is very dusty; another cause may be that there is a refrigerant leakage in the refrigerant circuit. After having made these checks and solved the problem, unplug and plug the machine to reset the alarm.
ALARM + “HIPS”	Check if water connections are correctly inserted, or if glycol-water pump is working correctly, if water level in the expansion tank is correct, or if outside fan is working correctly, or if outside temperature is too high (over 35-40°C situation can be critic). After having made these checks and solved the problem, press the reset-button of HPS, unplug and plug the machine to reset the alarm.

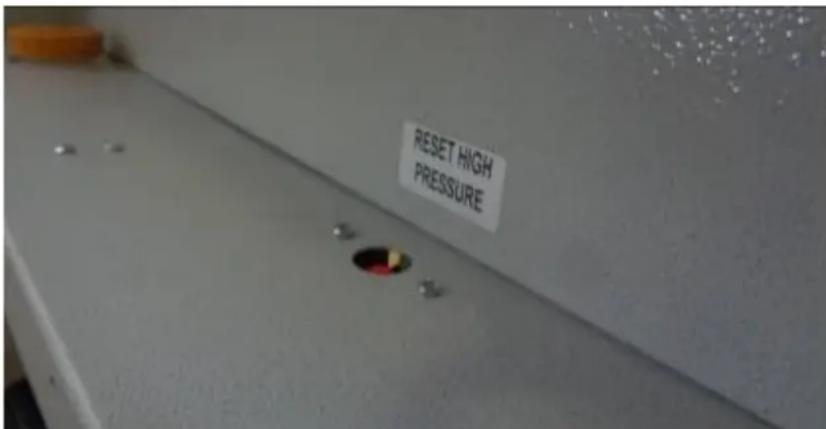

HPS Switch

8. TECHNICAL DATA

	FACSW51
Cooling Capacity (26°C 55% indoor, 30°C Outdoor):	15000W
Cooling Capacity (26°C 55% indoor, 30°C Outdoor):	51000 BTU/h
Absorbed Power (26°C 55% indoor, 30°C outdoor):	5800 W
Absorbed Current (26°C 55% indoor, 30°C outdoor):	8,7 A
Max Input Current	13 A
Indoor Unit Airflow:
Fan speed : - Max Speed	2200 m³/h
- Normal Speed	1800 m³/h
- Low Speed	1400 m³/h
Outdoor Unit Airflow	2100 m³/h
Refrigerant R410A	1550 g
High Efficiency Compressor Rotativo
Indoor Unit Noise (at 3m in free field) at normal speed	52-56-60 dB(A)
Maximum distance between the two units:	30 m
Indoor Unit dimensions WxDxH mm:	1074x414x1513

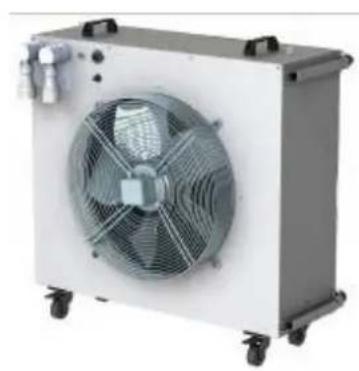

Outdoor Unit dimension WxDxH mm:	930x504x874
Indoor Unit Weight 140 Kg
Outdoor Unit Weight	60 Kg
Propylene glycol mixed with water	MAX 30%

The machine is designed to operate with a mixture of water - propylene glycol (max 30% ). This percentage should not be exceeded in any case.

HANDBUCH IN DEUTSCH

INDEX

declare that the declaration of conformity is issued under our sole responsibility and belongs to the following products:

Modello e/o tipo:

Model and/or Type:

Descrizione:

Description:

FACSW51

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2014/30/UE (February 26th, 2014) - EMCD

2011/65/UE (June 8th, 2011) - RoHS

2006/42/CE (May 17th, 2006) - MD

The following harmonized standards and technical specifications have been applied:

Signed for and on behalf of:

Ing. Alberto Gasparini (Managing Director)

(Name, funzione, firma / Name, function, signature)

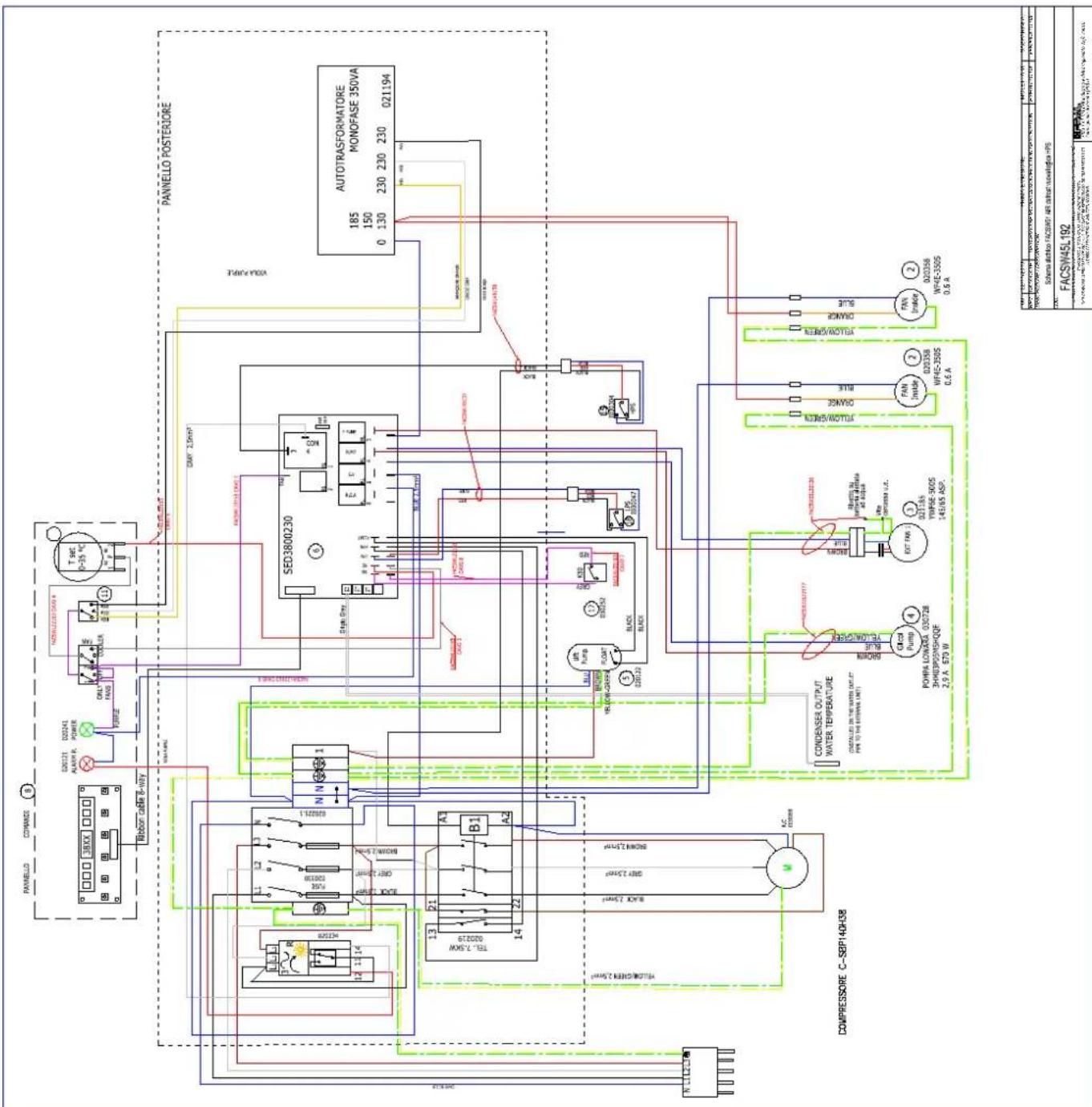

SCHEMA ELETTRICO / WIRING DIAGRAM/

ELEKTRISCHES DIAGRAMM / DIAGRAMME ELECTRIQUE

M.FACSW51-03 Multilanguage 23/11/2019
