USER MANUAL SV3010 Fuave

Two white outdoor fan-shaped electric fans with visible blades against a teal background (no text or symbols)

Statiefventilator / Table Fan / Ventilateur de table

INHOUD

Veiligheid 01.

Simple line icon of a trash bin with crossed handle and no text or symbols

INDEX

Safety 07.

Parts description 08.

Before the first use 09.

Assembly 09.

Use 10.

Cleaning and maintenance 11.

Environment 11.

SAFETY

- This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

- By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Never move the appliance by pulling the cord and make sure the cord can not become entangled.

- The appliance must be placed on a stable, level surface.

- The user must not leave the device unattended while it is connected to the supply.

- This appliance is only to be used for household purposes and only for the purpose it is made for.

- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

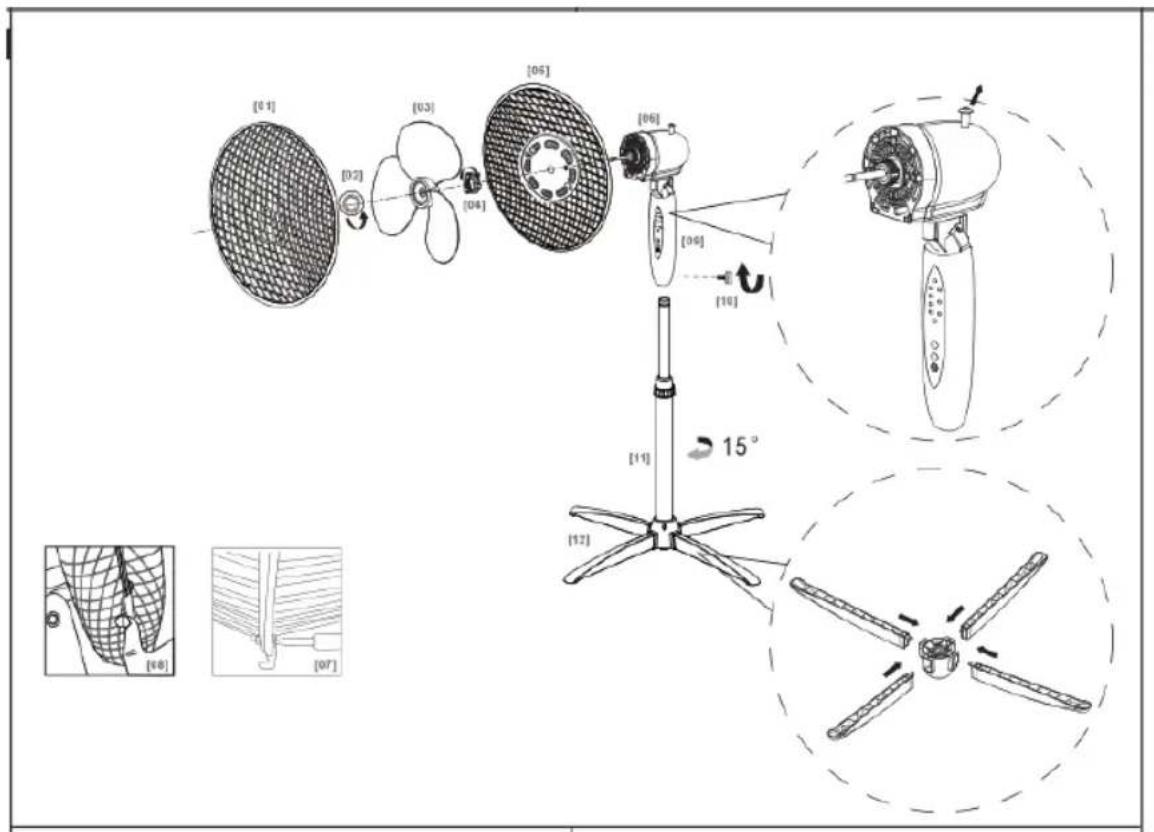

PARTS DESCRIPTION

1. Front guard
2. Fan blade lock button
3. Fan blades
4. Locknut for the rear guard
5. Rear guard

6. Oscillation pen

7. Clip

8. Control buttons
9. Knob for height adjustment
10. Base
11. Stand feet
12. Remote control

[0 1] [02] [03] [04] [05] [06] [06] [10] [11] 15° [12] [68] [07]

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil and plastic from the device.
• Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz)

ASSEMBLY

• Place the feet on the pedestal and push / click them into place.
• Insert the base tube into the pedestal and turn to lock it into place.
• Remove height adjustment ring by unscrewing and sliding up.
• Slide stand cover down onto the base and screw the height adjustment ring back in place.
• Loosen height adjustment ring to extend the extension rod and tighten back into place.
• Loosen rear fixing knob and attach extension rod.
• Unscrew the rear locking ring from the motor shaft in anti-clockwise direction.
• Set the rear cage and fit it well on the two position holes and make sure these holes are properly put through the holes on the rear cage.
• Hold the rear cage and screw the rear locking ring into the motor front cover in a clockwise direction.
  • Install the fan blade onto motor shaft and fit the fan blade lock cap.

• Loosen the screw and nut on the bottom of the rear cage.

• Open front cage clips and position onto rear cage ensuring the screw bottom is aligned between both.

• Tighten screw and nut.
• Close the cage clips over both front and rear cage.

USE

• Use the speed control knobs to choose the desired ventilation level.
• To make the fan head oscillate, push down the Oscillation Knob.
• To stop the fan head from oscillating, pull-up the Oscillation Knob.
• Press the off button to turn off the fan.

USING REMOTE CONTROL

• Press the on/speed control button to turn on the appliance. With each press on the on/speed control button you will be able to switch the fan speed between low, medium, and high.
• Select the wind type setting be pressing the mode button on the remote control. With each press on the mode button you will be able to switch the fan between normal wind, nature wind and sleep wind.
• Press the timer button to activate the timer.
• When the fan is on, press the timer key to set the desired shut down time 0.5-7.5 hours.
• Press the off button to turn off the fan.

CLEANING AND MAINTENANCE

• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.

ENVIRONMENT

Symbol of a trash bin with crossed x-marks and a horizontal bar below (no text or numbers)
