USER MANUAL TV3010 Fuave

Black industrial air conditioner tower with ventilation grille and base, against a solid teal background (no text or symbols visible)

White vertical cylindrical device with grid pattern, no visible text or symbols

Torenventilator / Tower Fan / Ventilateur

Inhoud

NL

Technical line drawings of mechanical components, including a fan assembly and motor stator assembly (no text or labels)

GEBRUIK

Symbol of a trash bin with no text or numbers present

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using your product. By ignoring the safety instructions the manufacturer cannot be held responsible for the damage. When using an electrical appliance, basic safety precautions should always be observed, including the following:

IMPORTANT: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall not use or play with this appliance. Close supervision is necessary to keep appliance and cord out of reach of children during use.

WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Never move the appliance by pulling the cord and make sure the cord does not become entangled. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance into water or any other liquid.
• To prevent fire or shock hazard do not expose this appliance to rain or moisture.

Other safety considerations

- Never insert your fingers or any other object into the air outlet. Take special care to warn children of these dangers.

• Do not use the unit: near a source of fire. in an area exposed to direct sunlight. in an area where water is likely to splash. near a bath, a shower or a swimming pool.

- Do not wrap the cable around the main body of the appliance during or after use.

- Misuse of the appliance could cause personal injury.

- This product is intended for huosehold use only. Do not use this appliance for anything other than its intended use. Do not use outdoors.

- This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
- Bed and breakfast type environments.
- Farm houses.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

Safety Batteries

• Do not expose the battery to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
• Keep batteries away from children. Batteries are not a toy!
• Do not open the batteries by force.
• Avoid contact with metallic objects.(Rings, nails, screws et cetera) there is a danger of shortcircuiting!
• As a result of a short-circuit batteries may heat up considerably or even catch fire. this may result in burns.
• For your safety the battery poles should be covered with adhesive strips during transport.
• Do not touch a ruptured and/or leaking battery. If the liquid from the battery gets into your eyes, rinse your eyes as soon as possible with clean
• water, without rubbing your eyes. Immediately go to the hospital. If it is not treated properly, it can cause eye problems.

Cleaning and maintenance

• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.

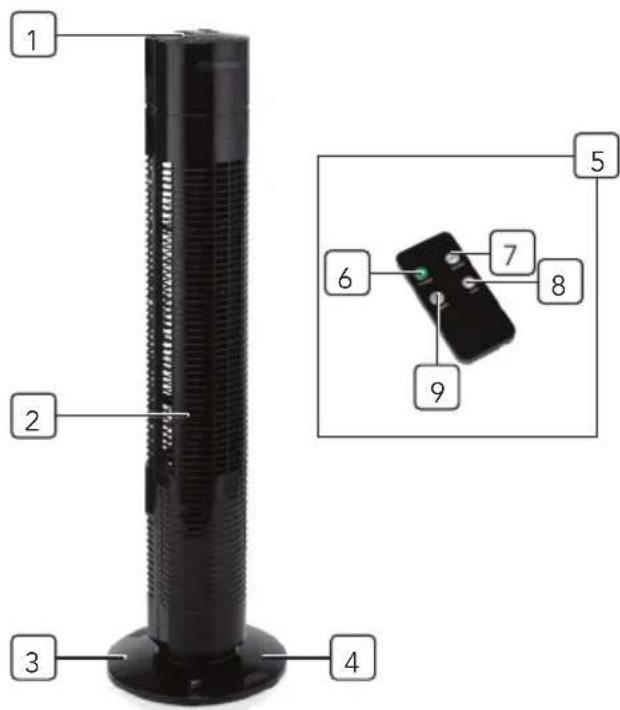

PARTS DESCRIPTION

1. Button panel
2. Fan body
3. Rear base
4. Front base
5. Remote control

Remote control/Button panel

1. On/off button
2. Speed
3. Oscillation
4. Time

1 2 3 4 5 6 7 8 9

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Unscrew the screws out of the bottom of the fan.
• Fasten both bottom plates to each other, make sure the power cable is put through the hole in the middle.
• Screw the bottom plate onto the bottom of the fan.
• Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz).

Assembly instructions

• Remove the 3 screws out of the turnplate.
• Put the front base onto the rear base and join them together.
  • Pull the power cord through the hole of the base.
• Align the base with the turnplate and use the 3 screws to secure them together.
• Press the power cord into the cable slot.

Technical line drawings of mechanical components, including a circular housing, gear assembly, and motor assembly (no text or labels)

USE

Using buttons on fan or remote control

• Press the power button to activate the appliance.
• Press the oscillation button to turn on the swing function, press again to turn off.
• Press the speed button to choose the desired speed of air flow. The indicator will illuminated at the selected speed, Low for low speed, Med for medium speed and High for high speed.
• When the fan is on, press the timer button to set the desired shut down time 0.5-7.5 hours.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

RECYCLING

Symbol of a trash bin with no text or numbers present

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Technical line drawings of mechanical components, showing exploded and assembled views (no text or symbols)

UTILISATION

Symbol of a trash bin with crossed handle and no text or numbers present
