Product Type	Wi-Safe 2 Wireless Alarm Remote Control
Brand	FireAngel
Model	WTSLF1EU
Power Supply	2 LR6/AA alkaline batteries (recommended models: Energizer E91, Duracell MN1500, Panasonic ProPower LR6)
Expected Battery Life	3 years ± 6 months
Product Lifetime	10 years
Warranty	5 years
Main Functions	Test/Silence Button, Location Button, alarm memory, indicator lights (smoke/heat alarm, CO alarm, fault)
Wireless Interconnection	Wi-Safe 2, compatible with up to 49 network devices
Test/Silence Button	Tests all interconnected devices; Silence reduces sensitivity for 10 min (except in case of CO detection)
Location Button	Silences all alarms except the triggering detector; allows locating the source device
Smoke/Heat Alarm Indicator Light	Indicates activation of a smoke/heat detector
Carbon Monoxide (CO) Alarm Indicator Light	Indicates activation of a CO detector
Fault Indicator Light	Indicates a fault on the control unit or a network device
Anti-theft Locking	Yes, by locking pin located at the top right of the bracket
Maintenance and Cleaning	Gently vacuum the cover every 3 months with a soft brush attachment; do not use detergents or solvents
Safety	Do not paint, do not spray aerosols, do not attempt to repair or open the housing
Disposal	Do not dispose of with household waste; recycle according to local regulations; remove batteries before disposal
Technical Support Service	Phone: [phone], Email: [e-mail]
Compatibility	Test, silence, memory, location and reorganisation functions compatible with Wi-Safe 2 detectors (models WST-630, WHT-630, W2-CO-10X WS, M-F-1 WHM, F-1)

Frequently Asked Questions - WTSLF1EU FireAngel

How to activate the WTSLF1EU control unit?

Remove the protective tab by pulling it out of the device. The three indicator lights must flash twice simultaneously to confirm activation.

How to connect the control unit to the Wi-Safe 2 wireless network?

Briefly press the 'learn' button located on the back of the unit. The red light flashes then stays on for about 5 seconds. During this time, briefly press the test button on a network detector. The detector emits two sets of three beeps to confirm the link.

What to do if the control unit does not respond after activation?

Check that the batteries are correctly installed and of the recommended type (Energizer E91, Duracell MN1500, Panasonic ProPower LR6). If the problem persists, contact technical support at 0800 940 078.

How to use the Test/Silence button?

Pressing the Test/Silence button initiates a test of all interconnected alarms for three minutes. To stop the test, press again. In Silence mode (in case of a harmless alarm), it reduces detector sensitivity for 10 minutes, except in case of CO detection.

How to locate the detector that triggered an alarm?

Press the 'Location' button. This silences all alarms except the source detector. You can also remove the control unit from its bracket and move from room to room while pressing the button to identify the device.

What does an indicator light flashing every 10 seconds mean?

This indicates that a detector has been triggered previously (alarm memory). Press the 'Location' button to identify the relevant detector. The light turns off and the alarm sounds on the source device.

How to reorganize the network after removing a detector?

Press and hold the 'Location' button for 5 seconds. The control unit enters reorganization mode: the lights flash in sequence. Once finished, the unit returns to standby. If reorganization fails, the three lights flash three times then a fourth; press again for 5 seconds to cancel and retry after 5 minutes.

How to activate the anti-theft locking of the control unit?

After interconnecting all detectors, remove the two cover plates at the top right of the bracket using a small screwdriver. Once the unit is fixed, it can only be removed by inserting a screwdriver into the hole at the top right to disengage the lock.

When and how to replace the batteries of the control unit?

When the indicator light flashes once every 5 seconds, the batteries are low. Open the compartment with a screwdriver, remove the old batteries and insert two new alkaline batteries of the recommended models (Energizer E91, Duracell MN1500 or Panasonic ProPower LR6) respecting polarity. Replace the cover and test the unit.

What to do in case of a carbon monoxide (CO) alarm?

Never ignore it. Stay calm, open doors and windows, shut off all combustion appliances, evacuate the premises leaving openings, then call your fuel supplier's emergency number.

USER MANUAL WTSLF1EU FireAngel

Installation & User Guide

Alarm Control Unit with Wi-Safe 2

Battery operated alarm control unit for testing, mute and localization. Hereby, Sprue Safety Products Ltd, declares that this WTSL-F-1EU is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at http://spru.es/WTSL-1EU

Vanguard Centre, Sir William Lyons Road, Coventry CV4 7EZ UK, www.fireangel.eu

INSTALLATION GUIDE

Features 5

Positioning 5

Installation. 5

Wireless Interlink 7

Making the Alarm Control Unit

Tamper Proof 9

USERGUIDE

Testing the Alarm System 11

Product Functionality 12

Reorganising a Network 15

When an Alarm Sounds 16

LED Indicators. 17

Troubleshooting. 19

Battery Replacement 21

Maintenance. 22

Disposal 23

Warranty. 23

Note: This user guide is also available in large text and other formats. Please email [e-mail] for further information.

INSTALLATION GUIDE

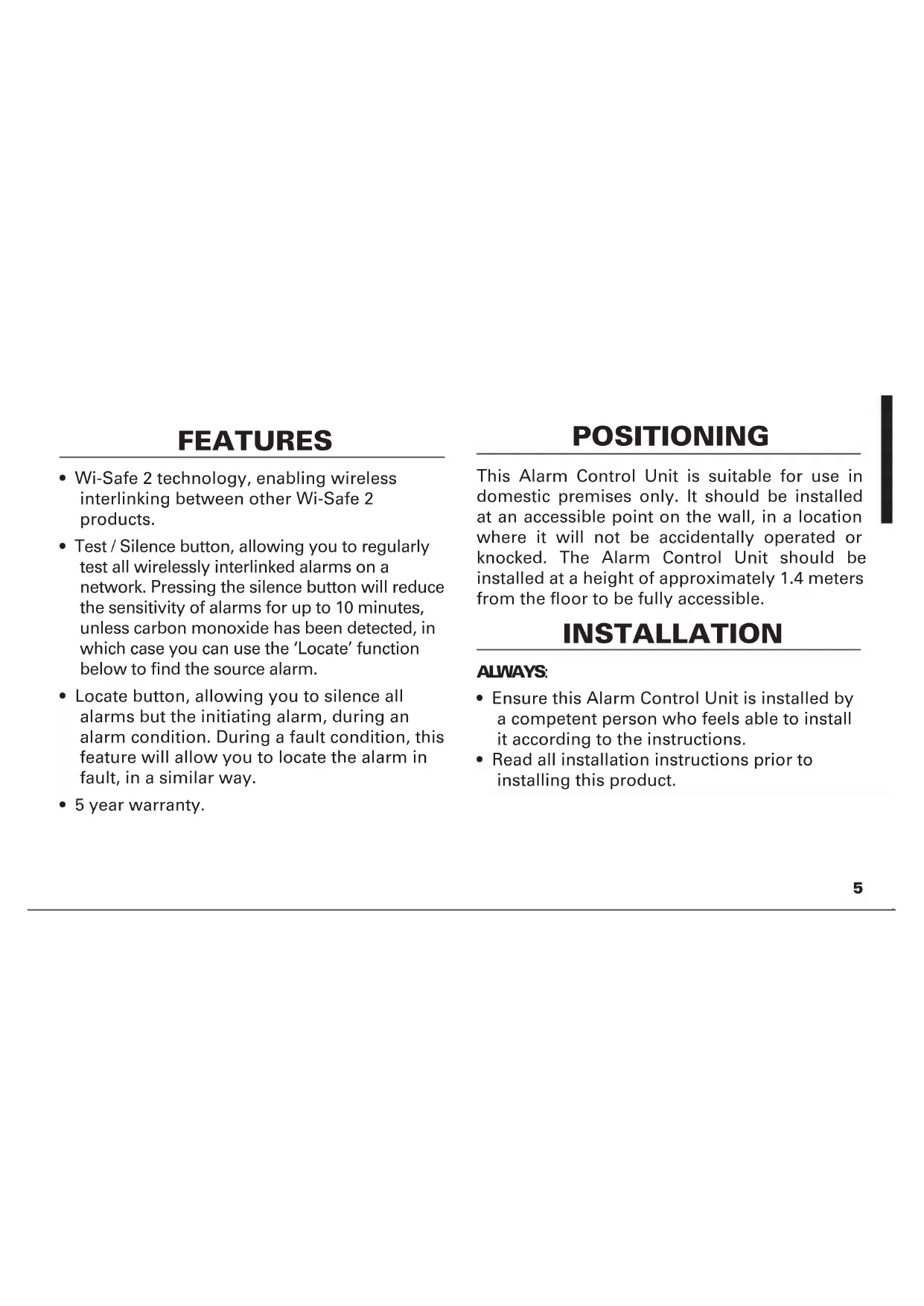

FEATURES

• Wi-Safe 2 technology, enabling wireless interlinking between other Wi-Safe 2 products.
• Test / Silence button, allowing you to regularly test all wirelessly interlinked alarms on a network. Pressing the silence button will reduce the sensitivity of alarms for up to 10 minutes, unless carbon monoxide has been detected, in which case you can use the 'Locate' function below to find the source alarm.
• Locate button, allowing you to silence all alarms but the initiating alarm, during an alarm condition. During a fault condition, this feature will allow you to locate the alarm in fault, in a similar way.
• 5 year warranty.

POSITIONING

This Alarm Control Unit is suitable for use in domestic premises only. It should be installed at an accessible point on the wall, in a location where it will not be accidentally operated or knocked. The Alarm Control Unit should be installed at a height of approximately 1.4 meters from the floor to be fully accessible.

INSTALLATION

ALWAYS:

• Ensure this Alarm Control Unit is installed by a competent person who feels able to install it according to the instructions.
• Read all installation instructions prior to installing this product.

WARNING: To prevent injury, this Alarm Control Unit must be securely attached to the wall in accordance with the installation instructions.

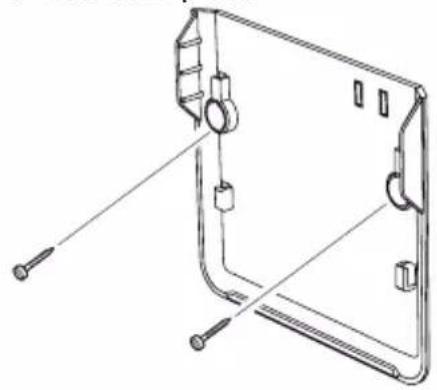

To mount the bracket onto a wall:

• Please ensure that you use the screws provided, as they were chosen specifically for use with this product. Drill holes into the wall and insert supplied wall plugs. Screw the bracket in place.

ACTIVATING THE ALARM CONTROL UNIT

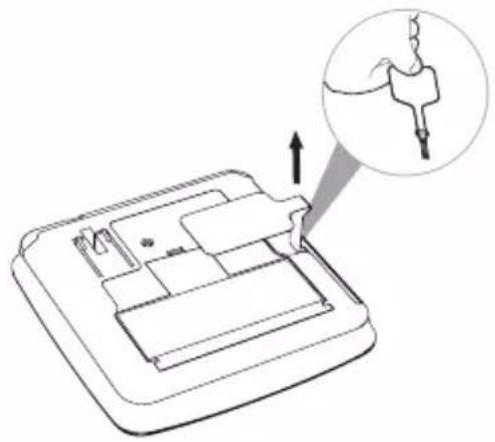

To activate the control unit remove the disabling tab. Upon activating the control unit all three LED's should simultaneously flash twice, to indicate that they are working.

Once the alarm is activated it can then be learnt into the wireless network, before securing to the wall bracket.

WIRELESS INTERLINK

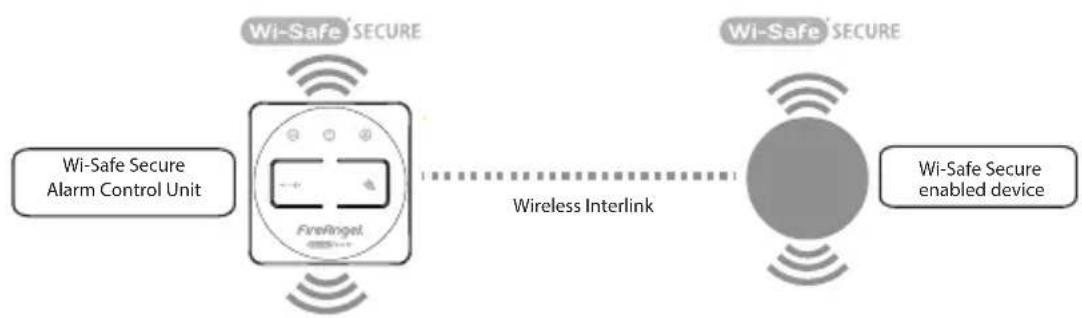

The Alarm Control Unit is designed to be used as a remote interface on a network of up to 49 products within the Wi-Safe 2 range. The Alarm Control Unit can be used to test, silence or locate any alarms on the Wi-Safe 2 network. It is not designed to communicate with wireless alarms from other ranges or manufacturers. The control unit needs to be 'learned-in' or interlinked, in order to communicate within the network.

Wi-Safe 2 enables wireless communication with any other product with Wi-Safe 2 technology inside. When one alarm detects smoke / heat / carbon monoxide, the wireless module inside sends a signal to all the connected alarms, ensuring almost instantaneous reaction across the network.

How to 'learn in' the Alarm Control Unit to a wireless network:

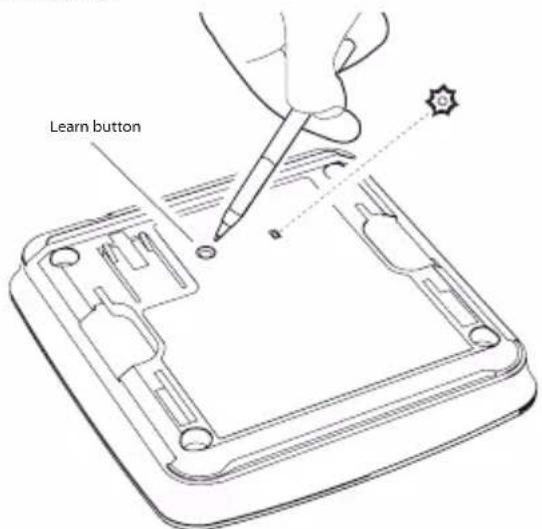

1. Using a ballpoint pen, briefly push and release the 'learn button' on the back of the control unit. The red LED next to the learn button will flash briefly then light up for approximately 5 seconds.

1. During these 5 seconds you need to briefly press the test button on an alarm already in the network, to wirelessly interlink the two. The alarm will sound its audible test pattern

2. The red LED on the back of the control unit will flash to indicate that it has been 'learned-in' successfully. If the test button is not pressed quickly enough, the 'learn-in' process will fail. If this happens, repeat the process. Your Alarm Control Unit counts as one unit within the network. If it is installed retrospectively, then the existing network cannot exceed 49 units in size.

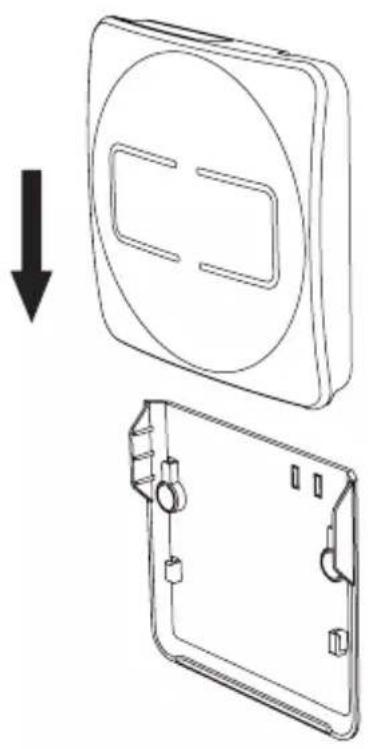

3. To complete the installation simply slide the control unit onto the bracket. The control unit is now part of the whole network.

The method above assumes you have already installed your alarm network, prior to installing your Alarm Control Unit. If you want to install your Alarm Control Unit first, you can learn your smoke, heat and CO alarm into it by following the instructions in your alarm manual, using the Alarm Control Unit as alarm 1 and holding down the test button on the Alarm Control Unit for at least 2 seconds.

MAKINGTHEALARM CONTROL UNIT TAMPER PROOF

Do not complete this action until you have wirelessly interlinked all of your alarms.

The Alarm Control Unit is provided with an anti-tamper feature, ensuring, where needed it cannot be removed from the wall.

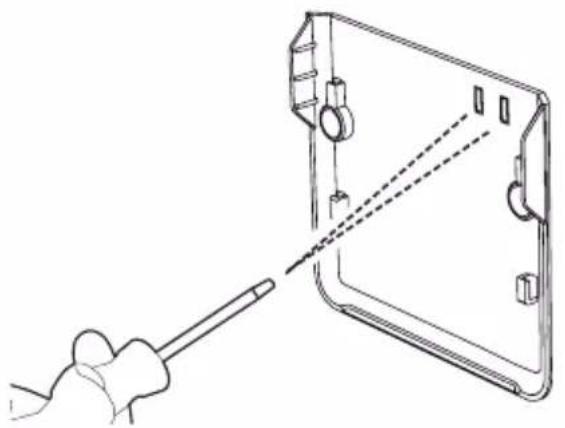

To make use of this feature you will need to push out the two blanking plates on the top right-hand side of the bracket, using a small screwdriver, being careful to support the bracket fully whilst doing so.

Once the rest of the installation is complete, and the control unit is fixed to the bracket it can only be removed using the following method:

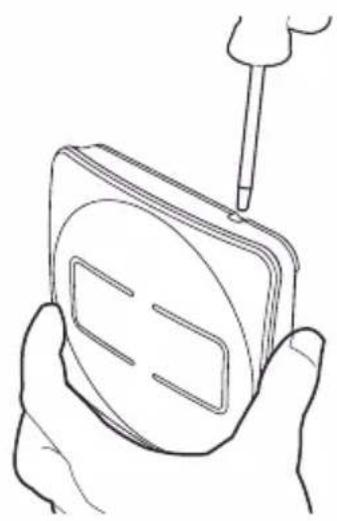

Insert a small screwdriver into the hole on the top right-hand corner of the control unit, until it stops, this will disengage the lock, then gently ease the control unit up to release it from the bracket.

USERGUIDE

TESTING THE ALARM SYSTEM

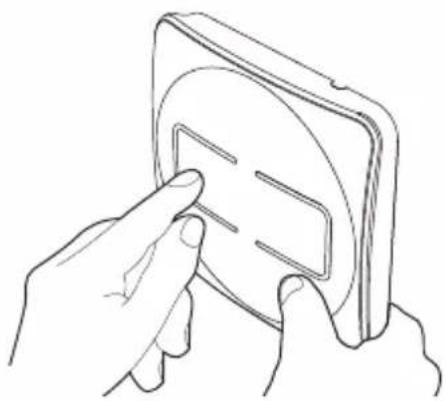

Press the Test / Silence button to confirm that the control unit is operating properly. This will instigate a three minute test. All networked alarms should sound. To stop the test (earlier than 3 minutes), simply press the Test / Silence button again. This test should be performed on a weekly basis.

Pressing the Test button on the Alarm Control Unit creates a lot of RF traffic. If you need to use the feature more than once, please wait for 5 minutes to let the network settle down.

PRODUCT FUNCTIONALITY

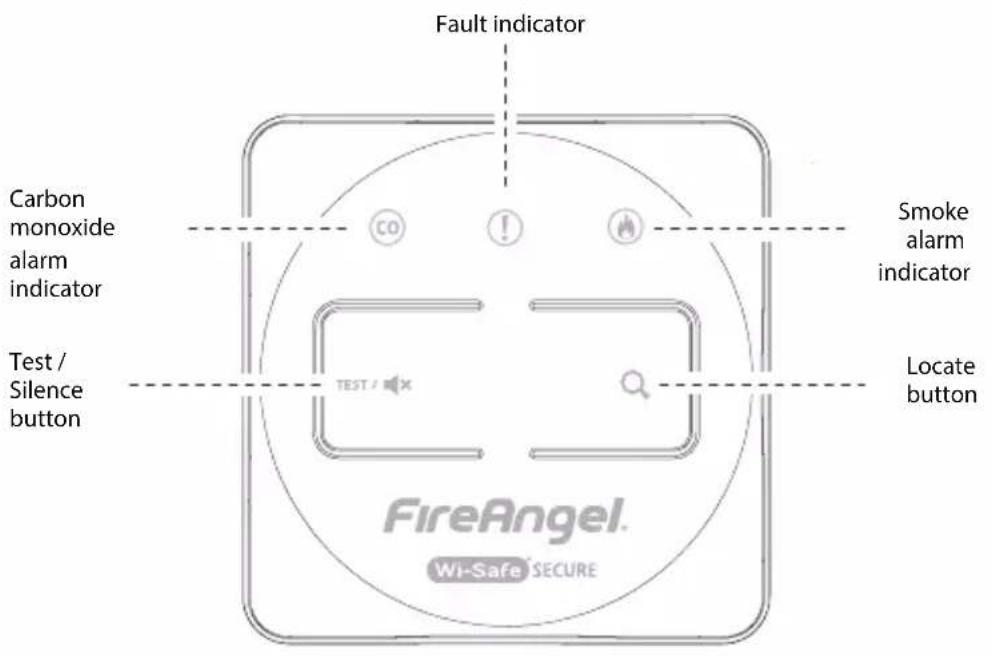

Function Description
Test / Silence button	Test button This allows you to test all wirelessly interlinked alarms from one centralised location. Silence button This will silence all wirelessly interlinked smoke and heat alarms and reduce the system sensitivity for up to 10 minutes.
Locate button	In an alarm event this will silence all wirelessly interlinked alarms except the initiating alarm which has sensed carbon monoxide / smoke.
Smoke / heat alarm indicator	This indicates that a smoke / heat alarm has been activated.
Carbon monoxide indicator	This indicates that a carbon monoxide alarm has been activated.
Fault indicator	This indicates a fault with the control unit or one of the alarms within the network.

LOCATE BUTTON

If the alarms are sounding and an alarm indicator is flashing, but there's no obvious hazard, pressing the 'Locate' button (Q) will silence all wirelessly interlinked alarms except for the initiating alarm which has sensed smoke / heat or carbon monoxide. Within two minutes the system will return to normal operation and the alarms will continue to sound if smoke / heat or carbon monoxide is still present. To make locating the alarm easier, the control unit can be removed from its bracket and carried around the property (providing the tamper proof function has not been engaged), allowing you to press the 'Locate' or 'Test' button whilst moving from room to room.

SILENCE BUTTON

If the alarms are sounding and the smoke / heat alarm indicator is flashing, but there's no obvious hazard, pressing the 'Silence' button ( ) will

sence all wirelessly interlinked alarms and reduce the system sensitivity for up to 10 minutes. However if excessive smoke is sensed the silence function will be overridden. The indicator will continue to flash unless the smoke disappears. Please Note: An alarm cannot be silenced using the Alarm Control Unit if carbon monoxide has been detected, however the 'Locate' function will allow you to find out which of the CO alarms is the initiating alarm.

ALARM MEMORY

If one of the alarm indicators is flashing every 10 seconds this indicates that a smoke alarm, heat alarm or carbon monoxide alarm has previously been activated. Pressing the 'Locate' button (Q) will clear the LEDs and sound the source alarm so you can investigate this further. You can press the 'Locate' button Q repeatedly until the source alarm is identified (fully compatible with FireAngel 230V Wi-Safe 2 smoke*, heat and CO alarms).

Please Note: Only the most recent alarm event will be visible. If both a CO and smoke / heat alarm have previously been activated, both LED's will show but the CO alarm will always take precedence, and this is the alarm which will sound.

*Not compatible with version ST-630 with W2 radio module or WST-630.

FAULT DETECTION

If the amber fault LED and a red alarm LED are flashing this indicates that an alarm on the network has developed a fault. To identify the faulty alarm press the 'Locate' button. If the alarm in fault sounds a unique 'SOS' sound pattern continues to 'A' below. If no SOS sound pattern is heard proceed to 'B' below.

A. In case you need to locate the unit again, please wait for 2 minutes before trying to locate for the SOS pattern. Take down the

alarm which is sounding. Unlearn the alarm from the network using a ball point pen in the circular 'learn-in' hole in the back of the alarm. Briefly push and release and then push and hold the 'learn-in' button. The red LED will remain illuminated during this process. When the red LED goes out, release the button, it will then flash twice, followed by three further flashes to illustrate that the alarm has successfully been 'un-learnt' from the network. Reorganise the network as detailed on the next page. The LEDs indicating a fault should now have stopped flashing and the faulty alarm can now be replaced with a new alarm if required.

B. Check all alarms are on their base plate and activated. If all alarms are activated, clear the fault by pressing the locate button twice.

REORGANISING A NETWORK

If you have un-learnt and replaced or removed any alarms, you can 'reorganise' in order to optimise the network performance. To do this you will need to press and hold the 'Locate' button for 5 seconds. The Alarm Control Unit will then enter 'Reorganisation Mode', during which time you will see a series of flashes from the LEDs. The time taken for this process to complete will depend on the number of units in the network.

If successful, once the reorganisation is complete, the Control Unit should return to standby mode, with no LEDs flashing.

If the reorganisation is not successful, and LEDs are still flashing (all 3 LED's flash together

times , then a fourth flash

(only) occurs repeatedly, you will need to exit 'Reorganisation Mode'. To do this hold the 'Locate' button for 5 seconds, wait for 5 minutes and then repeat the process above.

Prior to performing network reorganisation, test the network by pressing the test button on one of the randomly selected units and ensure that all units chirp / flash in response. This is essential to make sure that all the units are communicating with each other and ensures network reorganisation does not delete wanted units. In case one of the working units is out of range for networking, please check the installation position of the units and adjust / install an additional unit to help with the routing of messages.

WHEN AN ALARM SOUNDS

Never ignore an alarm. If there is a fire evacuate the premises and call the fire brigade. If the source of the alarm is not immediately apparent check which indicator is flashing on the control unit.

If the CO indicator is flashing:

• Keep calm and open the doors and windows to ventilate the property.
• Stop using all fuel-burning appliances and ensure, if possible, that they are turned off.
  Evacuate the property leaving the doors and windows open.
• Ring your gas or other fuel supplier on their emergency number; keep the number in a prominent place.

LED INDICATORS

Red CO LED	Red Smoke / Heat LED	Amber Fault LED	Status Action required
Flashing for 10 seconds, every hour	Flashing for 10 seconds, every hour	Flashing for 10 seconds, every hour	The Alarm Control Unit is not part of a network.	Please refer to the 'Wireless Interlink' section to 'learn-in' the control unit to the network.
Flashing rapidly every second			Alarm: A carbon monoxide leak has been detected.	Keep calm and open the doors and windows to ventilate the property.
	Flashing rapidly every second		Alarm: Smoke / heat has been detected.	Keep calm and evacuate the property.
		Flashing once every 5 seconds	Low battery condition.	Remove the existing batteries and replace with new batteries from the list of recommended batteries
		Flashing rapidly	This indicates an internal fatal radio failure.	Please contact Technical Support on: 0800 171 2009.
All 3 LED's flash together (50-13 times, then a fourth flash (60 on) occurs. This flash pattern is repeated.			This indicates that the 'Reorganisation Mode' has been unsuccessful.	To exit 'Reorganisation Mode' hold the 'Locate' button for 5 seconds, wait a couple of minutes and then press and hold the 'Locate' button for 5 seconds to start 'Reorganisation Mode' again.
Either the carbon monoxide indicator or the smoke / heat indicator or both, are flashing every 10 seconds			This indicates that one of the alarms has previously been activated.	Please refer to the 'Locate' section of this manual.
Either the carbon monoxide indicator or the smoke / heat indicator or both, are flashing		Double flashing every second	An alarm on the network has developed a fault.	Please refer to the 'Fault Detection' section of this manual.

TROUBLESHOOTING

Issue Indication
No lights come on when I press any of the buttons on the Alarm Control Unit	This may indicate that the control unit has not been successfully activated, see section ‘Activating the Alarm Control Unit’.
When pressing the test button nothing is happening	This indicates that the control unit has not been successfully activated, see section ‘Activating the Alarm Control Unit’.
Unable to remove the control unit from its bracket	You need to disengage the locking pins. Refer to the ‘Making the Alarm Control Unit Tamper proof’ section.
If you have any questions about the operation of your Alarm Control Unit, please contact Technical Support via email: [e-mail] or by calling: 0800 171 2009.
WTSL Compatibility Chart
Function	ST-630(Prior to 2014 Models)	ST-630(2014 Model onwards)	WHT-630	W2-CO-10X WS	M-F-1 WHM-F	F-1
Test		✓	✓	✓	✓	✓
Silence	✓	✓	✓		✓	✓
Alarm Memory			✓	✓	✓	✓
Locate	✓	✓	✓	✓	✓	✓
Locate (SOS Fault Finding)	✓	✓	✓	✓	✓	✓
Re-organisation	✓	✓	✓	✓	✓	✓

BATTERY REPLACEMENT

IMPORTANT: Only the following batteries can be used for replacement. Use of a battery other than those recommended below may have a detrimental effect on the alarm's operation.

Alkaline type:

Energizer E91

Duracell MN1500bB

Panasonic ProPower LR6

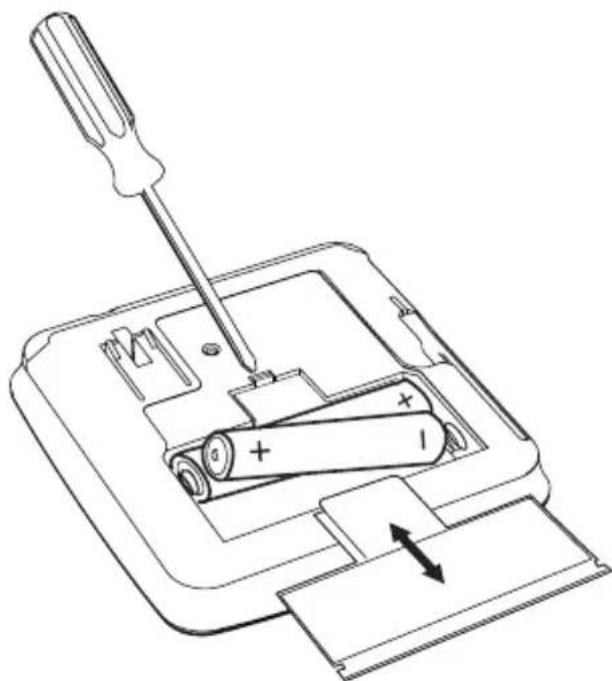

Use a screwdriver to remove the battery cover.

Remove the existing batteries and replace with new batteries from the list of recommended batteries making sure that the positive and negative connections are in the correct position.

Replace the battery cover.

After changing the batteries always test the Alarm Control Unit.

MAINTENANCE

Expected battery life: 3 years ± 6 months

Expected product life: 10 years

Warranty: 5 years

WARNING: Battery life stated above is subject to normal usage. In the event that any fault on a network of Smoke/Heat or CO alarms is indicated on the screen, we highly recommend that immediate and appropriate action is taken in accordance with guidance given in the user manual.

This is a matter of personal safety and may necessitate immediate action to prevent risk to the occupants. Also, if no action is taken, in such cases the LEDs will continue to be activated/ flash on the WTSL screen causing a drain on battery life, resulting in a premature low battery condition.

This Alarm Control Unit will act as a remote interface between the alarms in your home when maintained properly. To ensure the reliability of the control unit:

• Keep the control unit free from dust by gently vacuuming the case with a soft brush attachment every 3 months.
• Never use cleaning solutions on the control unit. Simply wipe with a damp cloth.
• Do not paint the control unit.
• Do not spray aerosols on or near the control unit.
• Do not use any solvent based products near the control unit.
• Do not attempt to repair the control unit.
• Do not remove any screws or open the main casing of the control unit. Any attempt to do so may cause malfunction and will invalidate the warranty.

DISPOSAL

Waste electrical products should not be disposed of with your other household waste. The Alarm Control Unit is ideally suited for disposal within the waste electronic and electrical equipment (WEEE) recycling scheme. Please recycle where facilities exist. Check with your local authority, retailer or contact our Technical Support team for recycling / disposal advice, as regional variations apply.

The batteries should be removed before disposal of the detector. Both the batteries and the detector should be disposed of in line with current regulations.

WARNING: Do not burn or dispose of in fire.

WARNING: If your Alarm Control Unit is dropped or damaged, as a precaution, it should be removed from the building and you should contact Technical Support on 0800 171 2009 or [e-mail].

WARRANTY

Sprue Safety Products Ltd warrants to the original purchaser that the enclosed WTSL-F-1EU Alarm Control Unit be free from defects in materials and workmanship under normal residential use and service for a period of five years from the date of purchase. Provided product is sent back to Sprue Safety products with proof and date of purchase, Sprue Safety Products Ltd hereby warrants that during the five year period commencing from the date of purchase Sprue Safety Products Ltd, at its discretion, agrees to replace the unit free of charge.

The warranty on any replacement WTSL-F-1EU Alarm Control Unit, will last for the remainder of the period of the original warranty in respect of the unit originally purchased - that is from the date of original purchase and not from the date of receipt of the replacement product. Sprue Safety Products Ltd reserves the right to offer an alternative product similar to that being replaced if the original model is no longer available or in stock. This warranty applies to the original retail purchaser from the date of original retail purchase and is not transferable. Proof of purchase is required. This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or applications not in accordance with the

user guide. It does not cover events and conditions outside of Sprue Safety Products Ltd's control, such as Acts of God (fire, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. Sprue Safety Products Ltd will not recognise any changes to this warranty by third parties.

Sprue Safety Products Ltd shall not be liable for any incidental or consequential damages caused by the breach of any expressed or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration for five years. This warranty does not affect your statutory rights. Except for death or personal injury, Sprue Safety Products Ltd shall not be liable for any loss of use, damage, cost or expense relating to this product or for any indirect or consequential loss, damages or costs incurred by you or any other user of this product.
