Product Type	In-ear wireless sport earphones
Brand	JBL
Model	Sport Wireless
Transducer	5.8 mm dynamic speaker
Frequency Response	10 Hz – 22 kHz
Wireless Connectivity	Bluetooth 4.0 with A2DP v1.2, AVRCP v1.4, HFP v1.6, HSP v1.2
Bluetooth Frequency Range	2.402 – 2.480 GHz
Bluetooth Transmitter Power	< 4 dBm
Power Source	Rechargeable lithium-ion battery (3.7 V, 2 × 60 mAh)
Charging Time	Approximately 2 hours
Playback Time	Up to 8 hours
Charging Port	Micro USB
Key Features	Music, phone and volume control via 3 buttons; hands-free mode; sport fit with front cord and optional clip
Included Accessories	Eartips (S, M, L) and enhancers (sizes 4 to 8, size 7 pre-installed)
Care and Cleaning	Clean with a soft, dry cloth; do not use chemical products
Safety	Use at moderate volume to protect hearing; do not expose to water
Spare Parts and Repairability	Replacement eartips and enhancers available; contact customer service for any repairs

Frequently Asked Questions - Sport Wireless JBL

How do I pair my JBL Sport Wireless earphones with my phone?

Make sure the earphones are off. Put your phone in Bluetooth search mode. Turn on the earphones by holding the power button until the light flashes (pairing mode). Select 'JBL Sport Wireless' from the list of Bluetooth devices on your phone.

How long does the battery last on the earphones?

Playback time is up to 8 hours after a full charge. Charging time is approximately 2 hours.

How do I choose the right size of eartips and enhancers?

Try the included sizes: eartips S, M, L and enhancers (sizes 4 to 8, size 7 pre-installed). The enhancer should fill the ear cavity and the eartip should provide optimal comfort and sound isolation.

Are the earphones water or sweat resistant?

The JBL Sport Wireless earphones are designed for sports use and are sweat resistant. However, they are not waterproof and should not be submerged in water.

How do I clean the earphones?

Use a soft, dry cloth to wipe the earphones. Do not use chemicals or water. The eartips can be removed and cleaned separately.

How do I control volume and music?

The earphones have a 3-button control: press for play/pause, long press for voice activation, double press for next/previous track, and +/- buttons for volume.

Can I use the earphones with multiple devices?

The earphones can be paired with only one device at a time. To switch devices, disconnect them from the first and follow the pairing procedure with the second.

What if one earphone isn't working?

First, check the earphones' charge. Try to reset the earphones by turning them off and on again. If the problem persists, contact JBL support.

How do I properly wear the cord?

Wear the cord in front for a secure fit. Use the optional sport clip (not included) to stabilize the cord. For better connectivity, place your phone in an armband.

How do I get spare parts?

Replacement eartips and enhancers are available. Contact JBL customer service or visit the website. For other parts or repairs, go to an authorized center.

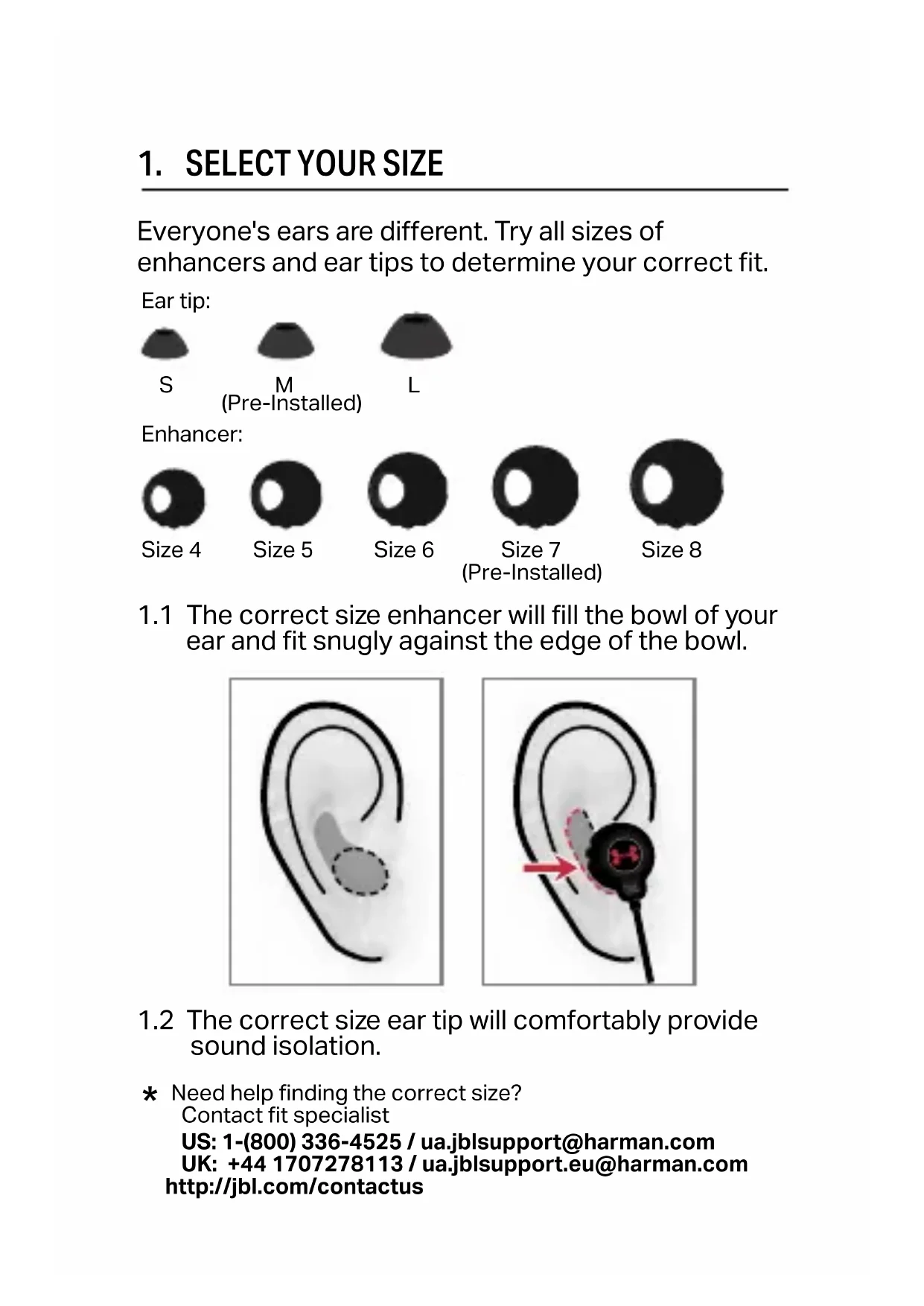

USER MANUAL Sport Wireless JBL

Everyone's ears are different. Try all sizes of enhancers and ear tips to determine your correct fit.

Ear tip:

S

M (Pre-Installed)

L

Enhancer:

Size 4

Size 5

Size 6

(Pre-Installed)

Size 8

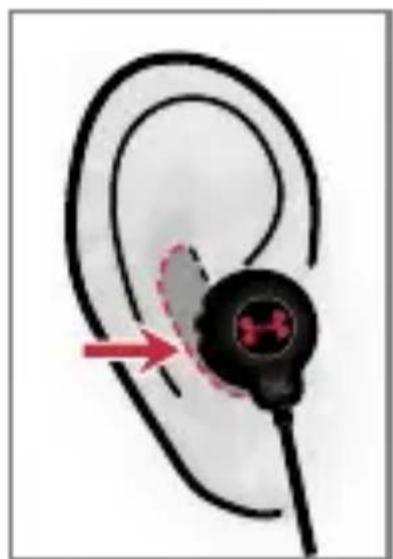

1.1 The correct size enhancer will fill the bowl of your ear and fit snugly against the edge of the bowl.

1.2 The correct size ear tip will comfortably provide sound isolation.

• Need help finding the correct size?

Contact fit specialist

US: 1-[phone] / [e-mail]

UK: [phone] / [e-mail]

http://jbl.com/contactus

2. ATTACH ENHANCERS

2.1 Gently clip the enhancer onto the earphone.

2.2 Align the notch, and gently clip the ear tip onto the earphone.

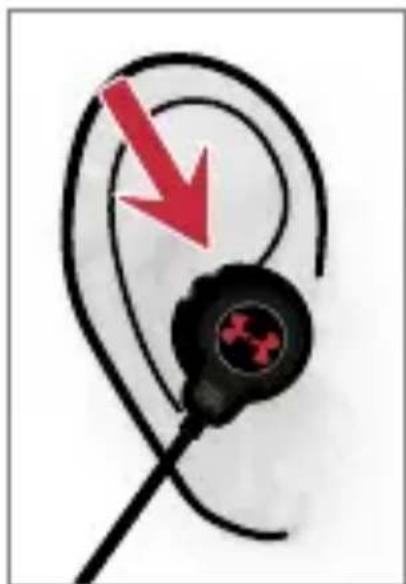

2.3 Insert the earphones into your ear and twist into place. Adjust for comfort.

For fit tips: http://underarmour.custhelp.com

3. HOW TO WEAR

3.1 The cord should be worn in front position for secure fit and optimal performance.

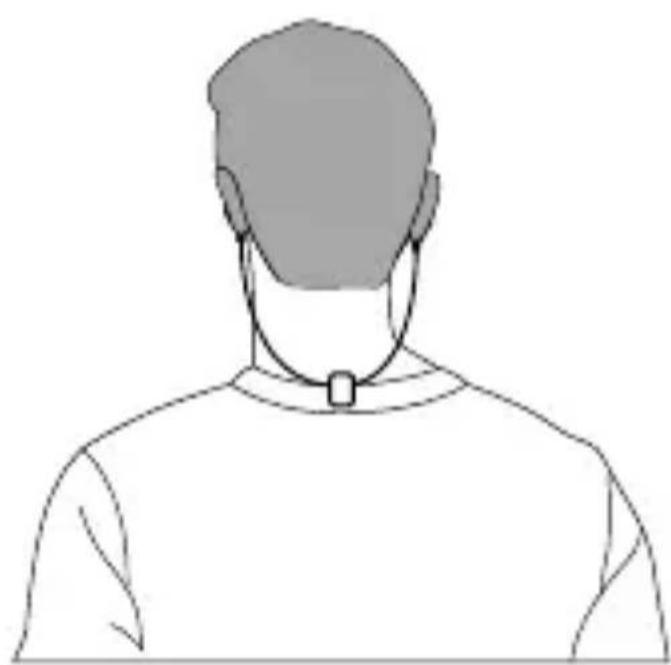

3.2 The optional Sport Clip provides increased cord stability, and improves the security of the earbuds.

3. HOW TO WEAR

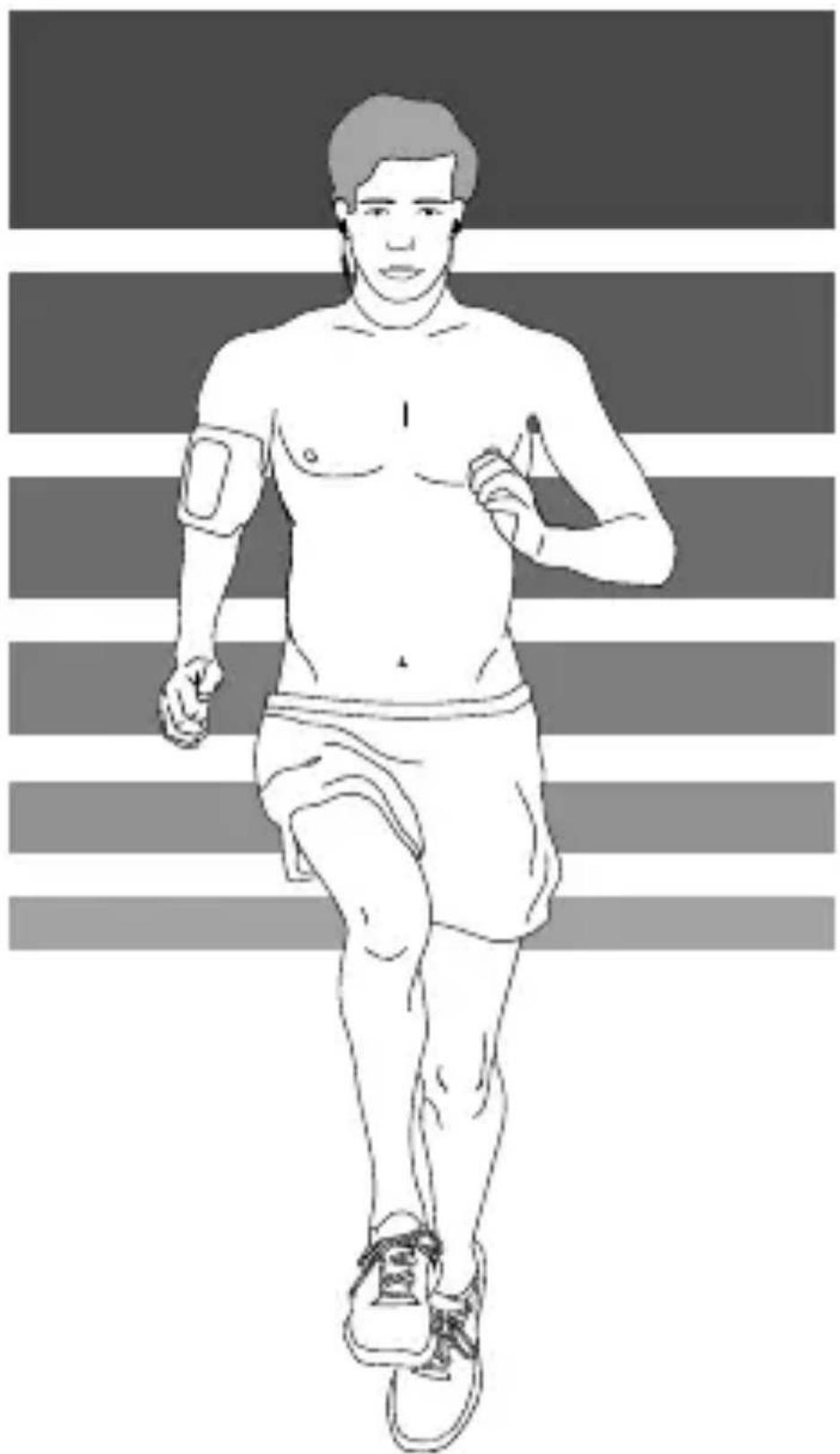

3.3 For best connectivity wear your mobile device in an armband.

4. PAIR/POWER/CHARGE

4.1 Begin with the headphones powered off, and your Bluetooth audio device powered on and in search mode.

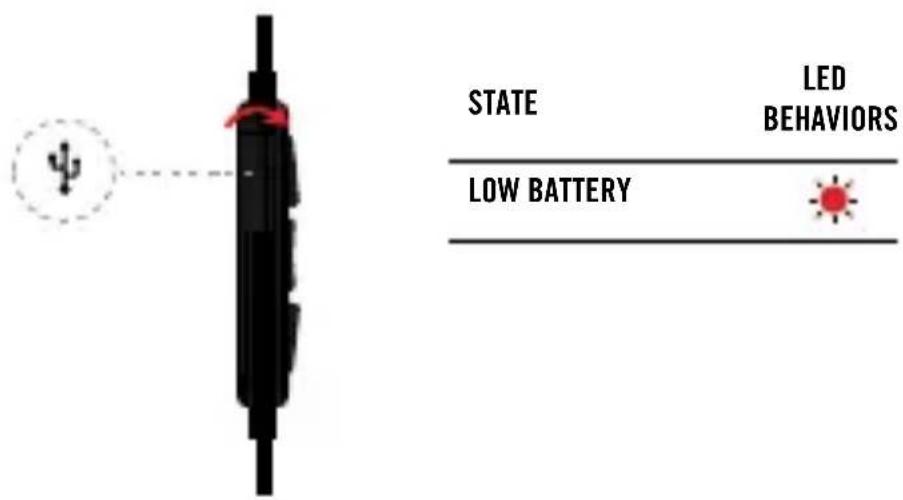

4.2 Charging Port & Battery Status

5. 3-BUTION COMMAND

5.1 Music Control

5.2 Phone Control

5.3 Volume Control

6. LED BEHAVIORS

No device connected

Pairing mode

Device connected

Low battery

Charging battery

• Premium 5.8mm Dynamic Driver
  Frequency Response: 10Hz - 22kHz
• Connection: Micro USB cable for charging
  Support: BT 4.0, A2DP v1.2, AVRCP v1.4, HFP v1.6, HSP v1.2
• Bluetooth transmitter frequency range: 2.402 - 2.480GHz
• Bluetooth transmitter power: < 4dBm
• Bluetooth transmitter modulation: GFSK, /4 DQPSK, 8DPSK
• Battery type: Rechargeable Lithium Ion Cylindrical Cell (3.7V 2x60 mAh)
• Charging time: 2 hours
  Music play time: up to 8 hours

FR

Cpok xpaHEnr: He orpaHnueh

YcnoBna xpaHeHn: CtaHapThbIe npn HopMaJIbHbIX 3HaueHnax

KlIMMaTnuecknxФakTopoB BHeUHe CpeDbI

HomepokymeHa

COOTBETCTBn : Tobap He noDnexKNT o6raTeNbHOn cepTnФkaCn

Дата позьовсва

: DaTn3rOToBHeHn yCTpOnCTBa onpeJeTcra nOByM 6yKBeHHbIM 0603HaueHnM n3 BTOPOI rpynnbICMBONOB cepuHOro HOMepa n3dEInn, CNe dyUoXNPOCne pa3dEInTeNbHO rHaKa «-».

KoInpOBka COOTBETCTBYET NopRyKy 6yKB NaTINHCKORO anpaBNTa, HauHHa c Hbapr 2010 rOda:

000000-MY0000000, rnde «M» - mecau npou3BODCTBa

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
