USER MANUAL Tone Pro HBS750 LG

Contact office for compliance of this product :

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

www.lg.com

LG Electronics

BLUETOOTH® Stereo Headset

HBS-750 User Manual

Black and white photo of a pair of outdoor earbuds with earphones (no text or symbols visible)

English

Čestina

Dansk

Français

ΕΛΛηνικ

Deutsch

Magyar

Italiano

Nederland

Polski

Português

Espanol

Slovensky

Svenska

Romaná

Turkçe

Русский

Казакша

Rev 3.0 EU

LG

Life's Good

English

LG TONE PRO™

HBS-750 User Manual

BLUETOOTH® Stereo Headset

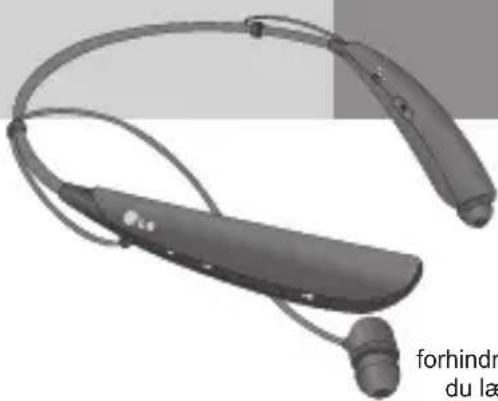

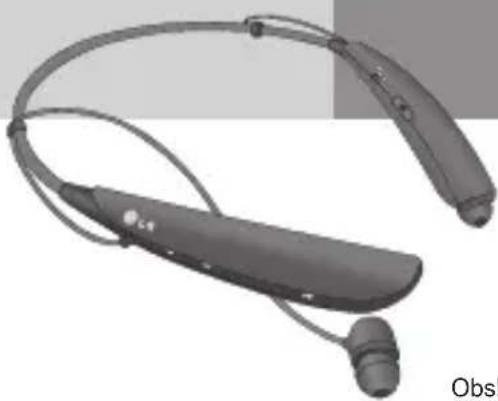

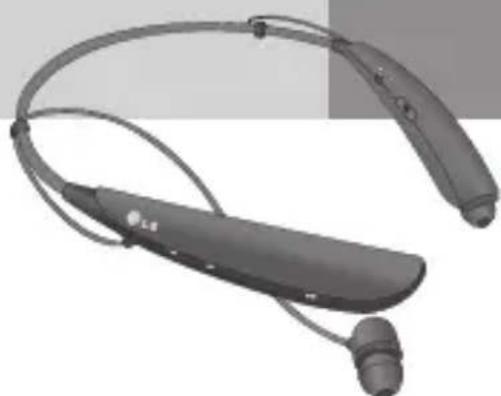

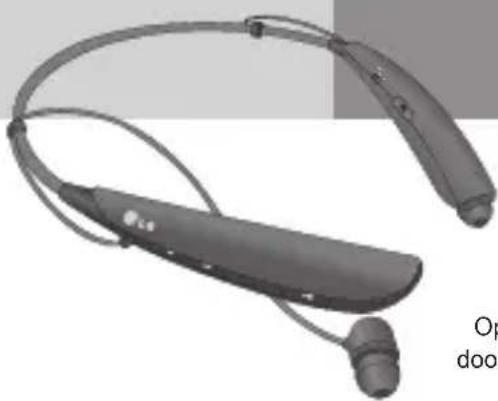

3D rendering of a black L8 brand earband device with earbuds and antenna (no text or symbols visible)

All rights reserved.

LG Electronics Inc., 2014

Note: For the best performance and to prevent any damage to, or misuse of the

HBS-750, please read all of the information

carefully prior to using the HBS-750.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information

shall only be made by LG Electronics Inc.

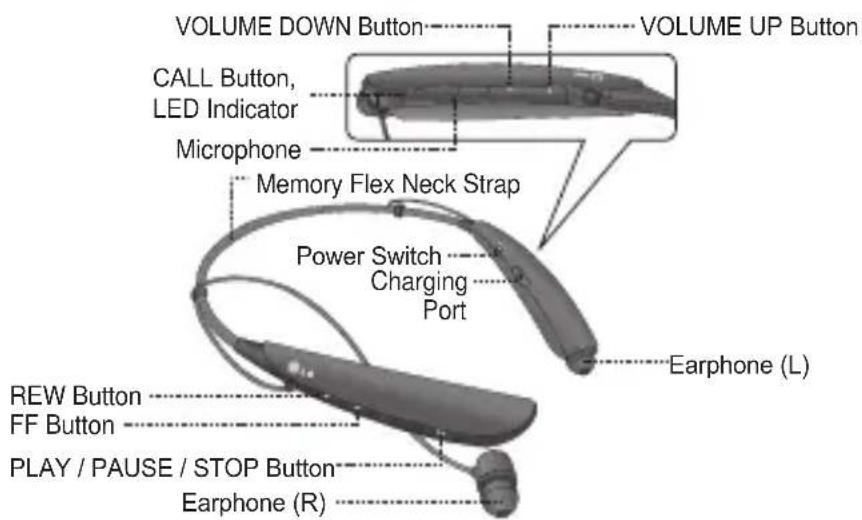

Description of parts

ENG

VOLUME DOWN Button VOLUME UP Button CALL Button, LED Indicator Microphone Memory Flex Neck Strap Power Switch Charging Port REW Button FF Button PLAY / PAUSE / STOP Button Earphone (R) Earphone (L)

Package Contents

Earbuds (2 Sets)

USB Charging Cable WEEE Qard Manual

Specification

Item Description
Bluetooth® specification	3.0 (Headset / Hands-Free / A2DP Profiles)
Battery	Battery 3.7V / 195mAh Li-Polymer
Standby time / Talk Time Up to 500Hrs / Up to 15Hrs
Music play time Up to 10Hrs
Charging time < 2.0Hrs
Charging rated input DC 4.75 V ~ 5.6 V, 400mA
Operation temperature -10°C ~ 60°C
Dimension / weight 138.5(W) X 173.1mm(L) X 17.5mm(T) / 36g

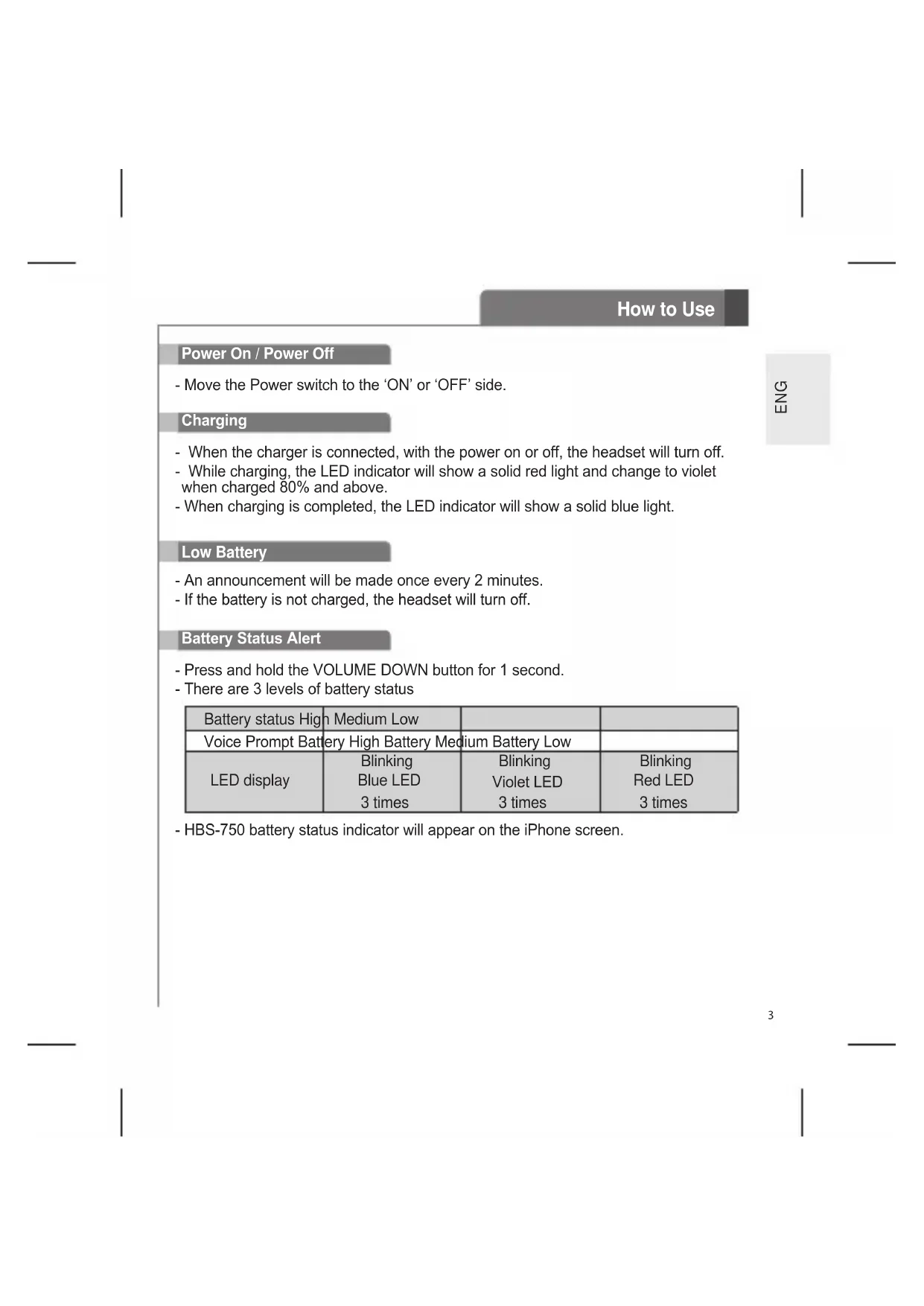

How to Use

Power On / Power Off

- Move the Power switch to the 'ON' or 'OFF' side.

Charging

• When the charger is connected, with the power on or off, the headset will turn off.
• While charging, the LED indicator will show a solid red light and change to violet when charged 80% and above.
• When charging is completed, the LED indicator will show a solid blue light.

Low Battery

• An announcement will be made once every 2 minutes.
• If the battery is not charged, the headset will turn off.

Battery Status Alert

• Press and hold the VOLUME DOWN button for 1 second.
• There are 3 levels of battery status

Battery status High Medium Low
Voice Prompt Battery High Battery Medium Battery Low
LED display	BlinkingBlue LED3 times	BlinkingViolet LED3 times	BlinkingRed LED3 times

- HBS-750 battery status indicator will appear on the iPhone screen.

How to Use

Pairing

• Before using the headset for the first time, you must pair it with a Bluetooth-enabled handset.
• To pair your headset with an additional handset, the headset must be placed in Pairing Mode.
• There are 2 Pairing Mode Methods with the HBS-750.

Easy Pairing (First Time Pairing)

1. Move the Power switch to the 'ON' side to turn on the HBS-750. When the headset enters Pairing Mode, the LED indicator will show a solid blue light.
2. Using your handset, find the Bluetooth Menu and "search for" or "add" new devices.

3. Select "LG HBS750" from the list of devices and pair it with your handset.

4. If asked for the Pass/PIN code please enter "0000" (4 Zeros).

* Note : If your handset supports Secure Simple Pairing (SSP), you will not need to enter Pass/PIN code.
- Once pairing has completed successfully, you will hear "Your headset paired."
• The HBS-750 will automatically turn off if not paired within 3 minutes.

Manual Pairing (Pairing with another phone or re-pairing)

• With the power off, press the CALL button and move the Power switch to the 'ON' side at the same time for 2 seconds.
• When the headset enters Pairing Mode, the LED indicator will show a solid blue light. After the procedure repeat Easy Pairing steps 2 through 3.

How to Use

Multi-connection

Advanced Multipoint

The HBS-750 is capable of having two devices connected to the headset at the same time. This will give you the freedom of using call waiting between calls on both of your connected phones.

Connection

• Pair the headset with one of your Bluetooth-enabled handsets. (per the pairing instructions on page 2).
• Turn off the headset.
• With the power off, press the CALL button and move the Power switch to the 'ON' side at the same time for 2 seconds to enter Manual Pairing mode.
• Now, pair and connect the headset with your other Bluetooth-enabled handset. (this will be your primary handset).
• Once this handset is paired and connected, go back and connect the originally paired handset to the headset. This will now be your secondary handset.
  * NOTE: When the HBS-750 is connected to two handsets at the same time(Multipoint), the headset calling functions will work with the primary handset.
  * NOTE: In case of failure to connect to the primary phone through Easy Pairing, HBS-750 will enter pairing mode.

Calling Function

- Voice Dialing and Last Number Redial features work with the primary handset (or handset which made the last outgoing call).

Call Waiting

• While speaking on an active call, press the CALL button for 1 second to switch to an incoming call.
• To switch between 2 active calls, press the CALL button for 1 second.
• To terminate the active call or both calls at once, briefly press the CALL button.
• If both handsets are receiving an incoming call, the headset will default to the primary device.

How to Use

Auto Reconnect

- If the HBS-750 is turned off (either accidentally or intentionally) while connected to a handset, the headset and handset will disconnect. The headset and handset will automatically reconnect when the HBS-750 is turned back on while in range. - Secondary handset need to be connected via selecting "LG HBS750" from the list of devices at Bluetooth menu.

Out of range

• If the paired devices are separated by a range of 10 meters(33 feet) or more, the headset and handset will disconnect and HBS-750 will vibrate to alert.
  * If vibrate is set to off by pressing VOLUME UP button for 3 seconds, HBS-750 will not vibrate.
• If the headset and handset do not automatically reconnect when they are back within the required range, briefly press the CALL button on the HBS-750 to reconnect manually.
  * It is possible to use these functions only when your handset supports them. For further information about using these features, please consult your handset's user manual.
• While in multi-connection and streaming, the inactive paired device, which is out of range, will be disconnected. The HBS-750 will alert once with no attempt to reconnect.

Calling

Answering a call / Ending a call

• When there is an incoming call, the headset will ring and vibrate.
  * If vibrate is set to off by pressing VOLUME UP button for 3 seconds, HBS-750 will not vibrate.
• Briefly press the VOLUME DOWN button to stop vibration.
• Briefly press the CALL button.

Transferring a call

- While on a call on your handset, press and hold VOLUME UP button for 3 seconds to transfer the audio either from headset to handset or from handset to headset.

How to Use

Voice dialing

- Briefly press the CALL button to activate "Voice Command". Note: If the handset does not support Voice Dialing, it is possible that performing this action will activate Last Number Redial.

Last number redial

- Press and hold the CALL button for 1second to activate "Last Number Redial". The headset will beep, and call the last number dialed.

Call waiting

- Answer a second call without hanging up the first call by pressing the CALL button for 1 second (you will hear a beep). Press the CALL button for 1second to turn to the original call. - Briefly press the CALL button to terminate the active call or both calls at once. (subject to handset's support)

Rejecting a Call

- Press the CALL button for 1second when the handset rings.

Mic Mute

- Press and hold the VOLUME UP and VOLUME DOWN buttons simultaneously for 1 second to mute/unmute the Mic during conversation.

Volume control

- Briefly press the VOLUME button.

Audio streaming controls

• PLAY : Briefly press the PLAY/PAUSE button.
• PAUSE : Briefly press the PLAY/PAUSE button.
• STOP : Press and hold the PLAY/PAUSE button.
• NEXT SONG : Briefly press the FF button.
• PREVIOUS SONG : Briefly press the REW button.
• FAST FORWARD : Press and hold the FF button.
• REWIND : Press and hold the REW button.

How to Use

Equalizer

• While playing music, press and hold VOLUME UP and VOLUME DOWN buttons simultaneously for 1 second to switch between EQ's (Bass Boost(Default) → Normal → Treble Boost).
• The bass coming from the speakers can vary as a result of the size of the Earbud that is being used.

aptX®

• HBS-750 features aptX® technology that ensures audio content transmitted over Bluetooth is instant and crystal-clear.
• aptX® is automatically enabled as long as the source device supports it.

Vibrate Control

• To activate or deactivate the 'Vibrate' function, press and hold VOLUME UP button for 3 seconds. You will hear "Vibrate on" or "Vibrate off" when it is activated or deactivated.
• When HBS-750 is set to vibrate off, and HBS-750 will not vibrate when receiving 'incoming call' and being 'out of range'.
• By powering the unit off and then powering the unit back on, the vibration functionality will be activated.

SMS Reader

The HBS-750 Bluetooth headset supports SMS reading on Android ^TM based devices.

In Google Play™ Store search for the LG 'BT Reader' application and install on your device to use this function.

* The 2D barcode shown below helps you download the LG 'BT Reader' application from Google Play™ Store. Google Play is a trademark of Google, Inc.

QR code image containing encoded data, no visible human-readable text

LED indication

Function	HBS-750 Status Action
Operating	Power on The blue LED	light flickers 4 times.
	Power off	The blue LED light flickers 4 times and then turns off.
	Pairing mode The blue	LED light stays on.
	Headset / hands-free profile connected	The blue LED light flickers 2 times every 5 seconds.
	Call connected	The blue LED light flickers 2 times every 5 seconds.
Charging	Charging	The red LED stays on and changes to violet when charged 80% and above.
	Charging complete	The blue LED stays on.

Troubleshooting

Issue Possible problem Resolution
Does not turn on	Check whether the battery of the HBS-750 is fully charged.	Charge the battery.
Unable to communicate with the LG Bluetooth®Headset HBS-750	Check whether the handset supports the headset or hands-free Bluetooth profiles.Check whether the battery of the HBS-750 is low.	Determine whether your handset supports the headset or hands-free Bluetooth profiles.Charge the battery.
Unable to pair the HBS-750 with the Bluetooth®device	Check and make sure the headset is on.Check and make sure the headset is placed in pairing mode.	Slide the Power switch to the ‘ON’ side to turn on the headset.With the power off, press the CALL button and move the Power switch to the ‘ON’ side at the same time for 1 second to manually place the headset in pairing mode.
Low sound (speaker)	Check the speaker volume. Increase the volume level.

Precautions

Do not drop the unit from high places.

Do not modify, repair, or take apart.

Do not expose directly to water, alcohol, benzene, etc. for cleaning.

Do not expose directly to flammables.

Do not place or keep the unit near flammables.

Keep unit away from humidity & dust.

Do not place heavy objects on the unit.

Only use the headset with an original LG charger, otherwise it may be damaged.

• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• There is a risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• The neck strap is made of a shape memory alloy. However, bending the neck strap repeatedly is not recommended.
• This product contains small parts, including earphones, ear buds, and cables. Keep out of reach of children.
• If you have an implanted medical device, consult with a doctor prior to using this product.
  • Always unplug the charger from the wall socket after the device is fully charged to save unnecessary power consumption of the charger.
• Li-ion Battery is a hazardous component which can cause injury.
• Battery replacement by non-qualified professional can cause damage to your device.
• Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by the authorized service provider. The battery should be recycled or disposed separately from household waste.

Declaration of Confirmation

FCC NOTICE TO USERS :

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE :

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.

CE NOTICE TO USERS :

Hereby, LG Electronics declares that this HBS-750 is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Bluetooth®

CE 1177

FCC ID: BEJHBS750

Additional Information

1. Radio frequency exposure

This Bluetooth ^® Headset, HBS-750, is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth ^® equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz.

Your Bluetooth® Headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used any compatible LG Electronics mobile phone.

Additional Information

2. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

3. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +60°(+140°F) or under -20°(-4°F). For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10°(+50°F) and +45°(+113°F).

Removal of waste batteries and accumulators

(Product with embedded battery ONLY)

In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.

Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

Additional Information

4. Recycling the battery in your Bluetooth® Headset

The battery in your Bluetooth® Headset must be disposed of properly and should never be placed in municipal waste.

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4 For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.

5. Conditions

• The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.
• If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics.
• This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.
• This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.

Limited Warranty

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER INFORMATION.

Important safety information

Avoiding hearing damage

Permanent hearing loss may occur if you use your Handsfree car kit at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.

Using Headset safely

Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

LG

Life's Good

Čeština

LG TONEPRO™

3D rendering of a black and white outdoor earband device with earbuds and straps (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indikace LED

BLUETOOTH® stereo-headset

Product image of a black outdoor earband with earphones and earbuds (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

LED-indikator

3D rendering of a black and white outdoor earband device with earbuds and straps (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

3D rendering of a black L4 Bluetooth earband device with earphones and antenna (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Ενδεικτική λυχνία

Product image of a black outdoor earband with earbuds and straps (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

LED-Anzeige

3D rendering of a black and white Bluetooth earband device (no text or symbols visible)

Minden jog fenntartva.

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

LED-jelzőfény

3D rendering of a black outdoor earband with earphones and earbuds (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indicatore LED

BLUETOOTH®-stereoheadset

Exterior view of a black outdoor earband with earphones and straps (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

LED-indicator

Exterior view of a black and white outdoor earband device (no text or symbols visible)

LG Electronics Inc., 2014

Diagram of a fish-like shape with dashed measurement lines, no visible text or symbols

QR code image containing encoded data, no visible human-readable text

Wskazanie diod LED

3D rendering of a black outdoor earband with earphones and straps (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indicador LED

3D rendering of a black and white outdoor earband device with earbuds and straps (no text or symbols visible)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indicación de LED

3D rendering of a black and white outdoor earband device with earphones and straps (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

BLUETOOTH®-stereoheadset

Exterior view of a black L6 brand earband device (no text or symbols visible)

Med ensamrätt.

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indikatorlampa

Product photo of a black HBS-75 earband with attached earphones (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

Indicatie LED

Product photo of a black outdoor earband with earbuds and antenna (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text

LED ışığı

LG Electronics Ticaret A.S.

LD Electronics Inc. LD Twin Towers 20,

Yecido-cung, Yeongdengpa-gu.

Seoul, Rome 153-721

Tel [phone]

LG

FIRMA YERI GÖRENEK TÜRKET ANDSİM ŞİNCETI

IMZASI

Tek (2511) 2014, 51:37:02/11 2018.9.1

Vngi Sn, Bohuzip Kuramir 1080 467 758

MALIN

CING : KULAKLIK

MARKASI LG

MODEL

BANDROL VE SERÍ NO :

3D rendering of a black and white outdoor earband device with earbuds and straps (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

Exterior view of a black and white outdoor earband device (no visible text or symbols)

LG Electronics Inc., 2014

QR code image containing encoded data, no visible human-readable text
