USER MANUAL EDB1730 ELECTROLUX

Exterior view of a Electrolux electric iron with visible branding and control panel (no text or symbols on the device itself)

GB INSTRUCTION BOOK

FR MODE D'EMPLOI

AR كتيب الإستخدام

BG БРОШУРА С ИНСТРУКЦИИ

cz NÁVOD K POUŽITÍ

Labeled diagram of a steam iron with parts numbered from A to N, showing internal components and parts for identification.

Illustration of a steam iron with a blue arrow indicating rotation (no text or symbols)

2 B A C

3a

Circular diagram with concentric rings and directional arrows, no readable text or symbols

4 Off

5a B A

Illustration of a steam iron being dispensed from a surface, showing liquid flow and a blue downward arrow (no text or symbols)

Illustration of a steam iron emitting smoke, with a blue arrow indicating airflow direction (no text or symbols)

7a B 0 A

Line drawing of a car interior showing handle, seat, and valve (no text or symbols)

Illustration of an iron on a coiled cord with a power plug, no text or symbols present

9 60 sec

Line drawing of a steam iron on a cloth (no text or symbols)

Illustration of a steam iron with two views: top view showing a scroll, bottom view showing a tip (no text or symbols)

CONTENTS

ENGLISH	6			POLSKI	83
FRANÇAIS	10	SUOMI	48	ROMÂNÃ	88
عربية	15	ΕΛΛΗΝΙΚΑ 52		SRPSKI	92
БЪЛГАРСКИ 19		HRVATSKI	57	PYCCKИЙ 96
ČEŠTINA	23	MAGYAR	61	SVENSKA	101
DEUTSCH	27	ITALIANO	66	SLOVENŠČINA	105
DANSK	31	LIETUVIŠKAI	71	SLOVENČINA	109
EESTI	35	LATVIEŠU	75	TŸRKÇE 113
ESPAÑOL	39	NORSK	79	УКРАÏНСЬКА 117

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

Iron shoe Ref: ECA 20

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

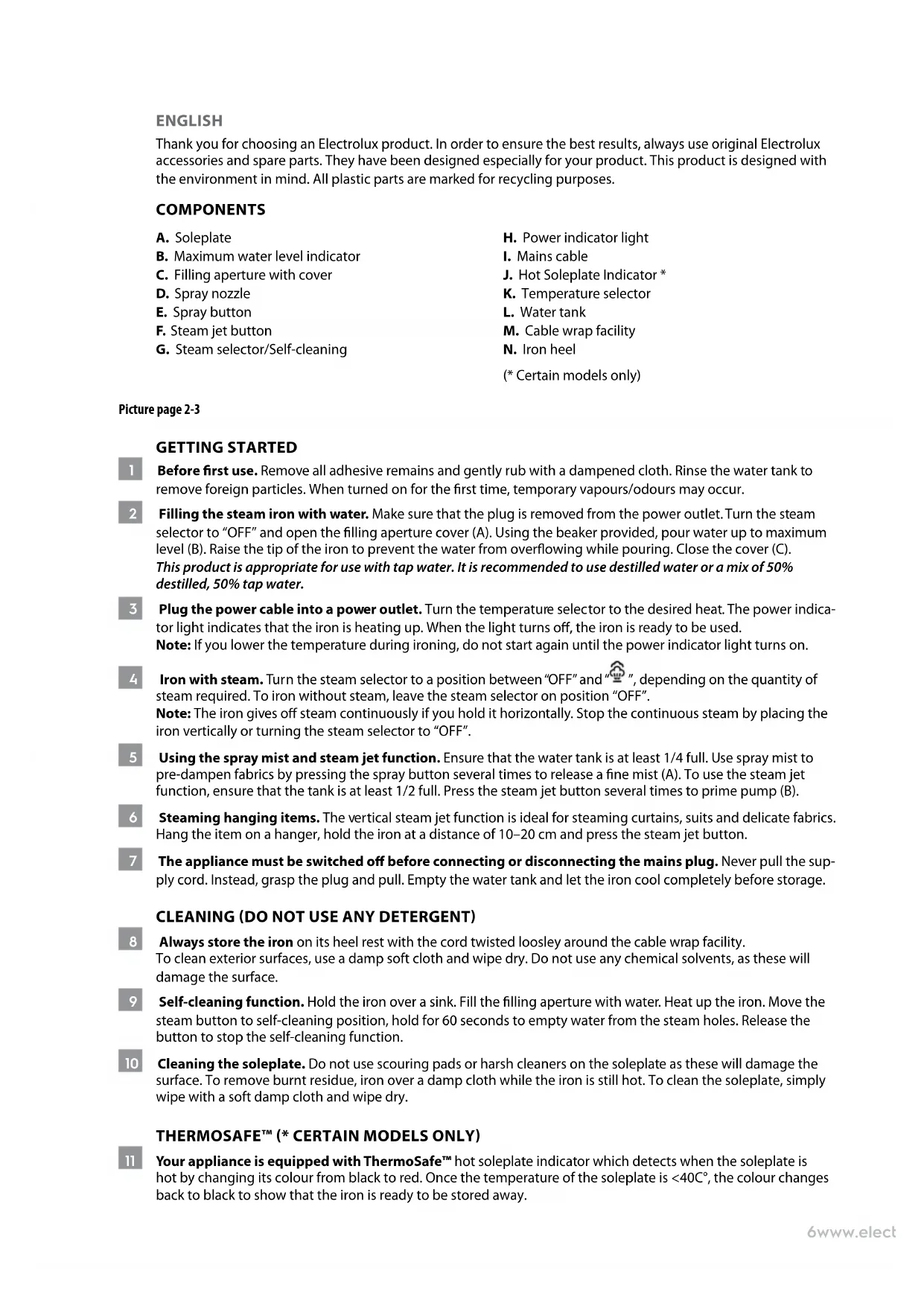

ENGLISH

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Soleplate
B. Maximum water level indicator
C. Filling aperture with cover
D. Spray nozzle
E. Spray button
F. Steam jet button
G. Steam selector/Self-cleaning

H. Power indicator light
I. Mains cable
J. Hot Soleplate Indicator *
K. Temperature selector
L. Water tank
M. Cable wrap facility
N. Iron heel

(* Certain models only)

Picture page 2-3

GETTING STARTED

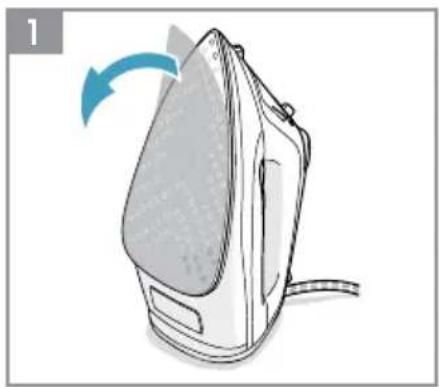

1 Before first use. Remove all adhesive remains and gently rub with a dampened cloth. Rinse the water tank to remove foreign particles. When turned on for the first time, temporary vapours/odours may occur.

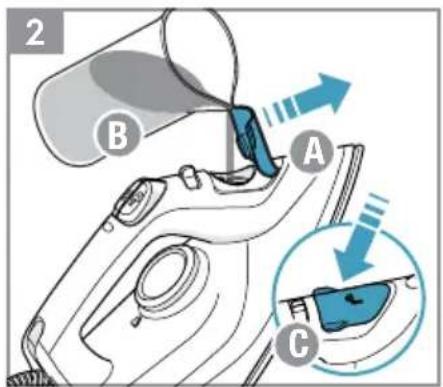

2 Filling the steam iron with water. Make sure that the plug is removed from the power outlet. Turn the steam selector to "OFF" and open the filling aperture cover (A). Using the beaker provided, pour water up to maximum level (B). Raise the tip of the iron to prevent the water from overflowing while pouring. Close the cover (C). This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water.

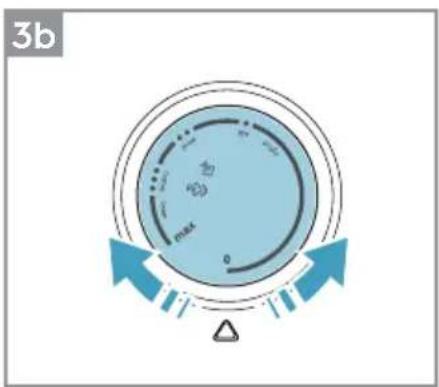

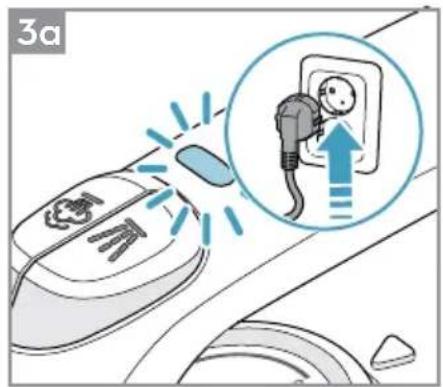

3 Plug the power cable into a power outlet. Turn the temperature selector to the desired heat. The power indicator light indicates that the iron is heating up. When the light turns off, the iron is ready to be used. Note: If you lower the temperature during ironing, do not start again until the power indicator light turns on.

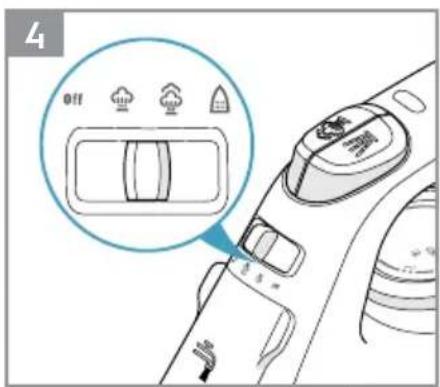

4 Iron with steam. Turn the steam selector to a position between "OFF" and "", depending on the quantity of steam required. To iron without steam, leave the steam selector on position "OFF". Note: The iron gives off steam continuously if you hold it horizontally. Stop the continuous steam by placing the iron vertically or turning the steam selector to "OFF".

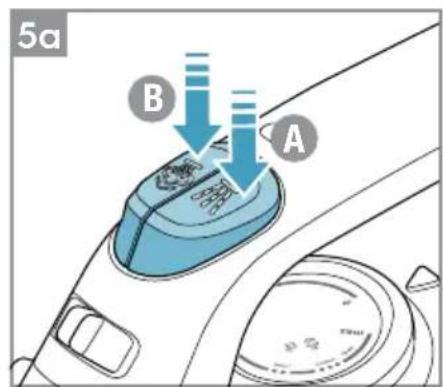

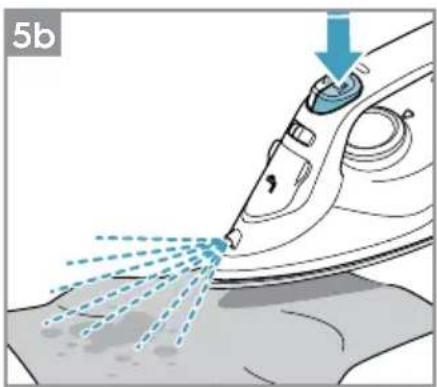

5 Using the spray mist and steam jet function. Ensure that the water tank is at least 1/4 full. Use spray mist to pre-dampen fabrics by pressing the spray button several times to release a fine mist (A). To use the steam jet function, ensure that the tank is at least 1/2 full. Press the steam jet button several times to prime pump (B).
6 Steaming hanging items. The vertical steam jet function is ideal for steaming curtains, suits and delicate fabrics. Hang the item on a hanger, hold the iron at a distance of 10–20 cm and press the steam jet button.

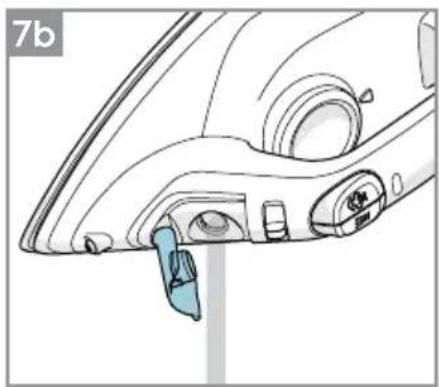

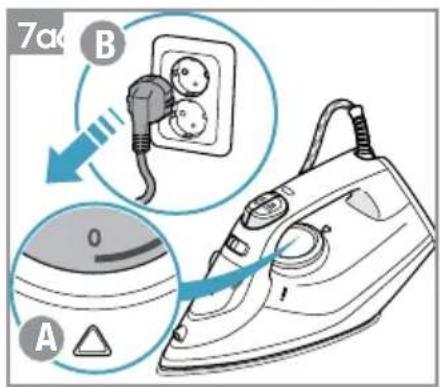

7 The appliance must be switched off before connecting or disconnecting the mains plug. Never pull the supply cord. Instead, grasp the plug and pull. Empty the water tank and let the iron cool completely before storage.

CLEANING (DO NOT USE ANY DETERGENT)

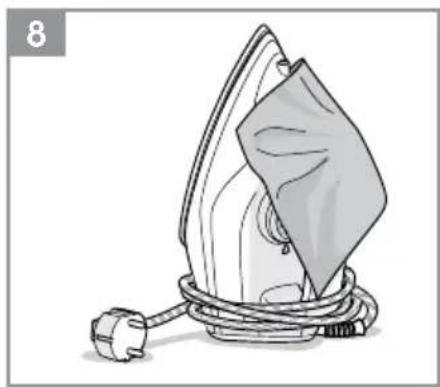

8 Always store the iron on its heel rest with the cord twisted loosley around the cable wrap facility. To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface.

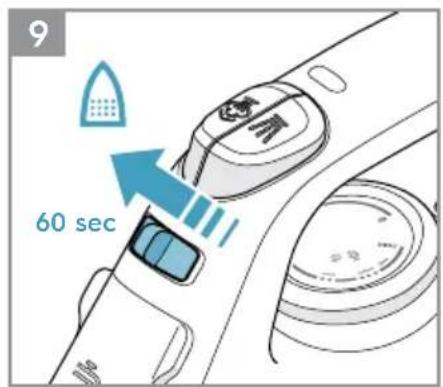

9 Self-cleaning function. Hold the iron over a sink. Fill the filling aperture with water. Heat up the iron. Move the steam button to self-cleaning position, hold for 60 seconds to empty water from the steam holes. Release the button to stop the self-cleaning function.

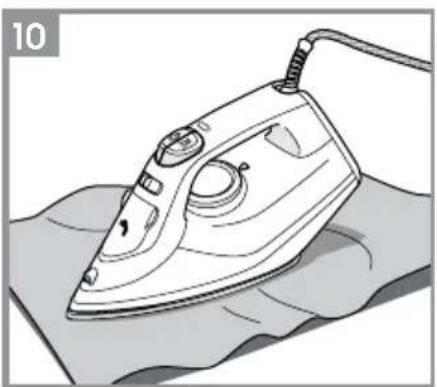

10 Cleaning the soleplate. Do not use scouring pads or harsh cleaners on the soleplate as these will damage the surface. To remove burnt residue, iron over a damp cloth while the iron is still hot. To clean the soleplate, simply wipe with a soft damp cloth and wipe dry.

THERMOSAFE™ (\* CERTAIN MODELS ONLY)

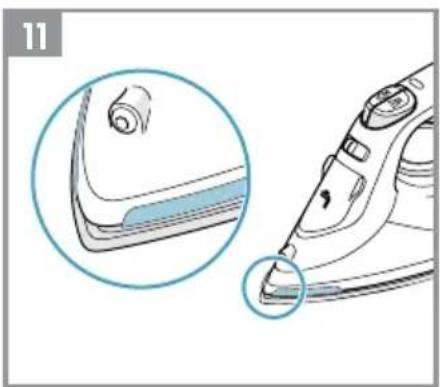

11 Your appliance is equipped with ThermoSafe™ hot soleplate indicator which detects when the soleplate is hot by changing its colour from black to red. Once the temperature of the soleplate is < 40C^ , the colour changes back to black to show that the iron is ready to be stored away.

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• The surfaces are liable to get hot during use
• This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate.
• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.
• The appliance must only be connected to an earthed socket.
• The filling aperture must not be opened during use.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

• The plug must be removed from the socket outlet before the water reservoir is filled with water.

• The mains cable must not come into contact with any hot parts of the appliance.

• Do not immerse the appliance in water or any other liquid.
• Do not exceed the maximum filling volume as indicated on the appliances.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Be careful when turning a steam iron upside down – there may be hot water in the reservoir.

IRONING CHART

FABRIC TEMPERATURE SETTING IRONING RECOMMENDATION
Acrylic Dry iron on the wrong side.
Acetate	●	Dry iron on the wrong side while still damp or use spray to dampen.
Nylon & Polyester	●	Iron on the wrong side while still damp or use spray to dampen.
Rayon	●	Iron on the wrong side of fabric.
Viscose	●	Mainly dry iron. Steam can be used under manufacturer's instructions.
Silk	● Iron on the wrong side. Use an ironing cloth to prevent shine marks.
Cotton blends	● Check the label and follow the manufacturer's instructions. Use setting for the fibre requiring lowest setting.
Wool & Wool blends	● Steam iron on the wrong side or use ironing cloth.
Cotton	● Dry iron while still damp or use spray to dampen. Use steam medium to high.
Corduroy	● Steam iron on the wrong side or use ironing cloth.
Linen	●● to "MAX" Iron on the wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high.
Denim	●● to "MAX" Use maximum steam.
Varied ironing speed and fabric dampness might cause optimal setting to differ from that recommended in the table!

TIPS AND TRICKS

Temperature settings

The iron heats up faster than it cools down, so we recommend that you start ironing the fabrics requiring the lowest temperature. Use the lowest temperature with fabrics that have unusual finishes, such as sequins or embroidery. If you are unsure about the fabric, start with a low temperature and iron on a hidden corner. Then increase the temperature gradually if needed.

Avoiding marks on the fabric

Never iron areas with traces of perspiration or other marks, the heat fixes the stains on the fabric.

Washing fabrics before ironing

If the washing machine is heavily loaded or the spin drying revolutions are very high, the fabrics may come out more creased. However, many fabrics are easier to iron if they are damp.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The soleplate is not heating even though the iron is turned on.	Connection problem. Check the main power supply cable, plug, and outlet.
	The temperature selector is in “MIN” position.	Select adequate temperature.
The iron does not produce steam.	Not enough water in tank. Fill the water tank (see “Getting started”, no 2).
	Steam selector is set in non-steam position.	Set the steam selector between positions of minimum steam and maximum steam (see “Ironing chart”).
	The selected temperature is lower than that specified to use with steam.	Increase the temperature to at least ●●.
The spray function does not work.	Not enough water in tank. Fill the water tank (see “Getting started”, no 2).
The steam jet and vertical steam jet functions does not work.	The steam jet function was used very frequently within a short period.	Put the iron in a horizontal position and wait before using the steam jet function.
	The iron is not hot enough. Adjust the proper temperature to steam ironing (up to ●●). Put the iron in vertical position and wait until the temperature indicator light turns off.
Brown streaks come out of the soleplate while ironing and stain the linen.	You have used hard water, which has caused scale flakes to develop in the water tank.	Use the self-clean function one or more times.
	You have used chemical descaling agents.	Do not use any descaling agents.
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Use the self-clean function one or more times. Clean the soleplate with a damp soft cloth.
	The fabrics might not be properly rinsed or the garments are new and have not been washed before ironing.	Please rinse the laundry properly again.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.
