EWA5205 - Kettle AEG - Free user manual and instructions

Brand	AEG
Model	EWA5205
Product type	Cordless electric kettle
Capacity	1.7 L
Power	2200 W
Power supply	220-240 V, 50/60 Hz
Body material	Stainless steel and plastic
Base type	360° swivel base with detachable cord
Main functions	Rapid heating of water, automatic shut-off after boiling, dry boil protection
Descaling filter	Removable, stainless steel
Water level indicator	Yes, transparent with min and max markings
Switch	On/Off with indicator light
Cord length	Approximately 0.75 m (with cord winder)
Dimensions (W x D x H)	24 x 18 x 27 cm (estimated)
Net weight	Approximately 1.1 kg
Care and cleaning	Wipe with a damp cloth, do not immerse. Regular descaling recommended with a suitable descaling product.
Safety	Automatic shut-off when boiling or when removed from base, overheat protection, locked lid
Spare parts and repairability	Removable descaling filter is replaceable. For any other repair, contact an authorized service center.
General information	For domestic use only. Do not use outdoors. Unplug after each use.

Frequently Asked Questions - EWA5205 AEG

What is the capacity of the AEG EWA5205 kettle?

The AEG EWA5205 kettle has a capacity of 1.7 liters, ideal for preparing several cups at once.

How to use the kettle for the first time?

Before first use, rinse the inside of the kettle and wipe the outside with a damp cloth. Place the base on a flat surface, plug in the appliance, fill the kettle respecting the MAX level, close the lid properly, then press the on/off switch.

Does the kettle have automatic shut-off?

Yes, the appliance automatically turns off as soon as the water reaches boiling point or when the kettle is removed from its base. You can also stop it manually by switching the switch to the off position.

How to clean the descaling filter?

The removable descaling filter is removed by pulling it upwards. Rinse it under clear water or gently rub it with a brush. Replace it correctly before any use.

How to descale the kettle?

Fill the kettle with a mixture of water and descaling product (according to the manufacturer's instructions). Heat without letting it boil to avoid foam formation. Rinse thoroughly with clear water several times.

What to do if the kettle stops before boiling?

This is usually due to excessive limescale. Perform a complete descaling of the appliance. If the problem persists, check that the lid is closed properly and that the filter is not obstructed.

What electrical voltage is required?

The kettle operates on a power supply of 220-240 V, 50/60 Hz. Make sure your electrical socket is compatible with grounding.

Can the kettle heat liquids other than water?

No, the kettle is designed exclusively for heating water. Using other liquids may damage the appliance or cause burns.

What is the material of the kettle?

The body of the kettle is made of quality stainless steel, with heat-resistant plastic parts (handle, lid). The base is also plastic.

Where to find spare parts or repair service?

For the descaling filter, you can contact AEG customer service or an authorized dealer. For any other repair, contact an authorized after-sales service center. Do not attempt to repair the appliance yourself.

USER MANUAL EWA5205 AEG

With Electrolux, the choice of professionals.

AEG

GB Instruction book. 11-15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

DC

Teile

m = 311

Onderdelen

m = 311

Composants

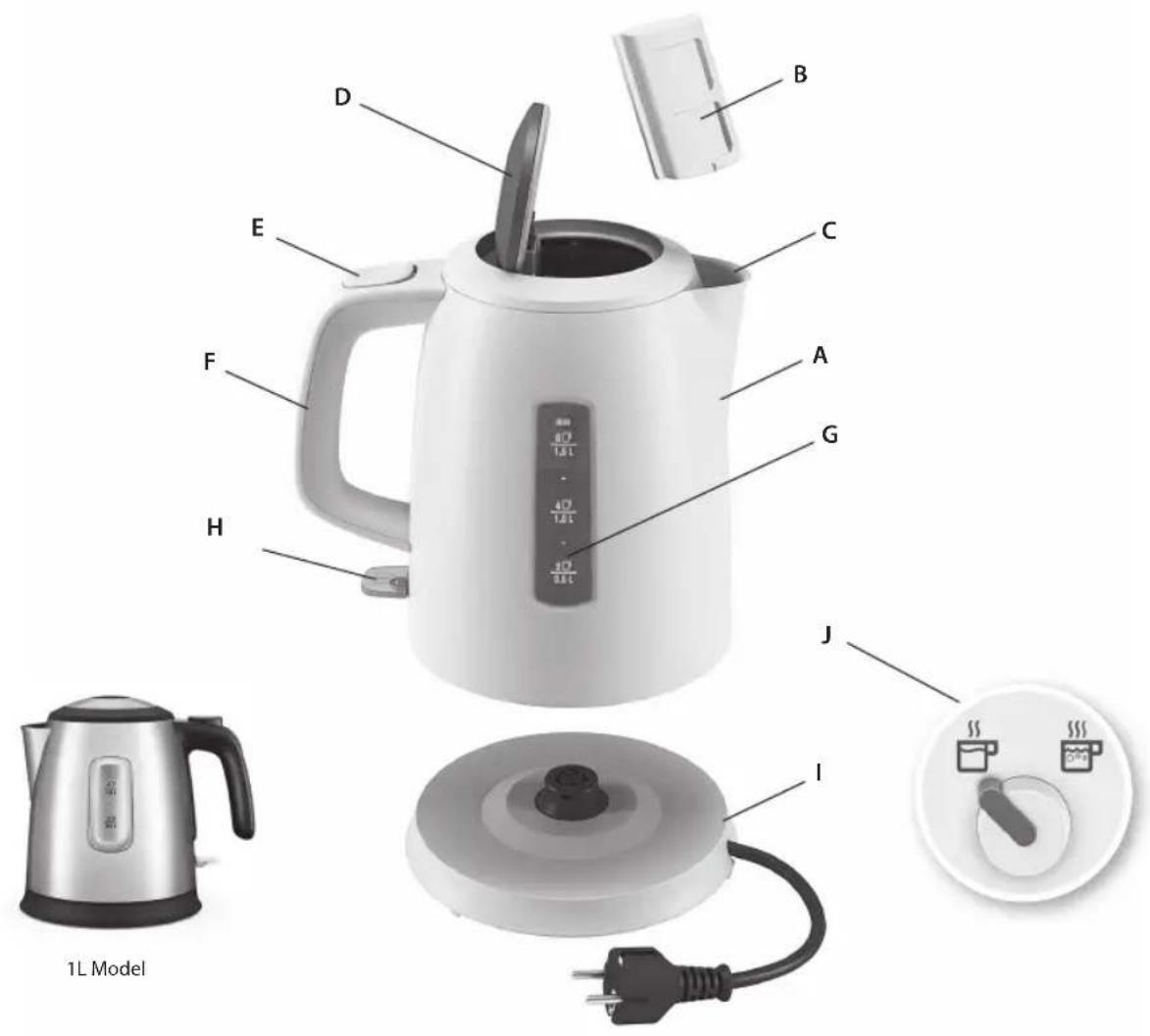

A.Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
I. Separate base and mains cable
J. Temperature selector*

*EEWA 5120

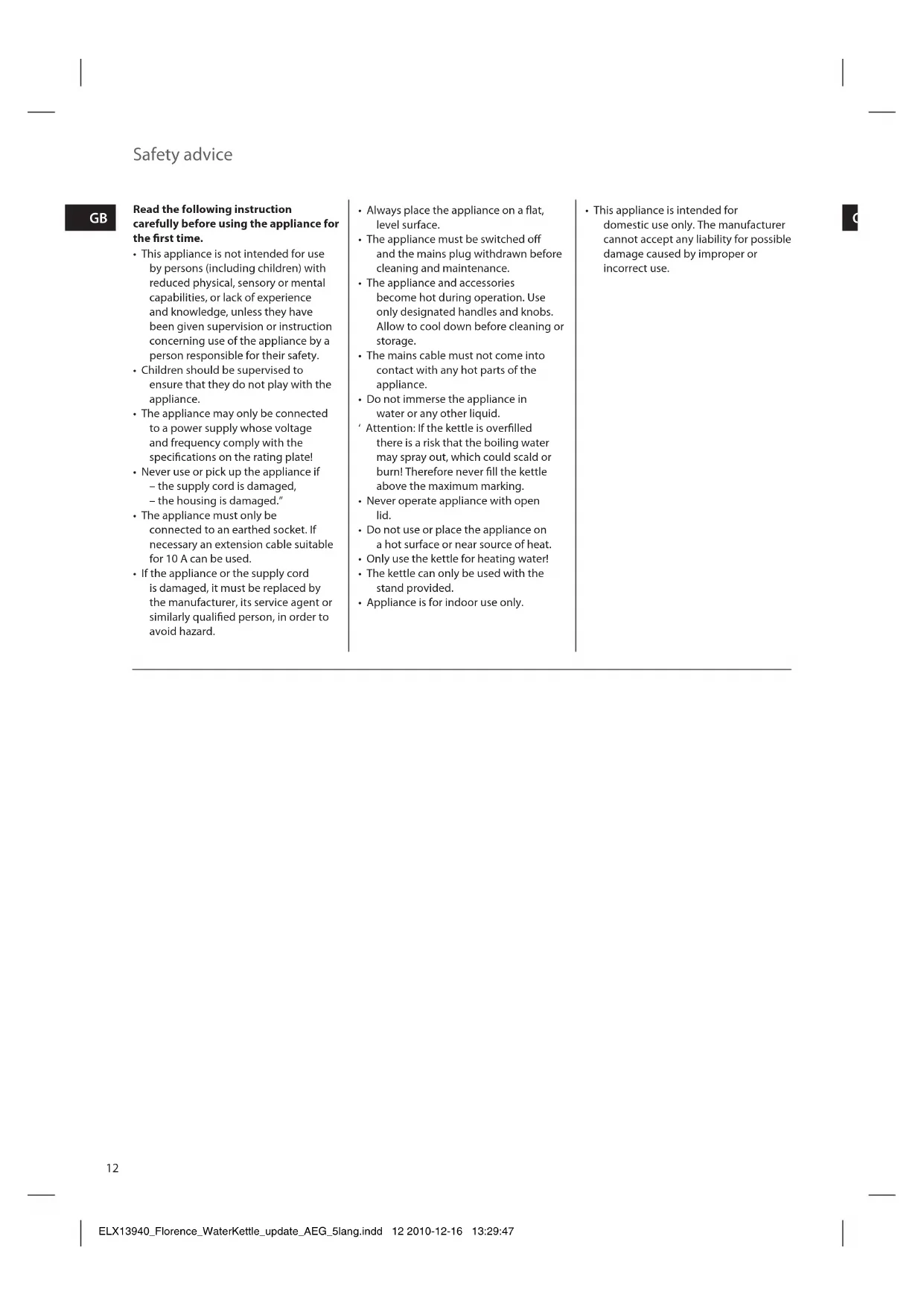

Safety advice

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

Always place the appliance on a flat, level surface.
- The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
Only use the kettle for heating water!
- The kettle can only be used with the stand provided.
- Appliance is for indoor use only.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

1. Before first use, rinse the inside and wipe the outside of the kettle with a damp cloth.

2. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Excess cord can be wound into the bottom of base unit.

3. Press the button to open the lid, pour water into the kettle. It is also possible to fill the kettle through the spout, without opening the lid. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

4. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

5. Temperature setting*. Depending on what drink you wish to prepare (green tea/instant coffe or black tea), you can select between hot or boiling water by turning the knob to the respective symbol.

6. The automatic switch off function.
When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

GB

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

1. To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate superficial spots of rust may appear on the heating plate. Remove with a stainless steel cleaning agent.

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.	Run the decalcifying procedure.
The appliance does not switch off . Close lid until it locks.
	Insert the mesh fiiter correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

AEG

Share more of our thinking at www.electrolux.com

3482 AEWA 51xx / 52xx02021210
