Product Type	Microwave with Grill
Capacity	22 L
Microwave Power	800 W
Grill Power	1100 W
Rated Power	1280 W
Frequency	2450 MHz
Net Weight	13.5 kg
Power Supply	230 V ~50 Hz
Earth Connection	Yes
Safety Lock System	Yes (primary, secondary and monitoring switches)
Turntable	Glass, suitable diameter
Grilling Accessory	Included
Interior Material	Painted metal
Magnetron Protection Cover	Light brown mica (do not remove)
Interior Cleaning	Soft damp cloth, soapy water
Exterior Cleaning	Damp cloth, soapy water
Control Panel	Clean with soft damp cloth, no abrasive detergents
Use	Household use only
Repairs	By a qualified after-sales service technician
Power Cord Replacement	Only by after-sales service or qualified professional
Radio Interference	Possible, corrective measures described in the manual

Frequently Asked Questions - HSA2280MGB HAIER

Can I use metal utensils in the microwave oven?

No, any metal utensil is prohibited because it can cause sparks and damage the appliance. Use glass, ceramic or suitable plastic containers.

How to clean the inside of the oven?

Clean the interior regularly with a soft cloth and warm soapy water. Do not use abrasive detergents. For odors, heat a bowl of water with lemon for 5 minutes.

What to do if smoke appears during use?

Stop or unplug the oven immediately and keep the door closed to smother the flames. Do not use water.

Can I cook hard-boiled eggs or foods in shell?

No, eggs in their shell and whole hard-boiled eggs should not be microwaved because they may explode, even after cooking.

How to avoid radio interference with other devices?

Clean the door and sealing surfaces, reorient the antenna of your radio/TV, move the oven away from the receiver, or plug it into a different circuit.

Can the oven be used by children?

Children may use the oven without supervision only if appropriate instructions have been given for safe use. Supervise them to ensure they do not play with the appliance.

What are the installation precautions?

Place the oven on a flat surface, leaving 20-30 cm above and 10 cm on the sides and back for ventilation. Do not install near a heat source, outdoors or in a very humid room. Check that the voltage corresponds to 230 V ~50 Hz.

What to do if the oven does not work?

Check that the plug is properly connected and powered, the door is properly closed, nothing is blocking the turntable, and the timer is set. If nothing solves the problem, contact a qualified technician.

Can I run the oven empty?

No, never run the oven empty. This can cause a fire, charring or sparks. Ensure there is always food or liquid inside.

How to replace the oven interior lamp?

The lamp replacement must be carried out by an authorized dealer or qualified technician. Do not attempt to do it yourself.

USER MANUAL HSA2280MGB HAIER

Microwave oven with grill

Forno a microonde con grill

Kuchenka mikrofalowa z grillem

Manuel D'utilisation

Instructions For Use

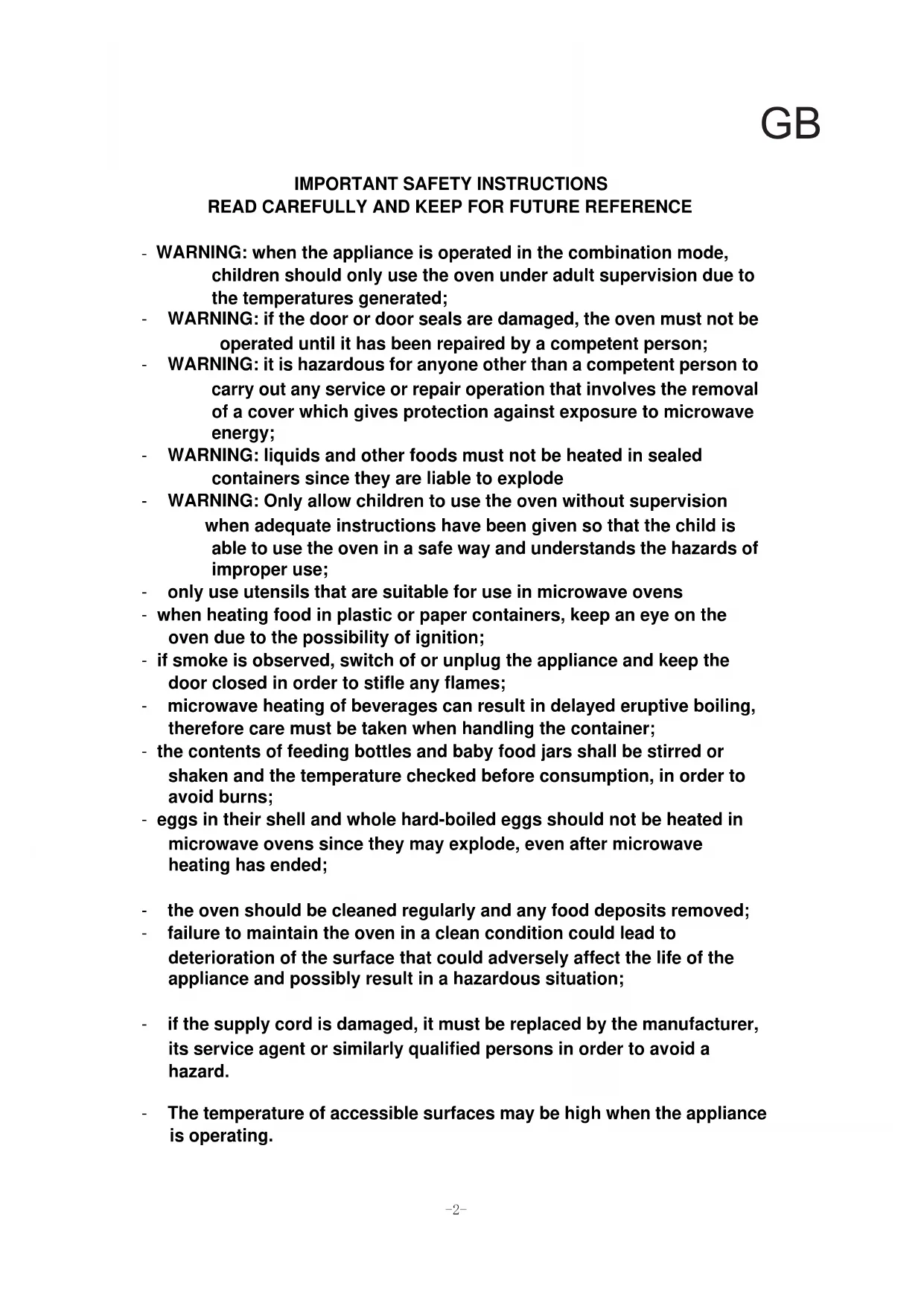

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated;
• WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
  WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode
• WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
• only use utensils that are suitable for use in microwave ovens
• when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames;
• microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• the oven should be cleaned regularly and any food deposits removed;
• failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The temperature of accessible surfaces may be high when the appliance is operating.

SPECIFICATIONS

Power consumption:

Output:

Grill Heater:

Operating Frequency:

Outside Dimensions:

Oven Cavity Dimensions:

Oven Capacity:

Uncrated Weight:

230V~50Hz,1280W

800W

1100W

2,450MHz

470mm(W) X 397mm(D) X 282mm(H)

315mm(W) X 330mm(D) X 195mm(H)

22litres

Approx. 1 2 .2kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:
   a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
   b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,

test the outlet with another appliance.
2. If the microwave power does not function: a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHIZED SERVICE AGENT.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:

Misaligned Door

Damaged Door

Dents or Holes in Door Window and Screen

Dents in Cavity

If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 13.5kg and must be placed on a horizontal surface strong enough to support this weight.
2. The oven must be placed away from high temperature and steam.
3. DO NOT place anything on top of the oven.
4. DO NOT remove the turn -table drive shaft.
5. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord
2. This oven requires 1.3 KVA for its input. consultation with service engineer is suggested when installing the oven.

CAUTION:This oven is protected internally by ac 250V,10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue Neutral

Brown :Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
- The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cms from top of the oven. Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
   5.Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.

5. Do not insert any object into the openings on the outer case.

6. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
7. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
8. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

Do not use metal pans or dishes with metal handles.

Do not use anything with metal trim.

Do not use paper covered wire twist-ties on plastic bags.

Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

Do not use conventional meat or candy thermometers.

There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.
2. Do not attempt to deep-fry foods in this oven.
3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself.Therefore, even though the lid of a container is not hot to the touch when

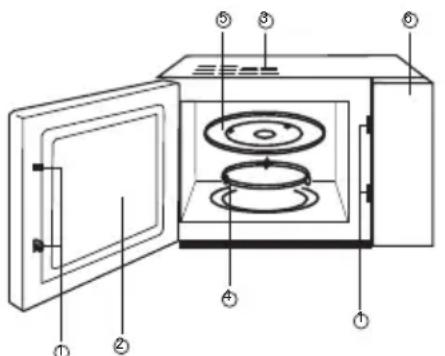

FEATURE DIAGRAM

removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/ liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g.stock,should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
   17.To reduce the risk of fire in the oven cavity:

(a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b)Remove wire twist-ties from bags before placing bag in oven.
(c)If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

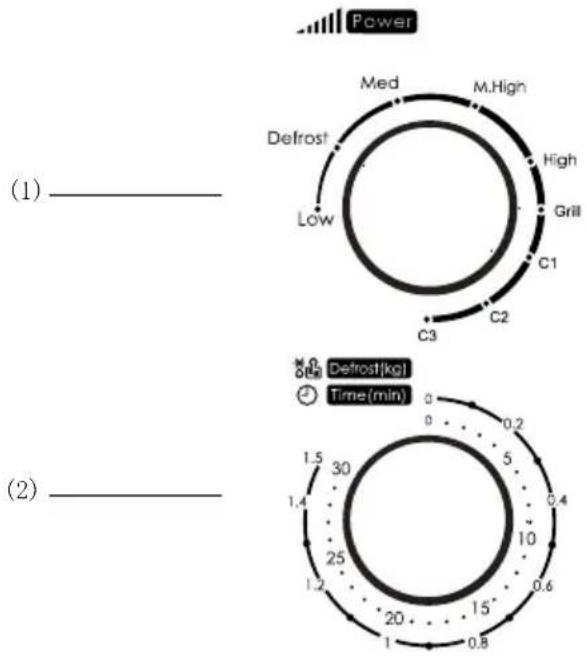

CONTROL PANEL

(1) Power Select Control
(2) Timer-0-30 Minutes

Low: 17% Power Output

Defrost: 33% Power Output

Med: 55% Power Output

M.High: 77% Power Output

High: 100% Power Output

Grill: 85% Grill Power Output

C1: 30% Power Output+70% Grill Power Output
C2: 49% Power Output+51% Grill Power Output
C3: 67% Power Output+33% Grill Power Output

Operation Instruction

To set a cooking program: Put the food onto the glass turntable in the oven and close the door.

Note: Oven will start cooking food once the timer is turned.

If you need cooking time for less than 5 minutes, turn timer past 5 minutes and then return to correct timing.

ALWAYS RETURN TIMER BACK TO ZERO position when food is removed from oven but the set cooking time has not completed.

STOP OVEN: Turn timer to Zero position. If the door of oven opened during cooking, the microwave oven will

automatically stop working, the cooking will continue after closing the door. If the remaining cooking time is not

required, return timer back to Zero position before closing the door.

1. Turn the oven of f and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
   4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
   5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6.It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way afect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced.

Mise en garde

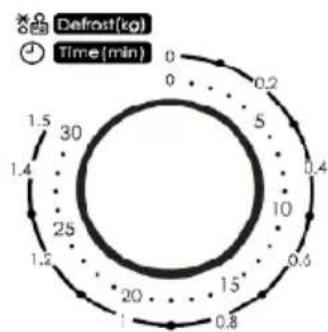

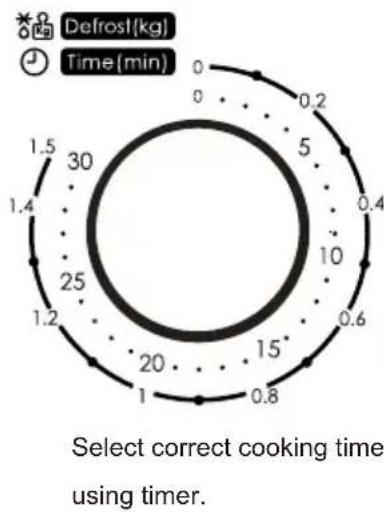

Select correct cooking time by

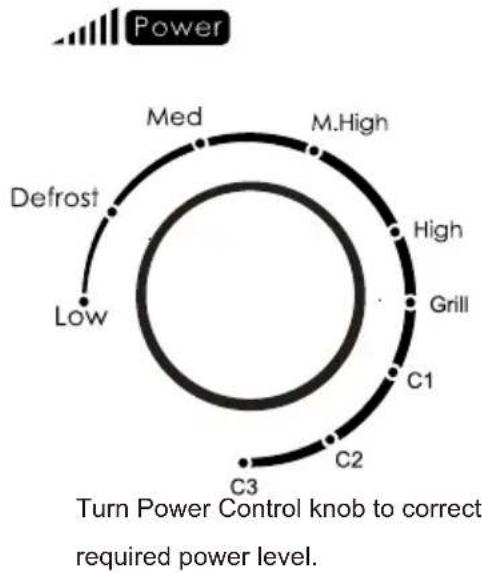

Turn Power Control knob to correct

required power level

using timer
