HG03172 - Jack ULTIMATE SPEED - Free user manual and instructions
Find the device manual for free HG03172 ULTIMATE SPEED in PDF.
| Product type | Hydraulic jack |
| Brand | Ultimate Speed |
| Model | HG03172 |
| Maximum load capacity | 2000 kg |
| Final height (without adapter) | 135 mm - 342 mm |
| Final height (with adapter) | 150 mm - 357 mm |
| Hydraulic oil type | SAE 10 |
| Hydraulic oil quantity | 115 ml |
| Maximum actuation force | 350 N |
| Package contents | Hydraulic jack, adapter, lifting bar, instruction manual |
| Intended use | Lifting and lowering vehicles on a flat, solid surface |
| Safety instructions | Always use with jack stands, never lift people, check for oil leaks |
| Maintenance | Lubricate moving parts, wipe with an oily cloth, oil change by a professional |
| Reparability | Repairs only by an authorized specialist |
| Warranty | 3 years from date of purchase |
| Serial number / IAN | 311948_1904 |
Frequently Asked Questions - HG03172 ULTIMATE SPEED
User questions about HG03172 ULTIMATE SPEED
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Jack in PDF format for free! Find your manual HG03172 - ULTIMATE SPEED and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG03172 by ULTIMATE SPEED.
USER MANUAL HG03172 ULTIMATE SPEED
Operation and safety notes
Translation of the original instructions
FR BE
CRICHYDRAULIQUE
List of pictograms used
Introduction
Proper use.
Description of parts.. 6
Technical data.. 6
Included items
Safety notes.. Page 6
Before first use.. Page 7
Assembling the carrying handle.. 7
Assembling the lifting handle.. 8
Distribution of the hydraulic oil.. 8
Using the jack.. Page 8
Raising the vehicle.. Page 8
Lowering the vehicle . Page 8
Attaching the adapter (optional) Page 8
Cleaning and care
Maintenance and service
Disposal
Warranty
Warranty claim procedure.. Page 10
Service Page 10
Translation of original conformity declaration

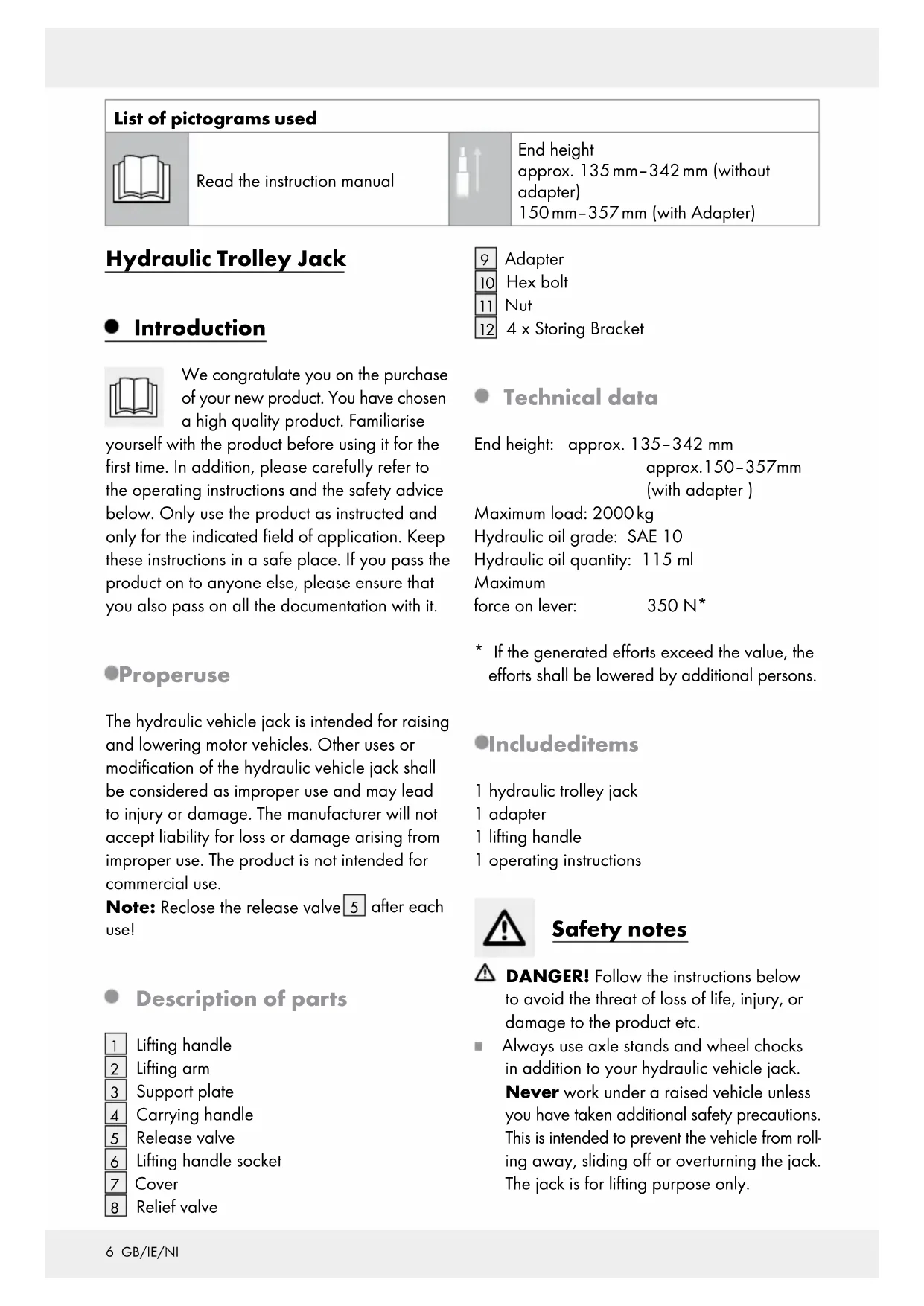

List of pictograms used
Read the instruction manual
End height approx. 135mm - 342mm (without adapter)
150mm-357mm (with Adapter)
Hydraulic Trolley Jack
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise
yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Properuse
The hydraulic vehicle jack is intended for raising and lowering motor vehicles. Other uses or modification of the hydraulic vehicle jack shall be considered as improper use and may lead to injury or damage. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.
Note: Reclose the release valve 5 after each use!
Description of parts
Lifting handle
Lifting arm
Support plate
Carrying handle
Release valve
Lifting handle socket
Cover
Relief valve
Adapter
Hex bolt
Nut
4 x Storing Bracket
Technical data
End height: approx. 135-342 mm
approx.150-357mm
(with adapter)
Maximum load: 2000kg
Hydraulic oil grade: SAE 10
Hydraulic oil quantity: 115 ml
Maximum
force on lever:
350 N*
- If the generated efforts exceed the value, the efforts shall be lowered by additional persons.
IncludedItems
1 hydraulic trolley jack
1 adapter
1 lifting handle
1 operating instructions
Safety notes
DANGER! Follow the instructions below to avoid the threat of loss of life, injury, or damage to the product etc.
Always use axle stands and wheel chocks in addition to your hydraulic vehicle jack.
Never work under a raised vehicle unless you have taken additional safety precautions. This is intended to prevent the vehicle from rolling away, sliding off or overturning the jack. The jack is for lifting purpose only.
Use the product on a solid, level surface only. Using the product on an unstable or uneven surface - such as a gravel surface - may lead to the load slipping.
2000 kg
Ensure that you never exceed the allowable (rated) load capacity.
The person operating the jack must observe the jack and the load during all movements.
Never work under the raised load if it has not been made secure by suitable means.
Do not allow the hydraulic vehicle jack to be used by uninstructed or inexperienced persons.
Before using the hydraulic vehicle jack take precautions to prevent the vehicle from rolling away. Put the handbrake on, place the vehicle in gear (with automatic gearboxes set to "P") and chock the wheels.
Even with safety measures in place always remain alert and make a visual check that the support plate 3 is firmly seated against the vehicle jacking point.
Make sure that no petrol, battery acid or any other dangerous substance can flow out of the vehicle when the vehicle is being lifted.
Check that no person or object is under the vehicle before you lower it.
Lower the vehicle slowly.
Check that all parts have been assembled and fitted properly and are undamaged.
Before each use check that the hydraulic vehicle jack is working properly. Check the screws and valves of the hydraulic vehicle jack for correct seating and look out for hydraulic oil leaks in particular.
Never use the hydraulic vehicle jack for moving or loading a vehicle. Never use it to lift a whole vehicle completely off the ground.
t's not allowed to lift up people with the hydraulic jack and make sure that near located people keep enough distance to the vehicle when the hydraulic jack is in use.
Never change the setting of the safety valve 8. It has been set at the factory and must not be adjusted. Stop using the product if the safety valve setting is changed.
Before using the vehicle jack, the user must be made familiar with the device by an experienced person. The pump force and the transferred force are equal to approximately 350 N.
If the markings on the product are damaged enough so as to be illegible then the vehicle jack must not be used until the markings are renewed.
No modifications may be carried out to the hydraulic trolley jack. Any physical modification of the device has an effect on the safety of the device and its compliance with EN 1494/A1:2008.
The applied force when using the vehicle jack must be lower 350N . The equates to a force on the lever of approximately 35kg
The operating temperature of the hydraulic oil of this equipment is between -20^ to +40^ .
Only use this device to lift and lower the vehicle, not to keep the vehicle in a lifted position. Do not move it whilst raising or lowering.
After use return all parts used into their original position. Have the hydraulic oil or oil pump replaced by a professional if the parts can no longer be moved.
If you notice a spillage of oil, stop using the product and absorb the oil on the floor with a cloth. Any reparation must be done by a professional.
If the jack can not be lowered as wished, the car must be secured by jack stand against unintended lowering. Get a new jack, with which you can lift the car, so that the defect jack can be removed. If you are unsure, please ask for professional help.
Before first use
Assemblingthe carrying handle
The carrying hand can be attached in 2 different position, see Fig 1 and 2.
Firstly, attach one side of the handle to nut on the jack.
Secondly, stretch the carry handle so that the other side also attach firmly to the nut on the jack.
- Assembling the lifting handle
Distribution of the hydraulic oil
Simply push in the lifting handles together to assemble. Push the button to release the handles for storage.
The storing bracket can be used for storing the lifting handle 1.
With the release valve closed, insert the lifting handle into the lifting handle socket. Use at least 6 firm pumping movements to charge the hydraulic system (move lifting handle up and down). This action distributes the hydraulic oil evenly.
Note: Check that the release valve 5 is closed by inserting the lifting handle 1 and trying to turn it clockwise (see Fig. A). DO NOT OVER
TIGHTENED! When you cannot turn it any further, the release valve 5 is closed.
The hex nut must be tightened before use.
Using the jack
Raising the vehicle
With the release value closed turn the lifting handle into the lifting handle socket (see Fig. B).
Place the hydraulic vehicle jack under one of the lifting positions as shown in the owner's manual supplied by the vehicle manufacturer.
Ensure that the support plate is centrally loaded. By moving the lifting handle up and down, raise the vehicle sufficiently to allow
you to insert axle stands under the vehicle (see Fig. C).
- Allow the vehicle to come down on to the axle stands by slowly opening the release valve 5 by turning the lifting handle 1 anticlockwise.
The jack is NOT FOR HOLDING the vehicle.
Lowering the vehicle
DANGER TO LIFE! Check that no person or object is under the vehicle before you lower it.
First raise the vehicle slightly (as described earlier) in order to be able to remove the axle stands.
Turn the release valve anticlockwise until the vehicle lowers, but do not turn it to the extent that it detaches or hydraulic oil leaks from the release valve (see Fig. D).
CAUTION! Lower the vehicle slowly, otherwise there is the danger of injury and damage to the product or to the vehicle.
Pull the trolley jack out from under the vehicle and fully lower the lifting arm 2.
Close the release value by turning it clockwise.
- Attaching the adapter (optional)
From its original height (13.5 cm), bring the vehicle jack to a height of 34 cm by moving the lifting handle up and down (see the section on "Using the jack").
Note: Do not lift the jack to the topmost position, allow more space for attaching the adapter.
Remove the hex bolt 10 from the nut 11 with a socket wrench plus socket (18 mm) and a ring spanner (18 mm) (see Fig. E).
Place the adapter 9 on to the load plate 3. From above, guide the hex bolt 10 through the adapter 9 and load plate 3 (see Fig. F).
At the same time as you are doing this, place the nut under the load plate with the help of a ring spanner (18 mm).
Fix the hex bolt 10 and nut 11 in place together with a socket wrench plus socket (18 mm) and a ring spanner (18 mm) (see Fig. G).
Lower the vehicle jack back down to its original height by turning the release valve 5 anticlockwise. Ensure that the release valve 5 does not become detached and allows the hydraulic oil to escape (see the section on "Lowering the vehicle").
If you no longer need to use the adapter 9 remove it by releasing the hex bolt10 from the nut11 with a socket wrench plus socket (18 mm) and a ring spanner (18 mm) (see Fig. E).
Then fix the hex bolt 10 and the nut 11 in place together inside the load plate 3 for safe keeping.
- Cleaning and care
Never use harsh or corrosive cleaning agents.
Liberally grease all external moving parts.
Clean the hydraulic trolley jack using a slightly oily cloth.
Fully lower the lifting and lifting handle sleeve to be able to store the trolley jack in the smallest possible space.
Maintenance and service
Note: Refilling or topping up with hydraulic oil may only be carried out by specialist personnel! Always use hydraulic oil that fulfils the specification for SAE 10. Please note that filling with too much oil may adversely affect the functioning of the vehicle jack. Fill with a maximum of 115ml oil when all the oil has been used. Fill the hydraulic oil reservoir up to the bottom edge of the filling opening (see Fig. H).
Note:The Lifetime of three years expires, if the car jack get not checked by qualified specialist.
Note: The plug for refill oil can be removed by a slotted screwdriver.
Note: The hydraulic fluid must be checked at complete lowered load lever.
Defective hydraulic vehicle jacks must be repaired by a specialist workshop only. Never attempt to repair the hydraulic vehicle jack yourself.
Never take the hydraulic vehicle jack to pieces. Taking the vehicle jack to pieces yourself may result in it not working properly.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household
waste. Information on collection points and their opening hours can be obtained from your local authority.
Dispose of the hydraulic oil in an environmentally compatible manner. Ask your local repair garage to see to its disposal or find your nearest waste materials collection centre.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years
from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: owim@lidl.co.uk
IE Service Ireland
NI Service Northern Ireland
Tel.: 1890 930 034
{0,08 EUR/Min., (peak)}
(0,06 EUR / Min., (off peak))
E-Mail: owim@lidl.ie
- Translation of original conformity declaration
We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Hydraulic Trolley Jack, Model No.: HG03172, Version: 11 / 2019, to which this declaration refers, complies with the standards / normative documents of 2006/42/EC.
Applied harmonised standards:
EN 1494/A1:2008
Serial number: IAN 311948_1904
Tobias König
Division Manager / Responsible for documentation OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY
Neckarsulm, 04/06/2019
The declaration of conformity can also be viewed at: www.owim.com.
C
The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
