USER MANUAL MB210 BOSE
Please read and keep all safety and use instructions.
This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.
Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water (MB210 only).
- Clean only with a dry cloth (MB210 only).
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Use with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
WARNING/CAUTIONS:
Contains small parts which may be a choking hazard. Not suitable for children under age 3.
This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.
All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
Do not mount the product in locations where condensation may occur (MB210 only).
This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks) (MB210 only).
Only use the mounting hardware supplied with this product.
The MB210 wall mounting kit is only for use with model MB210.
The MB210-WR wall mounting kit is only for use with model MB210-WR.
Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around Bose speakers, and associated mounting hardware, during installation. The use of such hydrocarbon based lubricants, solvents or cleaning agents on or around the mounting anchors and screws can lead to degradation of the plastic material, possibly resulting in cracking and premature failure of the product.
Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
Regulatory Information
This product conforms to all applicable EU directive requirements. The complete Declaration of Conformity can be found at www.Bose.com/compliance.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
China Restriction of Hazardous Substances Table
| Names and Contents of Toxic or Hazardous Substances or Elements | ||||||
| Toxic or Hazardous Substances and Elements | ||||||
| Part Name | Lead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent (CR(VI)) | Polybrominated Biphenyl (PBB) | Polybrominated diphenylether (PBDE) |
| PCBs X O O O O O | ||||||
| Metal Parts X O O O O | 0000 | |||||
| Plastic Parts O O O O O | 0000 | |||||
| Speakers | X O O O O O | |||||
| Cables X O O O O O | ||||||
| This table is prepared in accordance with the provisions of SJ/T 13564. O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. | 15 | |||||
| X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. | ||||||
Taiwan Restriction of Hazardous Substances Table
| Equipment name: MB210 and MB210-WR Compact Subwoofer , Type designation: 785043, 811432 | ||||||
| Restricted substances and its chemical symbols | ||||||
| Unit | Lead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent chromium (Cr+6) | Polybrominated biphenyls (PBB) | Polybrominated diphenyl ethers (PBDE) |
| PCBs | - | ○ | ○ | ○ | ○ | ○ |
| Metal Parts | - | ○ | ○ | ○ | ○ | ○ |
| Plastic Parts | ○ | ○ | ○ | ○ | ○ | ○ |
| Speakers | - | ○ | ○ | ○ | ○ | ○ |
| Cables | - | ○ | ○ | ○ | ○ | ○ |
| Note 1: “-” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption. | ||||||
Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.
China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9,
No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
EU Importer: Bose Products B.V., Gorlaan 60, 1441 RG Purmerend, The Netherlands
Mexico Importer: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de
Chapultepec, 11000 Mexico, D.F. For importer & service information: +5255 (5202) 3545
Taiwan Importer: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan, Phone Number: +886-2-25147676
Neutrik is a registered trademark of Neutrik AG.
Bose and ArenaMatch are trademarks of Bose Corporation.
Bose Corporation Headquarters: 1-877-230-5639
©2018 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.
Warranty Information
This product is covered by a limited warranty.
For warranty details, visit PRO.BOSE.COM
Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi
Importatore per il Messico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F.
No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purnerend, Nederland
Importeur in Mexico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de
Chapultepec, 11000 Mexico, D.F. Gegevens importeur en service-informatie: +52 55 52 02 35 45
Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefonnummer: +886 2 25 14 76 76
Inspection & Maintenance. 10
Maintaining Weather Resistance 10
Recommended Tools 10
Product Dimensions 11
MB210 11
MB210-WR 12
Input Panel 13
MB210 13
MB210-WR 13
Installation
14
MB210 14
Mounting the Subwoofer with the U-Bracket 14
Using the Ground Feet 15
MB210-WR. 16
Mounting the Subwoofer with the U-bracket 16
Recommended Amplifier Power 17
Recommended Signal Processing 17
Technical Specifications 18
MB210 18
MB210-WR. 19

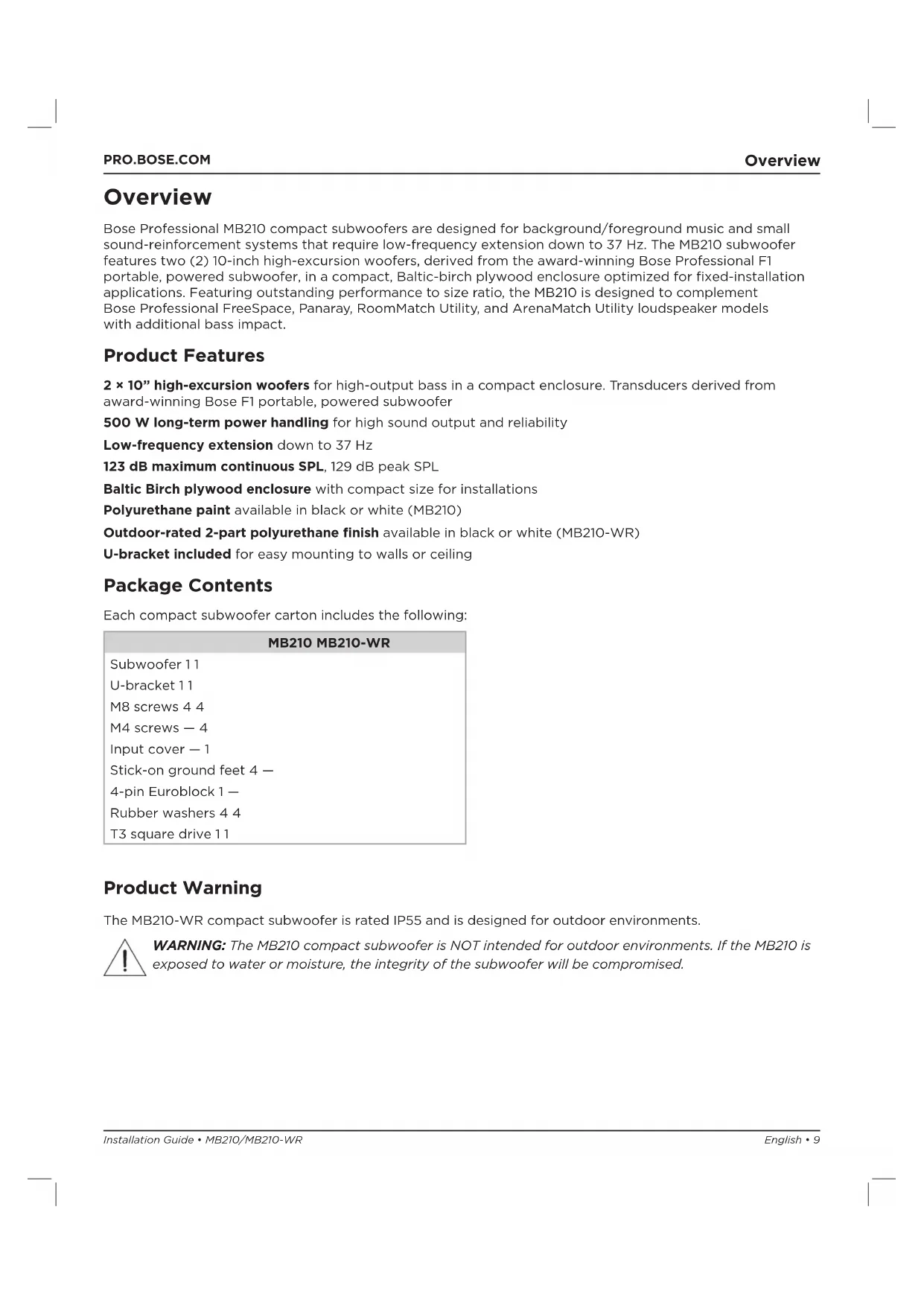

Overview
Bose Professional MB210 compact subwooers are designed for background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37Hz . The MB210 subwoofer features two (2) 10-inch high-excursion woofers, derived from the award-winning Bose Professional F1 portable, powered subwoofer, in a compact, Baltic-birch plywood enclosure optimized for fixed-installation applications. Featuring outstanding performance to size ratio, the MB210 is designed to complement Bose Professional FreeSpace, Panaray, RoomMatch Utility, and ArenaMatch Utility loudspeaker models with additional bass impact.
Product Features
2 × 10 high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning Bose F1 portable, powered subwoofer
500 W long-term power handling for high sound output and reliability
Low-frequency extension down to 37Hz
123 dB maximum continuous SPL, 129 dB peak SPL
Baltic Birch plywood enclosure with compact size for installations
Polyurethane paint available in black or white (MB210)
Outdoor-rated 2-part polyurethane finish available in black or white (MB210-WR)
U-bracket included for easy mounting to walls or ceiling
Package Contents
Each compact subwoofer carton includes the following:
MB210 MB210-WR
Subwoofer 11
U-bracket 11
M8 screws 4 4
M4 screws - 4
Input cover - 1
Stick-on ground feet 4 -
4-pin Euroblock 1 —
Rubber washers 4 4
T3 square drive 11
Product Warning
The MB210-WR compact subwoofer is rated IP55 and is designed for outdoor environments.
WARNING: The MB210 compact subwoofer is NOT intended for outdoor environments. If the MB210 is exposed to water or moisture, the integrity of the subwoofer will be compromised.
Inspection & Maintenance
WARNING: The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could comprise the system's integrity and create a dangerous falling hazard.
Maintaining Weather Resistance
The MB210-WR compact subwoofer is water resistant and is rated IP55. To maintain water resistance, please observe the following precautions:
- Before, during, and after installation, check the surface of the loudspeaker enclosure to ensure that the factory-applied, weather-resistant coating has not been damaged.
- During install, angle the loudspeaker at least 5^ downward to reduce the potential of rain compromising the performance of the loudspeaker.
- All mounting holes must be sealed off with stainless steel screws (included with applicable accessories) or the included plastic plugs (pre-installed).
- The gland nut that secures the loudspeaker cable is factory sealed. Do not remove the gland nut or the weather-resistant seal will be broken.
- The loudspeaker is rated IP55, which means the grille is designed to withstand normal and wind-driven rain. The grille is not designed to withstand direct spraying of water (i.e., from a hose).
CAUTION: If the above instructions are not observed, the weather-resistant integrity of your MB210-WR compact subwoofer could be compromised.
Recommended Tools
The following tools are recommended for assembly of a MB210/MB210-WR compact subwoofer:
Flathead screwdriver
2 Phillips-head screwdriver
10-millimeter socket or wrench
5-millimeter hex key
T3 square drive (included)
Product Dimensions

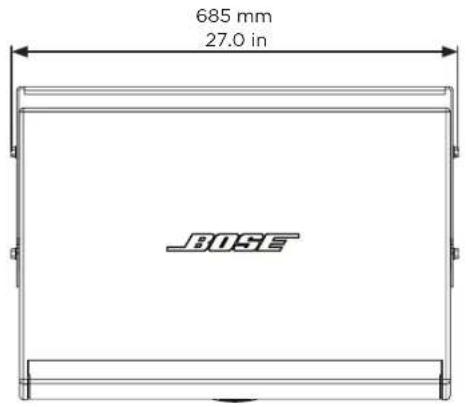

MB210
Product net weight: 18.6kg (41.0 lb)/21.8 kg (48.0 lb) with U-bracket
Top View Side View
Front View Rear View
Bottom View Rear View

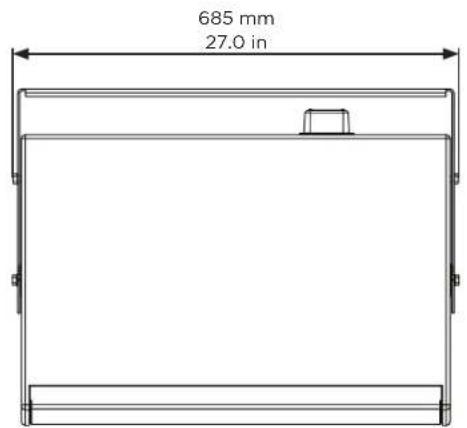

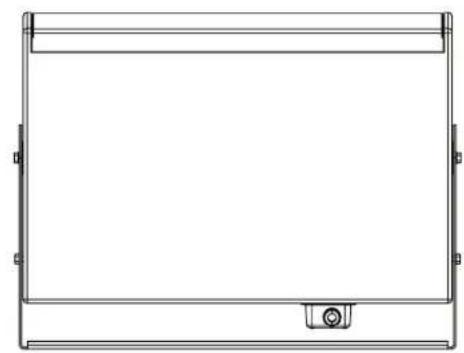

MB210-WR
Product net weight: 19.4kg (42.8 lb) / 23.0 kg (50.6 lb) with U-bracket
Top View Side View
Front View Rear View

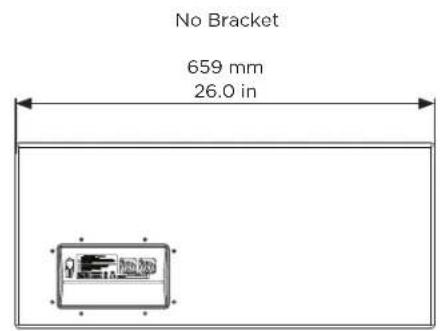

No Bracket
Bottom View Rear View

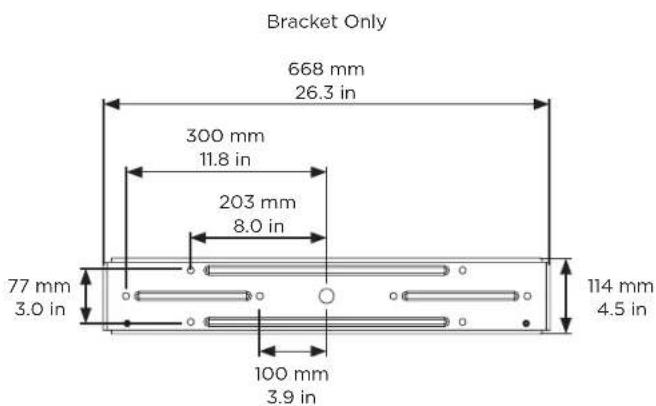

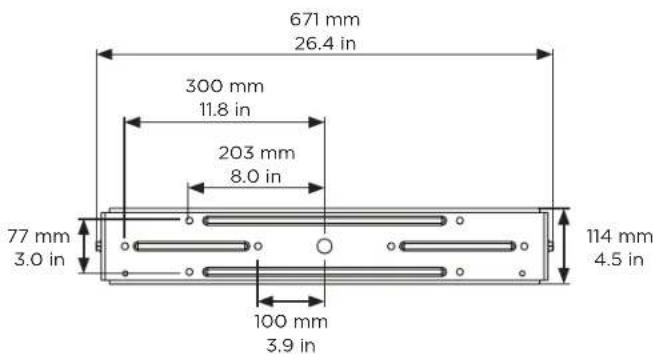

Bracket Only

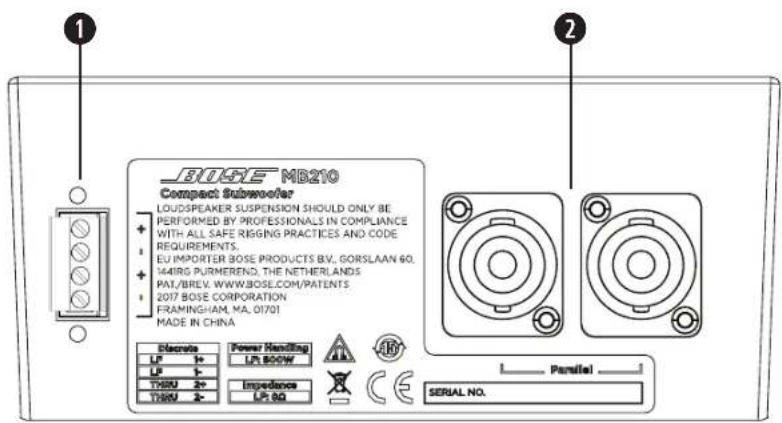

Input Panel
MB210
Euroblock Connector (4-pin)
NL4 connectors

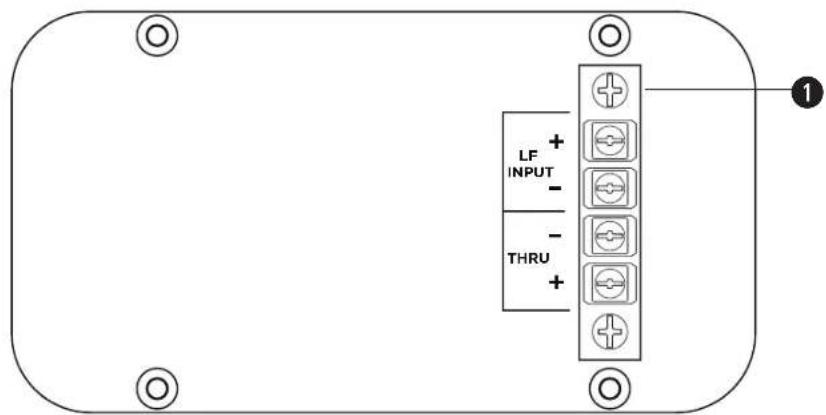

MB210-WR
The input panel for the MB210-WR includes a single screw-terminal barrier strip. Each terminal accepts a wire gauge of 10 AWG to 18 AWG.
Barrier strip
Installation
MB210
Mounting the Subwoofer with the U-Bracket
- Choose a mounting location that will safely support the weight of the subwoofer. The subwoofer can be mounted horizontally or vertically.
- Remove packing materials and place the subwoofer on the floor beneath the planned suspension point.
- Determine which threaded holes on the subwoofer are required for mounting, depending on the subwoofer's mounting orientation. See the following figures.
- Using the included T3 square drive, remove the plastic inserts from the appropriate threaded holes on each side of the subwoofer.
- Insert one M8 screw and rubber washer into the threaded inserts that correspond to your chosen attachment points on each side of the subwoofer. Do not tighten. Note: Use only the included hardware to attach the U-bracket to the subwoofer.
- Use the U-bracket as a guide to mark the fastening holes on the mounting surface.
- Drill holes into the mounting surface using previously marked positions.
- Attach the U-bracket to the building surface using appropriate fasteners (not included).
CAUTION: For attaching U-brackets to a surface, choose fasteners that are consistent with all local building codes and requirements to support the weight of the subwoofer.
- Place the subwoofer on the bracket by sliding the attached M8 screws into the bracket slots, keeping the rubber washers between the bracket and the speaker enclosure.
- Insert one M8 screw and rubber washer into the remaining threaded hole, on each side of the subwoofer. Place the washer between the U-bracket and the subwoofer.
- Tighten the four screws with a 10-millimeter socket tool, using a torque not to exceed 13.6 to 20.3 newton-meters (10 to 15 pound-feet).
- Connect your wiring to your subwoofer.

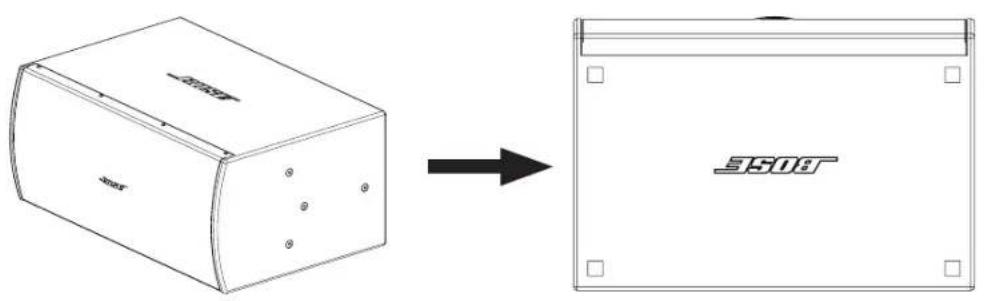

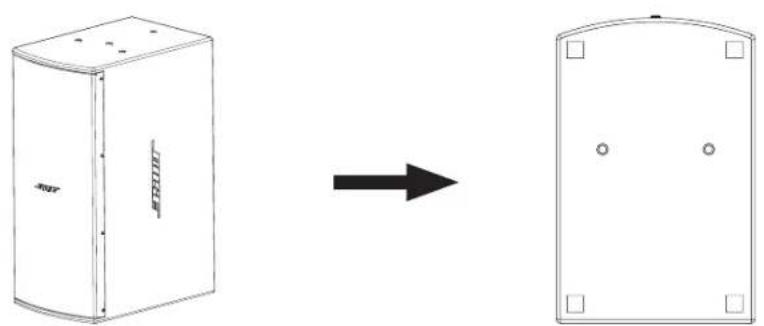

Using the Ground Feet
The MB210 subwoofer can be placed on the ground in either the horizontal or vertical orientation, using the ground feet. To attach the ground feet:
- Remove the backing from the adhesive side of the first ground foot.
- Position the ground foot in one corner of the loudspeaker, on the side that will be resting on the floor. See the figures below.
- Press the adhesive side of the ground foot onto the loudspeaker to adhere.
- Repeat steps for the remaining three ground feet.
Ground feet position for horizontal orientation
Ground feet position for vertical orientation
MB210-WR
Mounting the Subwoofer with the U-bracket
CAUTION: Before installation, determine the location and position of your subwoofer. Only remove the plastic inserts that are necessary for your installation. The plastic inserts are factory sealed to prevent water damage. If any insert is left unsealed after installation, the weather-resistant integrity of your subwoofer could be compromised.
- Choose a mounting location that will safely support the weight of the subwoofer. The subwoofer can be mounted horizontally or vertically.
- Remove packing materials and place the subwoofer on the floor beneath the planned suspension point.
- Determine which threaded holes on the subwoofer are required for mounting, depending on the subwoofer's mounting orientation. See the following figures.
- Using the included T3 square drive, remove the plastic inserts from the appropriate threaded holes on each side of the subwoofer.
- Insert one M8 screw and rubber washer into the threaded inserts that correspond to your chosen attachment points on each side of the subwoofer. Do not tighten.
Note: Use only the included hardware to attach the U-bracket to the subwoofer.
- Hold the U-bracket in the mounting location and mark the holes.
- Drill holes into the mounting surface using previously marked positions.
- Attach the U-bracket to the building surface using appropriate fasteners (not included).
CAUTION: For attaching U-brackets to a surface, choose fasteners that are consistent with all local building codes and requirements to support the weight of the subwoofer.
- Connect your wiring to your subwoofer.

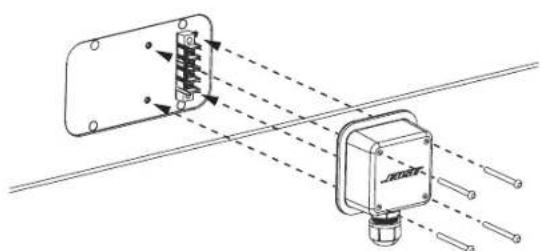

- Feed the wiring through the gland nut on the input panel cover and tighten the gland nut.
- Attach the input cover using the included M4 screws.
- Place the subwoofer on the bracket by sliding the attached M8 screws into the bracket slots, keeping the rubber washers between the bracket and the speaker enclosure.
- Insert one M8 screw and rubber washer into the remaining threaded hole, on each side of the subwoofer. Place the washer between the U-bracket and the subwoofer.
- Tighten the four screws with a 10-millimeter socket tool, using a torque not to exceed 13.6 to 20.3 newton-meters (10 to 15 pound-feet).
Recommended Amplifier Power
Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer long-term (or RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels, and other factors. As a general guideline, to optimize MB210/MB210WR system performance, the following amplifier configurations are recommended.
Loudspeaker Nominal Impedance Amp Power Rating
MB210 8Ω 500 W to 2000 W
MB210-WR 8Ω500W to 2000 W
Recommended Signal Processing
Digital signal processing (DSP) equipment is required for infrasonic protection, crossover, equalization, and voltage limiting protection.
Recommended loudspeaker DSP presets are available in Bose ControlSpace Designer software and are designed for use with Bose PowerMatch configurable professional amplifiers and ControlSpace ESP and EX processor hardware (sold separately).
Technical Specifications
MB210
| System Performance | ||||
| Frequency Response (±3 dB)1 | 45 to 180 Hz | |||
| Frequency Range (-10 dB) 37 to 270 Hz | ||||
| Nominal Coverage Pattern (H × V) Omni-directional below 200 HzRecommended High-pass Filter 45 Hz with 24-dB/octave filterCrossover 80 to 200 Hz (requires active crossover in DSP) | ||||
| Bose Extended Lifecycle Test2 | AES Transducer Test3 | |||
| Power Handling, long-term continuous 500 W 625 W | ||||
| Power Handling, peak 2000 W 2500 W | ||||
| Free Field Half-space Free Field Half-space | ||||
| Sensitivity (SPL / 1 W @ 1 m)4 | 90 dB 96 dB | 90 dB | 96 dB | |
| Calculated Maximum SPL @ 1 m5 | 117 dB | 123 dB 118 dB | 124 dB | |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 129 dB | 124 dB | 130 dB |
| Transducers | ||||
| Low Frequency | 2 × Bose 10-inch, high-excursion woofers | |||
| Nominal Impedance | 8 Ω | |||
| Physical | ||||
| Enclosure Material | Baltic birch plywood | |||
| Finish | Polyurethane coating, black or white | |||
| Grille | Powder-coated perforated steel | |||
| Environmental | Indoor only | |||
| Connectors | 2 × Neutrik* NL4 with 4-pin Euroblock, all wired parallel | |||
| Suspension/Mounting 3 × M8 threaded inserts for U-bracket (per side) | ||||
| Dimensions (H × W × D) - millimeters | 291 × 685 × 482 with U-bracket | |||
| Dimensions (H × W × D) - inches | 11.5 × 27.0 × 19.0 with U-bracket | |||
| Net Weight (loudspeaker only) | 18.6 kg (41.0 lb) | |||
| Net Weight (with U-bracket) | 21.8 kg (48.0 lb) | |||
| Shipping Weight | 27.2 kg (59.9 lb) | |||
| Accessories | Included steel U-bracket and 4 × adhesive-mounted rubber ground-stack feet | |||
Footnotes
- Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ.
- Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
- AES standard 2-hour duration with IEC system noise.
- Sensitivity measured in anechoic environment with recommended bandpass and EQ.
- Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
MB210-WR
| System Performance | ||||
| Frequency Response (±3 dB)1 | 45 to 180 Hz | |||
| Frequency Range (-10 dB) 37 to 270 Hz | ||||
| Nominal Coverage Pattern (H × V) Omni-directional below 200 HzRecommended H/High-pass Filter 40 Hz with 24-dB/octave filterCrossover — | ||||
| Bose Extended Lifecycle Test2 | AES Transducer Test3 | |||
| Power Handling, long-term continuous 500 W 625 W | ||||
| Power Handling, peak 2000 W 2500 W | ||||
| Free Field Wall/Ceiling Free Field Wall/Ceiling | ||||
| Sensitivity (SPL / 1 W @ 1 m)4 | 90 dB 96 dB | 90 dB | 96 dB | |
| Calculated Maximum SPL @ 1 m5 | 117 dB | 123 dB | 124 dB | |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 129 dB | 124 dB | 130 dB |
| Transducers | ||||
| Low Frequency | 2 × Bose 10-inch, high-excursion woofers | |||
| Nominal Impedance | 8 Ω | |||
| Physical | ||||
| Enclosure Material | Exterior-grade birch plywood | |||
| Finish | Two-part polyurethane coating, black or white | |||
| Grille | Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh | |||
| Environmental | Rated for direct-exposure outdoor installations (IEC 60529: IP55) | |||
| Connectors | 1 × barrier strip (accepts 10 to 18 wire gauge) | |||
| Suspension/Mounting | 3 × M8 threaded inserts for U-bracket (per side) | |||
| Dimensions (H × W × D) - millimeters | 291 × 685 × 517 with U-bracket | |||
| Dimensions (H × W × D) - inches | 11.5 × 27.0 × 20.4 with U-bracket | |||
| Net Weight (loudspeaker only) | 19.4 kg (42.8 lb) | |||
| Net Weight (with U-bracket) | 23.0 kg (50.6 lb) | |||
| Shipping Weight | 27.7 kg (61.1 lb) | |||
| Accessories | Included stainless-steel U-bracket | |||
Footnotes
- Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ.
- Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
- AES standard 2-hour duration with IEC system noise.
- Sensitivity measured in anechoic environment with recommended bandpass and EQ.
- Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
