USER MANUAL TSP303 DENVER

Black and white photo of a Denver air conditioner with a mesh grille and handle (no visible text or symbols on the device body)

USER MANUAL

TABLE OF CONTENTS

PART DESCRIPTIONS....2

SAFETY INSTRUCTIONS....3

POWER CONNECTION ....4

RECHARGING....4

BLUETOOTH CONNECTION....5

FM RADIO 5

USB PORT 5

LINE IN 6

SMARTPHONE / TABLETS RECHARGING....6

SING-A-SONG 6

SOUND EFFECTS....7

TROUBLE SHOOTING....7

CAUTION....8

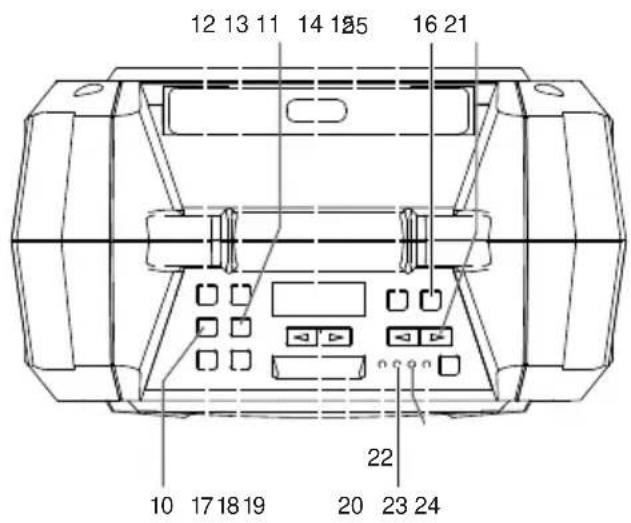

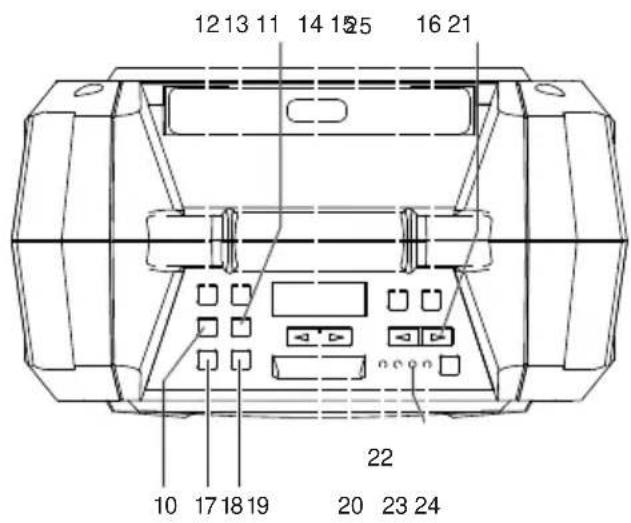

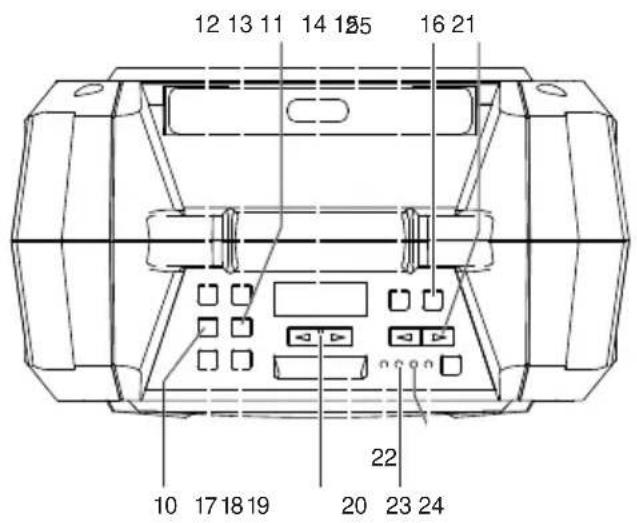

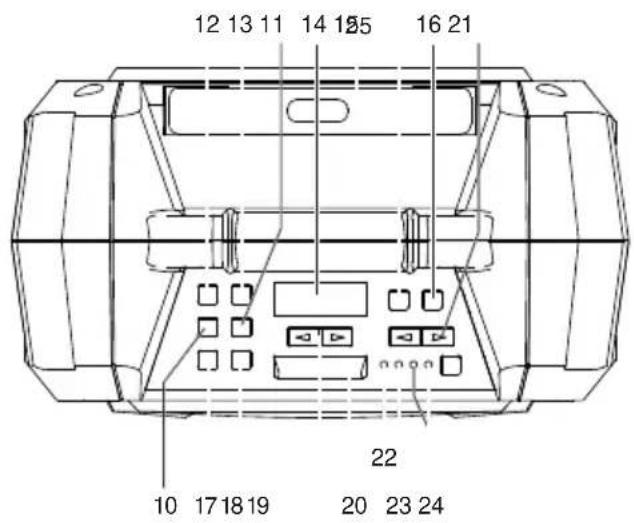

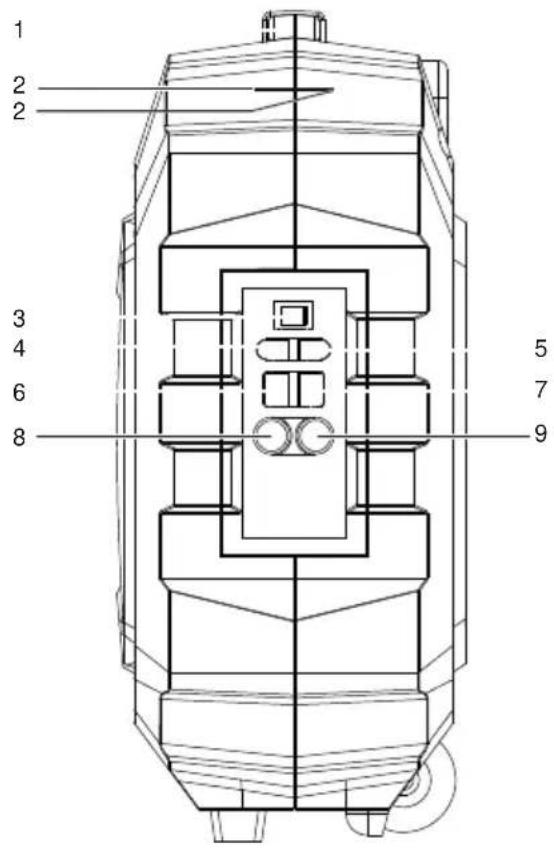

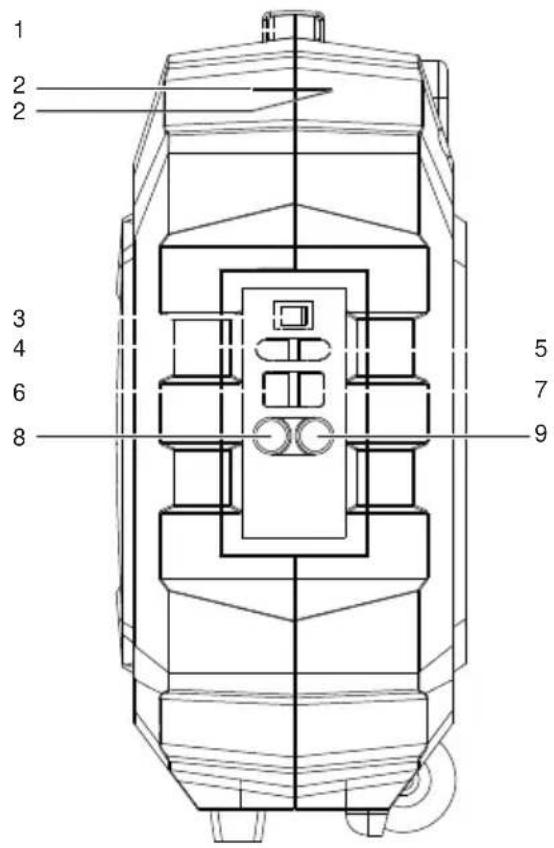

1 2 2 3 4 6 8 5 7 9

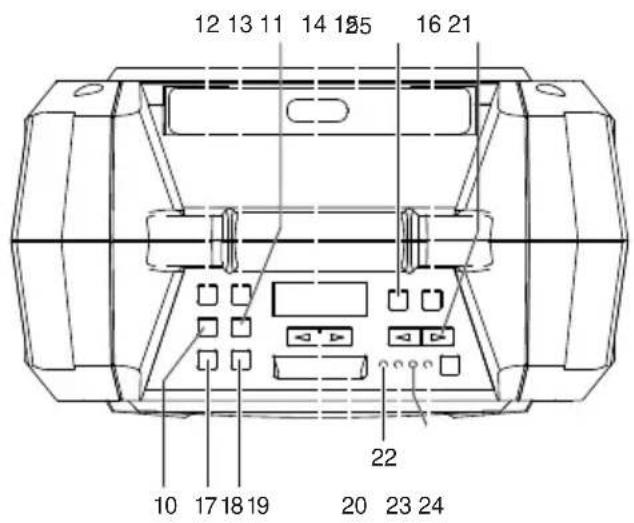

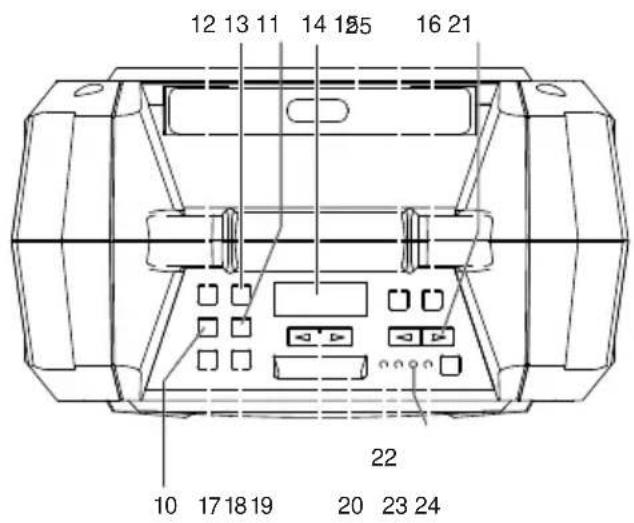

12 13 11 14 25 15 16 21 10 17 18 19 20 23 24 22

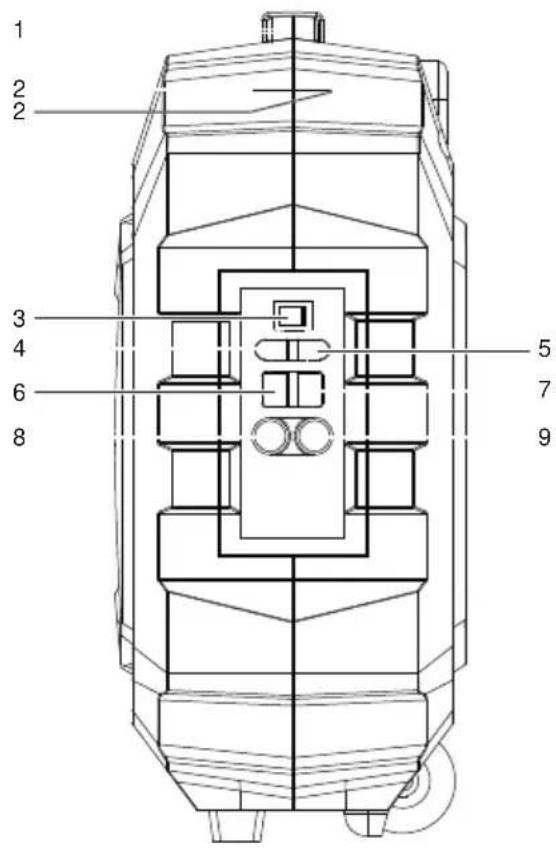

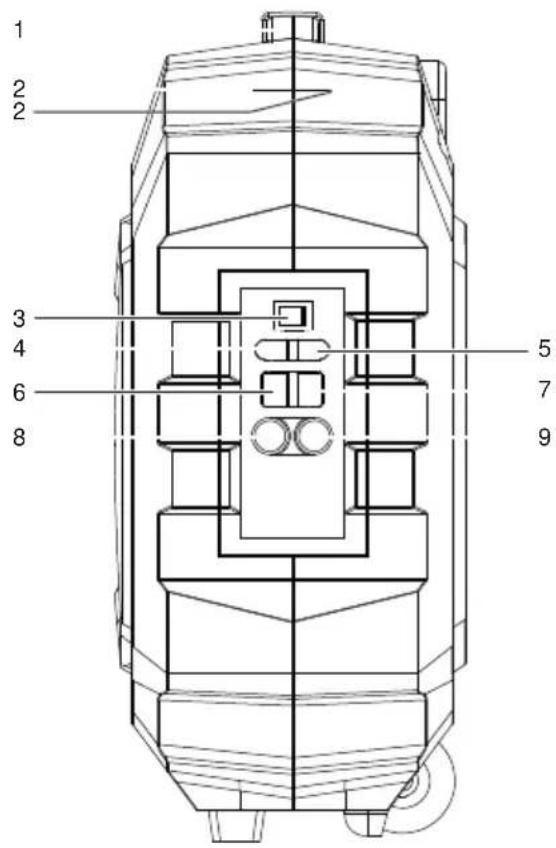

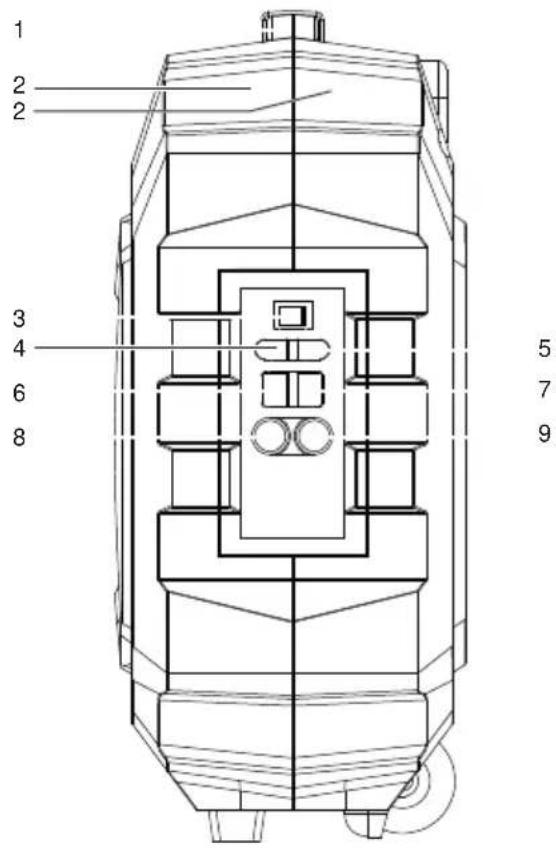

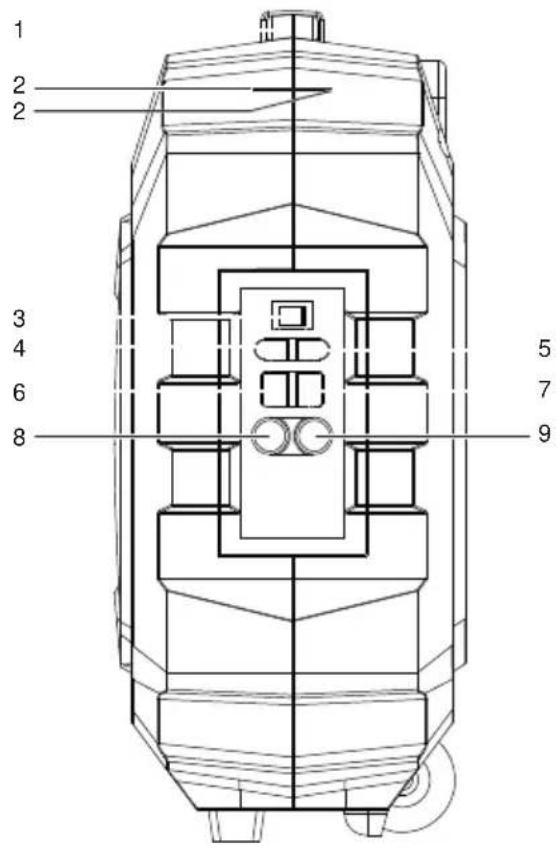

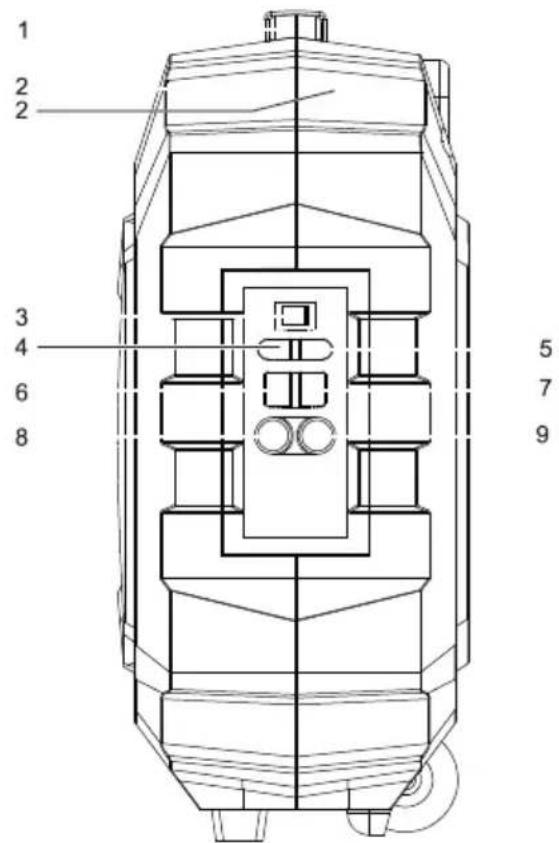

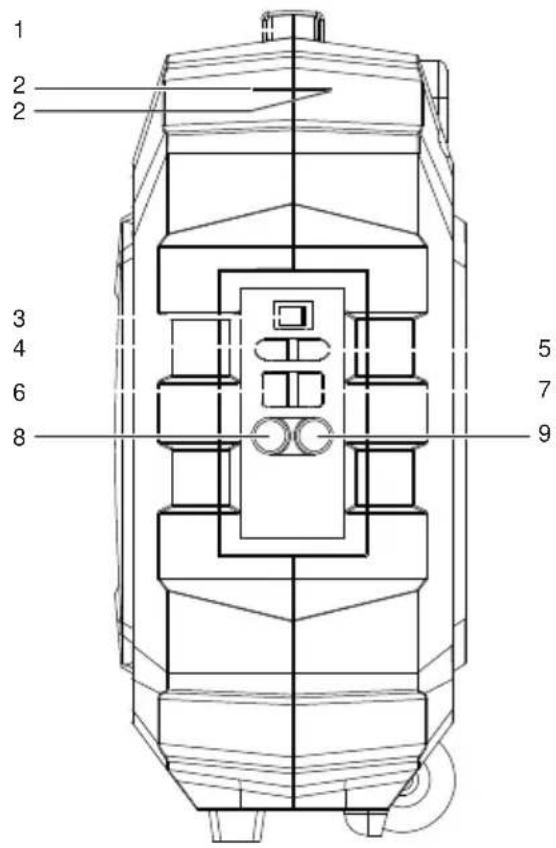

1. HANDLE
2. RUGGED CASING
3. POWER ON/OFF KEY
4. LINE IN
5. DC(15V, 1.5A) INPUT
6. USB PORT
7. 1A CHARGER (5V)
8. MIC PORT1
9. MIC PORT2

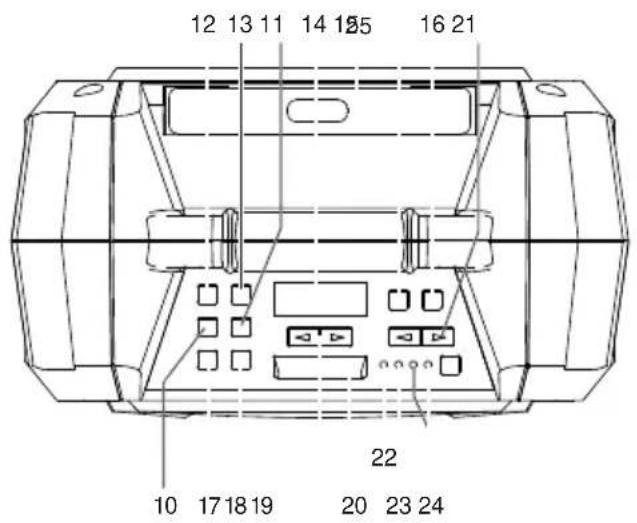

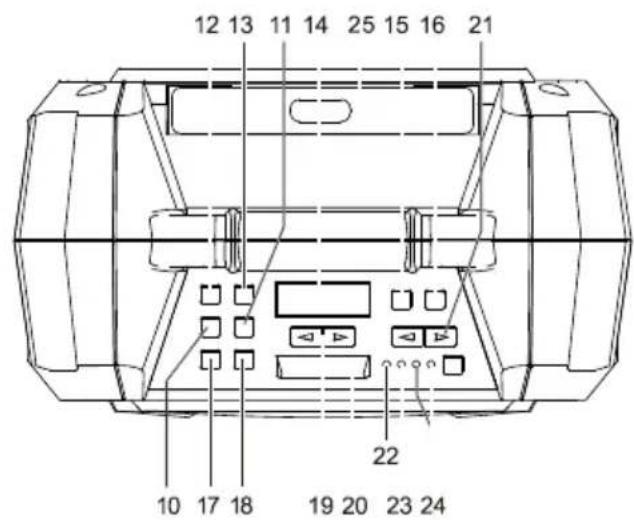

10. TUNING DOWN/
11. TUNING UP/▶▶
12. REPEAT KEY

13. EQ KEY

14. LED DISPLAY

15. ECHO DOWN
16. ECHO UP
17. SOURCE
18. PAUSE/PLAY/BT OFF (DISCONNECT) KEY
19. VOLUME (UP/DOWN) KEY
20. LED LANTERN
21. MIC VOLUME (UP/DOWN)
    22.POWER INDICATOR
22. BLUETOOTH INDICATOR
23. BATTERY (LOW/FULL) INDICATOR
24. TROLLEY HANDLE

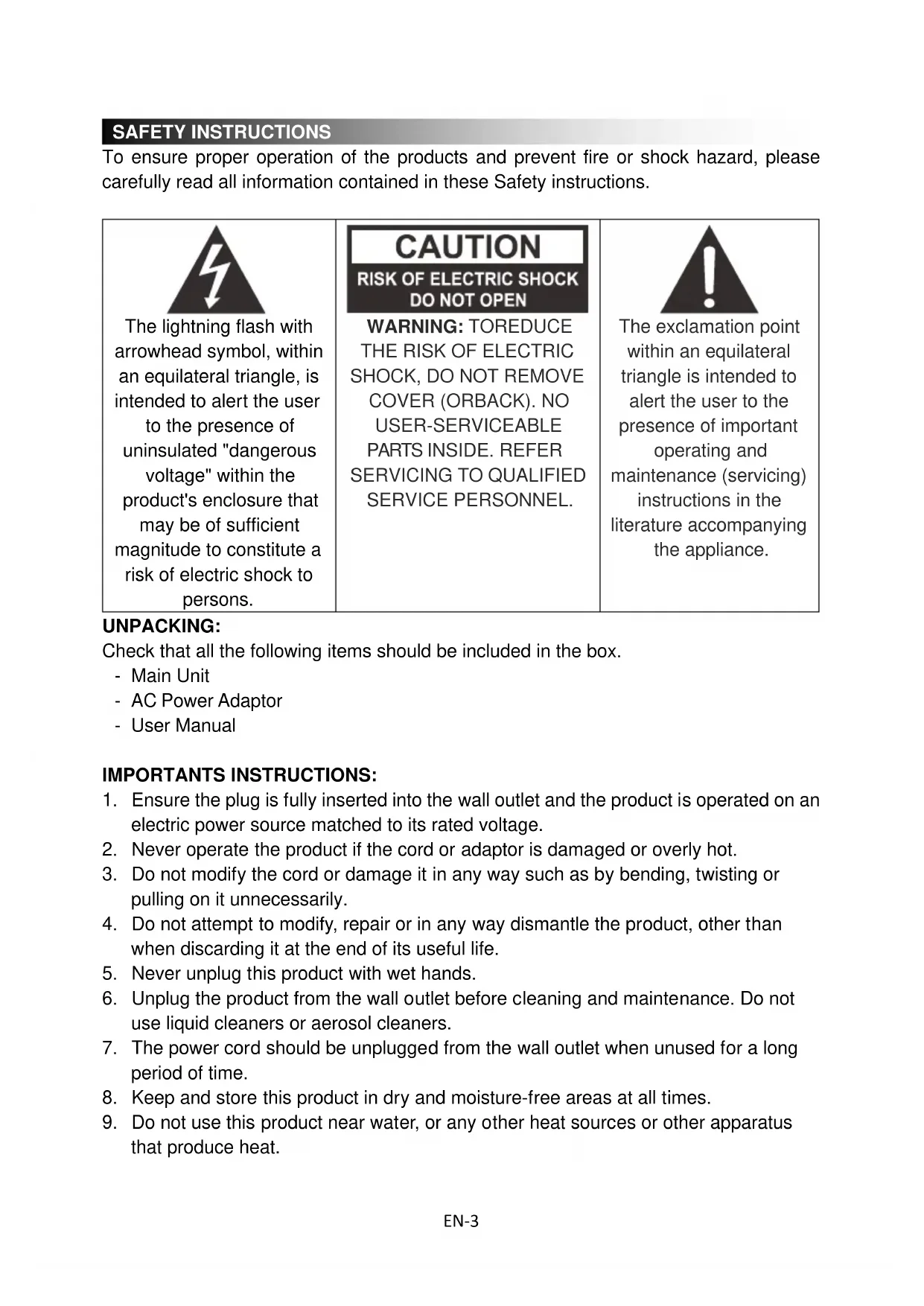

SAFETY INSTRUCTIONS

To ensure proper operation of the products and prevent fire or shock hazard, please carefully read all information contained in these Safety instructions.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TOREDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ORBACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

UNPACKING:

Check that all the following items should be included in the box.

• Main Unit
• AC Power Adaptor
• User Manual

IMPORTANTS INSTRUCTIONS:

1. Ensure the plug is fully inserted into the wall outlet and the product is operated on an electric power source matched to its rated voltage.

2. Never operate the product if the cord or adaptor is damaged or overly hot.

3. Do not modify the cord or damage it in any way such as by bending, twisting or pulling on it unnecessarily.

4. Do not attempt to modify, repair or in any way dismantle the product, other than when discarding it at the end of its useful life.

5. Never unplug this product with wet hands.

6. Unplug the product from the wall outlet before cleaning and maintenance. Do not use liquid cleaners or aerosol cleaners.

7. The power cord should be unplugged from the wall outlet when unused for a long period of time.

8. Keep and store this product in dry and moisture-free areas at all times.

9. Do not use this product near water, or any other heat sources or other apparatus that produce heat.

10. Battery shall not be directly exposed to sunshine and fire.

11. Do not attempt to replace the battery. For repairing and servicing, please consult the store of purchase or customer service centre designated by the store.
    CAUTION: Danger of explosion if battery is incorrectly replaced.
12. Do not use any other power supply other than the one specially designed for this product.
13. Keep this operating instruction in a safe place.
14. Contact an authorized service centre if you have any inquiry about this product.

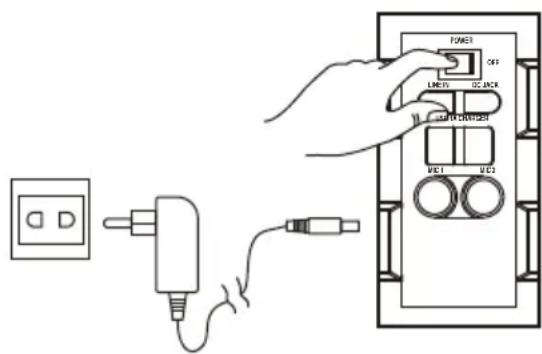

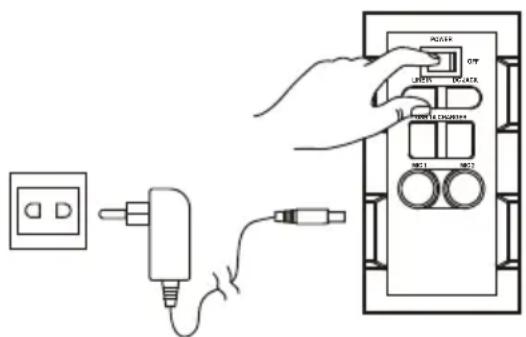

POWER CONNECTION

• Unpack this product, ensure the power ON/OFF switch is on "OFF".
• Connect the supplied AC adaptor to this product, plug the AC adaptor to the wall outlet.
• Battery GREEN LED indicator will turn to orange.

Diagram showing connection between a power outlet, plug-in, and connected electrical components with labeled buttons and ports

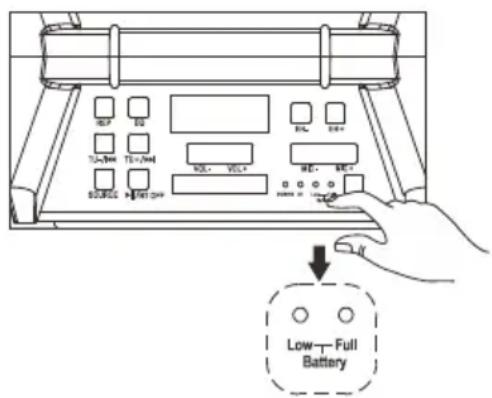

RECHARGING

• Unit comes with a battery indicator alert.
• If Battery Low LED flash, it means the battery level is low and recharging is required.
• By connecting the AC power, the Battery Full LED will turn orange, it means the unit is under recharging.
• The Battery Full LED become green, it means the level of battery is fully charged.

Diagram showing power switch connection to a control panel with labeled buttons and power input

It is recommended to charge the battery about 6 hours before you start using the unit for the first time.

Energy Saving: If this product is idle for about 20 minutes, it will go to standby mode automatically. It will auto power off.

Caution: To keep and protect the rechargeable battery in good condition, users should check the unit and be sure to turn the Power On/Off switch on the side panel to "Off" every time after using and before storage, it is highly recommended that users should fully recharge the battery at least once in every two months.

Low-Full Battery

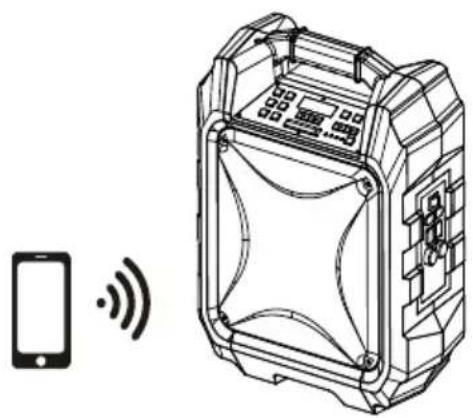

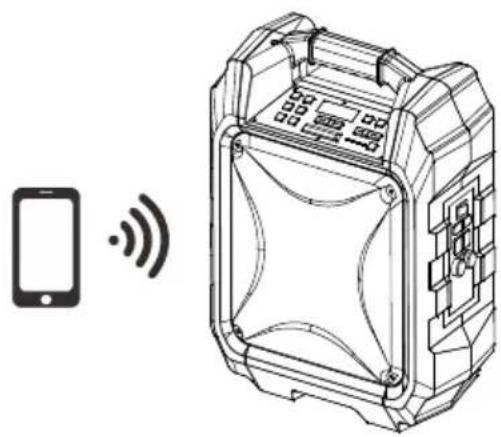

BLUETOOTH CONNECTION

• Once the power switch is turned to "On", Bluetooth "BT" mode is set as default
• Blue LED indicator will flash in pairing mode. The RED LED display will show "bt"
• Turn on the Bluetooth function on your device and search for "TSP-303" then press to connect.
• Connected sound signal will be heard and the blue led connection indicator will stop blinking and stay steady.
• Bluetooth connection is completed.
• Select the music from your Bluetooth device and start playing.
• Hold the BT DISCONNECT(BT OFF) key to disconnect paired device and enter pairing mode.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM RADIO

• Press the "Source" Button and select Radio, the FM Radio Frequency will show on the RED LED display.
• Hold play/pause key to auto search and store.
• Press and hold the TU ◀◀ or TU ▶▶I buttons for choosing the next stored available station. Short press them to fine tune.

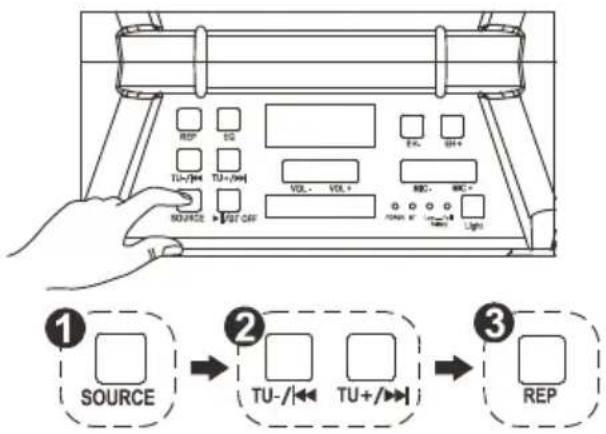

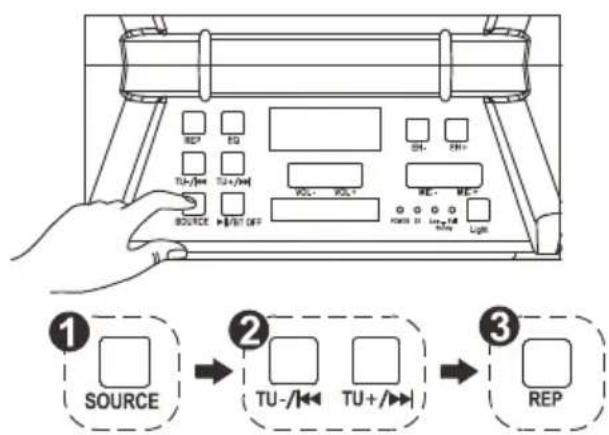

USB PORT

• Press the "Source" Button and select to USB, USB will show on the RED LED display.
• Insert the USB stick.
• Select your favorite music by pressing TU ◀◀ or TU ▶▶
• Press "REP" to repeat once for the current song, Press again "REP" to repeat all songs.

If unit is playing on Bluetooth mode "BT", it will automatically switch to USB mode when the USB stick is inserted.

1 SOURCE 2 TU-/← TU+/→ 3 REP

Important: The USB port is intended for data transfer only, Other devices cannot be used with this USB connection. The use of USB extension cords is not recommended

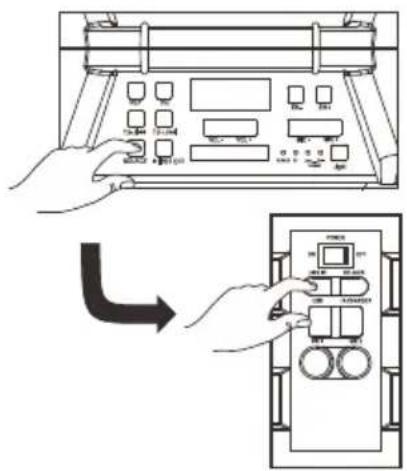

LINE IN

• Press the "Source" Button and select LINE, LINE will show on the RED LED display.
• Plug in your 3.5mm cable into the LINE IN put on the side panel and the unit will enter into LINE IN mode.
• You can connect any audio device that has 3.5mm audio output jack and playback any audio from the connected device.

Diagram showing hand operating a device with labeled buttons and a right-hand arrow indicating rotation or change.

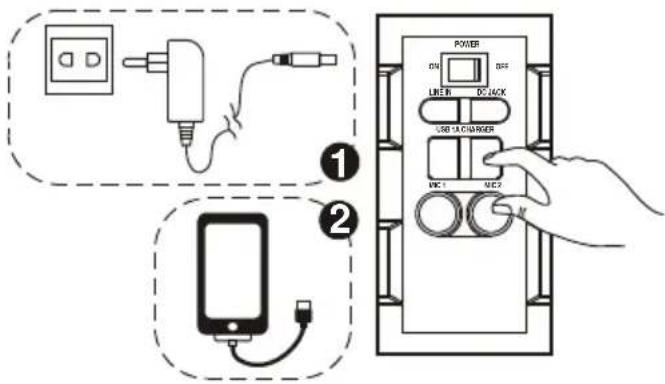

SMART PHONES/TABLETS RECHARGING

- Smartphones recharging works on both AC power and DC power.

CAUTION: When the low battery red indicator lights up, that means product needs to be recharged and smartphones recharging can only be done by AC power adaptor.

• Plug in the Power AC Adaptor to the wall outlet.
• Plug in your smart phones/tablets USB recharging cable into the side panel marked "1A charger".
• Connect the recharging cable to your smart phones/tablets. Recharging starts.
• Unplug your USB recharging cable when your smart phones / tablets are fully recharged.

This jack is only designed for charging devices requiring 5V and 1A.

Otherwise it may lead to damage.

Diagram showing two connected devices: one with a power adapter and cable, the other with a smartphone connected to an electronic device labeled with buttons and indicators.

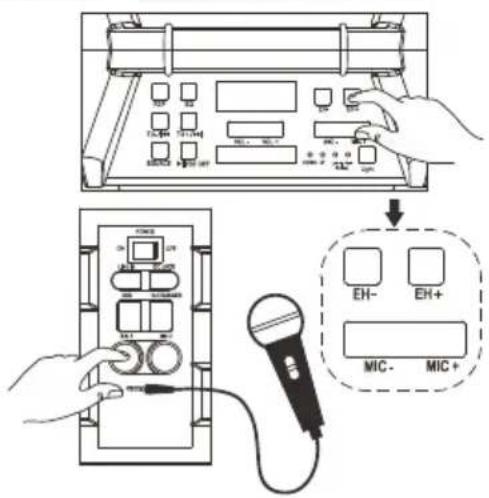

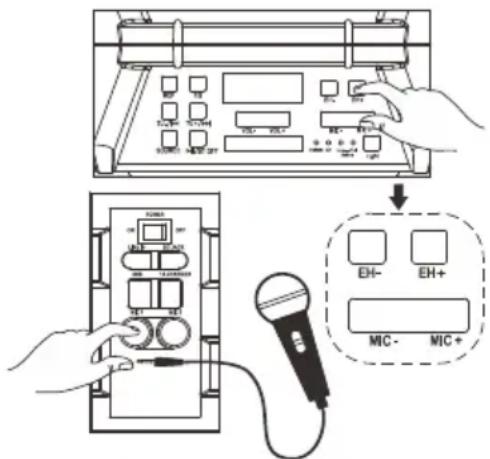

SING-A-SONG

• This product allows you to sing-a-long with the songs playing either on BT, USB or LINE IN mode and allow 2 microphones at the same time.
• Plug in your Microphone cable into the side panel marked "MIC 1" and /or "MIC 2".
• Adjust the MIC Volume "MIC + / MIC - " or main volume on the top control panel.
• Adjust the Echo level "EH + /EH - ".
• Start to sing

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

WARNING: - If the MIC Volume and ECHO levels are set too high or to the maximum, you may hear a high pitch feedback tone. Lower the volume quickly to avoid damage.

SOUND EFFECTS

• "Customer's model" has a built in Equalizer
• Press and select the preset sound effect for your music; FLAT, CLASSIC, POP, ROCK and JAZZ

TROUBLESHOOTING

General

No power

• Check that AC power cord is securely inserted in the unit and the electrical outlet.
• Check the Power On/Off switch is turn to On position.
• If battery is flat Plug in the AC Power cord to charge and operate.

Keys no response

• Turn the Power On/Off switch to Off, and then On again to reset the unit.
• Unplug the AC Power cord and plug it back again.

No sound heard

• Make sure the LINE connected volume is turned to a reasonable level.
• Make sure the Bluetooth connected device output the audio via BT out.
• Make sure the Bluetooth connected device volume is turned to a reasonable level.

Bluetooth Operations

Audio quality is poor

• Bluetooth reception is poor. Move the Bluetooth device nearer to the Speaker.

Cannot pair to Bluetooth device

• Make sure both Bluetooth device and Speaker is not connected to any other Bluetooth device.
• Make sure the Bluetooth On/Off switch located below Speaker is slide to On position.
• Make sure the Blue LED on the Speaker is fast flashing (Pairing mode).
• Turn Power switch to Off, and then On again, Press and hold BT button for 2 seconds to enter into pairing mode.

CAUTION:

• The AC/DC adaptor and main unit shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus and AC/DC adaptor.
• Minimum distances 10 cm around the apparatus for sufficient ventilation.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• When the mains plug of AC/DC Adaptor is used as the disconnect device, the disconnect device shall remain readily operable.
  To be completely disconnected the power input, the AC/DC adaptor shall be disconnected from the mains completely.
• The AC/DC adaptor should not be obstructed or should be easily accessed during intended use.
• The use of apparatus in tropical climates.

About Sealed Lead-Acid Battery:

This unit works either on the battery pack (Model no.: Tianchang 6-FM-2.6, 12V, 2600mAh) or the AC power: unplug the AC Power adapter from the DC input jack to work on the battery pack (after fully charged); plugging the AC Power adapter while the battery pack is attached initiates the charging of this battery. The charged LED indicator lights red during charging, when the battery is fully charged the indicator is Green. Fully charging a run-out battery pack may take 3 hours, A fully charged battery pack can endure approximately 2 hours of continuous playback. This playing time may vary with the surrounding environment, the volume level of the speaker and the battery condition. It is advised that you wait 10-20 minutes before recharging the battery pack if it has turned flat during operation.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER® www.denver-electronics.com CE

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denverelectronics

Hereby, Inter Sales A/S declares that the radio equipment type TSP-303 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.denver-electronics.com/denver-tsp-303/

TSP-303

MOBILE LAUTSPRECHERBOX MIT BLUETOOTH

Black and white photo of a black and white portable electronic device labeled 'DENVER' (no additional text or symbols visible)

BEDIENUNGSANLEITUNG

INHALTSVERZEICHNIS

Diagram showing connection between power switch, power plug, and connected plug with labeled buttons and cable

AUFLADEN

Diagram showing a hand operating a power converter with labeled buttons and connected components including a plug, switch, and power outlet.

Low-Full Battery

BLUETOOTH-ANSCHLUSS

Technical line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

UKW-RADIO

Diagram showing hand operating a device with labeled buttons and a right-hand panel showing control interface with buttons like 'OK', 'OFF', and 'RST2'.

SMARTPHONES/TABLETS AUFLADEN

Diagram showing two connected devices: one with a D/D power adapter and connected to a USB switch, and another with a smartphone connected to a device labeled ① and ②.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

SOUNDEFFEKTE

Black and white photo of a black and white portable electronic device labeled 'DEIVER' (no additional text or symbols visible)

GEBRUIKSHANDLEIDING

INHOUDSOPGAVE

BESCHRIJVING VAN ONDERDELEN 2

VEILIGHEIDSINSTRUCTIES....3

VOEDINGSAANSLUITING 4

OPLADEN 4

BLUETOOTH-VERBINDING....5

FM-RADIO 5

USB-POORT 5

LIJN IN....6

SMARTPHONES/TABLETS OPLADEN....6

KARAOKE 7

GELUIDSEFFECTEN....7

PROBLEEMOPLOSSING....7

OPGELET 9

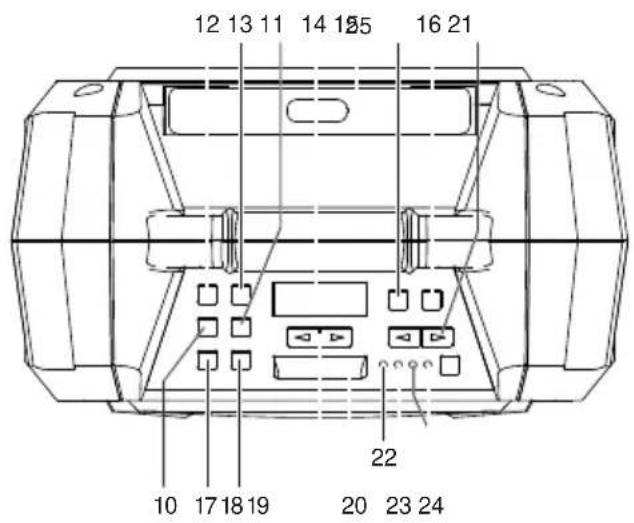

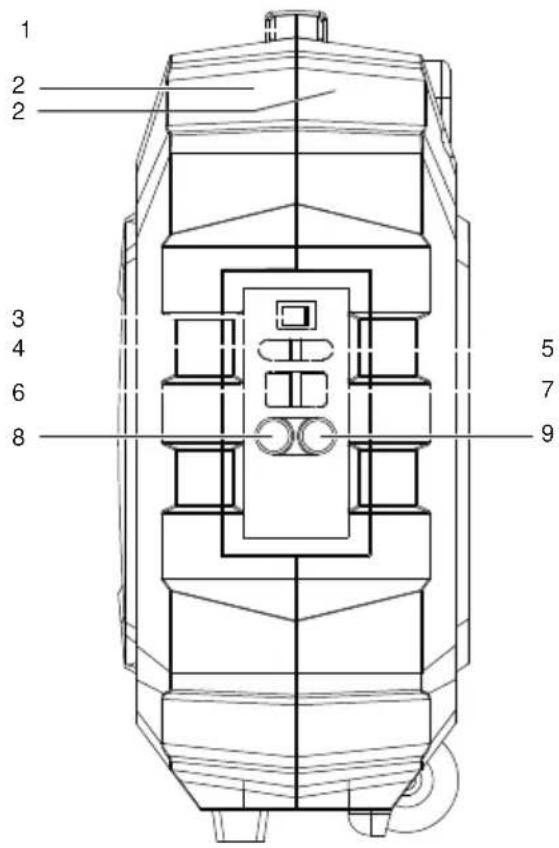

1 2 2 3 4 6 8 5 7 9

12 13 11 14 15 16 21 22 10 17 18 19 20 23 24

1. HANDGREEP
2. STUGGE BEHUIZING
3. AAN-/UIT-TOETS
4. LIJN IN
5. DC (15V 1,5A
6. USB-POORT
7. 1A LADER (5V)
8. MIC-POORT 1
9. MIC-POORT 2
10. OMLAAG AFSTEMMEN/
11. OMHOOG AFSTEMMEN/▶▶
12. HERHAALTOETS
13. EQ-TOETS

14. LED-DISPLAY

15. ECHO VERLAGEN

16. ECHO VERHOGEN
17. BRON
18. PAUZE/START/BT UIT (ONTKOPPELEN)
19. VOLUMETOETS (OMHOOG/OMLAAG)
20. LED-ZAKLANTAARN
21. MIC-VOLUME (OMHOOG/OMLAAG)
22. AAN/UITINDICATOR
23. BLUETOOTH-INDICATOR

24. TROLLEYHENDEL

25. BATTERIJINDICATOR (LAAG/VOL)

VEILIGHEIDSINSTRUCTIES

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM-RADIO

Diagram showing hand operating a device with labeled buttons and a right-hand panel view highlighting the function.

SMARTPHONES/TABLETS OPLADEN

Diagram showing two connected devices: one with a power adapter and cable, the other with a smartphone connected to a control panel labeled 'POWER'.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

GELUIDSEFFECTEN

Black and white photo of a Denver air conditioner with mesh grille and handle (no visible text or symbols on body)

MANUEL D'UTILISATION

SOMMAIRE

DESCRIPTION DES PIECES ......2

CONSIGNES DE SÉCURITÉ....3

BRANCHEMENT DE L'ALIMENTATION......4

RECHARGEMENT....4

CONNEXION BLUETOOTH....5

RADIO FM....5

PORT USB....5

ENTREE HAUT-NIVEAU 6

RECHARGEMENT DE SMART PHONE/TABLETTES......6

KARAOKE 7

EFFETS SONORES....7

DEPANNAGE....7

ATTENTION 9

1 2 2 3 4 6 8 5 7 9

12 13 11 14 185 16 21 22 10 17 18 19 20 23 24

1. POIGNEE
2. BOITIER ROBUSTE
3. TOUCHE MARCHE/ARRET D'ALIMENTATION
4. ENTREE HAUT-NIVEAU
5. (15VDC, 1,5A ENTREE
6. PORT USB
7. CHARGEUR 1A (5V)
8. MICRO PORT1
9. MICRO PORT2
10. RECHERCHE DESCENDANTE/
11. RECHERCHE MONTANTE/▶▶
12. TOUCHE DE REPETITION

13. TOUCHE EQ

14. AFFICHAGE A LED

15. BAISSER L'ECHO
16. MONTER L'ECHO
17. SOURCE
18. PAUSE : LECTURE/ARRET BT (DECONNECTER)
19. VOLUME (MONTER/BAISSER)
20. ECLAIRAGE LED
21. VOLUME DE MICRO (MONTER/DESCENDRE)
22. TÉMOIN D'ALIMENTATION
23. INDICATEUR BLUETOOTH
24. INDICATEUR DE BATTERIE (FAIBLE/CHARGEE)
25. POIGNEE DE TRANSPORT

CONSIGNES DE SÉCURITÉ

Diagram showing power switch connection to a device with labeled components including power, circuit breaker, and charging cable

RECHARGEMENT

Diagram showing power connection to a control panel with labeled buttons and wiring, including a power outlet and plug-in plug.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

RADIO FM

Diagram showing hand operating a device with labeled buttons and a zoomed-in view of the internal components.

RECHARGEMENT DE SMARTPHONES/TABLETTES

Diagram showing connections between a power adapter, smartphone, and control panel with labeled components and hand interaction.

KARAOKE

Diagram showing hands operating a device with labeled buttons and a power interface, including a microphone and a dashed box indicating 'EH- EH+' and 'MIC-MIC+'.

EFFETS SONORES

Black and white photo of a black and white portable electronic device with a mesh grille and handle (no visible text or symbols)

MANUALE D'USO

SOMMARIO

RICARICA SMART PHONE/TABLET....6

CANTA INSIEME 7

EFFETTI SONORI....7

RISOLUZIONE DEI PROBLEMI....7

ATTENZIONE......9

1 2 3 4 5 6 7 8 9

12 13 11 14 195 16 21 22 10 17 18 19 20 23 24

1. MANIGLIA
2. INVOLUCRO RINFORZATO
3. TASTO POWER ON/OFF
4. LINE IN
5. INGRESSO DC (15V 1,5A
6. PORTA USB
7. 1A CHARGER (5V)
8. PORTA1 MIC
9. PORTA2 MIC
10. TUNING GIÙ/
11. TUNING SU/▶▶
12. TASTO REPEAT
13. TASTO EQ

14. DISPLAY A LED

15. ECO GIÙ

16. ECO SU
17. SOURCE
18. TASTO PAUSA/PLAY/BT OFF (DISCONNESSIONE)
19. TASTO VOLUME (SU/GIÙ)
20. LANTERNA LED
21. VOLUME MIC (SU/GIÙ)
22. SPIA ACCENSIONE
23. SPIA BLUETOOTH
24. SPIA DELLA BATTERIA (SCARICA/CARICA)
25. MANICO TROLLEY

NORME DI SICUREZZA

Diagram showing connection between a power converter, socket, and plug with labeled buttons and wiring

RICARICA

Diagram showing power connection to a control panel with labeled buttons and connections to an electrical outlet.

Low-Full Battery

CONNESSIONE BLUETOOTH

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

RADIO FM

Diagram showing hands operating a device with labeled buttons and a right-hand panel with control buttons and display screen

RICARICA SMART PHONE/TABLET

Diagram showing two connected devices: one with a charger and plug, the other with a smartphone connected to an electronic device labeled POWER, LINKIN, USB switch, VEC1, and VEC2.

Diagram showing hands operating an electronic device with labeled buttons and a microphone, illustrating signal or control interface setup.

EFFETTI SONORI

Black and white photo of a black and white portable device labeled 'DEIVER' (no additional text or symbols visible)

MANUAL DE USUARIO

CONTENIDOS

Diagram showing power switch connection to a device with labeled buttons and connections to an electrical outlet

RECARGA

Diagram showing a hand operating a power switch connected to an electrical outlet, with a plug and cable nearby.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

RADIO FM

① SOURCE → ② TU-/← TU+/→ → ③ REP

Diagram showing hand operating a device with labeled buttons and a right-hand rule for switch operation

RECARGA DE SMART PHONES/TABLETAS

Diagram showing two connected devices: one with a charger and plug, the other with a smartphone connected to an electronic device labeled with buttons and ports.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

EFECTOS DE SONIDO

Black and white photo of a black and white portable electronic device with a mesh grille and handle (no visible text or symbols)

MANUAL DO UTILIZADOR

CONTEÚDO

RECARREGAR SMARTPHONE/TABLETS 6

KARAOKE 7

EFEITOS DE SOM....7

Diagram showing power switch connection to a device with labeled components including power, switch, and charger

REF CO TCL/WR TCL/WR SOURCE > BUL OFF REC. REC. REC. REC. Low-Full Battery

LIGAÇÃO BLUETOOTH

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

RÁDIO FM

Diagram showing hand operating a device with labeled buttons and a right-hand rule for change from left to right.

RECARREGAR SMARTPHONES/TABLETS

Diagram showing two connected devices: one with a power plug and cable, the other with a smartphone connected via a switch.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating a process with 'EH-' and 'EH+' labels.

EFEITOS DE SOM

Black and white photo of a black and white portable electronic device with a mesh grille and handle (no visible text or symbols)

SPIS TRE·CI

OPIS ELEMENTÓW....2

WSKAZÓWKI BEZPIECZE• STWA....3

RADIO FM....5

PORT USB....6

WEJ·CIE LINIOWE....6

- PIEWANIE ....7

EFEKTY D·WI·KOWE....7

ROZWI• ZYWANIE PROBLEMÓW......8

OSTRO·NIE 9

1 2 2 3 4 6 8 5 7 9

12 13 11 14 15 16 21 22 10 17 18 19 20 23 24

1. UCHWYT
2. WYTRZYMAŁA OBUDOWA
3. WŁĄCZNIK/WYŁĄCZNIK
4. WEJŚCIE LINIOWE
5. WEJŚCIE DC (15 V 1,5A
6. PORT USB
7. LADOWARKA 1 A (5 V)
8. PORT MIKROFONU 1
9. PORT MIKROFONU 2
10. DOSTRAJANIE W DÓŁ/
11. DOSTRAJANIE W GÓRE/▶▶
12. PRZYCISK POWTARZANIA
13. PRZYCISK KOREKTORA
14. WYŚWIETLACZ LED

15. ECHO W DÓŁ

16. ECHO W GÓRE

17. ŽRÓDŁO
18. PRZYCISK PAUZA/ODTWARZANIE/WYL. BT (ROZŁĄCZANIE)
19. PRZYCISK GŁOŚNOŚĆ (GÓRA/DÓŁ)
20. WSKAŻNIK LED
21. GŁOŚNOŚĆ MIKROFONU (GÓRA/DÓŁ)
22. WSKAŻNIK ZASILANIA
23. WSKAŻNIK BLUETOOTH
24. WSKAŻNIK AKUMULATORA (NISKIE NAŁADOWANIE/PEŁNY)
25. RĄCZKA WÓZKA

WSKAZÓWKI BEZPIECZE• STWA

Diagram showing power switch connection to a device with labeled buttons and power outlet, plus a plug and cable connection.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

RADIO FM

① SOURCE → ② TU-/+ TU+ → ③ REP

Diagram showing hand operating a device with labeled buttons and a right-hand panel with control buttons and display screen

Diagram showing two connected devices: one with a charger and plug, the other with a smartphone connected to an electronic device labeled with buttons like USB, I/O, and I/O1.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating the process from input to output.

EFEKTY D·WI·KOWE

Black and white photo of a portable electronic device labeled 'DEIVER' (no additional text or symbols visible)

KORISNI·KI PRIRU·NIK

SADRŽAJ

OPIS DIJELOVA 2

SIGURNOSNE UPUTE ....3

MREŽNO SPAJANJE 4

PUNJENJE 4

POVEZIVANJE PUTEM BLUETOOTHA ....5

FM RADIO....5

USB PRIKLJU· AK....5

ULAZNI PRIKLJU· AK 6

PUNJENJE PAMETNOG TELEFONA/TABLETA....6

SING-A-LONG 6

ZVU• NI EFEKTI 7

RJEŠAVANJE PROBLEMA....7

OPREZ 8

1 2 2 3 4 6 8 5 7 9

12 13 11 14 15 5 16 21 22 10 17 18 19 20 23 24

1. RUČICA
2. REBRASTO KUĆIŠTE
3. TIPKA ZA
   UKLJUČIVANJE/ISKLJUČIVANJE
4. ULAZNI PRIKLJUČAK
5. ULAZ DC (15 V 1.5A
6. USB PRIKLJUČAK
7. PUNJAČ 1A (5V)
8. PRIKLJUČAK ZA MIKROFON 1
9. PRIKLJUČAK ZA MIKROFON 2
10. UGAĐANJE NANIŽE/
11. UGAĐANJE NAVIŠE/▶▶
12. TIPKA ZA PONAVLJANJE
13. TIPKA EKVILIZATORA

14. LED ZASLON

15. SMANJENJE EHA

16. POVEĆANJE EHA
17. IZVOR
18. PAUZA/REPRODUCIRAJ/TIPKA BT OFF (PREKID VEZE)
19. TIPKA GLASNOĆE (VIŠE/NIŽE)
20. LED LAMPICA
21. GLASNOĆA MIKROFONA (VIŠE/NIŽE)
22. INDIKATOR NAPAJANJA
23. BLUETOOTH INDIKATOR
24. INDIKATOR BATERIJE (PRAZNO/PUNO)
25. RUČICA ZA NOŠENJE

SIGURNOSNE UPUTE

Diagram showing a hand operating a power switch connected to an electrical outlet with labeled components and wiring.

PUNJENJE

• Uređaj se isporučuje s indikatorom napunjenosti baterije.
• Ako LED lampica baterije treperi, znači da je razina napunjenosti baterije niska i da je potrebno punjenje.
• Kada se uređaj spoji na izmjeničnu struju, LED lampica baterije svijetli crveno što znači da se uređaj puni.
• Kada LED lampica svijetli zeleno znači da je baterija potpuno napunjena.

Diagram showing a hand operating a power switch with labeled buttons and connected to an electrical outlet.

Preporu• uje se da punite bateriju oko 6 sati prije nego što po• nete koristiti ure• aj prvi put.

Ušteda energije: Kad se ure• aj nalazi u stanju mirovanja, automatski prelazi u stanje pripravnosti nakon 20 minuta. Automatski se isklju• uje.

Low-Full Battery

POVEZIVANJE PUTEM BLUETOOTHA

• Kada se prekidač napajanja nalazi u položaju „On“, zadani način rada je Bluetooth „BT”.
• Plava LED lampica indikatora će treptati pokazujući da je uređaj u načinu rada za uparivanje. Crvena LED lampica na zaslonu će prikazivati „BT”.
• Uključite Bluetooth funkciju na uređaju i potražite „TSP-303”, zatim pritisnite za povezivanje.
• Čut ćete zvučni signal za povezivanje, a plava LED lampica indikatora veze prestat će treptati i ostat će nadalje svijetliti.
• Bluetooth veza je uspostavljena.
• Odaberite glazbu s Bluetooth uređaja i pokrenite reprodukciju.
• Držeći tipku BT OFF prekidate vezu uparenog uređaja i ulazite u način rada za uparivanje.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM RADIO

• Kada pritisnete tipku „Source” i odaberete Radio, na crvenom LED zaslonu pokazat će se FM radio frekvencija.
• Pritisnite tipku reproduciraj/pauziraj za automatsko pretraživanje i pohranjivanje.
• Pritisnite i držite tipke TU ili TU ↘nako biste odabrali sljedeću pohranjenu stanicu koja je dostupna. Kratko ih pritisnite za precizno podešavanje.

USB PRIKLJU·AKsss

• Pritisnite tipku „Source” i odaberite USB. USB će se prikazati na crvenom LED zaslonu.
• Umetnite USB memorijski uređaj.
• Odaberite svoju omiljenu glazbu pritiskom na tipke TU ◀◆◆TU . ▶◆◆
• Pritisnite „REP“ za jednokratno ponavljanje trenutne pjesme; ponovo pritisnite „REP“ za ponavljanje svih pjesama. Pritisnite tipku tri puta za ulazak u nasumičnu reprodukciju.

① SOURCE → ② TU-/▶ TU+/▶ → ③ REP

Ako ure• aj radi u Bluetooth na• inu rada “BT”, automatski • e prije• i u USB na• in kada se umetne USB privjesak.

Diagram showing two connected devices: one with a charger and plug, the other with a smartphone connected to a power switch panel.

• Spojite kabel AC adaptera u zidnu utičnicu.
• Priključite USB kabel za punjenje vašeg pametnog telefona/tableta u bočnu ploču s oznakom "punjač 1A".
• Spojite kabel za punjenje na vaš pametni telefon/tablet. Punjenje započinje.
• Odspojite USB kabel za punjenje kada se pametni telefon/tablet potpuno napuni. Ovaj priklju• ak namijenjen je samo za punjenje ure• aja koji zahtijevaju 5 V i 1 A. U drugom slu• aju, može do• i do ošte• enja

SING-A-LONG

• Ovaj proizvod omogućuje vam da pjevate uz pjesme reproducirane s BT-a, USB-a ili LINE IN načina rada te omogućava dva mikrofona u isto vrijeme.
• Priključite kabel mikrofona u bočnu ploču s oznakom "MIC 1" i/ili "MIC 2".

• Podesite glasnoću mikrofona „MIC +/MIC -” ili glavnu glasnoću na gornjoj upravljačkoj ploči.

• Podesite eho razinu „EH +/EH -”.

• Započnite s pjevanjem.

UPOZORENJE: - Ako su

glasno• a mikrofona i razina eha

postavljeni previsoko ili do

maksimuma, • uje se odjek

previsokih tonova. Odmah

smanjite glasno• u kako biste

izbjegli ošte• enja.

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or control system setup.

ZVU·NI EFEKTI

• „Model za kupce” ima ugrađen ekvilizator.
• Pritisnite i odaberite unaprijed postavljeni zvučni efekt za vašu glazbu: LAGANA, KLASIČNA, POP, ROCK i JAZZ GLAZBA.

RJEŠAVANJE PROBLEMA

Op·enito

Nema napajanja

• Provjerite je li AC adapter pravilno umetnut u uređaj i zidnu utičnicu.
• Provjerite nalazi li se prekidač napajanja Uključeno/lsključeno u položaju On.
• Ako je baterija prazna, priključite AC adapter za punjenje i rad.

Tipke ne reagiraju

• Prebacite prekidač napajanja Uključeno/Isključeno na Off, a zatim ponovno na On kako biste resetirali uređaj.
• Odspojite AC adapter i priključite ga natrag.

Nema zvuka

RESVÄSKA MED INBYGGD BLUETOOTH-HÖGTALARE

Black and white photo of a Denver air conditioner with mesh grille and handle (no visible text or symbols on body)

BRUKSANVISNING

INNEHÄLLSFÖRTECKNING

BESKRIVNING AV DELAR....2

SÄKERHETSINSTRUKTIONER....3

STRÖMFÖRSÖRJNING 4

LADDNING 4

BLUETOOTH ANSL....5

FM-RADIO 5

USB-PORT......5

LINE IN....6

LADDNING FÖR SMARTA TELEFONER/SURFPLATTOR 6

SJUNG EN LÂT 6

LJUDEFFEKTER 7

FELSÖKNING....7

VAR FÖRSIKTIG....8

1 2 3 4 5 6 7 8 9

12 13 11 14 15 16 21 22 10 17 18 19 20 23 24

1. HANDTAG
2. ROBUST HÖLJE
3. ON/OFF (PÅ/AV)-KNAPPEN FÖR STRÖM
4. LINE IN
5. DC (15V 1.5A ⊖-C⊕) INGÅNG
6. USB-PORT
7. 1A LADDARE (5V)
8. MIC (MIKROFON)-PORT1
9. MIC (MIKROFON)-PORT2
10. INSTÄLLNING NED/
11. INSTÄLLNING UPP/▶▶
12. KNAPPEN UPPREPA

13. EQ-KNAPPEN

14. LED-DISPLAY

15. ECHO NED
16. ECHO UPP
17. KÄLLA
18. PAUSA/SPELA/BT FRÅN (KOPPLA FRÅN)-KNAPPEN
19. VOLYM (UPP/NED)-KNAPPEN
20. LED-LAMPA
21. MIC (MIKROFON) VOLYM (UPP/NED)
22. STRÖMINDIKATOR
23. BLUETOOTH INDIKATOR
24. BATTERIINDIKATOR (LÅGT/FULLT)
25. HANDTAG PÅ RESVÄSKA MED HJUL

SÄKERHETSINSTRUKTIONER

Diagram showing connection between a power switch, connected to a plug and cable with labeled components including 'DC1', 'DC2', and 'DC3'.

LADDNING

Diagram showing electrical connection with power plug, switch, and socket connected to a control panel labeled with buttons like UNR, DC HAC, and OE1, OE2.

Low-Full Battery

BLUETOOTH ANSL.

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM-RADIO

① SOURCE → ② TU-/← TU+/→ → ③ REP

Diagram showing hand operating a device with labeled buttons and a right-hand rule for change.

LADDNING AV SMARTA TELEFONER/SURFPLATTOR

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating the process from pinout to microphone control.

Black and white photo of a Denver air conditioner with mesh grille (no visible text or symbols on body)

BRUGERMANUAL

INDHOLDSFORTEGNELSE

OVERSIGT OVER H∅JTTALEREN....2

SIKKERHEDSVEJLEDNING 3

TILSLUTNING TIL LYSNETTET 4

OPLADNING....4

BLUETOOTH-FORBINDELSE 5

FM-RADIO 5

USB-PORT......5

LINE IN....6

OPLADNING AF SMARTPHONE/TABLET 6

SYNG MED 7

LYDEFFEKTER....7

FEJLFINDING....7

FORSIGTIG....9

1 2 2 3 4 6 8 5 7 9

12 13 11 14 185 16 21 22 10 17 18 19 20 23 24

1. HÅNDTAG
2. ROBUST HUS
3. KNAPPEN TÆND/SLUK
4. LINE IN
5. DC-STR∅MINDTAG (15 V 1,5 A ⊖-⊂⊕)
6. USB-PORT
7. 1 A CHARGER (5 V OPLADNING)
8. MIC MIKROFONINDGANG 1
9. MIC MIKROFONINDGANG 2
10. KNAPPEN TUNING -/
11. KNAPPEN TUNING +/▶▶
12. KNAPPEN GENTAG

13. EQ-KNAP

14. LED-DISPLAY

15. KNAPPEN EKKO -
16. KNAPPEN EKKO +
17. SIGNALKILDE
18. KNAPPEN PAUSE/AFSPIL/BT FRA (OPHÆV PARRING)
19. KNAPPEN VOLUME (+/-)
20. LED-LYS
21. MIC MIKROFONSTYRKE (+/-)
22. POWER-INDIKATOR
23. BLUETOOTH-INDIKATOR
24. INDIKATOR FOR BATTERINIVEAU (LAVT/FULDT)
25. TROLLEYHÄNDTAG

SIKKERHEDSVEJLEDNING

Diagram showing a hand operating a power switch with labeled buttons and connected to an electrical outlet, including a plug and cable.

OPLADNING

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM-RADIO

① SOURCE → ② TU-/← TU+/→ → REP SOURCE ← ROTCH ← VOLT VOL1 MK- NK+ Light

Diagram showing hands operating a device with labeled buttons and a right-hand panel view highlighting the function.

OPLADNING AF SMARTPHONE/TABLET

Diagram showing two connected devices: one with a power adapter and plug, the other with a smartphone connected to an 14-chambered power switch.

SYNG MED

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

LYDEFFEKTER

Black and white photo of a black and white portable electronic device with a mesh grille and 'DENVER' logo on the front panel (no additional text or symbols visible)

KÄYTTÖOPAS

SISÄLLYSLUETTELO

OSIEN KUVAUKSET 2

TURVALLISUUSOHJEET....3

VIRRAN KYTKENTÄ 4

LATAUS 4

BLUETOOTH-YHTEYS....5

FM RADIO....5

USB-PORTTI 5

TULOLIITÄNTÄ 6

ÄLYPUHELIMEN/TABLETIN LATAAMINEN....6

SING-A-LONG 6

ÄÄNITEHOSTEET 7

VIANETSINTÄ 7

HUOMIO....8

OSIEN KUVAUKSET

1 2 2 3 4 6 8 5 7 9

12 13 11 14 195 16 21 22 10 17 18 19 20 23 24

1. KAHVA
2. KESTÄVÄ KOTELO
3. VIRTAKYTKIN
4. TULOLIITÄNTÄ
5. DC (15 V 1,5 A
6. USB-PORTTI
7. 1 A:N LATURI (5 V)
8. MIKROFONIPORTTI 1
9. MIKROFONIPORTTI 2
10. VIRITYS ALAS/
11. VIRITYS YLÖS/▶▶
12. KAPPALEENTOISTOPAINIKE
13. TAAJUUSKORJAINPAINIKE (EQ)
14. LED-NÄYTTÖ

15. KAIKU ALAS

16. KAIKU YLÖS

17. LÄHDE
18. TAUKO/TOISTO/BT POIS PÄÄLTÄ (YHTEYDEN KATKAISU) -PAINIKE
19. ÄÄNENVOIMAKKUUS (YLÖS/ALAS)
20. LED-VALAISIN
21. MIKROFONIN ÄÄNENVOIMAKKUUS (YLÖS/ALAS)
22. VIRRAN MERKKIVALO
23. BLUETOOTH-MERKKIVALO
24. AKUN MERKKIVALO (MATALA VARAUS/TÄYNNÄ)
25. VETOKAHVA

TURVALLISUUSOHJEET

Diagram showing a hand operating a power switch connected to an electrical outlet, with a plug and cable nearby.

LATAUS

Diagram showing electrical connection with power input, switch, and terminal block labeled with symbols like VCC1, VCC2, and power/switch buttons.

BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT Low-Full Battery

BLUETOOTH-YHTEYS

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM RADIO

① SOURCE → ② TU-/← TU+/→ → ③ REP

Diagram showing hands operating a device panel with buttons and a close-up view of the internal components.

ÄLYPUHELIMEN/TABLETIN LATAAMINEN

Diagram showing two connected devices: one with a rectifier and plug, the other with a smartphone connected to an 14-chambered power interface.

SING-A-LONG

Diagram showing hands operating a device with labeled buttons and a microphone, illustrating electrical or diagnostic setup.

ÄÄNITEHOSTEET

Black and white photo of a black and white portable speaker with a mesh grille and 'DENVER' logo on the front panel (no additional text or symbols visible)

BRUKSANVISNING

INNHOLD

DELEBESKRIVELSE....2

SIKKERHETSINSTRUKSJONER....3

TILKOBLING AV STR∅M....4

LADING....4

BLUETOOTH-TILKOBLING 5

FM RADIO....5

USB PORT 5

LINE IN....6

LADING AV SMARTTELEFON/BRETT......6

SYNG MED 6

LYDEFFEKTER....7

FEILS∅KING 7

FORSIKTIG....8

1 2 2 3 4 6 8 5 7 9

12 13 11 14 15 16 21 22 10 17 18 19 20 23 24

1. BÆREHÅNDTAK
2. ROBUST DEKSEL
3. PÅ/AV TAST
4. LINE IN
5. DC (15V 1,5A INNGANG
6. USB-PORT
7. 1A LADER (5V)
8. MIKROFONINNGANG1
9. MIKROFONINNGANG2
10. SKRU NED/
11. SKRU OPP/▶▶
12. REPEAT-TAST

13. EQ-TAST

14. LED-DISPLAY

15. ECHO NED
16. ECHO OPP
17. KILDE
18. PAUSE/AVSPILLING/BT OFF (KOBLE FRA) TAST
19. VOLUM (OPP/NED) TAST
20. LED-LYS
21. MIKROFONVOLUM (OPP/NED)
22. PÅ/AV-INDIKATOR
23. BLÄTANN-INDIKATOR
24. BATTERI (LAV/FULL)
25. TRALLEHÅNDTAK

SIKKERHETSINSTRUKSJONER

Diagram showing electrical connection with power switch, motor, and charger components labeled in English

LADING

Diagram showing a hand operating a power switch connected to an electrical outlet, with a plug and cable nearby.

Low-Full Battery

BLUETOOTH-TILKOBLING

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM RADIO

① SOURCE → ② TU-/← TU+/→ → ③ REP

Diagram showing hand operating a device with labeled buttons and a control panel, illustrating a process with an arrow indicating rotation.

LADING AV SMARTTELEFON/NETTBRETT

Diagram showing two connected devices: one with a power adapter and cable, the other with a smartphone connected to an electrical panel labeled POWER.

SYNG MED

• Dette produktet lar deg synge med til sanger som avspilles enten i BT-, USB- eller LINE IN-modus og tillater 2 mikrofoner samtidig.
• Koble mikrofonkabelen til sidepanelet markert «MIC 1» og/eller «MIC 2».
• Juster mikrofonvolumet med "MIC +/MIC -" eller hovedvolumet kontrollpanelet på toppen.
• Justere ekko-nivået med "EH +/EH -".
• Begynn å synge
