Emmi 33HCQ - Ultrasonic cleaner EMAG - Free user manual and instructions

Product type	Ultrasonic cleaner
Brand	EMAG
Model	Emmi 33HCQ
External dimensions (L x W x H)	325 x 260 x 210 mm
Internal tank dimensions (L x W x H)	300 x 240 x 65 mm
Tank capacity	3.5 liters
Internal basket dimensions (L x W x H)	260 x 200 x 45 mm
Power supply	230 V / 50 Hz
Protection class	IP 20
Ultrasonic power	250 W
Ultrasonic frequency	Approximately 45 kHz
Number of ultrasonic transducers	6
Heating power	250 W
Adjustable temperature range	20 °C to 80 °C
Timer	0 to 60 minutes, continuous mode (D permanent)
Tank material	Stainless steel
Included accessories	Stainless steel lid, stainless steel basket, power cable
Main functions	Ultrasonic cleaning, adjustable heating, timer, ultrasonic power adjustment
Maintenance and cleaning	Empty and rinse the tank after each use; dry with a cloth; avoid water entering through ventilation openings
Safety	Do not use with flammable liquids; do not clean living organisms; do not stay within 1 meter for more than 4 hours
Warranty	24 months from date of purchase

Frequently Asked Questions - Emmi 33HCQ EMAG

What objects can I clean with the Emmi 33HCQ?

You can clean jewelry (gold, silver, precious stones), glasses (without direct contact with the tank bottom), dentures, precision instruments, engine parts, electronic boards, razor heads, etc. Avoid living organisms.

What cleaning liquid should I use?

Use tap water with a suitable cleaning additive (e.g., EM 070 for dentures, EM 080 for jewelry). Never pour flammable or aggressive products directly into the tank; place them in a glass container.

How to adjust the temperature and duration?

Use the adjustment knobs: the timer from 0 to 60 minutes (or D position for continuous), and the temperature regulator from 20 to 80 °C. Then turn on with the ON/OFF switch.

Can I clean contact lenses or animals?

No, do not clean living organisms (nails, animals, etc.). Contact lenses are also not suitable. Use the device only for inanimate objects.

How to prepare water before cleaning?

Fill the tank to 3/4 (about 1-2 cm from the top edge). To remove dissolved gases, run the device 10 minutes without objects before placing them, or let tap water sit depending on its hardness.

What to do if I notice a water leak?

Check that the tank is not damaged. If the leak persists, unplug the device and contact customer service or an authorized dealer. Do not use the defective device.

How to maintain the device after each cycle?

Empty the water, rinse the tank with clean water and dry it with a soft cloth. Also wipe the exterior. Make sure no water enters through the ventilation openings at the bottom of the device.

Can I use chemical cleaners other than those recommended?

It is preferable to use EMAG additives (EM 070, EM 080, etc.) to ensure efficiency and safety. If other products are used, the warranty may be voided.

What to do if the timer does not work?

Check that the device is properly plugged in and the switch is on. If the problem persists, the timer may be defective; contact customer service.

What is the warranty and how to activate it?

The warranty is 24 months from date of purchase. Keep the proof of purchase (invoice). For a claim, contact EMAG AG directly with the proof. Unauthorized repairs void the warranty.

USER MANUAL Emmi 33HCQ EMAG

Professional Ultrasound Cleaning Equipments Emmi 12HC - 420HC with Power Regulator

Operating Instruction

3 stage ultrasound regulator
- simple operation by rotary switches
excellent cleaning effect with water
adjustable heating from +20^ to +80^

high efficiency
- incl. of basket and cover, both made out of stainless steel
- EMAG ultrasonic cleaners are maintenance free

1.DESCRIPTION

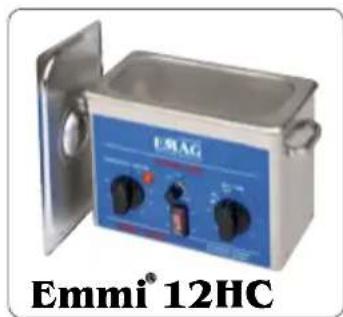

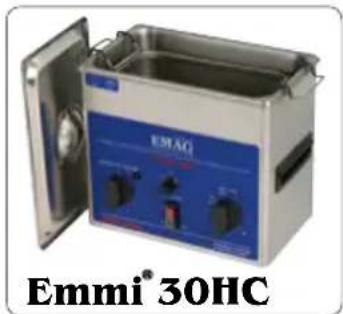

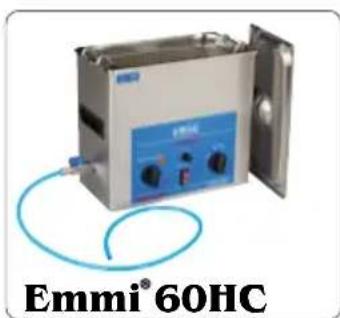

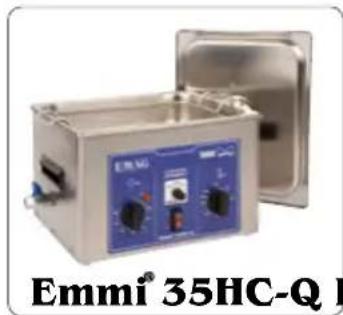

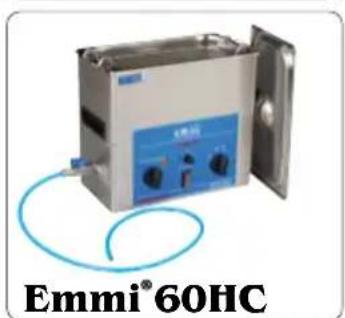

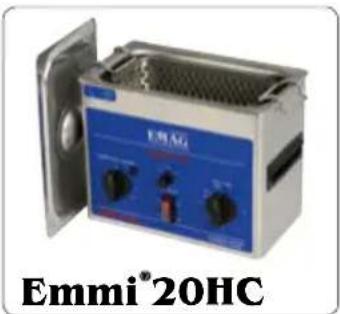

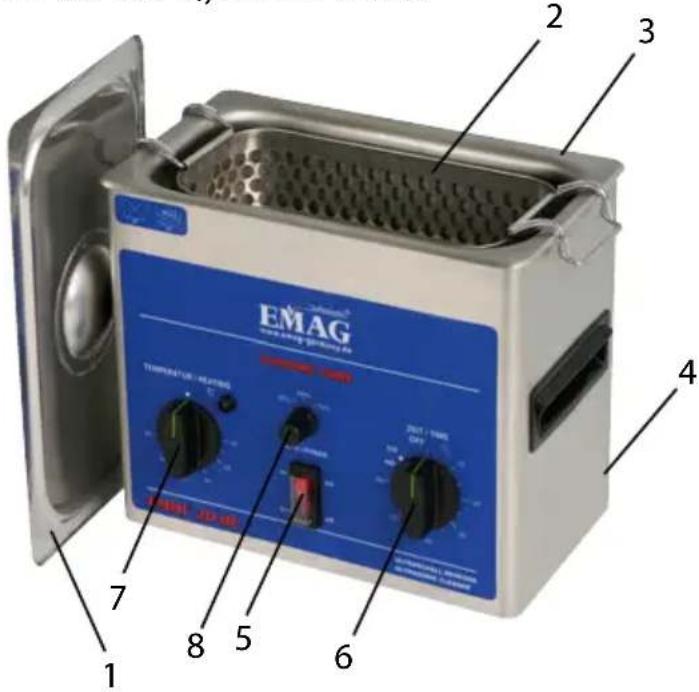

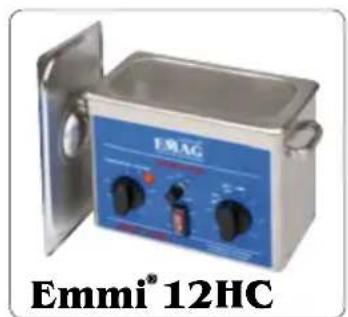

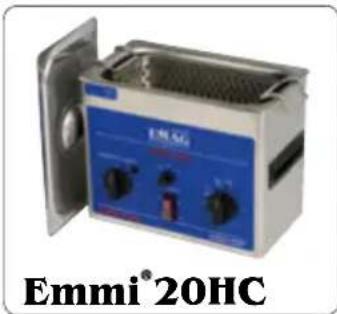

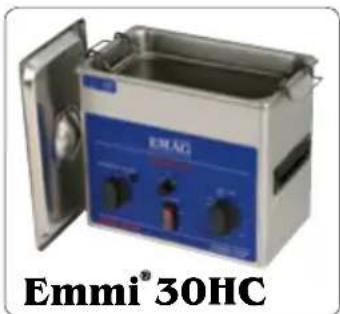

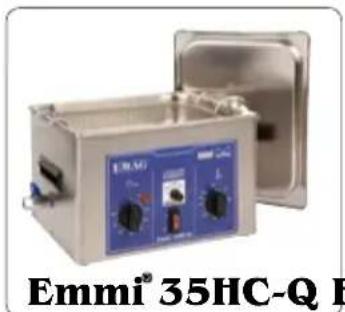

1.1 Emmi 12HC, Emmi 20HC, Emmi 30HC, Emmi 35 HC-Q, Emmi 40HC, Emmi 55 HC-Q, Emmi 60HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting
8. New: 3 stages ultrasound power regulator

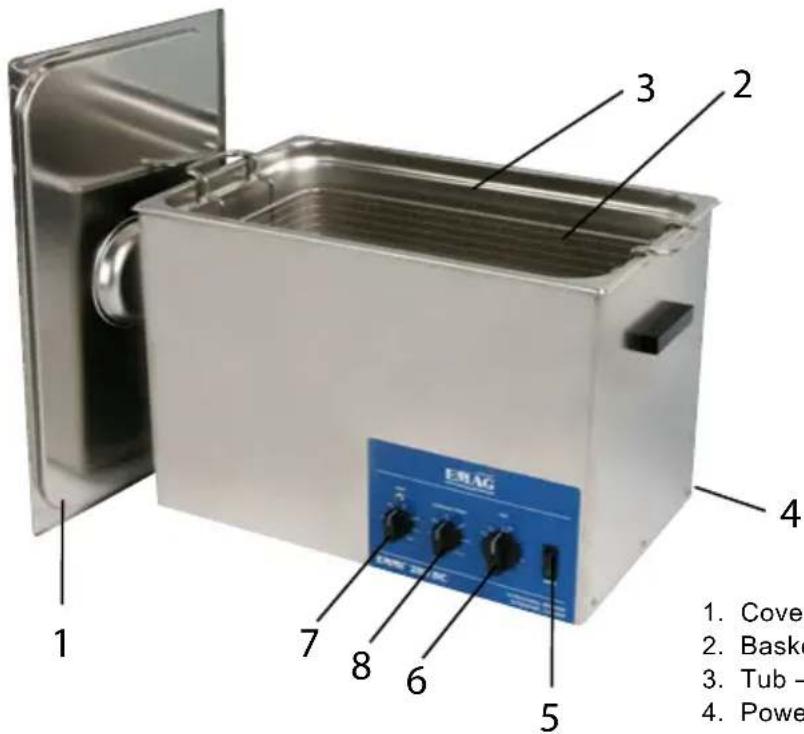

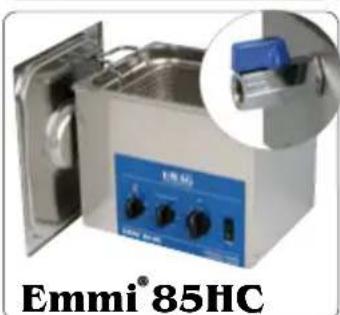

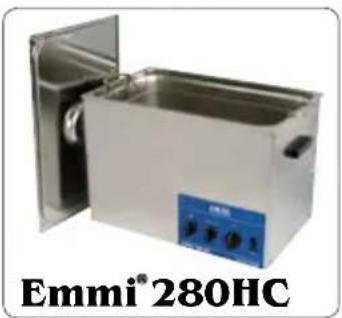

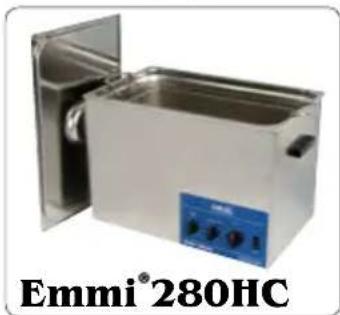

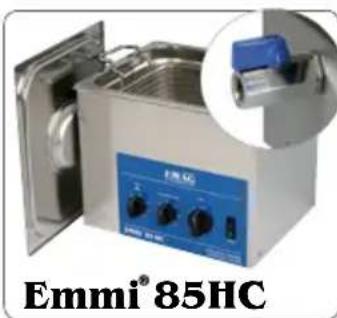

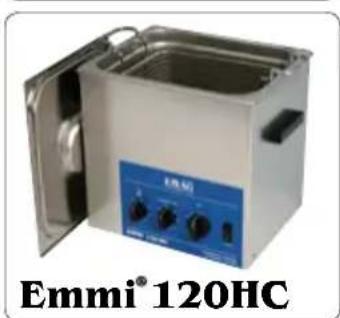

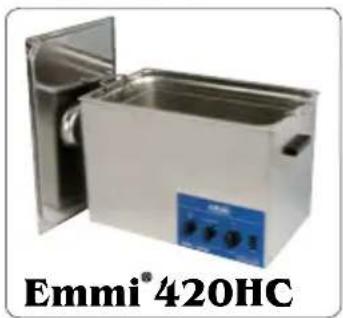

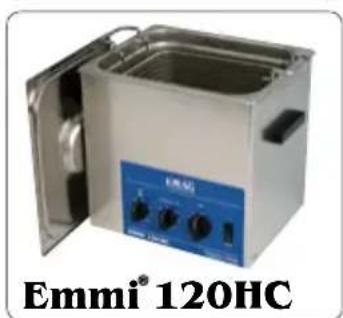

1.2 Emmi 85HC, Emmi 120HC, Emmi 280HC, Emmi 420HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting

8. ultrasound power regulator

9. TECHNICAL DATA

Properties Emmi 12HC Emmi 20 HC Emmi 30HC				Emmi 35 HC-Q	Emmi 40HC	Emmi 55 HC-Q	Emmi 60HC	Emmi 85HC	Emmi 120HC	Emmi 280HC	Emmi 420HC
Length x width x height (mm)	225 x 125 x 170	260 x 150 x 220	265 x 165 x 240	325 x 260 x 210	325 x 180 x 140	325 x 260 x 290	325 x 175 x 285	315 x 250 x 250	315 x 250 x 300	530 x 320 x 360	540 x 340 x 400
Approx. dimensions of tub (mm)	200 x 100 x 70	230 x 120 x 80	240 x 135 x 100	300 x 240 x 65	300 x 155 x 100	300 x 240 x 150	300 x 155 x 130	300 x 240 x 150	300 x 240 x 200	500 x 300 x 200	500 x 300 x 300
Volume (liter) 1,2 2,0 3,0 3,5 4,0	5,5 6,0 8,5 12,0	28,0 42,0
Approx. dimensions of basket (mm)	180 x 80 x 65	205 x 100 x 60	205 x 110 x 75	260 x 200 x 45	265 x 130 x 75	270 x 190 x 110	270 x 130 x 95	249 x 185 x 120	250 x 205 x 90	435 x 249 x 145	435 x 249 x 145
Power supply (V)	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50Hz
Protection class	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20	IP 22	IP 22	IP 22	IP 22
Ultrasound power max. (W)	80	150	200	250	250	300	450	600	800	1200	1400
Ultrasound vibrators	2 (ca. 38 kHz)	2 (ca. 38 kHz)	3 (ca. 38 kHz)	6 (ca. 45 kHz)	4 (ca. 38 kHz)	6 (ca. 45 kHz)	6 (ca. 45 kHz)	4 (ca. 40 kHz)	6 (ca. 40 kHz)	8 (ca. 38 kHz)	12 (ca. 40 kHz)
Heating power max. (W)	200	200	200	250	240	300	350	600	800	1600	1800
Heating regulation	20 - 80°C	20 - 80°C	20 - 80°C	20° - 80°C	20 - 80°C	20° - 80°C	20 - 80°C	20 - 80°C	20 - 80°C	20 - 80°C	20 - 80°C

Technical changes reserved.

3. CONVENTIONAL USE

The equipment may only be used for the purpose as set forth in the catalogue and in the technical descriptions which means for ultrasonic cleaning as described in this instruction, and only in conjunction with external devices and components which are recommended or approved by EMAG AG. Any other use of the equipment is considered to be non conventional.

In case of non conventional use, EMAG AG will not be liable for possible damages and will not warrant for the correct and functional work of the components. Part of the conventional use is also the observance of all information given in the operating manual. To this attention is drawn by the sign on the type plate. The correct and safe operation of the equipment implies appropriate transportation, storage, installation and assembly as well as careful handling and maintenance.

4. NONCONVENTIONALUSE

In case of non conventional use of the equipment danger for life and limb as well as danger for property may occur. Therefore a non conventional use is prohibited. In case of non conventional use EMAG AG will not be liable for possible damages and will not warrant for the correct and functionally work of the components. In order to avoid non conventional use of the ultrasound cleaning equipment the following directions are to be considered:

• The equipment may only be operated with the voltage printed on the type plate on the backside/ bottom side of the housing (shockproof socket).
• No flammable or aggressive chemicals (i.e. acids etc.) must be used for operation of the equipment. If necessary, use glass container EM 50 DG.
• During operation do not touch the liquid.
• In case of transportation damage, don't connect the equipment with main source.
• Do not clean creatures (i.e. finger nails, animals etc.) in the equipment.
• The equipment must only be operated with the correct level of water (water till mark, approx. 1 cm below upper brim). This must be controlled if equipment is operated for a longer time.
• Strongly contaminated goods shall be positioned in the equipment with the contaminated side to the bottom - do not staple goods.
• The goods to be cleaned must not be positioned directly onto the bottom of the tub – use the basket.
• If the equipment is operated for a longer time, do not stay longer than 4 hours within 1m distance to the equipment.
• The equipment must only be operated indoor and within a dry environment.
• It is normal, that the upper brims warm up at longer operation.
• Before emptying the tub, the power connector must be disconnected from the main source.

The tub is filled with water – with or without cleaning concentrate – and the power connector is connected with main source. After power switch is ON cleaning time, ultrasound power and heating power can be adjusted by the rotary switches. By moving the timer switch to the left the equipment can be set for permanent operation. Permanent operation should be avoided because by evaporation of the water the equipment may run dry and may be damaged. In no case a permanent operation time of 4 hours must be exceeded.

The cleaning time to be adjusted depends on the contamination level of the goods to be cleaned. If the adjusted cleaning time is terminated, the equipment automatically stops the cleaning operation. If rotary switch is newly adjusted, the equipment starts again to operate. For stopping equipment operation use OFF switch. After termination of the cleaning operation remove cleaned goods from equipment and rinse under running water in order to remove possibly still adhered particles. After termination of a cleaning operation – or several cleaning operations – it is recommended – depending on the degree of contamination – to exchange the water (disconnect main source before exchange of water). The tub shall be rinsed and dried by a cloth. Please make sure, that no water can penetrate through the slots in the bottom of the equipment into the equipment.

Advise:

If equipment is filled with new water, please consider a reasonable time for the outgazing of the water. We recommend an operation of the equipment with water for a couple of minutes before you insert the goods for cleaning.

6.EXAMPLES FORT HE CLEANING OF GOODS WITH ULTRASOUND

• Eyeglasses, glass frames (please pay attention: Glasses must not be in direct contact with the tub bottom).
  Gold and silver jewels, jewelry, emeralds, pearls
• Ink crayons, drawing instruments / - accessories

Dentures

• Aircraft components, engine components, electrical boards, ink cartridges, motor bike chains, tools, carburators, etc.
• Precision parts, wheapon parts, i.e. magazines, bullet casings, strikers, springs.

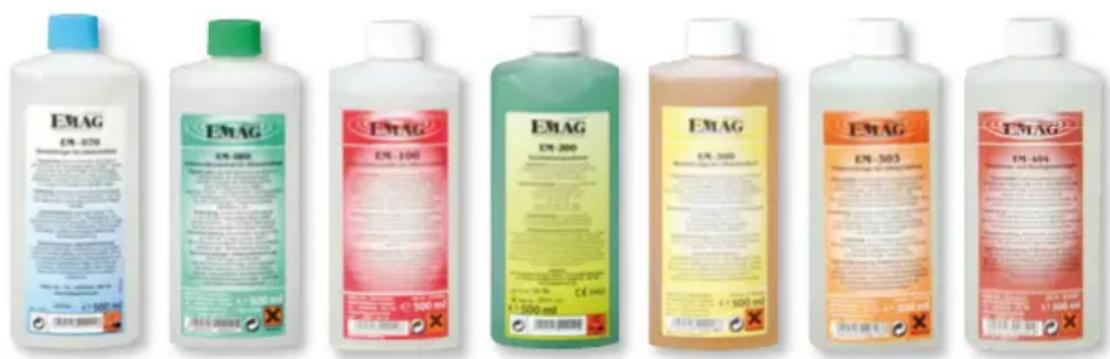

7. Concentrate for disoxidation

For the cleaning operations various cleaning concentrates are available which can make cleaning more effi cient. These are available at the place where you have bought your equipment or through www.emag-germany.de. EMAG recommends for the various requirements the following high effi cient concentrates:

EM 070 - for dental application and cleaning of dentures at home - 1 % concentrate

EM 080 - Eyeglasses, jewelry, optical glasses, ink crayons smaller tools and instruments such as small precision parts, shaver heads - 1 % concentrate (except for contact lenses).

EM 100 - Concentrate for disoxidation of silver etc.

EM 200 - Concentrate for disinfection of instruments - 1% concentrate

EM 300 - Super plus - extreme cleaner for difficult cases

(supports, hinges, weapon parts, bullets, brass etc.)

• 1% concentrate.

EM 303 - PC Board cleaning

EM 404 - Aluminum and diecast cleaning

(carburators, engine blocks, cylinder heads).

If concentrates are used, application instructions must be followed very correctly!

If cleaning concentrates of other manufacturers are used, we will not be liable for any problems occurring with the goods to be cleaned and any damages which may happen to the equipment. For detailed information you can contact us at any time.

8. Warranty

This product is warranted against defects in manufacturing or materials for a period of two years from the date of purchase. Defects may be corrected by repair, or by replacement of the unit, at the option of the manufacturer.

This warranty may be voided if the unit is not operated in accordance with the instructions provided by the manufacturer. The warranty my also be voided by the opening of the unit, and/or its partial or total assembly, without prior factory authorization.

Any claim made under this clause shall be directed to the seller, and shall be verified by proof of purchase. The seller will advise the buyer concerning disposition of the unit. The normal procedure shall be for the manufacturer to issue a warranty claim number, and to authorize return of the unit to the factory. Buyer shall bear shipping costs.

EMAG AG

Copyright EMAG AG. All rights reserved. Manufactured in the European Community. The content of this Operating Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions, extents and amendments of any publication or translation requires the prior written agreement of EMAG AG.
