Emmi06 UVC - Ultrasonic cleaner EMAG - Free user manual and instructions

Product type	Ultrasonic cleaner with UVC sterilization
Brand	EMAG
Model	Emmi06 UVC
External dimensions (L x W x H)	202 x 132 x 129 mm
Tank dimensions (L x W x H)	170 x 100 x 55 mm
Tank capacity	0.65 liter
Power supply	220 V / 60 Hz
Ultrasonic power	35 W
UVC lamp	1 x 5.3 W, wavelength 253.7 nm (ozone-free)
Tank material	Stainless steel
Basket material	PVC
Main functions	Ultrasonic cleaning, UVC light sterilization, combined use
Usage modes	Ultrasound only, UVC only, or both simultaneously
Maximum water level	Marked in the tank (do not exceed)
Safety	UVC active only when lid is closed; do not use near a pacemaker wearer
Maintenance and cleaning	Unplug before cleaning; empty tank after each use; wipe with a soft cloth; do not immerse the appliance
Spare parts and repairability	Repairs only by an authorized center; do not disassemble yourself
Warranty	2 years against manufacturing defects (repair or replacement)
Included accessories	PVC basket, instruction manual
Recommended uses	Jewelry, watches (strap only), razor blades, dental appliances, toothbrushes, glasses, baby bottles, pacifiers, tools, etc.
Precautions for use	Do not use boiling water; do not move the appliance while operating; do not obstruct the cord

Frequently Asked Questions - Emmi06 UVC EMAG

How to use the Emmi06 UVC ultrasonic cleaner?

Fill the tank with water up to the marked level (do not exceed), place the object in the basket and select the desired mode: ultrasound only, UVC only, or both. Cleaning starts immediately for ultrasound; the UVC light only works with the lid closed.

Can I clean my watch with this device?

Only the watch strap can be cleaned with ultrasound. Do not immerse the watch case, as ultrasound may damage it. Also avoid exposing the dial to UVC light which could discolor it.

What objects can I disinfect with UVC light?

UVC light is suitable for toothbrushes, pacifiers, baby bottles, toys, glasses, coins, knives, tools, etc. Avoid sensitive plastics that may yellow.

Is it safe to use the device near children?

Supervision is required when the device is used near children. Never leave the device unattended while plugged in. Unplug it immediately after use.

How to maintain the device after use?

Always unplug the device before draining the water. Empty the tank after each use, wipe the exterior with a soft dry cloth. Never immerse the device in water and do not use abrasive solvents.

Can I use hot or boiling water?

Do not use boiling water. For greasy or oily items, use hot water (not boiling) with an ultrasonic cleaning concentrate.

What to do if the device stops working?

Do not try to repair the device yourself. Contact an authorized service center. All repairs must be carried out by a professional.

Is the warranty valid if the device is opened?

No, the warranty ceases to apply if the device is opened or modified without written authorization from EMAG AG. Any unauthorized intervention voids the warranty.

Can I use the device to clean contact lenses?

Yes, you can clean contact lens accessories with ultrasound. For glasses, use only ultrasound (avoid UVC light which may damage certain materials).

Is the device safe for pacemaker wearers?

No, do not use this device near a patient with a pacemaker. Strictly follow this safety instruction.

USER MANUAL Emmi06 UVC EMAG

• Touch control

• Sterilisation by UVC light

• Ultrasonic cleaning

high-quality stainless steel tub

• 650 ml capacity
• Plastic basket

Thank you for choosing our device. To avoid operating errors, please read the operating manual carefully.

V1-LN

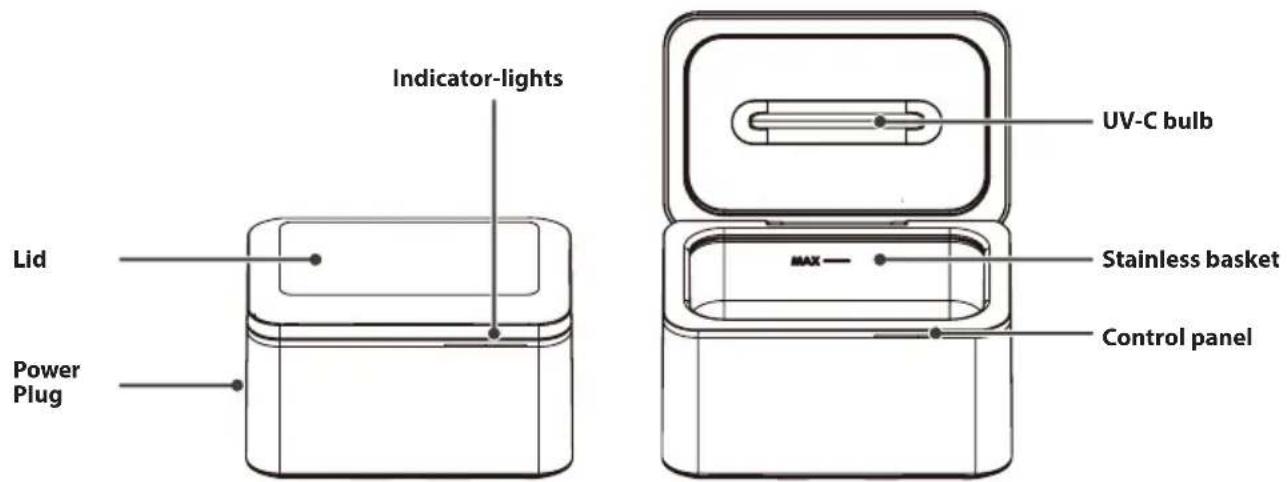

1. overview

2. instructions

The UV-C and ultrasonic functions of this unit can be used independently or together, making it perfect for a wide variety of applications. We recommend the use of UV-C light for disinfection unless the product is not suitable or cannot be exposed to UV light.

Ultrasonic cleaning is best suited for objects with hard to reach areas.

Please note - For ultrasonic cleaning, please fill the unit with at least 0.2 litres of clean water, before you plug in the power plug.

1. Make sure that the items are suitable for ultrasonic cleaning
2. Use a container to fill the water tank. Do not fill the water directly from a sink.
3. Do not fill water above the maximum level in the tank.
4. If the item is greasy or oily, please add ultrasonic cleaning agent and use warm water.
5. Place the item in the basket and lower it slowly into the machine.

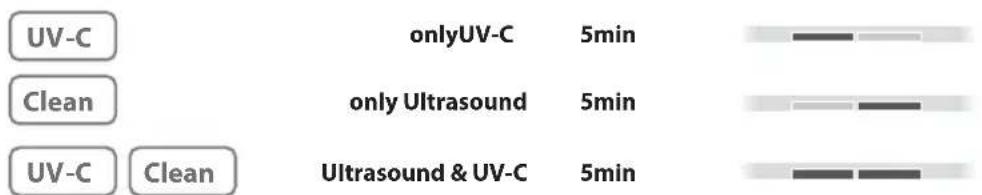

6. Select the desired mode. The ultrasonic cleaning starts immediately.

For your safety, the UV-C light only works when the lid is closed.

1. For watches we only recommend cleaning the bracelet.
2. After ultrasonic cleaning, please rinse the item(s) with clean water. If the item is still dirty, repeat the cleaning process.
3. After cleaning, unplug the power cord and pour out the dirty water.

4. Wipe the device and container with a dry towel and store in a dry place.

5. Technische Daten

Parameter Value
Power supply 220 V / 60 Hz
Ultrasonic power 35 W
External dimensions LxWxH (mm)	202 x 132 x 129
Internal tub dimensions LxWxH (mm)	170 x 100 x 55
Capacity 0,65 Liter
UVC lamp	1x 5.3 W UV-C Bulb
UV-C wavelength	253,7 nm (ozone-free)

Please note that UV-C light can cause discoloration or yellowing of plastics and other materials. Please take this into account when using the UV-C. In the following you will find some general guidelines for frequently cleaned household products.

Jewellery - earrings, necklaces, rings and bracelets UV-C + Ultrasound
Watches (bracelet only) UV-C radiation of the dial can lead to discoloration only	Ultrasound
Rasierklingen und elektrische Trimmer/Rasierer (nur Klingenteil) UV-C +	Ultraschall
Dentures, mouthguards and toothbrushes UV-C + Ultrasound or	only UV-C
Brushes, combs, make-up brushes and make-up sponges only UV-C
Spectacles, sunglasses and contact lens accessories only Ultrasound
Baby products - Soothers, baby bottles and toys only UV-C
Coins, scissors, knives and tools for metal products only UV-C
Hearing aids, telephones, electronics	only UV-C

5. User - maintenance instructions

• For watches please only clean the bracelets. Do not immerse the watch in water during the ultrasonic is switched on. It can permanently damage the watch.
• Do not use boiling water.
• Be sure to unplug the power cord before draining the water.
• Empty the water tank after each use.
• Never immerse the appliance in water.
• Clean the outside of the unit with a soft, damp cloth.
• Do not clean the unit with organic solvents or abrasive cleaners.
• Make sure that the unit is dry before storing and store it in a cool, dry place.
• All repairs should be carried out by an authorized service center. Please do not attempt to repair the unit yourself.

6.Warnings

Do not use this device near a pacemaker patient!!

1. Use the device only for the purpose described in this manual.
2. Never leave the device unattended while it is connected.
3. Always unplug the power plug immediately after use.
4. Supervision is required when the device is used in the immediate vicinity of children.
5. Please fill the unit before connecting the power plug. Do not fill above the mark.
6. Place the appliance on a flat surface during use.
7. Do not use or store the unit near water or where it can fall into water.
8. Do not attempt to repair or disassemble the unit yourself.
9. Do not move the unit while it is plugged in or in operation.
10. Do not place any objects on the power cord. Keep the cord away from hot surfaces.
11. Do not use the unit when the power cord is extremely hot. In this case, immediately unplug the power cord.
12. Do not use the product in environments with high temperatures or under sunlight.
13. Do not use boiling water.
14. Do not immerse the appliance completely in water while trying to clean it. Clean the unit with a soft, damp towel.
15. Do not operate this unit if its cable or plug is damaged or has fallen into water.

7. Warranty

This product is warranted against defects in manufacturing or materials for a period of two years from the date of purchase. Defects may be corrected by repair, or by replacement of the unit, as the manufacturer sees fit. This warranty may be void if the unit is not operated in accordance with the instructions provided by the manufacturer. The warranty my also be void by the opening of the unit, and/or its partial or total disassembly, without prior factory authorization. Any claim made under this clause shall be directed to the seller, and shall be verified by proof of purchase. The seller will advise the buyer concerning disposition of the unit. The normal procedure shall be for the manufacturer to issue a warranty claim number, and to authorize return of the unit to the factory. Buyer shall bear shipping costs.

Changes reserved

EMAG AG
