Product Type	Ultrasonic cleaner
Brand	EMAG
Model	Emmi 30HC
External dimensions (L x W x H)	265 x 165 x 240 mm
Inside tank dimensions (L x W x H)	240 x 135 x 100 mm
Tank capacity	3.0 L
Inside basket dimensions (L x W x H)	205 x 110 x 75 mm
Power supply	230 V / 50 Hz
Protection class	IP 20
Ultrasonic power	200 W
Ultrasonic frequency	approx. 38 kHz
Number of ultrasonic transducers	3
Heating power	200 W
Adjustable temperature range	20 - 80 °C
Timer	0 - 60 min, continuous mode
Included accessories	Stainless steel lid, stainless steel basket, stainless steel stand, power cable
Warranty	24 months

Frequently Asked Questions - Emmi 30HC EMAG

How to use the Emmi 30HC ultrasonic cleaner?

Fill the tank with water up to about 1-2 cm from the top edge. Add a cleaning additive if necessary. Place the objects in the basket. Set the timer (0-60 min or continuous mode D) and temperature (20-80°C). Turn on the appliance with the ON/OFF switch. After the cycle, rinse the objects with running water and dry the tank.

What cleaning products are recommended?

EMAG recommends its additives EM 070 (dental), EM 080 (jewelry, glasses), EM 100 (descaler for silver), EM 200 (disinfection), EM 300 Super Plus (intensive cleaning), EM 303 (circuit boards) and EM 404 (aluminum). Use glass containers for chemicals.

Can I clean glasses with this device?

Yes, use the provided basket. Avoid lenses coming into direct contact with the stainless steel bottom of the tank. Use an additive like EM 080 for best results.

Can I clean dentures?

Yes, place the dentures in the basket. Use the EM 070 additive specially designed for dentures. Rinse thoroughly after the cycle.

What is the warranty period of the Emmi 30HC?

The warranty is 24 months from the date of purchase. It covers material and manufacturing defects. Keep the proof of purchase.

What safety precautions should be observed?

Do not pour flammable or aggressive products directly into the tank. Do not put fingers in the liquid during operation. Do not clean living organisms. Do not stay within 1 meter of the device for more than 4 hours.

How to adjust the temperature and timer?

Use the Temperature setting knob to select between 20 and 80°C. The Timer knob allows setting from 0 to 60 minutes or position D for continuous operation.

What to do if water gets inside the device?

Make sure water does not enter through the ventilation holes at the bottom. If it happens, unplug the device and dry it thoroughly before using again.

What accessories are supplied with the Emmi 30HC?

The included accessories are: a stainless steel lid, a stainless steel basket, a stainless steel stand, and a power cord.

Can I use other brands of cleaners?

EMAG does not guarantee results with cleaners from other manufacturers. It is recommended to use EMAG additives for optimal performance and to preserve the warranty.

USER MANUAL Emmi 30HC EMAG

Professional Ultrasound Cleaning Equipments Emmi 12HC - 420HC with Power Regulator

Operating Instruction

3 stage ultrasound regulator
- simple operation by rotary switches
excellent cleaning effect with water
adjustable heating from +20^ to +80^

high efficiency
- incl. of basket and cover, both made out of stainless steel
- EMAG ultrasonic cleaners are maintenance free

1.DESCRIPTION

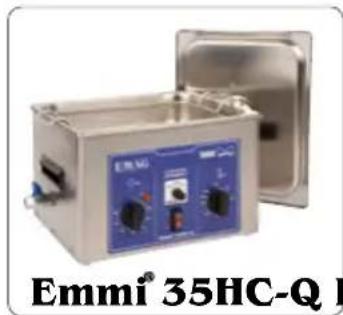

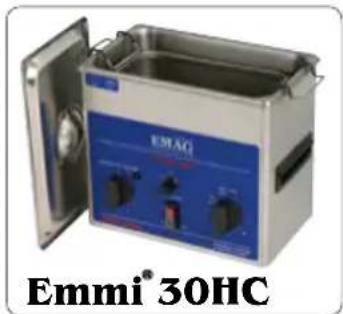

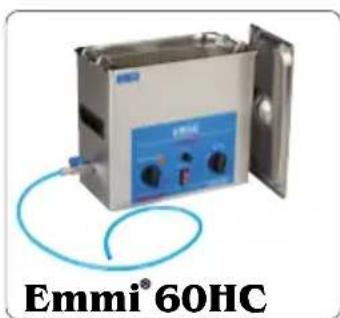

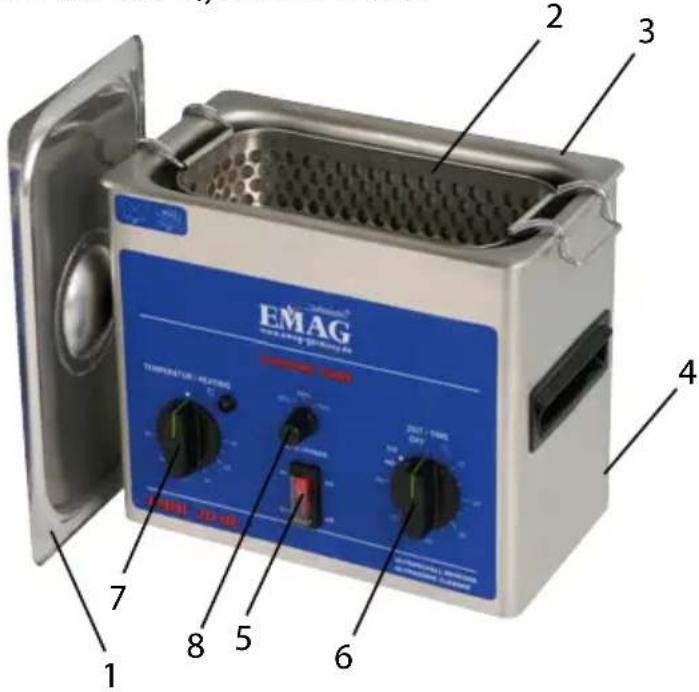

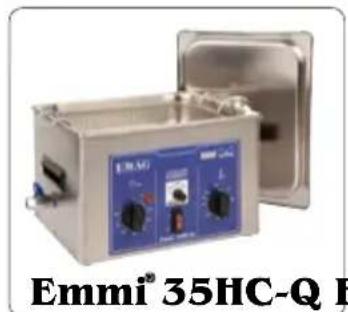

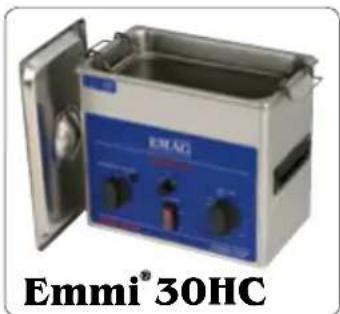

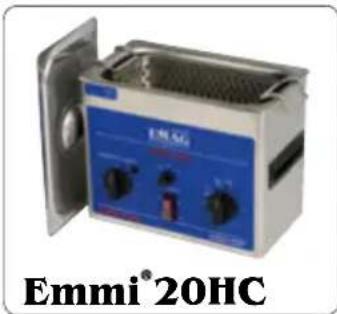

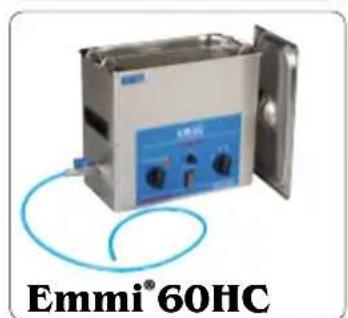

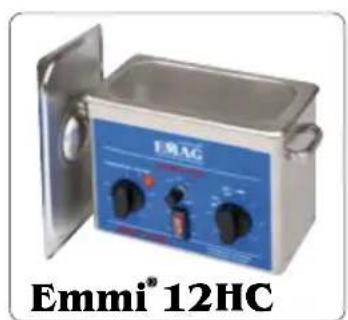

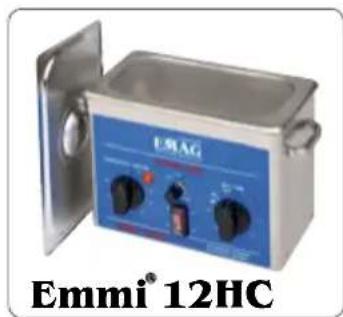

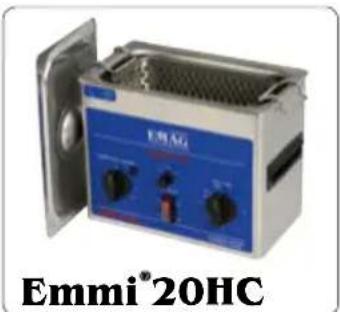

1.1 Emmi 12HC, Emmi 20HC, Emmi 30HC, Emmi 35 HC-Q, Emmi 40HC, Emmi 55 HC-Q, Emmi 60HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting
8. New: 3 stages ultrasound power regulator

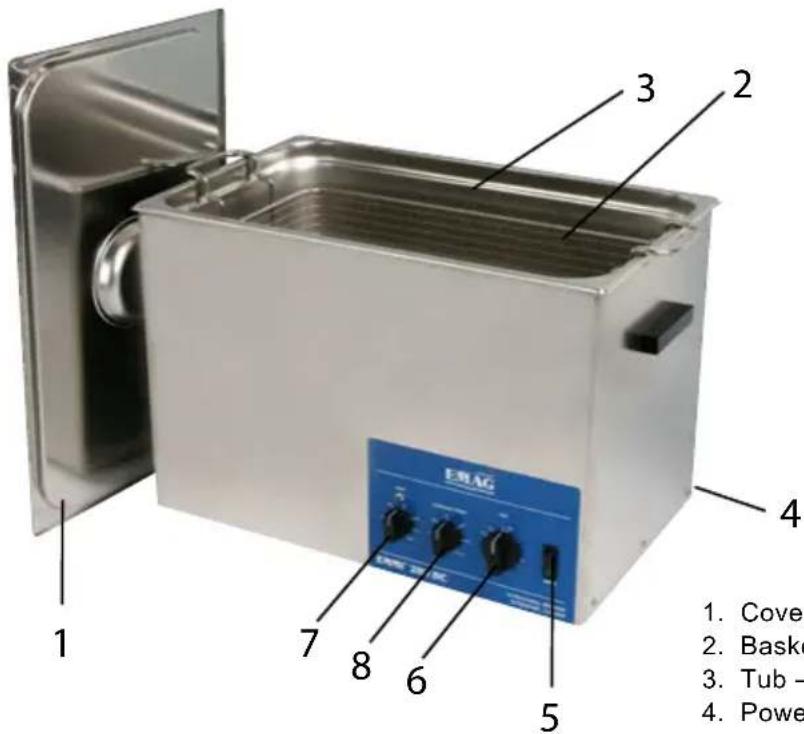

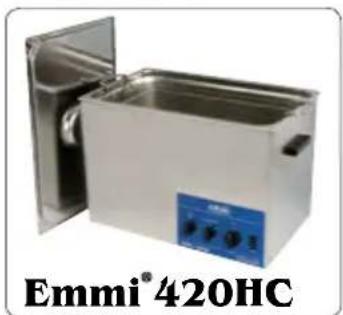

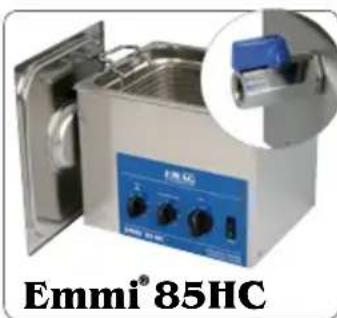

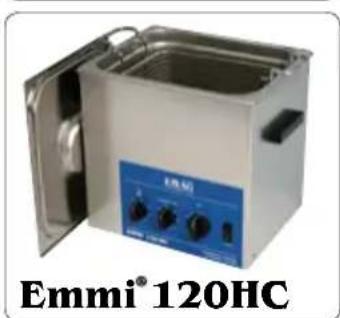

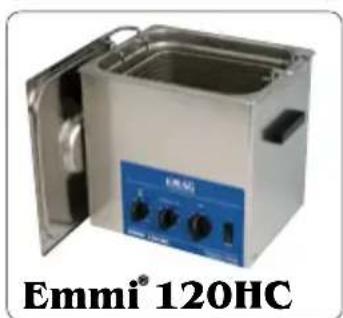

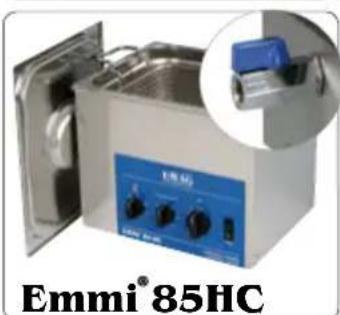

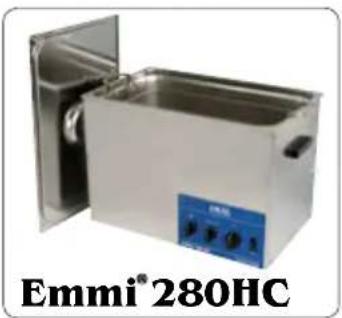

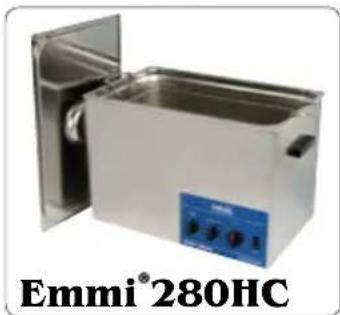

1.2 Emmi 85HC, Emmi 120HC, Emmi 280HC, Emmi 420HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting

8. ultrasound power regulator

9. TECHNICAL DATA

Properties Emmi 12HC Emmi 20 HC Emmi 30HC				Emmi 35 HC-Q	Emmi 40HC	Emmi 55 HC-Q	Emmi 60HC	Emmi 85HC	Emmi 120HC	Emmi 280HC	Emmi 420HC
Length x width x height (mm)	225 x 125 x 170	260 x 150 x 220	265 x 165 x 240	325 x 260 x 210	325 x 180 x 140	325 x 260 x 290	325 x 175 x 285	315 x 250 x 250	315 x 250 x 300	530 x 320 x 360	540 x 340 x 400
Approx. dimensions of tub (mm)	200 x 100 x 70	230 x 120 x 80	240 x 135 x 100	300 x 240 x 65	300 x 155 x 100	300 x 240 x 150	300 x 155 x 130	300 x 240 x 150	300 x 240 x 200	500 x 300 x 200	500 x 300 x 300
Volume (liter) 1,2 2,0 3,0 3,5 4,0	5,5 6,0 8,5 12,0	28,0 42,0
Approx. dimensions of basket (mm)	180 x 80 x 65	205 x 100 x 60	205 x 110 x 75	260 x 200 x 45	265 x 130 x 75	270 x 190 x 110	270 x 130 x 95	249 x 185 x 120	250 x 205 x 90	435 x 249 x 145	435 x 249 x 145
Power supply (V)	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50Hz
Protection class	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20	IP 22	IP 22	IP 22	IP 22
Ultrasound power max. (W)	80	150	200	250	250	300	450	600	800	1200	1400
Ultrasound vibrators	2 (ca. 38 kHz)	2 (ca. 38 kHz)	3 (ca. 38 kHz)	6 (ca. 45 kHz)	4 (ca. 38 kHz)	6 (ca. 45 kHz)	6 (ca. 45 kHz)	4 (ca. 40 kHz)	6 (ca. 40 kHz)	8 (ca. 38 kHz)	12 (ca. 40 kHz)
Heating power max. (W)	200	200	200	250	240	300	350	600	800	1600	1800
Heating regulation	20 - 80°C	20 - 80°C	20 - 80°C	20° - 80°C	20 - 80°C	20° - 80°C	20 - 80°C	20 - 80°C	20 - 80°C	20 - 80°C	20 - 80°C

Technical changes reserved.

3. CONVENTIONAL USE

The equipment may only be used for the purpose as set forth in the catalogue and in the technical descriptions which means for ultrasonic cleaning as described in this instruction, and only in conjunction with external devices and components which are recommended or approved by EMAG AG. Any other use of the equipment is considered to be non conventional.

In case of non conventional use, EMAG AG will not be liable for possible damages and will not warrant for the correct and functional work of the components. Part of the conventional use is also the observance of all information given in the operating manual. To this attention is drawn by the sign on the type plate. The correct and safe operation of the equipment implies appropriate transportation, storage, installation and assembly as well as careful handling and maintenance.

4. NONCONVENTIONALUSE

In case of non conventional use of the equipment danger for life and limb as well as danger for property may occur. Therefore a non conventional use is prohibited. In case of non conventional use EMAG AG will not be liable for possible damages and will not warrant for the correct and functionally work of the components. In order to avoid non conventional use of the ultrasound cleaning equipment the following directions are to be considered:

• The equipment may only be operated with the voltage printed on the type plate on the backside/ bottom side of the housing (shockproof socket).
• No flammable or aggressive chemicals (i.e. acids etc.) must be used for operation of the equipment. If necessary, use glass container EM 50 DG.
• During operation do not touch the liquid.
• In case of transportation damage, don't connect the equipment with main source.
• Do not clean creatures (i.e. finger nails, animals etc.) in the equipment.
• The equipment must only be operated with the correct level of water (water till mark, approx. 1 cm below upper brim). This must be controlled if equipment is operated for a longer time.
• Strongly contaminated goods shall be positioned in the equipment with the contaminated side to the bottom - do not staple goods.
• The goods to be cleaned must not be positioned directly onto the bottom of the tub – use the basket.
• If the equipment is operated for a longer time, do not stay longer than 4 hours within 1m distance to the equipment.
• The equipment must only be operated indoor and within a dry environment.
• It is normal, that the upper brims warm up at longer operation.
• Before emptying the tub, the power connector must be disconnected from the main source.

The tub is filled with water – with or without cleaning concentrate – and the power connector is connected with main source. After power switch is ON cleaning time, ultrasound power and heating power can be adjusted by the rotary switches. By moving the timer switch to the left the equipment can be set for permanent operation. Permanent operation should be avoided because by evaporation of the water the equipment may run dry and may be damaged. In no case a permanent operation time of 4 hours must be exceeded.

The cleaning time to be adjusted depends on the contamination level of the goods to be cleaned. If the adjusted cleaning time is terminated, the equipment automatically stops the cleaning operation. If rotary switch is newly adjusted, the equipment starts again to operate. For stopping equipment operation use OFF switch. After termination of the cleaning operation remove cleaned goods from equipment and rinse under running water in order to remove possibly still adhered particles. After termination of a cleaning operation – or several cleaning operations – it is recommended – depending on the degree of contamination – to exchange the water (disconnect main source before exchange of water). The tub shall be rinsed and dried by a cloth. Please make sure, that no water can penetrate through the slots in the bottom of the equipment into the equipment.

Advise:

If equipment is filled with new water, please consider a reasonable time for the outgazing of the water. We recommend an operation of the equipment with water for a couple of minutes before you insert the goods for cleaning.

6.EXAMPLES FORT HE CLEANING OF GOODS WITH ULTRASOUND

• Eyeglasses, glass frames (please pay attention: Glasses must not be in direct contact with the tub bottom).
  Gold and silver jewels, jewelry, emeralds, pearls
• Ink crayons, drawing instruments / - accessories

Dentures

• Aircraft components, engine components, electrical boards, ink cartridges, motor bike chains, tools, carburators, etc.
• Precision parts, wheapon parts, i.e. magazines, bullet casings, strikers, springs.

7. Concentrate for disoxidation

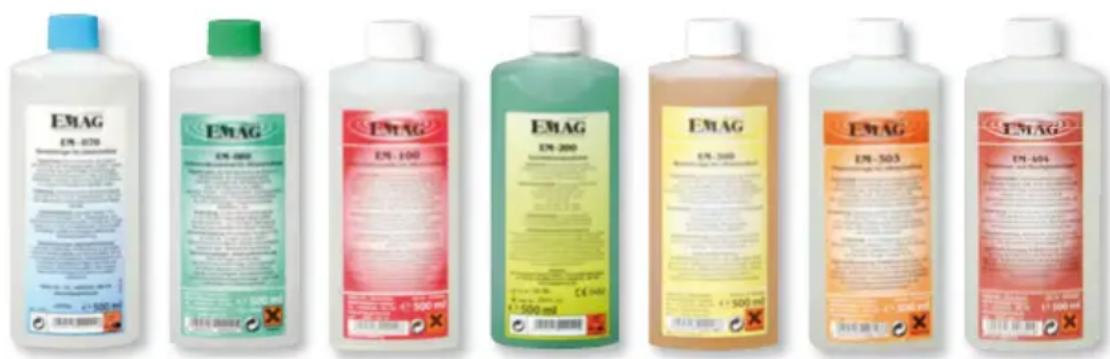

For the cleaning operations various cleaning concentrates are available which can make cleaning more effi cient. These are available at the place where you have bought your equipment or through www.emag-germany.de. EMAG recommends for the various requirements the following high effi cient concentrates:

EM 070 - for dental application and cleaning of dentures at home - 1 % concentrate

EM 080 - Eyeglasses, jewelry, optical glasses, ink crayons smaller tools and instruments such as small precision parts, shaver heads - 1 % concentrate (except for contact lenses).

EM 100 - Concentrate for disoxidation of silver etc.

EM 200 - Concentrate for disinfection of instruments - 1% concentrate

EM 300 - Super plus - extreme cleaner for difficult cases

(supports, hinges, weapon parts, bullets, brass etc.)

• 1% concentrate.

EM 303 - PC Board cleaning

EM 404 - Aluminum and diecast cleaning

(carburators, engine blocks, cylinder heads).

If concentrates are used, application instructions must be followed very correctly!

If cleaning concentrates of other manufacturers are used, we will not be liable for any problems occurring with the goods to be cleaned and any damages which may happen to the equipment. For detailed information you can contact us at any time.

8. Warranty

This product is warranted against defects in manufacturing or materials for a period of two years from the date of purchase. Defects may be corrected by repair, or by replacement of the unit, at the option of the manufacturer.

This warranty may be voided if the unit is not operated in accordance with the instructions provided by the manufacturer. The warranty my also be voided by the opening of the unit, and/or its partial or total assembly, without prior factory authorization.

Any claim made under this clause shall be directed to the seller, and shall be verified by proof of purchase. The seller will advise the buyer concerning disposition of the unit. The normal procedure shall be for the manufacturer to issue a warranty claim number, and to authorize return of the unit to the factory. Buyer shall bear shipping costs.

EMAG AG

Copyright EMAG AG. All rights reserved. Manufactured in the European Community. The content of this Operating Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions, extents and amendments of any publication or translation requires the prior written agreement of EMAG AG.
