Product Type	Ultrasonic Cleaner
Brand	EMAG
Model	Emmi 120HC
External Dimensions	315 x 250 x 300 mm
Internal Tank Dimensions	300 x 240 x 200 mm
Tank Capacity	12 liters
Basket Dimensions	250 x 205 x 90 mm
Power Supply	230 V, 50 Hz
Protection Class	IP 22
Ultrasonic Power	800 W
Number of Ultrasonic Transducers	6 (approx. 40 kHz frequency)
Heating Power	800 W
Adjustable Temperature Range	20 - 80 °C
Timer	0 to 60 minutes or continuous operation
Tank Material	Stainless Steel
Included Accessories	Stainless steel cover, stainless steel basket, power cable
Warranty	24 months
Maintenance	Empty and rinse the tank after use, dry with a cloth
Safety	Do not use without water, do not clean living organisms, do not stay less than 1 meter for more than 4 hours
Recommended Use	Glasses, jewelry, dentures, small instruments

Frequently Asked Questions - Emmi 120HC EMAG

What is the tank capacity of the Emmi 120HC?

The tank has a capacity of 12 liters. It is recommended to fill it to 3/4 (approx. 1-2 cm from the top edge).

Can I clean contact lenses in this device?

No, do not clean living organisms (nails, animals, etc.) or contact lenses. Use only for inanimate objects.

What type of cleaning product can I use?

EMAG recommends specific additives such as EM 070 for dental, EM 080 for jewelry and glasses, EM 100 for silver deoxidation, etc. Do not use flammable or harsh chemicals directly in the tank; use glass containers.

How do I adjust the temperature and timer?

The timer can be set from 0 to 60 minutes or continuous mode (position "D"). The temperature can be set between 20 and 80°C using the adjustment knob. The ultrasonic power is also adjustable.

What should I do if the device does not heat?

Check that the device is plugged in and the timer is set. If heating does not work, make sure the set temperature is higher than the ambient temperature. If the problem persists, contact customer service.

Can I use the device without water?

No, the tank must always be sufficiently filled with water (about 3/4 full). Never operate it empty; this could damage the device.

How to maintain the device after use?

After each use, empty the water, rinse the tank with clean water and dry it with a soft cloth. Ensure that water does not enter through the ventilation holes at the bottom.

What is the warranty of the Emmi 120HC?

The warranty is 24 months from the date of purchase, covering material and manufacturing defects. It does not cover damage due to incorrect use or unauthorized intervention.

Can I clean gold and silver jewelry?

Yes, gold and silver jewelry, as well as precious stones, emeralds and pearls, can be cleaned. Use the provided basket and avoid direct contact with the bottom of the tank. Add an appropriate additive such as EM 080.

Is it safe to leave the device running unattended?

It is not recommended to leave the device unattended, especially in continuous mode. Follow the safety instructions: do not stay less than 1 meter for more than 4 hours.

USER MANUAL Emmi 120HC EMAG

Exterior view of a stainless steel laboratory instrument labeled 'EMMI® 20HC' (no other text or symbols visible)

Exterior view of a metallic scientific instrument with control panels and a lid (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panel and lid (no visible text or symbols)

Exterior view of a laboratory instrument labeled 'EMMI®60HC' with blue control panel and wiring (no readable text beyond label)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory instrument with control panel (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory Greece 420HC Greece grater with open lid (no text or symbols on device)

Empty white rectangle with black border (no text or symbols)

Empty rectangular frame with no text, symbols, or content inside

Empty white rectangle with black border (no text or symbols)

Professional Ultrasound Cleaning Equipments

Emmi 12HC - 420HC with Power Regulator

Operating Instruction

Exterior view of a laboratory instrument with open lid and control panel (no visible text or symbols on main body)

Exterior view of a stainless steel laboratory instrument with open lid and control panel (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panel and open lid (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with blue control panels and a blue coiled cable (no visible text or symbols)

Exterior view of a stainless steel laboratory appliance with control panel and glass lid (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panel and open lid (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory vessel with control panel (no visible text or symbols on the device itself)

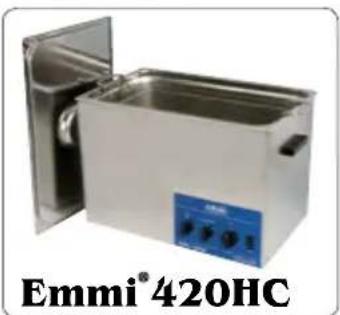

Exterior view of a stainless steel laboratory Greece 420 HC Greece measuring instrument (no text or symbols on device)

• 3 stage ultrasound regulator
- simple operation by rotary switches
• excellent cleaning effect with water
- adjustable heating from + 20°C to + 80°C

• high efficiency
• incl. of basket and cover, both made out of stainless steel
  • EMAG ultrasonic cleaners are maintenance free

1. DESCRIPTION

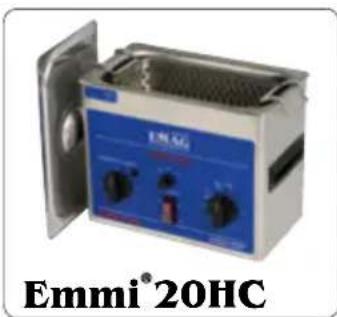

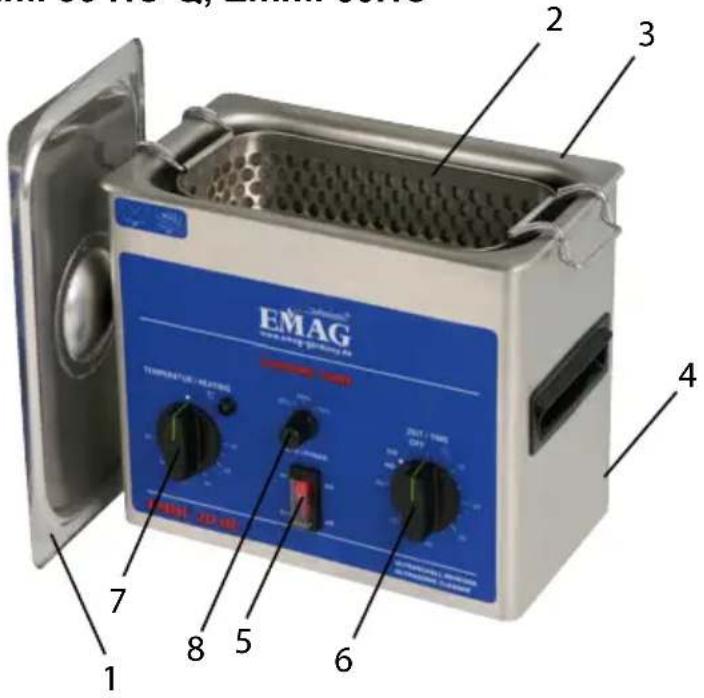

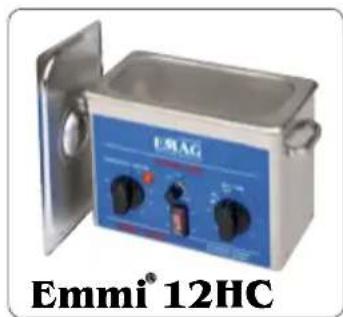

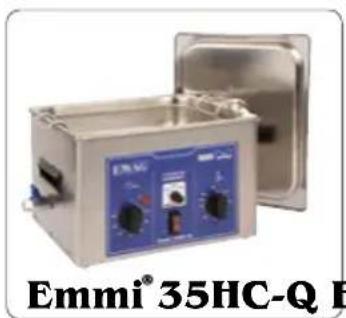

1.1 Emmi 12HC, Emmi 20HC, Emmi 30HC, Emmi 35 HC-Q, Emmi 40HC, Emmi 55 HC-Q, Emmi 60HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting
8. New: 3 stages ultrasound power regulator

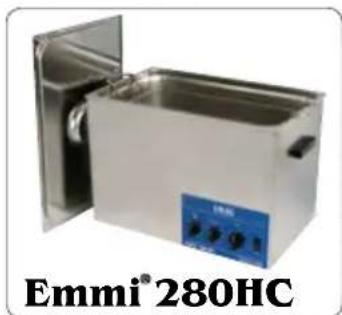

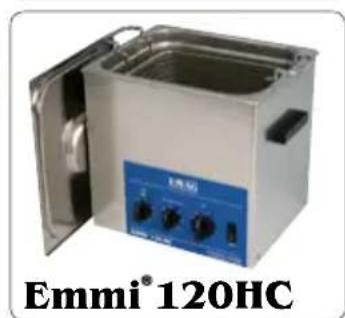

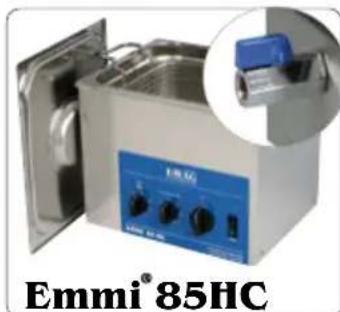

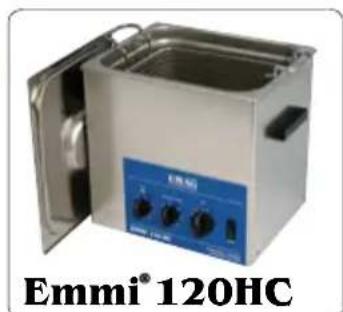

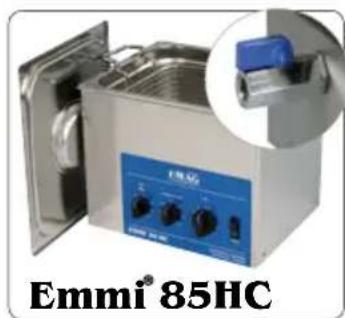

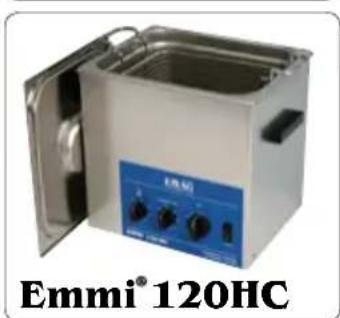

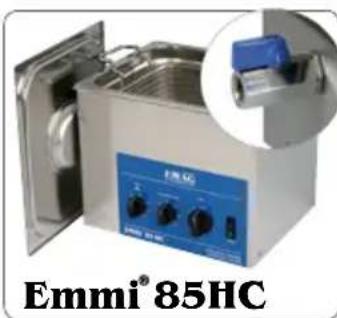

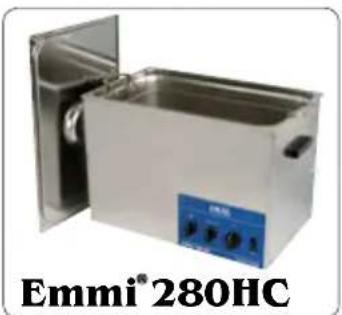

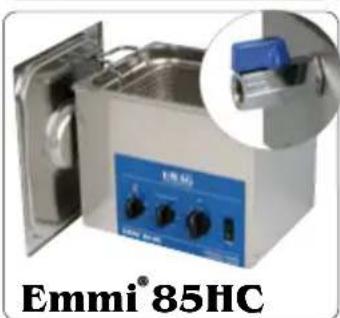

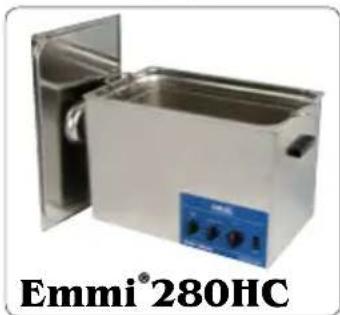

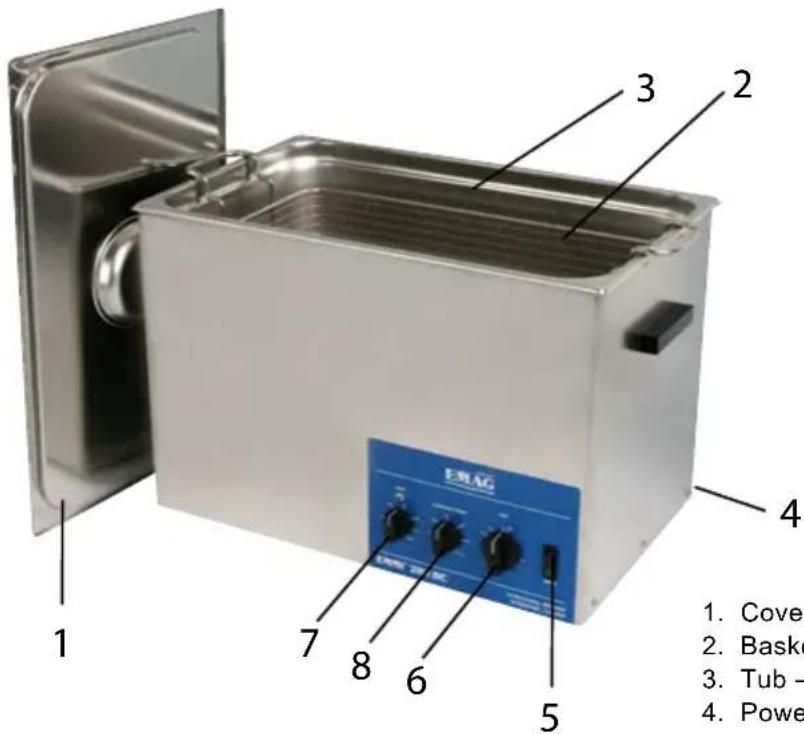

1.2 Emmi 85HC, Emmi 120HC, Emmi 280HC, Emmi 420HC

1. Cover - stainless steel
2. Basket - stainless
3. Tub - stainless steel
4. Power cable
5. ON/OFF
6. Timer
7. Switch for temperature setting

8. ultrasound power regulator

9. TECHNICAL DATA

Properties

Emmi 12HC

Emmi 20

HC

Emmi 30HC

Emmi 35 HC-Q

Emmi 40HC

Emmi 55 HC-Q

Emmi 60HC

Emmi 85HC

Emmi 120HC

Emmi 280HC

Emmi 420HC

Length x width x height (mm)

225 x 125 x 170

260 x 150 x 220

265 x 165 x 240

325 x 260 x 210

325 x 180 x 140

325 x 260 x 290

325 x 175 x 285

315 x 250 x 250

315 x 250 x 300

530 x 320 x 360

540 x 340 x 400

Approx. dimensions of tub (mm)

200 x 100 x 70

230 x 120 x 80

240 x 135 x 100

300 x 240 x 65

300 x 155 x 100

300 x 240 x 150

300 x 155 x 130

300 x 240 x 150

300 x 240 x 200

500 x 300 x 200

500 x 300 x 300

Volume (liter) 1,2 2,0 3,0 3,5 4,0

5,5 6,0 8,5 12,0

28,0 42,0

Approx. dimensions of basket (mm)

180 x 80 x 65

205 x 100 x 60

205 x 110 x 75

260 x 200 x 45

265 x 130 x 75

270 x 190 x 110

270 x 130 x 95

249 x 185 x 120

250 x 205 x 90

435 x 249 x 145

435 x 249 x 145

Power supply (V)

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50 Hz

230 V / 50Hz

Protection class

IP 20

IP 20

IP 20

IP 20

IP 20

IP 20

IP 20

IP 22

IP 22

IP 22

IP 22

Ultrasound power max. (W)

80

150

200

250

250

300

450

600

800

1200

1400

Ultrasound vibrators

2 (ca. 38 kHz)

2 (ca. 38 kHz)

3 (ca. 38 kHz)

6 (ca. 45 kHz)

4 (ca. 38 kHz)

6 (ca. 45 kHz)

6 (ca. 45 kHz)

4 (ca. 40 kHz)

6 (ca. 40 kHz)

8 (ca. 38 kHz)

12 (ca. 40 kHz)

Heating power max. (W)

200

200

200

250

240

300

350

600

800

1600

1800

Heating regulation

20 - 80°C

20 - 80°C

20 - 80°C

20° - 80°C

20 - 80°C

20° - 80°C

20 - 80°C

20 - 80°C

20 - 80°C

20 - 80°C

20 - 80°C

Technical changes reserved.

3. CONVENTIONAL USE

The equipment may only be used for the purpose as set forth in the catalogue and in the technical descriptions which means for ultrasonic cleaning as described in this instruction, and only in conjunction with external devices and components which are recommended or approved by EMAG AG. Any other use of the equipment is considered to be non conventional.

In case of non conventional use, EMAG AG will not be liable for possible damages and will not warrant for the correct and functional work of the components. Part of the conventional use is also the observance of all information given in the operating manual. To this attention is drawn by the ⚠ sign on the type plate. The correct and safe operation of the equipment implies appropriate transportation, storage, installation and assembly as well as careful handling and maintenance.

4. NON CONVENTIONAL USE

In case of non conventional use of the equipment danger for life and limb as well as danger for property may occur. Therefore a non conventional use is prohibited. In case of non conventional use EMAG AG will not be liable for possible damages and will not warrant for the correct and functionally work of the components. In order to avoid non conventional use of the ultrasound cleaning equipment the following directions are to be considered:

- The equipment may only be operated with the voltage printed on the type plate on the backside/ bottom side of the housing (shockproof socket).

- No fl ammable or aggressive chemicals (i.e. acids etc.) must be used for operation of the equipment. If necessary, use glass container EM 50 DG.

• During operation do not touch the liquid.
• In case of transportation damage, don't connect the equipment with main source.

- Do not clean creatures (i.e. finger nails, animals etc.) in the equipment.

- The equipment must only be operated with the correct level of water (water till mark, approx. 1 cm below upper brim).

This must be controlled if equipment is operated for a longer time.

• Strongly contaminated goods shall be positioned in the equipment with the contaminated side to the bottom – do not staple goods.
• The goods to be cleaned must not be positioned directly onto the bottom of the tub – use the basket.
• If the equipment is operated for a longer time, do not stay longer than 4 hours within 1 m distance to the equipment.
• The equipment must only be operated indoor and within a dry environment.
• It is normal, that the upper brims warm up at longer operation.
• Before emptying the tub, the power connector must be disconnected from the main source.

The tub is filled with water – with or without cleaning concentrate – and the power connector is connected with main source. After power switch is ON cleaning time, ultrasound power and heating power can be adjusted by the rotary switches. By moving the timer switch to the left the equipment can be set for permanent operation. Permanent operation should be avoided because by evaporation of the water the equipment may run dry and may be damaged. In no case a permanent operation time of 4 hours must be exceeded.

The cleaning time to be adjusted depends on the contamination level of the goods to be cleaned. If the adjusted cleaning time is terminated, the equipment automatically stops the cleaning operation. If rotary switch is newly adjusted, the equipment starts again to operate. For stopping equipment operation use OFF switch. After termination of the cleaning operation remove cleaned goods from equipment and rinse under running water in order to remove possibly still adhered particles. After termination of a cleaning operation – or several cleaning operations – it is recommended – depending on the degree of contamination – to exchange the water (disconnect main source before exchange of water). The tub shall be rinsed and dried by a cloth. Please make sure, that no water can penetrate through the slots in the bottom of the equipment into the equipment.

Advise:

If equipment is filled with new water, please consider a reasonable time for the outgazing of the water. We recommend an operation of the equipment with water for a couple of minutes before you insert the goods for cleaning.

6.EXAMPLES FORT HE CLEANING OF GOODS WITH ULTRASOUND

• Eyeglasses, glass frames (please pay attention: Glasses must not be in direct contact with the tub bottom).
  • Gold and silver jewels, jewelry, emeralds, pearls
• Ink crayons, drawing instruments / - accessories

- Dentures

- Aircraft components, engine components, electrical boards, ink cartridges, motor bike chains, tools, carburators, etc.

- Precision parts, wheapon parts, i.e. magazines, bullet casings, strikers, springs.

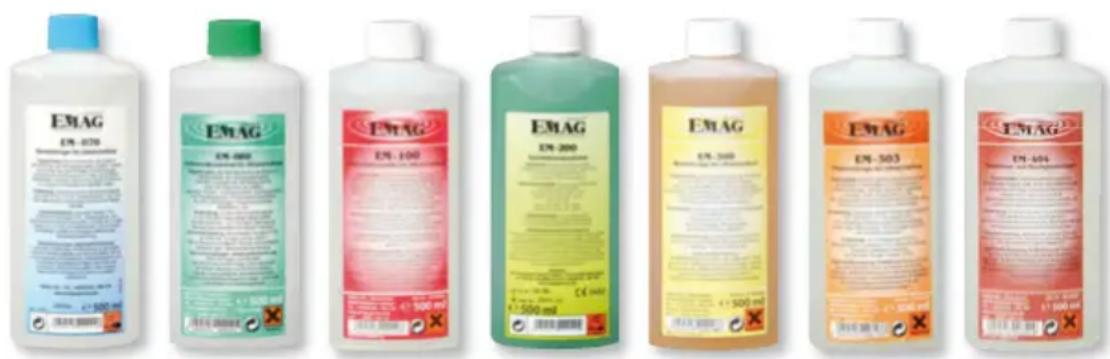

7. Concentrate for disoxidation

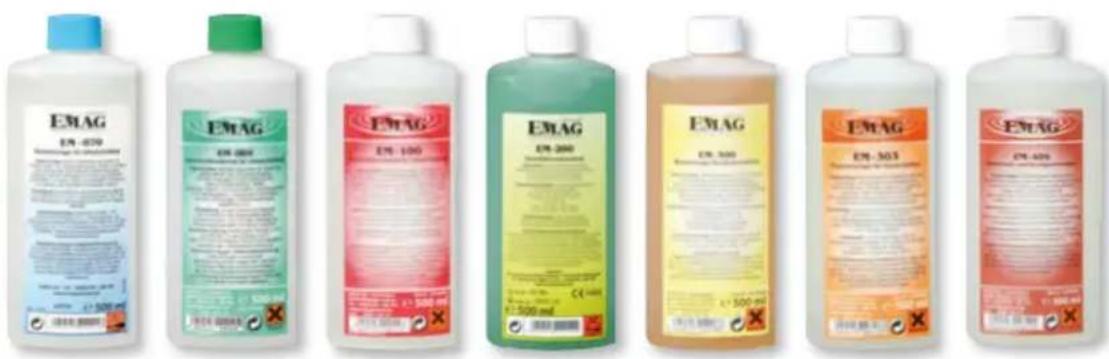

For the cleaning operations various cleaning concentrates are available which can make cleaning more efficient. These are available at the place where you have bought your equipment or through www.emag-germany.de. EMAG recommends for the various requirements the following high efficient concentrates:

EM 070 - for dental application and cleaning of dentures at home - 1% concentrate

EM 080 - Eyeglasses, jewelry, optical glasses, ink crayons smaller tools and instruments such as small precision parts, shaver heads - 1% concentrate (except for contact lenses).

EM 100 - Concentrate for disoxidation of silver etc.

EM 200 - Concentrate for disinfection of instruments - 1% concentrate

EM 300 - Super plus – extreme cleaner for diffi cult cases (supports, hinges, wheapon parts, bullets, brass etc.) - 1% concentrate.

EM 303 - PC Board cleaning

EM 404 - Aluminum and diecast cleaning (carburators, engine blocks, cylinder heads).

If concentrates are used, application instructions must be followed very correctly!

If cleaning concentrates of other manufacturers are used, we will not be liable for any problems occurring with the goods to be cleaned and any damages which may happen to the equipment. For detailed information you can contact us at any time.

8. Warranty

This product is warranted against defects in manufacturing or materials for a period of two year from the date of purchase. Defects may be corrected by repair, or by replacement of the unit, at the option of the manufacturer.

This warranty may be voided if the unit is not operated in accordance with the instructions provided by the manufacturer. The warranty my also be voided by the opening of the unit, and/or its partial or total assembly, without prior factory authorization.

Any claim made under this clause shall be directed to the seller, and shall be verified by proof of purchase. The seller will advise the buyer concerning disposition of the unit. The normal procedure shall be for the manufacturer to issue a warranty claim number, and to authorize return of the unit to the factory. Buyer shall bear shipping costs.

EMAG AG

Empty white rectangle with black border (no text or symbols)

Changes reserved

© Copyright EMAG AG. All rights reserved. Manufactured in the European Community. The content of this Operating Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions, extensions and amendments of any publication or translation requires the prior written agreement of EMAG AG.

LA NOUVELLE GENERATION DES APPAREILS DE NETTOYAGE À ULTRASON

Emmi 12HC - 420HC

Mode d'emploi

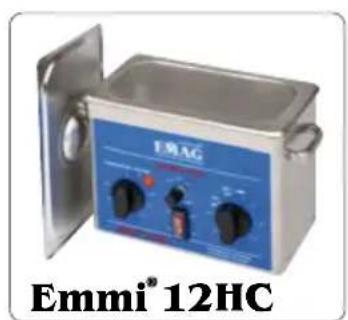

Exterior view of a stainless steel laboratory instrument labeled 'EMI' 12HC, showing control knobs and a lid (no readable text beyond label)

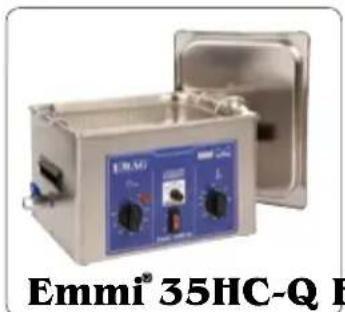

Exterior view of a scientific instrument labeled 'EMMI 35HC-Q' (no other text or symbols visible)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panel and side door (no visible text or symbols)

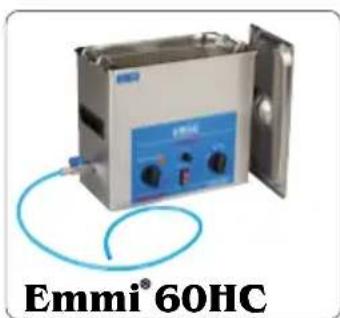

Exterior view of a laboratory instrument labeled 'Emmi® 60HC' with blue tubing (no other text or symbols visible)

Exterior view of a stainless steel laboratory appliance with control panel and glass lid (no visible text or symbols)

Exterior view of a stainless steel laboratory incubator with control panel (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory appliance with blue control panel (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory appliance with control panel (no visible text or symbols on the device itself)

1. DESCRIPTION

1.1 Emmi 12HC, Emmi 20HC, Emmi 30HC, Emmi 35 HC-Q, Emmi 40HC, Emmi 55 HC-Q, Emmi 60HC

© Copyright EMAG AG. All rights reserved. Manufactured in the European Community. The content of this Operating Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions, extensions and amendments of any publication or translation requires the prior written agreement of EMAG AG.

Exterior view of a stainless steel laboratory instrument with open lid and control knobs (no visible text or symbols on main body)

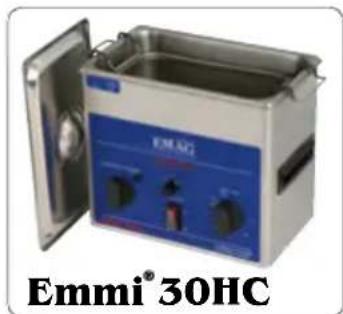

Exterior view of a stainless steel laboratory Greece 30HC Greece Greece gas washing machine (no visible text or symbols on the device itself)

Exterior view of a scientific instrument labeled 'EMMI® 35HC-Q I' (no other text or symbols visible)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panels and a lid (no visible text or symbols)

Exterior view of a laboratory instrument labeled 'Emmi® 60HC' (no other text or symbols visible)

Exterior view of a stainless steel laboratory instrument with control panel and glass lid (no visible text or symbols)

Exterior view of a stainless steel laboratory instrument with control panel (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory gas washing machine (no visible text or symbols on the device itself)

Exterior view of a stainless steel laboratory incubator with control panel (no visible text or symbols on the device itself)

1. DESCRIZIONE DELL'APPARECCHIO

1.1 Emmi 12HC, Emmi 20HC, Emmi 30HC, Emmi 35 HC-Q, Emmi 40HC, Emmi 55 HC-Q, Emmi 60HC

© Copyright EMAG AG. All rights reserved. Manufactured in the European Community. The content of this Operating Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions, extensions and amendments of any publication or translation requires the prior written agreement of EMAG AG.
