| Product type | Capsule coffee machine |
| Brand | Amici |
| Model | Kiss Mie |
| Dimensions | Diameter 160 mm, height 210 mm |
| Weight (without packaging) | 2.9 kg |
| Power supply | 220-240 V, 50/60 Hz, 900 W |
| Tank capacity | 0.3 liter |
| Structure material | Anodized aluminum |
| Coffee types | Ristretto and espresso (max 60 ml) |
| Compatible capsules | Metodo Iperespresso MIE |
| Main functions | Coffee preparation, quantity and temperature adjustment, automatic shut-off after 5 minutes, descaling |
| Maintenance and cleaning | Clean regularly: grid, drip tray, capsule holder, tank; descale every 2-3 months; do not immerse in water or put in dishwasher |
| Safety | Automatic shut-off, grounding required, do not use without water |
| Warranty | Limited warranty; damages due to insufficient descaling or incorrect use excluded |
| After-sales service | German-speaking Switzerland: Amici Caffè AG, +41 41 854 41 41; French-speaking Switzerland: Golec SA, +41 27 205 72 05 |
| Disposal | Selective collection (WEEE); return to retailer or local collection center |
Frequently Asked Questions - Kiss Mie Amici
User questions about Kiss Mie Amici
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee machine in PDF format for free! Find your manual Kiss Mie - Amici and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Kiss Mie by Amici.
USER MANUAL Kiss Mie Amici
Red and black industrial machine with glass and paper cups, no visible text or symbolsRECOMMANDATIONS GÉNÉRALES POUR L'UTILISATION DE LA MACHINE
RECOMMANDATIONS POUR UNE MISE AU REBUT CORRECTE DU PRODUIT CONFORMÉMENT À LA DIRECTIVE EUROPÉENNE
IT

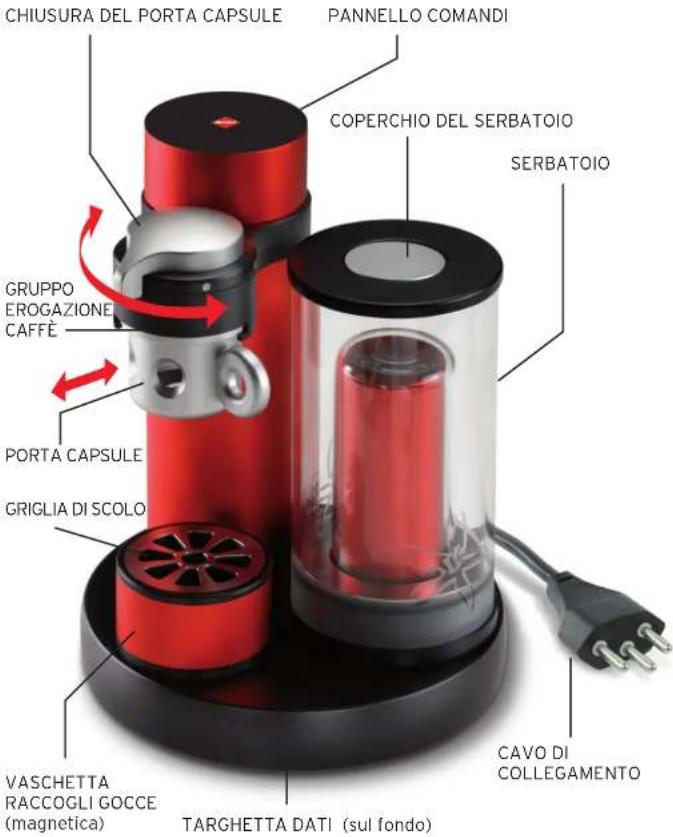

LA MACCHINA IN SINTESI
IT
capsula dummyRevolutionary Design
Worldnew Technology
Small
Silent
Eco-Friendly
INSTRUCTION MANUAL
EN
Carefully read the instruction manual and warranty limitations.
The machine must be connected to a grounded power outlet.
The machine must be cleaned by regularly washing the drainage grid, the drip tray, the capsule container and the tank.
Maintenance may only be performed while the machine is off.
IMPORTANT:
Never immerse the machine in water or put it in the dishwasher.
The water contained in the tank must be replaced regularly.
Do not use the machine if the tank is empty.
After changing the water, insert the tank in the machine and check that it is positioned correctly.
We recommend descaling the machine at least every 2 or 3 months using a descaling agent made especially for espresso machines. See instructions in the Descaling chapter.
Do not throw out the dummy capsule provided in the packaging; you will need it for the next descaling cycles.
It is advisable to keep the original packaging (at least for the duration of the warranty period) in order to ship the machine to a service center for repair if necessary. Any damage caused by transport without adequate packaging will not be covered by the warranty.
INDEX
MACHINE OVERVIEW 52
IMPORTANT SAFEGUARDS 53
USING THE APPLIANCE 53
INSTALLATION OF THE APPLIANCE 54
CLEANING THE APPLIANCE 54
IN CASE OF MALFUNCTIONING 55
IMPROPER USE OF THE APPLIANCE 55
FIRST INSTALLATION / STARTING UP 56
SWITCHING ON AND OFF 56
PREPARING THE COFFEE 58 - 59
DESCALING 60 - 61
CLEANING AND MAINTENANCE 62
TECHNICAL DATA 63
WARRANTY LIMITATIONS 63
PROBLEM / SOLUTION 64
DISPOSAL OF THE PRODUCT 64
EN

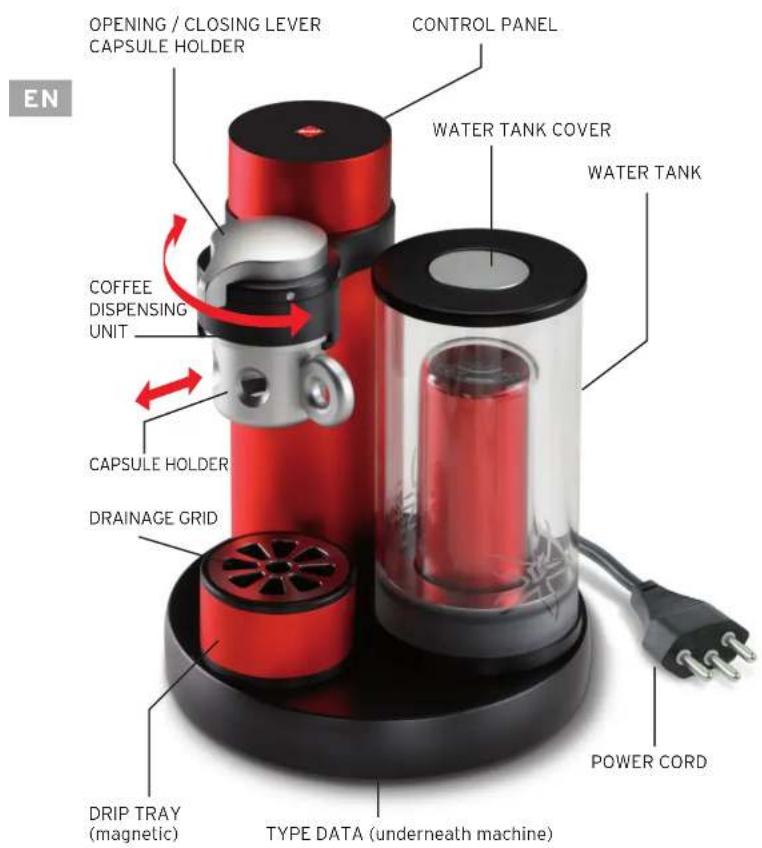

MACHINE OVERVIEW
When using electrical appliances always follow the safety precautions below.
USING THE APPLIANCE
Read all instructions.
This machine is intended for household use only. Any other use is considered improper and therefore dangerous.
Unplug the power cord from the electrical socket when the machine is not in use.
This machine has been developed to make a perfect Ristretto or Espresso coffee (max 60 ml), using only Metodo lperespresso MIE capsules.
It cannot be used for making Café Crème.
Drip tray is removable for the base in order to place a bigger cup.
The appliance must not be used by children.
The appliance must be used only by adults in good mental and physical conditions.
The machine is intended for indoor use only.
To protect against fire, electric shock or personal injury do not immerse the cord, plug or the body of the machine in water or any other liquid.
The machine cannot be cleaned in the dishwasher.
Do not use the machine for purposes other than those for which it was designed.
Do not place the machine on, or near, electrical or gas burners or inside a hot oven.
Using attachments not recommended by the manufacturer may result in fire, electric shocks or personal injury.
INSTALLATION OF THE APPLIANCE
Read the instructions carefully.
Install the appliance in a place with a temperature between 5°C and max. 40°C.
EN
Check that the voltage of the power mains is the same as that indicated on the data plate of the appliance (located on the rear of the machine).
Connect the appliance to a power socket that guarantees a minimum supply of 10 A if fed between 220 V and 240 V and efficiently earthed.
If the plug and outlet are not compatible, have the plug replaced with a proper one by an authorized service center.
Place the machine on a countertop away from water taps and sinks.
After removing the packaging, check that the appliance is in perfect condition before installation.
CLEANING THE APPLIANCE
Remove the plug from the socket before cleaning the machine.
Wait until the machine has cooled before cleaning.
Clean the body and attachments with a wet cloth and then wipe with a non-abrasive dry cloth. Do not use detergents.
Do not expose the machine to extended jets of water or immerse it in water, partially or fully.
Capsule holder, grid, water tank can be washed in the dishwasher.
IN CASE OF MALFUNCTIONING
Do not use the appliance if the cord or plug are damaged or if the appliance shows signs of malfunctioning or has been damaged in any way.
Take the machine to the nearest authorized service center for checks or repairs.
If the power cord is damaged it must be replaced by the manufacturer or an authorized service center.
In case of damage or malfunction, turn off the appliance and do not tamper with it.
For repairs contact a service center authorized by the manufacturer and request the use of original spare parts only.
Failure to comply with these instructions may compromise the safe operation of the machine and will result in the forfeiture of warranty rights.
IMPROPER USE OF THE APPLIANCE
This appliance is intended for household use only and works only METODO IPERESPRESSO (MIE) capsules Espresso or Ristretto.
Any other use is to be regarded as improper and thus dangerous.
The manufacturer is not liable for accidents caused by noncompliance with existing legislation on electrical grounding systems.
The manufacturer is not liable for possible damage caused by improper, incorrect or unreasonable use.
FIRST INSTALLATION / STARTING UP
Read the safety warnings carefully before connecting the machine to the power mains.
Make sure the machine is not connected to the power mains.
EN
- Remove all protections before use
- Remove the protective film from the control panel
- Position the (magnetic) drip tray and the cup support grid
- Take out the tank and wash it, fill it with fresh water and reposition it. Make sure it is inserted correctly
- Connect the machine to the power mains
- To switch on the machine, press the logo in the center of the control panel
- Machine has to be rinsed at first. Place the dummy capsule provided in the capsule holder close the lever on the top. Press the large circle
SWITCHING ON AND OFF
Fill the tank with fresh water.
n the machine, press the logo in the centre of panel. The small circle and the large one light xed blue light.
The machine is ready to dispense a Ristretto or Espresso (60 ml).
The machine heats up only after you have selected the small circle or the large circle.
utes without using, the machine switches off lly. The two luminous circles switch off.


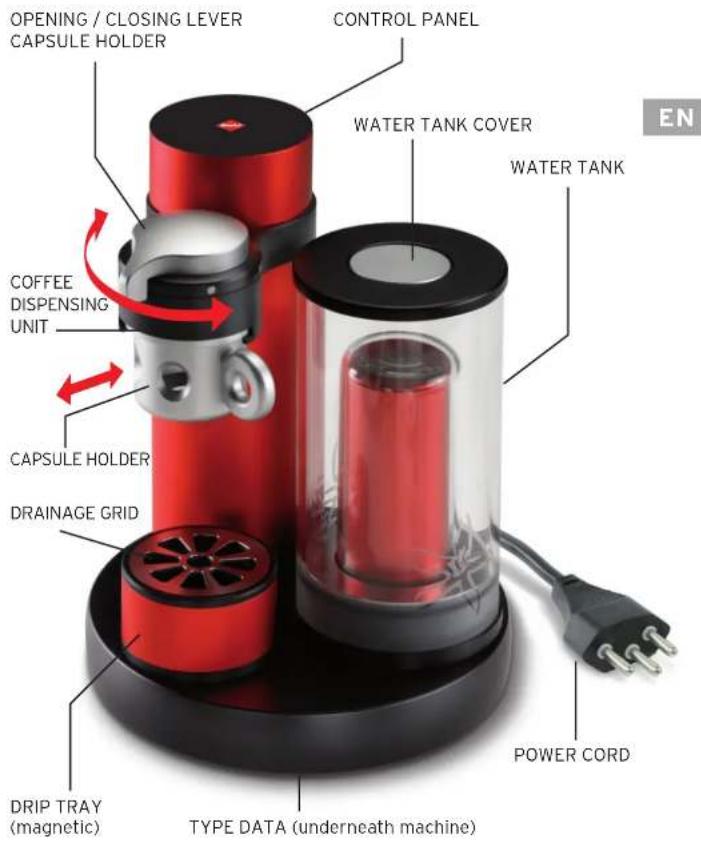

OPENING / CLOSING LEVER CAPSULE HOLDER CONTROL PANEL WATER TANK COVER WATER TANK COFFEE DISPENSING UNIT CAPSULE HOLDER DRAINAGE GRID DRIP TRAY (magnetic) TYPE DATA (underneath machine) POWER CORD ENPREPARING THE COFFEE
Place a cup on the cup support grid. Insert the capsule in the capsule holder. Insert the capsule holder in the coffee dispensing unit.
Turn the opening/closing lever to the left as far as the stop device.
The capsule holder is connected.
The two circles are lit with a fixed blue light.
Press the small circle to dispense an espresso or the large circle to dispense a long coffee. The pressing of one of the two circles is accompanied by an acoustic signal.
The circle selected (small for Ristretto and large for Espresso coffee) lights up with a fixed white light, while the perimeter of the control panel is lit up gradually. The machine is reaching the necessary temperature and will start to dispense the coffee after about 30 seconds.
When the light in the perimeter of the control panel goes out, the selected circle remains lit with a fi xed white light and an acoustic signal is given: dispensing is fi nished and the coffee is ready to be enjoyed.
Immediately afterwards, the machine starts loading water for the next coffee. Wait untile the loading cycle is fi nished before removing the used capsule. At the end of the cycle, the two circles are lit with a fi xed blue light: the machine is ready to prepare other coffee.
To prepare more coffees proceed as follows:
Check the water level in the tank. The tank icon 📋 on the control panel lit with a fixed white light indicates that the tank is empty.
Turn the opening/closing lever of the capsule holder to the right.
Remove the used capsule from the capsule holder, insert a new capsule and repeat the procedure described above.
NOTE
The machine is provided with automatic stop, but dispensing of coffee can be stopped at any time by pressing the same circle already selected.
Check the water level in the tank regularly.
To enjoy perfect coffee it is recommended to change the water in the tank regularly and to use preheated cups.
Distilled or highly filtered water is not suitable for making coffee.
To modify the amount of coffee dispensed and/or the coffee temperature, proceed as follows:
The small circle and the large circle light up with a fixed blue light.
Press the logo in the center for at least 5 seconds. The two circles start to illuminate blue.
Press the circle of which you want to change the setting (small for Ristretto or large for Espresso coffee).
The two icons with the symbol of the thermometer and the water tank start to blink with a white light. Press the icon (thermometer or water tank) of which you want to change the setting (temperature level or cup volume).
The number of marks on the circular perimeter of the control panel indicates the current setting.
Choose the new values by pressing the + or - button.
Press the circle selected previously to return to the previous selection, otherwise press the circle a second time to leave the programming. The changes have been memorized.
To restore the default factory settings, proceed as follows:
Press the logo in the center for at least 5 seconds.
Both circles start to blink.
Press the thermometer icon and the water tank icon at the same time.
Both icons start to illuminate in red.
At this point reset is completed.
DESCALING
Lime scale is formed depending on the time of use of the machine, particularly when the water is heated. The need to remove scale also depends largely on the quality of the water in your region. You can ask your local water authority about the hardness of your water supply. In the case of water with a high calcium content (hard water) and daily use of the machine, we recommend removing scale every 2 months; for soft or medium-hard water, about every 3 months.
Lime scale can notably reduce the working life of the machine.
The following faults and defects may occur:
- Lime scale can block the flow of water in the pipes
• The ring gaskets may be damaged - Formation of corrosion
- The efficiency of the heating system is reduced with consequent increased energy consumption
DESCALING PROCEDURE
The machine has an alarm system for descaling. The alarm is activated after 300 coffees: both circles (small and large) blink 3 times with a yellow light and an acoustic signal is given at the same time; afterwards the circles keep illuminated.
Press the thermometer and water tank icons at the same time for about 3 seconds.
The perimeter of the control panel starts to blink gradually. The descaling cycle has begun.
The liquid that comes out is collected in the container you put into position.
Place the container in such a way as to prevent splashing.
The descaling cycle is ended when the light in the two circles illuminate in yellow and an acoustic signal is given.
The scale removing cycle can be started before the machine gives the alarm by pressing the thermometer and water tank icons at the same time for at least 5 seconds. For the subsequent operations, repeat the steps described above.
ATTENTION
Do not throw out the dummy capsule provided in the packaging; you will need it for the next descaling cycles.
The liquid that comes out of the dispensing unit during the process may be boiling. Use only liquid scale remover suitable for contact with foodstuffs specifically intended for espresso coffee machines.
TO RINSE THE MACHINE
When the descaling cycle is complete, you must proceed as follows:
Rinse the tank with tap water.
Fill the tank with fresh tap water.
The dummy capsule remains inserted in the capsule holder and the lever remains closed.
Press one of the yellow blinking circles (small or large). The rinse cycle has begun.
Repeat the operation 1-2 times to rinse the machine thoroughly.
The rinse cycle is ended when the light in the two circles (small and large) goes out and they are lit with a fixed blue light.
Remove the dummy capsule and enjoy your next coffee.
ATTENTION
Vinegar, detergent containing vinegar, lye, salt, formic acid, etc. cause damage to the machine.
Never leave the scale removing agent too long in the machine!
Water with added scale removing substances cannot be drunk or used in any other way.
CLEANING AND MAINTAINANCE
For perfect operation and high espresso quality, clean the machine regularly and thoroughly.
The machine must be cold and must not be connected to the power mains.
Do not use distilled or demineralized water or water with added gas for making coffee. This could compromise the machine operation.
Empty and clean the drip tray regularly.
Change the water in the tank regularly.
ATTENTION
Do not clean the machine with aggressive detergents (methanol, methyl chloride, acetone), as they could damage the surfaces.
During cleaning and maintenance of the machine the plug must always be disconnected from the power socket.
TECHNICAL DATA
Structure material anodized aluminum
Water tank 0,3 liter
Pump with continuous water flow, vibration-free
Weight of machine 2,9 kg (without packaging)
Voltage 220 - 240 V, 50/60 Hz
Power 900 W
Temperature environment 5°C to 40°C
Dimensions diameter 160 mm, height 210 mm
The manufacturer reserves the right to make changes or improvements without notice.
WARRANTY LIMITATIONS
The warranty does not cover damage or malfunctions caused by:
- failure to carry out periodic descaling
• operation with a voltage that differs from the rating shown on the data plate - improper use or use that is not compliant with the instructions
- damage due to handling by third parties and repair costs caused by handling by unauthorized service centers are at the customer's expense
It is advisable to keep the original packaging (at least for the duration of the warranty period) in order to ship the machine to a service center for repair if necessary. Any damage caused by transport without adequate packaging will not be covered by the warranty.
PROBLEM / SOLUTION
The small and the large circle are lit with a fixed red light: the pressure is too high. Check that the closing lever of the capsule holder is in the correct position. Insert a new capsule. Disconnect the power cable and wait about 10 seconds. Reconnect the power cable.
If the error persists, contact the authorized technical service center.
If the machine does not give any error signals, but does not dispense coffee, you must proceed as follows:
Unplug the machine for at least 10 sec, and then plug once again press on the logo. Insert the dummy capsule in the capsule holder and close the lever. Ensure that the water tank is filled. Place a cup on the drip tray.
Then start the machine by pressing the + and - at the same time. Machine will start to work during around one and half minute.
Wait until the two circles turn blue again.
If the error persists, contact the authorized technical service center.
Authorized technical service center German part of Switzerland: Amici Caffè AG, Hinterbergstrasse 22, 6330 Cham, +41 41 854 41 41
Authorized technical service center French part of Switzerland: Gotec SA, 59, rue des Casernes, 1950 Sion, +41 27 205 72 05
DISPOSAL OF THE PRODUCT
For the Swiss Market; IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
Return the product to the retailer where you purchased or to the local collecting point.
For the European market: IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
Disposal of end-life electric equipment by private households in the European Union.
The WEE symbol used on this product means that it must not be disposed of together with other domestic waste and should be collected separately. Consumers have the opportunity to hand in their used appliance to distributors free of charge on a 1:1 basis when they purchase a new product. For further information about the collection of appliances to be scrapped, please contact the local authority in your town of residence, the local waste disposal service or the retailer where the product was purchased.
Consumers are responsible for disposing of end-of-life appliances in accordance with the current provisions of law and noncompliance therewith may be subject to fines and criminal sanctions.
The correct disposal of this product will contribute to protecting the environment, natural resources and human health.
CAFFÈ. DAL 1933 amici.ch
Amici Caffè AG • Hinterbergstrasse 22 • 6330 Cham Telefon 041 854 41 41 • Fax 041 854 41 44 • info@amici.ch • amici.ch
