USER MANUAL PN60TW3A SHARP

MANUEL D'INSTALLATION

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW:

Earth

BLUE:

Neutral

BROWN:

Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

IMPORTANT INFORMATION. 1

DEAR SHARP CUSTOMER. 1

SAFETY PRECAUTIONS. 2

SAFETYINSTRUCTION 4

MOUNTING PRECAUTIONS 5

Specifications 5

Supplied Components 6

Preparing the Remote Control Unit and the Touch Pen...6

Connecting the wireless adapter 7

Connecting the wireless token.. 7

Connections 8

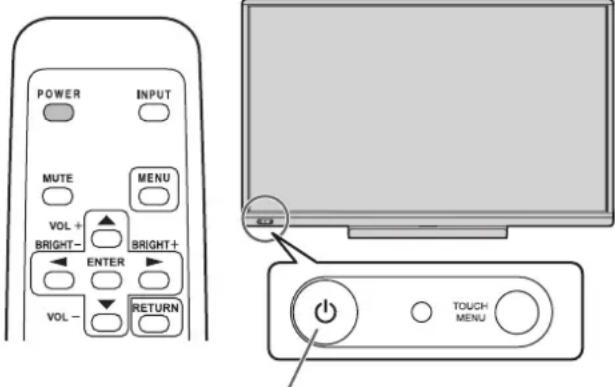

Turning Power On/Off. 9

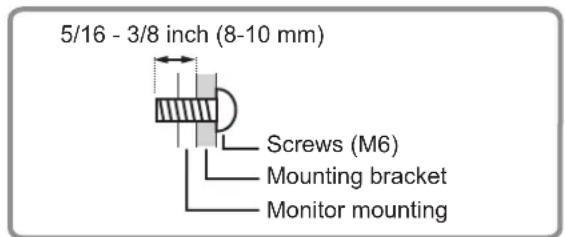

Mounting Precautions

(For SHARP dealers and service engineers) 10

Read the manuals in the provided CD-ROM. (Adobe Acrobat Reader is required to view the manuals.)

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK,DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings.

Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

1. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.

2. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the screen breaks.

3. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.
4. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

1. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
2. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

5. Batteries - Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

6. Use the specified batteries only.

7. Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.
8. Do not mix old and new batteries.
9. Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.
10. Replace an exhausted battery with a new one promptly.
11. If you will not use the remote control for a long time, remove the batteries.

12. If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

13. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

14. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.
15. Do not modify this product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal, D-SUB input terminal, and DisplayPort input/output terminals.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
• This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

SAFETYINSTRUCTION

• Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.
• Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.
• Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight.
• Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening or the inside of the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center.
• The power outlet shall be installed near the equipment and shall be easily accessible.
• Do not operate the screen with a hard or pointed object such as a fingernail or pencil.

The Power Cord

• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Do not use the power cord with a power tap.
  Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Wireless LAN

• The channels and frequencies that can be used for wireless LAN vary by country and region.
• Set REGION SETTING (WIRELESS) appropriately for your region.

MOUNTING PRECAUTIONS

• This product is for use indoors.
• A mounting bracket compliant with VESA specifications is required.
• Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.
• Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward.
• When moving the monitor, be sure to hold it with the handles and the unit bottom. Do not grasp the screen or tray. This may cause product damage, failure, or injury.
• This monitor should be used at an ambient temperature between 41^ (5^) and 95^ (35^) . Provide enough space around the monitor to prevent heat from accumulating inside.

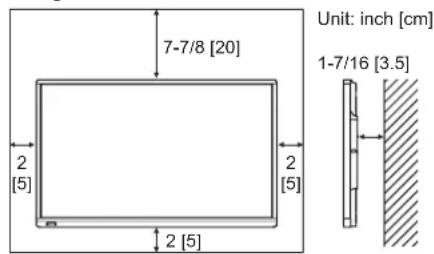

• If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 41^ ( 5^ ) to 95^ ( 35^ ), install a fan or take other measures to keep the ambient temperature within the required range.
• Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.
• When installing two or more monitor units side-by-side, provide space of at least 3/16 inch (5 mm) around them to prevent stress on the adjacent unit or structure due to thermal expansion.
• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Do not use the product in locations where the unit is exposed to direct sunlight or other strong light. Since this product operates with infrared rays, such light may cause a malfunction.
• When using multiple monitors closely, be sure the infrared transmitter/receiver does not affect the other ones.

Specifications

Model PN-70TW3A PN-60TW3A
Power requirement AC 100 V - 240 V, 2.7 A, 50/60Hz AC 100 V - 240 V, 2.3 A, 50/60Hz
Operating temperature *	41°F to 95°F (5°C to 35°C)
Operating humidity 20% to 80% (no condensation)
Power consumption (Maximum) 235 W 190 W
Dimensions (excluding protrusions) inch (mm)	Approx. 64-13/16 (W) x 3-11/16 (D) x 39-3/4 (H) (1647 x 94 x 1010)	Approx. 56-9/16 (W) x 3-11/16 (D) x 35-1/16 (H) (1437 x 94 x 890)
Weight lbs. (kg)	Approx. 134.5 (61) Approx. 105.9 (48)

• Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.
  As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Supplied Components

If any components are missing, please contact your dealer.

Liquid Crystal Display Monitor: 1
Remote control unit: 1
Power cord
Remote control unit battery (R-6 ("AA" size)): 2
Cable clamp: 3

Cable clamp (insertion type): 2

Touch pen adapter (PN-ZL05): 1

Wireless adapter (PN-ZW01): 1

Wireless token: 1

CD-ROM (Utility Disk): 1
SHARP Display Connect License: 1
□ Setup Manual (this manual): 1
Touch pen (PN-ZL02A): 1
Pen tip (for touch pen): 2

Touch pen battery (LR-03 ("AAA" size)): 1
□ Tray: 1
USB cable: 1
□Eraser:1
Camera mount: 1
Camera screw (inch thread): 1
Touch pen adapter screw (Step screw, M3): 1

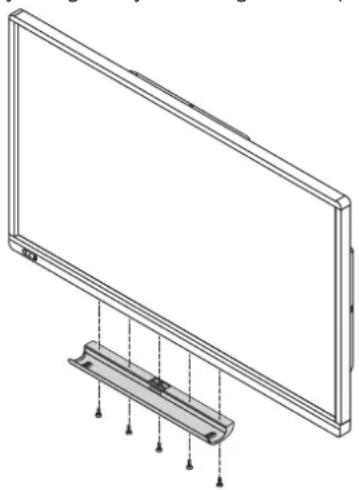

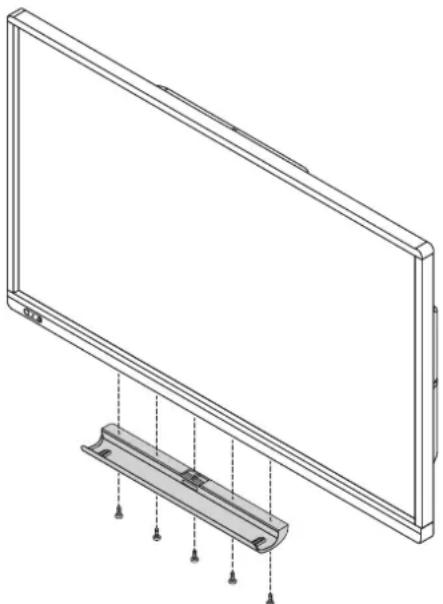

Tray mounting screws (M3):5
Wireless adapter cover: 1
RS-232C conversion cable (3.5mm mini jack): 1
Cover SHARP logo: 1 Place this sticker onto the SHARP logo to cover the logo.

Preparing the Remote Control Unit and the Touch Pen

Installing the batteries

1. Press the cover gently and slide it in the direction of the arrow.

1. See the instructions in the compartment and put in the supplied batteries (R-6 ("AA" size) x 2) with their plus (+) and minus (-) sides oriented correctly.
2. Close the cover.

Connecting the touch pen adapter

To use the touch pen, insert the touch pen adapter into the touch pen adapter port on the monitor.

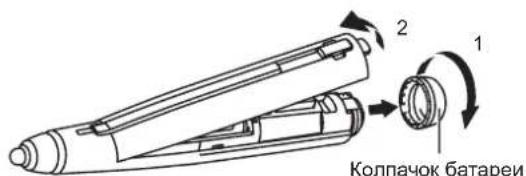

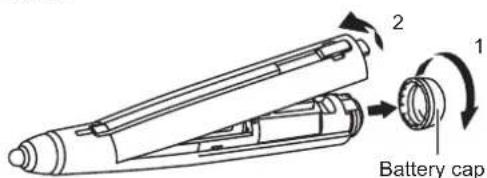

Inserting the battery

1. Remove the battery cap.
2. Open the cover and insert the supplied battery (LR-03 ("AAA" size)) into the touch pen.

Check the plus (+) and minus (-) markings on the inside of the touch pen and insert the battery in the correct orientation.

1. Replace the cover and battery cap.

TIPS

• To use an optional touch pen with the monitor, the touch pen must be registered in the touch pen adapter. (pairing) For details, see the Touch pen Management Tool operation manual.

Connecting the wireless adapter

To connect a computer to this monitor by wireless, connect the wireless adapter (supplied) to this monitor.

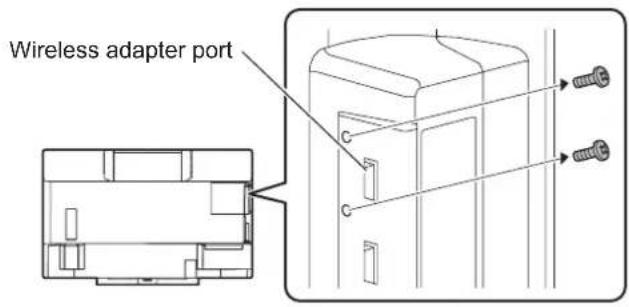

1. Remove the screw next to the wireless adapter port on this monitor.

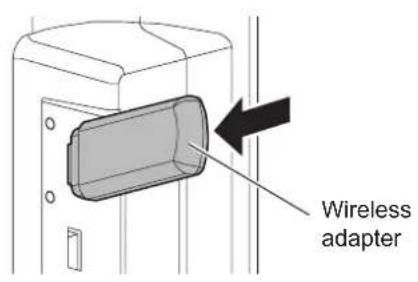

1. Insert the wireless adapter (supplied) into the wireless adapter port.

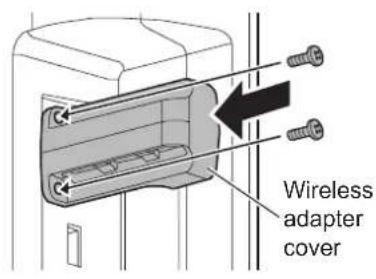

1. Attach the wireless adapter cover (supplied), and fasten with the screw you removed in step 1.

Caution

• On the PN-60TW3A, the wireless adapter extends out from the monitor. Take care not to bump or pull on the terminal.

Connecting the wireless token

The wireless token contains the "MirrorOp for SHARP" software used to connect a computer by wireless.

Connect the wireless token to the computer that you want to display by wireless.

For details, see the Wireless Controller Operation Manual.

Connections

Caution

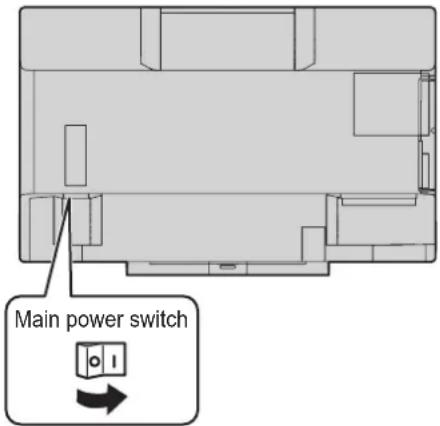

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

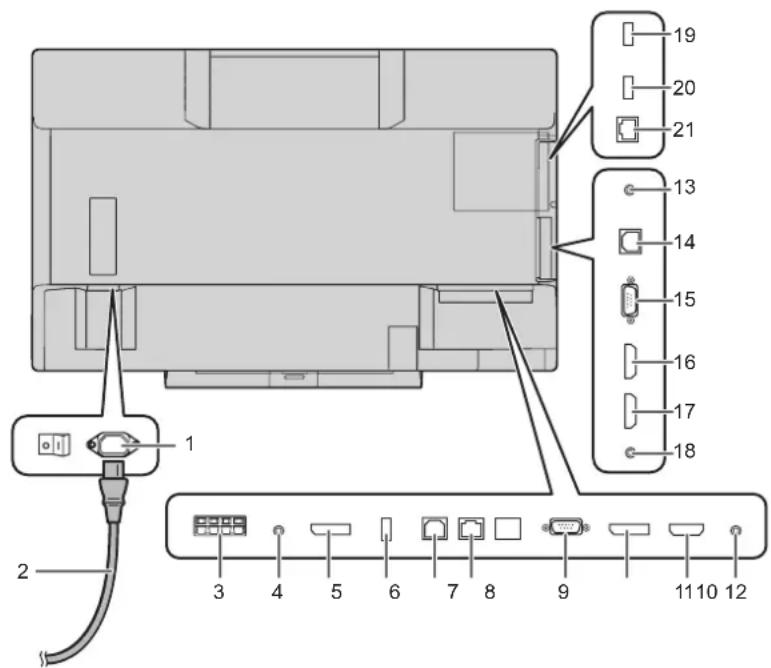

For power outlet

1. AC input terminal
2. Power cord (Supplied)
3. External speaker terminals
4. Audio output terminal
5. DisplayPort output terminal
6. Touch pen adapter port
7. USB 1 port (for touch panel)
8. LAN terminal
9. D-sub 1 input terminal
10. DisplayPort input terminal
11. HDMI 1 input terminal
12. Audio 1 input terminal
13. RS-232C input terminal
14. USB 2 port (for touch panel)
15. D-sub 2 input terminal
16. HDMI 2 input terminal
17. HDMI 3 input terminal
18. Audio 2 input terminal

Wireless controller terminals

1. Wireless adapter port

20.USBport

21.LANterminal

TIPS

• Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu. The factory settings are shown below.

Input mode Audio input terminal (Factory setting)
D-SUB1 Audio1	input terminal
D-SUB2 Audio2	input terminal
DisplayPort DisplayPort input terminal
HDMI1 HDMI 1	input terminal

Input mode Audio input terminal (Factory setting)
HDMI2 HDMI 2	nput terminal
HDMI3 HDMI 3	nput terminal
Direct Drawing Audio1 input terminal
Wireless Wireless

• To use a touch panel with a computer connected to the video input terminal on this monitor, the touch panel and computer must be connected, and Touch pen Management Tool, and Pen Software must be installed on the computer from the supplied CD-ROM. When the Information Display Downloader is installed, you can check and download the most recent versions of the software programs.
• To use a touch panel with a computer connected to the bottom, connect to the USB 1 port.
  To use a touch panel with a computer connected to the side, connect to the USB 2 port. (Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)
• Download the setup program for the SHARP Display Connect and Touch Viewing Software with the Information Display Downloader.
• To display a computer screen on the monitor by wireless, use MirrorOp for SHARP and the built-in Wireless controller. In Wireless mode, a touch panel can be used even with a computer that does not have Touch pen Management Tool installed.
• To install and use the software, see the manual for each.
  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
• MirrorOp is a registered trademark of Awind, Inc.
  All other brand and product names are trademarks or registered trademarks of their respective holders.

Turning Power On/Off

Caution

• Turn on the monitor first before turning on the computer or playback device.
• To keep the performance of the wireless controller stable, put the monitor in the Power off (Standby mode) state once a day.
• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

Turning on the main power

Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.
• For a complete electrical disconnection, pull out the main plug.

Turning power on

1. Press the POWER button.

POWER button / Power LED

Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby) mode)
Green flashing Input signal waiting mode

Operation mode

When the monitor is turned on for the first time after being shipped from the factory, the operation mode setting screen will be displayed. Set it to MODE1 or MODE2.

MODE1....OFF IF NO OPERATION is set to ON, and POWER SAVE MODE is set to ON. (These settings can not be changed.)

Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit, or LAN for over 4 hours. Power consumption in standby mode is also minimized.

MODE2....Will perform standard operation. OFF IF NO OPERATION is set to OFF, and POWER SAVE MODE is set to OFF. These settings can be changed.

Even after being set, changes can be made using OPERATION MODE, located in the menu of the monitor. (See Operation manual.)

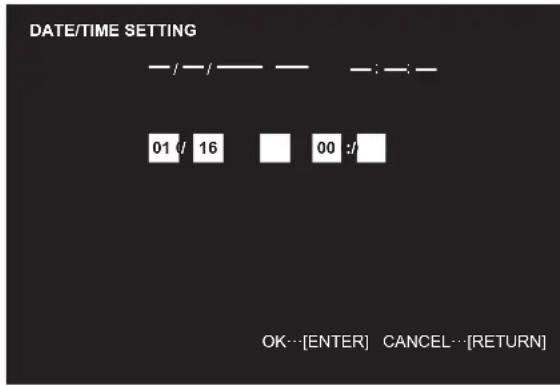

Date/time setting

• If the time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.

1. Press or to select the date and time, and press or to change the numerical values.

2. Press ENTER

3. Be sure to set the date and time.

4. The date/time setting screen will close automatically if no operation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the SETUP menu when the date/time setting screen disappears.

TIPS

• Set the date in "Day/Month/Year" order.
• Set the time on a 24-hour basis.
• The clock is maintained by the internal battery.
• If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact your local SHARP servicing dealer or service center for assistance with battery replacement.
• Estimated service life of the internal battery: About 5 years (depending on monitor operation)
• The initial battery was inserted at the factory when the monitor was shipped, so it may run out of power before its expected operation life.

Turning power off

1. Press the POWER button.

The monitor enters standby mode.

Caution

• When the power is in the off state, the wireless LAN access point function of the wireless controller cannot be used.
• When the power is turned off, any handwritten data on the Wireless mode and Direct Drawing mode is lost. Always save any data that you need before turning off the power.
  In Direct Drawing mode or Wireless mode, a confirmation message appears when the POWER button is pressed.
• If the monitor will be turned off by SCHEDULE, LAN control, or OFF IF NO OPERATION, save any data you need in advance. The power will turn off even if there is unsaved data. (The data will be lost.)

Mounting Precautions (For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people. (PN-60TW3A: at least 3 people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
  This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.

This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.

To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.

• Do not use an impact driver.
  After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.

■Attaching the Tray

Secure the tray using 5 tray mounting screws (M3) (supplied).

Table des matieres

[FRANÇAIS]

INFORMATIONS IMPORTANTES 1

CHER CLIENT. 1

PRECAUTIONS DE SECURITE 2

MESURES DE SECURITE 4

PRECAUTIONS POUR LE MONTAGE. 5

Charactéristiques 5

Composants fournis 6

MEPbI PEPDOCTOPOXHOCTN PN KPEJIeHIN ....5

Cneunpkauu.. 5

KomnneKTHbIe npHaJnxHocTn 6

Iodrotobka npjlbTa dnctaHnOHoro

ynpaBHeHnN CtnIyc. 6

CHN3NTb ONACHOCTb NOPAXEHNA

MEPbI IPEIOCTOPOXHOCTN IPN KPEJIeHn

• MoHITOp npedHa3NaeHdI 3KcNlyatauB INomeueHH.
  Tpe6yETcKpeneKHyI KPOHHTeH, COOTBeTCTByUoui nCneuΦnKaun VESA.
• NockoIbky MOHITOp IMeET 60JIbwoB Bec, npOKOHcyIbTyItpuYITeCb C dIINepOM nepeJ erO yCTaHOBkoI, CHrTnEM IJI IN nepemEueHNEM.
  KpenneHne MOHTopa K CTHe Tpe6yeT CneuaNbHbIX HABIKOB, NO3OTMY TAKa PA6Ota DOJXHa BbINONHrTBcR CneuNaHCTAMN KOmnaHn SHARP. Bam He cneyet npdnpHHMaTb NOnbITOK cDenaTb 3Ty pa6oTy camocToTeJIbHO. Ha7a KOMnHn He HeceT KaKoI-Ni60 OTBeTCTBeHHOCt 3a HeCuaCTHbe Cnyan INI TpaBMbl, Bb3BaHHle IIOXIM MOHTaXOM INI HEnPaBUNbHbIM ObaueHem.
• MoHITOPdoJIXeHNCNOb3ObAtbcraepneHdkyIpaHO no OTHoHEHIOK NOBepxHOCTn,Ha KOTopoOH yCTaHOBJeH. Pn Heo6XoDMOCToM MoHTOP MOKeT 6bITb HaKNOHeH Ha 20 rpaDycob BBepx.
• Pn nepemeeHm MOHTopa, o83aTeBHO depKnte ero pykN i 6JOK cH3y. He xBaTaeTecb 3a 3KpaH nIIOtOK. 3TO MoKET pNBecTn K NOBpeXdeHIO n3DeJIINr, erO HEnCnpabHocTHn IIN K TpaBMPOBaHIO JIOdeI.
  -Данн布局МOTOPdoJIkeH3KcNpyaTnpoBaTbca npi TemnepaType OKpykaUoSe cpebl ot 5^ do 35^ O6ecneYbTe BOKpyr MOHTopa DoCTaTOUHO npoctpaHCTBa, YTO6bl ppeDToBpaTnTB hAKONJIeHHe TENla BHYTpno erO KOpnyca.

• Ecni cIoxHo o6ecneuHb DoCTaTOOH npocTpaHCTBO NO ToI INI INHOI npUHHe, HAnpIMep, I3-3a TORO, YTO MOHTOP yCTaHaBnBaETcB BHyTpN K0KxyA, INI IN3-3a TORO, YTO TEMNEpatyAp OKpyKaIOSe Cpebl BIXODIT 3a Dnana3OHOT 5^ DO 35^ , yCTaHOBITE BEHTINrTop INI npIMTE dpYrVe MEPbl IINr TORO, YTObI TEMNEpatya OkpyKaIOSe Cpebl HaxOINacb B npeDenax Tpe6yEmoTo DNana3OHa.
• TemnepaTpHbIe ycIOBMy MOrY OTNIuHaTbc npINcNoJIb3OBaHHM MOHITopa C DOIOJIHHTeJIbHbIMObOpyIOBaHHm, peKOMeHNIOBaHHbIM SHARP. B NOIO6HbIXcLuyaX cNeIyEOT O3HAKOMITbcrC TeMnpaTpHbIMYNcIOBbIMN, peKOMeHNIOBaHHbIMN pOnI3BOJNTeJIEMDOIOHNITeHOrO O6OpyIOBaHHa.
• Pn yctahOBKe pRdOM DByx NIN 60Jee MOHITOPOB Heo6XOIMMO OCTaBnTb Mekdy HMM 3a3Op He MeHee 5 MM, YTO6bl npEDoTbpaNTb DaBneHne Ha COceDHee yCTpoiCTBO INI KOHCTpyKcNIO BCJeCDTBNE TEINIOBOROPacuippeHH.
  3aPpeaaetc8boknpoBaBbENTnuaHObIeOTBepCTNMOHTopa.PoC TeMnepaTpybBHyTpnc KopnycaMOHTopa MoKeT npBecTN Kero HnpabNBHomMyfHKNoHnPoBaHIO.
  3anpeaaetcpa3MeaTaMoHITOpHa yCTpOYCTBax, reHepnpuyuux TenIIO.
  He nCnoIb3yIte yCTpoIcTBO B MeCtax, Ie OHO NOBBepraTc BO3DeIcTBNIO npMbIX COINHeuHbIX JyuH e nn DpyrO RO MoCHoro NCToUHnKa CBeTa. TaK KaY cTPOIcTBO pa6otaet C nCnoJIb3OBAHNem HΦpakpaCHO n3JyuEHnA, 3TO MOKeT pNBecTN K c6oAM B erO pa6ote.
• Pn INCNOB3OBAHNN HeCKOBKHX MOHITOPOB, paONIOXKeHHbIX 6NIN3KO dpYK Dpyr, oBeCeYeTe OTCyTCTBNE BO3DeIcTBn IHHpapKaPacHO rpeDaTuNKa/ npneMHnka Ha pa60Ty dpyrNX MOHITOPOB.

CneuФнkaци

KoMnJIeKTHbIe npHaJdJIeXHOCTN

B cnyae oTCyTcTBn KaKOro-JIN60 KOMNoHEHa, CBxKInTeCb CO CBOIM dJnePOM.

MOHITOPcKINDKOKPNCCTaJIINHeCKIM DnCInJeem:1
口IynbTdntaHcNoHHoroynpaBHeHnra:1
□UHypnTaHn
BaTapeyIyIbTaIINCTAHUHNOHHOуnpaBHeNnR(R-6(TIN“AA”）:2
3aKIMKa6eJr:3

3aKIMKa6eIa (c KInncO): 2

Aaantep ctnyca (PN-ZL05): 1

BecnpoBoHno aadantep (PN-ZW01): 1

Tokeh 6ecnpoBOHOH CB3N:1

KOMnKaT-DnCK (KOMnKaT-DnCK C cepBnChbIMnporpaMMAMN):1
□Лицентая пиюжения SHARP Display Connect:1
PykoBOcTBO no yCTaHOBKe (3TO pykoBOcTBO):1
CTnIyC (PN-ZL02A):1
HakoHeuHKCTnUyca（dnnCTnUyc）:2

Batapea CTnNyca (LR-03 (Tun "AAA")): 1
JIoTOK:1
USB-ka6eJra:1
□JacTuk:1
KpenneHnKeKamepb:1
BnHTKaMepb（IOHMOBape3b6a）:1
BnHT aanTepa cTnyca (warobb BnHT, M3): 1
BnntbI dnn yctahOBKn Notka (M3):5
Kpbuika 6ecnpoBnHoro aanTepa:1
Ka6eBn-epexoHnK RS-232C(MHH-Dxek 03,5):1
CTnke pI JnIoroTuna SHARP:1
HaKeIeTe cTnkep Ha IoroTin SHARP, YTo6b3aKpbItb erO.

Iodrotobka nylbTa dncTaHcNoHHoro ynpabJeHnI n CTnlyc

YcTaHObKa 6aTapeek

1. JERKHOHKMnTe Ha KpbIuKy N CdbNbTe B HAnpaBHeHN CTpeKN.

1. B COOTBETCTBUN C INHCTpykUJMAU B OTCKe Dn8 6aTapeek BCaBbTe NoCTabJIeMbIe 6aTapeKu (R-6 [TNN "AA", 2 uT.), IpaBnJIbHO copNEHTnPOBaB INCSTOpOHbIC 3HaKaMn (+) n (-).
2. 3akpoTe KpbIky.

1. CHIMMTE KOJInaQK 6aTapeN.
2. OTKpOte KpbIshky u yctAHOBnTe noCTaBnReMyo 6aTapeo (LR-03 (TIn "AAA" B cTnlyc.

Bctabte 6atapeio, npabnIbHO copneHTnpOBaB ee B COOTBeTCTBm CO 3HaKaAMN “+” N “- Ha BHyTpEHHe NOBepxHOCtN CTJLyca.

3.YcTaHOBnTe Ha MeCTO KpbIuKy N KOJINaQoK 6aTapeN.

IIOIDCKA3KN

ДяТОУTO6bI NcNoIb3OBaTb C MOHITOPOM DOnONHHTeNbHbI CTnIyC,3TOT CTnIyC HxKHO 3apeRicTpnpoBaTb B aAdantpe CtInLyCa (conpJKeHne). IopO6Ha INΦOpMaun npBEdeHa B pykoBoDcTBe no 3KnIpyataun npuIoKeHn Touch pen Management Tool.

JaHHbMoHITOp KpeNExKHbI KoOHHTeHbI DOJHKbI yCTaHaBnBaTbCra Ha CTeHy, KOtopa MoKet BbIepKaTb KaMmHMMyM 4-KpaTHbI BEc MOHITopA. YcTaHOBky Heo6xOdIMo BblONHrTb, NcNoNb3yra NOxOaIu Ira MaTePnaJa I KOHCTpyKUIn MeToD.

-Дя крениня кронштейнов, coBmeCTIMbIe CO cTaNdapTom VESA cneJyET nCNoIb3ObaTb BnHTbI M6,ДиИна KOTopbIX Ha 8-10 MM 60JIbWe ToJIuINHb I KpeNexKHO KPOHSTeHa.

8-10 MM

• 3anpeaetcnaonlb30BaTb yapHbIe HnctpyMeHTbl.
• Pocne yctahOBKN y6eDntecb TOM, YTO MOHITOp HadeXHO 3aKpeNHe Ha CTeHe N B KpeNHeHN.
• 3anpeaetcnaonb3oBaTb kakne-ln6Dpyrne OTBepCTnIg KpeneXhIX BHTOB,3a ncknioueHem OTBepCTnVESA.

KpenJIeHne JOTka

3aKpeHnTe IOTOK c NOMOuBIO 5 BnHTOB dIy yCTaHOBKn IOTka (M3) (BXoJrT B IOCTaBky).

MEMO

This LCD MONITOR is equipped with TOUCH PEN and WIRELESS ADAPTER.

Hereby, Sharp declares that the radio equipment type TOUCH PEN with PN-ZL02A/PN-ZL05 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.sharp.eu/documents-of-conformity

• Specifications:

Frequency range: 2402 MHz to 2480 MHz

Wireless Transmit Power: Less than 5 dBm

Hereby, Sharp declares that the radio equipment type WIRELESS ADAPTER PN-ZW01 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.sharp.eu/documents-of-conformity

• Specifications:

Frequency range: 2400 MHz to 2483.5 MHz / 5150 MHz to 5250 MHz

Wireless Transmit Power: Less than 20 dBm / 23 dBm (EIRP)

[United Kingdom (UK)] Indoor use only.
