USER MANUAL Mithos Titanium TAURUS

MaunHka JnA CTpnKKn BONOC

Foarfce pentru păr

MaunHka 3a noDcTpRBaHe

Espanol

Cortapelos

MITHOS TIATANIUM MITHOS TITANIUM +

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Blades

B Blade shift lever

C On/off switch

D 3mm comb guide (1/8 inch)#1

E 6mm comb guide (1/4 inch)#2

F 9mm comb guide (3/8 inch)#3

G 12 mm comb guide (1/2 inch)#4

H Right side comb (^*)

I Left side comb (^*)

J Comb

K Bottle of lubricating oil

L Cleaning brush

M Blades protective cover

N Protective cloth (^*)

O Clips (^*)

P Large brush (*)

Q Carrying case (*)

(^*) Only available in model Mithos

Titanium +

Safety advice and warnings

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe

these instructions may result in an accident.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

• Only use the appliance with the specific electric connector provided.

• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

• CAUTION: Maintain the appliance dry.

• CAUTION: Do not use the appliance near water.

• Do not use the appliance near bathtubs, showers or swimming pools.

• Do not use the appliance with damp hands or feet, or when barefooted.

• Do not wrap the cable around the appliance.

• Ensure that the electric cable does not get trapped or tangled.

• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.

• As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA .

• Do not touch the plug with wet hands.

Personal safety:

• Take the necessary measures to avoid starting the appliance involuntarily.
• Before using the appliance ensure that the tool is properly fixed in place.
• Do not touch any of the appliance's moving parts while it is operating.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if the on/off switch does not work.
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
• Disconnect the appliance from the mains when not in use, before cleaning, making any adjustment, battery charge or accessory change.

• This appliance is for household use only, not professional or industrial use.
  Ensure that this product is not used by the disabled, children or people unused to its handling.

• This appliance should be stored out of reach of children and/or the disabled.

• Never rest the appliance into a surface while in use.
• Do not use the appliance for more than 10 minutes at a time. Leave it to cool at rest for one hour before using it again.
• Do not use the appliance with pets or animals.

Service:

• The appliance has been oilied in origin. In order to maintain the appliance in a good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.

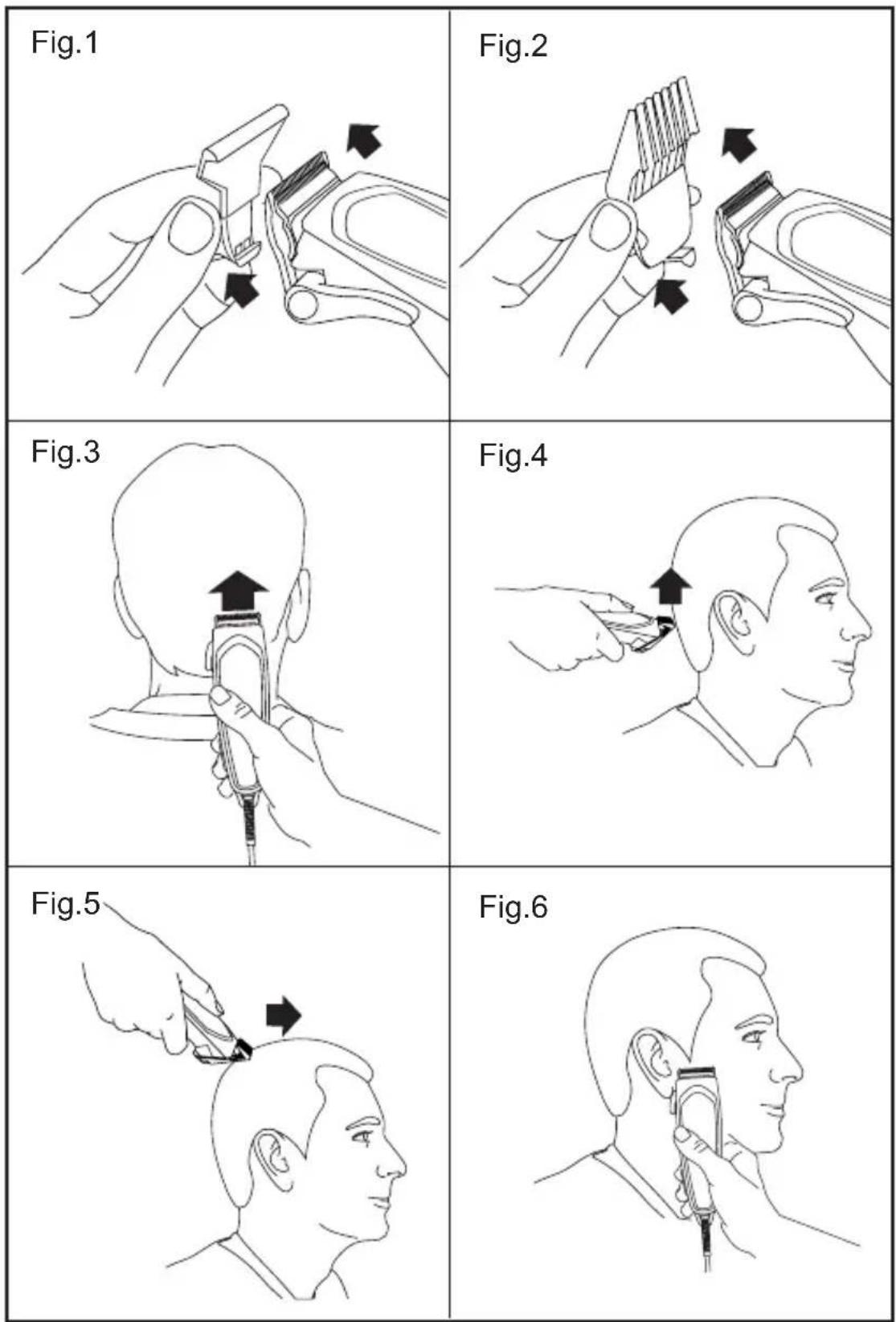

• Remove the protective lid (Fig. 1).
• Make sure that the blades are correctly aligned
• To attach a comb guide, pick it up by its two tips and press it against the blades of the appliance until it is firmly fixed. To remove it, just pull it out (Fig 2)

• Turn the appliance on using the on/off switch.

• You can restart the appliance using the switch, but once the control device has cooled, if it has not restarted do not force it and leave it to cool.

How to cut the hair:

• Situate the person whose hair you are going to cut so that the top of their head is at your eye level.
• To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the result.
• Hold the appliance in a calm and relaxed manner in order to ensure maximum control of the cut and a uniform result. Proceed to use short cuts gradually going around the head.
• Leave the hair a little longer than desired length as it can always be altered later.
• While working adapt the comb / comb guide to the desired result.
• At regular intervals, stop cutting in order to comb the hair and check the results so far.

Step 1 Nape:

• Attach comb guide size: 3mm o 6mm.
  Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.
• Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig. 3)

Step 2 The back of the head:

• Attach comb guide size 9-12mm and continue with the back of the head (Fig 4)

Step 3 The side of the head:

• Attach comb guide size: 3mm o 6mm to trim the sideburns.
• Attach the longest comb guide size 9mm / 12mm again and continue until you reach the top of the head.

Step 4 The top of the head:

• Attach comb guide size 9mm or 12mm, pass the appliance from the back to the front, against the growth of the hair (Fig 5). In some cases it's necessary to go over what you have done a second time from front to back.
• Attach comb guide size 3mm or 6mm when you want to achieve a more precise cut.
• Use comb guides size 9-12mm to leave hair at a longer length. Hold the hair up with the comb or the comb and your fingers and cut.
• Always work from the back to the front reducing the length between your fingers or the comb and the head gradually.

Step 5. Final touch

• Finally use the appliance without attaching any comb guides to the blades to cut the hair around the base of the neck, the sides of the neck and the ears.
• To make the sideburns straight, turn the appliance over to use the upper blades (Fig 6). Move the appliance adapting it the physiognomy of the head.

Once you have finished using the appliance:

• Turn the appliance off, using the on/off switch.

• Disconnect the appliance from the mains.

• Clean the appliance
• Put on the protective cover.

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• During the cleaning process, take special care with the blades, as they are very sharp.
• Clean the blades and the comb guides with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is important to clean off remaining hairs after each use.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

• In case of breakdown call the customer service telephone number indicated in the guarantee sheet. Do not attempt to disassemble or repair the appliance yourself as this may be

dangerous.

• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment

• This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of

waste electrical and electronic equipment (WEEE)

• This symbol signifies that.
  iance must not be used near

This appliance complies with Directive 2006/95/EC on Low Voltage, Directive 2004/108/EC on Electromagnetic Compatibility, Directive

2011/65/EC on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
