Product type	Wi-Fi Powerline Adapter Kit
Brand	TP-Link
Model	TL-WPA8730 KIT
Powerline standard	HomePlug AV2
Max Powerline speed	Up to 2000 Mbps
Wi-Fi	Dual band (2.4 GHz and 5 GHz) up to 1200 Mbps
Ethernet ports	1 Gigabit port on adapter, 1 Gigabit port on extender
Power socket	Pass-through socket (built-in female outlet)
Buttons	Pair, Reset, Wi-Fi (WPS)
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Approximately 5 W during operation
Security	AES 128-bit encryption
Compatibility	TP-Link Powerline adapters HomePlug AV/AV2
Warranty	3 years
Kit contents	1 Powerline adapter, 1 Powerline extender, 2 RJ45 Ethernet cables
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% non-condensing
Certifications	CE, RoHS
Management app	tpPLC (iOS and Android)
Maintenance	Clean with a soft, dry cloth
Repairability	Do not open or repair yourself; contact TP-Link customer support

Frequently Asked Questions - TLWPA8730 KIT TP-LINK

How do I reset my Powerline adapter?

Press and hold the Reset button (with a point) until all LEDs turn off and then back on.

What should I do if I have no Internet access via my Powerline network?

Check that all adapters are on the same electrical circuit, that the Powerline LEDs are on, that the Ethernet cables are properly connected, and that your Internet connection works directly on the modem.

My Powerline extender does not reconnect after moving it, what should I do?

Make sure the adapters are on the same circuit, re-pair them, and avoid interference sources (dryer, air conditioner).

How do I pair the Powerline adapters?

Press the Pair button on the adapter for 1 second, then within 2 minutes press the Pair button on the extender. The Powerline LED lights up when pairing is successful.

How do I copy the Wi-Fi settings from my router to the extender?

Use the WPS function: press the WPS button on the router, then within 2 minutes press the Wi-Fi button on the extender. The Wi-Fi LEDs flash quickly then stay on.

What does a red or blinking Powerline LED mean?

A red or blinking Powerline LED indicates poor signal quality. Move the extender to another power outlet.

Can I plug the Powerline adapter into a power strip?

No, plug it directly into a wall outlet. If the adapter has a pass-through socket, you can plug a power strip into the adapter's female outlet, but not another Powerline adapter.

How do I use the tpPLC app?

Download the tpPLC app from the App Store or Google Play, then follow the instructions to set up your Powerline network.

What is the maximum speed of this Powerline kit?

The maximum Powerline speed is 2000 Mbps, but actual speed depends on the quality of the electrical installation and distance.

Is this kit compatible with Powerline adapters from other brands?

Yes, it follows the HomePlug AV2 standard, but for optimal performance, it is recommended to use TP-Link adapters.

USER MANUAL TLWPA8730 KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

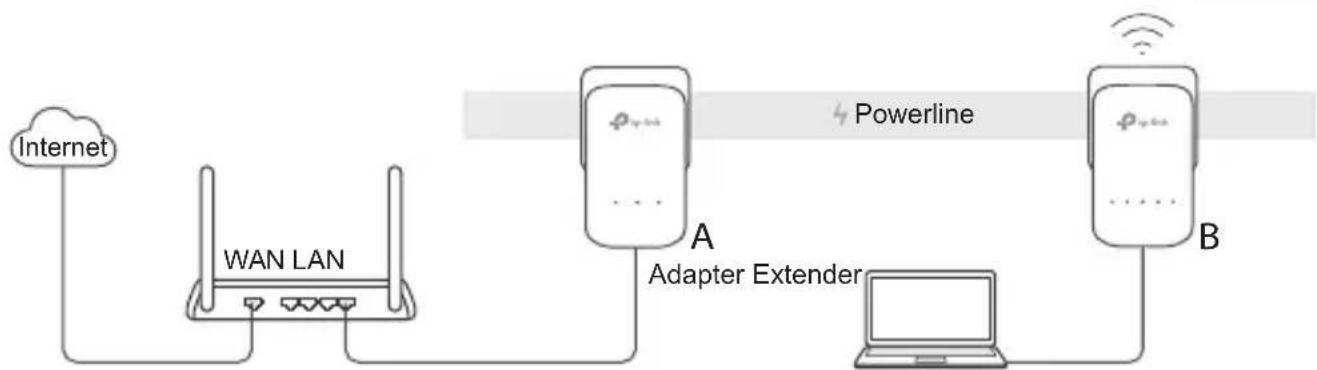


Deutsch

1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

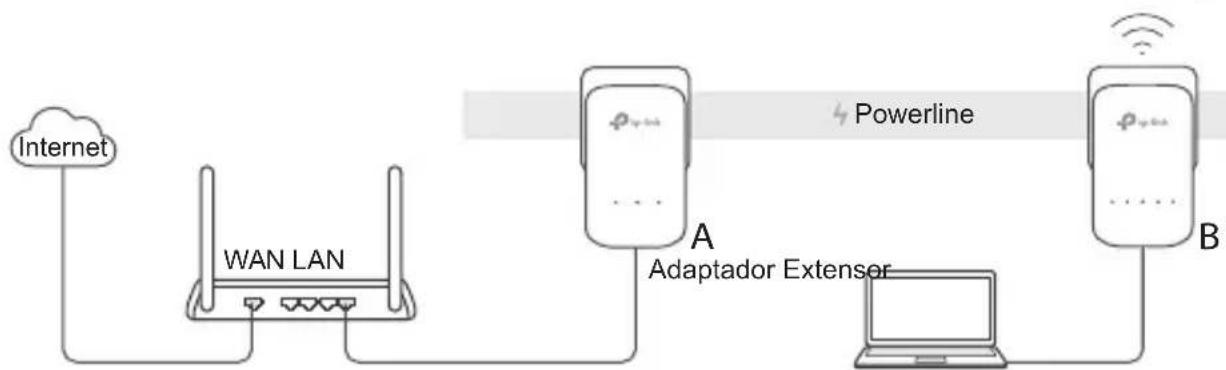


Español

Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
