UG 8330 - Tumble dryer MIELE - Free user manual and instructions

Product type	Heat pump dryer
Brand	Miele
Model	UG 8330
Drying capacity	8 kg
Dimensions (H x W x D)	85 x 60 x 65 cm
Weight	Approx. 60 kg
Electrical supply	230 V, 10 A, 50 Hz
Energy class	A+++
Annual energy consumption	Approx. 176 kWh
Noise level	62 dB(A)
Drying type	Heat pump
Drying programs	Cotton, synthetics, easy iron, wool, etc.
Special functions	Delayed start, timed drying, anti-crease
Lint filter	Washable, accessible on the door
Condenser	Regular cleaning required
Safety	Automatic shutdown in case of overheating, child lock
Mains connection	Standard power outlet, professional installation recommended
Maintenance	Clean the filter after each cycle, condenser every month
Repairability	Repairability index: 8.4/10
Spare parts	Available from Miele or authorized dealers

Frequently Asked Questions - UG 8330 MIELE

How to install the base for the Miele UG 8330 dryer?

The base must be fixed to the floor with the fixing kit (ref. 01497252). Use a spirit level, drill 4 holes of 12 mm diameter and 65 mm depth, insert S12 wall plugs, then screw the base. Then place the machine on the base and secure it with the provided fixing brackets. Do not forget to fix the machine to the base to prevent any risk of tipping.

What are the dimensions and weight of the UG 8330?

Approximate dimensions are: height 85 cm, width 60 cm, depth 65 cm. Weight is approx. 60 kg. For stack installation, a base is required.

What is the drying capacity of the Miele UG 8330?

The maximum capacity is 8 kg for cotton fabrics. For synthetics, reduce to 4 kg. Follow the program instructions for optimal drying.

How to clean the lint filter?

The filter is located on the drum door. Open the door, remove the filter, remove lint by hand or rinse it under warm water. Clean it after each cycle.

What to do if the dryer does not start?

First check the power supply (outlet, fuse). Make sure the door is properly closed. If an error message appears, refer to the manual. If the problem persists, contact Miele service.

Can you stack the dryer with a washing machine?

Yes, stacking is possible using a Miele stacking base (ref. UO8330). The base must be securely fixed to the floor and the upper machine must be fixed to the base. Follow the provided assembly instructions.

How to adjust the drying programs?

Turn the selector to the desired program (cotton, synthetic, etc.). You can adjust the drying level (ready to store, easy iron) and activate options like delayed start. Refer to the manual for details.

What is the energy consumption of the UG 8330?

The estimated annual consumption is about 176 kWh, which corresponds to class A+++. Actual consumption depends on usage and the program selected.

How to access the condenser for cleaning?

The condenser is located behind a flap at the bottom right of the appliance. Open the flap, remove the condenser by turning it. Clean it under running water every month. Put it back after drying.

Where to find spare parts for the Miele UG 8330?

Spare parts are available from Miele after-sales service, authorized dealers, or on the Miele website. Use the model number UG 8330 to identify parts.

USER MANUAL UG 8330 MIELE

4

5

6

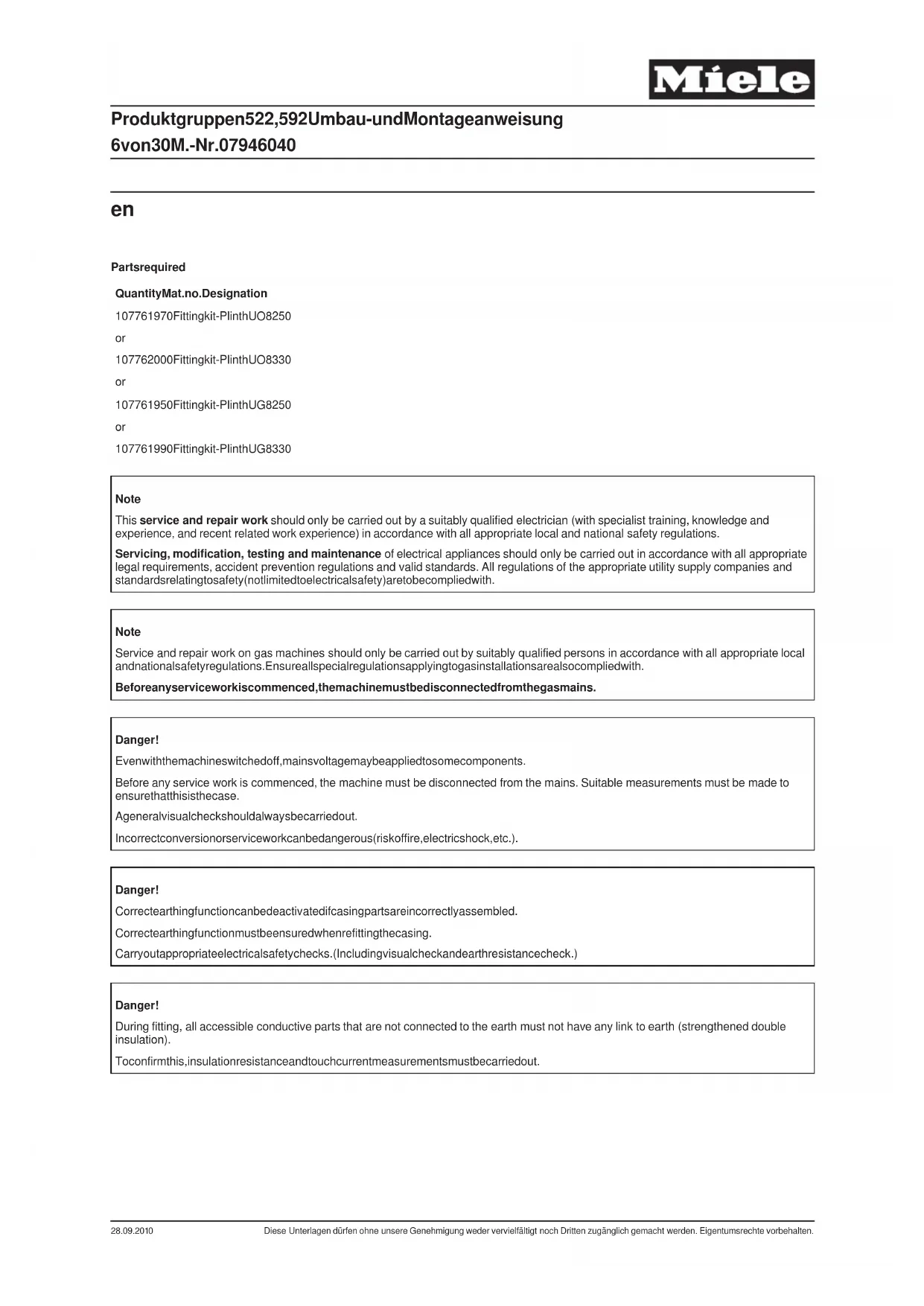

This service and repair work should only be carried out by a suitably qualified electrician (with specialist training, knowledge and experience, and recent related work experience) in accordance with all appropriate local and national safety regulations.

Servicing, modification, testing and maintenance of electrical appliances should only be carried out in accordance with all appropriate legal requirements, accident prevention regulations and valid standards. All regulations of the appropriate utility supply companies and standardsrelatingtosafety(notlimitedtoelectricalsafety)aretobecompliedwith.

Note

Service and repair work on gas machines should only be carried out by suitably qualified persons in accordance with all appropriate local andnationalsafetyregulations.Ensureallspecialregulationsapplyingtogasinstallationsarealsocompliedwith.

Beforeanyserviceworkiscommenced, themachinemustbedisconnectedfromthegasmains.

Danger!

Evenwiththemachineswitchedoff,mainsvoltagemaybeappliedtosomecomponents.

Before any service work is commenced, the machine must be disconnected from the mains. Suitable measurements must be made to ensure that this is the case.

Ageneralvisualcheckshouldalwaysbecarriedout.

Incorrectconversionorserviceworkcanbedangerous(riskoffire,electricshock,etc.).

Danger!

Correctearthingfunctioncanbedeactivatedifcasingpartsareincorrectlyassembled.

Correctearthingfunctionmustbeensuredwhenrefittingthecasing.

Carryoutappropriateelectricalsafetychecks.(Includingvisualcheckandearthresistancecheck.)

Danger!

During fitting, all accessible conductive parts that are not connected to the earth must not have any link to earth (strengthened double insulation).

To confirm this, insulation resistance and touch current measurements must be carried out.

Riskofinjuryduringfitting.

• Risk of electric shock. Before any service work is commenced, the machine must be disconnected from the mains.
- Fitting can only be carried out with the washing machine or tumble dryer not installed. For deinstallation, see the appropriate operating instructions.

- Riskofcrushing. Wearslip-proofworking gloves and safety shoes.

- Risk of crushing. When carrying out work, ensure that parts of the body, especially the hands and feet are not positioned under or betweenmachines.

• Risk of accident. Ensure that children or pets cannot access the work area while fitting work is being carried out.

- Risk of injury, particularly to the back. The relation of the weight of the machine to the physical strength of the technician must be taken into account. Form machineweight details, seetheappropriateoperating instructions.

Riskoftopplingover.Riskofinjuryduetoincorrectfitting.

•Alwaysboltthemachinetotheplinth.

- With a single machine installation, secure the plinth to the floor with the fastening accessory, Mat. no. 01497252, supplied with the kit. This is supplied with the kit.

- Withfloorfastening,secureallfourplinthfeet.

Note

TheplinthmayonlybeusedwiththefollowingMielemodels:

•UO8250/UG8250=PT8251,PT8251COP,PT8253,PT8255,PT8257 UO8330/UG8330=PT8331,PT8331COP,PT8333,PT8335,PT8337

Note

Toolsrequired:

•Spiritlevelforplinthlevelling

- 1xDrill

- 1xDrillbit∅12mm

- 1xOpenspanner13mmforM8nut

•2xOpenspanner10mmforM6nut

- 1xTorx20screwdriver

Note

The fitting kit - Plinth UO 8250 Mat. no. 07761970, or fitting kit - Plinth UG 8330, Mat. no. 07762000, contains the following:

•1xPlinthUO8250orUO8330

• 1 x Floor fastening accessory pack containing the following: 4 x Clamp, 8 x Galvanised washer B6.4, 4 x Bolt M6 x 20, 4 x Nut M6, 4xRawlplugS12,4xWasher8.4,4xHexagonheadwoodscrew8x65,20xSpacerplate,8xWasher38mm∅

- 1 x Information sheet with these instructions and commissioning card. These fitting instructions are called "Fitting instructions - PlinthUO8250/UO8330,UG8250/UG8330".

Note

The fitting kit - Plinth UO 8250 Mat. no. 07761950, or fitting kit - Plinth UG 8330, Mat. no. 07761990, contains the following:

• 1 x Plinth UO 8250 or UO 8330, 1 x Front panel, 2 x Side panel, 8 x Raised-head screw 4.8 x 9.5 and 4 x Rubber bumpers with fittingkit-PlinthUG8250.Mat.no.07761950.
• 1 x Floor fastening accessory pack containing the following: 4 x Clamp, 8 x Galvanised washer B6.4, 4 x Bolt M6 x 20, 4 x Nut M6, 4xRawlplugS12,4xWasher8.4,4xHexagonheadwoodscrew8x65,20xSpacerplate,8xWasher38mm∅
- 1 x Information sheet with these instructions and commissioning card. These fitting instructions are called "Fitting instructions - PlinthUO8250/UO8330,UG8250/UG8330".

Listofillustrations:

-Fig.1:Plinthheight

-Fig.2:Floorfasteningholes

-Fig.3:Floorfasteningholedimensions

-Fig.4:Floorfastening

-Fig.5:Clampfitting

-Fig.6:PlinthUG8250/UG8330

• Disconnect the machine from the electric mains supply provided in accordance with all relevant regulations and the gas supply (if applicable), and ensure utilities cannot be switched on again in error.
  -Placetheplinthinpositionandmarktheholepositions,seeFig.2,Pos.1.

Note

Takecaretocomplywiththeminimumspacingsgivenintheinstallationplan.

Thegapbetweenhemachineandawallatthesidemustbeatleast10mm.

-Drill4holes12mm∅approx.65mmdeepinthefloorasshown, Fig.3.

-Insert4S12Rawlplugsflushintheholes, Fig.4, Pos.1.

– Fit spacer plates, Fig. 4, Pos. 2, as appropriate and use the spirit level to level the plinth.
- Secure the plinth with four 8 x 65 hexagon head wood screws, Fig. 4, Pos. 3, 8.4 washers, Fig. 4, Pos. 4, and 38 mm ∅ washers, Fig.4, Pos.5, tothefloor.
-Placethemachineontheplinth.

Danger!

Risk of injury, particularly to the back. The relation of the weight of the machine to the physical strength of the technician must be taken into account. Formachineweightdetails,seetheappropriateoperatinginstructions.

Risk of crushing. When carrying out work, ensure that parts of the body, especially the hands and feet are not positioned under or betweenmachines.

-Fit4clamps, Fig.5, Pos.1, overthemachinefeet.

– Insert four M6 bolts, Fig. 5, Pos. 2, with B6.4 galvanised washers, Fig. 5, Pos. 3, from above through the existing holes.
- Secure the 4 clamps from below with 38mm washers, Fig. 5, Pos. 4, B6.4 galvanised washers, Fig. 5, Pos. 3, and M6 nuts, Fig.5, Pos.5,tightenedfrombelow.

Danger!

Risk of toppling and falling! It is absolutely essential to secure the plinth to the floor and the machine to the plinth.

Note

Matchtheheightoftheventduct.

Note

Fixingmaterialsforafloatingscreedflooraretobeprovidedonsite.

PlinthUG8250/UG8330

-Fitthe4rubberbumpersintheplinthsides, Fig.6, Pos.1.

• Fit the 2 side panels in the slots in the dryer base plate, Fig. 6, Pos. 2, and secure them with the raised-head screws 4.8 × 9.5 , Fig.6, Pos.3.
• Fit the front panel Fig. 6, Pos. 4, and secure it with the raised-head screws 4.8 × 9.5 , Fig. 6, Pos. 5.
  -Carryoutappropriatesafetychecks.
  – Reconnect the machine to the electric mains supply provided in accordance with all relevant regulations, and the gas supply (if applicable).

en

This service and repair work should only be carried out by a suitably qualified electrician (with specialist training, knowledge and experience, and recent related work experience) in accordance with all appropriate local and national safety regulations.

Servicing, modification, testing and maintenance of electrical appliances should only be carried out in accordance with all appropriate legal requirements, accident prevention regulations and valid standards. All regulations of the appropriate utility supply companies and standardsrelatingtosafety(notlimitedtoelectricalsafety)aretobecompliedwith.

Note

Service and repair work on gas machines should only be carried out by suitably qualified persons in accordance with all appropriate local and national safety regulations. Ensure that all special regulations applying to gas installations are also complied with.

Beforestartinganyservicework, themachinemustbedisconnectedfromthegassupply.

Danger!

Evenwiththemachineswitchedoff, voltagemaybeappliedtosomecomponents.

Before starting any service work, the machine must be disconnected from the power supply. Suitable measurements must be made to ensure that this is the case.

Ageneralvisualcheckshouldalwaysbecarriedout.

Incorrectconversionorserviceworkcanbedangerous(riskoffire,electricshock,etc.).

Danger!

Correctgroundingfunctioncanbedeactivatedifcasingpartsareincorrectlyassembled.

Correctgroundingfunctionmustbeensuredwhenreassemblingthecasing.

Carryoutappropriateelectricalsafetychecks, includingavisualcheckandagroundresistancecheck.

Danger!

During installation, all accessible conductive parts that are not connected to ground must not have any link to ground (strengthened doubleinsulation).

To confirm this, insulation resistance and touch current measurements must be carried out.

Riskofinjuryduringinstallation:

• Risk of electric shock. Before starting any service work, the machine must be disconnected from the power supply.
• Installation can only be carried out with the washing machine or tumble dryer not installed. For deinstallation, see the appropriate operating instructions.

- Riskofcrushing. Wearslip-proofworking gloves and safety shoes.

- Risk of crushing. When carrying out work, ensure that parts of the body, especially the hands and feet, are not positioned under or between machines.

• Risk of accident. Ensure that children or pets cannot access the work area while installation work is being carried out.

- Risk of injury, particularly to the back. The relation of the weight of the machine to the physical strength of the technician must be taken into account. Formachineweightdetails, seetheappropriateoperatinginstructions.

Riskoftopplingover.Riskofinjuryduetoincorrectinstallation.

•Alwaysboltthemachinetothestand.

- With a single-machine installation, secure the stand to the floor with the fastening accessory, mat. no. 01497252, supplied with the kit.

- Usethefloorfasteningtosecureallfourstandfeet.

Note

ThestandmayonlybeusedwiththefollowingMielemodels:

•UO8250/UG8250=PT8251,PT8251COP,PT8253,PT8255,PT8257 UO8330/UG8330=PT8331,PT8331COP,PT8333,PT8335,PT8337

Note

Toolsrequired:

•Bubblelevelforstandleveling
•Drill
•12mmdrillbit
•13mmwrenchforM8nut
•210mmwrenchesforM6nut
•T-20screwdriver

Note

Installationkitno.07761970or07762000containsthefollowing:

•UO8250orUO8330stand

• Floor fastening accessory pack containing 4 clamps, 8 galvanized B6.4 washers, 4 M6 x 20 bolts, 4 M6 nuts, 4 S12 rawl plugs, 48.4 washers, 48x65hexwoodscrews, 20 spacers, 838mmwashers
• Information sheet with these instructions and accessing card. These installation instructions are called, "Installation Instructions - StandUO8250/UO8330,UG8250/UG8330."

Note

Installationkitno.07761950or07761990containsthefollowing:

• UO 8250 or UO 8330 stand, 1 front panel, 2 side panels, 8 4.8 x 9.5 raised-head screws and 4 rubber bumpers (for UG 8250 stand)
  • Floor fastening accessory pack containing 4 clamps, 8 galvanized B6.4 washers, 4 M6 x 20 bolts, 4 M6 nuts, 4 S12 rawl plugs, 48.4 washers, 48x65hexwoodscrews, 20 spacerplates, 838mmwashers
• Information sheet with these instructions and accessing card. These installation instructions are called, "Installation Instructions - StandUO8250/UO8330,UG8250/UG8330."

Listofillustrations:

-Fig.1, Standheight

-Fig.2, Floorfasteningholes

—Fig.3, Floorfasteningholedimensions

-Fig.4, Floorfastening

-Fig.5, Clampinstallation

-Fig.6,UG8250/UG8330stand

Table1: Abbreviations

-Shutoffthegassupply,ifapplicable.

• Disconnect the machine from the electrical supply provided in accordance with all relevant regulations and the gas supply (if applicable), and ensure that utilities cannot be switched on again in error.
  -Placethestandinpositionandmarktheholepositions;seeFig.2,Pos.1.

Note

Takecaretocomplywiththeminimumspacingsgivenintheinstallationplan.

Thegapbetweenhemachineandawallatthesidemustbeatleast10mm.

-Drill412mmholesapproximately65mmdeepinthefloorasshowninFig.3.

– Install spacer plates (Fig. 4, Pos. 2) as appropriate and use the bubble level to level the stand.
- Secure the stand to the floor with four 8 x 65 hex woodscrews (Fig. 4, Pos. 3), 8.4 washers (Fig. 4, Pos. 4) and 38mm washers (Fig.4, Pos.5).
-Placethemachineonthestand.

Danger!

Risk of injury, particularly to the back. The relation of the weight of the machine to the physical strength of the technician must be taken into account. Formachineweightdetails,seetheappropriateoperatinginstructions.

Risk of crushing. When carrying out work, ensure that parts of the body, especially the hands and feet, are not positioned under or betweenmachines.

-Install4clamps(Fig.5,Pos.1)overthemachinefeet.

– Insert four M6 bolts (Fig. 5, Pos. 2) with B6.4 galvanized washers (Fig. 5, Pos. 3) from above through the existing holes.
- Secure the 4 clamps from below with 38mm washers (Fig. 5, Pos. 4), B6.4 galvanized washers (Fig. 5, Pos. 3) and M6 nuts (Fig.5, Pos.5), tightened from below.

Danger!

Riskoftopplingandfalling!!Itisabsolutelyessentialtosecurethestandtothefloorandthemachinetothestand.

Note

Matchtheheightoftheventduct.

Note

Materialsforsecuringafloatingscreedflooraretobeprovidedonsite.

UG8250/UG8330stand:

-Installthe4rubberbumpersinthestandsides;seeFig.6,Pos.1.

• Install the 2 side panels in the slots in the dryer base plate (Fig. 6, Pos. 2) and secure them with the 4.8 × 9.5 raised-head screws (Fig.6, Pos.3).
  — Install the front panel (Fig. 6, Pos. 4) and secure it with the 4.8 x 9.5 raised-head screws (Fig. 6, Pos. 5).
  -Carryoutappropriatesafetychecks.
  – Reconnect the machine to the electrical supply provided in accordance with all relevant regulations, and the gas supply (if applicable).
