USER MANUAL DOC Longboard NILOX

Thanks for choosing DOC LONGBOARD.

The digital manual can be downloaded from the Nilox website. Enter the DOC LONGBOARD code in the search field.

TECHNICAL SUPPORT

This product is warranted in accordance with current legislation; please contact your dealer if you require technical assistance and / or warranty service.

INSTRUCTIONS FOR THE ENVIRONMENT

This product may contain substances that can be harmful to the environment and to the human health, if not disposed of properly. We therefore provide you the following information in order to optimize use of natural resources. The electrical and electronic products should not be disposed of in the normal household waste, but should be properly collected in order to be correctly treated. The symbol of the crossed bin shown on the product and in this page reminds the need to properly dispose of the product at the end of its life. In this way you can avoid that a non-specific treatment of the

substances contained in these products, or an improper use of parts of them can lead to harmful consequences for the environment and human health. Moreover, you can contribute to the recovery, recycling and reuse of many of the materials composing these products. This is why the manufacturers and distributors of electrical and electronic systems organize proper collection and disposal of the equipment themselves. At the end of the product's lifespan, please contact your dealer for instructions regarding disposal. When purchasing this product your distributor will inform you of the possibility to replace your old device with a new one, on condition that the type of product and its functions are the same or, If the dimensions are not over 25~cm the EEE (Electrical and Electronic Equipment) can be returned without any equivalent product purchase obligation. Disposal of the product in any other way will be liable to the penalties foreseen by the laws in force in the country where the product is disposed of. Moreover, we suggest adoption of additional measures favourable to the environment: recycling the inner and outer packaging and disposing of any used batteries correctly. With your help, we can reduce the amount of natural resources used in the manufacture of electrical and electronic equipment, minimize use of landfills for product disposal and improve quality of life by preventing the release into the environment of potentially dangerous substances.

BATTERY DISPOSAL

The product contains a battery, which must be disposed of separately from general household waste. Throw the battery in the appropriate containers. Collection and recycling of batteries helps protect the environment and preserve material resources, through the recovery of valuable materials.

The battery in this product might not be directly removable. If this is the case,

instructions for its removal by qualified personnel can be found online at: ftp://ftp.hellatron.it (username: disposal@hellatron - password: hellatron). For your own safety, do not attempt to remove the battery. Incorrect removal of the battery could damage the battery and device, cause accidents and/or make the device unsafe. We shall not be held liable for any losses or damage caused by failure to comply with these warnings and precautions. The product and accessories shown in this user manual may vary depending on the country in which the products are distributed

WARRANTY VALIDITY

One year if the product is purchased by a natural or legal person who uses it in business as an entrepreneur, sales representative, craftsman or professional or his/her intermediary.
- Two years if the product is purchased by a consumer or user (the natural person who does not use it in business as an entrepreneur, sales representative, craftsman or professional).
Six month on the battery, regardless of the occupation of the product purchaser.
The warranty covers factory or material defects.
Product support and warranty: visit www.nilox.com to learn more.

WARRANTY RESTRICTIONS

The warranty is null and void in the following cases:

No proof of purchase (invoice or receipt).
- Tampering with and forcing parts.
- Other defects due to: inappropriate use, unauthorized changes, operations not in accordance with technical product specifications; incorrect maintenance; defects due to use of any element not designed to be used with the product; technical work performed by unauthorized personnel.

The above refers to consumer goods warranty principles pursuant to Directive 1999/44/EU.

BRIEF DECLARATION OF CONFORMITY

This device complies with European Parliament and European Commission Directive 2014/53/EU concerning radio equipment and peripheral devices for telecommunications and their mutual recognition. The complete declaration of conformity is available on line at ftp:\ftp.hellatron.it (user name: declaration@hellatron - password: hellatron). This device can thus be used in all EEC countries and in all countries where Directive 2014/53/EU applies, without

restrictions, except for:

Italy (IT):

This peripheral complies with the National Radio Interface and meets requirements on Frequency Assignment. The use of this device beyond the areas where the owner works requires general authorisation.

Thanks for choosing DOC LONGBOARD.

This guide provides the information needed for your product to work correctly.

For more details and to be constantly updated on the product's technical characteristics please read the online manual.

Connect to the Nilox web site and search for the specific section for downloading manuals.

Enter the DOC LONGBOARD code appearing on the pack in the "PRODUCT OR MODEL CODE" field, search for the technical information file and then download the complete manual.

PRECAUTIONS FOR USE

TO GUARantee YOUR AND OTHERS' SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY. RECKLESS VEHICLE USE CAN BE HAZARDOUS. LOSS OF CONTROL, COLLISION OR FALLING COULD CAUSE INJURY, INCLUDING SERIOUS INJURY, TO THE USER AND/OR OTHER PEOPLE. TO REDUCE THESE HAZARDS, PLEASE READ AND FOLLOW ALL THE INSTRUCTIONS AND WARNINGS CONTAINED IN THE USER MANUAL.

DOC LONGBOARD IS NOT A TOY.
- Check the self-blocking nuts and screws are correctly fixed - if they loosen they could cause the product to be less effective.
- Users are held responsible for checking in advance what safety rules apply in the country where they intend to use the DOC LONGBOARD. DOC LONGBOARD use may be prohibited in public areas or in areas subject to traffic regulations.
- Avoid use on gravel, sand, grass, slippery or wet surfaces. DOC LONGBOARD was designed to be used on smooth and dry surfaces.
- Never drive near cliffs or precipices. DOC LONGBOARD was not designed to be driven in these settings/terrains. The retailer, distributor, importer and manufacturer cannot be held liable for driver injuries or DOC LONGBOARD and/or third party damages caused by this type of conduct.
- Never drive DOC LONGBOARD with several people on the board, this could cause you to lose control of the vehicle.
- Never let unattended children near DOC LONGBOARD: this could be a hazard.
- Do not store the batteries near heat sources, they could explode.
- Do not leave the charger in damp or wet places and do not use it if damaged. Routinely check the cable, plug and external casing. If damaged, do not use it until repaired.
- Never use DOC LONGBOARD if not in perfect conditions.
- Never use DOC LONGBOARD if you are not in perfect psycho-physical conditions. People who suffer from physical or mental disabilities should not, or should be prevented from using DOC LONGBOARD.
DOC LONGBOARD uses electricity and requires a transformer.
- Warning: electrical shock risks may arise using the transformer.
We highly discourage use by anyone who cannot comfortably stand on it.
- Always learn and observe local laws and regulations applicable where the DOC LONGBOARD is used.
Always keep away from car and engine powered vehicle traffic and only use DOC LONGBOARD where permitted and cautiously.
- Wet, slippery, cracked, irregular or rough surfaces can reduce traction and increase the risk of accidents.
- Be careful of potential obstacles that could get caught in the wheels or force you to suddenly swerve or lose control.
- Do not drive in the rain or when the outdoor temperature risks freezing surfaces.
- Never submerge DOC LONGBOARD in water since electrical components could be damaged by water or generate hazardous conditions.
Regularly lubricate the ball bearings of the wheels with the exception of the drive wheel.
Any sharp edges or splinters in the board caused by use should be removed using sandpaper.

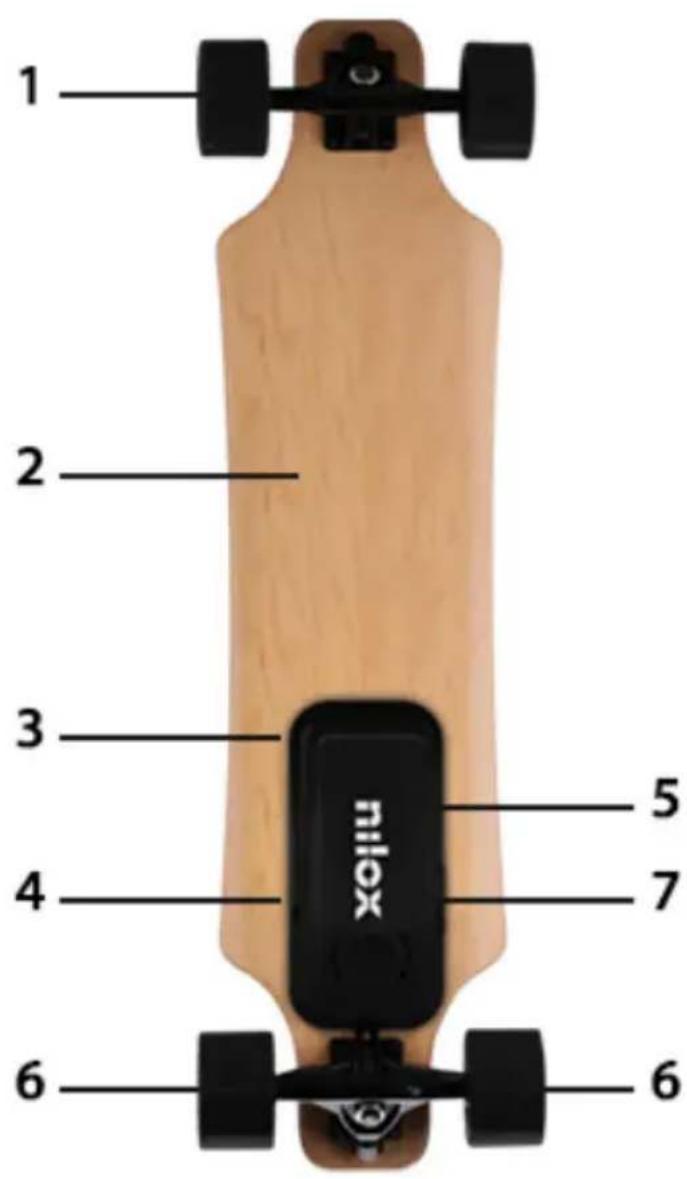

SKATE

1) Front swivelling wheels
2) Board
3) Battery
4) Power on

5) Battery status led
6) Rear drive wheels
7) Power inlet

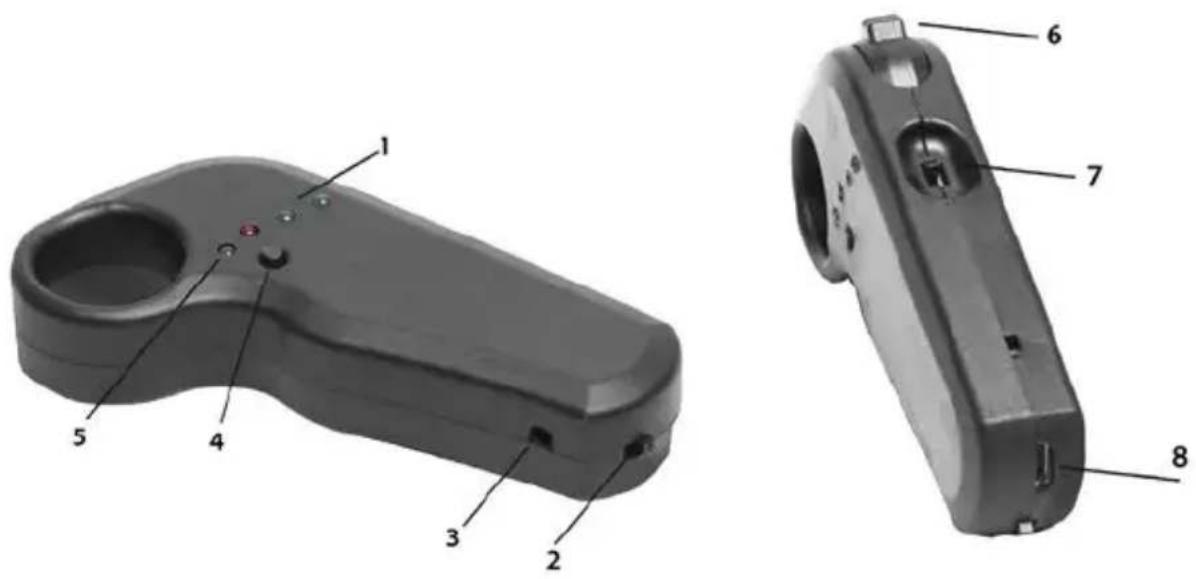

REMOTE CONTROL

DOC LONGBOARD is controlled entirely through a remote control.

1) Battery status led
2) On/Off
3) Binding button
4) Forward/back button
5) Remote control-skate binding status signal
6) Accelerator/Brake
7) Speed changer
8) USB port for charging

USING DOC LONGBOARD

DOC LONGBOARD is a self-balancing electric skateboard.

Easy to use and entertaining, but most importantly it is environmentally friendly.

WORKING PRINCIPLE

DOC LONGBOARD uses advanced technology to maintain balance.

Thanks to a gyroscope, an accelerometer and an algorithm for their combined use, DOC LONGBOARD offers an impression of "floating" on the surface.

DOC LONGBOARD can reach a maximum speed of approximately 30 kilometres an hour, WHEN GOING ROUND CURVES SLOW DOWN CONSIDERABLY TO AVOID BEING THROWN OFF THE BOARD BY CENTRIFUGAL FORCE.

FIRST STEPS

Switch on DOC LONGBOARD and the remote control.

Put one foot on and check your are properly balanced on the SKATE, then stand with both feet. Start the SKATE using the control stick.

DOC LONGBOARD is a lot more sensitive in Speed mode.

• Move the control stick gradually.
  Always keeps your legs apart on the board.
  Try to keep your body's barycentre as low as possible.
  Bend forwards in the acceleration phase.
• Bend backwards when braking.
• Turning on DOC LONBOARD is like turning on a traditional skateboard.

SPEED LIMITS

DOC LONGBOARD lets you reach high speeds.

Drive intelligently and safely to avoid injuring yourself and others.

SLOWING AND BRAKING

When the command stick is released it automatically returns to neutral position and the drive wheels will no longer have any drive - they will move by inertia.

If the stick is moved into the opposite position the wheels will block immediately.

ATTENTION: THE BRAKING EFFECT ONLY ACTS ON THE DRIVE WHEELS.

BEAR THIS IN MIND DURING USE.

FEASIBLE DISTANCE

The maximum distance DOC LONBOARD can cover depends on a number of factors:

Topography: the feasible distance on smooth, flat roads increases, whereas it decreases if moving uphill.
Weight: the user's weight will influence the feasible distance.
- Temperature of use: cold temperatures decrease the battery's efficiency.
- Maintenance: if DOC LONGBOARD is charged correctly the duration of the battery will increase considerably.
- Speed and driving style: driving at a moderate, constant speed increases the feasible distance. Stopping, starting, accelerating and decelerating frequently decrease duration.

BATTERY

CHARGELEVEL

DOC LONGBOARD is equipped with status LED visible on the battery.

A battery with low charge level causes incorrect driving, with the risk of damaging the drive wheels, shortening the battery's life and, most importantly, there is the risk of falling.

BATTERY CHARGING

To charge the battery, only use the charger supplied with DOC LONGBOARD.

• Remove the cover cap and insert the plug.
• Connect the charger to the electrical mains.

• Stop charging when the LED turns green and close the power port.

• RED: charging

• GREEN: charge cycle completed

BATTERY MANAGEMENT AND CHARGE

Charge time: approx. 150-210 minutes.
Make sure DOC LONGBOARD is OFF when charging.

• Check the entry connector is not dirty or wet.
• Insert the power cord in the DOC LONGBOARD power port and insert the other end in an electrical socket.
  Only use the certified DOC LONGBOARD charger.
• Do not deform, alter or remove the battery.
• Do not charge or leave the battery near heat sources.
• Avoid connecting the + and - poles with metallic objects.
• Avoid subjecting the battery to violent hits such as throws or falls.
• Charge the battery at room temperature.
• Do not charge the battery in very humid areas.
• Do not use the charger if the cables or connectors are damaged.
• Please charge and store the battery in compliance with local laws and regulations. If not, the battery may be damaged.

WARNING FOR USE AND SAFETY

In order to reduce any type of risk, we recommend you carefully heed the following warnings. Use DOC LONGBOARD sensibly and responsibly.

DOC LONGBOARD is a hi-tech transport vehicle, but its incorrect and inappropriate use can cause injuries.

• Always wear shoes, a helmet and appropriate safety equipment such as knee pads, elbow pads and wrist bands. Using a firmly buckled skate helmet that provides cranial protection is recommended.
• Do not use without proper training; please read the manual before use. Otherwise, you could lose control of the vehicle and fall.
• Use by minors under 16 years of age is prohibited. Adult supervision is required for use by minors under 16.
  Pregnant women and people with disabilities should not use this vehicle.
• Do not use DOC LONGBOARD under the influence of alcohol, drugs or other substances that could alter the user's reflexes.
• Do not transport objects during use.
• Pay attention to surrounding objects when driving. Keeping a good view of the space used is essential to maintaining control.
• When driving, make sure that both feet are correctly placed on the board.
  We recommend wearing comfortable clothes during use.
• DOC LONGBOARD was designed to transport a single individual. Use by several individuals simultaneously is prohibited.
  We recommend you do not suddenly or abruptly accelerate or stop the vehicle; these behaviours could cause you to lose control.
• Check DOC LONGBOARD before use.
• Perform maintenance after use.
• Do not use in dark or dimly lit areas.
  Make sure driving speed always permits safe stopping at any time and in any situation.
  We recommend you maintain a suitable safety distance from other vehicles when driving.
  Use with ice or snow, as well as on rocks, branches or other types of vegetation or with other objects on the ground that could jeopardise appropriate vehicle control is prohibited.
  Use in flammable environments is strictly prohibited.
  Do not climb on or off at high speed, on terrains that are uneven or with very steep slopes.
• Do not perform tricks, jumps or other hazardous manoeuvres.
  Do not rest any object on the board except your feet.
• Do not keep fingers near moving parts to avoid accidents.

EN

• Do not place metal or sharp objects on the board.
• Do not use thinners or solvents to clean push scooter parts.
• Do not clean DOC LONGBOARD with a pressure cleaning or by submerging it in water; use a damp cloth to clean plastic parts.
• Do not puncture or remove any DOC LONGBOARD plastic part.
• Jumping on DOC LONGBOARD could be dangerous.
  Use in areas that allow to increase skill with the vehicle, not on paving or roads where users of skate boards or other people have had severe accidents.
• Learn everything slowly, including new tricks. When you lose your balance do not wait until you fall - get off and start again. Start on gentle slopes. Next, move to slopes where the speed allows you to get off the board without falling.
  The most serious injury resulting from skate board use are bone fractures, so first learn to fall (rolling if possible) without a skate board.
• Beginners with skate boards should try with a friend or parent. The majority of severe accidents occur in the first month of use.
  Before getting off DOC LONGBOARD check where you may end up because you may hit or injure people nearby.
• Join the local club and learn more. Prove you are a good user of the vehicle and pay attention to yourself and to other people.
  MAKE SURE THE BATTERY IS FULLY CHARGED BEFORE USE.
• DOC LONGBOARD IS EQUIPPED WITH ELECTRONIC COMPONENTS UNDER ITS BOARD. PLEASE FOLLOW THE INSTRUCTIONS BELOW TO AVOID DAMAGING THEM.

UPHILL

Do not use the skateboard uphill in the start-up phase, as this will reduce the battery life and may cause an explosion and accidents. The skateboard should therefore be activated on a level surface or on a more gentle incline before you continue uphill.

USE AND TRAFFIC RULES

IN SOME COUNTRIES DOC LONGBOARD MUST BE USED ON PRIVATE GROUNDS ONLY WHERE NORMAL ROAD SAFETY RULES DO NOT APPLY. IN PARTICULAR, IN SOME COUNTRIES, NATIONS OR CITIES AND TOWNS, BOARDS AND OTHER POWERED SPORTS VEHICLES (SKATES, HOVERBOARDS, SCOOTERS, ETC.)

CANNOT BE USED ON ROADS AND PAVEMENTS.

USERS ARE RESPONSIBLE FOR CHECKING THE SAFETY REGULATIONS APPLICABLE IN THE COUNTRY WHERE THEY INTEND TO USE THE DOC LONGBOARD BEFORE USING IT.

DOC LONGBOARD MAINTENANCE AND MANAGEMENT

CLEANING

Always close the power port before cleaning.
Always disconnect DOC LONGBOARD from the charger before cleaning it.
- Do not use thinners or other solvents to clean since they could damage surfaces.
Use a damp cloth to clean plastic parts.
Do not wash DOC LONGBOARD with running water.
To remove mud or dirt from underneath the vehicle use a plastic brush.

BATTERY

• Turn off DOC LONGBOARD before charging it. Connect it to a power socket using the supplied cord and charger.
  The charger LED indicates the battery/charge level.
• When the battery is fully charged, the LED turns green, so disconnect DOC LONGBOARD from the charger.
• Charging for too long (>4 hours) could damage the battery, reducing its duration.
  To extend the battery's life, store DOC LONGBOARD when it is fully charged.
  Store in a dark place at a temperature between 5 - 25^
  If not used for a long period of time, charge the battery once a month.
  Battery life depends on various factors such as weather, storage and use.
• Do not use the battery in the following cases: abnormal smells and/or excessive heat. Liquid leaks.
• Do not touch any substance leaking from the battery.
• Do not allow children or animals to touch the battery.
  DOC LONGBOARD cannot be used when charging.
• Batteries contain hazardous substances. Do not open the battery and do not insert anything inside it.
  Only use the supplied battery charger.
  If over-charged, lithium batteries may explode.
• Do not throw in fires.

TRANSPORT

If you intend to transport DOC LONGBOARD, including the battery, by plane or other transportation means managed by third parties, contact the local authorities and carrier in advance for information on transport restrictions or limits. Lithium batteries are considered hazardous substances in many countries. Before travelling, make sure access and transport are permitted. International law prohibits shipping single lithium batteries by air.

If you ship your DOC LONGBOARD, the battery must be inside.

STORAGE

Store in a room with temperature between 5 - 25^

If not continuously used, charge the DOC LONGBOARD battery once a month.

TECHNICAL SPECIFICATIONS

DOC LONGBOARD

Weight

Dimensions

Minimum weight of user

Maximum weight of user

Max speed

Feasible distance with full charge

Maximum slope

Battery

Motor

Motor type

Charge time

Input power supply

Output power supply

About 6,5 kg

920x240x140mm

20kg

100 kg

30 km/h with approximately 80 kg driver

About 15-20 Km (variable depending on various factors such as temperature, weight, slope steepness, etc.)

15°

Li-lon 36V DC 4,4Ah

In wheels 250W X 2

Brushless

150-210 minutes

100-240V,50Hz/60Hz,2A

DC42V 1.5A max

SYMBOLS AND PICTOGRAMS ON THE PACKAGING

The product meets European safety directive requirements.

The product contains a battery. At the end of the battery working life in the product, it must be separately discarded from generic waste (see introduction).

The product contains electric and electronic equipment. At the end of the product working life, it cannot be discarded with normal urban waste and must be sent to separate collection (see introduction).

Read the user's manual carefully.

Wear appropriate safety equipment such as knee pads, elbow pads and wrist bands. Use a well-buckled helmet that provides cranial protection.

Use by minors under 16 years of age is prohibited.

Adult supervision is required for use by minors under 16.

Minimum weight for use 20kg , maximum weight 100kg .

EN

DOC LONGBOARD was thought and designed to be used by one person at a time only. Never use it with one or more other people.

Users are held responsible for checking what safety rules apply in the country where they intend to use the DOC LONGBOARD. Check the possibilities of driving in private areas or if driving on public ground is allowed (and the driving rules that apply).

Do not use DOC LONGBOARD under the influence of alcohol, drugs or other substances that could alter the user's reflexes.

Li-Ion 36 V DC 4,4Ah

Produced and Imported by Hellatron S.p.A.

Legal: Via Monte Rosa, 21 - 20149 Milano - Italy
