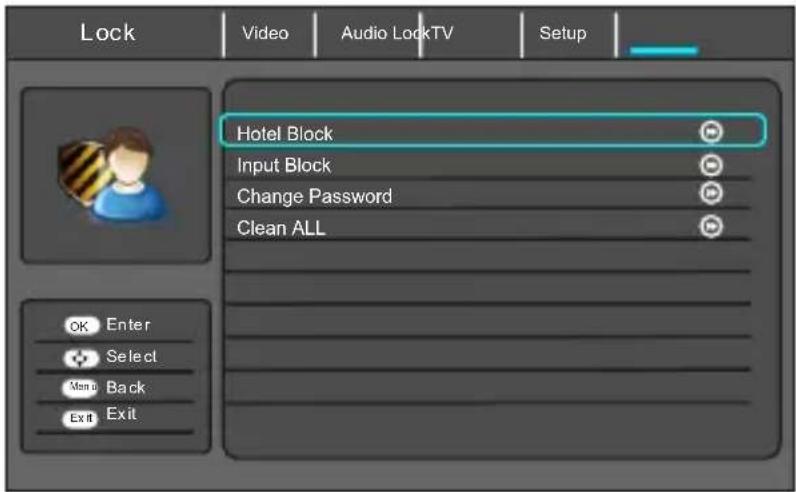

Lock Menu. 50

Media Player. 51

For Reference

Troubleshooting 52

Important safety instructions

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION !

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 230V 50Hz .
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

CE

This product is compliant with directives 2014/35/CE (abrogating the directive 2006/95/CE) and 2014/30/CE (abrogating the directive 2004/108/CE).

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4 2012, concerning the waste on electrical and electronic equipment (WEEE).- The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.- Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.- As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment.Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.- You have the obligation to use the selective waste collection systems put in place by your local authorities.

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! Your have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

Control Panel

1.VOL +/- button : To increase/decrease the volume level or move left/right.
2. CH + / - button : To select next/previous channel or move up/down.
3. Menu button : To enter menu setting page.
4. Source button : To select the input source.

Connecting Cables

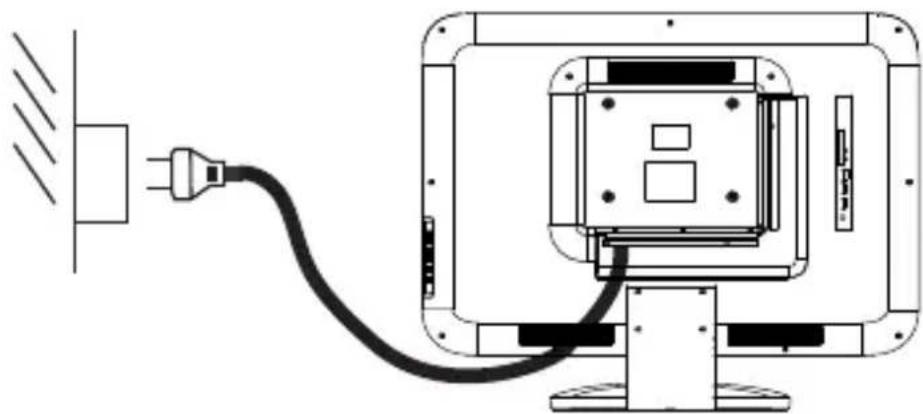

Connecting to power source

1. The television is in standby state when no images arise and the red indicating lamp shines.

2. Press the standby button again on the remote control for the television the indicating lamp becomes green.

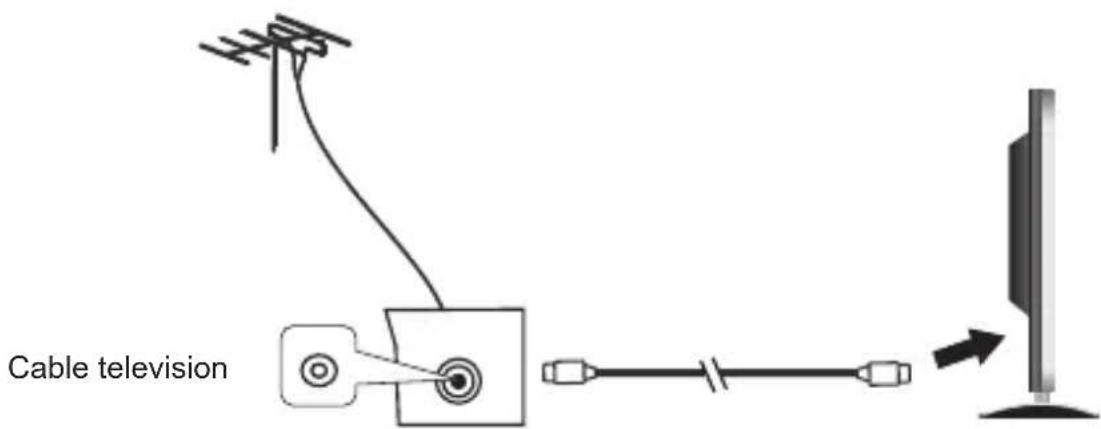

Connecting external antenna to the unit

We recommend you use a 75 antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75 antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

Connecting Cables

1.AC IN
2.COAXIAL output : Digital TV sound output.
3. HDMI IN : High-definition multimedia interface (Note: compatible video signal 480P/576P/720P/1080i/1080P)
4. VGA IN: connect with the D-sub 15 pin signal cable to your computer.
5. PC AUDIO IN : PC audio input.
6. SCART INPUT
7. RF IN: Connect to external aerial.
8. EARPHONE OUTPUT
9. USB IN : Access multi-media files stored in the USB device.

(Note: compatible format includes: .dat, .vob, .ts, .mpg, .avi, .mkv, and .mp4 for video, .jpg and .bmp for photo, .mp3 for music.)

1. YPbPr IN : Component input terminal.
2. AV INPUT : Connect to the left/right RCA video out connection of any vide resource.
3. CI SLOT : Insert a CI (common interface) card.

Remote control

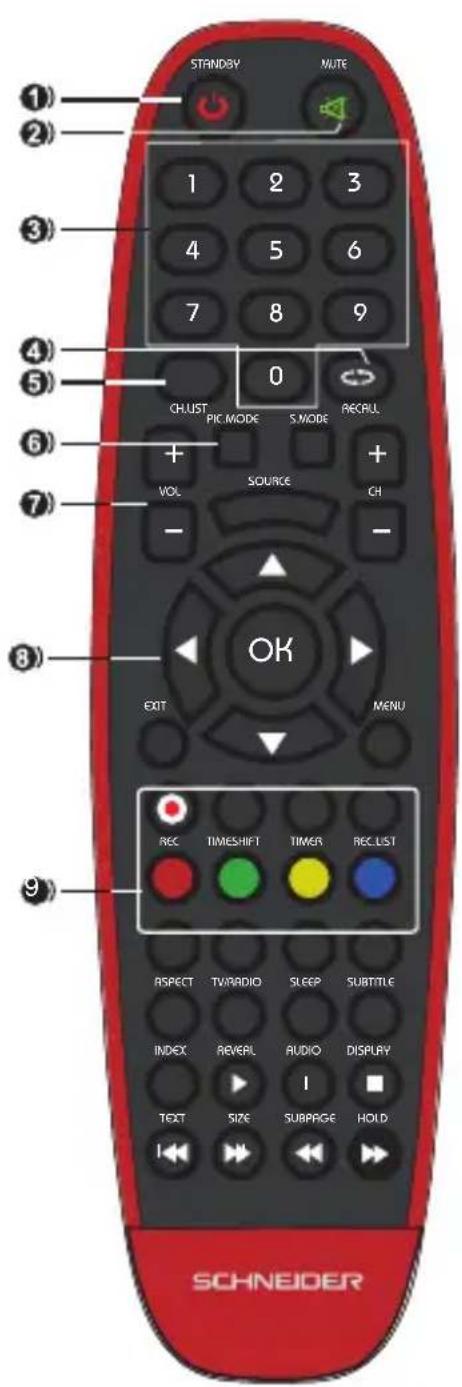

1. STANDBY: To turn the TV ON/OFF
   2.MUTE : Mute the sound.
2. 0~9: Input the number information, such as channel number and so on.
3. RECALL: Recall the last program you watched.
4. CH.LIST : Display a list for available channels.
5. PIC.Mode : Switch the picture mode. S.MODE : Switch the sound mode.
6. VOL + / - : Increase/decrease the volume level.
   CH + / - : Play the next/previous program.
   SOURCE :Select desired input source.
7. / / / : Navigation buttons OK: Confirmselection. EXIT: Exit the menu page. MENU: Call out the main menu o previous menu.
   9.REC (for DTV mode only):

Start RECORDING when watching available digital programs.

TIMESHIFT (for DTV mode only):

Start Time-shift when watching available digital programs.

TIMER (for DTV mode only):

Enter the menu of timer recording.

REC.LIST : display the list of recorded programs.

RED \GREEN \YELLOW \BLUE :available in teletext, DVB-T and TV.

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

1. ASPECT: Select available screen mode.

TV/RADIO: Switch the unit between TV and Radio.(Digital radio is not available in countries such as France.)

SLEEP : Set desired sleep time.

SUBTITLE: Enable/disable subtitles in digital mode.

INDEX : Display the Teletext index.

REVEAL: Hide or display some characters in Teletext.

AUDIO: Select available sound-track.

DISPLAY:Display the available program information.

TEXT: Display available teletext.

SIZE:Switch Teletext size;

SUBPAGE:Enter Teletext sub-page;

: Start playback in USB\Media.

:Pause playback in USB\Media.

:StopplayinginUSB\Media.

/ : Fast backward\forward in USB\Media.

: Play previous\next file in USB\Media.

HOLD:Hold the Teletext;

Prepare the remote control

Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

Base Installation

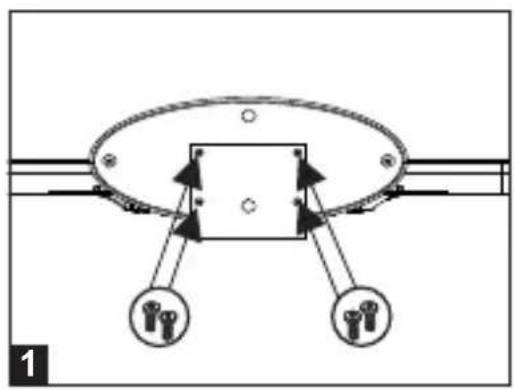

- Mounting of the stand

1. Align the feet with the metal connector to the screw holes. Tighten the included 4 screws BB4*10 (in the bag of A) with a screw driver.
2. Place the TV panel horizontally on a desktop. (Caution: put a foam cushion under the panel to avoid it from scratching.)

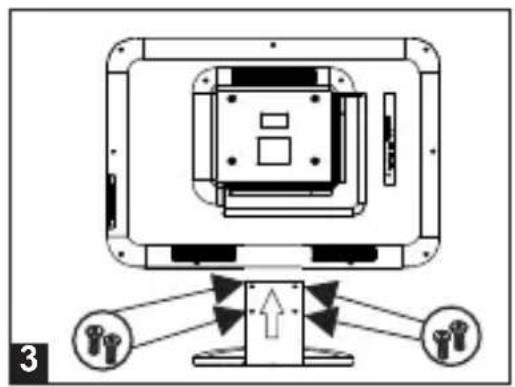

3. Align the metal connector with the TV bottom to the screw holes. Tighten the included 4 screws BM4*10 (in the bag of B) with a screw driver.

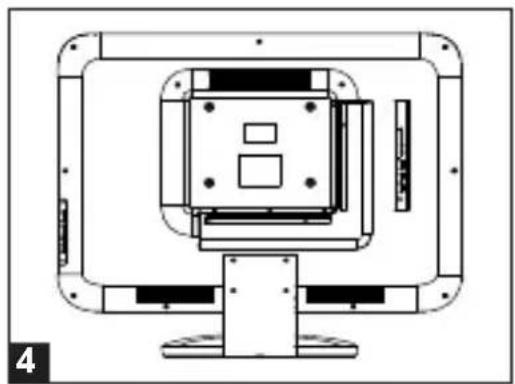

4. The rendering after installed.

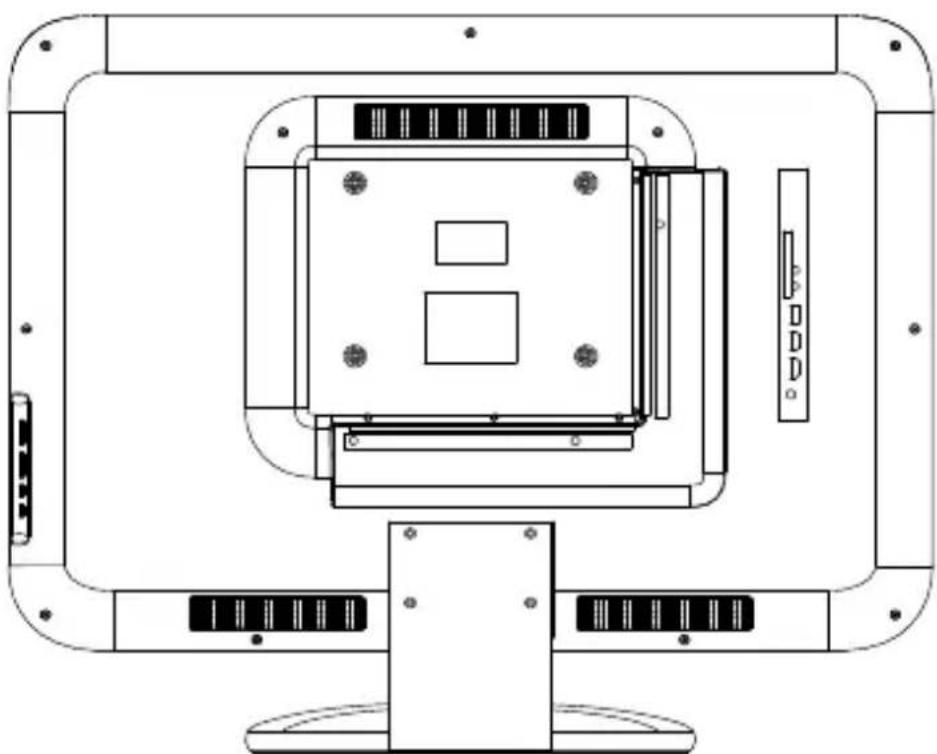

Wall Mounting Instructions

• Only use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.
• Contact a professional technician for assistance when wall mounting your TV.
• Do not wall mount the TV while TV is turned on.
  Refer to the instruction of your wall mounting bracket.

First Time Installation

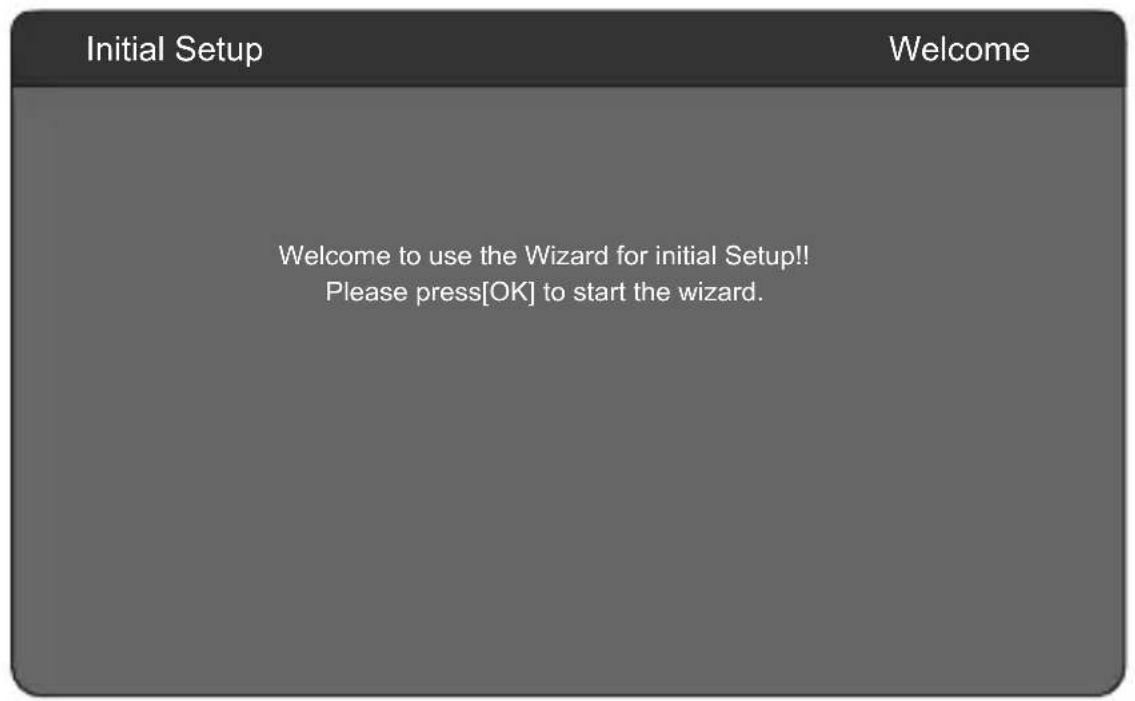

1). The first time you switch on the TV, you will be prompted to search channels. Please press "OK" to start the wizard.

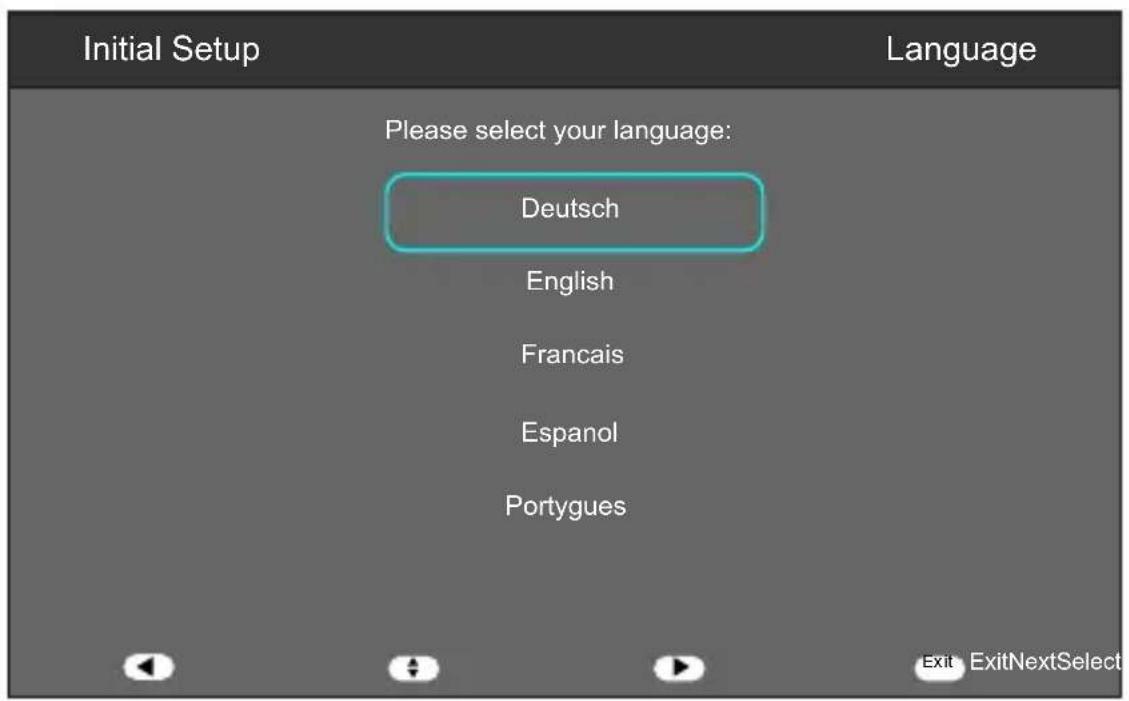

2). Press / button select you language.

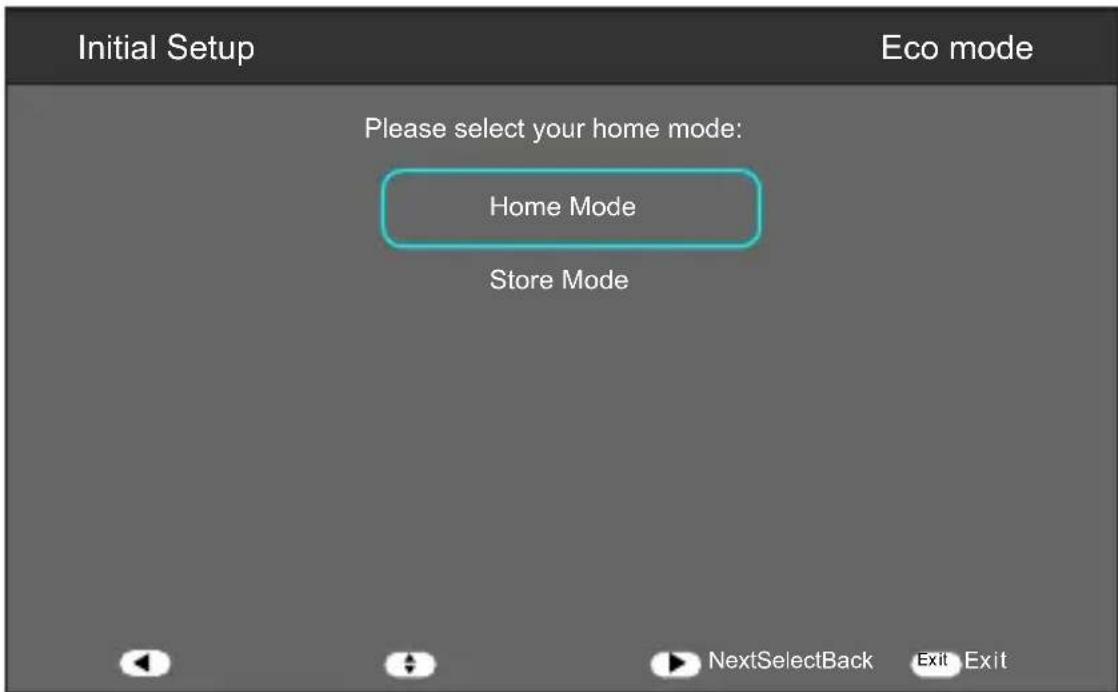

3). You may choose the "Home Mode" for default setting, then change the brightness value later inside the setting menu.

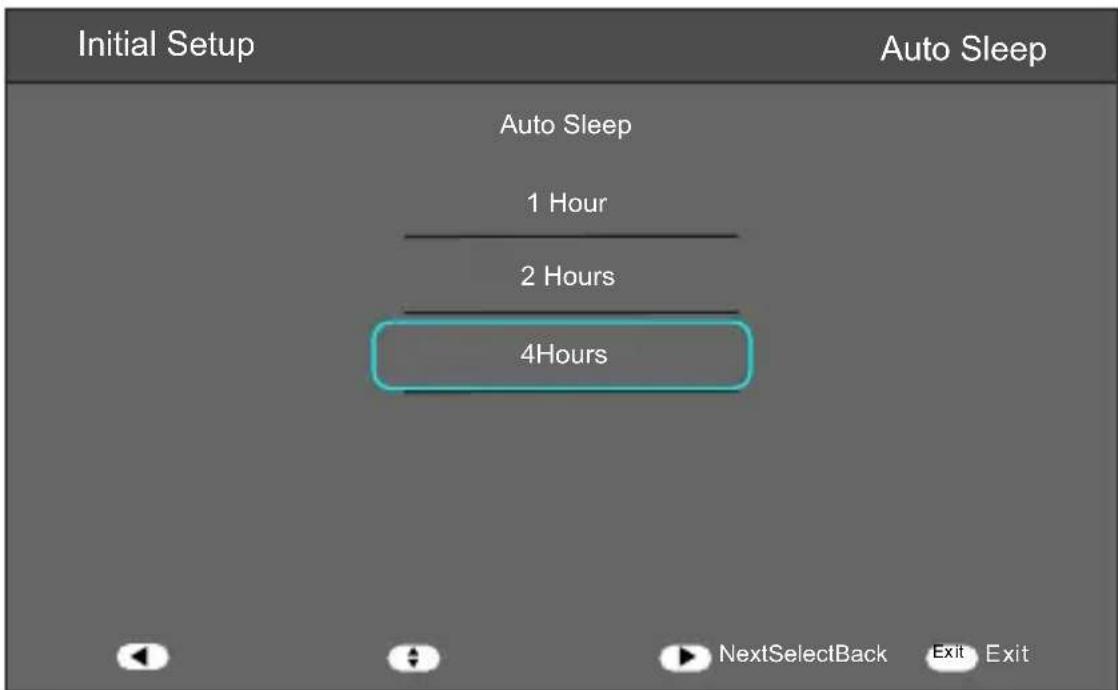

4). Auto Sleep

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

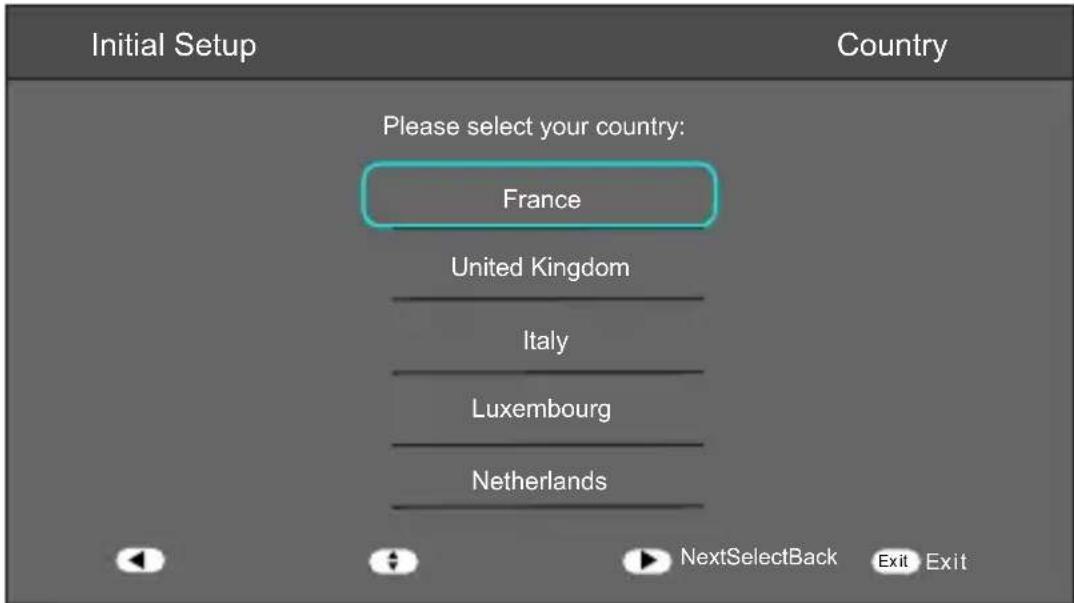

5). Press / button to select country.

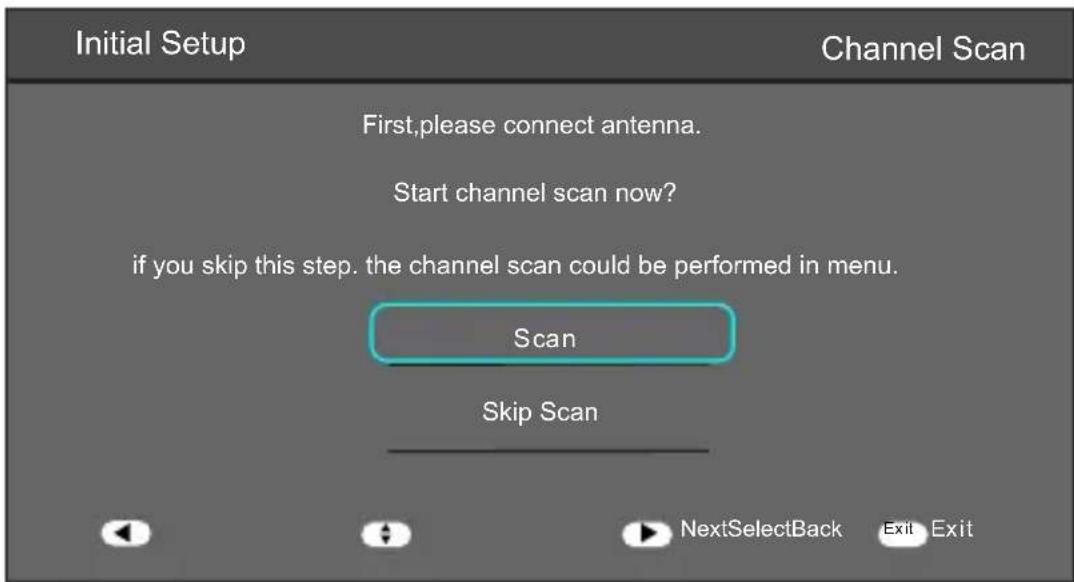

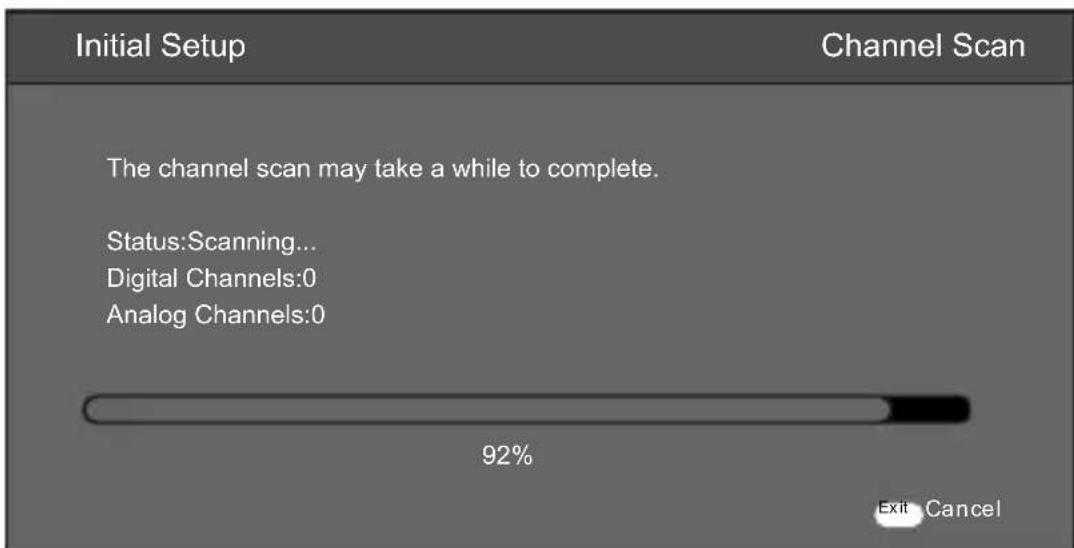

6). Press "OK" key to start channel scan. Make sure the antenna cable is well connected before channel scanning.

Input

Press STANDBY button to power on the TV, then press SOURCE button to select different input sources.

Common procedure for initial settings

• Press MENU button on the remote control to display the main menu.
• Press / navigation button to select submenus.
• Press / navigation button to select preferred option.
• Press / navigation button to adjust the value.
• Press OK button to confirm selection.
• Press MENU button to return to previous menu page.
• Press EXIT button to exit menu page

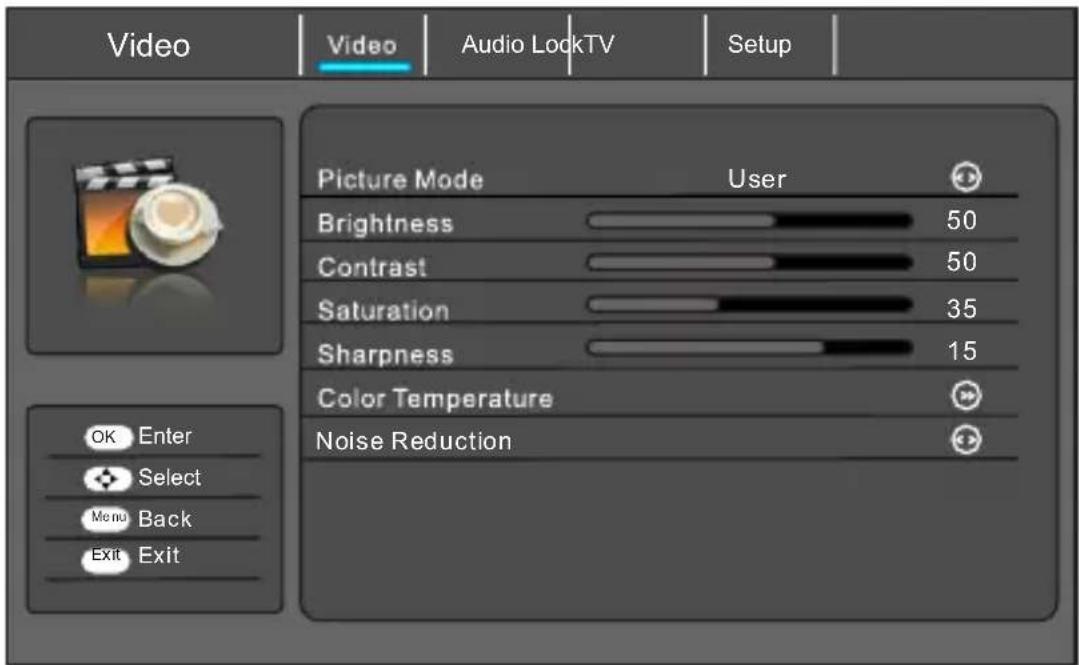

Video Menu

Picture Mode:

Change the picture mode in the sequence as: User Cinema Sport Vivid Bright.

Brightness:

Change the value of brightness with the key / in the range of 0 to 100.

Contrast:

Change the value of contrast with the key / in the range of 0 to 100.

Saturation:

Change the value of saturation with the key / in the range of 0 to 100.

Sharpness:

Change the value of sharpness with the key / in the range of 0 to 20.

Color temperature:

Adjust the Optimum colour temperature for suitable viewing Available options: Standard, Warm, Cool.

Noise Reduction

Eliminate the Image noise to gain better image effect.

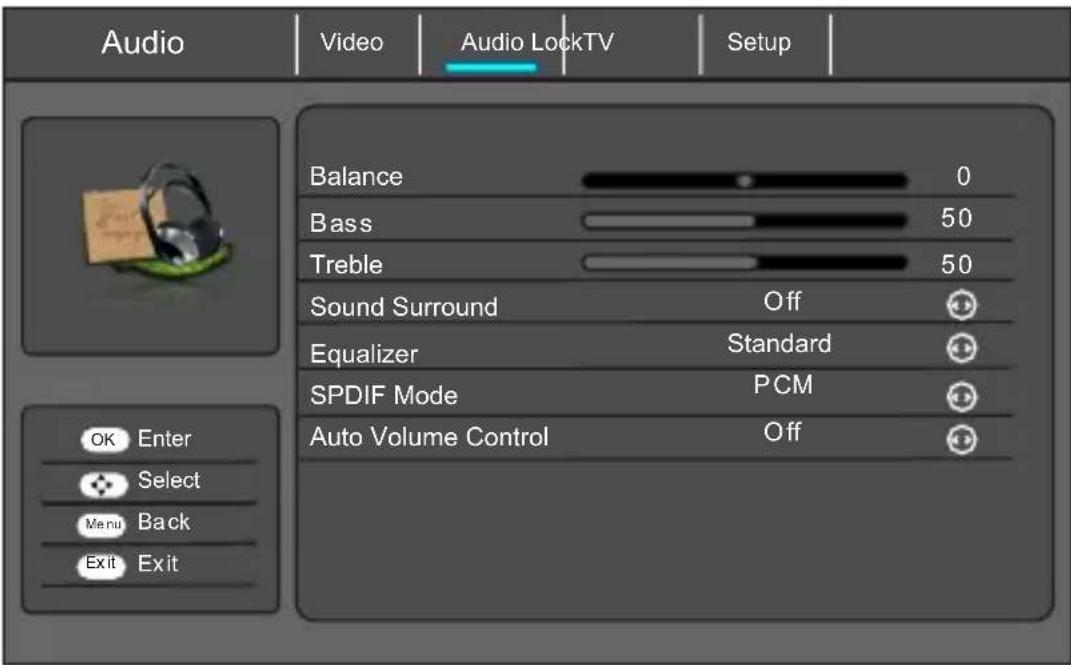

Audio Menu

Balance:

Adjust the audio output between left and right speaker with the key / in the range of -50 to +50.

Bass:

Adjust the level of lower-pitch sounds with the key / in the range of 0 to 100.

Treble:

Adjust the level of higher-pitched sounds with the key / in the range of 0 to 100.

Sound Surround:

Change the sound surround in the sequence as: On→Off.

Equalizer:

Change the Equalizer in the sequence as: Standard Speech Music Pop Bathroom Cave Arena Church.

SPDIF Mode

Adjust the coaxial audio outputs.

Auto volume control:

Automatically adjusts the volume or loudness, set it "On" for an ambient volume to make the audio signal better heard.

TV Menu

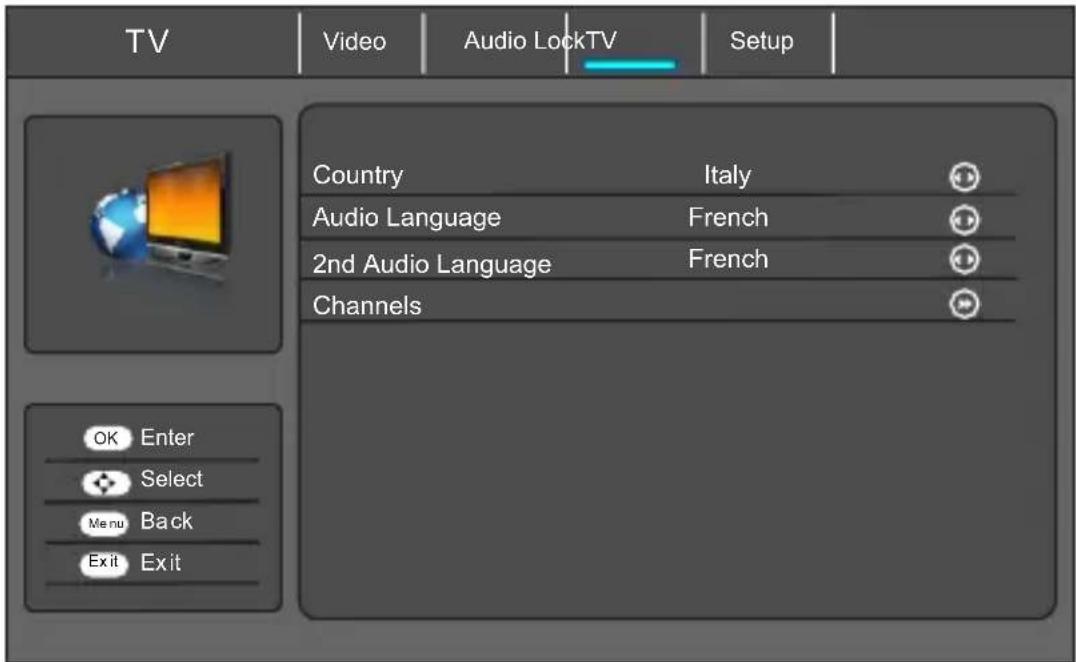

Country

To select the country you want.

Audio Channel

To change the audio mode: Dual1, Dual 2, Mono, Stereo.

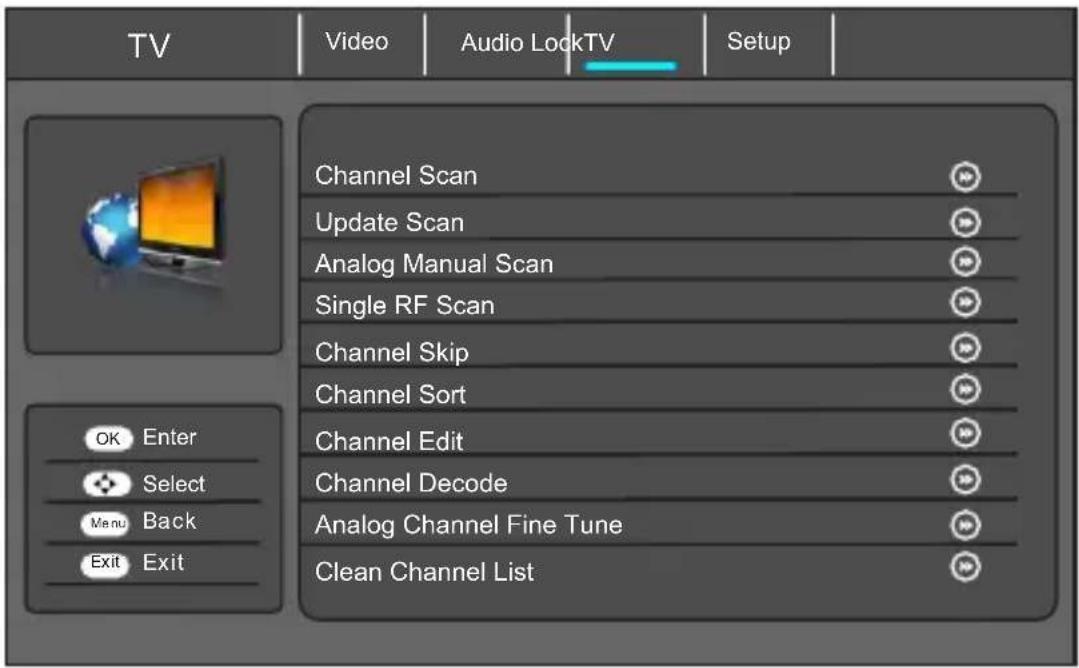

Channels

Press OK or button to set the channel.

Channel Scan

To scan all digital channels carried by current signal mode firstly and then switch to scan all analog channels in selected country automatically. You can stop auto-scanning directly by pressing "EXIT" during channel scanning.

Analog Manual Scan

Press / button to select Analog Manual Scan, then press OK button or button to enter.

DTV Manual Scan

Press / button to select Digital Manual Scan, then press OK button or button to enter.

Channel Skip

Press / button to select Channel Skip, then press OK button or button to choose the channel you want to skip.

Channel Sort

Press / button to select Channel Sort, then press OK button or button to choose the 2 channels you want to replace the position.

Channel Edit

Press / button to select Channel Edit, then press OK button or button to edit the channel by rename the channel name and channel number.

Channel Decode(in ATV only)

Choose ATV channels, to decode the scart signal.

Analog Channel Fine Tune (in ATV only)

Press button to fine tuning when the signal of the current channel is weak.

Clean channel list

Press / button to select Clean channel list, then press OK button or button to clean the scanned channels.

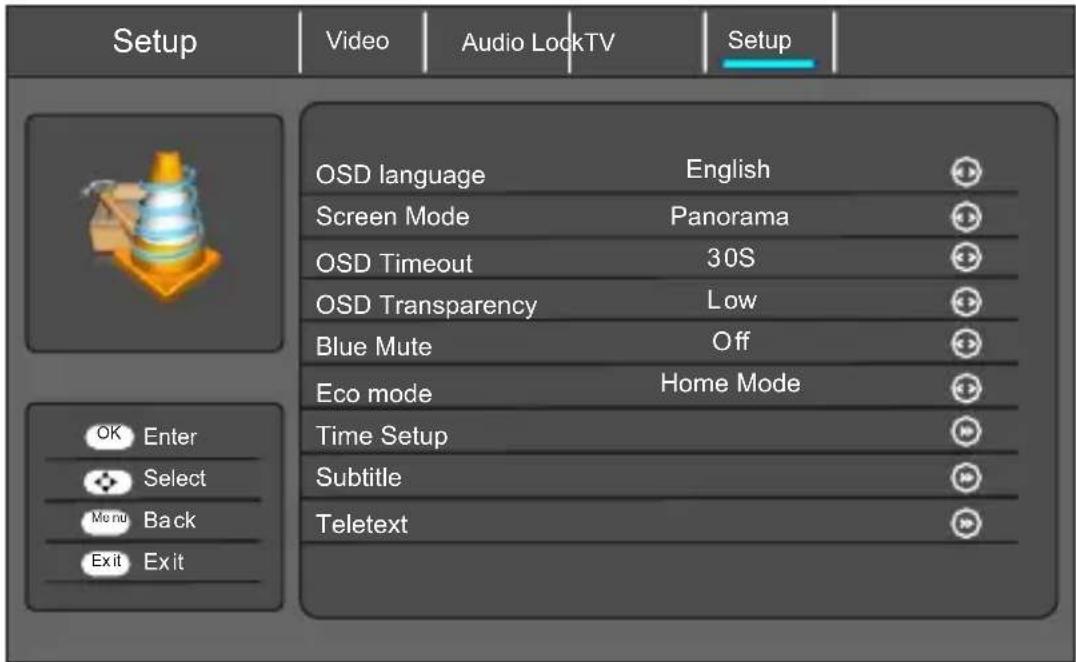

Setup Menu

Menu Language

Select the menu language you want.

Screen Mode:

Select the display mode among 16:9, 4:3.

Menu Timeout

Set the menu display duration: 5 seconds, 10 seconds, 15 seconds, 20 seconds, 25 seconds, 30 seconds.

Menu Transparency:

Set the menu transparency with options: Low, Medium, Strong.

Blue Mute:

Set the blue background ON or OFF. If set "ON", the screen background will turn blue at very weak or no signal condition.

Eco Mode:

Set the screen brightness effect with home mode and store mode.

Time setup:

Check out the current system time, set time zone, power on time and power off time.

Subtitle:

Set the subtitle language.

Teletext

To set items of teletext.

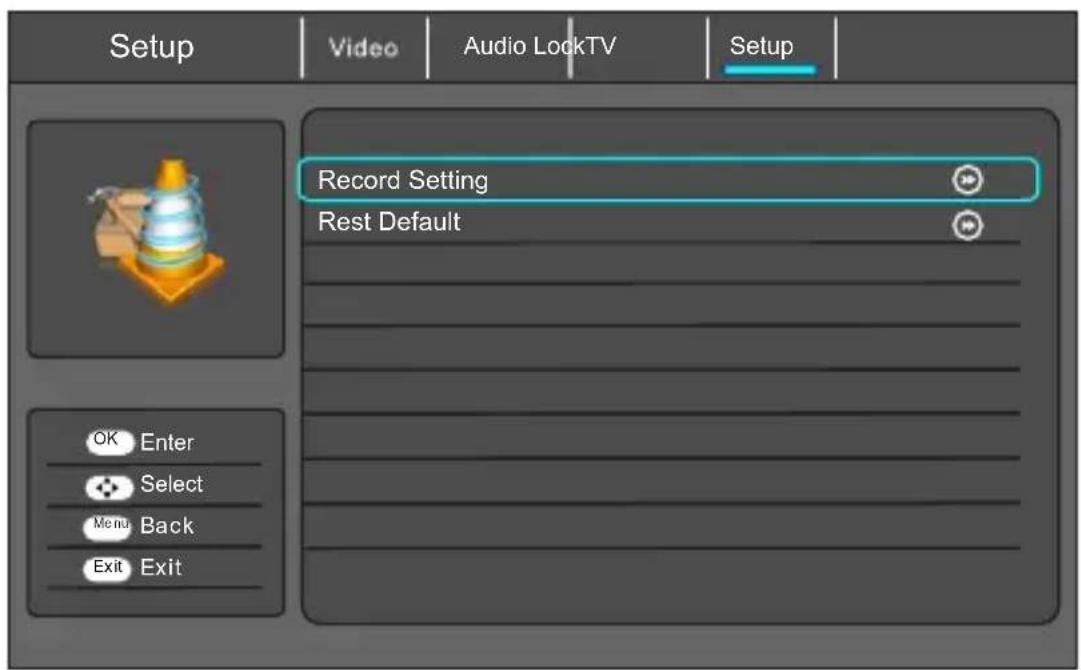

Record Setting

Press OK or button to access record setting.

Restore Default:

Press OK or button to reset the unit to factory default settings. The resetting menu will appear for a few seconds, then the first time installation menu will pop up.

Recording Function

With this product, you can easily record your favorite DVB-T programs on your USB stick. This unit has 2 recording modes: immediate recording and scheduled recording (for use in case of absence).

Recording a program by using a USB

This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices.

Notes: Do not remove your USB stick while playback is in progress, otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and them remove your USB stick.

Immediate recording

Insert a compatible USB device which has been previously formatted. Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording. Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded.

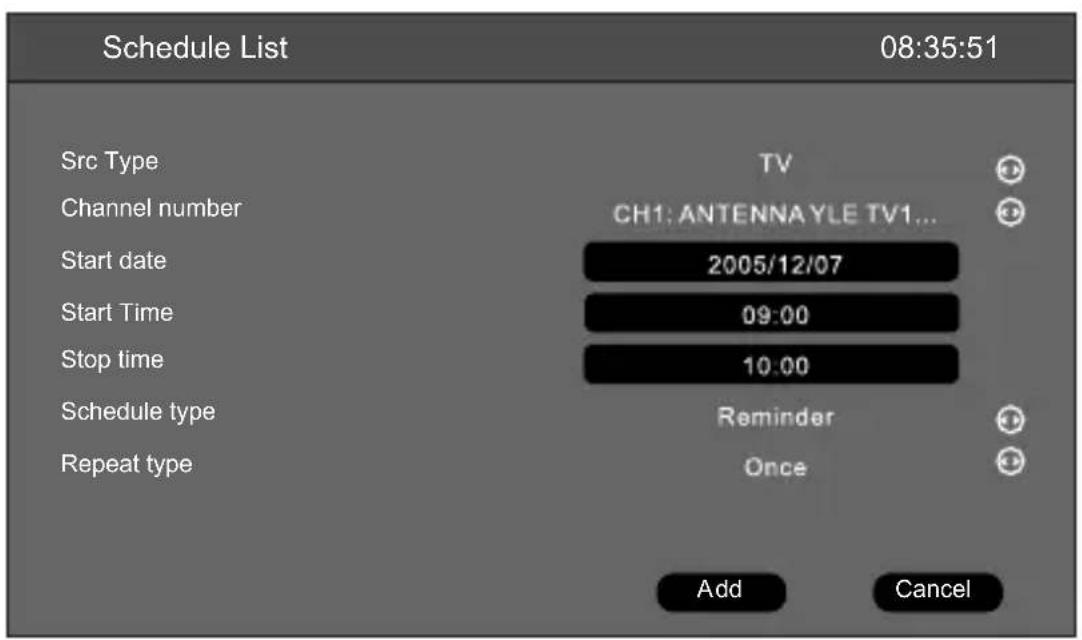

Timer (Scheduled recording)

Simply press TIMER button on the remote control to enter.

View recorded programs

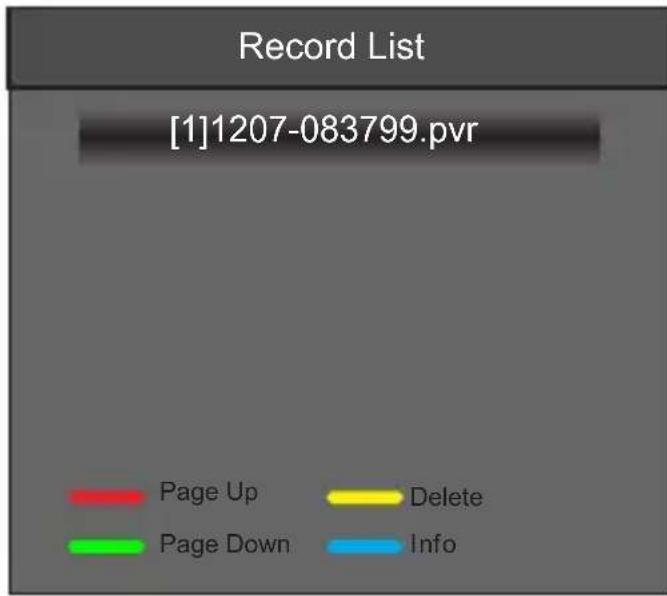

You can simply press REC.LIST button on the remote control to view the recorded programs.

Notes on recording and USB functions

• If you want to record a film or a long program, use a memory stick of larger capacity (eg. 8GB). If you want to save several films, opt for external hard drives of large capacity.

• The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and, above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple subdirectories in your USB disk. Avoid such multiple-subdirectories like "Directory/Subdirectory/Sub-subdirectory/...." and store files in a single simple directory.

- USB Device Recognition Problems

After connecting your USB device to the unit, you may need to turn the device on before it can be detected by the receiver.

This unit does not support direct USB connection with computer. It is necessary for you to transfer your data/files on a USB stick or MP3 player. If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit. If you are using a portable video player with hard drive, you must make sure that the internal battery is fully charged.

Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit.

The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem.

- Recording Quality

If your recording is shaky or choppy – The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved.

Time Shift Function

This TV presents a function called "Time Shift" which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the "Time Shift" function, which records the TV program during your phone call or your coffee break. With "Time Shift", you will not miss anything anymore! Notes: This function is only available in DVB-T mode.

How to use the service Timeshift

1. Please insert a USB key into USB port before you activate Timeshift function.
2. Press the button Timeshift once to start recording. The broadcasting TV program is stop and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.
3. Press button to resume the TV program from the point it was paused, and the recording will continue. During playback, you can:
4. Press PAUSE button to pause the playback, press PLAY button to resume playback.
5. Press or to scan backward or forward.
6. If you want to stop the recording and playback, please press STOP button.

Note on use of the Timeshift function:

1. Please make sure the Timeshift mode is set ON in record setting menu.

2. The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as chopy or blocked image, you may also try to format your USB device.

LockMenu

1. Press "MENU" button on the remote control to enter the OSD menu. Press / button to select "Lock" menu.
2. Press "OK" button to enter "Lock" menu setting. Use / to move the menu bar, and then press / button to adjust the value of selected item.
3. Press "MENU" button to return to the previous menu. (Input the default password 0000 to enter the Lock setting.)

Hotel Mode

Hotel setting allows you to restrict access to some functions by means of password, so that end user cannot change the TV settings. In this menu, you will be able to restrict access to functions such as channel settings and volume control.

Input Block

to lock one or more sources you want.

Change Password

Change the password for Lock menu.

Input the new password in the filed and input the same digits again to confirm new password.

Media Player

Before operating MEDIA menu, plug in USB device, then press SOURCE button to set the input source to Media.

Press button to highlight your preferred submenu: Photo, Music, Video and Text, press OK button to confirm.

Press MENU button to enter key operation in your preferred submenu.

Remark: Depending on the capacity of the device, the reading can take more than 1 minute before launching the video.

The unit cannot read my USB device.

• Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate.
• This unit does not support a direct USB connection with a computer. You need to use a USB device, a MP3 player or a PMP (Portable Multimedia Player with hard disk).
• If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self-powered PMP, make sure that the battery is sufficiently loaded.
• Check that the files system of your USB device is formatted into the FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data. Please refer to your USB device's instruction manual first.
• Warning: Connect your USB device directly to the USB port of the device. Using an extension cable is not recommended and may cause interference and failure of data transfer.

The supported file format of media playing:

VIDEO	AUDIO	PHOTO	E-book
*.MKV,*.MPG,*.DAT (MPEG1/MPEG2),*.TS max: 1080* 720*480*30 decoding NTSC	MP3(*.mp3)	JPEG(*.JPG) BMP	Txt(*.txt)
*.VOB (MPEG-2MP@ML) max: 1080* 720*480*30 decoding NTSC
*.AVI (MPEG-4),*.MP4 max: 1080* 720*480*30 decoding NTSC

Troubleshooting

No image and voice

Possible causes:

Power cord, antenna or input devices are not connected;
The TV set is not powered on.
Solutions:
Check Power cord, antenna and input devices;
Press Power key on the remote control;
*Press Power key on the set to power it off for 5 seconds and then re-power it on.

No voice

Possible causes:

The volume is too low; Muted or cancelled;
Incorrect sound system.
Solutions:
Press Volume key to turn up the volume;
Press Mute key to cancel Mute mode.
Well connect vonation to the background sound;
*Change the sound system in the menu.

Snows and noises:

Possible causes:

The cable is damaged or gets loose;
Incorrect channel preset;
*Improper antenna positioning

Solutions:

Check whether the connection of the antenna cable, DVD and the cables is correct;
Reset channels or fine tune the channel;
*Adjust the direction of the antenna.

Achromatic colour

Possible causes:

*Incorrect Colour system settings;Low chroma level setting ;
*Improper antenna positioning

Solutions:

Change the colour system into the local system in the menu;
*Increase chroma level;
Adjust the direction of the antenna.

Remote control has no response:

Possible causes:

*Battery runs up;

*Incorrect battery loading;

Solutions:

*Check the battery electricity or replace the battery;

*Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Important Notice

The display of this television is made up of a large number of colour pixels. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
32	1920*1080	10	5	0

Technical Data Sheet

Sheet of household television according to EU directive 1062/2010

Trade mark	SCHNEIDER
Model no.	LED 32RD / LDE3 2WT/ LE D32B E LED 32PK / LED3 2BK
Energy efficiency Class	A
Visible Screen Diagonal	80 cm / 32inches
On mode Power consumption	40W
Annual energy consumption	58.4kWh per year
Power consumption in off mode	0 W
Standby power consumption	<0.5 W
Screen Resolution (pixel)	1920(H) X 1080(V)

Note:

1. Energy efficiency class: A+ (most efficient) to F (least effient)
2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc

SAV

ADMEA / LOGISAV
