SCLED65SC500QA - TV SCHNEIDER - Free user manual and instructions

Product type	LED 4K TV
Brand	Schneider
Model	SCLED65SC500QA
Screen size	65 inches (165 cm)
Resolution	3840 x 2160 pixels (4K UHD)
Aspect ratio	16:9
TV system	PAL/SECAM, DVB-T/T2/C
Power supply	AC 100-240V, 50/60Hz
Power consumption (on)	150 W
Standby consumption	<0.5 W
Annual consumption	219 kWh
Energy class	A
Audio power	2 x 10 W
Connectivity	4x HDMI, 3x USB, 1x RJ45, 1x AV, 1x optical, 1x headphone, 1x antenna, 1x CI
Smart functions	Android TV, Google Assistant, built-in Chromecast, Netflix, YouTube
Remote control	Bluetooth with voice search
Double insulation	Yes
Safety	Important instructions: avoid humidity, do not obstruct ventilation, unplug during storms
Maintenance	Clean with a soft, dry cloth, do not use chemical products
Repairability	Entrust any repair to qualified personnel only

Frequently Asked Questions - SCLED65SC500QA SCHNEIDER

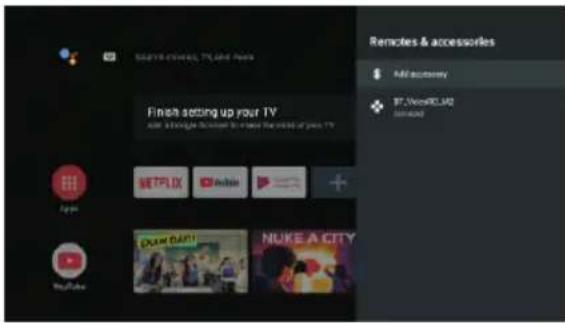

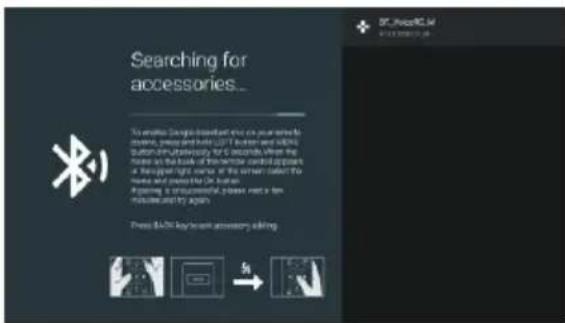

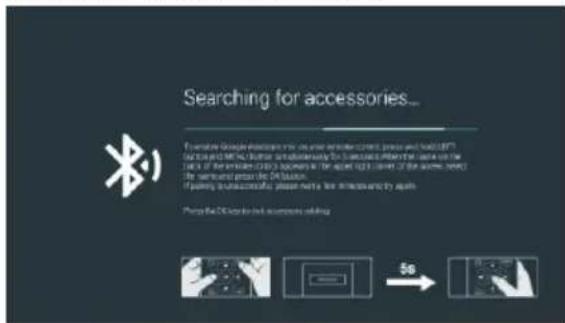

How to pair the Bluetooth remote control with the TV?

Simultaneously press and hold the MENU and LEFT buttons at the bottom of the remote for 5 seconds until the indicator flashes. On the TV, confirm pairing with OK.

How to connect the TV to Wi-Fi?

From the home screen, go to Settings > Network & Internet, select your Wi-Fi network, enter the password, and confirm.

How to reset the TV to factory settings?

Go to Settings > Device Preferences > Reset > Factory reset - erase all content. Confirm the operation.

How to clean the TV screen?

Use a soft, dry cloth. Never use liquids, alcohol, benzene, or chemical products. Wipe gently.

What to do if the image does not appear but the sound works?

Check that the TV is on (standby light off). Press the INPUT button to select the correct source. Make sure the power cord is plugged in.

How to use Google Assistant on this TV?

Press the Google Assistant button (number 20 on the remote) and speak or type your request. Ensure the TV is connected to the Internet.

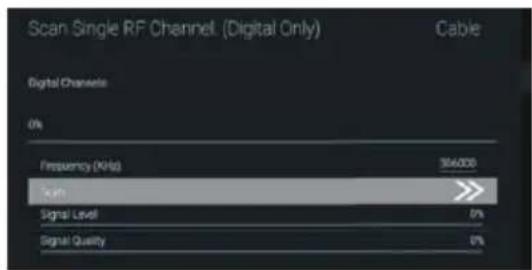

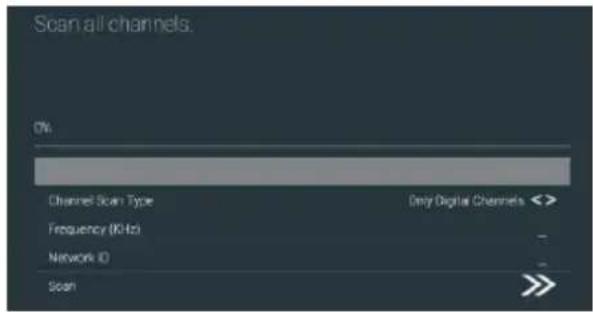

How to search for channels automatically?

Go to Settings > Channels > Channel search and select Scan to start automatic search. Choose Antenna or Cable mode according to your installation.

How to set the sleep timer?

Go to Settings > Power > Sleep timer and choose a duration (10 to 120 minutes) or disable it.

How to enable subtitles?

Press the Subtitles button (number 5 on the remote) in digital TV mode. You can also configure subtitles in the accessibility settings.

How to connect an external device via HDMI?

Plug the HDMI cable into one of the TV's HDMI ports. Press INPUT and select the corresponding HDMI source. The device should display automatically.

USER MANUAL SCLED65SC500QA SCHNEIDER

Black triangular warning symbol with a lightning bolt and downward arrow (no text)

ATTENTION

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR !

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENTION POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU LA PARTIE ARRIÈRE DU BOÎTIER). LE TÉLÉVISEUR NE CONTIENT AUCUNE PIÈCE REMPLACABLE. CONFIEZ LES RÉPARATIONS AU PERSONNEL QUALIFIÉ.

Illustration of a computer monitor with warning symbols and a crossed-out cable, no text or labels present.

Avertissement

Simple line drawing of a monitor with a cross symbol and a hanging curtain (no text or symbols)

Avertissement

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or symbols)

Avertissement

Simple line drawing of a computer monitor with a curved frame and a base, emitting steam (no text or symbols)

Attention

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Attention

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Attention

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Attention

Illustration of a person running away from a computer monitor next to a broken circular object with a label (no text or symbols present)

Attention

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a device rear panel with mounting holes and internal components (no text or symbols)

M4X14MM M4X14MM

INSTRUCTIONS D'INSTALLATION MURALE

Back view of a modern flat-screen TV with red directional arrows indicating orientation (no text or symbols)

CHAÎNES

1.

Safety and warnings ....2

Warnings and cautions....10

Introduction....11

Installation....12

Remote control....17

Operation....18

Trouble shooting....28

Cleaning instruction....29

Technical data sheet....30

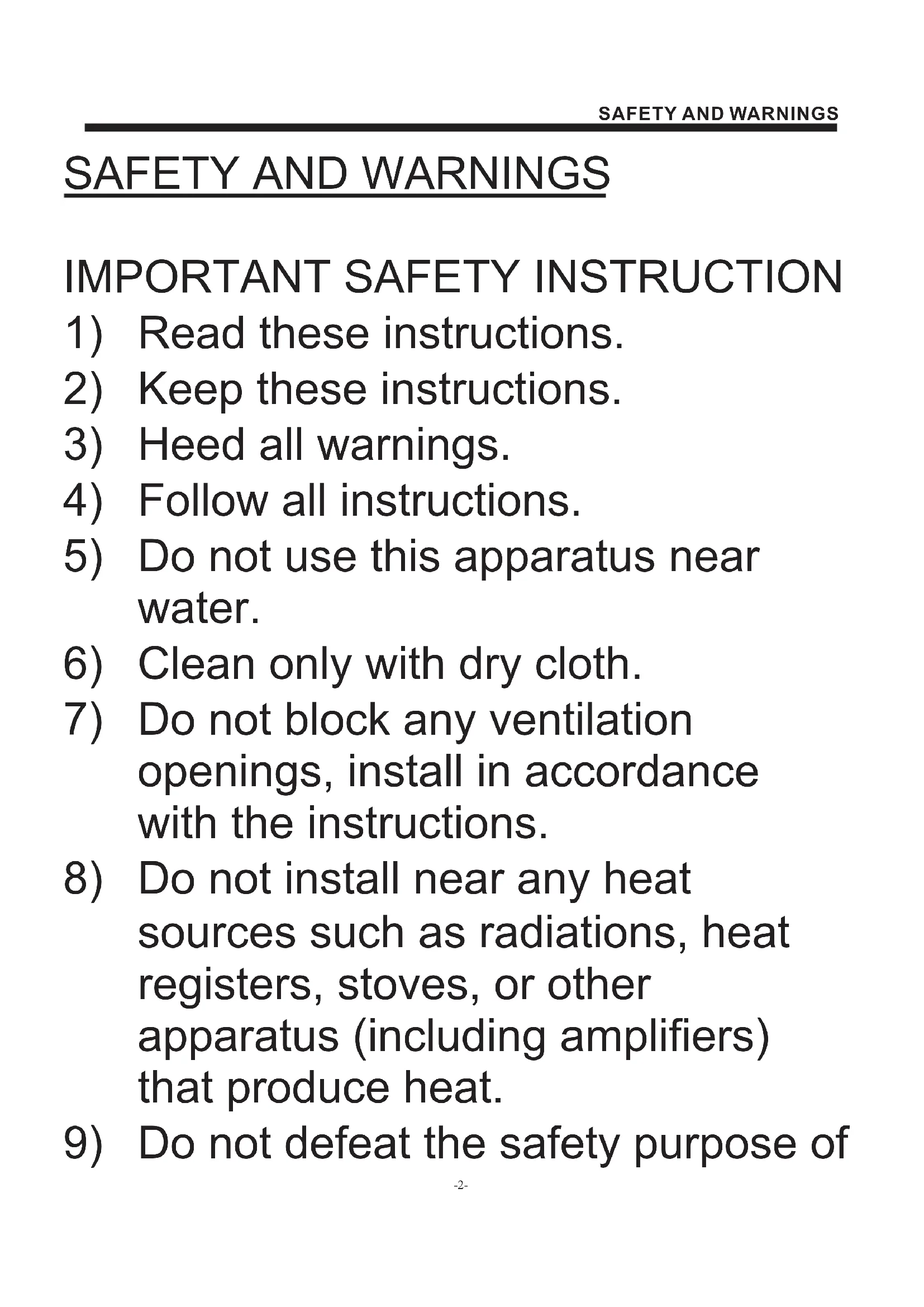

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of

the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as :

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Black triangular warning symbol with a lightning bolt and downward arrow (no text)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN!

Black triangular warning symbol with exclamation mark (no text or numbers)

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING :

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING :

The batteries shall not be exposed to excessive heat such as sunshine, fire ro the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it re sponsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HIGH-DEFINITION MULTIMEDIA INTERFACE The terms HDMI and HDMI High--Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Illustration of a computer monitor with an electrical circuit diagram and a crossed-out black symbol (no text or labels)

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross symbol and a hanging screen, no text or symbols present.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or labels)

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a stand and smokestack (no text or symbols)

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Caution

Do not trap the power supply cord under the television receiver.

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Illustration of a person reacting to a ringing phone with a circular device (no text or symbols)

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Minimum distances

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Thank you very much for purchasing this TV. To enjoy your product from the very beginning, read this manual carefully and keep it handy for easy reference.

CAUTION

Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LED-TVs are high voltage instruments. When you clean up dust or water drops on the LED PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by qualified TV service personnel.

INSTALLATION

*Locate the TV in the room where light does not strike the screen directly.

*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

*Allow enough space between the TV and the wall to permit ventilation.

*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

*Do not cover the ventilation openings when using the TV.

Main features

① Used as Television, display terminal, PC display;

② High luminance, wide viewing Angle;

③ NICAM;

Viewing Picture Size (Diagonal)	65"
Resolution	3840 x 2160
Aspect Ratio	16:9
TV System	PAL-B/G, I, D/KSECAM-B/G, D/K, LDVB-T, DVB-C,DVB-T2
Input Power Voltage	AC 100-240V 50/60Hz
Power consumption	220W
Audio Output Power (THD≤10%)	2x10W
Signal Input	High-Definition Multimedia Interfac (HDMI) x 4AV IN x 1RJ45 x 1USB x 3ANT x 1CI x 1
Signal Output	Headphone x 1Optical x 1
Horizontal definition (TV line)	CompositeVideoinput >=350

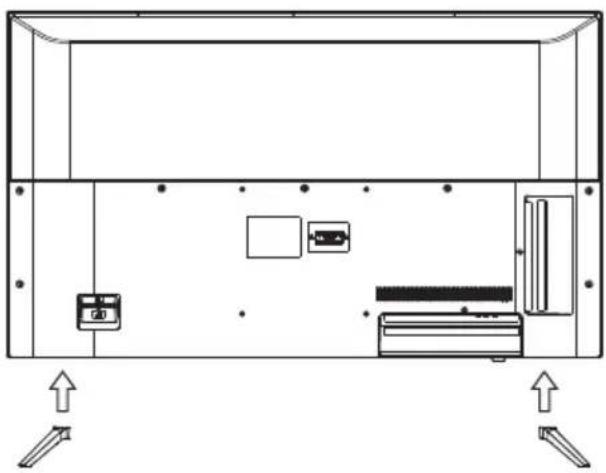

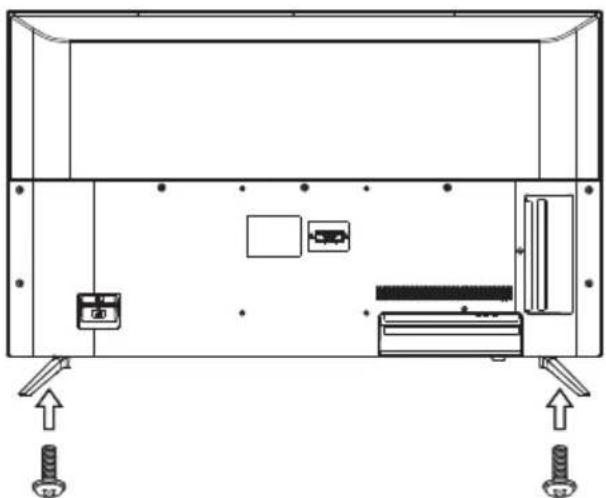

Base Stand Assembly Instruction

Prepare to place the TV with the display side down on a flat surface. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.

1. Put the TV on the platform with the screen facing down, insert stands in the grooves, then adjust the screw holes to match each other.

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

1. Fix the stands with 4 screws.

Technical line drawing of a mechanical or electrical enclosure with mounting feet and internal components (no text or symbols)

M4X14MM M4X14MM

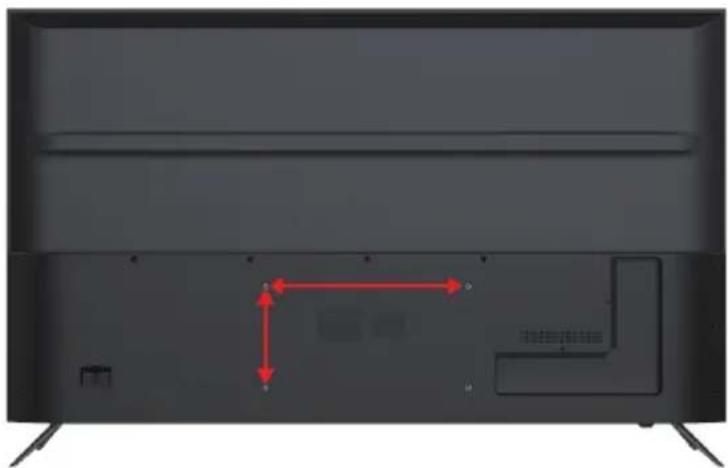

WALL MOUNT INSTALLATION

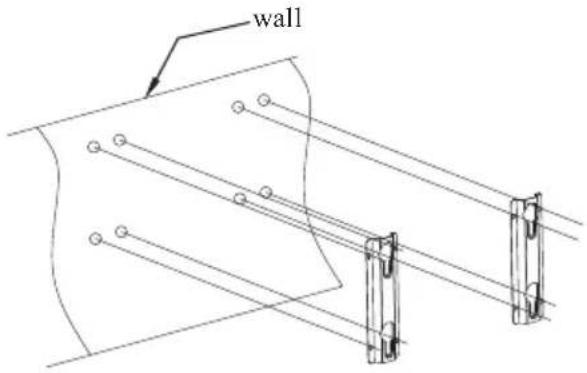

Step One: Use the expansion bolts(4*36PWA) to fix the wall mount brackets into the wall.

Step Two: Fix the wall mount screws (M6x12mm/4pcs) into the rear side of the LCD TV.

Back view of a modern flat-screen TV with red directional arrows indicating orientation (no text or symbols)

Step Three: Put the LCD TV with wall mount screws onto the wall mount brackets. Warning: the angle between the TV and wall must not be bigger than 3°.

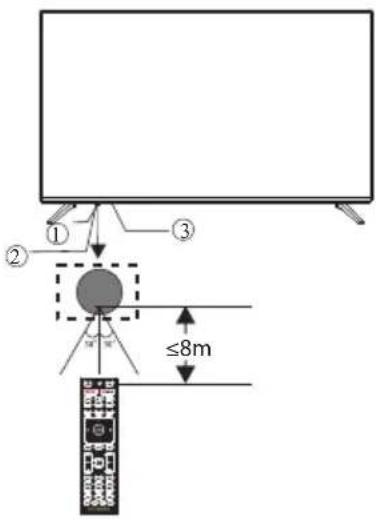

Front panel

1: Remote control sensor.
2: Indicator LED: RED ● STANDBY.
3: Key board

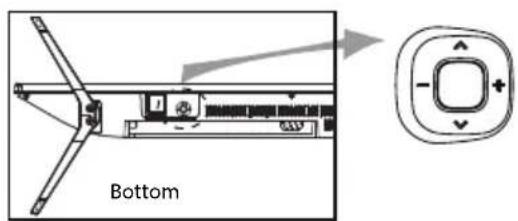

KEYBOARD

The keyboard is located at the bottom left near the right side of signal indicator. Rocker

1. Middle Button: Short press to compirm or enter menu. Long press to power off.
2. Up/Down: CH+/- and move up/down.
3. Left/Righ: VOL-/+ and move left/right

REAR AV Connections

RJ45, OPTICAL output, USB, HDMI4, HDMI3, HDMI2, AV IN, ANT.

REAR AV Connections(SIDE)

All the terminals are(from left to right): USB, HDMI1(ARC), CI, HEADPHONE.

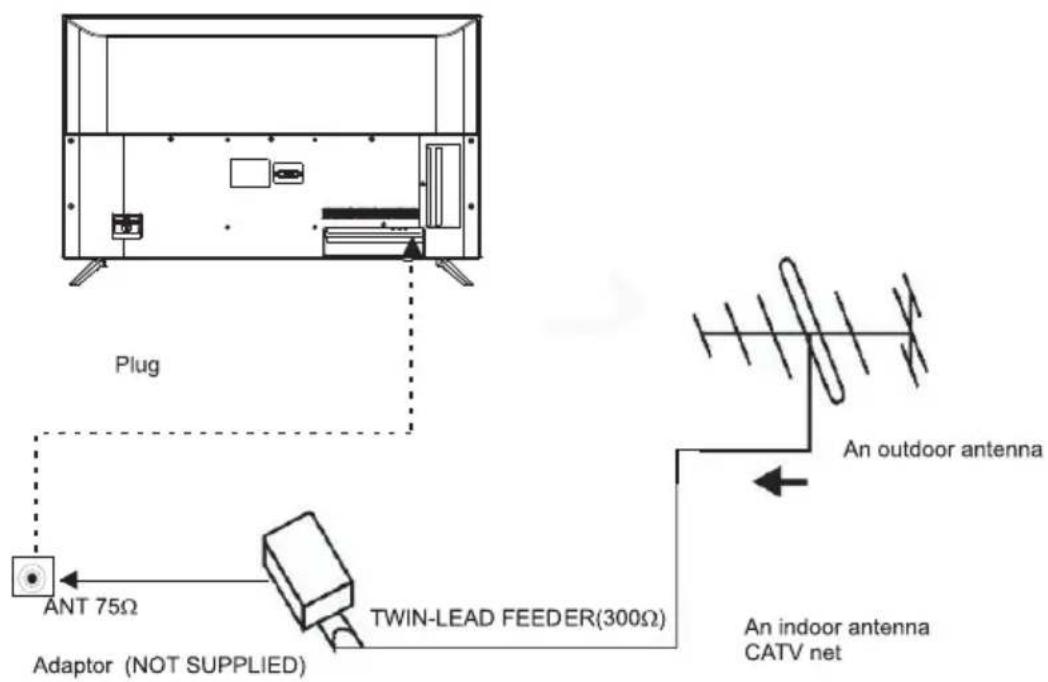

ANTENNA

Note:

Aerial connections: IEC(female).

Input impendance:75 unbalanced.

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz)
1	640*480	50/60
2	800*600	50/60
3	1024*768	50/60
4	1360*768	50/60
5	1280*768	50/60
6	1920*1080	50/60
7	3840*2160	24/25/30/60

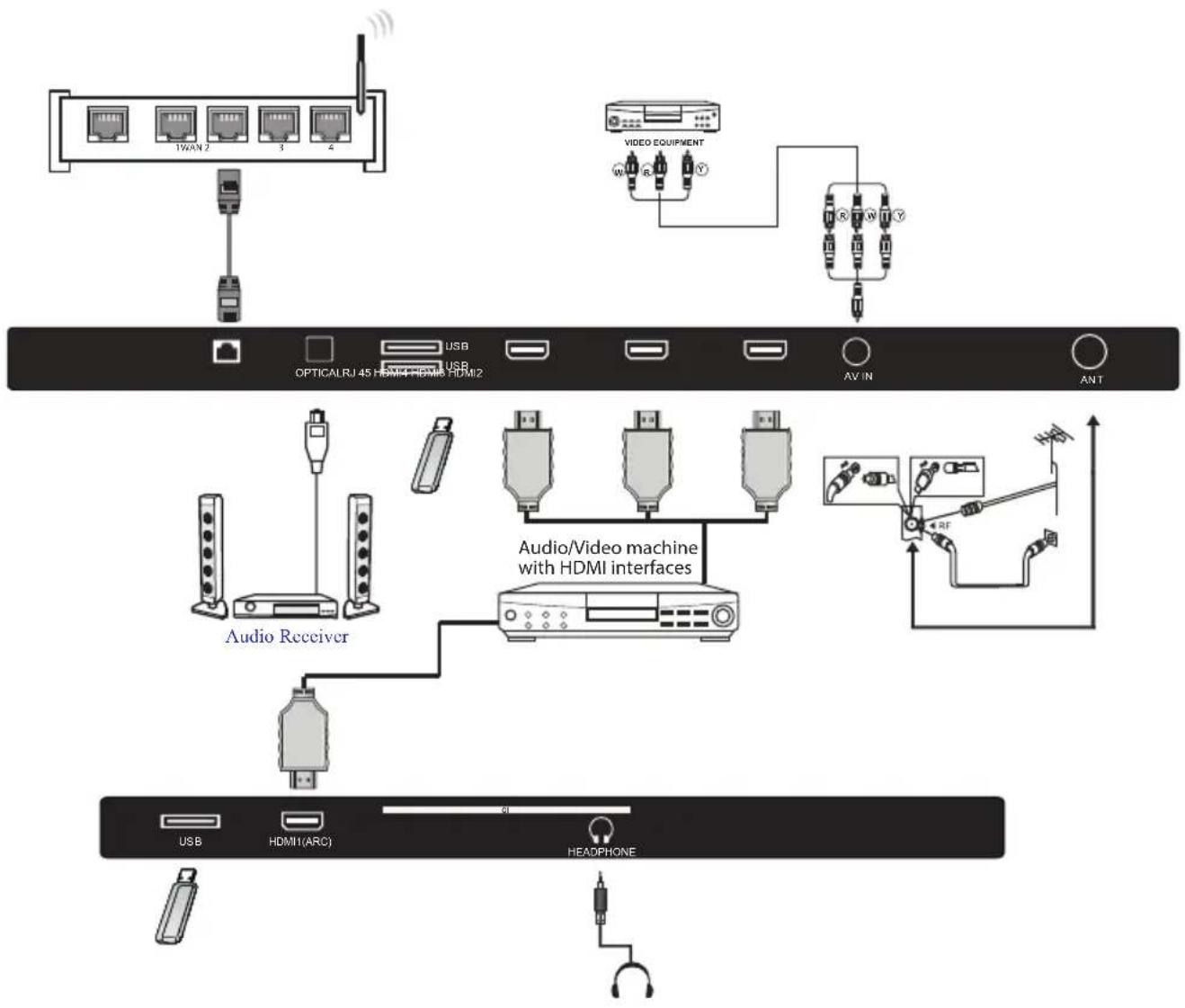

AV EQUIPMENT

You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...

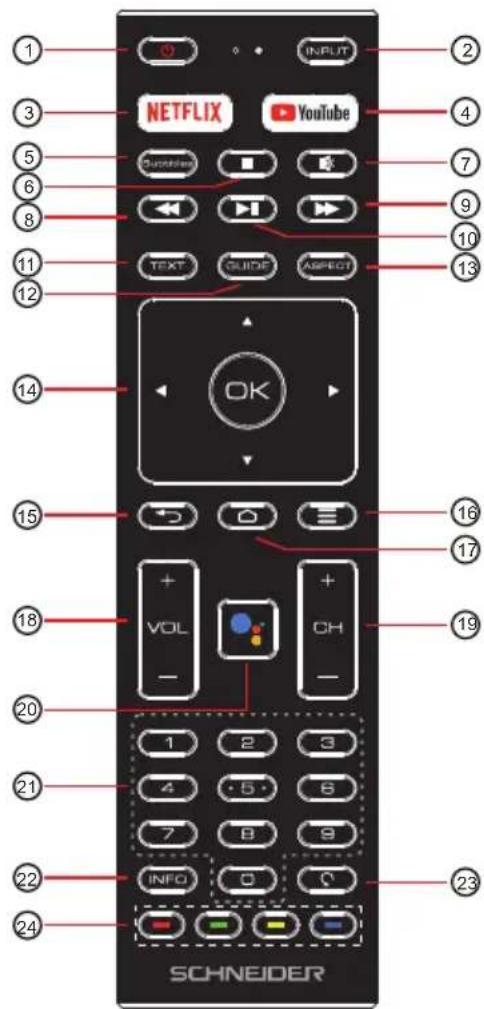

REMOTE CONTROL

1: POWER: To set the TV to Standby or Power On modes.

2: INPUT: Select among the different input signal sources.

3: NETFLIX: Press to open NETFLIX.

4 : YouTube : Press to open the YouTube.

5: Subtitles: To turn on subtitles in DTV mode.

6: ■ (Stop): Press to stop multimedia playback

7: MUTE: To disable or enable the speaker sound output.

8:◀(Reverse) : Reverse playback rapidly.

9 :▶▶ (Forward): Advance playback rapidly.

10:▶(Play/Pause) : Start playback. Pause playback.

11 : TEXT: Press to select the teletext mode.

12: GUIDE: Press to display electronic programme guide in TV mode.

13: ASPECT Adjust Aspect ratio of the TV.

14 : ▲▼◀▶ : Press to navigate the on-screen menu. OK: Confirms selection.

15 : ←: Return to the previous menu.

16: ≡ : Press to open or close the on-screen menu.

17 : Press to open the Home Page.

18:VOL+/-: To adjust sound level.

19:CH+/CH-: To access the next or previous channels.

20 Start to voice search or speak to Google Assistant.

21: NUMERIC KEY: For direct access to channels.

22: INFO :Press to display the channel information.

23: Jumps to last channel viewed.

24: Coloured buttons: Implement the relevant operations according to the prompt at the bottom of the menu in the text.

INITIAL SETUP

The first you turn your TV, the setup wizard will guide you through setting up basic settings.

Please according to the text tip to first time setup.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV. If you don't need to use the Bluetooth remote control, you can press the BACK button to skip this step.

The setting below is about bluetooth synchronization of the remote control

Please note that this product is not compatible with this feature.

Please use the Back button to continue installing the product

Press▼▲ to select the system language and press OK to confirm the language.

Connect your Android phone to your TV, select "Continue to continue the connection, and choose "Skip to skip this step.

Press▼▲ to select the the Wifi to connect, press OK and enter the password to confirm the connection is successful. You can also try use Ethernet and skip select network.

By accepting the Google Terms of Service to improve the product experience, select "Accept to accept this condition.

Agree to Google to get the location information of your device to get more features, choose YES to accept."

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose YES to accept.

1. Your device is powered by Android TV and press the button to select the browsing feature.
2. You can get more apps from Google Play and press the ▶ button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Press▼▲ to select the country of your device and press OK to confirm.

Used to set your device's password to ensure security and privacy.

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

For selecting the mode, press▼▲key to select Home mode and press OK to confirm.

Confirm the selected mode again, select "Ye's to confirm the selected mode, and select "No" to return to the previous step.

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

To select the Tuner mode for searching, press

▼▲to select and press OK to confirm.

Press ⬆ to select whether to search, select can to search, select "Skip Scan to skip the search.

PreOK to complete the setup.

Press the OK button to agree to (Disclaimer). After setting is complete, You can watch TV.

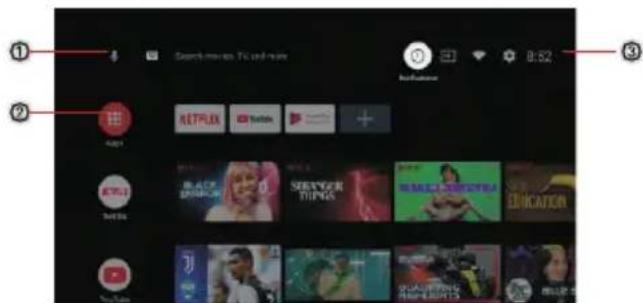

HOME SCREEN

Press the HOME button to go to the home page

① open the google assistant start a voice search or use keyboard search

② Among the applications installed on the TV, the icons for the favourite applications are shown inside here.(Favourite applications can be added/deleted/ changed its order by users.)

Apps: Click to jump to Apps screen where all the installed applications are listed.

③ ② Notification: Display the notifications.

Inputs:Icon to select an input source.

Network&Internet:Icon to Setup Network, Such as wifi.

Settings: Various settings can be configured here. For details on the settings, see the next explanation.

INPUT SOURCE

1. In the HOME interface, press ▼▲◀▶ to select the "Inputs" icon, press OK to open the input source list, then press up to highlight an input and press OK to switch.

2.Under Live TV, press the SOURCE button to display the list of input sources. You can select the desired source.

1. There are two ways to enter. First, in Live TV, press the menu button to display TV options, press ▼▲

◀▶ select the settings menu and press OK to confirm. Second, in the HOME interface, press the ▶key to select the icon of the circular settings menu, press OK to confirm.

1. Press ▼▲button to select what you want set.

2. Press OK to enter setting.

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

Network & Internet

1. Press ▼▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.

CHANNEL

Channels: Display the scan sub-menu based on different Channel installation modes.

Channel installation mode: Select on-screen display channel sources. You can select the signal type.

• Antenna: Set the signal type to antenna. When set to Antenna, the TV can receive analog and digital (DVB-T/DVB-T2) broadcasting signals.
  •Cable: Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signals.

Auto Channel Update

Parental controls: Press▼▲button to select the option then press OK button to enter the sub-menu. Audio Channel: Press▼▲button to select the option then press OK button to enter the sub-menu. Open source licenses: Press▼▲button to select the option then press OK button to enter the sub-menu.

Antenna

1. Menu->Settings->Channel->Channel Installation Mode enter, choose Antenna or Cable.
2. Enter Menu->Settings->Channel->Channels.

1. Channel Scan directly enters the ATV+DTV automatic search platform interface of Antenna. Update Scan: Re-automatically search for frequency points outside the station.

Analog Manual Scan: Manual ATV search station. After input the frequency point, you can select up or down search station.

Single RF Scan: DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

1. Menu->Settings->Channel->Channel Installation Mode, select Cable.
2. Enter Menu->Settings->Channel->Channels.

1. Enter Channel Scan, where Numericable are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

Single RF Scan: manual search station.

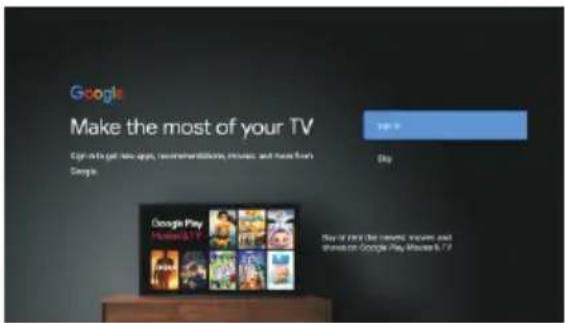

ACCOUNTS&SIGN IN

Press UP/DOWN button to select Sign in or Skip.

APPS

In this menu, you can set the APP permissions, and read the app lists.

1. Press button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DEVICE PREFERENCES

ABOUT

In this menu, you can read the information and settings of TV.

1. Press ▼▲button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DATE&TIME

Automatic date&time-Press▲button to select the option then press OK button to enter the sub-menu. (Optional: Use network-provided time, Off)

Set date:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time zone: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Use 24-hour format: Press ▼▲button to select the option then press OK button to choose ON/OFF.

TIMER:

Power On Timer Type: Press ▼▲button to select the option then press OK button to choose ON/OFF/ONCE.

Power On Timer :Press ▼▲button to select the option then press OK button to enter the sub-menu.

Power Off Timer Type: Press ▼▲button to select the option then press OK button to choose ON/OFF/ONCE.

Power Off Timer :Press▼▲button to select the option then press OK button to enter the sub-menu.

LANGUAGE:

Language :Press button to select the option then press OK button to enter the select language.

KEYBOARD

Current keyboard: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

Gboard Settings: Press ▼▲ button to select the option then press OK button to enter the sub-menu. Manage keyboards: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

INPUTS

Inputs: Press ▼▲button to select the option then press OK button to enter the sub-menu.

HDMI control: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Device auto power off: Press ▼▲button to select the option then press OK button to choose ON/OFF.

TV auto power on: Press ▼▲button to select the option then press OK button to choose ON/OFF. HDMI EDID Version: show EDID version.

CEC Device List: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

POWER

Sleep Timer:Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off: Press ▼▲button to select the option then press OK button to turn off the TV.

Switch off timer: Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes).

No signal Auto Power Off:Press▼▲button to select the option then press OK button to enter sub-menu. (Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).


Picture Mode: Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness:Press▼▲button to select the option. Press◀to decrease the parameter. Press▶to increase the parameter.

Gamma:Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: Dark, middle, Bright).

Color Temperature: Press ▼▲button to select the option then press OK button to enter sub-menu.

HDR:Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional:on, off)

Advanced Videocer ▼▲button to select the option then press OK button to enter the sub-menu.

Reset to Default: Reset all settings to the factory defaults.

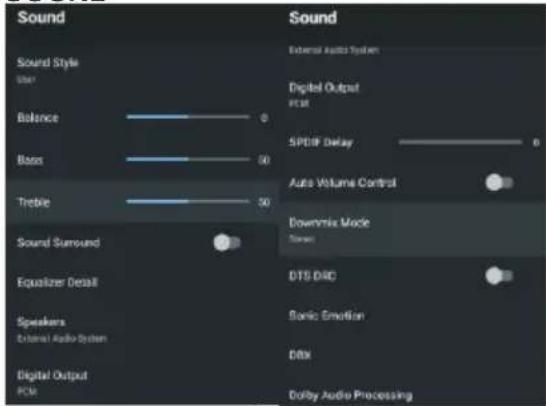

SOUND

Sound style: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional:user, Standard, Vivid, Sports, Movie, Music, News)

Balance/Bass/Treble: Press ▼▲button to select the option. press ◀to decrease the parameter. Press ▶to increase the parameter.

Sound Surround: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Equalizer Detail: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Speakers: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: TV Speaker, External Audio System)

Digital Output Press▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital)

SPDIF Delay: Press ▼▲buRoaste to select the option. ◀to decrease the parameter. Press ▶ to increase the parameter.

Auto Volume Control: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Downmix Mode: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround)

Reset to Default: Reset all settings to the factory defaults.

STORAGE

Internal shared storage: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Removeable Storage: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Note: Show external devices if available)

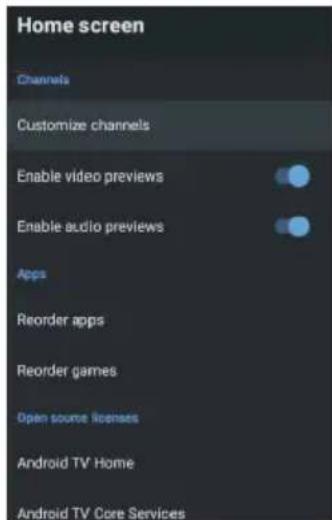

HOME SCREEN

In this menu, you can set channels, apps, open source licenses.

1. Press▼▲button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

RETAIL MODE

Retail mode: Press ▼▲button to select the option then press OK button to choose ON/OFF.

GOOGLE

In this menu, you can set searchable apps, safe search filter, block offensive words, open source licenses.

1. Press ▲ button to select what you want set
2. Press ok button to adjust
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECAST BUILT-IN

In this menu, you can read the information and settings of Chromecast.

1. Press ▲ button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREEN SAVER

Screen saver: Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: Tum screen off, Backdrop, Colors).

When to Start: Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours).

Put device to sleep: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, Never).

Start now: Press ▼▲button to select the option then press OK button to enter screen saver. LOCATION

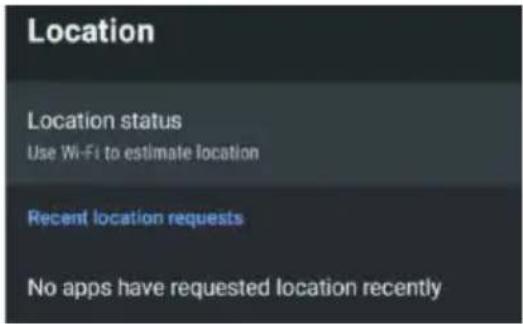

Location status: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, Off).

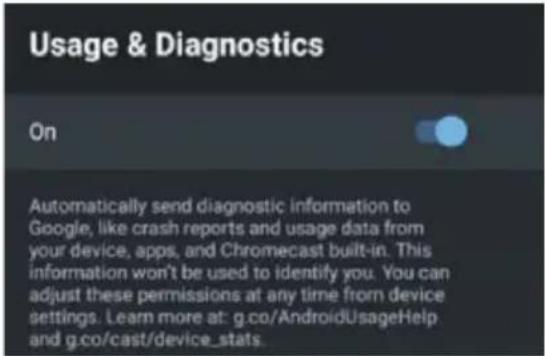

Usage & diagnostics Press ▼▲button to select the option then press OK button to choose ON/OFF. ACCESSIBILITY

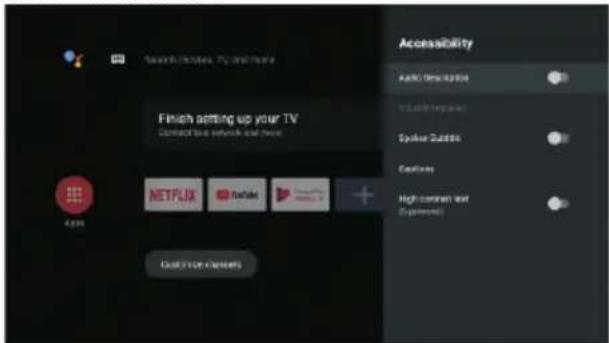

Audio Description: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Visually Impaired: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Spoken Subtitle: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Captions: Press ▼▲button to select the option then press OK button to enter the sub-menu.

High contrast text: Press ▼▲button to select the option then press OK button to choose ON/OFF.

RESET

Press OK button to enter the sub-menu. Reset-Erase everything.

REMOTE & ACCESSORIES

In this menu, you can pair Bluetooth devices.

1. Press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait 30 seconds and then press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps.
5. Press BACK button return to the previous menu.

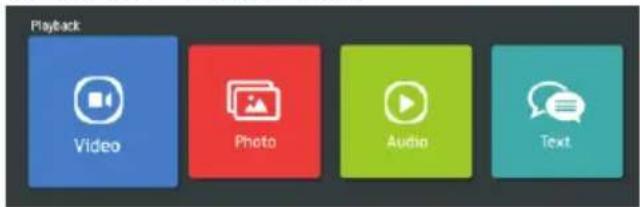

MULTIMEDIA PLAYER

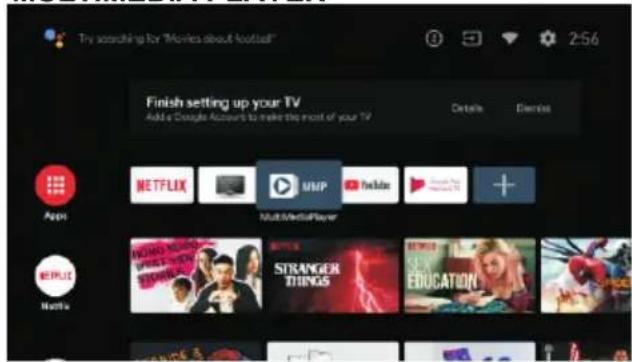

In the HOME interface, select the MMP APP to display Video, Photo, Audio, Text. After inserting the USB flash drive, you can view the corresponding files in the USB flash drive.

NOTE:

The menu may be different depending on when you purchased the TV.

Trouble phenomenon Symptom			Inspection Check
Picture Audio
	Snow Noise		antenna position, direction or connection
	Ghost	Normal audio	antenna position, direction or connection
	Interference	Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
	No colour Normal a control
	Picture breaking up	Normal audio or weak	retune channel
	No colour	Noise	TVsystem
	There is black bar on top and bottom	Normal audio	Change aspect to zoom

- Before cleaning this product, press STANDBY button to turn it to the standby mode and wait for a few minutes to disconnect the power plug.

- Wipe this product with a dry, soft cloth. Do not spray water directly onto the TV, but apply a small amount of water on the corner of the cloth and wipe as gently as possible. Never use cleaning fluids, wax, or chemicals.

- Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

- If the surface is extremely dirty, wipe it with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

- Before you plug in the TV back, let the screen dry completely.

Technical data sheet

Sheet of household television according to EU directive 1062/2010

Trade mark SCHNEIDER
Model no. SC-LED65SC500QA
Energy efficiency class A
Visible screen diagonal 165cm	/ 65 inches
On mode power consumption 150W
Annual energy consumption 219kWh
Power consumption in off mode 0 W
Standby power consumption <0.5W
Screen resolution (pixel)	3840(H) x 2160 (V)

Wireless Technology & Frequency Band	Maximum Wireless Transmit Power Power (dBm)
IEEE 802.11 b/g/n (WLAN)2400-2483.5 MHz	20dB M

Note:

1. Energy efficiency class: A+++ (most efficient) to D (lease efficient).
2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days.

The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc.

Product Information sheet according to EU Regulation No. 2019/2013

Energy labelling for Electronic Display & Television can be found be below

URL or QR code indicated on Energy label

URL: https://eprel.ec.europa.eu/qr/362650

Product Information sheet according to EU Regulation No. 2019/2013 Energy labelling for Electronic Display & Television can be found be below URL or QR code indicated on Energy label URL: https://eprel.ec.europa.eu/qr/362650

Position: Quality Assurance Engineer

Signature:
