USER MANUAL 5010100A Eurolite

MULTI-LANGUAGE-INSTRUCTIONS

SAFETY INSTRUCTIONS 7

OPERATING DETERMINATIONS 7

OVERVIEW 8

INSTALLATION 8

CLEANING AND MAINTENANCE 10

TECHNICAL SPECIFICATIONS 10

François

INTRODUCTION 11

INSTRUCTIONS DE SECURITE 11

EMPLOI SELON LES PRESCRIPIONS 11

INSTALLATION 12

NETTOYAGE ET MAINTENANCE 14

CARACTERISTIQUES TECHNIQUES 14

Espanol

INTRODUCCION 15

You can find the latest update of this user manual in the Internet under:

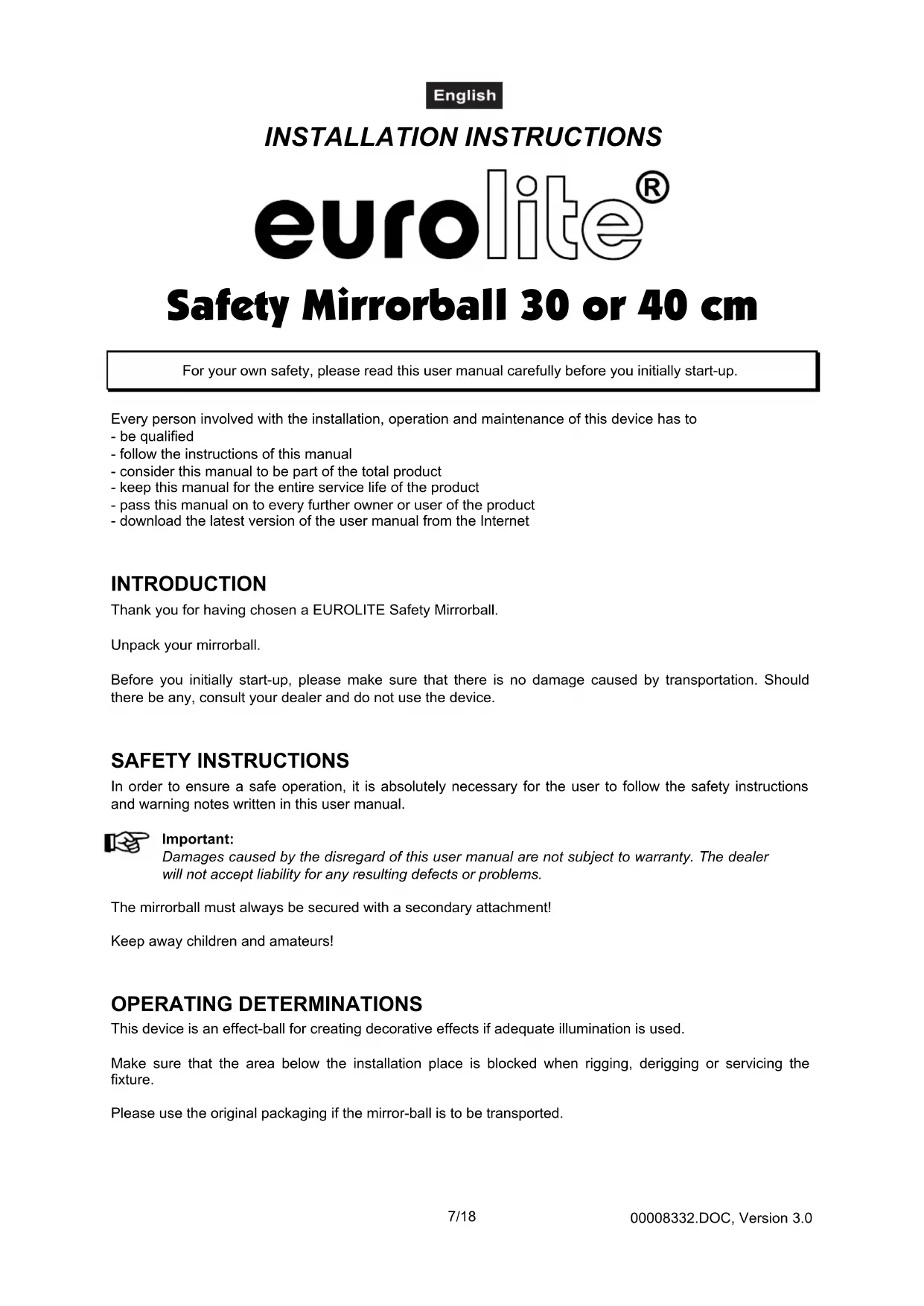

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a EUROLITE Safety Mirrorball.

Unpack your mirrorball.

Before you initially start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

SAFETY INSTRUCTIONS

In order to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

The mirrorball must always be secured with a secondary attachment!

Keep away children and amateurs!

OPERATING DETERMINATIONS

This device is an effect-ball for creating decorative effects if adequate illumination is used.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Please use the original packaging if the mirror-ball is to be transported.

English

If this mirror-ball will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like crash etc.

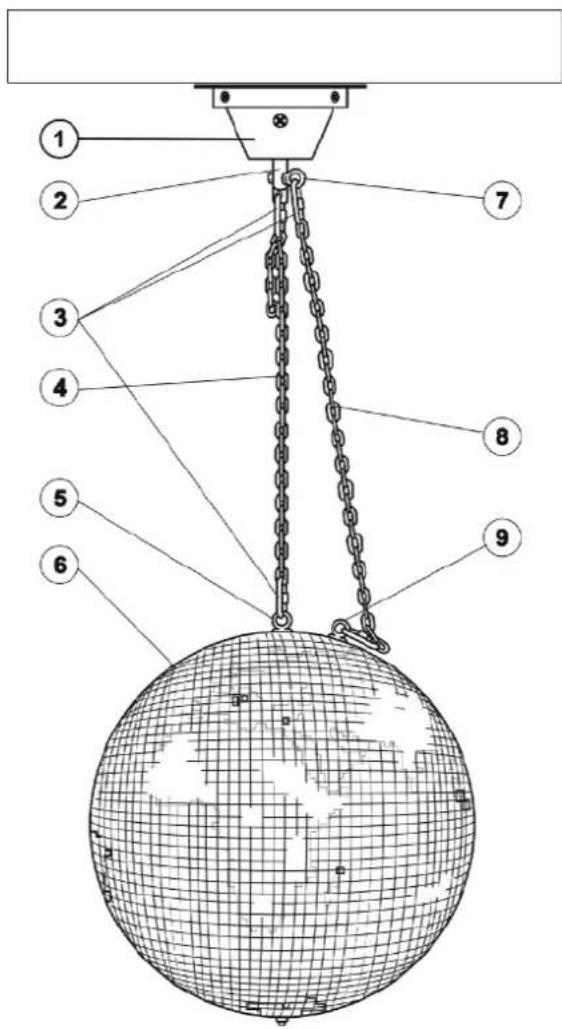

OVERVIEW

(1) Mirrorball motor
(2) Motor axle
(3) Screw-on chain link
(4) Mirrorball chain
(5) Installation eyelet
(6) Mirrorball
(7) Attachment eyelet
(8) Safety chain
(9) Attachment eyelet

INSTALLATION

DANGER TO LIFE!

Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!

The installation of the mirror ball has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

English

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

Procedure:

The mirror ball should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the mirror ball. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and/or damage to property.

The mirrorball has to be installed out of the reach of people.

Caution: Mirrorballs may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the mirrorball!

Before rigging make sure that the installation area has to hold a minimum of 30 / 40kg (30 / 40cm) point load.

For the mirror ball 30 / 40~cm only the EUROLITE MD-1515 safety rotate motor, No. 50301300 or a safety technical equivalent motor has to be used.

The mirrorball has to be connected via an appropriate installation (see above) with the motor. We recommend to use the Chain for Mirrorballs up to 40 cm, 33 cm, No. 50301600 or Chain for Mirrorballs up to 40 cm, 100 cm, No. 50301605.

The mirrorball has to be secured via an appropriate safety chain. This chain has to be built and constructed in a way that it can hold 12 times the weight for 1 hour without any harming deformation.

The installation material must never include abrading material e. g. steel cables in order to avoid material wearing.

The length of the chain must never exceed 100cm

Install the mirorball chain with the screw-on chain link at the installation eyelet of the mirorball and tighten the fixation screw.

Insert the fourth chain link of the mirrorball chain with the mirrorball in the screw-on chain link and tighten the fixation screw.

For overhead use, always install a safety chain on the mirrorball that can hold at least 12 times the weight of the installation. The safety chain must be slightly longer than the mirrorball chain. Pull the safety chain through the attachment eyelet of the mirrorball and in the attachment eyelet of the motor.

Make sure that the rotation of the mirrorball is never slowed down or stopped by decoration material etc.

Make sure that no side forces can impact on the installation.

Please check in regular intervals, if the installation material (e. g. shackles, screw-on carabines or screw-on chain links) or chain links have been deformed. Uninstall the mirrorball immediately in such a case.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

CLEANING AND MAINTENANCE

The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1) All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and others must not show any traces of wearing (e.g. material abrading or damages) and must not rotate with unbalances.
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

Maintenance and service operations are only to be carried out by authorized dealers.

Should you need any spare parts, please use genuine parts.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Article: 5010040A 5010100A

Diameter: 30 cm 40 cm

Weight: approx. 2 kg approx. 4 kg

Please note: Every information is subject to change without prior notice. 08.11.2007 ©
