5 in 1 Deluxe Ride & Relax Recliner Trike - Child stroller Little Tikes - Free user manual and instructions

Product Type	5-in-1 Evolutive Tricycle (stroller, walk, pedal, learn, trike)
Brand	Little Tikes
Model	5 in 1 Deluxe Ride & Relax Recliner Trike
Recommended Age	9 months to 5 years
Maximum Child Weight	23 kg
Maximum Basket Load	1.82 kg
Maximum Accessory Tray Load	0.95 kg
Maximum Child Platform Load	5.9 kg
Main Functions	5 evolutive positions: stroller (parent pushes), walk (parent guides), pedal (child pedals), learn (child pedals with parent handlebar), trike (child alone)
Included Items	Frame, wheels, handlebar, reclining seat, footrest, safety belt, basket, tray, parent handle, canopy
Safety Belt	Adjustable central belt to keep child in place
Brakes	Rear wheel brakes for parking
Wheels	Front and rear wheels with left/right indicators (one line = left, two lines = right)
Material	Sturdy plastic, metal (frame), padded cushion
Assembly	Adult required, tools not included (Phillips screwdriver), follow step-by-step instructions
Care and Cleaning	Clean with a damp cloth and mild soap. Do not use corrosive or abrasive products.
Safety Precautions
Warranty	1 year from purchase date (defective parts), 3 months for commercial use. Contact: www.littletikes.com or 1-800-321-0183
Spare Parts	Available from Little Tikes customer service (some parts after warranty expiration)
Usage	Private and residential use only, no commercial use
Country of Origin	China
Model Number / Reference	639814E4

Frequently Asked Questions - 5 in 1 Deluxe Ride & Relax Recliner Trike Little Tikes

How to assemble the 5-in-1 tricycle?

Assembly requires an adult. Use a Phillips screwdriver (not included). Follow the steps in order: attach the wheels, handlebar, seat, parent handle, and adjust the belts. Tighten all screws after checking.

How to switch from stroller mode to tricycle mode?

The tricycle has 5 positions. To switch from stroller (position 1) to tricycle (position 5), you need to disengage the pedals and adjust the seat. Detailed instructions are in the manual, with diagrams for each step.

What is the recommended age and maximum weight for this tricycle?

The tricycle is designed for children aged 9 months to 5 years. The maximum child weight is 23 kg. Respect these limits to avoid any risk of tipping or damage.

How to clean the tricycle?

Clean the tricycle with a cloth lightly dampened with cold water and mild soap. Never use corrosive or abrasive products that could damage the surfaces.

Is the safety belt adjustable?

Yes, the central safety belt is adjustable. Thread the end of the belt through the buckle until it is tight and secure. Make sure the child is safely held.

Can I use the tricycle on the road?

No, never use it near motor vehicles, on roads, pools, slopes, stairs, or inclined driveways. Use only on flat, clear surfaces, under supervision.

How to park the tricycle safely?

Use the rear wheel brakes to prevent the tricycle from rolling when parking. Activate the brakes by pushing them down. Make sure the tricycle is stable.

What to do if a part is missing or broken?

Contact Little Tikes customer service by phone at 1-800-321-0183 (USA/Canada) or via website www.littletikes.com. For other countries, contact your retailer. The warranty covers manufacturing defects for one year.

Should the child wear a helmet?

Yes, it is highly recommended that the child wears a well-fitted helmet compliant with 16 CFR 1203 to prevent injuries in case of a fall.

How to distinguish between left and right wheel?

The right wheel and right brake have two lines (=) marked, while the left wheel and left brake have one line (-). The 'R' and 'L' indicators are inside the wheels and under the brakes.

USER MANUAL 5 in 1 Deluxe Ride & Relax Recliner Trike Little Tikes

The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes Company, the only remedies available under this warranty will be the replacement of the defective part or replacement of the product. This warranty is valid only if the product has been assembled and maintained per the instructions. This warranty does not cover abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from defects in material and workmanship. The warranty period is three (3) months for daycare or commercial purchasers. U.S.A and Canada: For warranty service or replacement part information, please visit our website at www.littletekes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company, 2180 Barlow Road, Hudson OH 44236, U.S.A. Some replacement parts may be available for purchase after warranty expires—contact us for details.

Outside U.S.A and Canada: Contact place of purchase for warranty service. This warranty gives you specific legal rights, and you may also have other rights, which vary from country/state to country/state. Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please keep this manual as it contains important information.

EET

1015-0-E4

© The Little Tikes Company,

an MGA Entertainment company.

LITTLE TIKES* and BIDE & RELAX are

trademarks of Little Tikes in the U.S. and other

countries. All logos, names, characters,

likenesses, images, slogans, and pad

The appearance are the property of Litt

Little Tikes Consumer Service

2180 Barlow Road, Hudson, Ohio 44236 U.S.A.

1800-3210183

Printed in China

MGA Entertainment UK Ltd

50 Presley Way

Crownhill

Milton Keynes

MK80ES

Bucks, UK

0800521558

www.littletikes.com

www.littletikes.co.uk

Visit our website at

ww.littletikes.com

ster your product and

ter our sweepstakes.

(No purchase necessary)

639814E4

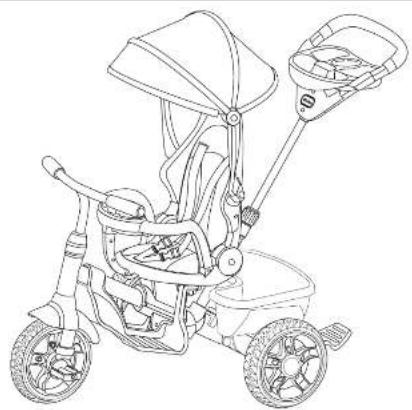

Ride & Relax® 5-in-1 Trike

AGES:9 MONTHS-5 YEARS

ADULT ASSEMBLY AND SUPERVISION REQUIRED

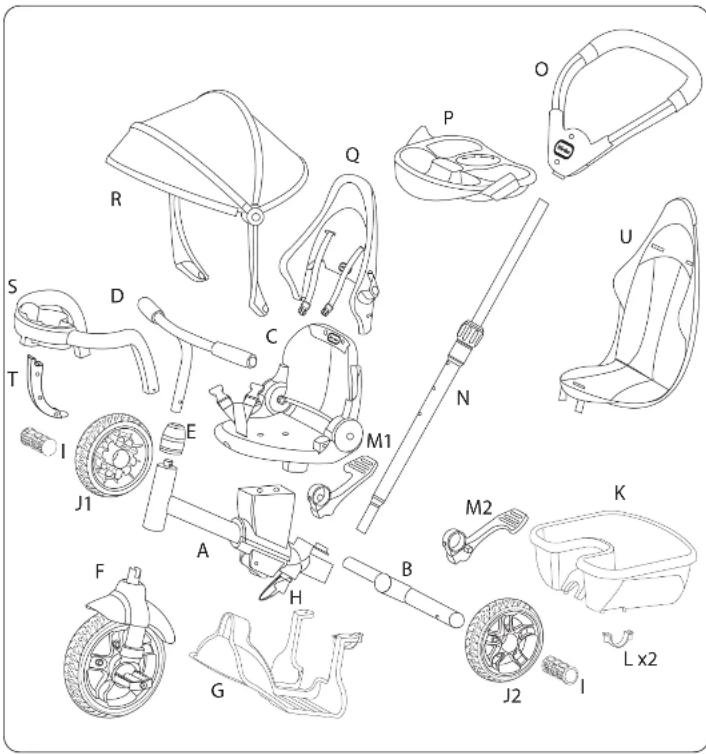

CONTENTS

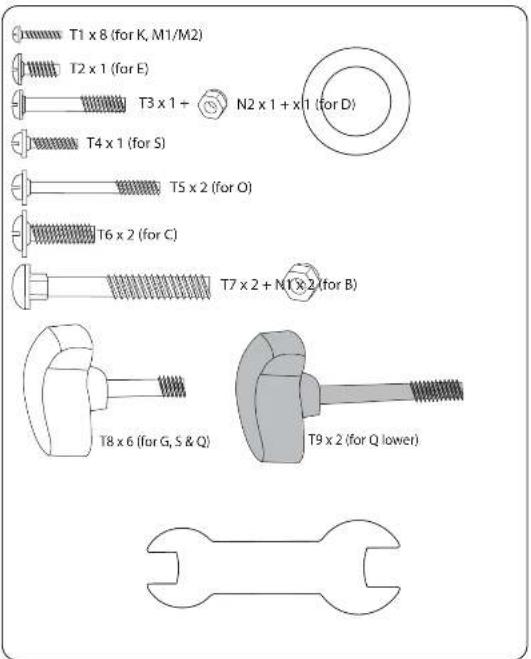

INCLUDED HARDWARE

REQUIRED TOOLS FOR ASSEMBLY

(NOT INCLUDED)
Safety Goggles

Phillips Screwdriver

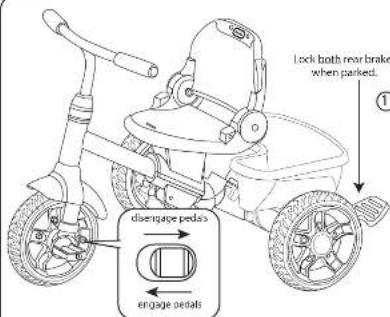

POSITION 5 - TRIKE

ENGAGE PEDALS FOR POSITION 5
Push in button. Then, slide to move. Rotate front pedal if the button does not fully slide

①
Push seat belts through the openings on the seat cushion. Undo the process of pushing the seat cushion back.

②

(3)

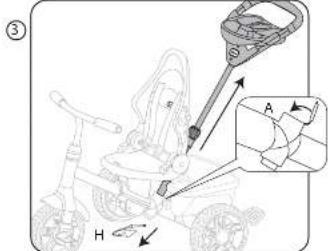

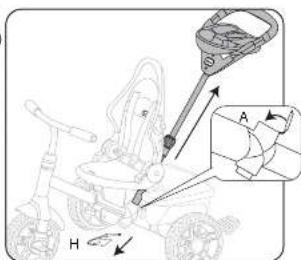

Remove handle with tray. Then, close the cap on the frame [A].
Replace handle lock in onto the frame or store in a safe place for future use.

(4)

⑤

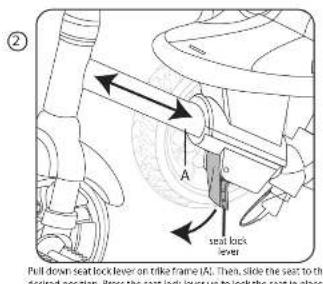

Pull down seat lock lever on title frame (A). Then, slide the seal to the desired position. Press the seat lock lever up to lock the seat in place.

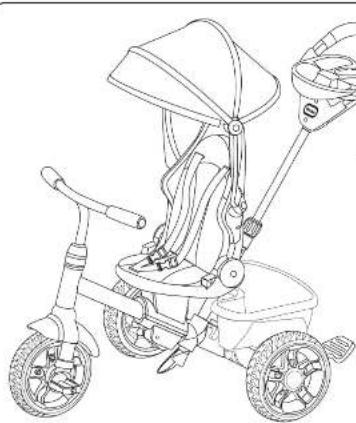

POSITION 4-LEARN

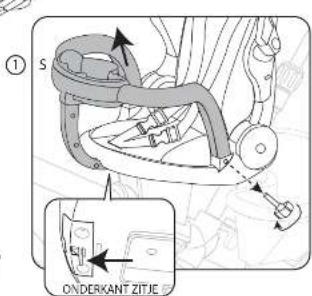

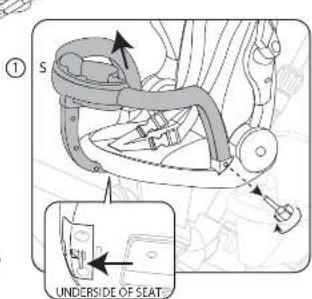

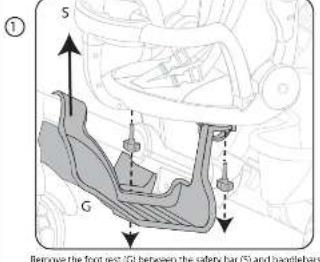

Remove the safety bar. Stuck uncovered each side of safety bar and lift up. The funnel is turned on. The funnel's head forwards to unlock. Pull out the safety bar.

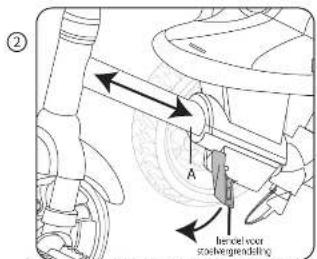

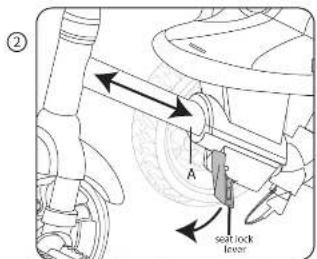

Pull down seat lock lever on trike frame JM. Then, slide this seat to the desired position, Press the seat lock lever up to lock the seat in place.

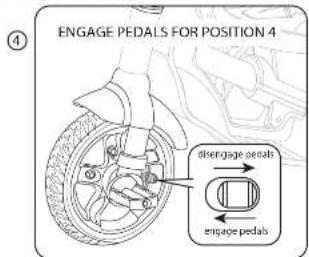

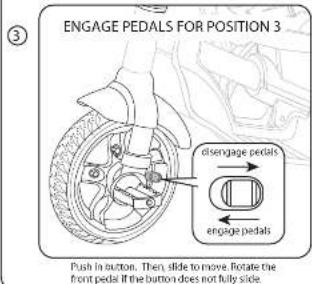

Push in button. Then, slide to move. Rotate the front panel if the button does not fully slide.

STOP!

PLEASE READ INSTRUCTIONS

BEFORE ASSEMBLING AND OPERATING.

Please save sales receipt for proof of purchase.

WARNING:ADULT ASSEMBLY REQUIRED.

• Read entire instructions carefully before assembling this product.

WARNING: ASSEMBLY

• Keep these instructions for future reference.
• Prior to assembly, this package contains small parts: hardware which is a choking hazard and may contain sharp edges and sharp points. Keep away from children until assembled.
• Ensure working area is free of danger. Always dispose of packaging material in such a way that it may not cause any harm. Plastic bags can be dangerous. To avoid suffocation, keep plastic bags away from babies and children.
  To prevent serious injury, children must not use the equipment until completely assembled.
  This product is intended for outdoor domestic family use only.
  This contract is for private, residential use only (no commercial or public use).
• All staff assembly required. Choking hazard to children under the age of 3 years - contains small parts prior to assembly.

ASSEMBLY HINT

Assemble all parts together loosely at first. Check that assembly is correct, then tighten all screws.

WARNING: TO AVOID SERIOUS INJURY:

Continuous adult supervision required
- Never use near motor vehicles.
- Never use near streets, swimming pools, hills, steps, or sloped driveways.
- Always wear closed shoes when using the bicycle.
- Never allow more than one rider on the tricycle. - Instruct children on proper use of this product before allowing them to ride.
- This product is not to be used in a manner other than for which it is intended
- It is recommended that rider always wear a properly fitted helmet that complies with U.S. Consumer Product Safety Commission (CPSC) standard 16 CFR 1203.
- Ride-on toys should be used with caution since skill is required in order to avoid falls or collisions which may cause injury to the user or third parties.

WARNING!

10

• Intended for children 9 months to 3 years

• Maximum child's weight: 50 lbs. (73 kg)

• The maximum permissible load for basket 4 lbs. (1.82 kg). The maximum permissible load for accessory tray 2 lbs. (0.9 kg). The maximum permissible load for child's tray 2 lbs. (0.9 kg). Excessive weight may cause a

hazardous or unstable condition.

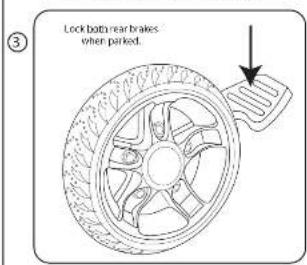

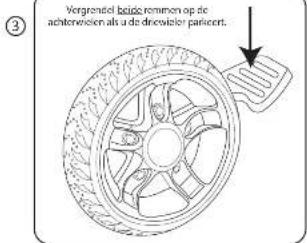

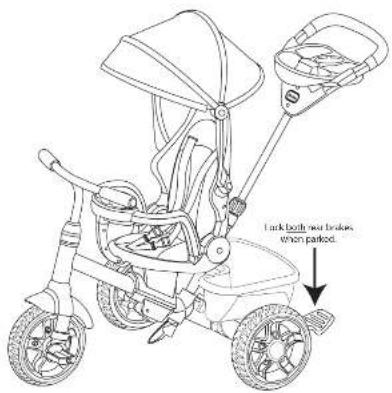

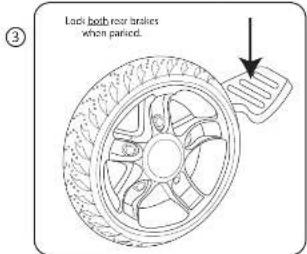

• Safeguard the product against rolling away when parking it by using the rear wheel brakes.

MAINTENANCE & CLEANING

• Check all hardware during usage period and tighten as required. It is particularly important that this procedure be followed at the beginning of each season; if these checks are not carried out, the toy could be left in the field for a year or more.
  Do not attempt to modify or repair this product. For help contact Little Tikes Consumer Service.
• Clean trike with a slightly damp cloth (cold water) and mild soap. Never use a corrosive or abrasive substance to clean the product.

DISPOSAL

• Disassemble and dispose of equipment in such a manner that no hazardous conditions, such as but not limited to, small parts and sharp edges, exist at the time equipment is discarded.

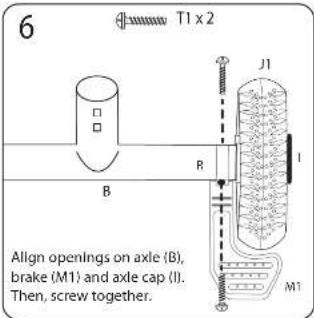

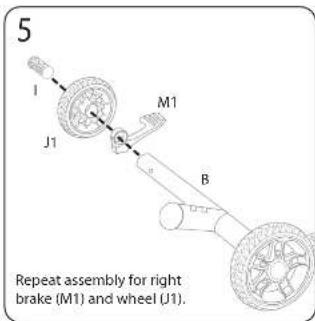

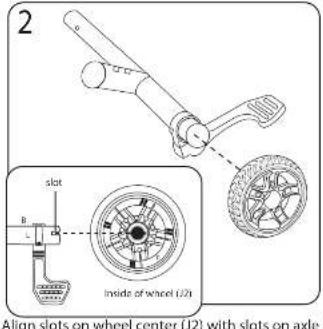

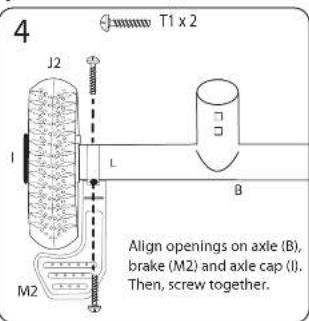

The right wheel and right brake have two lines () . The left wheel and left brake have one line () . Inside the wheels and under the brakes are R and L indicators for right and left.

POSITION 3-PEDAL

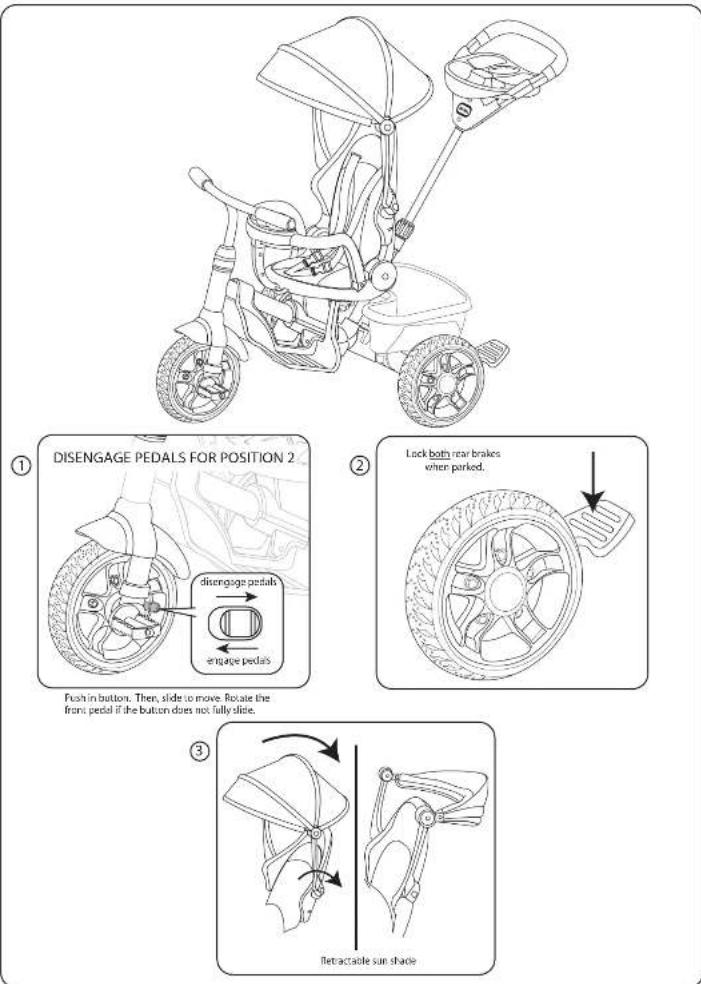

POSITION 2-STROLL

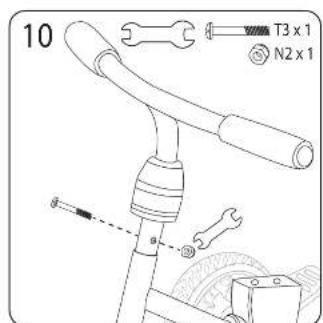

Secure handlebars (D) with a screw and nut (T3+N2).

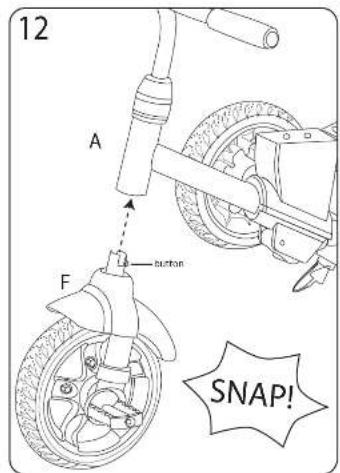

Press frame (A) and front wheel (F) together until the button snaps into place.

6 Fit foot rest over metal support on the frame (A).

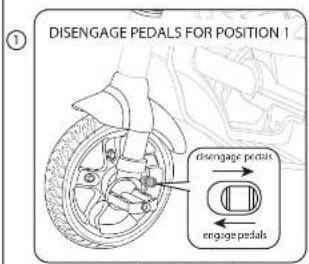

POSITION 1 - RECLINE

Push in buttor. Then, slide to move. Rotate the front peda if the buttor does not fully slide.

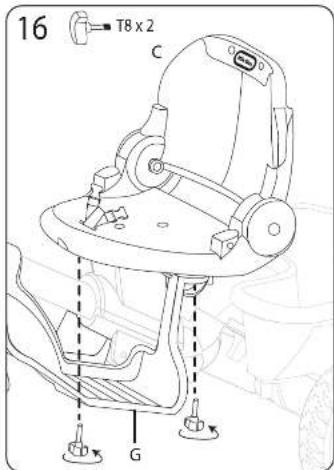

Slide seat to back of frame. Then, gently twist knobs (T8) until they are securely fastened.

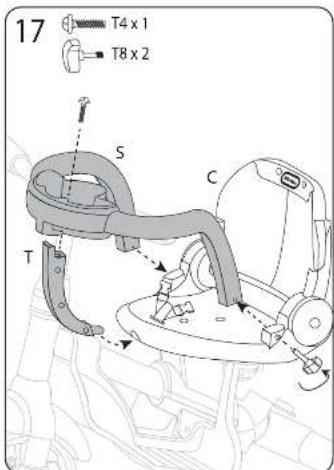

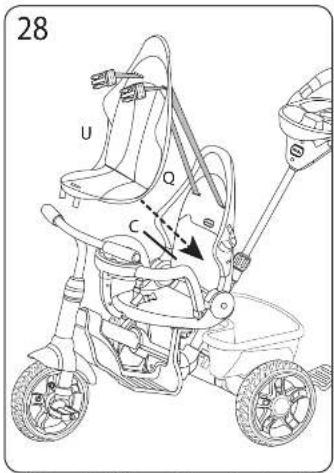

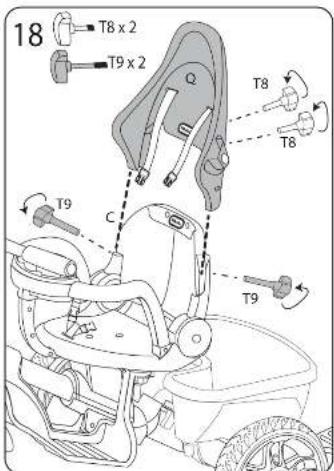

Slide the seat back (Q) onto the seat (C). Then, gently twist knobs (T8, T9) until they are securely fastened.

Gently twist knobs (T8) until they are securely fastened.

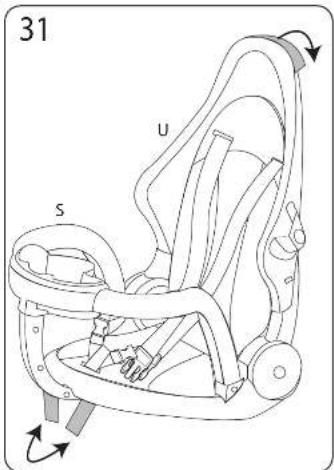

Slide seat belts through the seat cushion (U). Then, place the seat cushion on the seat (C).

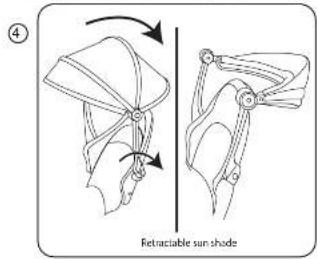

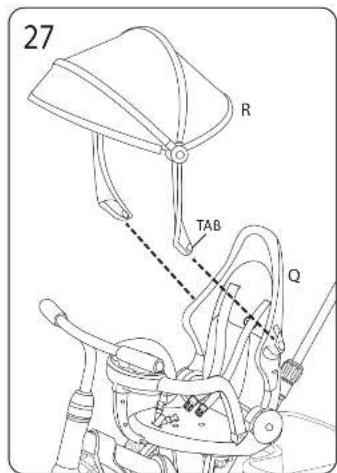

Press in tabs before inserting the canopy into the openings on the seat.

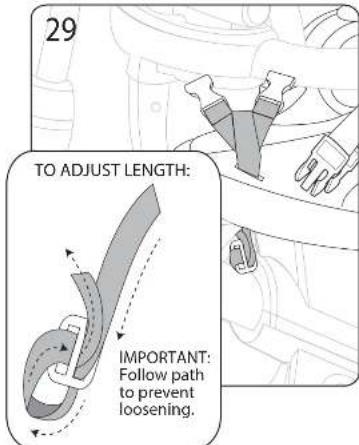

Pull the center seat belt through the seat cushion (U). To adjust the center seat belt length, follow the path shown above. Pull seat belt tail through the clip until it is tight and secure.

GARANTIE LIMITEE

Consumer Product Safety Commission (CPSC).

© The Little Tikes Company, una/company de MGA Entertainment.

MGA Entertainment Iberia, S.L.

Ride & Relax® 5-in-1 Drelad

ALTER: 9 MONATE - 5 JAHRE

Oltzmann et al. (2014) have suggested that the presence of a single H^+ channel in the Ca^2+ channel is sufficient to generate an additional H^+ channel.

MGA Entertainment Netherlands BV/ Belgium BVBA

Sloterweg 303A-I, 1171 VC Badhoevedorp, NL

31(0)203548034

Gedrukt in China

www.littlelikes.nl

639814E4

Ride & Relax® 5-in-1 Driewieler

NL

LEEFTUD 9 MAANDEN-5 JAAR MONTAGE EN TOEZICHT DOOR EEN VOLVASSENSE YE VERESTI

INHOU

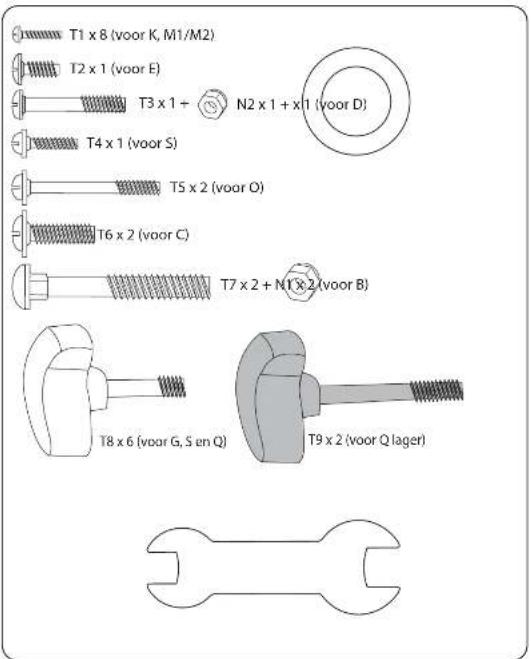

INBEGREPEN HARDWARE

VEREIST GEREEDSCAP VOOR DE MONTAGE

(NIETINBEGREPEN)
Veiligheidsbril

The best-known niggerian jamiam (15) viridoverebrus, eras de sevrenamen and the sojourners of the first generation of the family, are the most common. In some cases, women wear to the preserversdienels. Terek de bechendeirme zumlen in

Trck de haveli ve soe stveigreding up he tane van der dafesder.
Tie haveli ve soe stveigreding up the tane van der dafesder.
Vehl ve soe stvenigreding onthouh offet al be in venderen.

Duo du linq, Schut wenwerg am zu greften. Duaan da weeotr trapping as die knegt noed schuitt.

LEES ALLE INSTRUCTIES GOED DOOR VOORDAT U HET PRODUCT MONTEERT EN GEBRUIKT.

WAARSCHUWING: IN ELKAAR TE ZETTEN DOOR EEN VOLWASSENE.

WAARSCHUWING: MONTAGE

WAARSCHUWING: VOORKOM ENRSTIG LETSEL
