Product type	Built-in warming drawer
Brand	Brandt
Model	WD1014X
Main use	Preheating dishes (cups, glasses, plates, bowls)
Temperature range	30 °C to 70 °C
Timer	From 10 minutes to several hours, automatic shut-off with audible signal
Maximum load capacity	20 kg
Heating type	Forced hot air with fan
Non-slip bottom	Yes, removable for cleaning
Protective grid	Yes, to prevent contact with heating element and fan
Recommended temperature for cups/glasses	40 °C
Recommended temperature for plates/bowls	60 °C
Supply voltage	220-240 V single phase
Recommended fuse	10 A
Power cable cross-section	3 conductors of 1 mm² (phase, neutral, ground)
Power cable type	H05RNF 3 × 1 mm²
Dimensions (approximate)	Standard built-in width 60 cm
Maintenance	Sponge, warm water and dish soap; no steam cleaner or abrasive products
Stainless steel front maintenance	Use a special non-abrasive stainless steel cleaner
Safety instructions	Do not heat/cook food; do not stand on the drawer; do not store plastic or flammable items
Electrical installation	Mandatory bipolar disconnection device; plug accessible after installation

Frequently Asked Questions - WD1014X BRANDT

What is the maximum temperature of the WD1014X warming drawer?

The maximum temperature is 70 °C, adjustable from 30 to 70 °C via the selector.

Can the warming drawer be used to cook food?

No, it is exclusively designed for preheating dishes. Any other use (cooking, reheating food) is prohibited and may damage the appliance.

What is the maximum load capacity?

The maximum load capacity is 20 kg. Do not exceed this limit to avoid damaging the telescopic rails.

How long does it take to preheat dishes for 6 people?

At a temperature of 60 °C, it takes approximately 30 minutes for homogeneous preheating of dishes for six people.

How to clean the warming drawer?

Use a sponge with warm water and dish soap. Dry with a soft cloth. Do not use steam cleaner, abrasive products, alcohol or thinner. The non-slip bottom can be removed for separate cleaning.

Does the warming drawer stop automatically?

Yes, when the set time on the timer elapses, the heating stops and a buzzer sounds. Set the timer back to 0 to stop the buzzer.

What are the built-in dimensions of the WD1014X?

Exact dimensions are not provided, but it is a standard 60 cm wide model. Refer to the manual for precise cutout dimensions.

Can I use the drawer without built-in installation?

No, the appliance must be only used built-in to avoid contact with live components. Installation must be carried out by a professional.

What is the electrical power consumption of the appliance?

The power is not specified, but on a 220-240 V outlet with a 10 A fuse, the maximum power is approximately 2400 W. In practice, it is lower.

Is the warming drawer suitable for all types of dishes?

Yes, but avoid plastic containers or flammable items. The non-slip bottom and protective grid ensure safe use. Recommended temperatures are 40 °C for glasses/cups and 60 °C for plates/bowls.

USER MANUAL WD1014X BRANDT

Chere cliente, cher client,

- RELATIONS CONSOMMATEURS

You have just acquired a BRANDT warming drawer; thank you for your purchase.

Our research teams have designed a new generation of appliances with you in mind. Their quality, design and state-of-the-art technology incorporate our unique know-how that makes these products exceptional.

Your new BRANDT warming drawer will be an attractive addition to your kitchen, combining ease of use with effective performance for preheating your tableware.

BRANDT products include a wide range of ovens, microwave ovens, glass-ceramic cook tops, vented hoods, built-in dishwashers and refrigerators that you can match to your new BRANDT warming drawer.

Our consumer department is of course at your service, because we want to do our best to meet your expectations with regard to our products. We will be happy to respond to your questions or suggestions.

These "new valuables" serve as landmarks in our daily lives - BRANDT, a reference for excellence, extends an invitation to join a new art of living.

The BRANDT trademark.

Protection of the environment 13

Description of warming drawer 14

Safety tips 15

Installation 16

Encasement 17

Using your warming drawer 18

Cleaning and maintenance 21

After sales service 21

PROTECTION OF THE ENVIRONMENT:

The packaging materials used for this appliance can be recycled. Take part in recycling and help protect the environment by discarding them in the appropriate waste bins provided by the municipal authorities.

The symbol the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

EN

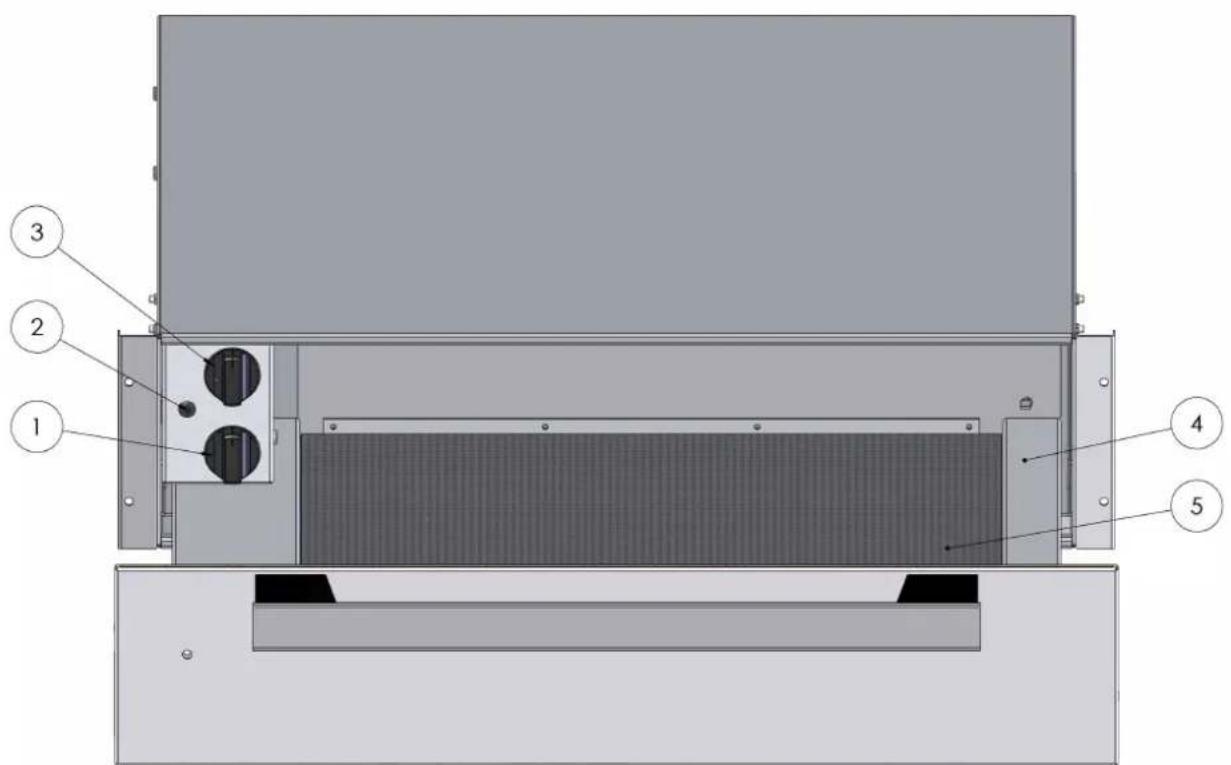

DESCRIPTION OF WARMING DRAWER

1. Timer, stop/start switch
2. Signal light on the front showing that power is on
3. Temperature control
4. Drawer for dishes
5. Antiskid mat

Keep these instructions with your appliance. If the appliance should be sold or given to another person, be sure that these instructions are supplied with it.

Please read these recommendations before installing and using your warming drawer. They have been drafted for your safety and that of others.

This warming drawer has been designed for use by private persons in their homes. It is intended exclusively for warming dishes. Any other use is prohibited and could be dangerous. The manufacturer cannot be held liable in the event of non-complying use.

Do not use this appliance until it has been installed in the cabinet. Only full installation of the drawer prevents any risk of contact with powered components.

Never open the body of the appliance.

The inside of the drawer can heat up to 70°C depending on the selected temperature and the duration of use. Use hot-pan holders or gloves to remove the hot dishes.

Do not use the warming drawer to keep food or drinks hot or to reheat or cook food or drinks. The moisture in the food or drinks could cause corrosion of the appliance.

Do not stand or sit on the open drawer; this would damage the telescopic rails. The maximum load of the drawer is 20kg .

Do not store any plastic goods or inflammable objects in the appliance. They could melt or catch fire when it is turned on.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Before connecting the appliance to the power supply, check that the wires of your electric installation have sufficient diameter to supply power to the appliance during normal use. The fuse for the installation should be 10 amps.

It is necessary to provide a bipolar cut-off device in the power supply circuit, with an open contact gap of more than 3mm .

The electric connection should be made before the appliance is installed in the cabinet.

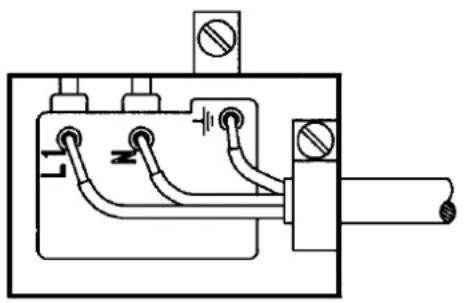

The drawer should be connected by a (standard) power cord with three 1 mm² wires (1 single phase + 1 N + ground) to the 220-240 V single phase power supply via an electric circuit corresponding to the CEI 60083 standard or complying with the installation rules. The protective wire (green/yellow) corresponds to ground on the appliance and should be connected to the ground of the installation.

In the case of a connection via an electric outlet, the outlet should be accessible even with the appliance installed.

The neutral on the heating drawer (blue wire) should be connected to neutral on the power supply.

ENCASEMENT

EN

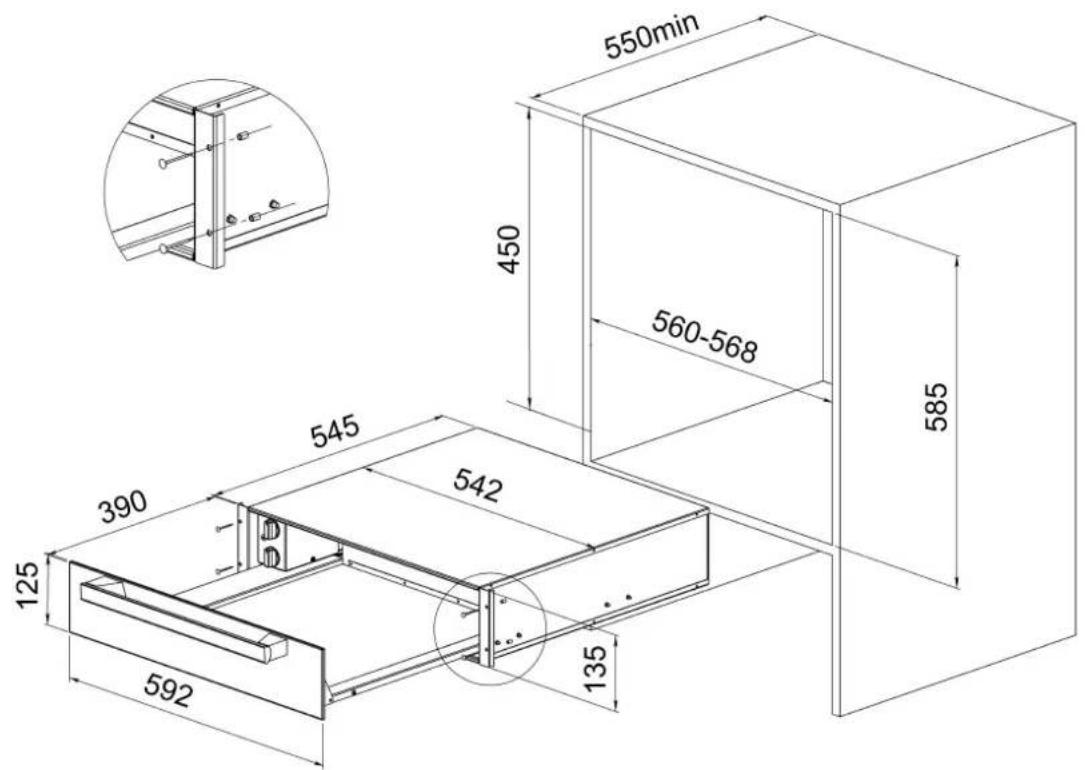

Set the appliance into the niche in the cabinet. Make certain that the body of the appliance is positioned correctly.

Open the drawer and fasten the appliance to the sides of the cabinet with 4 screws and the 4 spacers delivered with the appliance.

WD1014X

EN

USING YOUR WARMING DRAWER

INFORMATION BEFORE USE:

The appliance should be used exclusively to preheat dishes.

The appliance uses a hot air system to heat the dishes. A fan distributes the heat from the resistor in the drawer. The dishes are heated rapidly and uniformly by circulation of hot air.

A protective grid prevents the dishes from coming into contact with the resistor or the fan.

The floor of the drawer is covered with an antiskid mat that prevents the dishes from sliding when the drawer is opened.

CONTROLS:

The controls include a temperature knob and a Start/Stop switch. These are only visible when the drawer is open.

When the drawer is closed, the signal light on the front of the drawer comes on when the appliance is running.

SETTING THE CONTROLS:

• Put the dishes in the drawer.
• Select the temperature.
• Set the timer (minimum 10 minutes).

The signal light shows that the power is on.

• Close the drawer

When the timer runs out, the hot air heating system stops and a bell rings.

To turn the bell off, turn the knob to 0.

SELECTING THE TEMPERATURE:

The temperature knob adjusts the temperature between 30 and 70°C .

The most appropriate temperatures for the types of dishes used are as follows :

• 40°C : for cups or glasses. Hot drinks stay hot long ger when poured into cups or glasses preheated to this temperature, without danger of burns when people drink from them.
• 60°C : for plates and dishes. Food served on prehea ted plates or dishes maintain their heat and the dishes can be touched without burning the hands.

PREHEATING TIME:

Preheating time depends on several factors:

• the thickness of the dishes and the material they are made from
  the load
• disposal of the load
  temperature setting

Consequently, we cannot give times that will correspond systematically.

A few hints :

For a temperature setting of 60°C , heated evenly:

• dishes for a meal for six take about 30 min.
• dishes for a meal for twelve take about 40 min.

After using the drawer a few times, you will know for yourself how long it takes to heat your dishes.

CAPACITY:

Capacity depends on the height of the model and the weight and size of your dishes.

This model has a maximum capacity of 20kg

The following examples are given as an indication only :

WD1014X

Quantities are determined by volume

Dishes for 6:

6 dinner plates 28 cm
6 soup plates 22 cm
1 serving bowl 22cm
1 serving bowl 20cm
1 serving bowl 18cm
2 serving platters 36 cm

or 16 large plates 28cm

• 8 bowls 10cm

or 24 soup plats 22cm

or 40 bowls 10 cm

or 60 cups 8 cm

or . . .

CLEANING AND MAINTENANCE

EN

Before any maintenance, turn off the appliance and let it cool.

Clean all surfaces with a sponge, dish washing soap and warm water. Then dry it off with a soft cloth.

Do not steam clean the appliance.

The use of scouring powders, alcohol or grease-cutting products is not recommended - they could damage the appliance.

The stainless steel front can be scratched. Use a special non-abrasive cleanser for stainless steel.

The antiskid mat can be removed to clean the bottom of the drawer.

The antiskid mat can be washed with warm water and dish water soap. Then dry it off and put it back in the drawer when it is completely dry.

AFTER SALES SERVICE

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.
