USER MANUAL VTFC VELLEMAN

3-IN-1 HOT WIRE FOAM CUTTER

3-IN-1 PIEPSCHUIMSNIJDER

DECOUPEUSEÀFILCHAUD3EN1

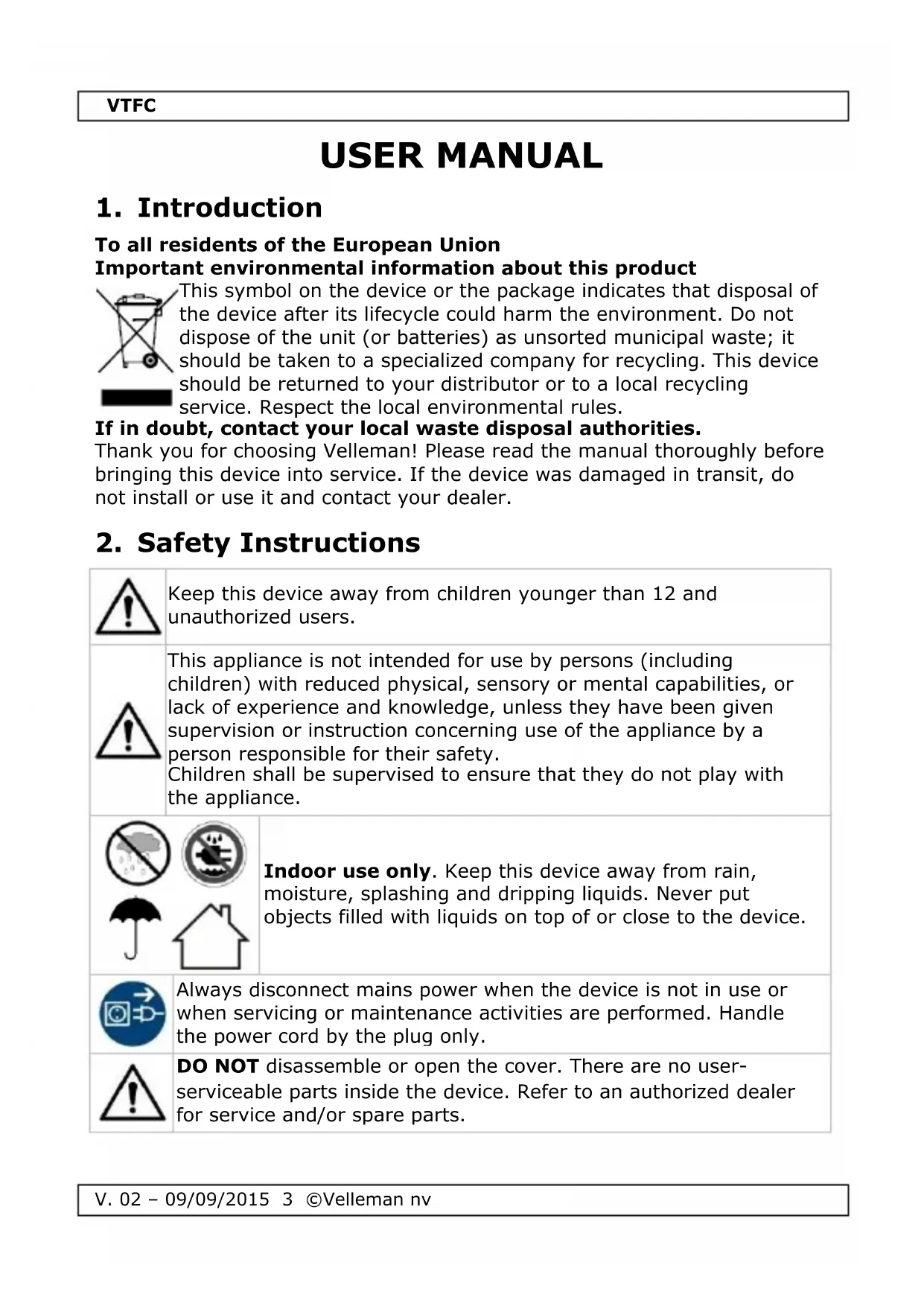

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children younger than 12 and unauthorized users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall be supervised to ensure that they do not play with the appliance.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

DO NOT disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

VTFC

Caution: Device heats up during use. Never cover the device and keep the ventilation slots free from dust and obstructions at all times. The housing might heat up during usage. Keep minimum distances around the device for sufficient ventilation. Place the device on a flat, heat resistant surface. Do not place the device on carpets, fabrics...

Do not use the device when damage to housing or cables is noticed. Do not attempt to service the device yourself but contact an authorised dealer.

Do not use near inflammable products or in explosive atmospheres. Heat can cause fire to inflammable products even when they are not in sight. Only use in properly ventilated rooms.

• Provide for good ventilation when using the device.
  The cutting wire is hot. Do not touch hot parts to avoid risk of skin burn!
• Do not leave the device unattended when it is switched on.
• Switch off the device after use. Let it cool down sufficiently before storing.
• Always place the tool on its stand after use.
• Always use the cutter on a heatproof and uncluttered table.
• Only use the supplied cutting wire or a suited replacement wire.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorized way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

VTFC

• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

• multipurpose hot-wire foam cutting tool with 3 interchangeable tips: hot wire tip, engraver tip and hot knife tip
• quick heat-up feature and safety stand
• highly suitable for cutting all types of polystyrene foam
• ideal for decorative molding, hobby craft projects, contouring foam for prototypes and DIY foam packing

5. Overview

Refer to the illustrations on page 2 of this manual.

1	tip-handle connection
2	power adapter

3	cutting wire

6. Operation

1. Draw the design on the piece of foam, either freehandedly or using a pattern.
2. Choose one of the included tips and insert it into the handle. Ensure it is well-secured into the handle.
3. Connect the plug coming from the handle to the adapter. Insert the adapter into the mains socket.
4. Switch on the foam cutter and place it onto the stand. Wait for the cutter to warm up.
5. Hold the cutter in a comfortable position. Always try on a test object before starting on your project. Remove large unwanted chunks first for easier handling.
6. We recommend using the wire tip for more detailed work. Do not use force to cut the foam and let the heat do the work.
7. After cutting, switch off the foam cutter and let it cool down on the stand before storing.

7. Cleaning and Maintenance

The foam cutter does not need any particular maintenance. However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

8. Technical Specifications

adapter
input	100-240 VAC, 50-60 Hz
output	5 VDC, 1500 mA
hot wire tip
wattage	7 W
pre-heat time	30 sec
hot knife tip
wattage	7 W
pre-heat time	60 sec
engraver tip
wattage	3.5 W
pre-heat time	120 sec

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

© INFORMACJA O PRAWACH WŁASNOŚCI

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....:

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
