USER MANUAL EXE 259 KATHREIN
As of 1 April 2019, KATHREIN SE's (formerly KATHREIN-WERKE KG) "Terrestrial & Satellite Reception" business unit will be transferred to KATHREIN Digital Systems GmbH (limited liability company).
Commerzbank AG
IBAN:DE24 7114 0041 0611 9002 00
BIC: COBADEFFXXX
From 1 April 2019, the new company data are:
KATHREIN Digital Systems GmbH
Anton-Kathrein-Str. 1-3
83022 Rosenheim, Germany
Tax ID No.: 156/117/31083

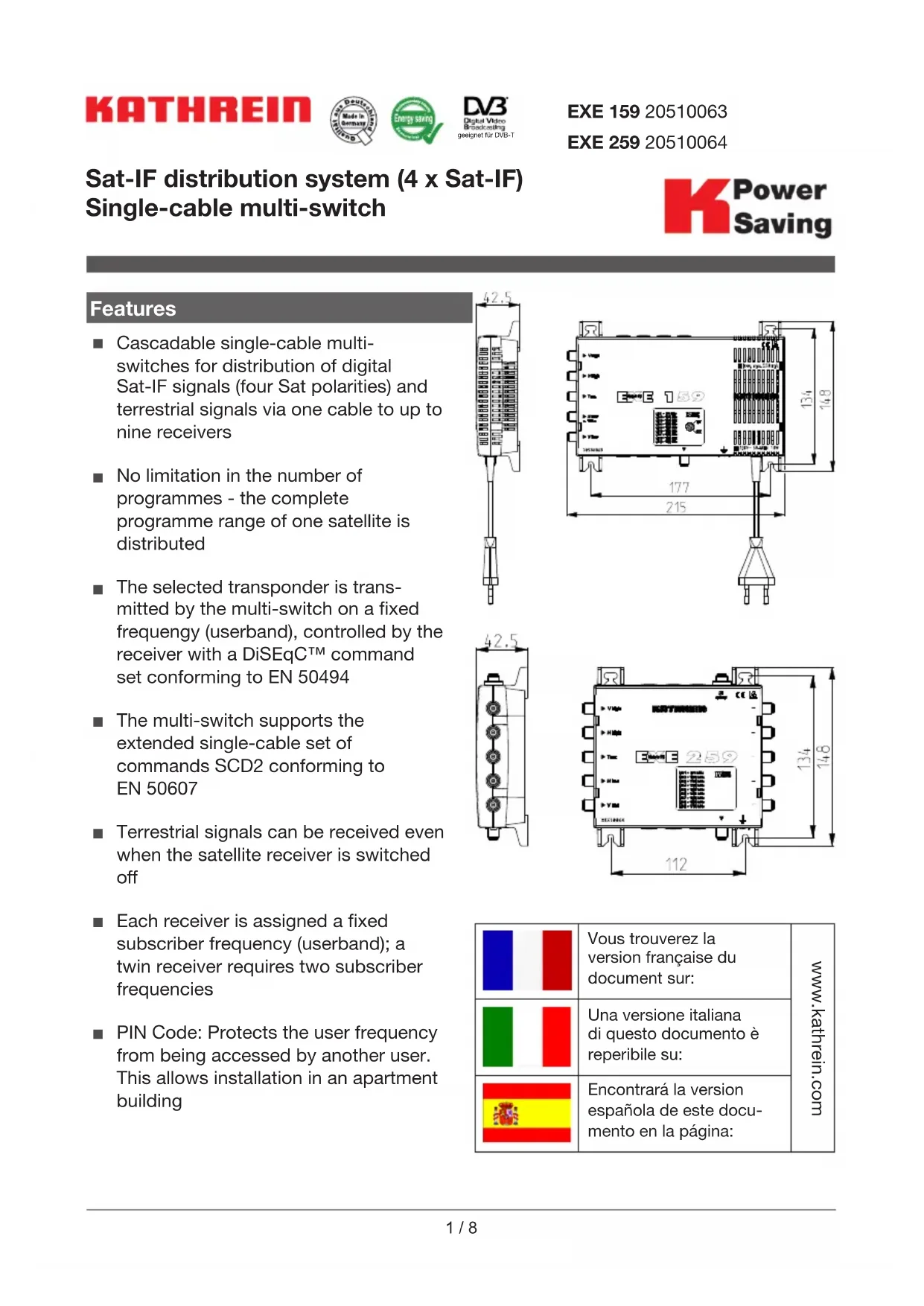

Sat-IF distribution system (4 x Sat-IF) Single-cable multi-switch
Features
- Cascadable single-cable multi-switches for distribution of digital Sat-IF signals (four Sat polarities) and terrestrial signals via one cable to up to nine receivers
No limitation in the number of programmes - the complete programme range of one satellite is distributed
The selected transponder is transmitted by the multi-switch on a fixed frequency (userband), controlled by the receiver with a DiSEqCTM command set conforming to EN 50494
The multi-switch supports the extended single-cable set of commands SCD2 conforming to EN 50607
Terrestrial signals can be received even when the satellite receiver is switched off
Each receiver is assigned a fixed subscriber frequency (userband); a twin receiver requires two subscriber frequencies
PIN Code: Protects the user frequency from being accessed by another user. This allows installation in an apartment building




| Vous trouvrez la version française du document sur: | www.kathrein.com | |
| Una version italiana di questo documento è reperibile su: | ||
| Encontrará la version española de este documento en la頁ina: |

Integrated AGC (Automatic Gain Control) ensures a constant output level in the Sat-IF range
EXE 259 single-cable multi-switches and additional loop-through multi-switches such as EXR 2541, EXR 2554, EXR 2558 and EXR 2542 can be combined as desired.
Up to eight multi-switches can be cascaded
For indoor installation
EXE 159
Single-cable multi-switch for up to nine receivers, with an integrated power supply unit for LNB supply
Low power consumption due to highly efficient, short-circuit proof switched-mode power supply unit in compliance with ERP guideline and energy-saving concept (the single-cable multi-switch is switched off whenever the connected receiver is switched off)
Kathrein Power Saving: LNB supply is switched off as soon as all receivers connected to the EXE 159 or in the cascade are inactive. This function can be deactivated; e.g. if loop-through multi-switches without Kathrein Power Saving are used in the cascade
LNB remote feeding via the horizontal low input. Kathrein Power Saving signalling over the vertical low trunk. All other inputs are voltage-free
EXE 259
- Loop-through multi-switch to extend a single-cable system for an additional nine receivers
Kathrein Power Saving: As soon as all receivers are inactive, a signal is sent to the end multi-switch via the vertical low trunk which then cuts off the LNB voltage supply. - Optional powering using the NCF 18. Due to the energy-saving concept, the multi-switch consumes no energy from the NCF 18 if no receivers are switched on.


Installation and safety

- The equipment described is designed solely for the installation of satellite receiver systems.
- Anyother use or failure to comply with these instructions will void the warranty or guarantee.
- The equipment may only be installed in dry areas indoors. Do not install on or against highly combustible materials.
- The equipment must be provided with an earthing wire (Cu, at least 4mm^2 ).
- The safety regulations set out in the current EN 60728-11 and EN 60065 standards must be complied with.
Fixings: Screws, max. 0: 4 mm - Connectors: RF connector 75 Ω (series F) according to EN 61169-24.
- Unused RF ports must be terminated with 75 resistors (e.g. EMK 03).

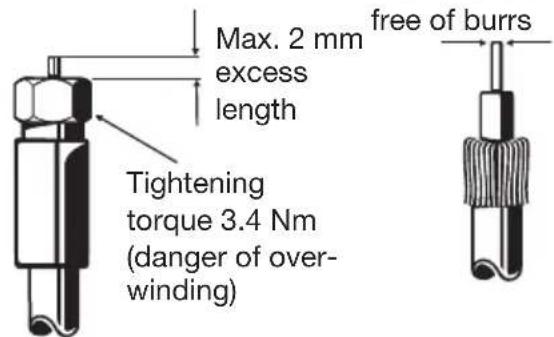

- An inner cable conductor diameter greater than 1.2mm , or the presence of burrs may damage the sockets on the unit.

Diameter 0.6-1.2 mm
free of burrs
Current-carrying device
- Do not open the unit or tamper with it!
- When working on the system always unplug the power supply unit from the wall socket!
- The device is intended only for wall mounting! Do not install the device lying flat or on its top, or operate it in this position.
- Ensure adequate clearance! Clearance all round at least 5 cm!
- Free circulation of air must be possible to discharge the heat emitted by the unit. Danger of overheating!
- Ambient temperature range -20 to +55 °C

Caution:
- No liquid-filled items may be placed on top of the power supply unit.
- The power supply unit must not be exposed to dripping or splashing water.
- The mains plug must be easily accessible and operable.
- The only reliable method of disconnecting the unit from the mains is to unplug it.
Kathrein power saving
If an EXE 159 is operated alone or together with other multi-switches that bear the Kathrein Power Saving logo, Kathrein Power Saving can be activated by setting the stand-by switch to "ON". If a receiver in the cascade is switched on, the LNB is powered through the end multi-switch.

Multi-switches without Kathrein Power Saving do not give signalling to the end multi-switch. The stand-by switch must be set to "OFF" for permanent powering of the LNB.
PIN code protection
The multi-switch is protected by a PIN code in order to prevent the set userband from being used/disturbed by another subscriber. This should be specified in the receiver settings.
A fixed PIN has been assigned to each userband.
| UB 1 UB 2 UB | 3 UB 4 UB | 6 UB 7 UB | 8 UB 9 | ||||
| Frequency (MHz) | 974 1,076 1,17 | 8 1,280 | 1,382 1,484 1,586 | 1,688 1,790 | |||
| PIN 151 052 | 133 124 | 205 196 | 187 178 | 099 |
Notes
Only use splitters without diodes (EBC 110 or EBC 114). The required diode protection is provided by outlets from the ESU series.
It is especially important to make sure that each userband is assigned only once, since otherwise the receivers will generate mutual interference. The frequencies are allocated on the receivers settings menu. Depending on the type, this may be performed manually or automatically.

It is recommended that the wall sockets with the shorter length connections are assigned to the higher frequencies. By definition the system is designed so that single-cable units are supplied with 14 V DC. The power supply is briefly switched to 18 V DC if control signals similar to DiSEqCTM have to be transmitted. Continuous application of 18 V would block the system. For this reason we recommend the use of ESU series outlets, which are equipped for switching off electronically.
The receivers that are connected must be designed for single-cable operation conforming to EN 50494. In order to use userband 9, the receiver must also support the single-cable standard SCD2 as per EN 50607.
System example (symbolic representation)

) EMU 250 connector
*) KAZ 11/KAZ 12 over-voltage protector
Technical data
| Type EXE 159 EXE 259 | ||||||
| Order no. 20510063 20510064 | ||||||
| Subscriber connections 1 x 9 1 x 9 | ||||||
| Inputs 1 x terrestrial 4 x Sat-IF 1 x terrestrial 4 xSat-IF | ||||||
| Frequency range MHz 5-862 950-2,150 5-862950-2,150 | ||||||
| Through loss dB - - 1.5 1.5 | ||||||
| Tap loss (terrestrial) | dB | 9 | - | 11 | - | |
| Output level Sat (AGC) | dBμV | - | 88 | - | 88 | |
| Decoupling horiz./vert. | dB | - | 30 | - | 30 | |
| Trunk decoupling | dB - - - | - | 40 | |||
| Input level Sat | dBμV | - | 55-80 | - | 55-80 | |
| Subscriber frequency/user band | Receiver 1 | MHz | 974/1 | 974/1 | ||
| Receiver 2 | 1,076/2 | 1,076/2 | ||||
| Receiver 3 | 1,178/3 | 1,178/3 | ||||
| Receiver 4 | 1,280/4 | 1,280/4 | ||||
| Receiver 5 | 1,382/5 | 1,382/5 | ||||
| Receiver 6 | 1,484/6 | 1,484/6 | ||||
| Receiver 7 | 1,586/7 | 1,586/7 | ||||
| Receiver 8 | 1,688/8 | 1,688/8 | ||||
| Receiver 9 | 1,790/9 | 1,790/9 | ||||
| Permissible supply voltage at the subscriber output | V | 12-14 | 12-14 | |||
| Max. current drain through subscriber output | mA | 10 | With power supply unit 10/ without power supply unit 330 | |||
| Nominal input voltage | V | 230 (47-63 Hz) | - | |||
| Permissible input voltage range V | 207-253 | - | ||||
| Nominal input power at 0/150/550 mA load | W | 5.1/8.1/16.3 | - | |||
| Voltage secondary (input horiz. low) | V | 18 | - | |||
| Max. remote feed current (input horiz. low) | mA | 550 | - | |||
| Max. permissible remote feed current per trunk | mA | - | 1,000 | |||
| Protection class/protection type | II (insulated)/IP 30 | -/IP 30 | ||||
| Permissible ambient temperature | °C | -20 to +55 | -20 to +55 | |||
| Connections | F-type connectors | F-type connectors | ||||

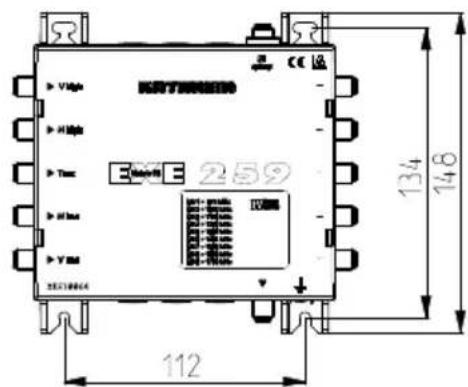

| Dimensions | mm 215 x 148 x 43 | 160 x 148 x 43 | ||||
| Packing unit/weight | pc./kg | 1 (10)/0.65 | 1 (10)/0.45 | |||
*All nine subscriber frequencies/userbands in operation
Possible causes of failure and correction
| Problem Possible cause: | Solution | |
| Permanent message:"Poor/no signal" | No voltage from receiver | Short circuit on the receiver - multi-switch connection. Receiver is not in single-cable mode. Outlet blocks permanent 18 V. |
| Wrong single-cable command | Receiver is not in single-cable mode | |
| Poor DiSEqCTMsignal | Power consumption too high. Use distribution material without diodes. Use NCF 18 power supply unit for EXE 259. | |
| Wrong PIN Code Check or deactivate PIN code number | ||
| Wrong assignment | UB and frequency do not match. Warning: SCR no. is not equivalent to UB no. | |
| No voltage on the LNB | EXE 159 mains plug not plugged. Short circuit on the receiver - LNB connection | |
| Only UB 9: "Poor/no signal" | Receiver does not support SCD2 conforming to EN 50607 | If possible, perform software update on receiver |
| Short message:"Poor/no signal" or picture wobbles in regular intervals | Another subscriber has accessed the same UB | Check menu settings of all connected receivers. Check that frequencies are assigned to one receiver only. |
| Loop-through multi-switches without Kathrein Power Saving do not or only sometimes function | Stand-by switch on "ON" | Switch off stand-by function. Stand-by switch to "OFF" |

Electronic equipment is not domestic waste - it must be disposed of properly in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 concerning used electrical and electronic appliances. At the end of its service life, take this device for disposal at a designated public collection point.
936.4552/b/VMPT/0715/GB - Technical Data subject to change
