Product Type	Clarinet
Brand	Jupiter
Model	JP637S
Category	Wind instrument
Number of parts	5 (mouthpiece, barrel, upper joint, lower joint, bell)
Body material	Grenadilla wood or ABS resin
Key material	Nickel silver alloy
Approximate length	67 cm (B-flat clarinet)
Approximate weight	0.8 kg
Power source	None (acoustic instrument)
Main functions	Sound production by reed vibration
Included accessories	Case, swab, ligature, spare reed
Maintenance and cleaning	Swab interior after each use, clean mouthpiece and reed, lubricate cork and keys moderately
Safety precautions	Avoid thermal shock, excessive humidity, drops; do not repair yourself
Spare parts	Reeds, ligatures, swabs, pads available at authorized dealer
Repairability	Entrust to a qualified technician

Frequently Asked Questions - JP637S Jupiter

How to properly assemble the Jupiter JP637S clarinet?

Apply grease to the cork on the tenons. First join the upper joint and lower joint aligning the keys. Attach the barrel to the upper joint, then the bell to the lower joint. Finally, place the mouthpiece with the reed and ligature.

How to clean the clarinet after playing?

Run the swab through each part to remove moisture. Wipe the exterior with a soft cloth. Clean the mouthpiece and reed separately, then store the reed in its case.

What oil to use for the keys?

Use only special key oil for wind instruments, in moderate amount on the pivots. Avoid any excess that could attract dust.

What to do if a key sticks?

Do not force it. Gently clean around the pivot with a dry cloth. If the problem persists, consult a qualified technician.

Can I repair my clarinet myself?

It is not recommended to attempt a repair yourself. Contact your dealer or an authorized technician to avoid damaging the mechanism.

How to store the clarinet safely?

Always store it in its case after use. Do not place it on a chair or unstable surface. Avoid damp places or exposure to extreme temperatures.

Why grease the corks?

Cork grease makes assembly easier and prevents cracks due to dryness. Reapply regularly.

How to choose a reed suitable for the JP637S?

Use B-flat clarinet reeds of medium strength (2 to 2.5) to start. Try different brands to find the one that suits your breath.

What is the difference between the B-flat clarinet and the bass clarinet?

The JP637S is a B-flat clarinet (soprano), smaller and higher-pitched than the bass. The manual also mentions the bass clarinet, but this model is the standard.

How to prevent wood cracks?

Avoid sudden temperature and humidity changes. Let the instrument acclimatize slowly. Store it in a humidity-controlled case if possible.

USER MANUAL JP637S Jupiter

Thank you for purchasing a Jupiter series clarinet. This manual provides you with basic care and maintenance instructions so you can get the most out of your instrument. We hope you will read this carefully to help alleviate any problems with your instrument and to get more enjoyment from your music.

1. Assembly
   2.Disassembly 5
2. Inspection & Maintenance 6
3. Caution 7

German

Liberally apply cork grease to the tenon corks on all joints.

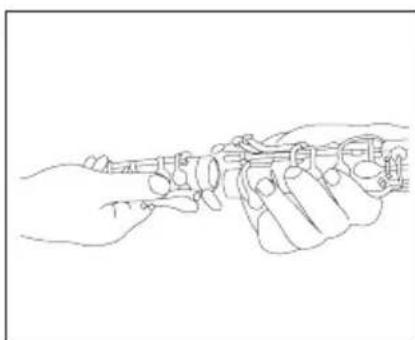

Step 2.

(1.) Bb Clarinet – Connect the barrel and the upper joint.
(2.) Bb Bass Clarinet - Connect the neck and the upper joint.

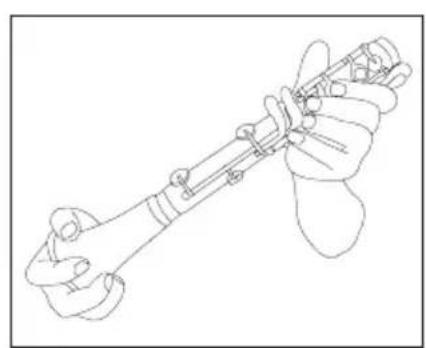

Step 3.

Connect the lower joint and bell.

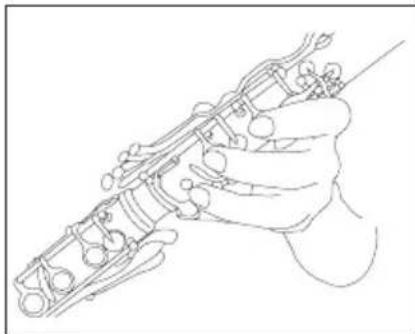

Step 4.

Connect the upper joint from Step 2 to the lower joint from Step 3 while depressing the ring keys of the upper joint. This prevents damage to the bridge key mechanism.

Step 5.

Attach the mouthpiece to the barrel. Align the ramp surface of the mouthpiece with the thumb register key.

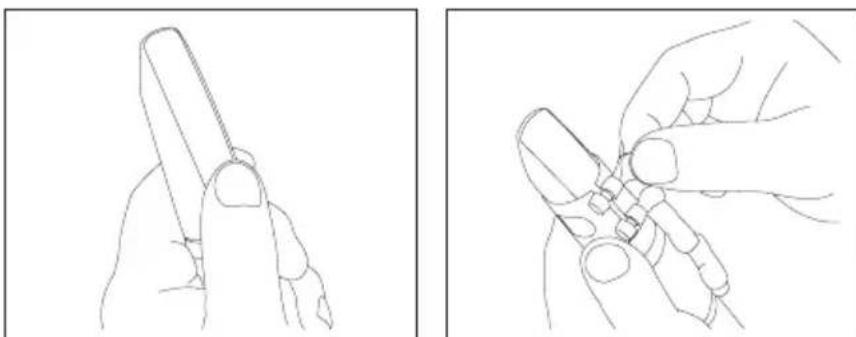

Step 6.

Properly position the reed on the mouthpiece. Slide the ligature over the reed being careful not to damage the reed tip. After the ligature is properly positioned, hand tighten the ligature screws.

2 Disassembly

Step 1.

Remove the reed, ligature, and mouthpiece from the barrel.

Step 2.

Press the ring keys on the upper joint while separating the upper and lower joints.

Step 3.

Detach the upper joint from the barrel.

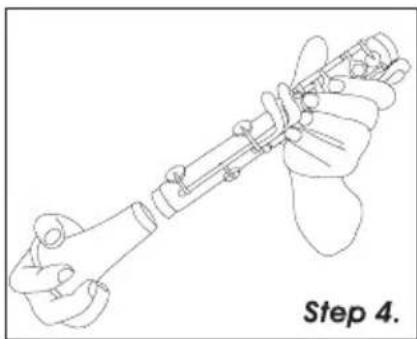

Step 4.

Detach the lower joint from the bell.

3 Inspection & Maintenance

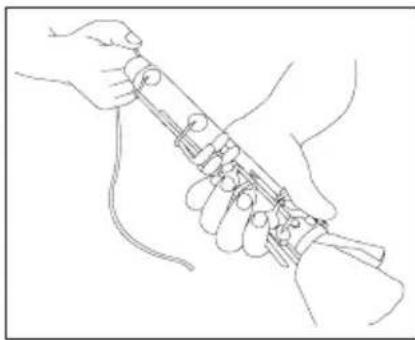

Step 1.

After playing and before returning to the case, draw the cleaning swab through the body sections to remove any moisture.

Step 2.

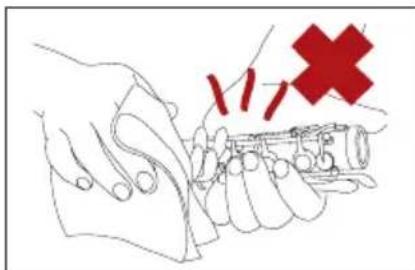

Wipe the body and the keys gently with the supplied cleaning cloth. Take care not to scratch or damage the body or keys by improper handling.

Step 3.

Clean and dry the mouthpiece and reed. To lengthen the life of the reed, store the reed in a reed protector.

4 Caution

1. Use key oil sparingly to all pivot points to keep the keys operating smoothly.

2. To avoid damaging the key mechanism, do not exert excess pressure on the keys during assembly and disassembly.

1. Remove any excess moisture from the body and keys to prolong the instrument's finish.

2. Do not expose any instrument to excessive temperature or humidity.

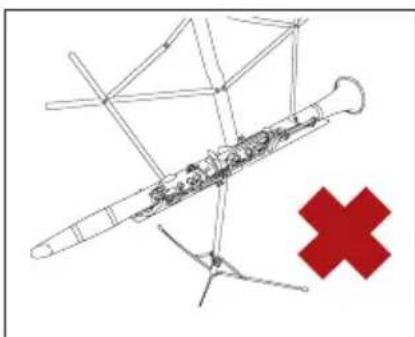

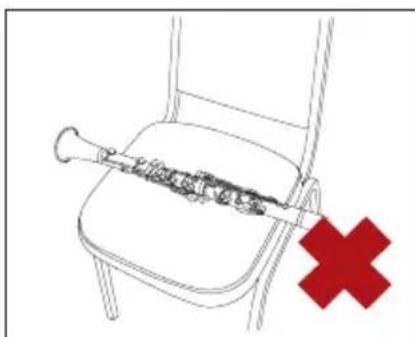

3. To avoid possible damage after playing, put the clarinet in a safe place such as an instrument case or a suitable instrument stand. Do not put it on a chair, desk, or anywhere else where it could easily fall.

1. For adjustment or repair, take your instrument to a qualified technician or dealer. Don't attempt to adjust the clarinet yourself.

Specifications subject to change without notice www.jupitermusic.com
