Brand	Jupiter
Model	JP675SII
Product type	Clarinet (woodwind musical instrument)
Category	Musical instrument
Body material	Wood (grenadilla or similar)
Mechanism	Nickel silver keys, silver-plated
Number of keys	17 keys (Boehm system)
Tuning	Bb (B-flat)
Cork grease	Use a special cork grease
Daily maintenance	Wipe with a soft cloth, use a swab for interior moisture
Cleaning the mouthpiece and reed	Clean and dry after each use
Lubrication	Key oil, apply a small amount to the pivots
Usage precautions	Avoid shocks, sudden temperature changes, and excessive humidity
Storage	In its case or on a stand, never on a chair
Repairs	Entrust to a qualified technician or authorized dealer
Included accessories	Mouthpiece, ligature, reed, case, swab
Length (approx.)	60-70 cm (depending on model)
Weight (approx.)	700-900 g

Frequently Asked Questions - JP675SII Jupiter

How to assemble the Jupiter JP675SII clarinet?

First apply cork grease to the tenon corks. Join the upper and lower body without forcing the keys. Attach the barrel and bell. Align the mouthpiece with the thumb rest, position the reed, and tighten the ligature.

How to disassemble the clarinet after use?

Remove the reed, ligature, and mouthpiece. Separate the two bodies by gently pressing the upper keys. Remove the barrel then the bell.

How to maintain the clarinet daily?

After playing, use a swab to remove moisture from the inside. Wipe the body and keys with a soft cloth. Clean and dry the mouthpiece and reed.

What type of oil to use for the keys?

Use a special key oil in very small amounts on the pivot points. Avoid excess oil.

How to prevent wood cracks?

Do not expose the clarinet to sudden temperature changes. Do not expose it to excessive heat or humidity.

Where to store the clarinet?

Always store it in its case or on a suitable stand. Never place it on a chair or anywhere it could roll or fall.

Can I repair the clarinet myself?

No, do not attempt adjustments or repairs yourself. Contact an authorized dealer or a qualified technician.

What accessories are included with the clarinet?

The clarinet is usually supplied with a mouthpiece, ligature, reed, case, and swab.

How to clean the mouthpiece and reed?

After each use, wash the mouthpiece with lukewarm soapy water and dry it. The reed should be cleaned gently and stored in its protective case.

What to do if a key or mechanism gets stuck?

Do not apply excessive force. Check the cork grease and key oiling. If the problem persists, consult a technician.

USER MANUAL JP675SII Jupiter

Thank you for purchasing a Jupiter series clarinet. This manual provides you with basic care and maintenance instructions so you can get the most out of your instrument. We hope you will read this carefully to help alleviate any problems with your instrument and to get more enjoyment from your music.

1. Assembly
   2.Disassembly 5
2. Inspection & Maintenance 6
3. Caution 7

German

Liberally apply cork grease to the tenon corks on all joints.

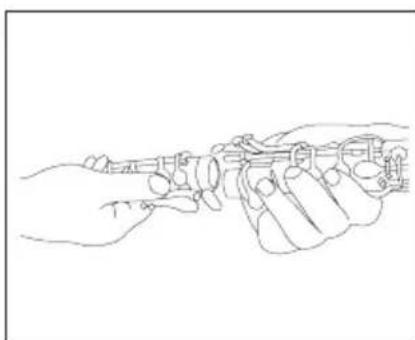

Step 2.

(1.) Bb Clarinet – Connect the barrel and the upper joint.
(2.) Bb Bass Clarinet - Connect the neck and the upper joint.

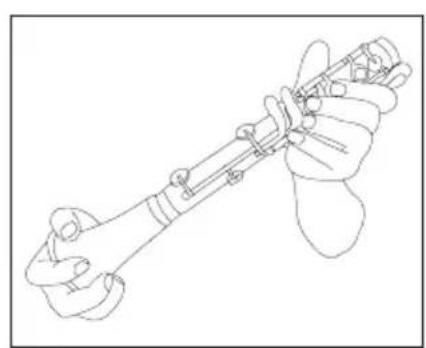

Step 3.

Connect the lower joint and bell.

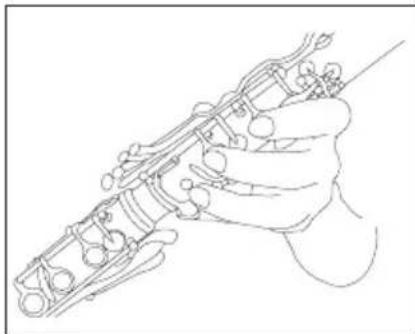

Step 4.

Connect the upper joint from Step 2 to the lower joint from Step 3 while depressing the ring keys of the upper joint. This prevents damage to the bridge key mechanism.

Step 5.

Attach the mouthpiece to the barrel. Align the ramp surface of the mouthpiece with the thumb register key.

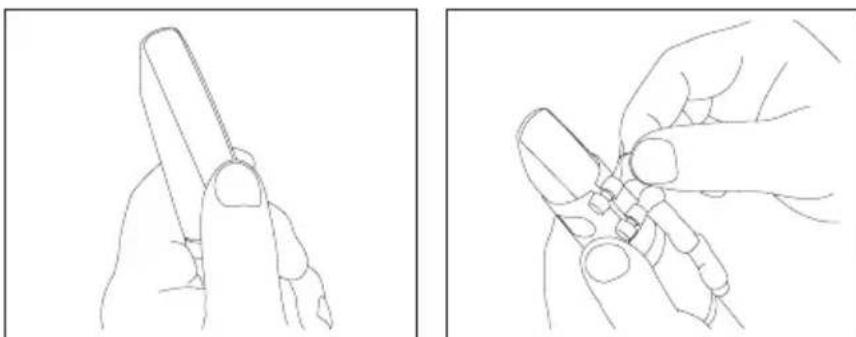

Step 6.

Properly position the reed on the mouthpiece. Slide the ligature over the reed being careful not to damage the reed tip. After the ligature is properly positioned, hand tighten the ligature screws.

2 Disassembly

Step 1.

Remove the reed, ligature, and mouthpiece from the barrel.

Step 2.

Press the ring keys on the upper joint while separating the upper and lower joints.

Step 3.

Detach the upper joint from the barrel.

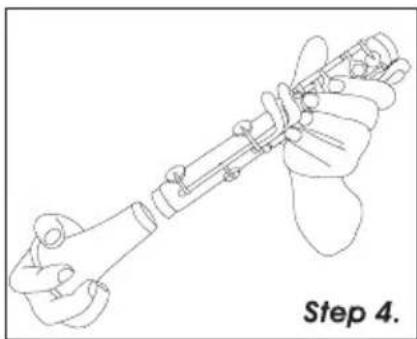

Step 4.

Detach the lower joint from the bell.

3 Inspection & Maintenance

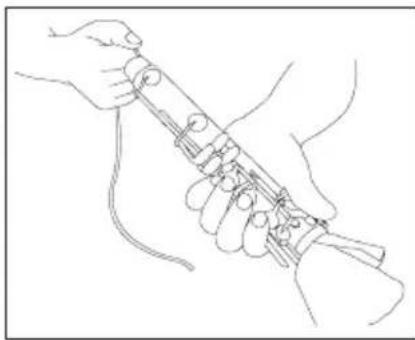

Step 1.

After playing and before returning to the case, draw the cleaning swab through the body sections to remove any moisture.

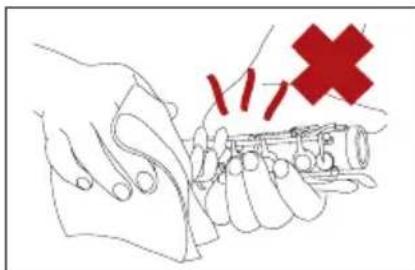

Step 2.

Wipe the body and the keys gently with the supplied cleaning cloth. Take care not to scratch or damage the body or keys by improper handling.

Step 3.

Clean and dry the mouthpiece and reed. To lengthen the life of the reed, store the reed in a reed protector.

4 Caution

1. Use key oil sparingly to all pivot points to keep the keys operating smoothly.

2. To avoid damaging the key mechanism, do not exert excess pressure on the keys during assembly and disassembly.

1. Remove any excess moisture from the body and keys to prolong the instrument's finish.

2. Do not expose any instrument to excessive temperature or humidity.

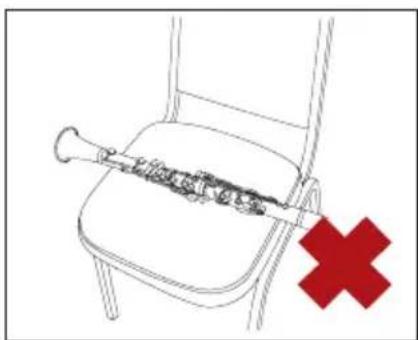

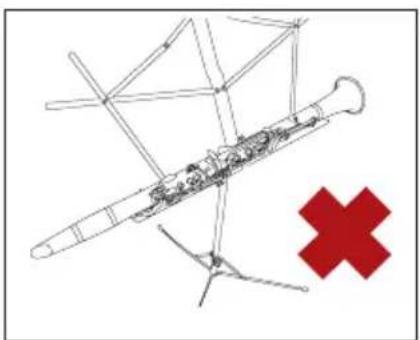

3. To avoid possible damage after playing, put the clarinet in a safe place such as an instrument case or a suitable instrument stand. Do not put it on a chair, desk, or anywhere else where it could easily fall.

1. For adjustment or repair, take your instrument to a qualified technician or dealer. Don't attempt to adjust the clarinet yourself.

Specifications subject to change without notice www.jupitermusic.com
