PC 1015 - Barbecue QLIMA - Free user manual and instructions
Find the device manual for free PC 1015 QLIMA in PDF.
| Product type | Charcoal barbecue |
| Brand | Qlima |
| Model | PC 1015 |
| Dimensions (L x W x H) | 57,5 x 42,5 x 28,5 cm |
| Weight | 18,5 kg |
| Cooking surface | 53 x 37 cm |
| Maximum fuel quantity | 1,0 kg of charcoal |
| Fuel | Charcoal |
| Cooking grid | Removable metal grid |
| Warming grid | Additional grid included |
| Height adjustment system | Lever to adjust charcoal grid |
| Thermometer | Integrated in the lid |
| Use | Outdoor only |
| Warranty | 2 years |
| Maintenance | Clean with soapy water after complete cooling |
| Safety | Do not use indoors, do not move when hot, keep away from children |
| Material | Steel with heat-resistant paint |
| Spare parts | Cooking grid and warming grid available |
Frequently Asked Questions - PC 1015 QLIMA
User questions about PC 1015 QLIMA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Barbecue in PDF format for free! Find your manual PC 1015 - QLIMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PC 1015 by QLIMA.
USER MANUAL PC 1015 QLIMA
Safety instruction 20
Usage methods 23
Cleaning and maintenance 25
Conditions of warranty 26
Technical specifications 26
1 INDICE
CONDITIONS DE GARANTIE

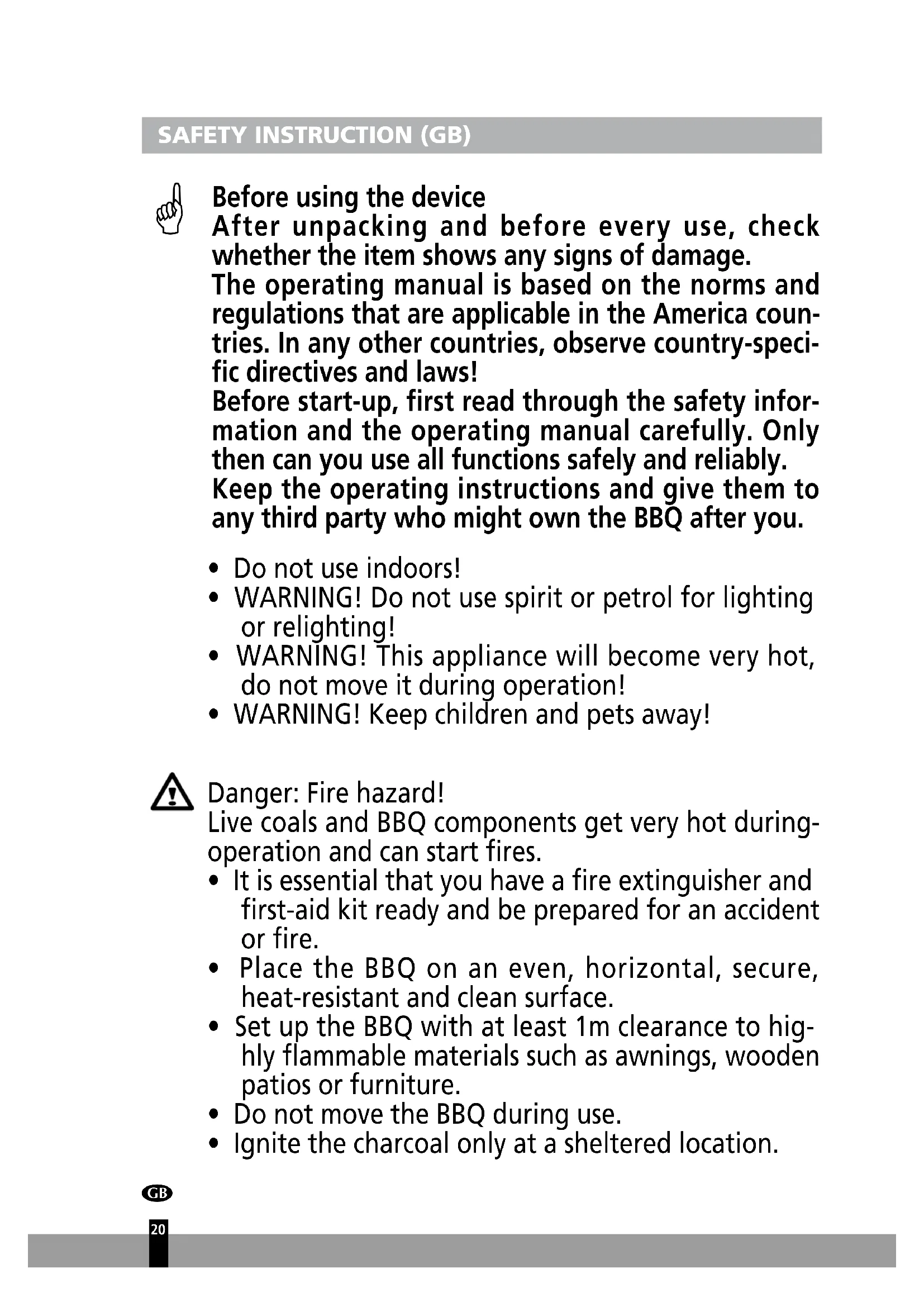

Before using the device
After unpacking and before every use, check whether the item shows any signs of damage.
The operating manual is based on the norms and regulations that are applicable in the America countries. In any other countries, observe country-specific directives and laws!
Before start-up, first read through the safety information and the operating manual carefully. Only then can you use all functions safely and reliably.
Keep the operating instructions and give them to any third party who might own the BBQ after you.
- Do not use indoors!
- WARNING! Do not use spirit or petrol for lighting or relighting!
WARNING! This appliance will become very hot, do not move it during operation!
WARNING! Keep children and pets away!
Danger: Fire hazard!
Live coals and BBQ components get very hot during operation and can start fires.
- It is essential that you have a fire extinguisher and first-aid kit ready and be prepared for an accident or fire.
- Place the BBQ on an even, horizontal, secure, heat-resistant and clean surface.
- Set up the BBQ with at least 1m clearance to highly flammable materials such as awnings, wooden patios or furniture.
- Do not move the BBQ during use.
-
Ignite the charcoal only at a sheltered location.
-
Fill the BBQ with a max. 1.0kg of charcoal.
- Some foods produce flammable fats and juices. Clean the BBQ regularly, preferably after each use.
- Only tip out the ash once the charcoal has completely burned out and cooled down.
Danger: Risk of burning and accidents!
This device is not intended for use by persons (incl. children) with limited physical, sensory, or mental capacities or lacking experience and/or lacking knowledge.
- Such persons must be informed about the dangers of the device and supervised by a person responsible for their safety.
- Any modifications to the product represent a large safety risk and are forbidden. Do not undertake any unauthorised interventions yourself.
- Keep children and pets away from the device. The BBQ, the charcoal, and the BBQ meat become very hot during use. Any contact can result in serious burns.
- Keep sufficient distance from the hot parts, since any contact can lead to severe burns.
- Always wear oven or BBQ gloves when grilling.
- Use only long-handled utensils with heat-resistant grips.
- Do not wear any clothing with wide sleeves.
- Use only dry lighters or special fluid lighters.
- Let the BBQ cool down completely before cleaning and/or storage.
Danger: Risk of deflagration!
Flammable liquids that are poured on the embers cause flash flames or deflagrations.
- Never use flammable liquids such as petrol or sprits.
- Nor put pieces of charcoal soaked in flammable liquid onto the embers.
Danger: Risk of poisoning!
When burning charcoal, barbecue briquettes, etc., carbon monoxide is formed. This gas is odorless and can be fatal in closed spaces!
- Use the BBQ outdoors only!
Danger: Health risk!
Do not use any decolourants or thinners to remove stains. These are harmful to health and must not come into contact with food.
Danger: Risks to children!
While playing, children can become caught in the packaging film and choke.
- Do not let children play with the packaging films.
- Make sure that children do not put any small assembly parts into their mouths. They could swallow the parts and choke on them.
Danger: Risk of injury
Both the BBQ and individual parts have some sharp edges.
- Be careful with individual parts to prevent accidents and/or injury during assembly and use. Wear protective gloves if necessary.
- Do not set up the BBQ near entryways or heavily trafficked zones.
- Always exercise extreme caution while grilling. If distracted, you can lose control of the device.
GB
- Always be attentive and aware of what you are doing. Do not use this product if you are unfocussed or tired, or if you are under the influence of drugs, alcohol, or medications. Just one moment of carelessness during use of the product can lead to serious injuries.
Attention: Risk of damage!
During use, the screws can loosen slowly and impair the BBQ's stability.
- Check the stability of the screws prior to each use. If necessary, tighten all of the screws again to ensure the BBQ is standing securely.
Attention: Risk of damage!
Do not use any strong or grinding solvents or abrasive pads, since these can attack the surfaces and leave behind scrape marks.
USAGE METHODS
Use this BBQ to heat, cook and grill food.
This BBQ is intended exclusively for outdoor use and not for use indoors.
Only use the item as described in this operating manual. All other uses are considered improper and can lead to material damage or even to personal injuries.
The manufacturer accepts no liability for damages caused by improper use.
Assembly Preparation
Danger: Risk of deflagration!
Failure to follow these instructions can lead to problems and risks while using the BBQ. Follow all of the assembly instructions listed here.
- First read through the assembly instructions completely.
- Allow yourself enough time for assembly and find an even working space of two to three square meters.
- Small parts such as handles will probably be preassembled.
Required tools
1 x Phillips Screwdriver 1 x Wrench
Unpack BBQ
Unpack the BBQ and dispose of all packaging materials. Keep the packaging materials out of the reach of children and dispose of them according to regulations after BBQ assembly.
Take the following steps to assemble the BBQ.
Before grilling
- Prior to first use, wash the BBQ grate and the warming rack with warm soapy water.
Pre-firing
Before you use the BBQ for the first time, it needs to be conditioned (pre-fired) for at least 1-2 hours at a temperature of 212^-382^ .
This is necessary in order to make the inside ready for barbecuing and to burn in the heat-resistant paint on the outside. During pre-firing, the cover should not be closed completely. Only close the cover completely for a few minutes at the end.
Attention: The temperature must never exceed 500^
Operation
Danger: Risk of burning!
The BBQ, the charcoal and BBQ meat become very hot during use. Any contact can result in serious burns.
- Keep sufficient distance from the hot parts, since any contact can lead to severe burns.
Always wear oven or BBQ gloves when grilling. - Use only long-handled utensils with heat-resistant grips.
- Do not wear any clothing with wide sleeves.
-
Use only dry lighters or special fluid lighters.
-
Open the cover and remove the BBQ grates.
- Place 2-3 solid firefighters in the middle of the lifting system. Pay attention to the manufacturer's instructions on the packaging. Light the firefighters with a match.
- Layer a maximun of 4.5 lbs of charcoal around the firelighters.
- Prior to first use, the BBQ must be pre-fired for a minimum 1-2 hours. See section Before grilling.
- As soon as the charcoal is glowing, distribute it evenly. To do this, use a suitable fireproof tool with a long, fireproof handle.
- Put the BBQ grate in place and adjust the charcoal grate to the desired height using the lever.
- Only place the BBQ meat on the grate when the charcoal is covered with a bright layer of ash. A plate with the BBQ meat can be set down on the side table.
- Leave the lid open or closed according to the type of BBQ meat. If a longer cooking time is needed for the BBQ meat, it is recommended that the lid be closed. The thermometer located on the lid shows the temperature in the cooking chamber. Ensure that the temperature for a particular BBQ meat does not get too high, otherwise the meat could burn.
Your BBQ is made of high-quality materials. To clean and maintain the surfaces, please heed the following instructions:
Danger: Risk of burning!
Let the BBQ cool down completely before cleaning it.
Only tip out the ash when the fuel has completely burned out.
Danger: Health risk!
Do not use any decolourants or thinners to remove stains. These are harmful to health and must not come into contact with food.
Attention: Risk of damage!
Do not use any strong or grinding solvents or abrasive pads, since these can attack the surfaces and leave behind scrape marks.
- Let the fuel burn out completely after grilling. This eases the cleaning effort by burning away excess fat and BBQ residues.
- Pull out the ash pan and empty out the cold ash. It is very important that you remove the ash before moisture combines with the cold ash. Ash is saline and, in a moist condition, will attack the inside of the ash collecting tray. Thus, over years the ash collecting tray can sustain damage through rust.
- Clean the BBQ regularly, at best after every use.
- Remove the BBQ grate and clean it thoroughly with soapy water. Then dry it off thoroughly.
- Use a wet sponge to remove loose residue from the BBQ.
- Use a soft, clean cloth for drying. Do not scratch the surfaces when wiping them dry.
- Clean the internal and external surfaces generally with warm soapy water.
- Tighten all screws before every use to guarantee stable footing for your BBQ at all times.
- Protect your BBQ against continuous weather influences. Since it is manufactured from steel it will eventually rust. Clean possible rust spots and repair them with fireproof paint. It is important that you remove the ash from the firebox before moisture combines with the cold ash, since this leads to rust damage.
- IMPORTANT: The BBQ should always be stored somewhere where it is protected from moisture.
There is a two-year warranty on your grill from the date of purchase. All material or manufac turing defects will be repaired free of charge.
The following applies:
- All claims for compensation, including consequential damage, will not be entertained.
- Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
- The warranty will expire if any alterations have been made, not genuine components have been fitted or if the grill has been repaired by a third party.
- Components subject to normal wear and tear are not covered by the warranty.
- The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
- The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
- Transportation costs and the risks involved during the transportation of the grill or components shall always be for the account of the purchaser.
To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the grill to your distributor for repair.
TECHNICAL DATA
| Product Weight | Overall dimension, BBQ assembled | Cooking area Max. amount of fuel: |
| PC1015 18.5KG | 57.5 x 42.5 x 28.5 cm (W x D x H) | 53 x 37 cm 1.0 kg |
Disposal
The packaging is made from environmentally friendly materials, which you can dispose of at your local recycling points.
Do not under any circumstance dispose of the BBQ in normal household waste! Dispose of it at an approved disposal business or at your community disposal facility.
Respect the currently valid regulations. If in doubt, get in touch with your disposal facility.
Distributed in Europe by PVG Holding B.V.
Si necesita informacion o si Tiene algo problema, visite nuestra pagina Web www.qlima.com, o pongase en contacto con el service客户提供 (hallar a el numero de Telefono en www.qlima.com).
Si you souhaitez obtenir des informations supplémentaires ou si you rencontrez un probleme, rendez-vous sur notre site Web (www.qlma.com) ou contactez notre service client (vous trouvezEZ l'adresse et numero de téléphone sur www.qlma.com).
If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (you find its phone number on www.qlima.com)
Per informazioni e in caso di problemi, visitate il site Web www.qlima.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero di Telefono, consultate www.qlima.com).
Alu inatme nig hebt of al u en probleme hbt, beozek dan de onze weibite (ww.qlima.com) of neem contact op met de afdeling sales support (adres en telefoon op www.qlima.com).
