USER MANUAL Spitfire Chronograph 3878 IWC

Welcome to the small circle of individuals who, if we are to be absolutely precise, demand slightly more of a watch than absolute precision. Appreciation of a watch is more than mere appreciation of the correct time. It is enthusiasm for an ingenious idea. For the interplay between precision and imagination. Between time and timelessness. Between boundaries and infinity. Between laws to which the entire world is subject, and taste, which cannot be dictated to anyone. That is why, since 1868, we have been devoting rather more of our time to watches that must not only run with absolute precision but which also, with every passing second, exert a fascination with the great achievements of master craftsmanship: a fascination with new inventions of a technical, material or formal nature, even if they are concealed in minute details that are perhaps not even visible. You are now the owner of a beautiful new example of this IwC tradition. We would like to congratulate you on your choice and send you our best wishes for the time you will spend with your watch, which perhaps cannot be described with any greater accuracy than it is here.

IWC MANAGEMENT

THE TECHNICAL REFINEMENTS OF THE PILOT'S WATCH CHRONOGRAPH EDITION ANTOINE DE SAINT EXUPÉRY

Your IWC watch shows you the time in hours, minutes and seconds, together with the date. You can use the integrated chronograph to measure any period of time up to 12 hours in seconds, minutes and hours. Stop times can be added together. The mechanical movement with automatic winding has 38 jewels (synthetic rubies) and a power reserve of approximately 68 hours when fully wound. Your Pilot's Watch Chronograph Edition Antoine de Saint Exupéry is water-resistant 6 bar and protected by a sapphire glass of hardness grade 9 on Mohs' scale. The glass is retained securely in the case at low pressure, for example when a drop in air pressure occurs at extreme altitudes. To ensure that this extraordinary watch continues to perform faultlessly in the future, it is essential to observe a few important operating instructions.

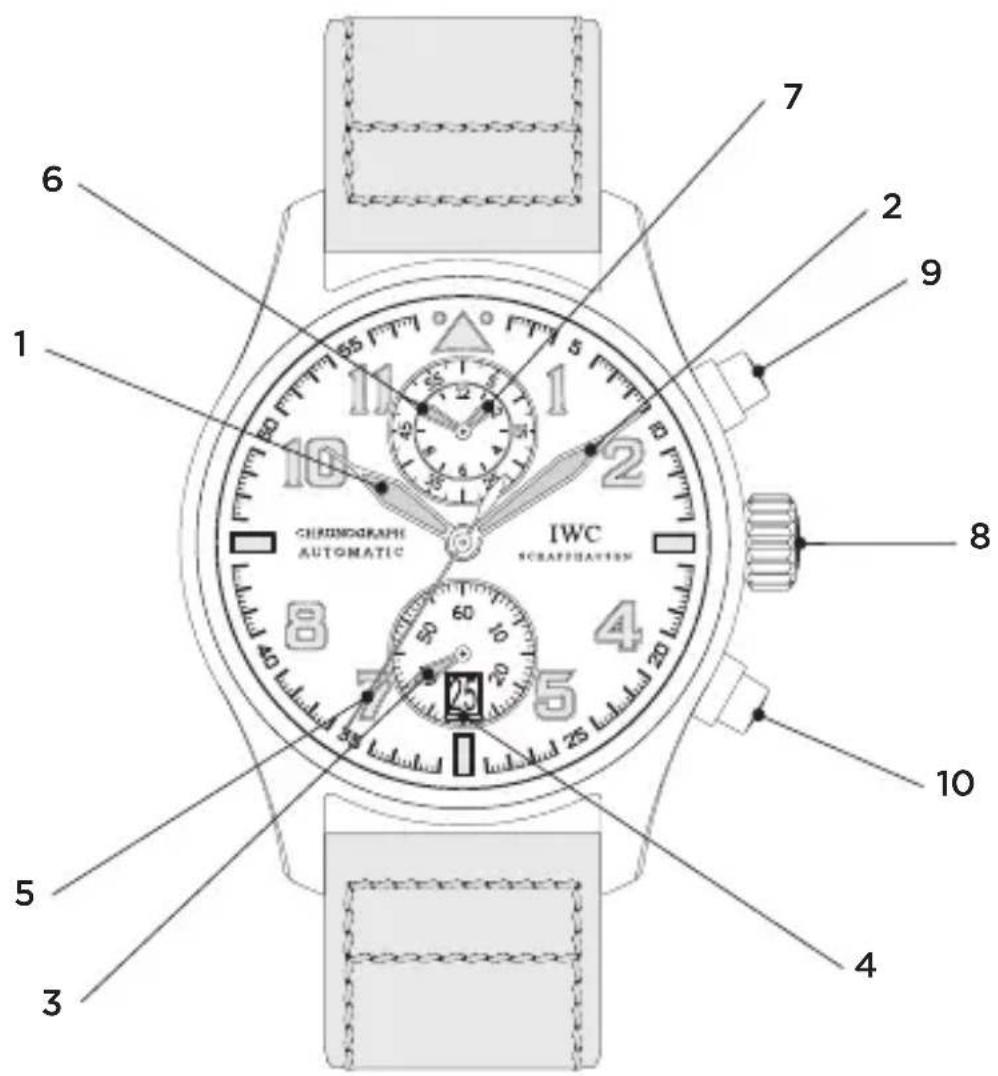

1 Hour hand Minute counter 6
2 Minute hand Hour counter 7
3 Small seconds hand Screw-in crown 8
4 Date display Start/stop button 9
5 Chronograph seconds hand Reset/flyback button 10

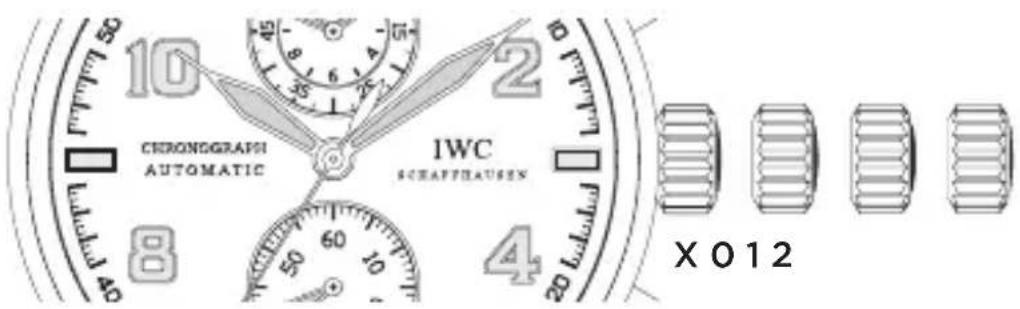

FUNCTIONS OF THE CROWN

X - Normal position (screwed in)

0 - Winding position

1 - Date setting

2 - Time setting

NORMAL POSITION

This watch has a screw-in crown. Screwing the crown in to its normal position (X) prevents the inadvertent adjustment of the time or date and also acts as a double seal to prevent water from seeping into the case. To release the crown, unscrew it by turning it to the left, where it automatically assumes position 0, the winding position. By depressing the crown in position X and turning it to the right at the same time, it is screwed down firmly again and secured.

WINDING POSITION

With the crown in the winding position (0), you can also wind the automatic movement by hand. A few revolutions of the crown are enough to start the movement. However, it is better to wind the watch by turning the crown through approximately 20 revolutions as this will ensure maximum accuracy.

DATE SETTING

If a month has fewer than 31 days, you will need to set the date manually to the first day of the following month. Release the screw-in crown and pull it out to position 1. You can now set the date by turning the crown to the right (rapid advance). You should not use the rapid-advance function between 8 p.m. and 2 a.m. because the movement automatically advances the date during this period.

TIME SETTING

Pull out the crown to position 2. This will stop the movement. To set the time accurately to the second, it is best to stop the movement as the seconds hand passes 60. Now move the minute hand a few minute strokes beyond the time to be set. Then position the minute hand by moving it gently backwards until it is exactly above the correct minute stroke. This ensures that the minute hand begins to move immediately when you restart the movement. To start the seconds hand, push in the crown to position 0. When setting the time, please be aware of the date change, which always takes place at 12 midnight. If this change has already taken place at 12 noon, you must move the hands forwards by 12 hours.

Important: Although the watch is water-resistant in positions 0, 1 and 2, the crown should always be screwed in again for normal use (position X).

SETTING YOUR WATCH CORRECTLY

To set your watch correctly, proceed as follows:

• Release the crown by turning it to the left.
• Wind the movement (approximately 20 revolutions of the crown).
• Pull out the crown to position 1.
• Turn the crown to the right to advance the date display in steps. Set the display to yesterday's date.
• Pull out the crown to position 2. This will stop the movement. To set the time accurately to the second, it is best to stop the movement as the seconds hand passes 60.
• Turn the hands forwards until the date display changes to today's date. The hands will now be positioned between 12 midnight and 1 a.m.
• Now turn the hands forwards to the correct time. If you are setting the watch in the afternoon, you must turn the hands past 12 (noon) again.
• Push the crown back to position 0 to start the movement.
• Now push the crown to position X and secure it by simultaneously turning it to the right.

Important: Although the watch is water-resistant in positions 0, 1 and 2, the crown should always be screwed in again for normal use (position X).

READING THE TIME IN THE DARK

Both the dial and the hour and minute hands of your watch have luminescent elements that allow you to read the time effortlessly, even in total darkness. The distinctive triangle at 12 o'clock serves as a reference point.

READING THE CHRONOGRAPH

Chronograph seconds hand: The scale for the central chronograph seconds hand runs around the edge of the dial.

Minute and hour counters: The subdial at 12 o'clock has two hands, which run continuously and show the elapsed time on a 12-hour and a 60-minute scale. The hour and minute counters can be read like a standard analogue time display. In other words, one revolution of the minute counter is equal to 60 minutes, and one revolution of the hour counter is equal to 12 hours.

USING THE CHRONOGRAPH

Start: To start the chronograph, press the start/stop button.

Flyback: You can start recording a new time immediately, even when the chronograph is running. With the chronograph running, simply depress the reset/flyback button fully as far as it will go. All three chronograph hands are reset to zero, and a new measurement is started as soon as the button is released.

Stop: To stop the running chronograph, press the start/stop button.

Reset: Depress the reset/flyback button fully as far as it will go. This will reset all the chronograph hands to zero.

Aggregate time recording: You can add stop times together by pressing the start/stop button again after the first measurement instead of the reset/flyback button.

WATER-RESISTANCE

The water-resistance of IwC watches is stated in bar and not in metres. Metres, which are often used elsewhere in the watch industry to indicate water-resistance, cannot be equated with dive depth because of the test procedures that are frequently used. Water-resistance shown in metres provides no indication as to actual use of the watch in the presence of moisture and wetness, and in or under water. Recommendations for use in connection with the water-resistance of your watch can be found on the Internet at www.iwc.com/water-resistance. Your authorized IwC Official Agent will also be pleased to provide you with information.

To ensure that your watch continues to function perfectly, you should have it checked by an IwC service centre at least once a year. Your watch should also be tested after exposure to unusually harsh conditions. If the tests are not carried out as stipulated, or if the watch is opened by unauthorized persons, IwC will accept no warranty or liability claims.

Recommendation: Your authorized IwC Official Agent must carry out a water-resistance test whenever your IwC watch is opened and serviced.

NOTE

Leather is a natural and permeable material. Make sure, therefore, that the high-quality leather strap does not come into contact with water, oily substances, solvents, cleaning agents or cosmetic products. This way you can prevent discoloration and premature ageing of the material.

SERVICING YOUR PLIOT'S WATCH CHRONOGRAPH EDITION ANTOINE DE SAINT EXUPÉRY

Although the parts in this watch are all manufactured from top-quality materials, a number of components are subject to natural wear and tear. It is particularly important to ensure that the points at which wear occurs are always well lubricated and that oil contaminated by metal abrasion is regularly removed. For this reason, we recommend that you have your watch serviced approximately every five years. Please contact an authorized IWC Official Agent or send your watch directly to the IWC Customer Service Department in Schaffhausen.

Effective from November 2011. Technical specifications subject to change.

Poussoir start-stop 9

Branch of Richemont International SA

Baumgartenstrasse 15

CH-8201 Schaffhausen

Switzerland

Phone [phone]

Fax [phone]

[e-mail]

www.iwc.com

© Copyright 2011

IWC Schaffhausen, Branch of Richemont International SA Printed in Switzerland
