Please read this manual carefully before operation.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER [OR BACK]. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the ap-

pliance. REGULATORY INFORMATION

This equipment generates uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party respon. for compliance could void the user's authority to operate the equipment.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

WARNING:

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

Don't use the apparatus in tropical climates.

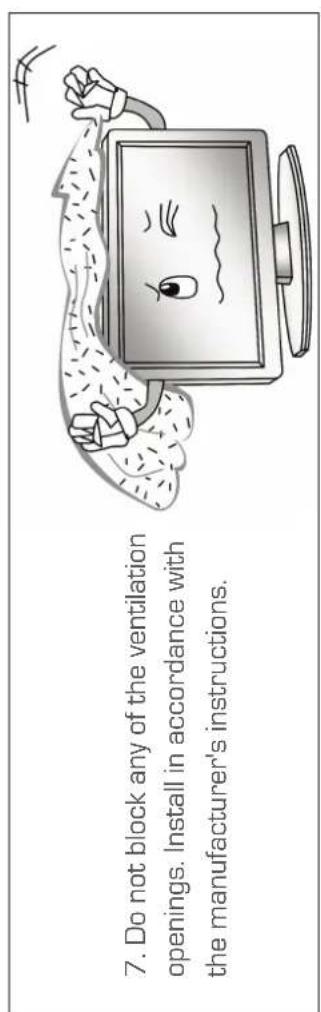

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

The Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to

protect the environment.
Keep minimum distances (5cm) around the apparatus for sufficient ventilation;

[Minimum distance around the apparatus for sufficient ventilation.] No naked flame sources, such as lighted candles, should be placed on the apparatus;

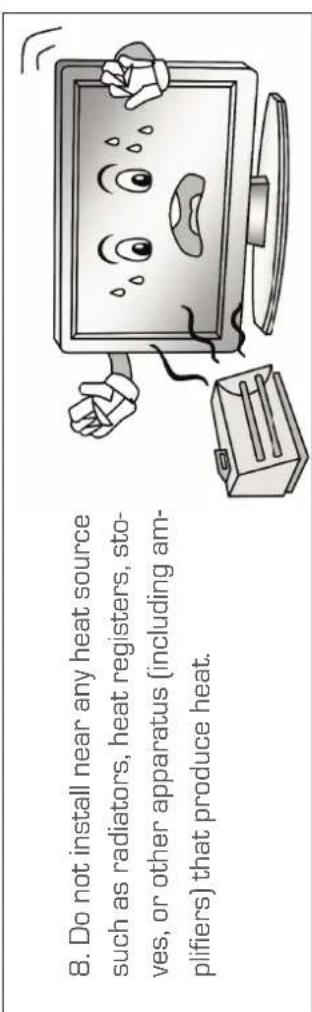

To prevent the spread of fire, keep candles or other open flames away from this product at all times.
The device may be malfunction when under electrostatic discharge. It can be manually resumed by power off and power on again.

CAUTION: Connecting the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional ou
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insula
Periodically examine the cord of your appliance, and its if appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
The MAINS plug is used as the disconnect device, and the disconnect device
shall remain readily operable.

1. Do not defeat the safety purpose of the polarized or grounding type plug. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

1. Protect the power cord

from being walked on or pin

ched particularly at plugs, con
venience receptacles, and the
point where they exit from the
apparatus.

1. Only use the attachments/accessories specified by the manufacturer.

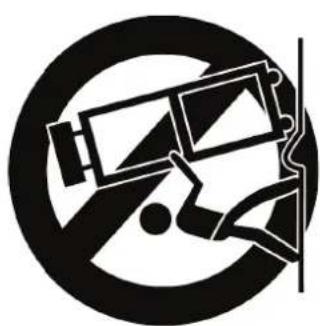

2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

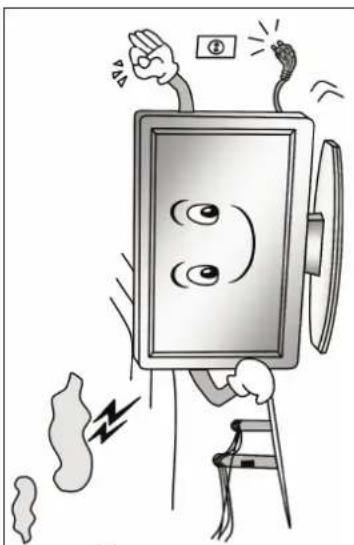

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified ser

vice personnel. Servicing is required

when the apparatus has been dama

ged.

GETTING STARTED

ON DISPOSAL

The fluorescent lamp used in this product contain a small

amount of mercury.

-Do not dispose of this product with general household

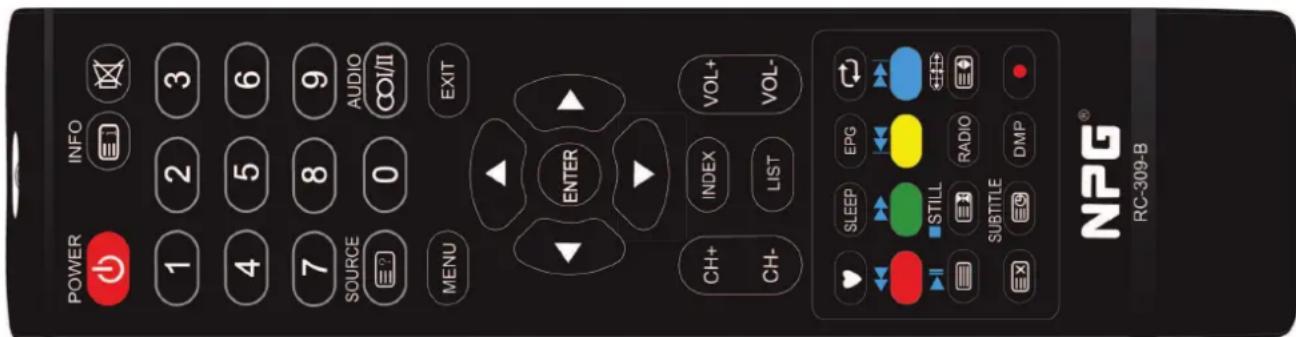

When using this television in a very brightly lit area, the infrared REMOTE CONTROL SENSOR may not work properly.

The recommended effective distance for using the remote control is about 7 metres.

Installing Batteries in the Remote Control

when it is turned on. This is normal, there is nothing wrong .
with TV.
-Some minute dot defects may be visible on the screen, ap-
pearing as tiny red, green, or blue spots. However there have
no adverse effect on the monitor's performance.
-Avoid touching the screen or holding your finger[s] against it for long periods of time. Doing so may produce some tem
porary distortion effect on the screen.

Battery replacement

You will need to install the batteries into the remote control to make it operate following the instruction below.
When the batteries become weak, the operating distance of the remote control will be greatly reduced and you will need to replace the batteries.
Notes on Using Batteries:
The use of the wrong type of batteries may cause chemical leakage and/or explosion.

GETTING STARTED

Please note the following:

Always ensure that the batteries are inserted with the + and - terminals in

the correct direction as shown in the battery compartment.

Different types of batteries have different characteristics. Do not mix different types.

Do not mix old and new batteries. Mixing battery life and/or cause chemical leakage.

Replace batteries as soon as they do not work.

Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out of the batteries, wipe it up immediately with a dry cloth.

The batteries may have a shorter life expectancy due to storage conditions. Remove the batteries whenever you anticipate that the remote control will not

be used for an extended period.
The batteries (battery pack or batteries installed) shall not be exposed to ex

cessive heat such as sunshine, fire or the like.

CAUTION:

It may result in an explosion if batteries are replaced incorrectly.

Only replace batteries with the same or equivalent type.

Cable Installation

• Please read the relevant content in "Notice for Maintenance and Safety" carefully before the installation and use.

• Take out the TV from the package and put it in a drafty and flat place.

!NOTE:

When you plug or unplug the TV, computer or other equipments, you must make sure that the AC power has been already shut down; when unplugging the power cable or signal cable, please hold the plug (the insulated part), do not draw the body of the cable.

!NOTE:

The range of power input for the TV is 100 - 240V 50 / 60Hz do not connect the TV power input port with the AC power out of the above range.

---

Please hold the insulated part of the plug when you are ur cable, do not touch directly the metallic part of the cable.

BASIC OPERATION

Turning on and off the TV

• All pictures in this manual are examples, only for reference, actual product
  may differ from the pictures.
• The buttons not mentioned here are not used.

BASIC OPERATION

QUICK START GUIDE

- Connection

1. Connecting the mains and antenna.
2. If TV has a power switch, turn it on firstly. Then press Power button on
   the remote to turn on the TV.
3. Initial Setup
   When the TV is initially powered on [Or no preset channels], a sequence of on-
   screen prompts will assist in configuring basic settings.
4. Select the desired OSD [On Screen Display] language.
   Press the / / / button, then press theENTER button.

1. Select the appropriate country.

Press the / / button to select the country, then press the ENTER button to start Auto tuning.

MENU OPERATION

Changing the Input Source

UYou can select the input source by pressing the SOURCE button on the remote control. Press the / button to cycle through the input source, and press the ENTER button to confirm your choice.

MENU OPERATION

How to Navigate Menus

Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu

1. Press the MENU button to display the main menu.

2. Press the / button to cycle through the main menu.

3. Press the button to select the desired sub item.

4. Press the ENTER button to access the submenu.

5. Press the / / / button to select the desired value. The adjustment in

the OSD may differ depending on the selected menu.

1. Press the MENU button to return to the previous menu.

2. Press the EXIT button exit from the menu.

NOTE:

• When an item in MENU is displayed gray, it means that the item is not avai
  able or cannot be adjusted.
• Buttons on the TV have the same function as corresponding buttons on the
  remote control. If your remote control is lost or couldn't work, you may use
  the buttons on the TV to select menus. This manual focuses on operation of
  the remote control.

Proceed to the search for TV, D.

If you press the MENU button in TV searching, the Auto Tuning will skip to DTV searching as the suggestive picture shows

ATV Manual Tuning

Manual store for ATV channels.

Press the / button to select items.

Press the button to adjust it.

Press the red button to save it.

Press the EXIT to exit.

• DTV Manual Tuning

Manual store for digital channels.
Press the button to select channel.
Press the ENTER button to search.
Press the EXIT button to exit.

Programme Edit

Press the / button select items.

Press the red button to delete the channel.

Press the green button to rename the channel. [In ATV mode]

Press the yellow button to move the channel. (Except DTV channels with LCN)

Press the blue button to skip the channel.

Press the button to set the favorite channel.

The CH + / CH- button can be used to select the following or preceding page.

ISignal Information (In DTV mode)

Display the current Signal Information.

Configuring the I

- Picture Mode

You can select the type of picture which best corresponds to your viewing require

ments.

The manufacture's recom

menda-tion mode is HOME.

You can change the value of

Contrast, Brightness, Colour,

Tint and sharpness when the

picture is in

• Contrast

To adjust the

• Brightness

To adjust the

Colour

Adjusts intensity of all colours.

- Tint(Only in the NTSC mode)

To adjust the tint of the picture.

Sharpness

To adjust the picture's sharpness.

Colour Temp

Select the colour temperature of the picture.

• Noise Reduction

Reduces screen noise without compromising video quality.

Configuring the Sound Menu

Sound Mode

You can select a sound mode

to suit your personal preferen

Ces.

You can change the value of

Treble and Bass when the

sound is in Personal mode.

• Treble

To adjust the accompanying

sound's

Bass

To adjust the accompanying sound's bass.

Balance

You can adjust the sound balance of the speakers to preferred levels.

• Auto Volume

Press / button to select Auto Volume, then pressENTER button to select On or

Off. This item uses for reducing the difference between channel and program's vo

volume automatically. It made the overall water to be even. This function will also reduce the

the fluctuation of the sound.

- SPDIF Mode

Press / button to select SPDIF Mode, then pressENTER button to select Auto,

Off or PCM.

• AD Switch [In DTV mode]

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD [Audio Description], when it is sent along with the Main audio from the broadcaster. Users

can turn the Audio Description On or Off and control the volume.

Configuring the Time Menu

Clock

Display

ten from DTV signal stream.

Time 2

Select your time zone.

Press / button to set

Time Zone, then press

ENTER button to enter sub

menu. Press / / /

Select the time to turn the TV to standby mode automatically .

• Auto Standby

Select the Auto Standby time you want.

The TV will enter into standby mode automatically when there is no any operation in set time (the set time is 4 hours when leave the factory).

• OSD Timer

Select On-Screen Menu displaying time.

Configuring the Lock Menu

- Lock System

The feature can prevent

unauthorized operating the

TV set, unless entering 4-

digit password. When Lock

System is on and the system

is locked, we must input the

system password at Auto Tu

Tuning, Manual Tuning, Pro-

gramme Edit or Reset. Press

the right number

• Set Password

Press the / button to select Set Password, then press the ENTER button to

enter sub-menu to set new password.

NOTA:

If you forget, the super password of 4711 still valid.

• Block Program (In TV/DTV mode)

Press the green button to block the program you want. Press the green button

again to unlock it.

• Parental Guidance (In DTV mode)

This feature may prevent children watch television shows for adults, according to

the classification established by age. This function acts according to the information of the operator of TV. If signal contains incorrect information, this function does

not work.

Select On-Screen Menu displaying time.

Configuring the Option Menu

Insert an USB disk, the system will automatically create a folder [_MSTPVR] to store the files has been recorded.

1. Press button to record the current program. During the recording, press button to display or hide the record menu

2. Press button to stop recording, it will return to normal broadcast television.

3. When the storage space of Disk is shortage. It will produce a warning message, then it stops recording automatically and return to normal broadcast television.

4. Press the INDEX button to see the information of the recorded list.

5. Press INFO button to see the detail of the program

Press the / button to select Hearing Impaired, then pressENTER button to se
Time shift function Press the button to activate Time Shift while recording. Press button to display or hide the Time shift menu. You can operate refer to the TIME SHIFT menu.
Record list
Press the INDEX button to display the Record list.
Press the / button to select items, then press ENTER button to play. Press the red button to delete the programme.
Press the green button to display the programme information.
Press the INDEX button to sort programmes.
Press EXIT button to exit

NOTE:

• USB disk at least the capacity with 512MB.
• Please format the inserted USB disk when it could not be recorded to.
• During the Device formatting, do not disconnect the device while formatting
  is in progress. If you format the device, all files will be deleted. Before formatting
  your device to the TV, please back up your files to prevent them from damage or loss of data. If USB disk in some virus meeting formats turn failure.
• If the usage contains many ambulation hard drives that divide area, can at PVR File System the menu win election to choose PVR to in response to the disk
  sign. If PVR recording system is used all the time, it will exit PVR system automat-
  cally.
• USB memory must support USB2.0 high-speed specification.

Some of nonstandard USB device may not be supported.

Aspect Ratio

You can select the picture size which best corresponds to your viewing require

ments.

• Blue Screen

Press the ENTER button to select On or Off

• First Time Installation

Press the / button to select First Time Installation, then press the ENTER but

ton to set relevant options including OSD language, country and Channel Tuning. Reset

Restore the system setting

• Software Update(USB)

Press the / button to select Software Update(USB), then press the ENTER

button to update software using USB.

Adjust th Phase

Adjust when characters have low contrast or when the image flickers.

• Position Reset

Resetting the Screen settings to the defaults.

Using Media mode

To Access/Quit DMP mode

1. Connect an USB device.

2. Press SOURCE button to display the main menu. Use the / to highlight Media, and the ENTER button to access the Media mode.

3. You may also use the signal source selection menu to exit from the Media mode.

NOTE:

• Special USB device may be not or well supported

The formats supported:

The DMP function can support the USB device with USB memory.

It can play PHOTO, MUSIC, MOVIE or TEXT files.

Photo Format Support: JPEG, BMP, PNG.

Music Format Support: MP3, AAC, M4A.

Movie Format Support: AVI, VOB, DAT, MPG, TS/TP.

Text Format Support: TXT.

NOTE:
Special USB device may be not or well supported
The formats supported:
The DMP function can support the USB device with USB memory.
It can play PHOTO, MUSIC, MOVIE or TEXT files.
Photo Format Support: JPEG, BMP, PNG.
Music Format Support: MP3, AAC, M4A.
Movie Format Support: AVI, VOB, DAT, MPG, TS/TP.
Text Format Support: TXT.

NOTE:

Special algorithm documents may not be or well be supported by the USB.

The USB supports the format mentioned above, if the file format is not supported,

change it to the given format.

Main


Press / button to select

PHOTO in the main menu, the

press ENTER button to enter.

Press EXIT button to return

back to the previous menu an

exit menu to quit.

Press button to select

drive disk you w

then pres ENTER button to enter.

Press arrow button to select Return option to back to the previous menu.

Press arrow button to select the

When highlighting the option you select, the file information will appear on the right

ture will be previewed in the center.

PressENTER button to play the selected file.

Press theINFO button to display the menu screen in playing.

Press the EXIT button to stop the playing files and return to the previous menu screen

Press button to select TEXT in the main menu, then press ENTER button to enter. Press button to select drive disk you want to watch, then press ENTER button to enter.

Press the arrow button to select the file to play, when the team reaches the file.
Will appear a pre visualisation and information about the file.
Press ENTER button to play the selected file.

Press the INFO button to display the menu while playing the file.

Press the EXIT button to stop the playing files and return to the p

Basic operation

1. Play/Pause

Start playing the selected file of a folder or pause.

1. Stop

Stop the playing files.

1. / Fast Reverse/Fast Forward

You can press / to s

1. Previous/Next

You can select the desired files manually in normal condition.

5.Red button

You can delete

1. CH + / CH -

When view the TEXT files, press CH+/CH- to change pages up and down.

1. REPEAT

Rotate Clockwise,

Press the EPG button to
enter PROGRAMME GUIDE
menu.
Press the red button to
enter the sub-menu. You o
choose the time of the
appointment to record your
want. The unit is able to do
schedule recording when TV
is turning on or in standby.
mode. You can set up several
overlap. When

When play PHOTO
8.4/
Change the rotation of the display of a photo. During playing a photo, if select the
When play PHOTO, MOVIE and MUSIC files, you can press this button to select the
repeat pl
Change the rotation of the display of a photo. During playing a photo, if select the
Rotate Clockwise, Photo-play will automatically pause.

Channel List

Press LIST button to display the Channel List.
Press / to select the items. PressENTER button to enter the channel.
Press button to page up or down the Channel list.
Press button to pass

Channel List
Press LIST button to display the Channel List. Press / to select the items. PressENTER button to enter the channel. Press / button to page up or down the Channel list. Press LIST button to exit.

TELETEXT

Favorite List

Press button to display the favorite list.
Press / to select the items. Press ENTER button to enter the channel.
Press button to page up or down the Favorite list.
Press button to exit.

TELETEXT

Display teletext

1. Select a TV station with a teletext signal.
2. Press the TEXT button to enter teletext mode.
3. Press the TEXT button 3rd return or exit to the normal TV/DTV mode.

Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then
   reenter the correct page number.
2. Press CH-/CH+ button can be used to select the preceding or following page

Hold

You can press the HOLD button to hold a page, and press it again to release the
page.

Index

Press the INDEX button to enter the main index page directly.

Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press S
2. Press SIZE button again to enlarge the bottom half of the page.
3. Press SIZE button once more to return to the normal display.

PROBLEM POSSIBLE OLYTUN	S
The remote control does not work	- Check to see if there any object between the product and remote control Causing obstruction.- Are batteries installed with correct polarity [+ to +, - to -]?- Correct remote operating mode set: TV, VCR etc.?- Install new batteries
Power is suddenly turned off	- Is the sleep timer set?- Check the power control settings. Power interrupted.- No broadcast on station tuned with auto activated
Picture appears slowly after switching on	-This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor color or poor picture	- Adjust the color in menu option.- Keep a sufficient distance between the product and the VCR.- Try another channel, the problem may be with the broadcast.- Are the VIDEO cables installed properly?- Activate the any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	- Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	- Station or cable product experiencing problems. Tune to another station.- Station signal is weak, reorient antenna to receive weaker station.- Check for sources of possible interference.
Lines or streaks in pictures	- Check the antenna (Change the direction of the antenna).

Maintenance

PROB LE M POSSIBLE OLYTUN S
No output from one of the speakers	- Adjust balance in menu option
The signal is out of range. - Adjust resolution, horizontal frequency, or vertical frequency. - Check it whether the signal cable is connected or loose. - Check the input source.
Vertical bar or stripe on back ground & Horizontal Noise & Incorrect position.	- Work the auto configure or adjust clock, phase, or H/V position.
Screen color is unstable or single color.	- Check the signal cable. - Reinstall the PC video card.

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then used it to wipe the screen. 2. Make sure the excess water is off the screen, and then let it air-dry before you

turn on your TV.

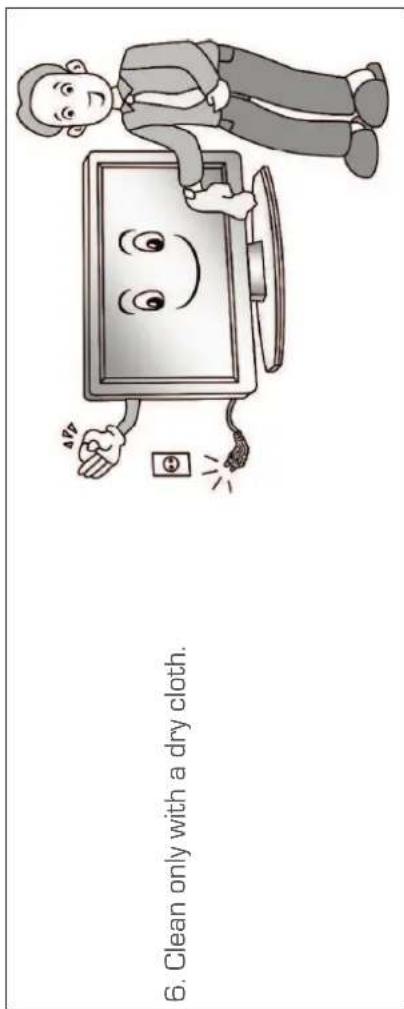

Cleaning the cabinet To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence.

If you expect to leave your TV dormant for a long time [such as a vaca

tion], it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

TROUBLESHOOTING GUIDE

• Do not cover the holes for ventilation of the device and avoid placing overly indoor

or with little ventilation;

• not place heat sources external near the device, such as candles, stoves, fire

place...

• please do not dispose of batteries with the current garbage. Appropriate to its

proper disposal in centers of recycling or specific container. Help conserve the en

vironment.

• do not use the device in areas where the humidity is very high;

• the appliance should not be exposed to drips or spills, and take care that there

are no objects containing liquids, such as vases...

• try the socket to which the device is connected is easy access to be able to dis

connect the device with ease of electric current.Maintain minimum distances [5

cm] around the apparatus for proper ventilation.

Disposal of old electrical appliances

The European Directive LEEE/ 88/ ES on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Personal Grand Technology S.A. reserves the right to modify specifications and/or functions of its products without prior notice, with the aim of improving them technically.

Personal Grand Technology, S.A. Pol. Ind. De las Monjas C/ Ecuador, 14 28850 Torrejón de Ardoz-Madrid TEL. [phone] [e-mail] www.npgtech.com

MANUEL D'UTILISATION

NL-2366HHB
LED COLOR TELEVISION

Please press MENU key to exit.

TELECOMMANDE

NOTE:

1. Previous/Next [Anterior/Seguin]

PROBLEMA POSSIVEL SOLUCAO
