IVC750 - Vacuum Cleaner Ices - Free user manual and instructions

Brand	Ices
Model	IVC750
Vacuum type	Bagless cyclonic vacuum
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W
Pre-motor filter	Yes, washable
Central HEPA filter	Yes
Air outlet filter	Yes, washable
Cord rewinder	Yes, with rewinding button
Cord length	With yellow (optimal) and red (max) marks
Floor brush	Yes
Telescopic tube	Yes, adjustable length
Carrying handle	Yes, integrated on top
Anti-excessive vacuum safety switch	Yes
Recommended use	Indoor, dry surfaces only
Filter cleaning	Every 6 months or when suction decreases
Cord replacement	By the manufacturer or a qualified person
Compliance	CE, RoHS

Frequently Asked Questions - IVC750 Ices

How to assemble the IVC750 vacuum cleaner?

Before any assembly, unplug the device. Attach the flexible hose to the vacuum body until it clicks. Then insert the curved tube into the hose, then the floor brush into the tube. Adjust the tube length if necessary.

How to clean the dust container?

Press the button on the dust cup arm to lift the container. To empty, press the lower button to open the lid. Empty the dust and close before reassembling.

When should the filters be cleaned?

It is recommended to clean the filters every six months or when suction seems reduced. Wash them with clean water and let them air dry for 24 hours before reinstalling.

What to do if suction decreases?

Turn off and unplug the vacuum. Check that the openings, hose, and tube are not obstructed. Clean all filters as per instructions. If the problem persists, inspect the filters for damage.

What to do if the power cord is damaged?

Do not use the vacuum. The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any risk of accident.

Can I vacuum water with the IVC750?

No, this vacuum is designed only for dry surfaces and indoor use. Never use it on wet surfaces or to vacuum liquids.

Can I vacuum hot ashes or cigarettes?

No, never vacuum smoking, hot, or burning objects like fireplace ashes, cigarettes, or matches. This could damage the appliance or cause a fire.

How to rewind the power cord?

Hold the plug with one hand and press the rewinding button with the other. Guide the cord to avoid a whip effect that could cause injury or damage.

Is the vacuum suitable for cleaning stairs?

Yes, but be very careful when using on stairs. Avoid tripping over the cord and keep the appliance stable.

What accessories are included with the vacuum?

The vacuum comes with a flexible hose, a curved tube, a hose extension, and a floor brush. No other accessories are mentioned in the manual.

USER MANUAL IVC750 Ices

Cyclone Bagless Vacuum Cleaner (EN)

Power consumption: 2000W (Max.)

For household use only!

When using your vacuum, basic safety precautions should always be observed, including the following:

1. Do not leave vacuum cleaner when plugged in. Unplug from outlet when no use and before servicing.
2. To reduce the risk of electric shock, do not use outdoors or on wet surfaces
3. Do not allow to be used as a toy. Close attention is necessary when used by near children.
4. Use only as described in this manual. Use only manufacture's recommend attachments.
5. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, enter it to a service center.
6. Do not pull or carry on cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
11. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
12. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
13. Do not use without filters in place.
14. Turn off all controls before plugging or unplugging vacuum cleaner.
15. Use extra care when vacuuming on stairs.
16. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
17. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc).
18. Do not use in an enclosed space filled with vapors given off by oil bases paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
19. Always unplug this appliance before connecting or disconnecting vacuum hose. Do not allow plug to whip when rewinding.
20. Use only on dry, indoor surfaces.
21. Do not use for any purpose other than described in this user's guide.
22. Store your appliance indoor in a cool, dry area.
23. Keep your work area well dry.
24. Do not immerse the vacuum cleaner into water or other liquids.
25. Keep end of hose, wands and other openings away from your face and body.
26. Do not use the cleaner to clean your pets or any animal.
27. Keep the head (eyes, ear, mouth, etc) away from the openings, when the cleanser is working or plugging.

28. This appliance is not intended for use by persons (including children) when reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

29. Children should be supervised to ensure that they do not play with the appliance.

30. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

WARNING:

Important:

If the suction opening of the unit, the hose or the tube is blocked, switch off the vacuum cleaner and remove the blocking substance before you start the unit again.

1. Do not operate the vacuum cleaner too close to heater or radiators.
2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.
3. Before you start the unit, make sure to remove large or sharp objects that might damage the dust tank and hose.
4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.
5. Do not use without all filters in place.
6. When using, if you learn of squeak from the cleaner, it must be suction appears to be reduced, so you must stop (make sure the cleaner is not plugging), then clean the all air filter.

WARNING :

Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

Use and function

Assembling vacuum cleaner

Note:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Attaching the Flexible Hose into the vacuum connect the flexible hose into the air intake duct, push in until you hear a "click" sound, indicating it is in its locked position.

1. Fitting the tube to the curved wand/hose extension. Push the tube into the curved wand/hose extension.
2. Fitting the floor brush to the tube. Push the tube into the floor brush. Adjust the tube to the desired length.

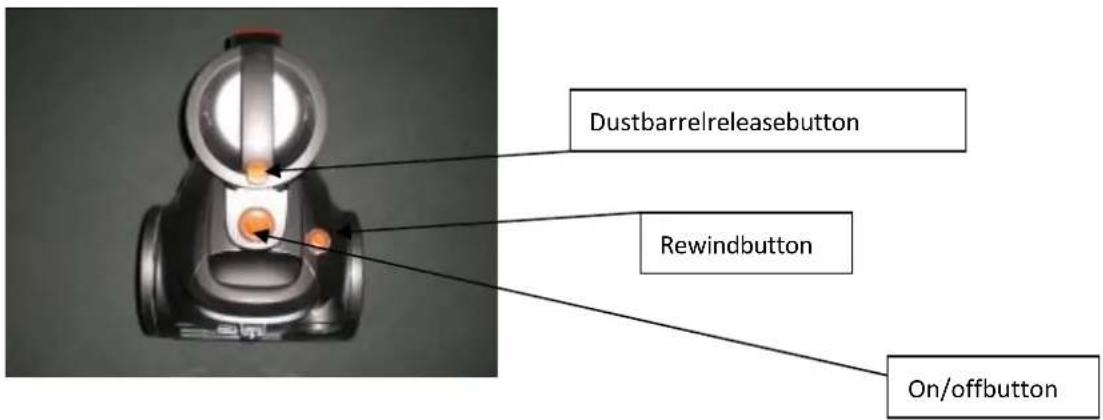

Button function introduction

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner " on ".
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

Clean the dust barrel:

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Press knob on low end of dust barrel to open the dust barrel cover.

123

Carry and move away the cleaner:

Note:

This cleaner have a special feature for handle. There is a handle on the top.

Removing & cleaning pre-motor filter, centric Hepa filter, and air outlet filter Warning:

Always unplug the unit from electrical outlet before getting out the dust barrel.

a. Pre-motor filter
1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Take out the pre-motor filter for cleaning and changing.

Pre-motor filter

b. dual filter

1. Press the knob on the dust cup arm.
2. Lift dust barrel up.
3. Press knob on low end of dust barrel to open the dust barrel cover.
4. clean

c. Air outlet filter

1. Press the air outlet grid knob to open
2. Take out the air outlet filter for clean and change.

Please note :

The sponge filter material in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the sponge filter is so dusty that suction does not return to 100% , then we suggest that the filter be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high temperature objects before refitting into the vacuum. This should be done once six months or when suction appears to be reduced obviously.

Important:

Please note that there is a safety switch inside the vacuum to prevent the unit from being run with high vacuum rate. If the vacuum is too high, the safety switch will be turned on. In this case, it can minish the vacuum rate and protect the motor from being broken.

Note :

The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

Important:

All filters should be checked regularly for signs of damage, preferably after each cleaning task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.

Technical data

Voltage: 220 - 240V 50 / 60Hz

Power: 2000W (Max.)

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
