USER MANUAL KD321 TANITA

Read this Instruction Manual carefully and keep it for future reference.

D

Bedienungsanleitung

This scale is a precision instrument and must be used under certain conditions to ensure accurate measurement. Please observe the following when using this scale.

1. Never disassemble the unit.
   2.Use in a vibration-free location that is not exposed to direct sunlight.
2. The scale will not measure accurately in an environment subject to large temperature and humidity changes. The unit takes approximately two hours to adjust to such changes.
3. Keep chemicals off the scale. Wipe with a damp cloth from time to time.
   5.Do not use or store near heat sources(ovens, heaters, etc.).
4. When not used for a long time, remove the batteries and store the unit in a dry, dust-free location.
5. Check and replace batteries before sending the unit for repair. If repair is necessary, remove the batteries, repack the unit in the original carton and protect with packing materials before shipment.
6. Do not leave objects on the weighing tray when the scale is not in use.
7. To avoid measurement error, do not measure while using equipment that generates radio waves, such as mobile phones.

Notice:

These marks can be found out on contaminant-containing Batteries:

Pb Pb = Battery contains lead,

Cd Cd = Battery contains cadmium,

Hg Hg = Battery contains mercury.

Not allowed to mix batteries with consumer wastes!

As consumer you are legally bound to return used or discharged batteries. You can deposit your old batteries at the public collecting points in your town, or wherever the corresponding batteries are sold and specifically marked collecting boxes have been set up. In case of scrapping the apparatus, the batteries should be removed from it and deposited at the collecting points as well.

IMPORTANT

1. Do not dismantle the unit.
2. Clean using mild detergent. Chemicals should not be used.
3. Use the unit on a firm, flat surface.
4. Do not scrub with hard materials.

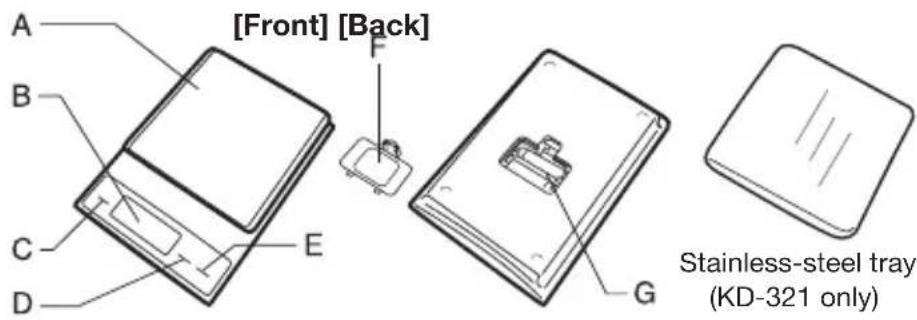

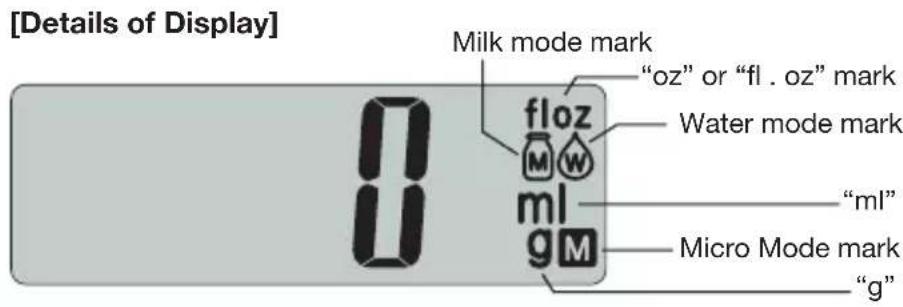

NAMES OF PARTS

A Tray

B LCD

C ON/OFF button

D g/ml (or Weight/ml·fl oz) button

E TARE/Micro Mode button

F Lid (Battery compartment)

G Battery compartment

HOW TO USE

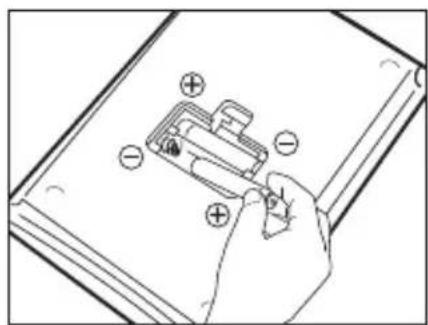

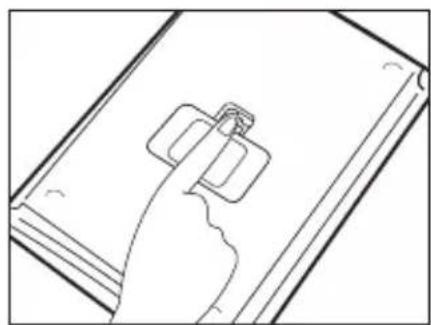

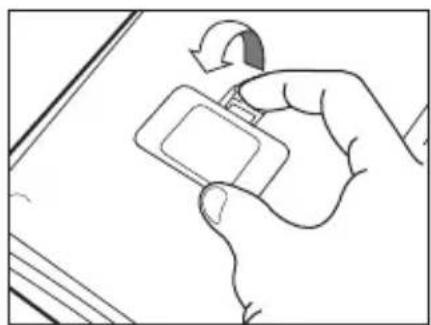

Battery Placement

Insert 2 × "AA", "R6" or "15C" batteries as indicated.

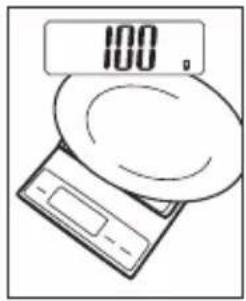

WEIGHING/TARE FUNCTION

Press

g version

oz version

Place a container on the tray.

Push subtract the weight of the container.

Place the item(s) to be weighed.

Remove the container and the item(s).

Press ON CFF

• When the total weight of the container and measured object exceeds the maximum measurement (3000 g/105 oz), E E E E is displayed. When the weight is -999 g/-99.95 oz or less (-999.5 g or less when 0.5 g unit is displayed), is displayed.

MICRO MODE

This scale has a micro mode which enables finer measurements.

• Press when 0.0 g or 0.00 oz is displayed, then the display returns to the normal measurement mode (1 g display).
• This is the same when ml is displayed.

oz version

Total weight on the tray Displayed unit

0 to 300 g/0 to 10.58 oz 0.1 g/0.01 oz

300 to 1500 g/10.58 to 52.9 oz 0.5 g/0.02 oz

1500 to 3000 g/52.9 to 105 oz 1 g/0.05 oz

• The minimum display unit in the micro mode changes depending on the total of weight on the tray. (Weight after tare weighing is included.)

Caution

Once the weight total becomes 300g or more, the weight is displayed in 0.5g units even if the item to be weighed is removed. In the same way, once the weight total becomes 1500g or more, the weight is displayed in 1g units.

(Example)

In the micro mode. When weight is 1500 g or more, it is displayed in 1 g units.

Remove a portion of it.

When TARE is pressed, 0 is displayed.

When TARE is pressed again, 0.0g is displayed. In this case, the container is 750g , so it can be measured in 0.5g units.

UNIT SWITCHING

1. g (oz) ml (fl oz)

Besides normal weight (g or oz), a milk or water container (ml, fl, oz) can be measured with this scale without a measuring cups. 1 cc is 1 ml, so cc can be measured in the same way.

• Milk means using normal milk.
• Please use water or normal milk at temperatures of 40^ or less.
• It also can be used in the micro mode.

[g version]

Normal measurement mode (g)

Milk mode (ml) Water mode

[oz version]

Normal measurement mode (oz)

Milk mode (fl oz)

Water mode (flo oz)

2. Switching between g and oz.

When the power is ON, press TARE while pressing mI

Auto Power Off

The scale is designed with an auto power-off function for energy efficiency. If the same reading is displayed for more than 10 minutes, the scale will automatically turn off.

Battery Replacement

When batteries are running out, _0 is displayed and the power is automatically turned off. Immediately replace the batteries (all 2 batteries). Do not apply excessive force to the measuring section when replacing batteries.

TROUBLE SHOOTING

The power doesn't turn on.

Insert 2 new size AA ("R6" or "15c") batteries. Be sure that the polarity of the batteries is set properly.

• "Err6" or "Err7" appears on the display.

The scale needs to be repaired. Please contact your retailer.

• "Err1" or "Err8" appears on the display.

Place a container or item(s) after 0g / 0.00 oz is displayed.

• The scale does not set to micro mode.
• M mark disappears while operating.

Minimum display is 1 g/0.05 oz. when the total weight on the tray is 1500 g/52.9 oz or more.

Press TARE again after removing the weight.

• Although weight is 300g / 10.58 oz or less in the micro mode, 0.1g / 0.01 oz unit is not displayed.

Was the display set to indicate 0 g/0.00 oz once during the additional measurement (tare weighing)?

Once weight total on the tray exceeds 300 g/10.58 oz, the display indicates in 1 g/0.05 oz units even if 0 g/0.00 oz is displayed using TARE. Likewise, when the weight exceeds 1500 g/52.9 oz, the display indicates in 1 g/0.05 oz units.

In the micro mode, once weight total becomes 300g / 10.58 oz or more, the display indicates in 0.5g / 0.02 oz or 1g / 0.05 oz even though the weight is removed. Remove all weight from the tray, press TARE to return display to 0.0g / 0.00 oz, and measure the weight in accordance with the minimum display unit that corresponds to the total weight on the scale.

SPECIFICATION

Capacity 3000	g / 105 oz
Graduation	Normal measurement mode 1 g / 0.05 oz
	MICRO mode	0 to 300 g 0.1 g 0 to 10.58 oz 0.01 oz
		300 to 1500 g 0.5 g 10.58 to 52.9 oz 0.02 oz

Federal Communications Commission and Canadian ICES Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Tanita Corporation may void the user's authority to operate the equipment.

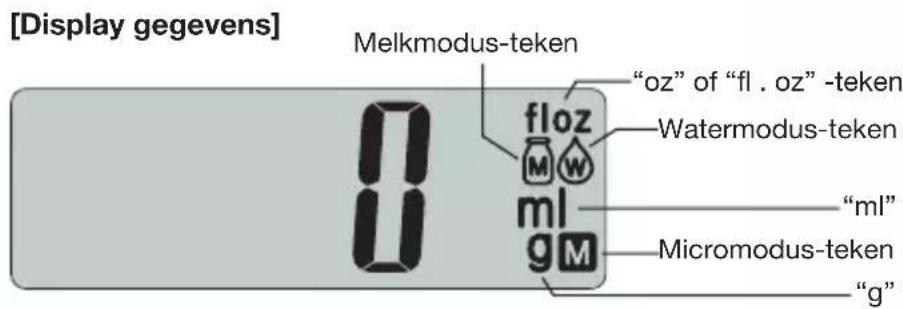

! ACHTUNG

A Weegplatform

B LCD

C ON/OFF -toets

D g/ml (of Weight/ml·fl oz) -toets

E TARE/Micro Mode-toets

F Deksaltje (batterijcompartment)

G Batterijcompartment

BEDIENING EN GEBRUIK

Batterijen inbrengen

This device features radio interference suppression in compliance with valid EC Regulation 2004/108/EC.
