USER MANUAL KD320 TANITA

請詳細閱讀本說明書, 並小心保存. Digital Scale KD3207611 (0)0909FA2 This scale is a precision instrument and must be used under certain conditions to ensure accurate measurement. Please observe the following when using this scale. 1.Never disassemble the unit.

Use in a vibration-free location that is not exposed to direct sunlight.

3. The scale will not measure accurately in an environment subject to

large temperature and humidity changes. The unit takes approximately two hours to adjust to such changes. 4.Keep chemicals off the scale. Wipe with a damp cloth from time to time.

Do not use or store near heat sources(ovens, heaters, etc.).

6. When not used for a long time, remove the batteries and store the unit

in a dry, dust-free location.

7. Check and replace batteries before sending the unit for repair. If repair

is necessary, remove the batteries, repack the unit in the original carton and protect with packing materials before shipment. 8.Do not leave objects on the weighing tray when the scale is not in use.

9. To avoid measurement error, do not measure while using equipment

that generates radio waves, such as mobile phones. CAUTIONS Notice: These marks can be found out on contaminant-containing Batteries: Pb Pb = Battery contains lead, Cd Cd = Battery contains cadmium, Hg Hg = Battery contains mercury. Not allowed to mix batteries with consumer wastes! As consumer you are legally bound to return used or discharged batteries. You can deposit your old batteries at the public collecting points in your town, or wherever the corresponding batteries are sold and specifically marked collecting boxes have been set up. In case of scrapping the apparatus, the batteries should be removed from it and deposited at the collecting points as well.3 IMPORTANT

1. Do not dismantle the unit.

2. Clean using mild detergent. Chemicals should not be used.

3. Use the unit on a fi rm, fl at surface.

4. Do not scrub with hard materials.

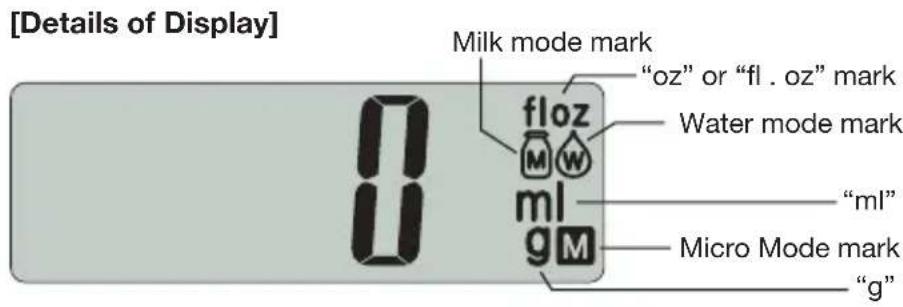

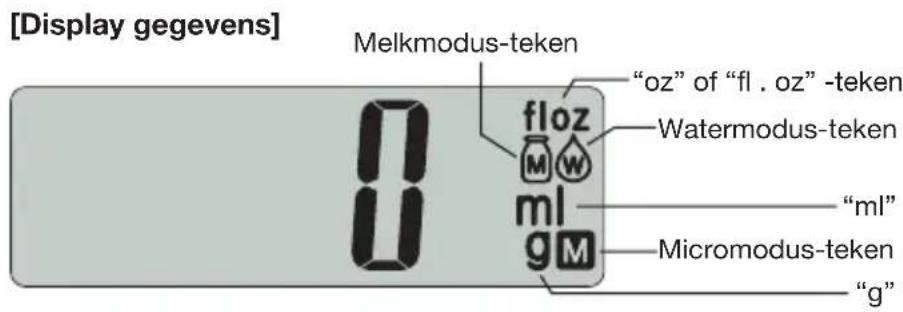

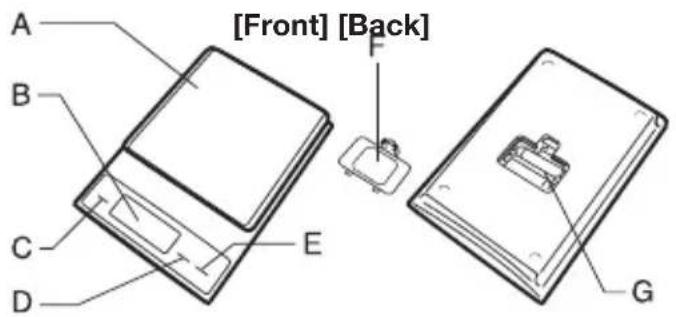

[Front] [Back] Stainless-steel tray (KD-321 only) A TrayB LCDC ON/OFF buttonD g/ml (or Weight/ml·fl oz) buttonE TARE/Micro Mode buttonF Lid (Battery compartment)G Battery compartment [Details of Display] “oz” or “fl . oz” mark Milk mode mark Water mode mark “ml” Micro Mode mark “g”

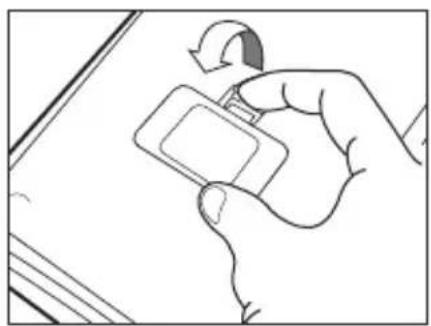

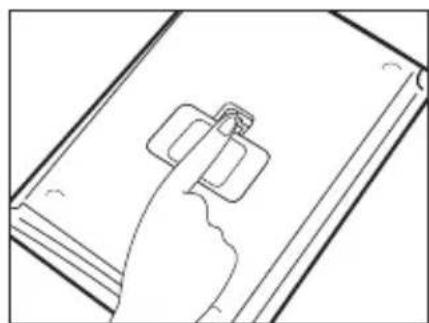

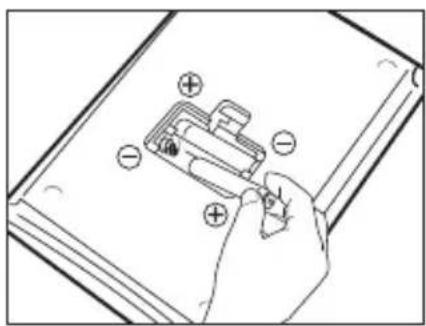

Battery Placement Insert 2 × “AA”, “R6” or “15C” batteries as indicated.

Press . Place a container on the tray. Push to subtract the weight of the container. Place the item(s) to be weighed. Remove the container and the item(s). Press .

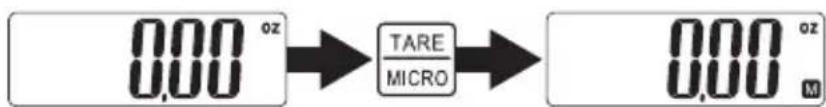

• When the total weight of the container and measured object exceeds the maximum measurement (3000 g/105 oz), is displayed. When the weight is -999 g/-99.95 oz or less (-999.5 g or less when 0.5 g unit is displayed), is displayed. MICRO MODE This scale has a micro mode which enables fi ner measurements.

0.00 oz is displayed, then the

display returns to the normal measurement mode (1 g display).

• This is the same when ml is displayed.

• The minimum display unit in the micro mode changes depending on the total of weight on the tray. (Weight after tare weighing is included.) Total weight on the tray Displayed unit 0 to 300 g/0 to 10.58 oz 0.1 g/0.01 oz 300 to 1500 g/10.58 to 52.9 oz 0.5 g/0.02 oz 1500 to 3000 g/52.9 to 105 oz 1 g/0.05 oz5 Caution Once the weight total becomes 300 g or more, the weight is displayed in 0.5 g units even if the item to be weighed is removed. In the same way, once the weight total becomes 1500 g or more, the weight is displayed in 1 g units. (Example) In the micro mode. When weight is 1500 g or more, it is displayed in 1 g units. Remove a portion of it. When

pressed, 0 is displayed. When

pressed again, 0.0 g is displayed. In this case, the container is 750 g, so it can be measured in

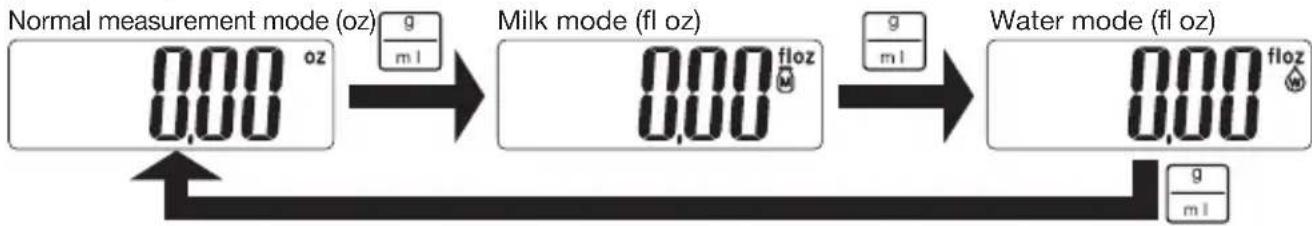

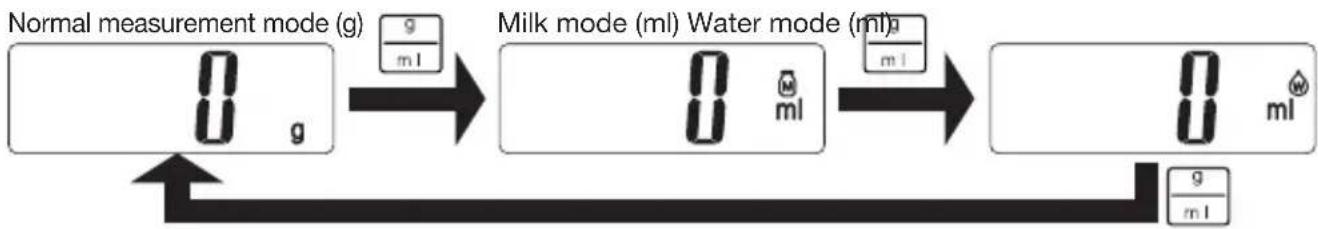

Besides normal weight (g or oz), a milk or water container (ml, fl , oz) can be measured with this scale without a measuring cups. 1 cc is 1 ml, so cc can be measured in the same way.

• Milk means using normal milk.

• Please use water or normal milk at temperatures of 40°C or less.

• It also can be used in the micro mode.

• The power doesn’t turn on. Insert 2 new size AA (“R6” or “15c”) batteries. Be sure that the polarity of the batteries is set properly.

• “Err6” or “Err7” appears on the display. The scale needs to be repaired. Please contact your retailer.

• “Err1” or “Err8” appears on the display. Place a container or item(s) after 0 g/0.00 oz is displayed.

• The scale does not set to micro mode.

• M mark disappears while operating. Minimum display is 1 g/0.05 oz.when the total weight on the tray is 1500 g/52.9 oz or more. Press again after removing the weight.

• Although weight is 300 g/10.58 oz or less in the micro mode, 0.1 g/0.01 oz unit is not displayed. Was the display set to indicate 0 g/0.00 oz once during the additional measurement (tare weighing)? Once weight total on the tray exceeds 300 g/10.58 oz, the display indicates in 1 g/0.05 oz units even if 0 g/0.00 oz is displayed using . Likewise, when the weight exceeds 1500 g/52.9 oz, the display indicates in 1 g/0.05 oz units. In the micro mode, once weight total becomes 300 g/10.58 oz or more, the display indicates in

0.5 g/0.02 oz or 1 g/0.05 oz even though the weight is removed. Remove all weight from the

tray, press to return display to 0.0 g/0.00 oz, and measure the weight in accordance with the minimum display unit that corresponds to the total weight on the scale. SPECIFICATION Capacity 3000 g / 105 oz Graduation Normal measurement mode 1 g / 0.05 oz MICRO mode 0 to 300 g 0.1 g 0 to 10.58 oz 0.01 oz 300 to 1500 g 0.5 g

10.58 to 52.9 oz 0.02 oz

2. Switching between g and oz.

When the power is ON, press while pressing . Auto Power Off The scale is designed with an auto power-off function for energy effi ciency. If the same reading is displayed for more than 10 minutes, the scale will automatically turn off. Battery Replacement When batteries are running out, is displayed and the power is automatically turned off. Immediately replace the batteries (all 2 batteries). Do not apply excessive force to the measuring section when replacing batteries.

10.58 到 52.9 oz 0.02 ozThis device features radio interference supression in compliance with valid EC Regulation
