SLP510 - Smart Home DENVER - Free user manual and instructions

Product Type	Wi-Fi Connected LED Light Strip
Brand	Denver
Model	SLP510
Power Supply	Original power adapter (not included in the manual)
Operating Frequency	2.4 ~ 2.4835 GHz
Max. RF Power	≤ 19 dBm
Operating and Storage Temperature	-20 °C to 60 °C
Main Features	Control via Denver Smart Home app, EZ and PA configuration modes, remote on/off, color and light effect adjustment
Network Compatibility	Wi-Fi 2.4 GHz
Control App	Denver Smart Home (iOS and Android)
Installation	Plug in the adapter, download the app, follow the network setup instructions
Reset	Turn on/off 5 times in a row on the plug (1 second interval) to enter configuration mode
Safety	Do not open the product, do not use non-original accessories, keep out of reach of children and animals, unplug using the adapter as the disconnection device
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use harsh chemicals
Spare Parts and Repairability	Original adapter only; repairs must be carried out by qualified personnel
General Information	Directive 2014/53/EU; declaration of conformity available at denver.eu; manufactured by Denver A/S, Denmark

Frequently Asked Questions - SLP510 DENVER

How to reset the Denver SLP510 LED strip light?

To reset the device, turn the strip on and off 5 times in a row on the power plug with an interval of about 1 second between each action. The indicator light will start flashing quickly, indicating that the device is in configuration mode.

How to connect the Denver SLP510 to my Wi-Fi network?

Make sure your smartphone is connected to a 2.4 GHz Wi-Fi network. Download the Denver Smart Home app, create an account or log in, then tap the '+' sign on the Devices page. Select 'Lighting devices' and choose EZ mode (the indicator must flash quickly) or PA mode.

What to do if the indicator does not flash during configuration?

If the indicator does not flash quickly (twice per second), perform a reset by turning the device on and off 5 times in a row on the plug. After that, the strip should enter configuration mode and the indicator will flash.

Can I use the Denver SLP510 with a non-original adapter?

No, it is imperative to use only the original adapter provided with the device. Using a non-original adapter may cause abnormal operation or damage the product.

What type of Wi-Fi network is compatible?

The Denver SLP510 works only on a 2.4 GHz Wi-Fi network. It is not compatible with 5 GHz networks.

How to clean the LED strip light?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use harsh chemicals or liquids.

Is the Denver SLP510 suitable for outdoor use?

The manual does not specify outdoor use. The operating temperature is -20°C to 60°C, but the device is not described as waterproof. It is recommended to use it indoors, away from moisture.

Can I cut the LED strip to a custom length?

The manual does not mention cutting possibilities. In general, some LED strips can be cut at designated marks, but check the indications on the product or contact Denver support.

What to do if the app does not detect the LED strip light?

Check that your smartphone is on a 2.4 GHz Wi-Fi network and that the strip is in configuration mode (flashing indicator). Try resetting the device and restarting the app. Also make sure your phone and the strip are close to the router.

How to get the manual in French?

The manual is available in French on the website notice-facile.com. You can download it in PDF format directly from the product page.

USER MANUAL SLP510 DENVER

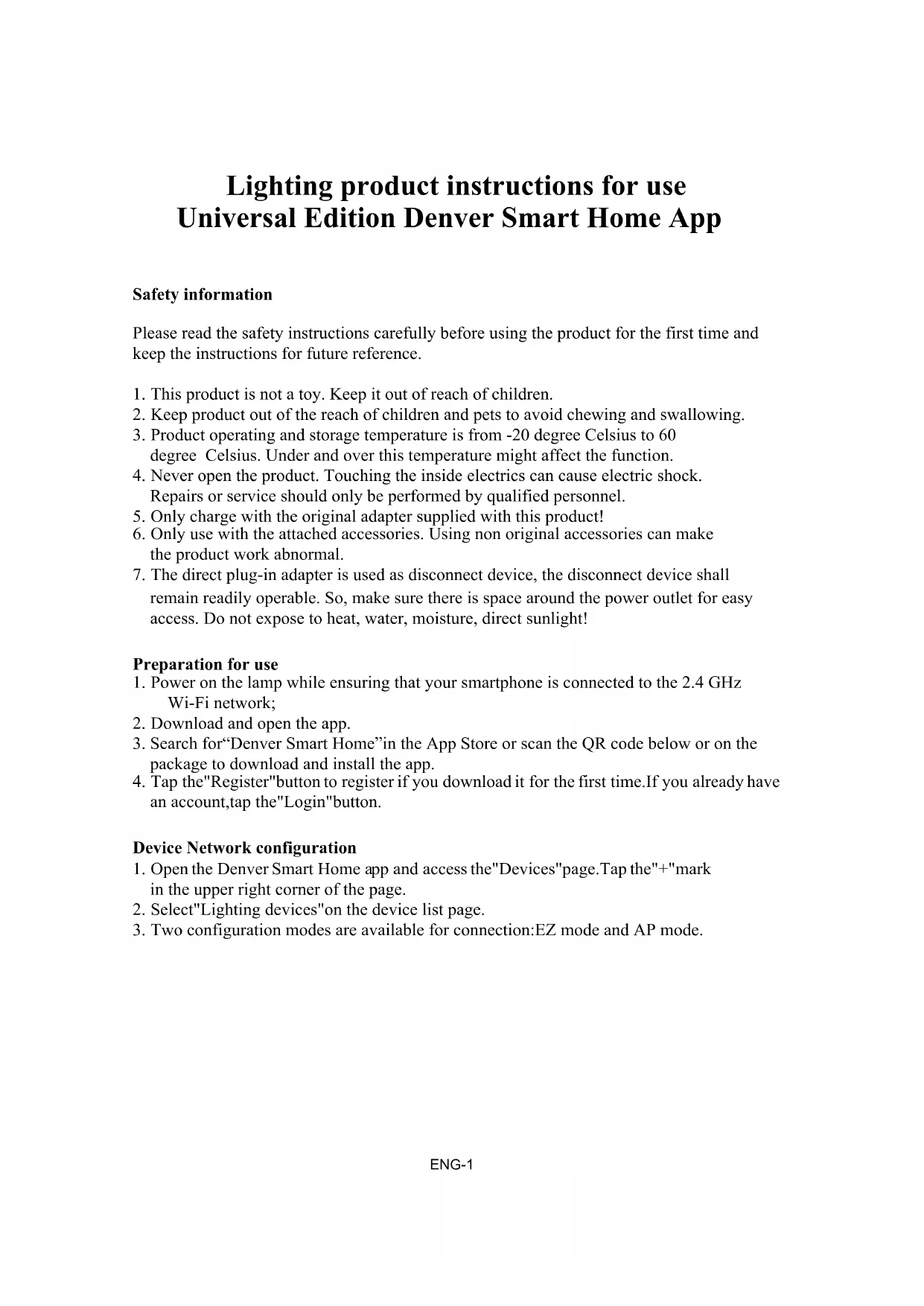

Lighting product instructions for use Universal Edition Denver Smart Home App

Safety information

Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference.

1. This product is not a toy. Keep it out of reach of children.
2. Keep product out of the reach of children and pets to avoid chewing and swallowing.
3. Product operating and storage temperature is from -20 degree Celsius to 60 degree Celsius. Under and over this temperature might affect the function.
4. Never open the product. Touching the inside electrics can cause electric shock. Repairs or service should only be performed by qualified personnel.
5. Only charge with the original adapter supplied with this product!
6. Only use with the attached accessories. Using non original accessories can make the product work abnormal.
7. The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable. So, make sure there is space around the power outlet for easy access. Do not expose to heat, water, moisture, direct sunlight!

Preparation for use

1. Power on the lamp while ensuring that your smartphone is connected to the 2.4 GHz Wi-Fi network;
2. Download and open the app.
3. Search for "Denver Smart Home" in the App Store or scan the QR code below or on the package to download and install the app.
4. Tap the"Register"button to register if you download it for the first time.If you already have an account,tap the"Login"button.

Device Network configuration

1. Open the Denver Smart Home app and access the"Devices"page.Tap the"+mark in the upper right corner of the page.
2. Select"Lighting devices"on the device list page.
3. Two configuration modes are available for connection:EZ mode and AP mode.

1) EZ Mode

Ensure the light flashes quickly(twice a second). This indicates that the light strip is in configuration mode.

If it is not blinking, then turn on/off 5 times with approximately 1 second in between on the power outlet to reset. Afterwards it will go into configurations mode. Tap the "confirm light blinks rapidly" button on the "add device" page to start connection.

ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Denver A/S declares that the radio equipment type SLP-515 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: denver.eu and then click the search ICON on topline of website. Write model number: SLP-515. Now enter product page, and red directive is found under downloads/other downloads.

Wi-Fi lamp control gears:

Operating Frequency Range: 2.4 2.4835GHz

Maximum radio frequency power: ≤ 19dBm
