SHP310U - Smart Home DENVER - Free user manual and instructions

Product Type	Smart Plug
Brand	Denver
Model	SHP310U
Input Voltage	AC 250V
Maximum Current	16A
Maximum Power	3680W
USB Output	5V / 2.4A total (each port max 2.4A)
Connection Type	Wi-Fi 2.4 GHz
Compatible App	TUYA SMART APP (iOS / Android)
Voice Assistant	Amazon Alexa, Google Assistant
Main Functions	Turn On/Off, timer, countdown, automations
Individual Socket Control	Yes
Operating Temperature	0 °C to 40 °C
Usage	Dry indoor only
Reset	Press and hold the On/Off button for 5 seconds
Manufacturer	Denver A/S, Denmark
Standby Consumption	Not specified

Frequently Asked Questions - SHP310U DENVER

How to set up the Denver SHP310U plug for the first time?

Download the TUYA SMART APP, create an account and a 'family'. Plug in the plug and press and hold the On/Off button for 5 seconds until the indicator flashes quickly. In the app, press '+' or 'Add Device', choose 'Socket' and follow the instructions.

What to do if the indicator does not flash during setup?

Make sure the plug is plugged in and turned on. If the indicator does not flash, press and hold the button for 5 seconds to reset. If the problem persists, try AP mode: the app will guide you.

Can I use the Denver SHP310U plug with Amazon Alexa?

Yes, the plug is compatible with Amazon Alexa. In the app, go to settings and enable the Alexa skill. Follow the instructions to link your account.

What is the maximum power supported by the plug?

The maximum power is 3680W (16A at 230V). Do not exceed this limit to avoid any risk of overheating.

How to reset the Denver SHP310U plug?

Press and hold the On/Off button for 5 seconds. The indicator will flash quickly, indicating that the plug is reset and ready to be reconfigured.

Can I set a timer on the plug?

Yes, in the app you can create timers, countdowns, and automations to turn the plug on or off at specific times.

Is the Denver SHP310U plug compatible with Google Assistant?

Yes, it is compatible with Google Assistant. Enable the feature in the app and link your Google account.

What safety precautions should I take?

Do not use the plug outdoors or in a humid environment. Do not plug multiple smart plugs into each other. Do not cover the plug. Keep it out of reach of children.

What to do if the app does not find the plug?

Make sure your smartphone is connected to the 2.4 GHz Wi-Fi network. If the problem persists, reset the plug and try again in EZ mode or AP mode.

Is there a USB port on the plug?

Yes, the plug has USB ports providing a total output of 5V / 2.4A (each port max 2.4A). Perfect for charging your mobile devices.

USER MANUAL SHP310U DENVER

White power strip with three outlets and a white cord, no visible text or symbols

DENVER SHP-31 0U power plug

www.denver.eu

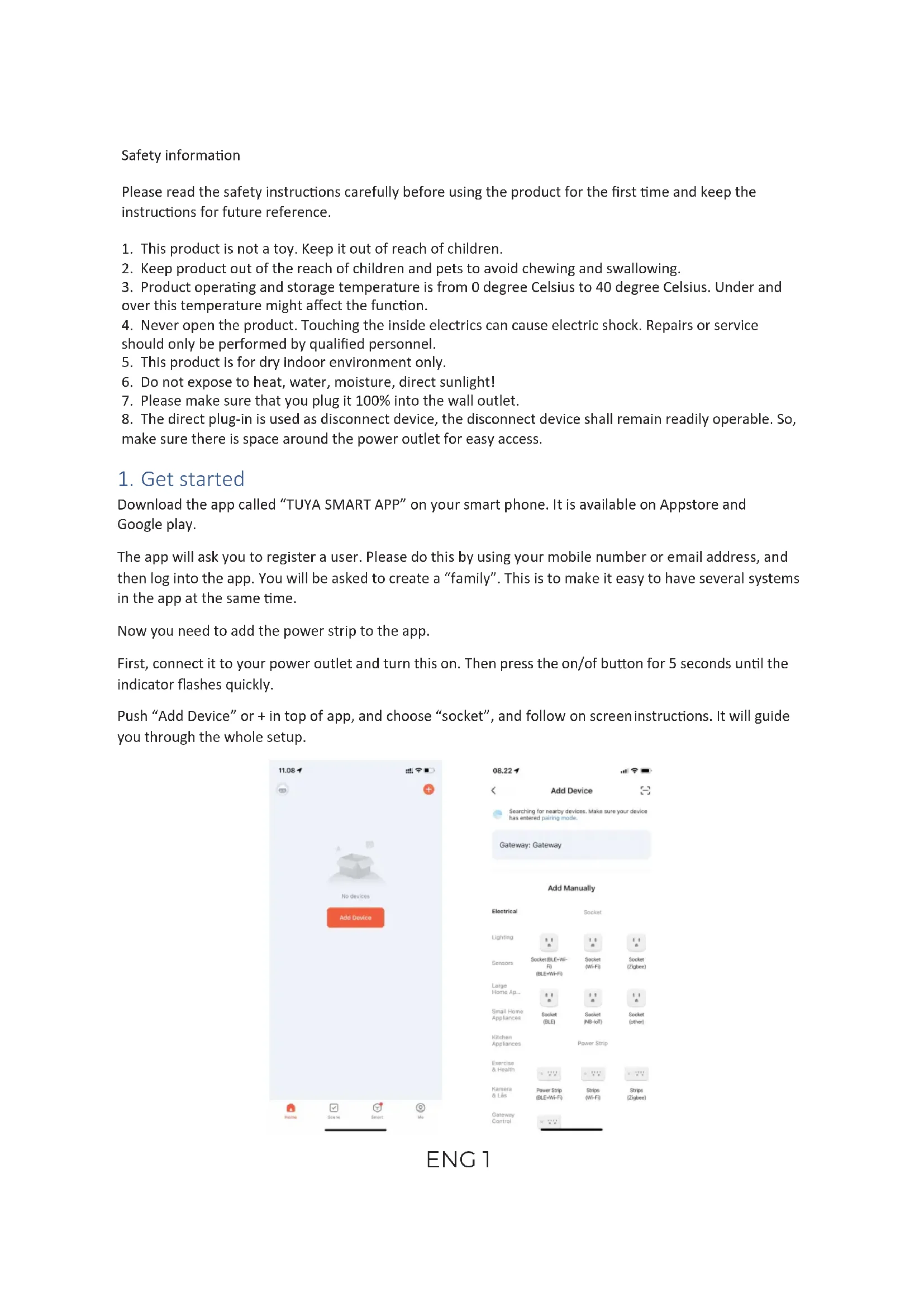

Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference.

1. This product is not a toy. Keep it out of reach of children.
2. Keep product out of the reach of children and pets to avoid chewing and swallowing.
3. Product operating and storage temperature is from 0 degree Celsius to 40 degree Celsius. Under and over this temperature might affect the function.
4. Never open the product. Touching the inside electrics can cause electric shock. Repairs or service should only be performed by qualified personnel.
5. This product is for dry indoor environment only.
6. Do not expose to heat, water, moisture, direct sunlight!
7. Please make sure that you plug it 100% into the wall outlet.
8. The direct plug-in is used as disconnect device, the disconnect device shall remain readily operable. So, make sure there is space around the power outlet for easy access.

1. Get started

Download the app called "TUYA SMART APP" on your smart phone. It is available on Appstore and Google play.

The app will ask you to register a user. Please do this by using your mobile number or email address, and then log into the app. You will be asked to create a "family". This is to make it easy to have several systems in the app at the same time.

Now you need to add the power strip to the app.

First, connect it to your power outlet and turn this on. Then press the on/of button for 5 seconds until the indicator flashes quickly.

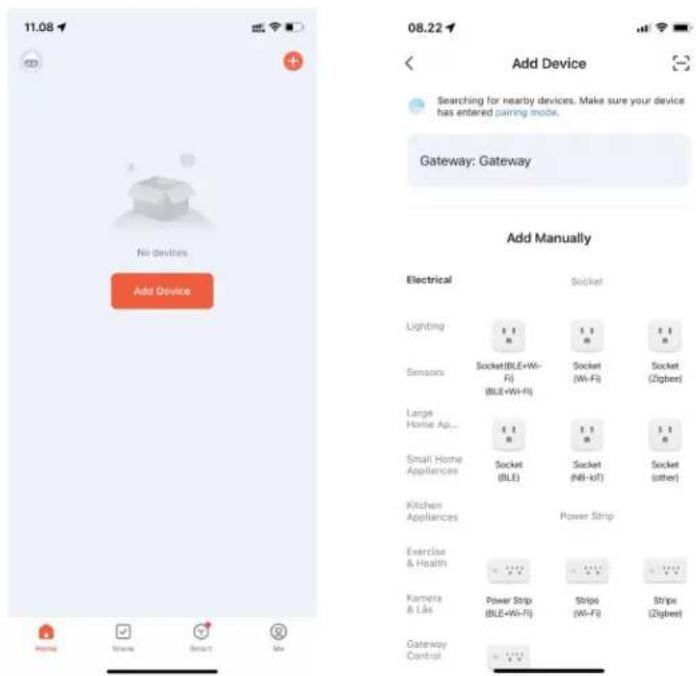

Push "Add Device" or + in top of app, and choose "socket", and follow on screen instructions. It will guide you through the whole setup.

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB xft) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigber) Kamera & Lias (BLE+Wi-Fi) (Wi-Fi) Gateway Control

ENG 1

Now the power plug is connected and you can make timers, countdown timers, different automatizations etc. within the app.

Please notice, there are two ways to add the power plug to your system. EZ mode and AP mode. EZ mode are the easiest, but if you have problems using that, the app will guide you through the AP mode instead. In this case, just follow the in-app instructions.

2. Daily use

In your home screen of the app you can now find your power strip. Push this and you will get to power plug page. Here you can turn on, turn off, make timers etc.

3. Amazon Alexa & Google assistant

It is possible to use the strip with Amazon Alexa & Google assistant. Use the app to add this function. Instructions are shown in the app. You can also find the full manual in English on our website. Please enter www.denver.eu and use the search function to find SHP-310U.

If you by any means need to reset the power strip, this is done by pushing the on/off button 5 seconds. Now you can set it up from start again.

Input Voltage: AC 250V

Output: 16A Maximum 3680W

USB Output: 5V 2.4A Total, Each 2.4A Max

Wireless Type: 2.4GHz

App Support: iOS/Android

AC Port Sperate Control

Do not use smart plugs that are plugged into each other.

Do not cover the smart plug.

Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S

denver

denver.eu

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Denver A/S declares that the radio equipment type SHP-310U is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.denver.eu and then click the search ICON on topline of website. Write model number: SHP-310U. Now enter product page, and red directive is found under downloads/other downloads.

Operating Frequency Range: 2412 \~ 2472 MHz

Max Output Power: 3680W

DENVER A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denver

Sicherheitshinweise

11.08 Add Device Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered passing mode. Gateway: Gateway Add Manually Electrical Lighting Sensery Large Home Ap... Small Home Appliance Kitchen Appliances Exercise & Health Kamera & Llc Delivery Control Socket (BLX+Wi-Fi) (BLE+Wi-Fi) Socket (Ni-Fi) Socket (Lighter) Socket (NB-sf) Socket (other) Power Strip Power Strip Stripx (Ni-Fi) Stripx (Stripx) Stripx (Stripx)

GER1

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB xft) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigber) Kamera & Lias (BLE+Wi-Fi) (Wi-Fi) Gateway Control

DEN 1

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Socket(BLE) Socket(NB+xt) Small Home Appliances Socket Kitchen Appliances Power Strip Exercise & Health Power Strip Kamera & Lás Power Strip(BLE+Wi-Fi) Strips(Wi-Fi) Strips(Zigber) Gateway Control

NED 1

11.08 08.22 Add Device Searching for nearby devices. Make sure your device has entered passing mode. Gateway: Gateway No devices Add Device Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket (Wi-Fi) Socket (Zigbee) Sensors (BLE+Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (Ni+BiT) Socket (other) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips Strips Kamera & Liao (BLE+Wi-Fi) (Wi-Fi) Strips Strips Strips Strips Gateway Control

FRA 1

11.08 08.22 Add Device Searching for nearby devices. Make sure your device has entered passing mode. Gateway: Gateway No devices Add Device Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket (Wi-Fi) Socket (Zigbee) Sensors (BLE+Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (Ni+BiT) Socket (other) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips Strips Kamera & Liao (BLE+Wi-Fi) (Wi-Fi) Strips Strips Strips Strips Gateway Control

ESP 1

08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting 1.1 a 1.1 a 1.1 a Sensors Socket(BLE+Wi-Fi) Socket (Wi-Fi) Socket (Zipheel) Large Home Ap... 1.1 a 1.1 a 1.1 a Small Home Appliances Socket (BLE) Socket (Ni-fi) Socket (other) Kitchen Appliances Power Strip Exercise & Health - - - - - Kamera & Lbs Power Strip Strips (Wi-Fi) Strips (Zipheel) Gateway Control - - - - -

ITA 1

3. Amazon Alexa & Google assistant

Tipo wireless: 2,4GHz,

Supporto App: iOS/Android

11.08 No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered passing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi-Fi) Socket (Wi-Fi) Socket (Zigbee) Sensors Socket(BLE+Wi-Fi) Socket (Wi-Fi) Socket (Zigbee) Large Home Appliance Socket (BLE) Socket (Ni+BiT) Socket (other) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips Strips Kamera & Liao (BLE+Wi-Fi) (Wi-Fi) Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strip Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips Strips StrIP Home Store Store Store Buy

POR1

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB xft) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigber) Kamera & Lias (BLE+Wi-Fi) (Wi-Fi) Gateway Control

SWE 1

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB xft) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigber) Kamera & Lias (BLE+Wi-Fi) (Wi-Fi) Gateway Control

FIN 1

11.08 Add Device No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigber) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB xft) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigber) Kamera & Lias (BLE+Wi-Fi) (Wi-Fi) Gateway Control

NOR 1

3. Amazon Alexa & Google assistant

11.08 Add Device Add Device 08.22 Add Device Searching for nearby devices. Make suit your device has entered joining mode. Gateway: Gateway Add Manually Electrical Lighting Sensors Large Home Ap... Small Home Appliances Kitchen Appliances Exercise & Health Kamera & Ltrs Power Strip (BLE+Wi-Fi) Strip (Wi-Fi) Socket (Zigbee) Socket (NB-iF) Socket (other) Socket (Wi-Fi) Socket (Zigbee) Power Strip Strip (Wi-Fi) Strip (Zigbee) Power Strip (BLE+Wi-Fi) Strip (Wi-Fi) Strip (Zigbee)

POL1

11.08 No devices Add Device 08.22 Add Device Searching for nearby devices. Make sure your device has entered pairing mode. Gateway: Gateway Add Manually Electrical Socket Lighting Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigbee) Sensors Socket(BLE+Wi- F) Socket(Wi-Fi) Socket(Zigbee) Large Home Ap... Small Home Appliances Socket (BLE) Socket (NB+KIT) Socket(other) Kitchen Appliances Power Strip Exercise & Health Power Strip Strips Strips(Zigbee) Camera & Ltrs Power Strip (BLE+Wi-Fi) Strips(Wi-Fi) Strips(Zigbee) Gateway Control

CRO 1
