Operating Instructions

BATTERY GRIP

Thank you for purchasing Panasonic product.

Please read these instructions carefully before using this product, and save this manual for future use.

Contents

Information for Your Safety....2

Precautions....5

Supplied Accessories ....5

Names of the components....6

Mounting on and removing from the digital camera 7

Inserting/Removing the Battery 8

Using the Battery Grip ....10

Cautions for Use....11

Specifications 12

Limited Warranty (ONLY FOR U.S.A.) 13

Limited Warranty (ONLY FOR CANADA)....16

Information for Your Safety

The socket outlet shall be installed near the equipment and shall be easily accessible.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

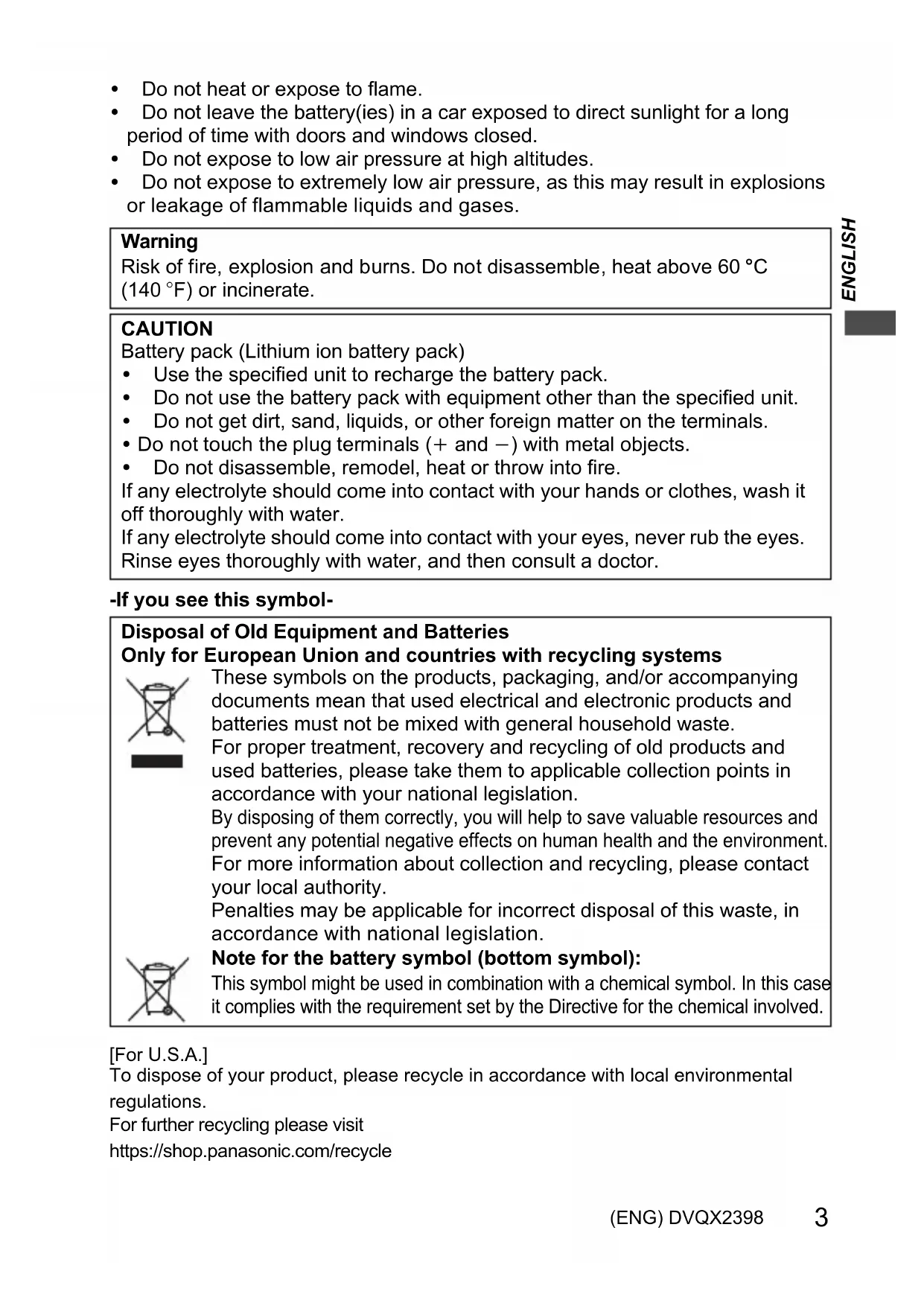

■ About the battery pack

CAUTION

- Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

- When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not expose to low air pressure at high altitudes.
• Do not expose to extremely low air pressure, as this may result in explosions or leakage of flammable liquids and gases.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 °C ( 140 °F ) or incinerate.

CAUTION

Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.
• Do not use the battery pack with equipment other than the specified unit.
• Do not get dirt, sand, liquids, or other foreign matter on the terminals.
• Do not touch the plug terminals (+ and -) with metal objects.
• Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the eyes.

Rinse eyes thoroughly with water, and then consult a doctor.

-If you see this symbol-

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

[For U.S.A.]

To dispose of your product, please recycle in accordance with local environmental regulations.

For further recycling please visit

https://shop.panasonic.com/recycle

[India Only]

Information on hazardous constituents as specified in sub-rule1 of rule16 in electrical and electronic equipment.

Declaration of Conformity with the requirements of the E-Waste (Management) Amendment Rules, 2023 with the sub-rule1 of rule16 limits with respect to Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls, Polybrominated diphenyl ethers.

The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the E-Waste (Management) Amendment Rules, 2023:

1. Lead (Pb) – not over 0.1% by weight.
2. Cadmium (Cd) – not over 0.01% by weight.
3. Mercury (Hg) – not over 0.1% by weight.
4. Hexavalent chromium (Cr6+) – not over 0.1% by weight.
5. Polybrominated biphenyls (PBBs) – not over 0.1% by weight.
6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.

For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler of recycler, or Panasonic service center when disposing of this product.

Customer care number (Toll free): 1800 103 1333, 1800 108 1333 Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number https://www.panasonic.com/in/corporate/e-waste-management.html

Do's & Don'ts
No.	Do's Don'ts
1	All electrical and electronic products are required to be handed over only to the Authorized recycler.	The product should not be opened by the user himself /herself, but only by authorized service personnel.
2	The product should be handed over only to authorized recycler for disposal.	The product is not meant for re-sale to any unauthorized agencies / scrap dealers / kabariwalas.
3	Keep the product in an isolated area, after it becomes non-functional / unrepairable so as to prevent its accidental breakage.	The product is not meant for mixing into household waste stream.
4	Refer to Operating Instructions for handling of end of life products	Do not keep any replaced spare part(s) from the product in an exposed area.
5	Always dispose of products that have reached end of life at Panasonic Life Solutions India Authorized Service Centre.	Do not donate old electronic items to anybody. Do not dispose of your product in garbage bins along with municipal waste that ultimately reaches landfill.
6	Wherever possible or as instructed, separate the packaging material according to responsible waste disposal options and sorting for recycling.	Do not give e-waste to informal and unorganized sectors like Local Scrap Dealers / Rag Pickers.

• This unit is a battery grip for Panasonic digital cameras. Ease of operation and grip when held vertically during the recording will improve. The attached battery pack * (optional), in addition to the battery in the digital camera, will allow longer recording time.
  * Indicated as battery pack or battery in the text.
  • Compatible models (As of September 2023)

Compatible models: DC-G9M2, DC-S5M2X, DC-S5M2, DC-S5*

* Use with the firmware on the Digital Camera updated to the most recent version.
- For the latest information on the firmware or to download/update the firmware, visit the following support site: https://panasonic.jp/support/global/cs/dsc/download/index4.html (English only)
- For the latest information on compatible devices, see the operating instructions, catalog or website of the digital camera.

■ Handling the unit

• Do not subject the unit to strong vibration or impact. Those actions may result in malfunctions and failure.

• The dust and splash resistant of this unit is not a guarantee of a full protection against the intrusion of dust and water. Please take care of following when using. If the unit does not operate properly, please contact the dealer where you have purchased the unit or Panasonic.

• Mount this unit firmly to the digital camera.

• Close the battery door and DC coupler cover firmly.
• Be careful not to allow sand, dust, or water to adhere or enter into the terminal area, digital camera, or this unit when attaching or removing this unit.
• This unit is not water-proof, so this cannot be used underwater. For splash resistant, this unit is constructed to resist the entry of water. If splashes of water etc. do adhere to this unit, wipe after use with a soft dry cloth.

- The appearance and specifications of products described in this document may differ from the actual products you have purchased due to later enhancements.

Supplied Accessories

Check that all the accessories are supplied before using the product.

Product numbers correct as of September 2023. These may be subject to change.

• The battery is optional.

Terminal cap

- The terminal cap is attached to the Battery Grip at the time of purchase.

DVKV1001Z

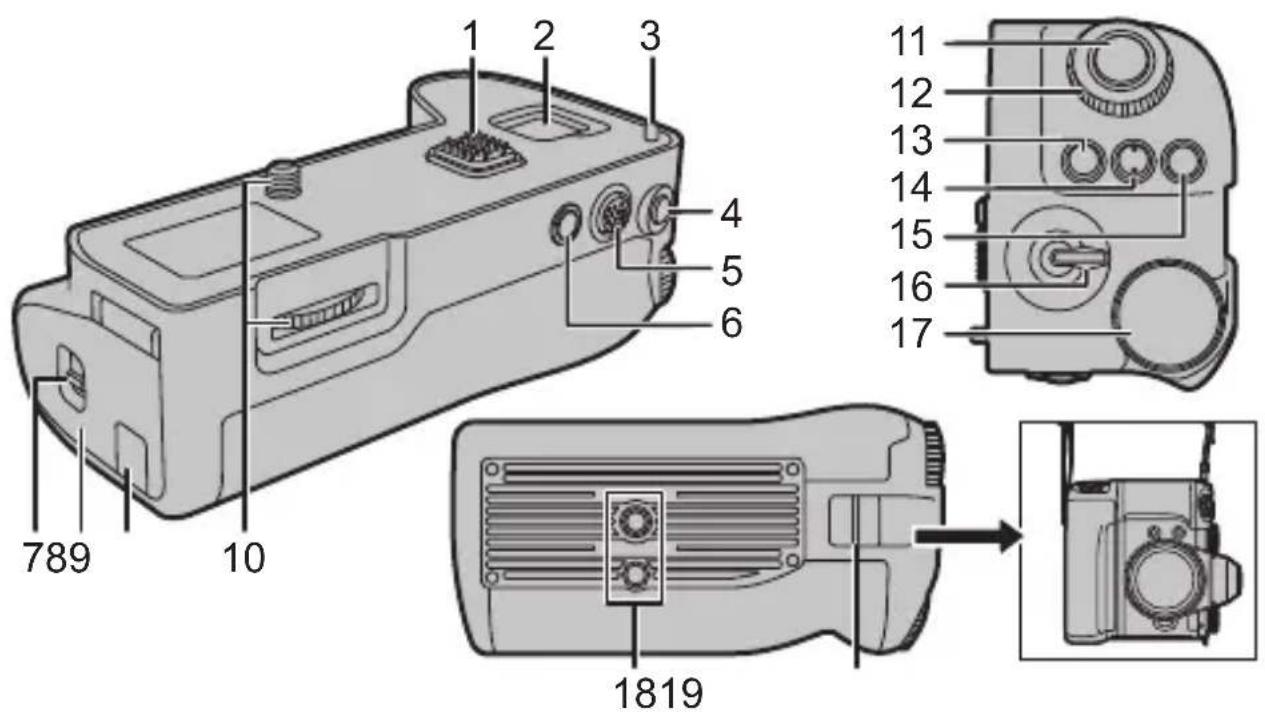

1 2 3 4 5 6 789 10 11 12 13 14 15 16 17 1819

1 Electrical contacts
2 Cover storage
3 Camera attachment pins
4 [AF ON] button
5 Joystick
6 [Fn] (Function) button
7 Release lever
8 Battery door
9 DC coupler cover
10 Attachment screw
11 Shutter button
12 Front dial

13 [ ] (White Balance) button
14 button
15 [ ] exposure compensation) button
16 Operation ON/OFF switch
17 Rear dial
18 Tripod mount
19 Strap attachment holder

• We recommend attaching the shoulder strap supplied with the digital camera before use to prevent accidental dropping. (Read the digital camera operating instructions for details on how to attach the strap.)

Mounting on and removing from the digital camera

- Check that the digital camera is turned off. (Mounting the unit onto, or removing it from, the camera while the power is on may cause trouble and is not recommended.)

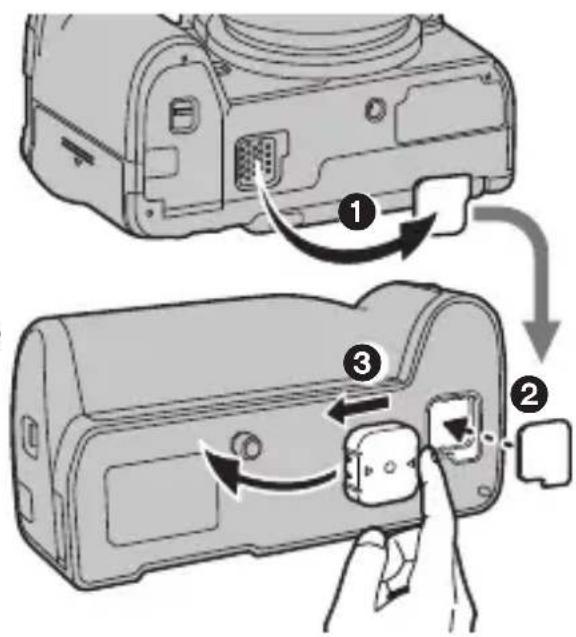

1 Remove the cover for the battery grip connector on the digital camera.

② Store the cover for the battery grip connector in the cover storage of the Battery Grip.
③ Remove the terminal cap on the Battery Grip.

- Return the cover for the battery grip connector and the terminal cap to their original position after use to protect the terminals.

- Be careful not to lose the terminal cap.

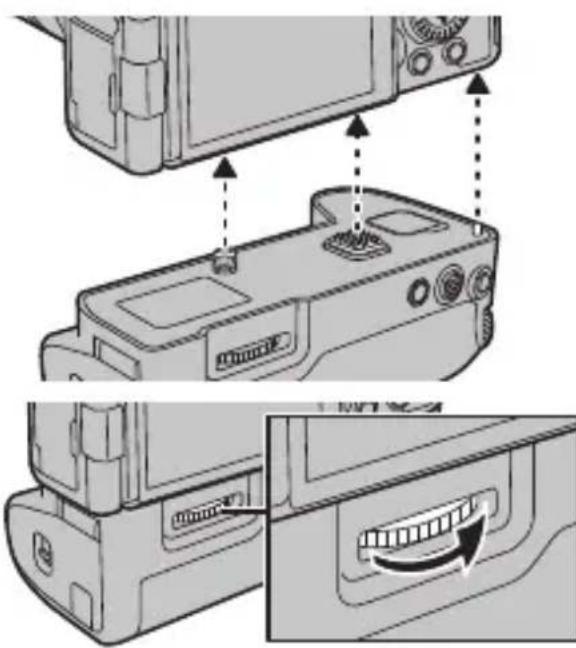

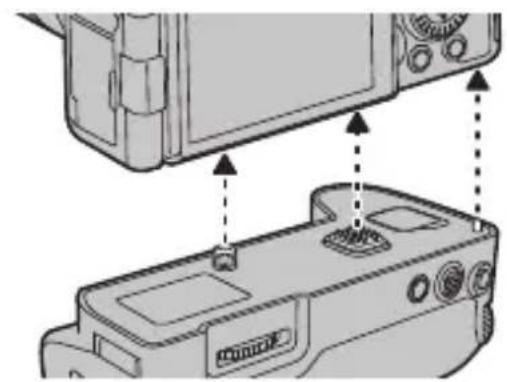

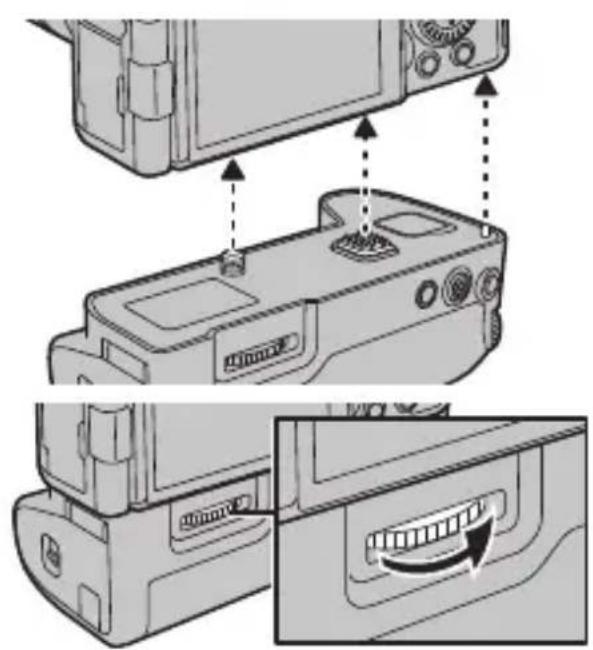

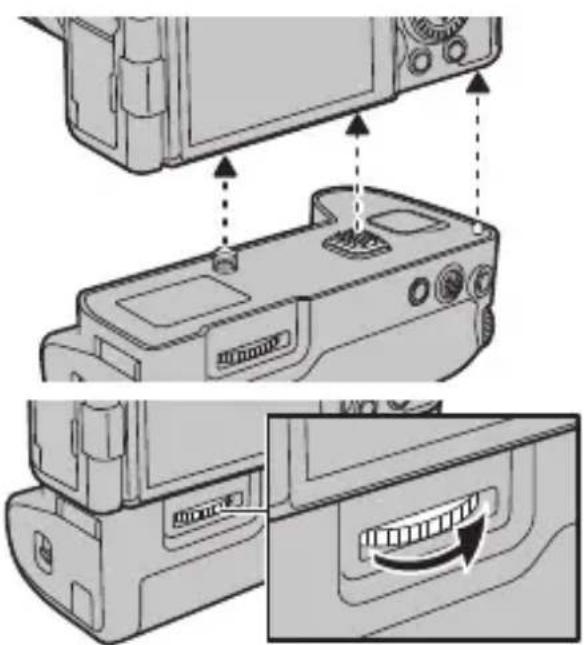

2Insert by aligning the attachment screw, electrical contacts, and camera attachment pins.

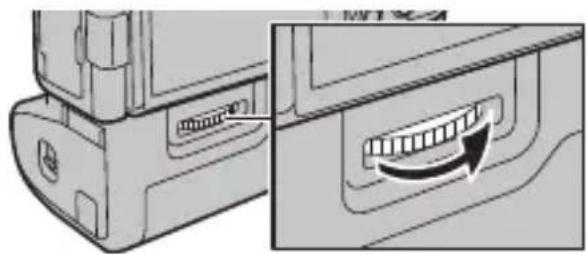

3Turn the attachment screw in direction of the arrow to attach securely.

Diagram showing two steps of a device's internal control, labeled with numbered instructions for device operation.

Technical illustration of a device's internal components, showing top, front, and side views with no visible text or symbols.

Note

- Keep the terminal cap out of reach of children to prevent swallowing.

■ Remove the Battery Grip from the digital camera

- Confirm that the digital camera is not powered, and turn the attachment screw in the opposite direction of the attachment.

• Always use genuine Panasonic batteries (DMW-BLK22: optional).
• If you use other batteries, we cannot guarantee the quality of this product.
• Use the battery after charging.
- The Battery Grip can be used when the battery is inserted in either the digital camera or the Battery Grip.
- Check that the digital camera is turned off.

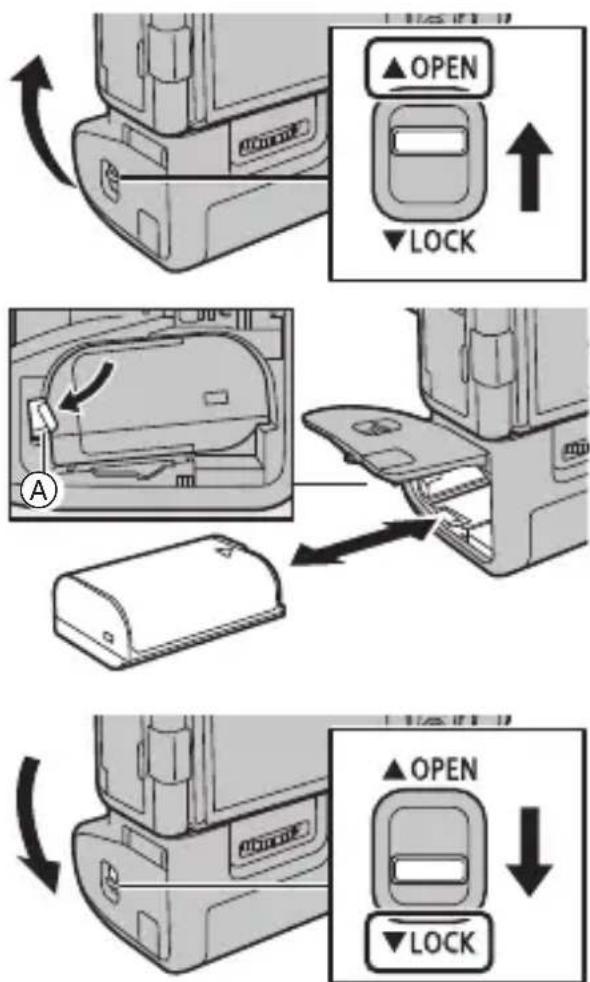

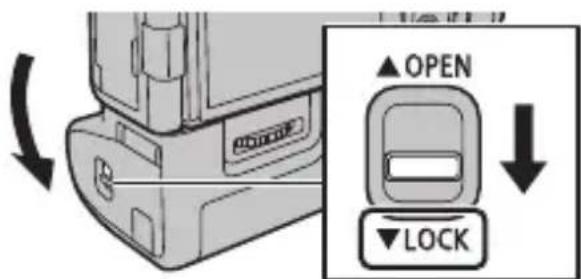

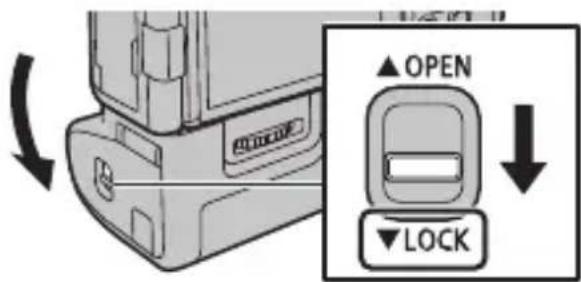

1 Slide the release lever of the Battery Grip toward [OPEN], and open the battery door.

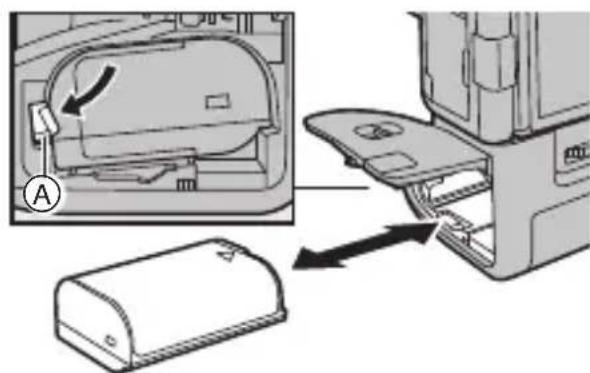

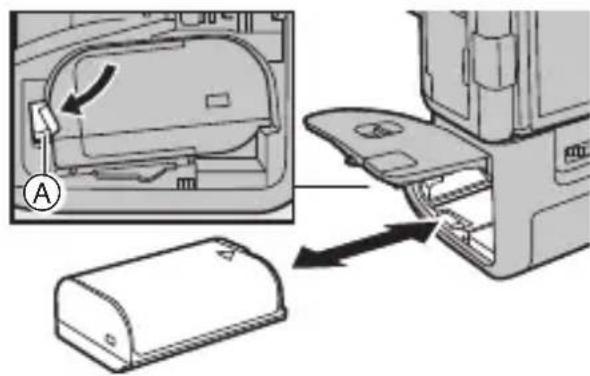

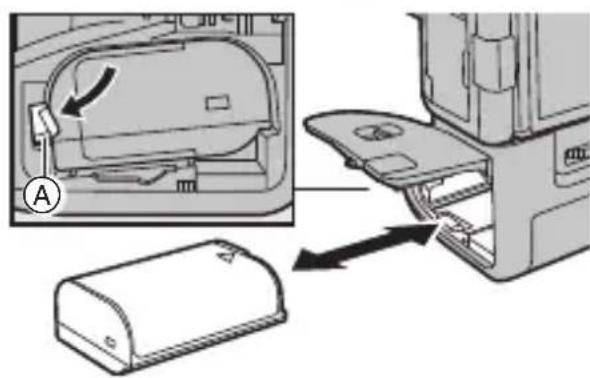

2Taking care of the orientation, insert securely all the way until you hear locking, and confirm that the Ⓐ lever is hooked to the battery.

- When removing the battery, push the Ⓐ lever toward the arrow and pull out the battery.

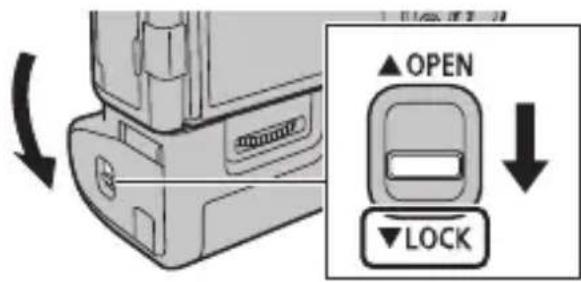

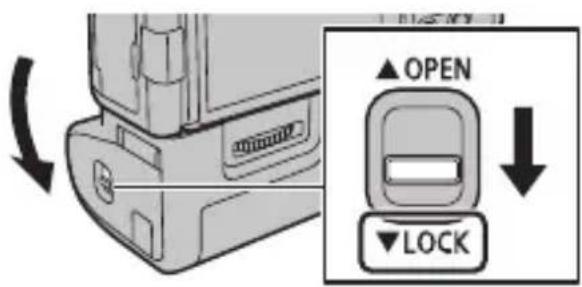

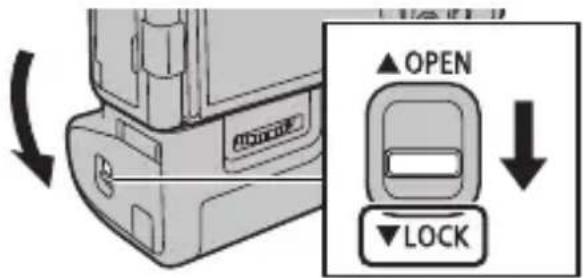

3Close the battery door and slide the release lever toward [LOCK].

▲OPEN ▼LOCK A ▲OPEN ▼LOCK

Note

• When using the digital camera without the battery inserted, do not take out the battery in the Battery Grip. Otherwise, the digital camera will turn off.
• Remove the battery after use. (The battery will exhaust if it is left unused for long period of time.)
• The battery will be warm after using, while charging, and right after charging. The Battery Grip will also be warm while using, but this is not a malfunction.
• Confirm that there is no foreign matter on the battery door.

■ Using 2 batteries

The digital camera can be used for longer periods of time when batteries are inserted in both the digital camera and the Battery Grip. (It will switch to the other battery when one of the batteries is exhausted.)

- The battery to be used primarily can be set in the digital camera. Read the operating instructions of your digital camera for details.

■ Using the AC Adaptor (optional) and the DC Coupler (optional) instead of the battery

For the U.S.A., CANADA and Latin America

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10PP: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10PP: optional).

For the Europe and CIS

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10E: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10E: optional).

For Taiwan

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10GT: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10GT: optional).

For Korea

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10GD: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10GD: optional).

For China

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10GK: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10GK: optional).

For India

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10GW: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10GW: optional).

For Other Countries

• When using an AC Adaptor, ensure that the Panasonic DC Coupler (DMW-DCC17: optional) and AC Adaptor (DMW-AC10G: optional) are used.
  • Always use a genuine Panasonic AC Adaptor (DMW-AC10G: optional).

• Always use a genuine Panasonic DC Coupler (DMW-DCC17: optional).

You can use the digital camera without worrying about battery consumption. Insert the DC Coupler into the Battery Grip, connect the AC Adaptor, and then plug it into an electrical outlet.

Note

• When the DC Coupler is being mounted, the DC Coupler cover opens, so the structure ceases to be dust and splash resistant. Be careful not to allow sand, dust and water etc. to adhere to or enter the structure. After use, check that there is no foreign matter attached to the DC coupler cover, and close it firmly.
  • Also read the operating instructions for the AC Adaptor and DC Coupler.
  • Some optional accessories may not be available in some countries.

Using the Battery Grip

Operation of the dials, joystick and buttons on the Battery Grip is same as the digital camera.

Read the operating instructions for your digital camera for details.

1Turn the power switch of the digital camera to [ON].

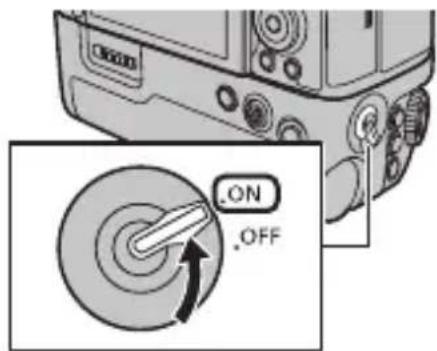

2Turn the operation ON/OFF switch on the Battery Grip to [ON].

• Enables the operations of the dials, joystick and buttons.
• This cannot turn the power of the digital camera ON/OFF.

ON OFF

Line drawing of hands holding a vintage camera (no text or symbols)

Note

- When the digital camera is held grasping on the grip, a button on the Battery Grip may be pushed accidentally. In such case, turn the operation ON/OFF switch of the Battery Grip to [OFF].

Keep the unit away from insecticide sprays and other volatile substances.

• If the unit is exposed to these sprays or substances, its external case may deteriorate and/or its paint may come off.
• Do not leave the unit in contact with any items made of rubber or PVC for prolonged periods of time.
• Under no circumstances should the unit be used or stored in any of the following locations since doing so may cause trouble in operation or malfunctioning:

– In direct sunlight or on a beach in summer
- In locations with high temperatures and humidity levels or where changes in temperature and humidity are acute
- Where there is fire
– Near heaters, air conditioners or humidifiers
– Where there is vibration
- Inside a vehicle

- Do not drop the unit, knock it into other objects or subject it to any other kind of strong impact or shock.

- This unit has an electrical contact that is connected to the digital camera electrically. Attach the supplied terminal cap when this unit is not attached to the digital camera and do not allow any metal objects (such as clips) to come in contact.

Before cleaning the unit, remove the battery or the DC Coupler, and disconnect the power plug from the electrical outlet. Then wipe the unit with a soft, dry, dust-free cloth.

• When the unit is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth, and then with a dry cloth.
• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the unit, since they may deteriorate the external case or the coating may come off.
• When using a chemical cloth, be sure to follow the accompanying instructions.
  • Refer also to the operating instructions for the digital camera.

Specifications are subject to change without notice.

Battery Grip (DMW-BG1):

Information for your safety

Power Source: 8.4 V

Number of pictures that can be recorded	Approx. 730 pictures (when mounted to the digital camera DC-G9M2)The above are Panasonic recording condition when 2 batteries are used.You may only record less number of pictures depending on the condition of use.
Dimensions	Approx. 132.4 mm (W)×45.2 mm (H)×67.6 mm (D)[5.21” (W)×1.78”(H)×2.66” (D)] (excluding the projecting parts)
Mass (weight)	Approx. 322 g/0.709 lb (with the battery), Approx. 242 g/0.534 lb (battery grip)
Dust and splash resistant	Yes
Recommended operating temperature	-10 °C to 40 °C (14 °F to 104 °F)Battery performance temporarily worsens at low temperatures (-10 °C to 0 °C (14 °F to 32 °F)), reducing the number of pictures that can be taken and the available recording time.
Permissible relative humidity	10 %RH to 80 %RH

The symbols on this product (including the accessories) represent the following:

DC

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

For CANADA

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in China

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts Labor
Digital Camera Peripherals 1 Year 1 Year
Digital Camera Accessories 90 Days 90 Days
Rechargeable Batteries 1 Year 1 Year

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Mail-In Service --Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Panasonic Corporation of North America

Consumer Affairs Department

Two Riverfront Plaza

Newark NJ 07102-5490

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Product registration is not mandatory. Failure to complete the form does not affect the consumer's warranty rights.

Shop

Accessories!

for all your Panasonic gear

Go to

http://shop.panasonic.com/support

Get everything you need to get the most out of your Panasonic products

Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal

Care, Home Appliances, Headphones, Batteries, Backup Chargers & more...

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealer and Service info go to http://shop.panasonic.com/support

For the hearing or speech impaired TTY: 1-877-833-8855

As of August 2023

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Digital Camera One (1) year, parts and labour

Digital Camera Peripherals One (1) year, parts and labour

Digital Camera Accessories Ninety (90) days, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries, printer ink cartridge and paper are also excluded from coverage under this warranty.

Rechargeable batteries are warranted for ninety (90) days from date of original purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.

(As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our Support page:

www.panasonic.ca/english/support

Diagram showing device port control sequence with numbered steps for switch operation

Diagram showing three views of a device's front panel with arrows indicating movement or adjustment (no text or symbols present)

▲OPEN ▼LOCK

Diagram showing a device's internal structure and assembly process, with labeled parts and directional arrows indicating movement.

▲ OPEN ▼ LOCK

Nota

Line drawing of a hand holding a camera (no text or symbols)

Nota

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Imprimé en Chine

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT PANASONIC – GARANTIE LIMITÉE

Diagram showing device port and control panel with numbered steps for assembly or operation

Diagram showing three views of a camera module with adjustment arrows, no text or symbols present

Hinweis

Diagram showing a car interior with a door panel and a device casing, illustrating the process of moving or removing a component.

▲ OPEN ▼ LOCK

Hinweis

Line drawing of a hand holding a vintage camera (no text or symbols)

Hinweis

https://shop.panasonic.com/recycle

Diagram showing a camera module being opened, with numbered steps indicating the process.

Technical diagram showing three-step assembly of a device's internal components with directional arrows indicating movement or adjustment.

OPEN LOCK

Diagram showing a device's internal structure and external assembly, with labeled parts and directional arrows indicating movement.

▲ OPEN ▼ LOCK

Nota

Line drawing of a hand holding a camera (no text or symbols)

Nota

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

Impreso en China

Istruzioni d'uso

BATTERY GRIP

Diagram showing a device's internal control panel with labeled steps 1, 2, and 3, indicating adjustment or operation.

ITALANO

Technical diagram showing three views of a camera module with labeled ports and directional arrows indicating assembly or operation.

Nota

Diagram showing a device's internal structure and external assembly, with labeled parts and directional arrows indicating movement.

OPEN LOCK

Nota

Line drawing of a hand holding a vintage camera (no text or symbols)

Nota

Battery Grip (DMW-BG1):

Diagram showing a device's internal control panel with labeled steps 1, 2, and 3, indicating adjustment or operation.

Diagram of a camera module with labeled ports and arrows indicating assembly or positioning (no text or symbols present)

Diagram showing a device's internal structure with a directional arrow indicating rotation (no text or symbols present)

注意

Diagram showing a device interior with a door panel and a close-up of its internal structure, labeled with component A.

Line drawing of hands holding a camera (no text or symbols)

Diagram illustrating the step-by-step insertion of a digital camera module, showing key steps from opening to closing.

注意

OPEN LOCK

Diagram showing a device interior with a labeled component and its internal structure, including directional arrows indicating movement or flow.

▲ OPEN ▼ LOCK

注意

Line drawing of hands holding a camera (no text or symbols)

注意

Diagram showing steps of inserting a device into a digital camera, with numbered instructions for each step.

10논尽

주의

▲OPEN ▼LOCK A ▲OPEN ▼LOCK

▲ OPEN ▼ LOCK

주의

Line drawing of hands holding a camera (no text or symbols)

주의

Diagram showing two steps of a device's internal control panel, labeled with numbered instructions for each step.

Diagram showing three views of a device's internal components with arrows indicating movement or insertion (no text or symbols present)

Примітка

Diagram showing a device's internal structure and external assembly, with labeled parts and directional arrows indicating movement.

▲ OPEN ▼ LOCK

Примітка

Line drawing of a hand holding a vintage camera (no text or symbols)

Примітка

1-10-12, Yagumo-higashi-machi, Moriguchi

City, Osaka, Japan

Importer for UK:

Panasonic UK, a branch of Panasonic

Maxis 2, Western Road, Bracknell,

Berkshire, RG12 1RT

Importer for EU:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden,

Germany

Authorized Representative in EU:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Fabriqué par:

Panasonic Entertainment

& Communication Co., Ltd.

1-10-12, Yagumo-higashi-machi, ville de

Moriguchi, Osaka, Japon

Importateur:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden,

Allemagne

Panasonic Testing Centre

Winsbergring 15, 22525 Hambourg,

Allemagne

Hergestellt von:

Panasonic Entertainment

& Communication Co., Ltd.

1-10-12, Yagumo-higashi-machi, Moriguchi

City, Osaka, Japan

Importeur:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden,

Deutschland

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg,

Deutschland

Fabricado por:

Panasonic Entertainment

& Communication Co., Ltd.

1-10-12, Yagumo-higashi-machi, Ciudad de

Panasonic Testing Centre

Panasonic Testing Centre

Winsbergring 15, 22525 Amburgo,

Germania

Line drawing of hands holding a camera (no text or symbols)

ملاحظة

▲OPEN ▼LOCK ▲OPEN ▼LOCK

Diagram showing steps of inserting a device into a digital camera, with numbered instructions for each step.

1① ضافية

بالكاميرا الرقمية.

② امل البطارية

Line drawing of a portable electronic device with ports and buttons (no text or symbols)

LUMIX
