Product Type	50-inch LED TV
Brand	Proscan
Model	PLDED5066A
Screen Size (Diagonal)	50 inches
Screen Format	16:9
Resolution	1920 x 1080 pixels (Full HD)
Backlight Type	LED
Brightness	350 cd/m²
Contrast Ratio	3000:1
Viewing Angle (H/V)	178°/178°
Response Time	6.5 ms
Displayable Colors	16.7 million
Receiving Systems	ATSC, QAM, NTSC
Audio System	BTSC, MTS
Sound Output Power	2 x 10 W
Input Connectors	HDMI (x3), VGA, Component input (Y/Pb/Pr), Composite input (AV), RF antenna, PC audio
Output Connectors	Coaxial audio output (SPDIF), Headphone jack
Power Supply	AC 100-240 V ~ 50/60 Hz
Power Consumption	110 W
Wall Mount Standard (VESA)	200 x 200 mm
Remote Control Batteries	2 x AA (not included)
Care and Cleaning	Use a dry, soft cloth. Do not use liquid or abrasive cleaners.
Safety	Grounding required (Class I). Do not expose to rain or moisture. Disconnect during storms or extended non-use.
Repairability	Refer all repairs to qualified personnel. Do not open the cabinet.

Frequently Asked Questions - PLDED5066A Proscan

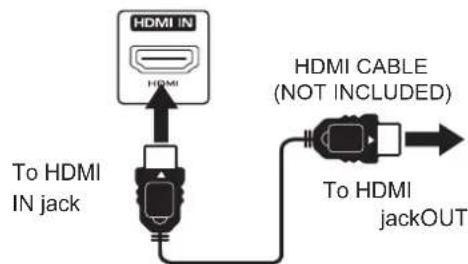

How to connect an HDMI device?

Plug the HDMI cable into one of the HDMI ports (HDMI1, HDMI2 or HDMI3) on the back of the TV, then select the corresponding HDMI source using the SOURCE button on the remote control.

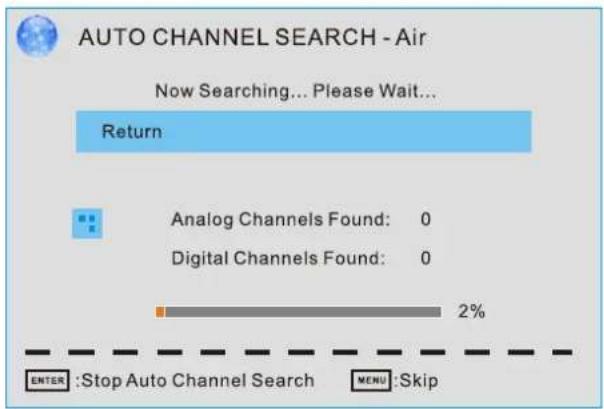

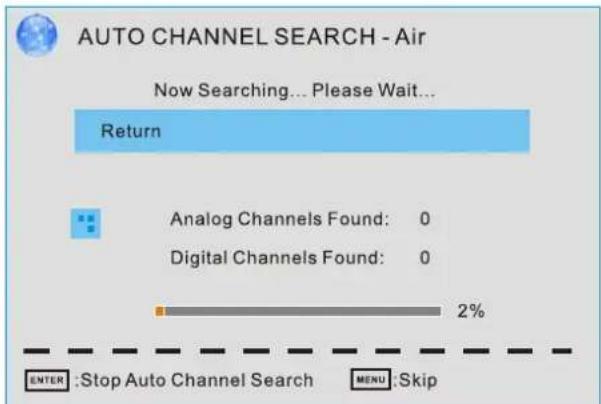

How to perform an automatic channel search?

Go to the Channels menu, select Auto Search and press ENTER. Before that, verify that the signal type (Air or Cable) is correct in Signal Type.

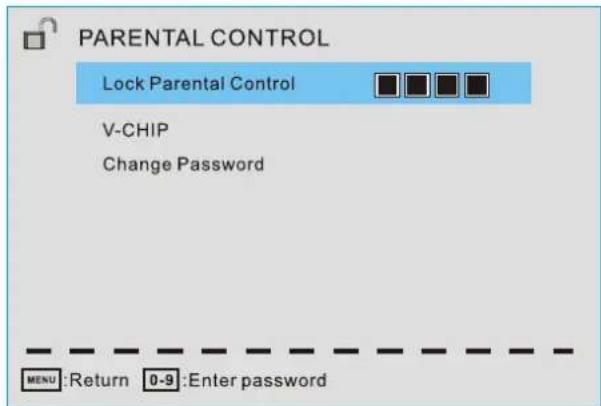

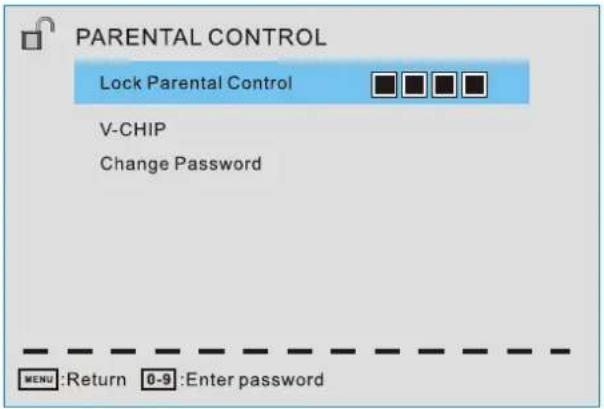

How to activate parental control?

In the Parental Control menu, enter the password (default 0000 or 1470 if lost). You can lock programs by age rating (V-Chip) or block certain sources.

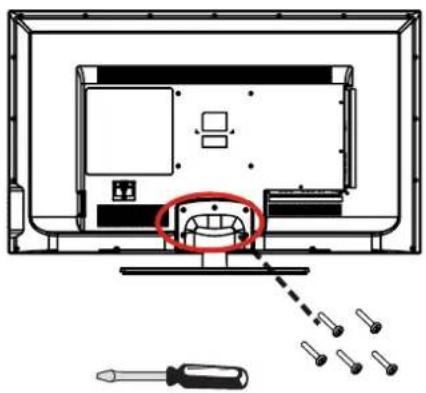

How to mount the TV on the wall?

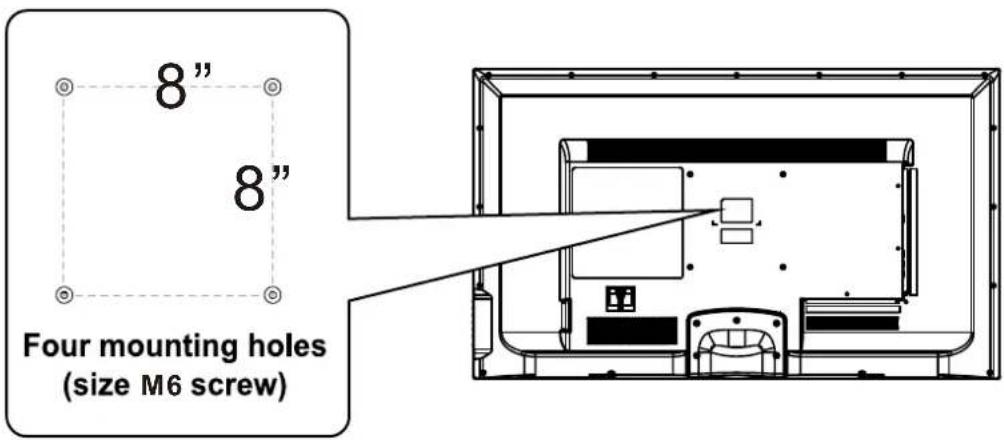

First remove the stand base. Use a VESA 200x200 mm mounting kit (sold separately). Ensure the screw length does not exceed 12 mm. Follow the mounting kit instructions.

What to do if the picture is blurry or snowy?

Check the antenna or cable connection. Adjust the antenna direction. Make sure cables are properly connected. If the problem persists, adjust the picture settings in the Picture menu.

How to adjust the volume or mute the sound?

Use the VOL+ / VOL- buttons on the remote control or on the side of the TV. To mute the sound, press the MUTE button. Press again to restore.

How to use the automatic sleep function?

Press the SLEEP button on the remote to program automatic shutdown after a chosen duration (15, 30, 60, 90, 120, 180 minutes). You can also activate sleep mode on no signal or no operation in the Others menu.

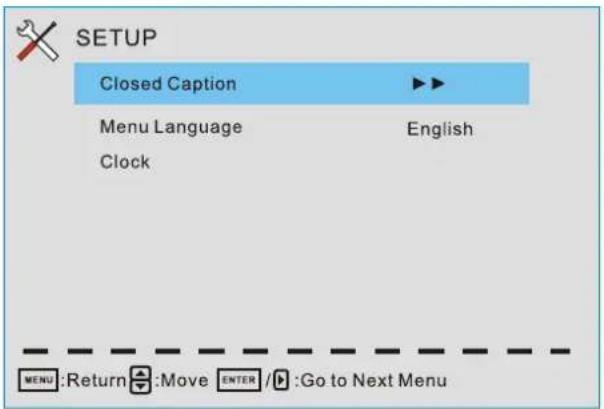

How to change the menu language?

Go to the Setup menu, then Menu Language. You can choose between French, English, and Spanish.

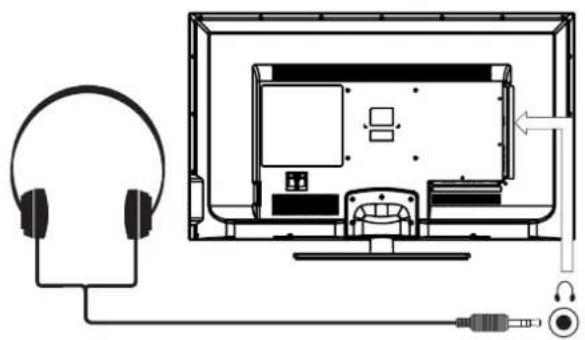

How to connect headphones?

Plug the headphones (3.5 mm plug) into the Headphone jack on the back of the TV. Lower the volume before connecting, then adjust. The speakers are automatically turned off.

What to do if the remote control does not work?

Check the distance (max. 5 m) and point it at the IR sensor. Replace the batteries if necessary (2 x AA). Make sure no obstacles block the sensor. If the problem persists, turn the TV off and on again.

USER MANUAL PLDED5066A Proscan

Before using the TV, please read this manual thoroughly, and retain it for future reference.

CONTENTS

1	SAFETY PRECAUTION		1
2	IMPORTANT SAFETY INSTRUCTION		2
3	ACCESSIONS		3
4	GETTING STARTED		3
5	CONTROL	Remote Control	4
		Front View	5
	REFERENCE	Back View	5
	GUIDE	Side View	6
6	CONNECTIONS	Antenna Connection	7
		AV Connection	7
		YPbPr Connection	8
		HDMI Connection	8
		VGA Connection	9
		Headphone Connection	9
		Power Cord Connection	9
		Coax(SPDIF) Connection	10
7	WALL MOUNT INSTALLATION		11
8	INITIAL SETUP	Putting The Unit On A Proper Place	12

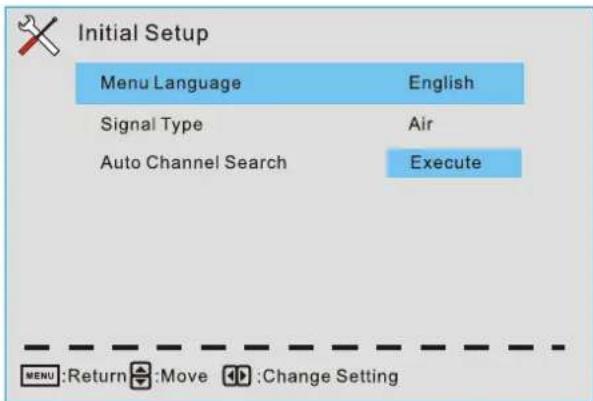

		Turning The Unit On For The First Time	12
9	TV SETUP	Source selection	13

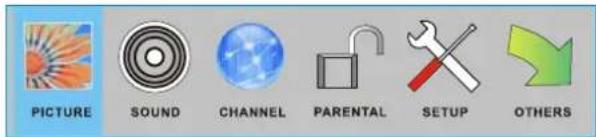

		Main menu	13

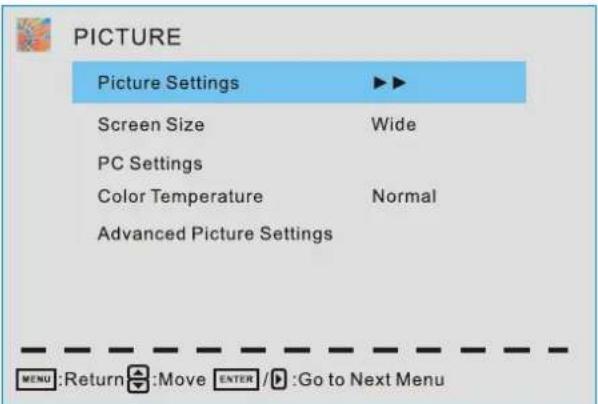

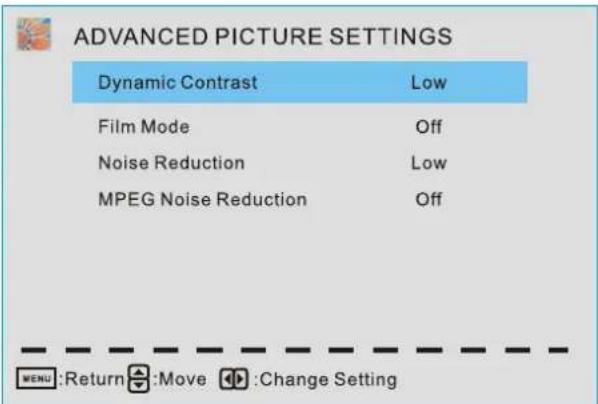

		Picture Menu	15

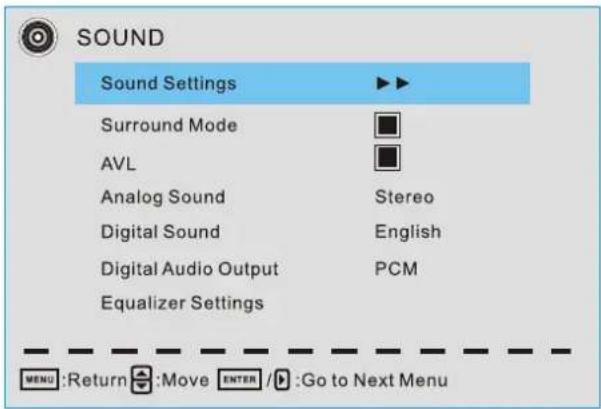

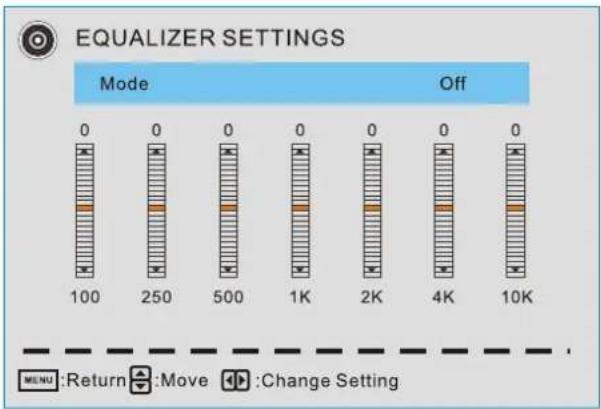

		Sound Menu	19

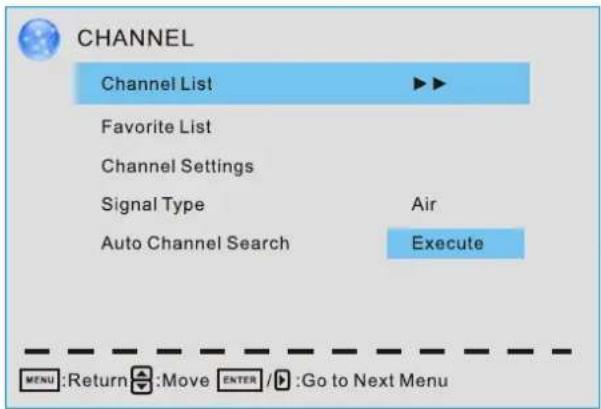

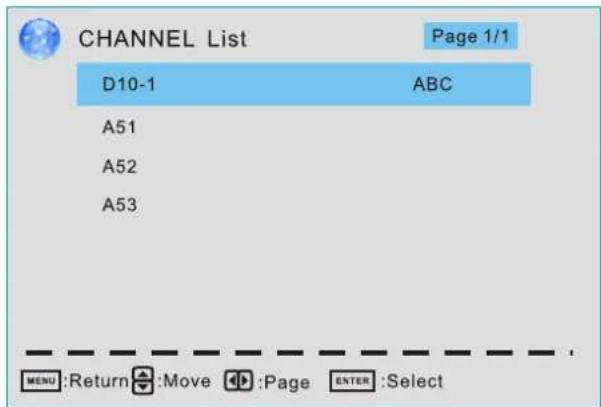

		Channel Menu	21

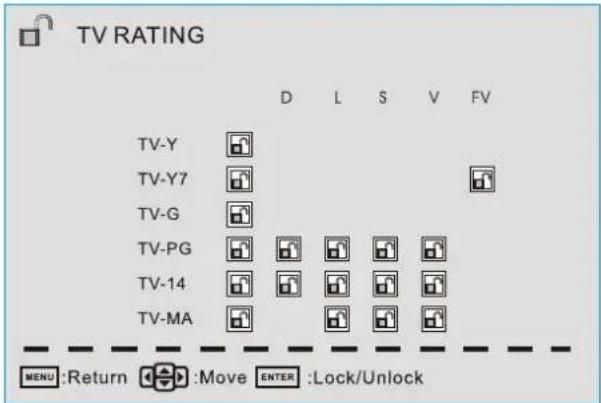

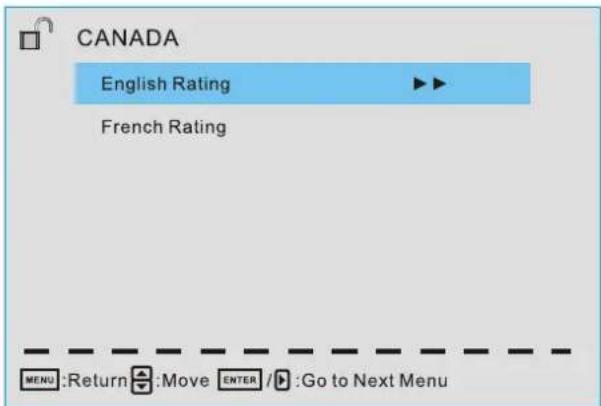

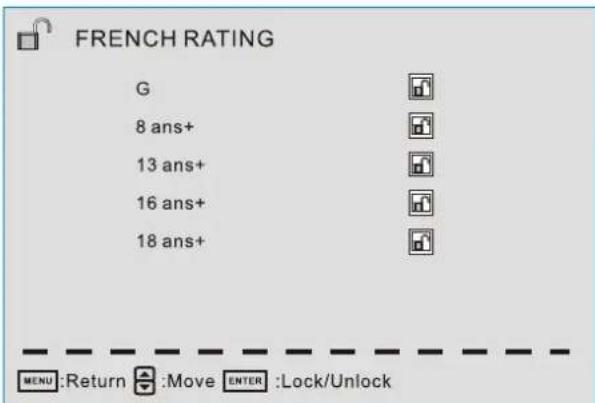

		Parental Control	24
		Setup Menu	28

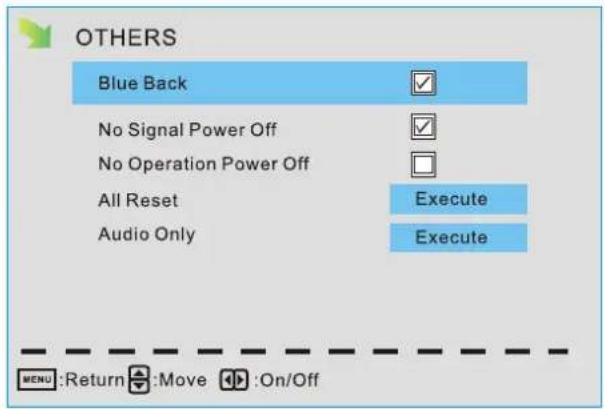

		Other Menu	30

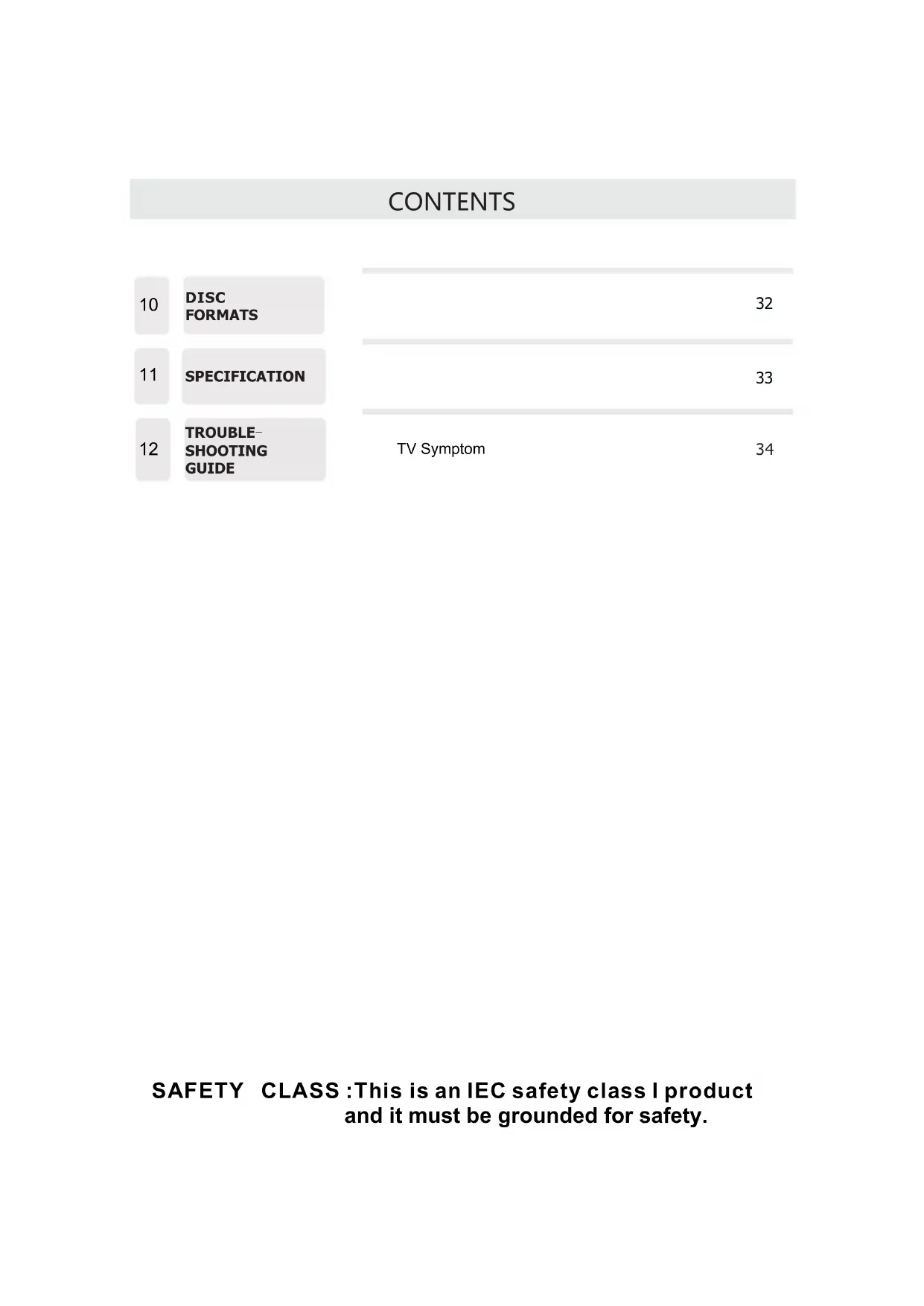

CONTENTS

10

DISC FORMATS

32

11

SPECIFICATION

33

12

TROUBLESHOOTINGGUIDE

TV Symptom

34

SAFETY PRECAUTION

• CAUTION MARKING WAS LOCATED AT THE REAR OF THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE AVIS RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle,is intended to alert the user to the presence of uninsulated

"dangerous voltage"within the product's enclosure that may be sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral Triangle is intended to alert the user to The presence of important operating and

maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO REVENT FIRE OR SHOCK HAZARD,DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS Filled WITH LIQUIDS ON OR NEAR THIS UNIT.
- SHOULD ANY TROUBLE OCCUR, DISCONNECT THE AC POWER CORD AND REFER SERVICING TO A QUALIFIED TECHNICIAN.

PLACEMENT INFORMATION

• Do not use this unit in places that are extremely hot, cold, dusty or humid.
• Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, by placing it on bedding or carpeting.

SAFETY INFORMATION

• When connecting or disconnecting the AC power cord, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.
• When you are not going to use the unit for a long period of time, disconnect the AC power cord.

CONDENSATION INFORMATION

• When left in a heated room where it is warm and damp, water droplets or condensation may form inside the equipment. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1-2 hours before turning the power on or gradually heat the room and let the unit dry before use.

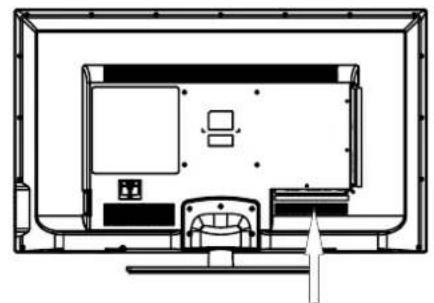

RATING PLATE LOCATION

The rating plate is located on the rear of the unit. FCC STATEMENTS

NOTE: This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and receiver.
  -Connect the unit into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the unit.

IMPORTANT SAFETY INSTRUCTIONS

1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with a dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat.
9)Do not defect the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A groundingtype plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your wall outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments / accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13)Unplug this apparatus during lightning Storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15)To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

ACCESSIONS

Please check and identify the supplied accessories.

Rematteccntob 1

Battery(AA) x2

Warranty Card x 1

Instruction Manual. X 1

Base stand and 6 screws x1

Screw driver x1

GETTING STARTED

USING THE REMOTE CONTROL

• Point the remote control at the remote sensor located on the unit.
• When there is a strong ambient light source, the performance of the infrared remote sensor
  may be degraded, causing unreliable operation.
  The recommended effective distance for remote operation is about 16 feet (5 meters).

TO INSTALL THE BATTERIES

1. Open the battery door.

2. Insert 2 "AA" batteries

BATTERY REPLACEMENT

When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace the batteries.

CAUTION : Danger of explosion if battery is incorrectly replaced.

NOTES

• If the remote control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosion.
• Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries.
  Always remove batteries as soon as they become weak.
• Weak batteries can leak and severely damage the remote control.

WARNING:

Do not dispose batteries in a fire. Batteries may explode or leak.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

CONTROL REFERENCE GUIDE

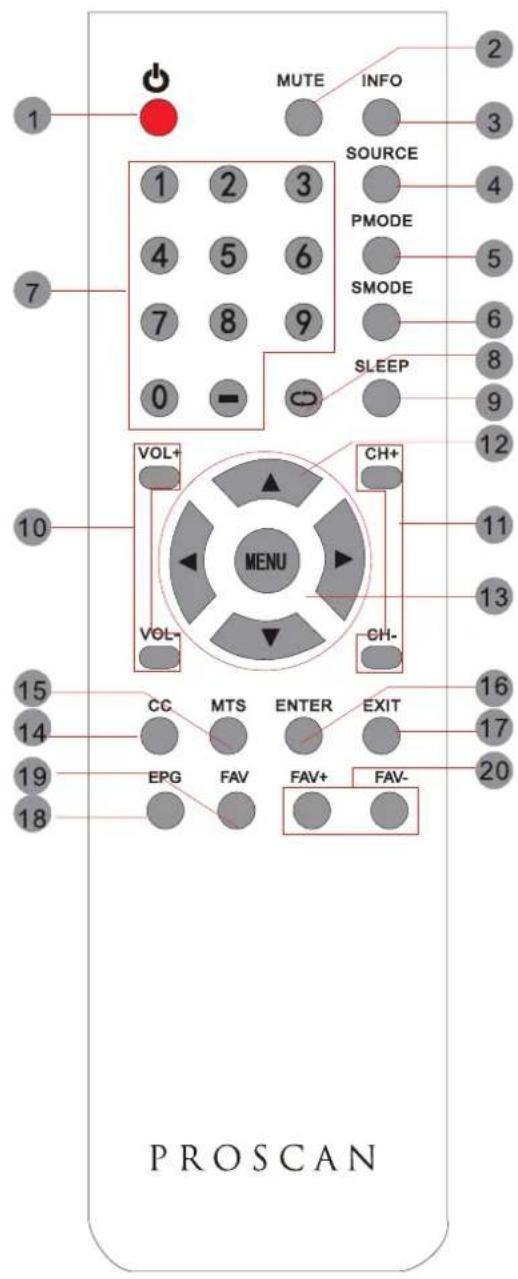

REMOTE CONTROL

Universal Remote Code: 1218
(Universal Remote Control is not included.)

1.STANDBY

To switch on the TV or make the TV into standby mode.

2.MUTE

Press this button to mute or restore sound.

3.INFO

Show the information of the program you are watching.

4.SOURCE

Press this button to select an input source.

5.PMODE

Press this button to select a picture mode for different picture qualities.

6.SMODE

Press this button to select sound setting for different sound effects.

7.0-9

Allows you to change the channel of the TV.

8.

Switches back and forth between the current and previous channels.

9.SLEEP

To select the amount of time before your TV turns Off automatically.

10.VOL+/VOL-

Increases/Decreases the Volume control.

11.CH+/CH-

Skipping to the next/previous channel on TV mode.

Moves the cursor upward/downward/to the left/to the right when making a selection.

13.MENU

Displays the OSD Menu of the TV.

14.CC

Press the button to enter into the CC mode.

15.MTS

To change among STEREO, MONO and SAP. If there is no second language available for the signal received, LED Display audio will output to mono.

16.ENTER

Press to confirm selections on a menu screen.

17.Exit

Press this button to exit the on screen display.

18.EPG

Press this button to select the electronic programme guide in DTV mode.

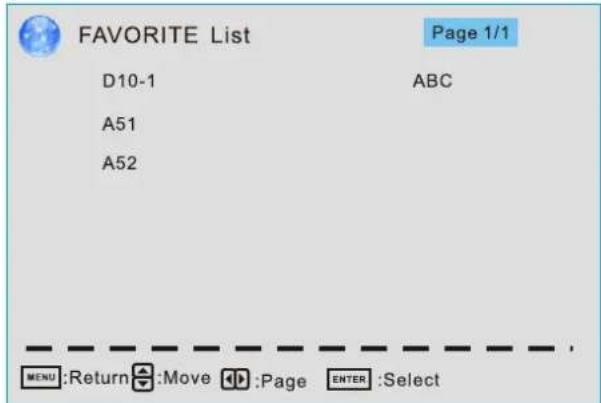

19.FAV

Press this button to show the favourite list.

1. FAV+/FAV-

Press this button to go through the FAV channel list.

CONTROL REFERENCE GUIDE

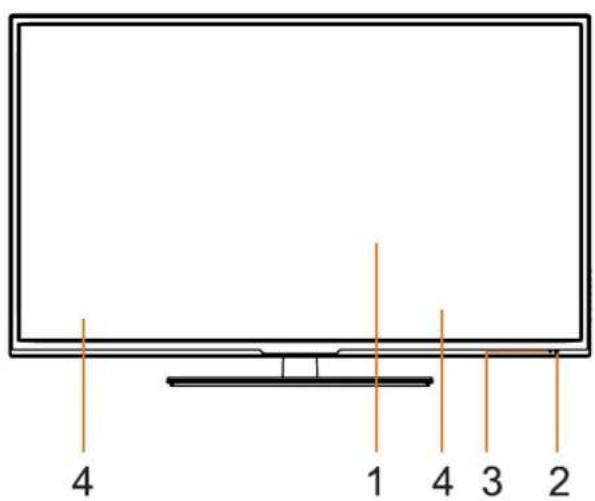

FRONT VIEW

1.Color Screen
2.Remote Sensor

Do not block this sensor or the remote control will not work.

3.Standby Indicator

Indicates whether the unit is ON or in STANDBY (OFF) mode.

Light in red: The unit is in STANDBY.

Light in blue:The unit is turned ON.

4.Speakers

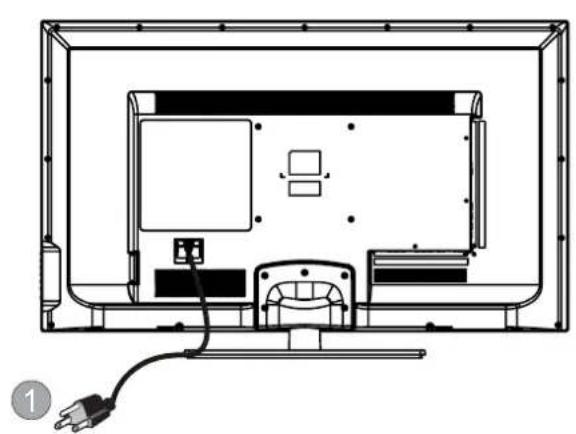

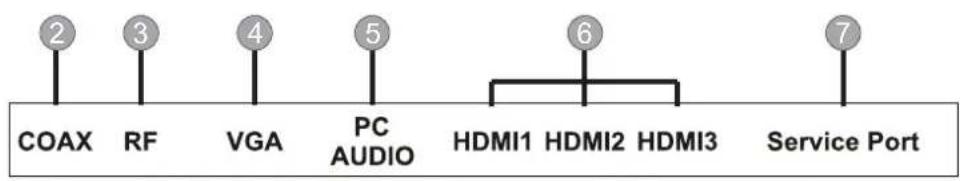

BACK VIEW

1.Power cord
2.Coax OUT Jack
3.TV ANTENNA Terminal

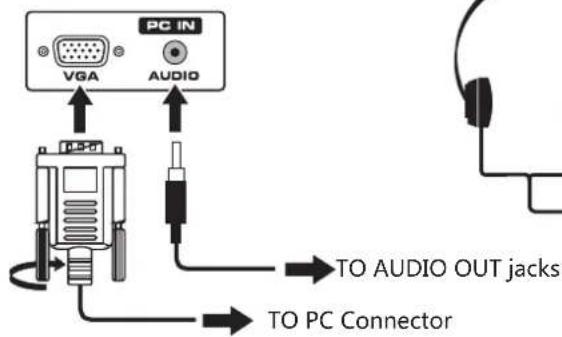

4.VGA IN Jack
5.PC AUDIO IN Jack
6.HDMI IN Jack
7. Service Port

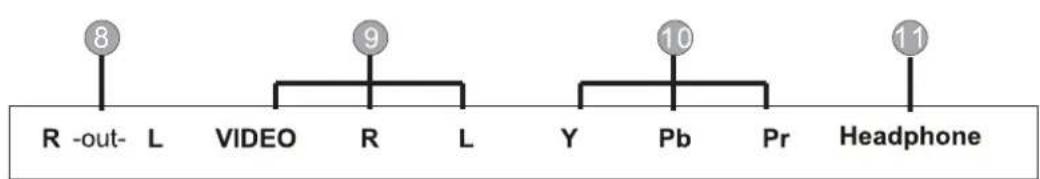

8.AUDIO OUT Jack
(Audio out- This connection is for sending out analog audio signal to the 2nd equipment.Red is for Right Channel, white is for Left Channel.)
9.AV (VIDEO/ AUDIO R/L) IN
10. COMPONENT IN Jack
11.Headphone Jack

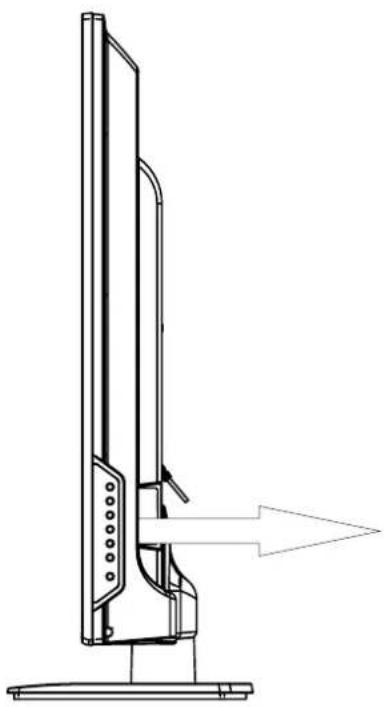

SIDE VIEW

1 VOL+
2 VOL
3 CH+
4 CH-
5 MENU
6 SOURCE
7 STANDBY

1. VOL+ Button

This button increases the TV's volume. If a sub-menu is active, pressing this button will move the select right.

2. VOL-Button

This button decreases the TV's volume. If a sub-menu is active, pressing this button will move the selection left.

3. CH+ Button

This button changes the TV channel up.If the OSD is active,this button functions as up for the menu.

4.CH-Button

This button changes the TV channel down.If the OSD is active,this button functions as down for the menu.

5. Menu Button

This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD.

6. SOURCE Button

Press to select the input source of the TV.

7. STANDBY Button

Turn on the TV by pressing the button once.

Press the button again to turn off the TV.

CONNECTIONS

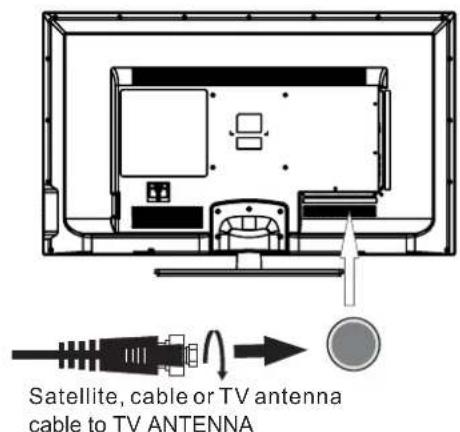

CONNECTING A TV ANTENNA / CABLE / SATELLITE

To view television channels correctly, a signal must be received from one of the following sources:

• An indoor or outdoor aerial antenna
  -A cable system
  A satellite system

NOTE

For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna. Should you require the use of a temporary antenna, please ensure that you purchase an antenna with sufficient ability to receive in weak signal areas. Only when you are in close proximity to a transmitter will a temporary antenna reproduce a signal as strongly as a fixed antenna.

terminal (cable not included)

CONNECTING AN A/V DEVICE

To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)

VIDEO OUTPUT

To connect A/V devices such as a VCR, video game system or camcorder.

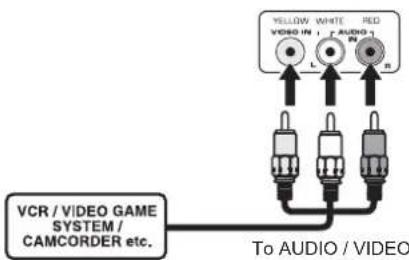

Connecting to a VCR / Video Game System / Camcorder

Connect the AUDIO /VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment (AUDIO VIDEO OUT) to this unit (AV in)

NOTE

Please refer to the user manual for the other equipment for more information.

To AUDIO /VIDEO OUT jacks
IN jacks

CONNECTIONS

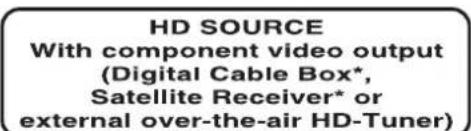

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONNEMPIONMENT

High-Definition (HD) Devices with component video output must be connected to the YPbPr input.

Connect the component video cable and audio cable (not included) as shown.

Make sure you connect the component video cable and audio cable from the other equipment

(COMPONENT OUT and AUDIO OUT) to the unit COMPONENT IN.

NOTE

When connecting a DVD player to the television, the picture resolution is solely dependent upon the resolution supported by the DVD player attached. DVD player resolutions vary from 480i to 1080i. and this television can support DVD players up to a maximum resolution of 1080i.

• May require a subscription for receiving HD channels, check with your cable/satellite service provider for details.

COMPONENT IN

To COMPONENT
AUDIO IN jacks

To COMPONENT
VIDEO OUT jacks
To COMPONENT AUDIO
OUT jacks

HD SOURCE With component video output (Digital Cable Box, Satellite Receiver or external over-the-air HD-Tuner)

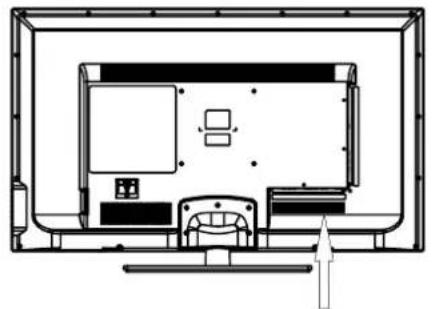

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant or HDMIcompliant displays.

HDMI has the capability to support standard, enhanced or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

Connect the HDMI cable (not included) as shown:

Make sure you connect the cable from the source equipment ( ) HDMI OUT ( HDMI IN ).

CONNECTIONS

CONNECTING A PC

Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown.

Make sure you connect the cable from the computer (VGA) to this audio - PC OUT (VBA) AUDIO - PC IN

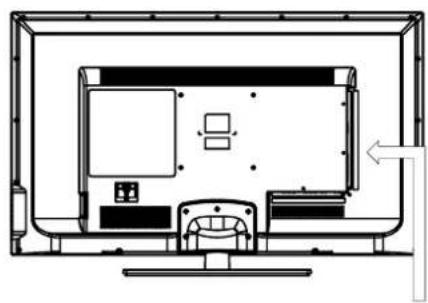

CONNECTING HEADPHONES

• Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level.
• When headphones are connected, no sound will come from the front speakers.

NOTE

Avoiding listening to sound at high Levels for prolonged period of time. This may be harmful to you and may cause hearing loss.

Headphones (1/8"[3.5mm]diameter plug) NOT INCLUDED

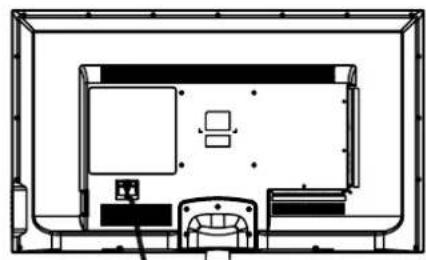

You can power on your TV unit before you make sure the power cord is inserted well. At the same time, please check that the rated voltage of your unit matches your local Voltage.

NOTE

• Insert the power plug fully into the socket outlet. (If the power plug is loose, it could generate heat and cause fire.)
• Ensure that the power plug is easily accessible.
• Ensure the earth pin on the power plug is securely connected to prevent electrical shock.
• Do not touch the power plug with a wet hand. (This may cause electrical shock.)
• Do not use any power cord other than that provided with this TV. (This may cause fire or electrical shock
• Do not damage the power cord.

(A damaged cord may cause fire or electrical shock)
- Do not move the TV with the cord plugged in the socket outlet.
- Do not place a heavy object on the cord or place the cord near a high-temperature object.
- Do not twist the cord, bend it excessively, or stretch it.
- Do not pull on the cord. Hold onto the power plug body when disconnecting cord.
- Do not use a damaged power plug or socket outlet.

To AC wall outlet

CONNECTIONS

Connection to a Home Theater Audio System

For BEST audio performance

Connecting to a Home Theater System Dolby Digital can deliver optimal 2 channel stereo or surround sound with five discrete full range channels plus a sixth channel for a subwoofer.

Enjoy optimal sound reproduction from your system with a Dolby Digital amplifier that incorporates a digital coaxial input. Connect an optional digital cable directly to the television's Coax audio output to listen through all inputs except VGA. (The VGA does not support digital audio)

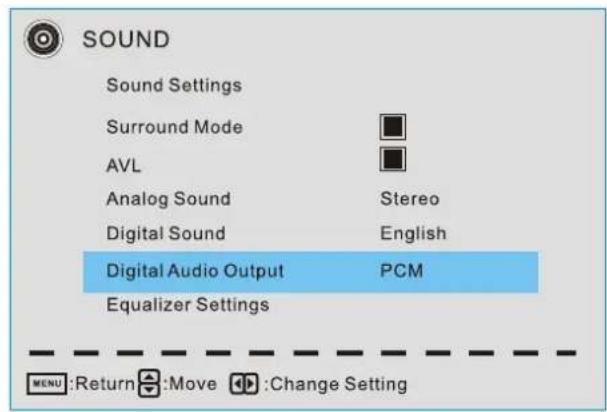

How To Setup Digital Output

Press the MENU button on the remote control Press the right arrow button to select AUDIO Press the down arrow button to highlight SPDIF type right Raw or PCM

*NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings.

WALL MOUNT INSTALLATION

INSTALLING REMOVING THE BASE STAND

WARNING : The TV Display is very fragile and must be protected at all times when removing the base Stand .

Be sure that no hard or sharp object or anything that could scratch or damage the TV display comes into contact with it. Do NOT exert pressure on the front of the unit at any time because the screen could crack.

1 Disconnect all cables or cords connected to the unit.
2. Lay the unit down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material such as a pillow or thick piece of foam beneath the screen
3. To remove the base stand, loosen screws off the holes then pull downwards to release the base stand.

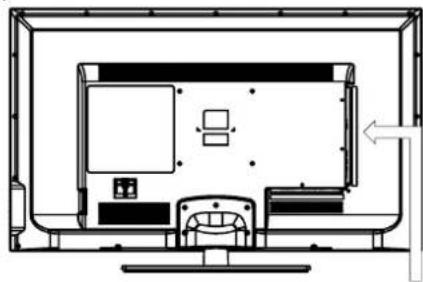

MOUNTING ON THE WALL

This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 8'' × 8'' (200mm x 200mm) mounting kit designed for flat-panel TV's (not supplied). Mount this unit according to the instructions included in the mounting kit. Length of screw should not exceed 12 mm.

NOTE

Remove the base stand before mounting the unit on the wall.

INITIAL SETUP

PUTTING THE UNIT ON A PROPER PLACE

When you turn on your television set for the first time, be sure to place it on a solid stable surface.

To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator).

Do not obstruct the ventilation grid at the rear and be sure to leave sufficient gaps around the unit.

TURNING THE UNIT ON FOR THE FIRST TIME

After you have initially connected your TV antenna or cable, turn the television ON.

A screen will display asking you to run a Initial Setup menu to search and receive available local digital channels.

It is where you will select Menu Language and choose your Signal Type between Air and Cable.

After that, you can choose Auto Channel Search and then it will search analog channels first, then digital channels.

Before execute auto channel search, please confirm your antenna type is Air or Cable. Wrong setting of Signal Type maybe cause finding no channel.

INITIAL SETUP

SOURCE SELECTION

1. Press the Source the remo te control.
2. Use the or button to select the options

(TV,AV,YPbPr,HDMI1,HDMI2,HDMI3,PC)

and select any of them using the button or the

(The screen will change to your desired source).

Note:

Before watching please make sure all necessary cables and devices are connected.

Source Select

TV

AV

YPbPr

HDMI1

HDMI2

HDMI3

PC

Main MENU

Press MENU to display the main menu or return to the previous menu or close the main menu. Press to high light the desired menu icon, and press ENTER to select. If no buttons are pressed, the menu will close automatically after about 10 seconds.

Main Menu Description

Picture Menu

Adjust your picture settings. The operations are slightly different among different source.

Sound Menu

Adjust the sound settings.

TV SETUP

Channel Menu

Customize your channel settings.

Parental Control Menu

Set program rating control and input source keypad lock function.

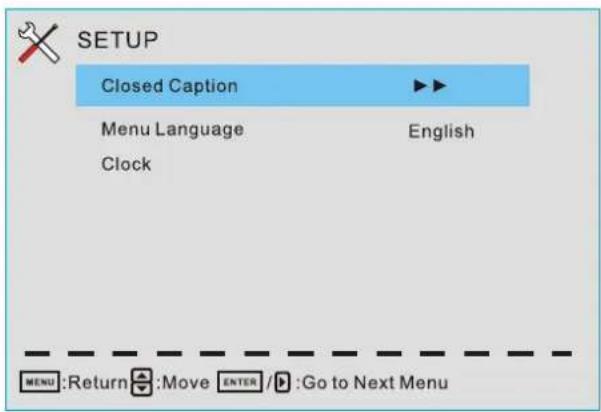

Setup Menu

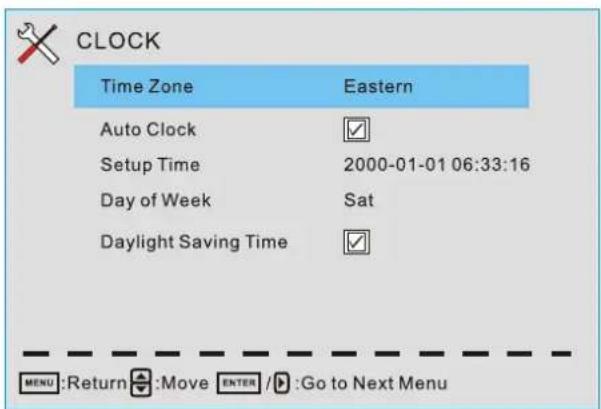

Select closed caption options, language and time.

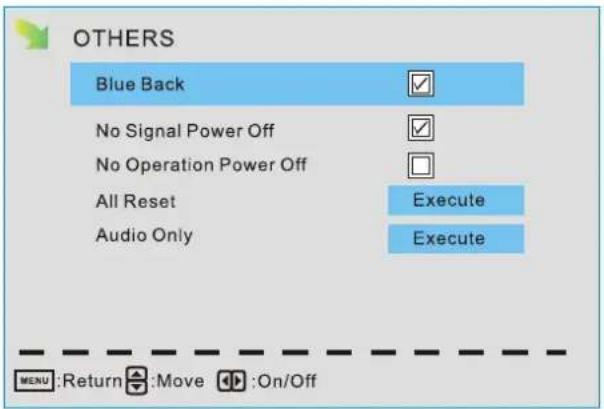

Other Menu

Set the OSD blue background, whether auto power off if no signal or no operation, clear all user settings, etc.

TV SETUP

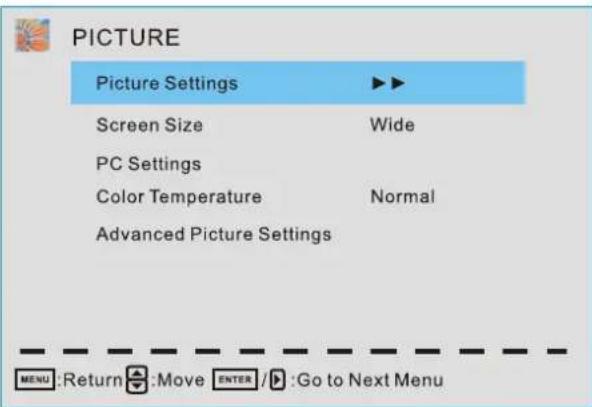

Picture Menu

Press / to highlight one of the following options, then press ENTER or to enter next submenu to adjust it. Press EXIT to clear on-screen menu or MENU back to the previous menu.

Picture Settings

Adjust the picture quality including brightness, contrast, color, tint, sharpness.

Screen Size

Press / to select the display aspect ratio till the picture is fit onto the screen.

The operations are different according to different input source.

PC Settings

The item is available only for PC DB15 input mode.

Color Temperature

Press / to select the color temperature that you feel comfortable.

Cool Gives white colors a blue tint.

Normal Gives white colors a neutral tint.

Warm Gives white colors a red tint.

Advanced Picture Settings

The Item is some special picture feature.

TV SETUP

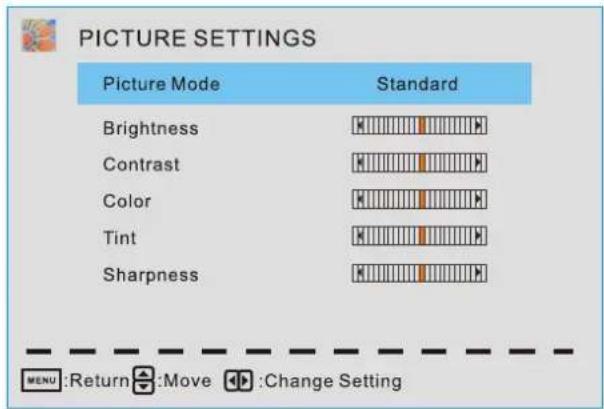

Picture Settings

When Picture Mode is set to User, the following setting can be manually adjusted.

Press PMODE shortcut button on the remote control to select picture mode directly.

Picture Mode

Highlight the item and Press / to select Standard/ Movie/ User/ Dynamic.

Standard Produces a highly defined image in a normally lit room.

Movie Produces a highly defined image in gentle lit room.

User Select to customize picture setting.

Dynamic Produces a highly defined image in a bright lit room.

Highlight the item and press , and a process bar appears, then press / to adjust the value.

Tint is available when analog TV or NTSC-system AV.

Press MENU to back the Picture Settings menu.

Brightness

Adjust darkness of black sections in the picture.

Contrast

Adjust the white level of the picture.

Color

Adjust the color intensity of the picture.

Tint

Adjust the hue( Red, Green, Blue) of the picture.

Sharpness

Object edges are enhanced for picture detail.

TV SETUP

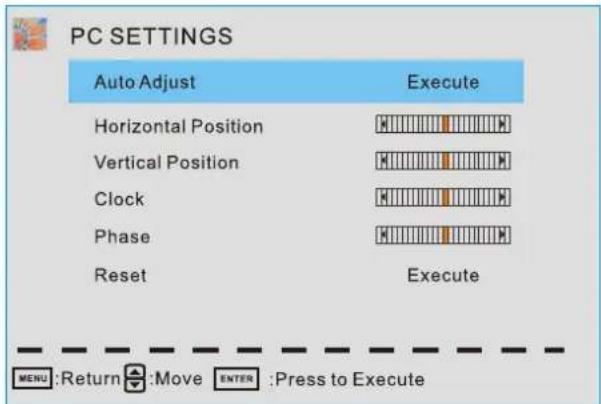

PC Settings

PC Settings Menu is availiable only in PC DB15 mode.

Press / to highlight one of the following options, then press ENTER to select it.

Auto Adjust

Automatically adjust Clock, Phase, H-Position and V-position settings.

Horizontal Position

Shift the screen slightly to left or right.

Vertical Position

Shift the screen slightly up or down.

Clock

Adjust the DB 15 Picture signal sampling clock rate.

Phase

Adjust the DB 15 Picture signal sampling phase. It maybe affect the definition. Wrong value maybe result the interference.

Reset

Reset the parameters of current menu to default value.

TV SETUP

Advanced Picture Settings

Press / to highlight the item and press ENTER or to display the submenu as following.

Dynamic Contrast Off/ Low/ Medium/ High

The system will adjust the luminance curve by analyzing the picture content dynamically.

Film Mode Off/ On

For the 2:2 or 3:2 format signal of cinema, enable special pixel process to reduce the flick of moving area.

Noise Reduction Off/ Low/ Medium/ High

You can clear up analog TV signal by reducing the dot noise. This feature is not available at PC source.

MPEG Noise Reduction Off/ Low/ Medium/ High

Similar with the Noise Reduction, you can set to reduce the block noise.

TV SETUP

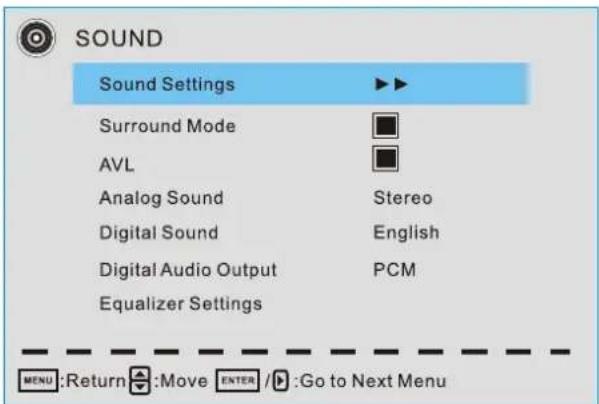

Sound Menu

Sound Settings

Set the sound mode, and Bass/ Treble/ Balance.

Surround Mode

Set to enjoy the virtual surround sound. Press ENTER to set or cancel.

AVL

Auto Volume Level. Press ENTER to set or cancel. When AVL is set on, it will limit the sound being heard when sudden changes in volume occur during commercial breaks or channel changes.

Usually be enabled at night.

Analog Sound

Available at analog TV channels, SAP/ Stereo/Mono

Set the preferred sound track of analog channels. Stereo and SAP ecist on some channels.

Generally SAP is a second language sound or help the people with hearing impair.

Digital Sound

Available at digital TV channels, English/ French/ Spanish

Set the preferred sound track of digital channels, French and Spanish exist on some channels.

Digital Audio Output PCM/ Raw/ Off

Set the audio output type of coax or optical terminal. Raw means output the original format of audio stream. PCM can be matched with most AV amplifiers.

Equalizer Settings

Adjust the curve of 7 bands equalizer.

TV SETUP

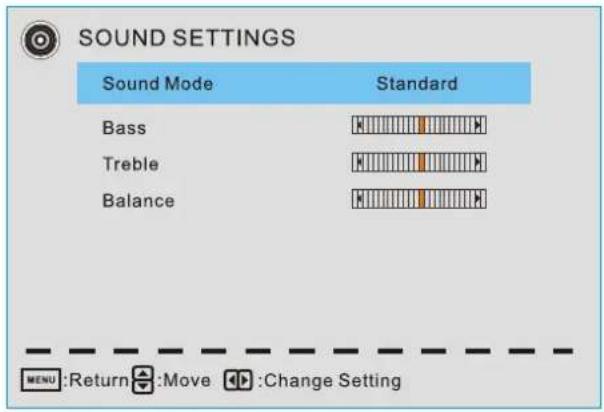

Sound Settings

Sound Mode Standard/ Soft/ User/ Dynamic

Only in User mode, the following items can be adjusted.

Bass

Adjust the low frequency band response.

Treble

Adjust the high frequency band response.

Balance

Adjust the level of sound coming from the left or right speaker.

Adjust the Bass/ Treble/ Balance

1.Set sound mode to User.
2. Highlight the item and press to display the submenu, the press / to adjust the value.

TV SETUP

Equalizer Settings

Mode Off/ Rock/ Pop/ Jazz/ User( only in User mode, the following can be manually adjusted.)

Adjust Equalizer Settings

Based on your favorites about which frequency band need to be adjusted, make small adjustment with certain frequency band at a time. Suggest NOT making too large changes.

1.Set mode to User.
2. Press to select the first (100Hz) item, then press to select the band to be turned.
3. Press / to adjust the value.

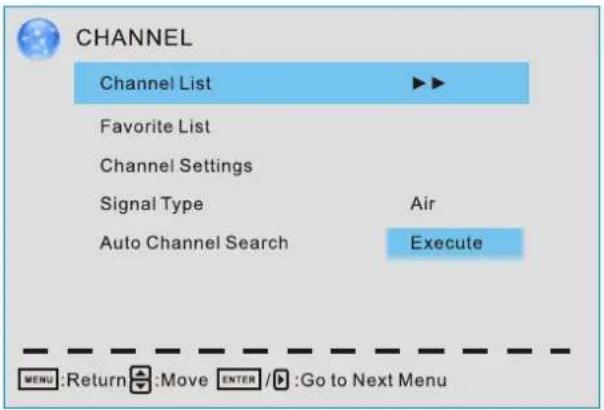

Channel Menu

Note: The menu is available only at TV source.

TV SETUP

Channel List

You can view all the channels and choose one quickly.

"ABC": Label of the Channel.

Press / to highlight a channel and press ENTER to view it.

Favorite List

All of you favorite channels are listed in this menu, and you can choose them quickly.

Channel Setting

Set the favorite channels, skipped channels, label of channels.

Signal Type

Set to Air or Cable according to your antenna source.

TV SETUP

Auto Channel Search

Highlight and press ENTER to start the auto searching.

It will search analog channels first, then digital channels.

Before execute auto channel search, please confirm your antenna type is Air or Cable.
Wrong setting of Signal Type maybe cause finding no channel.

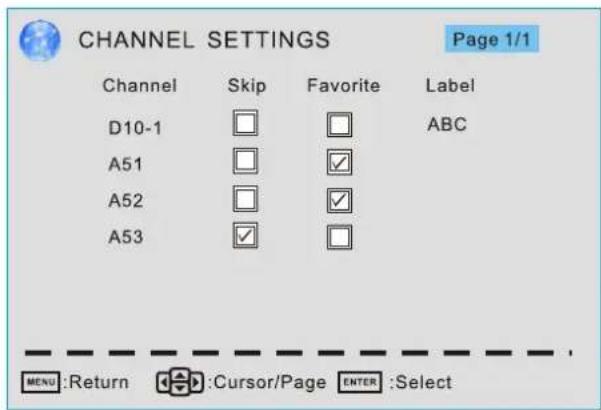

Channel Settings

Skip

Set the channel to be skipped when using CH + / CH- to view channels.

Favorite

Set the channel to your favorite list.

Label

Rename label of the channel.

Change the settings

Skip & Favorite

1. Press / to select the channel you want to set.
2. Press to highlight corresponding item, and press ENTER to set or cancel.

Label

1. Press / to select the channel and ENTER to enter the edit state.
2. Press / to select the character, press / to move the cursor. Total seven letters.

TV SETUP

Parental Control

Note: The default user password is "0000", and if forget what you set, try"1470".

Lock Parental Control

The following items are only available if the password input is correct.

V-CHIP Include below settings:

US V-Chip

Rating system used at USA.

Canada V-Chip

Rating system used at Canada.

Block UnRated Show

Control whether lock the program that have not any valid rating flag.

Downloadable Rating

Control the RRT5 setting which are valid only at some digital cable channels.

Clear Downloadable Data

Select to clear the previous downloadable rating data.

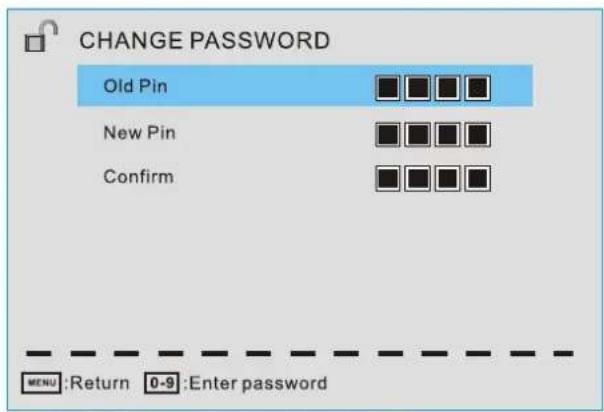

Change Password

Enter a 4-digital number you want to set.

TV SETUP

US V-CHIP

For the United States, the rating setting basically include the following options:

Movie Rating, TV Rating.

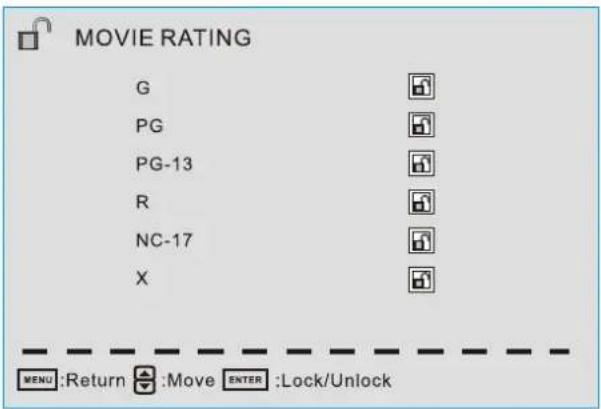

Moive Rating

This system defines the rating control which come from MPAA rules

Rating Define

G	General audience. All ages admitted.
PG	Parental guidance suggested. Some material may not be suitable for child ren.
PG-13	Parents strongly cautioned. Some material may be inappropriate for children under 13.
R	Restricted. Children under 17 require accompanying parent or adult guardian.
NC-17	No one 17 and under admitted
X	Adult audience only.

TV SETUP

TV Rating

The TV rating compose of two aspects: age-based and content-based.

Content	Define
FV	Fantasy violence
D	Suggestive dialogue
L	Strong language
S	Sexual situations
V	Violence

Age	Define
TV-Y	General audience
TV-Y7	Parental guidance suggested
TV-G	Parents strongly cautioned
TV-PG	Restricted
TV-14	No one 17 and under admitted
TV-MA	Adult audience only

Note: The content ratings will increase depending on the level of the age-based rating. For example, a program with a TV-PG V(violence) rating may contain moderate violence, while a TV-14 V(violence)rating may contain intense violence. So locking a higher level option will automatically cause locking the option that has more sensitive level.

TV SETUP

Canada V-CHIP

For Canada, the rating setting include the following options: English rating, French Rating.

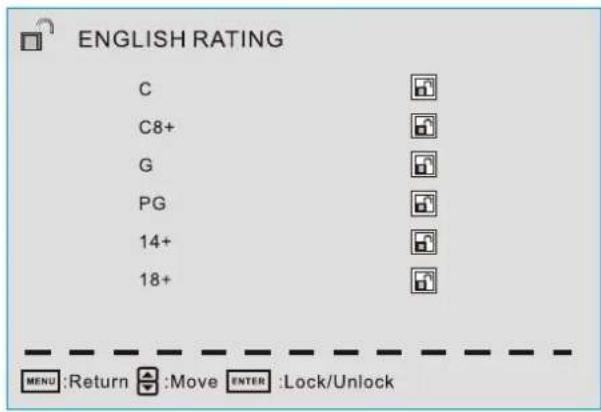

English Rating

These ratings are for programs which are using English rating system.

Rating	Defined as
C	Children
C8+	Children 8 years and older
G	General programming
PG	Parental guidance
14+	Viewers 14 and older
18+	Adult programming

French Rating

These ratings are for programs which are using French rating system.

Rating Defined as

G	General
8 ans+	Not recommended for younger children
13 ans+	Not recommended for children under age 13
16 ans+	Not recommended for ages under 16
18 ans+	This program is restricted to adults

TV SETUP

Change Password

At first you should enter the correct old password then enter new password twice.

If you lost your password, try to enter "1470".

Setup Menu

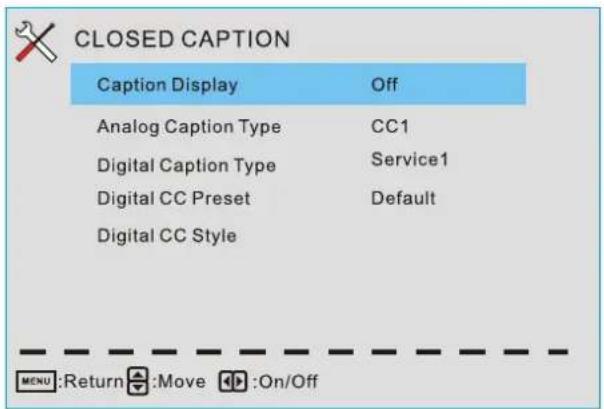

Closed Caption(CC)

Menu Language

Set the menu language. English/French/Spanish.

Clock

Set the Time Zone/ Auto Clock/ Setup Time/

Day of week/ Daylight Saving Time.

Caption Display

Display or hide the CC.

Analog Caption Type

Select from closed-caption modes for analog programs.

Digital Caption Type

Applies only to digital channels with closed caption.

Digital CC Preset Default/Custom

If set to Custom, Digital CC Style is available.

TV SETUP

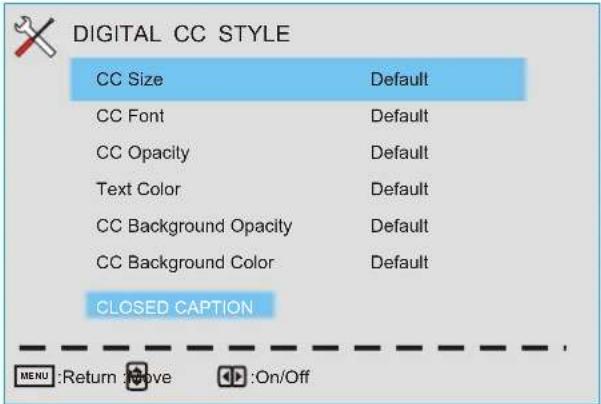

Digital CC Style

This menu is valid only for digital closed caption of digital channels.

CC Size Small/Standard/Large/Default

CC Font Style0~7,Default

CC Opacity Default/Solid/Flashing/Translucent/Transparent/Default.

Text Color Black/White/Red/Green/Blue/Yellow/Magenta/Cyan/Default.

CC Background Opacity Solid/Flashing/Translucent/Transparent/Default.

CC Background Color Black/White/Red/Green/Blue/Yellow/Magenta/Cyan/Default.

Clock

Time Zone Hawaii/Alaska/Pacific/Centra/ Mountain/Eastern/Samoa/Newfoundland/Altantic Set the time zone.

AutoClock

If set it to ON, the TV will sync the local clock according to the DTV broadcasting time automatically. Otherwise you can set the time manually.

Setup Time

Set Auto Clock to Off, then you can set the time manually.

Note: In the case of loss of power, the clock setting will be lost

Day of Week

The TV will calculate current day of week according to the time.

Daylight Saving Time

When Auto Clock set to ON, this item is available to enable daylight saving option or not.

TV SETUP

Ohters Menu

Blue Back

Set the screen background color blue or not when no valid signal input. When analog TV input and has no signal, snow noise will display if this option is cleared.

No Signal Power Off

If it is set, TV will automatically enter standby after 10 minutes without signal input.

No Operation Power Off

If it is set, TV will automatically enter standby after 3 hours without any operation.

All Reset

When you highlight the item, the system will note you that"Attention! If [All Reset] was executed, TV system is reset", and if you are sure to reset, press ENTER to reset.

Audio Only

When you highlight the item, the system will note you that "Attention! Hold on power key 3 second to restore video", and if you are sure not need to view (backlight is turned off), press ENTER to confirm. As the attention, if you want to wake up the video, please hold on the power button for 3 seconds.

DISPLAY MODE

PC FORMATS

SUPPORTED PC INPUT MODE
Resolut ion	Horizontal Scanning Frequency (KHz)	Vertical Scanning Frequency (Hz)	Form at
640 x 480	31.5	60.0	DOS
800 x 600	35.1	56.2	VESA
800 x 600	37.9	60.0	VESA
1024 x 768	48.4	60.0	VESA
1360 x 768	47.7	60.0	VESA
1920 x 1080	66.6	60.0	VESA

NOTE:

This product does not support the display mode not listed above. In order to achieve the best display effect, please select the above-listed 6 display modes input signal.

Because of the difference of display drivers output signal (especially non-standard signal output), the display image may appear little disturbance which can be adjusted on the PC menu.

To prolong this unit's service life, please set your computer to power management mode.

DISPLAY MODE

VIDEO FORMATS

SUPPORTED COMPONENT / HDMI INPUT MODE
Res lu ioni t	Horizontal Scanning Frequency (KHz)	Vertical Scanning Frequency (Hz)	Format
720 480	31.47	59.94	480 i
720 480	15.734	59.94	480 p
1280 720	37.5	50	720 p
1280 720	45	60	720 p
1920 1Q80	31.25	50	1080 i
1920 1Q80	33.75	60	1080 i
1920 1Q80	27	24	1080 p
1920 1Q80	56.25	50	1080 p
1920 1Q80	67.50	60	1080 p

NOTE:

The above listed formats are also related to the AV devices you are about to connect.

Before you connect this unit with others please read all instructions carefully and make sure all necessary cables are connected.

This unit may be incompatible with some other formats which are not meet the above conditions.

SPECIFICATION

Model Description 50"LED TV
Panel	Panel Type	LED Panel
	Diagonal Size	50 inches
	Screen Format 16 9:
	Resolution	1920 x 1080
	Brightness	350cd/m²
	Contrast	3000:1
	View Angle	178(H)/178V)
	Response Time	6.5 ms
	Maximum Color	16.7M colors
Systems	Color System	ATSC/QAM/NTSC
	Sound System	M
	Audio System	BTSC
	Sound Output	L/R Speaker: 10 W + 10 W
Input/Output Jacks	RF Input 75 ohm external terminal
	HDMI Input	Video 480i 480p 720p 1080i, 1080p.: , , , Audio: Two channel linear PCM 32, 44.1 and 48kHz, 16, 20 and 24 bits
	PC-RGB Input	D-sub 15pin G: 0.7Vp-p, 75ohms B: 0.7Vp-p, 75ohms R: 0.7Vp-p, 75ohms
	Composite Video Input	1.0 Vp-p, 75ohms RCA
	Component/Y Pb Pr Input	RCA Y: 1.0 Vp-p, 75ohms, 0.3V negative sync Pb: 0.7Vp-p, 75ohms Pr: 0.7Vp-p, 75ohms
	Sound Input	Component AUDIO: For Component Audio input AV AUDIO: For CVBS PC AUDIO: For PC RGB Audio input 500mV rms, Impedance: 20k ohms
Power	Power Requirement	AC100-240V~ 50/60Hz
	Rated power consumption	110 W

This manual is only for your reference.

Specifications are subject to update without prior notice.

TROUBLESHOOTING GUIDE

SYMPTOM CAUSE AND REMEDY( )
TV
Bad Picture (snow, multiple images distortion, blurry)	·Check the location of the antenna and adjust it if necessary. ·Make sure the antenna cable is firmly connected. ·Make sure all input cables are firmly connected.
No sound.	·Increase the volume. ·Check whether the mute function has been activated on the Remote Control.
Black and White picture.	·Check the PICTURE setting within the PICTURE menu. ·Check to make sure the program you are watching is broadcast in Color and not Black & White.
No picture or sound.	·Make sure the unit is plugged in and turned on. ·Make sure that the ATV mode is selected. ·Try a new channel to check for possible station trouble. ·Make sure the antenna is connected properly. ·Increase the volume. ·Make sure the antenna or audio/video source device is working properly. ·Make sure all cables are firmly connected. ·Check for local interference.
Coloredpatches of picture.	·Make sure there are no unshielded electrical devices nearby that are causing interference. ·Turn the TV off for 30 minutes, then try it again.
Panel function key does not respond correctly.	·Under the influence of electrostatic phenomenon, the product may malfunction and require usertopowerreset. ·Unplug and re-plug the power cord.
The display monitor's panel goes hot.	·LED TV takes inside lighten phosphor. It may increase the temperature of the screen in some occasions. It's not a defect.
Unusual dots	·Black dots and Bright points may appear on the LED screen. This is a structural property of the LED panel and is not a defect.
Stripes on screen	·Adjust the impulse phase may decrease stripes. (RGB in )
The top of the monitor gets hot.	·It may occur during long-time working. It's not a defect.
Unable to select a certain channel.	·The channel may be skipped. Choose this channel by directly selecting the buttons from the remote control.
Disorder display at power on.	·This may be caused because of a very short interval between STANDBY OFF and ON. ·Unplug the power and restart.

CONTENU

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE AVIS RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

AVERTISSEMENT:POUR REDUIRE LE RISQUE D'UN CHOC ELECTRIQUE,NE PAS RETIRER LE COUVERCLE (NI LE DOS).AUCUNE PIECE NECESITANT L'ENTRETIEN PAR L'UTILISATEUR A L'INTERIEUR. POUR REPARATION,S'ADRESSER A UN REPARATEUR QUALIFIÉ.

Universal Remote Code: 1218

1. Haut/Bas/Gauche/Droite

Daylight Saving Time
