USER MANUAL PLDED3273A Proscan

Before using the TV, please read this manual thoroughly, and retain it for future reference.

CONTENTS

1	SAFETY PRECAUTION		1
2	IMPORTANT SAFETY INSTRUCTION		2
3	ACCESSORIES		3
4	GETTING STARTED		3
5	CONTROL REFERENCE GUIDE	Remote Control	4
		Front View	5
		Back View	5
		Side View	6
6	CONNECTIONS	Antenna Connection	7
		AV Connection	7
		YPbPr Connection	8
		HDMI Connection	8
		VGA Connection	9
		Headphone Connection	9
		Power Cord Connection	9
		Coax(SPDIF) Connection	10
7	WALL MOUNT INSTALLATION		11

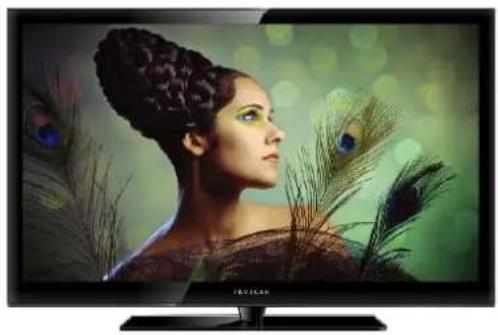

8	INITIAL SETUP	Putting The Unit On A Proper Place	12

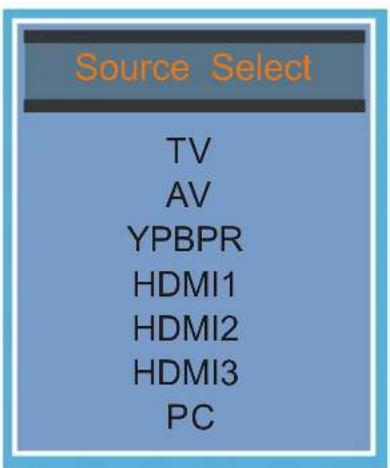

		Source Selection	12
		Turning The Unit On For The First Time	12

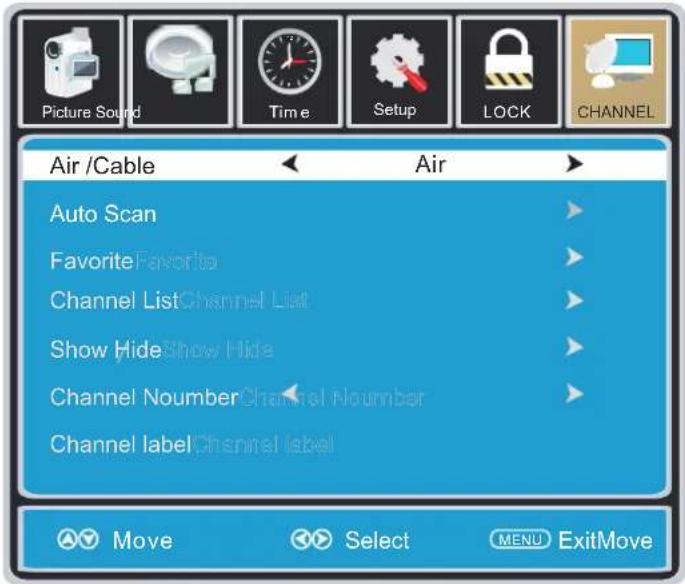

9	TV SETUP	TV(CHANNEL) Menu	13
		Picture Menu	14
		Audio Menu	15

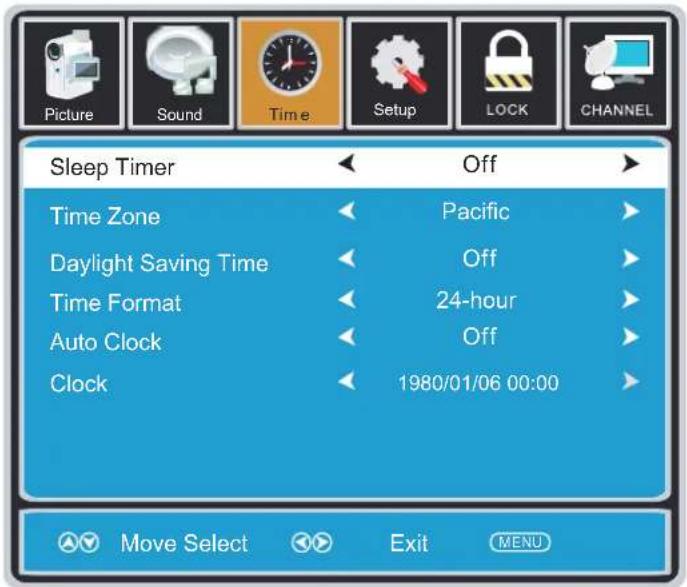

		Time Menu	16

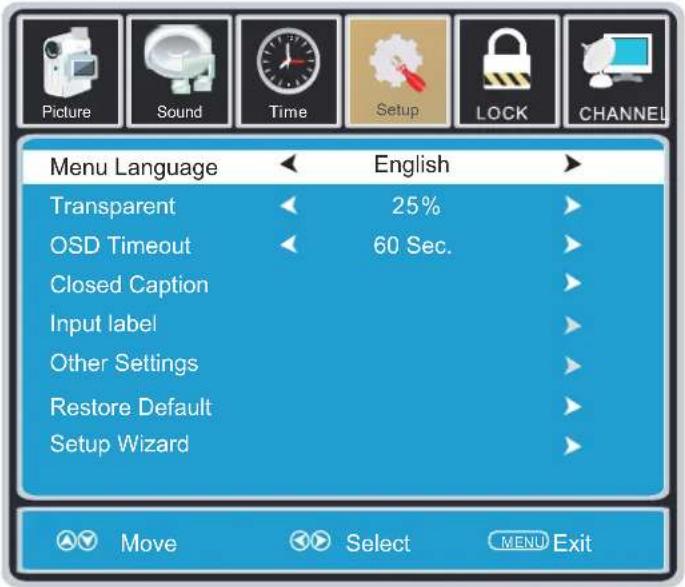

		Setup Menu	17
		LOCK(Parental) Menu	18

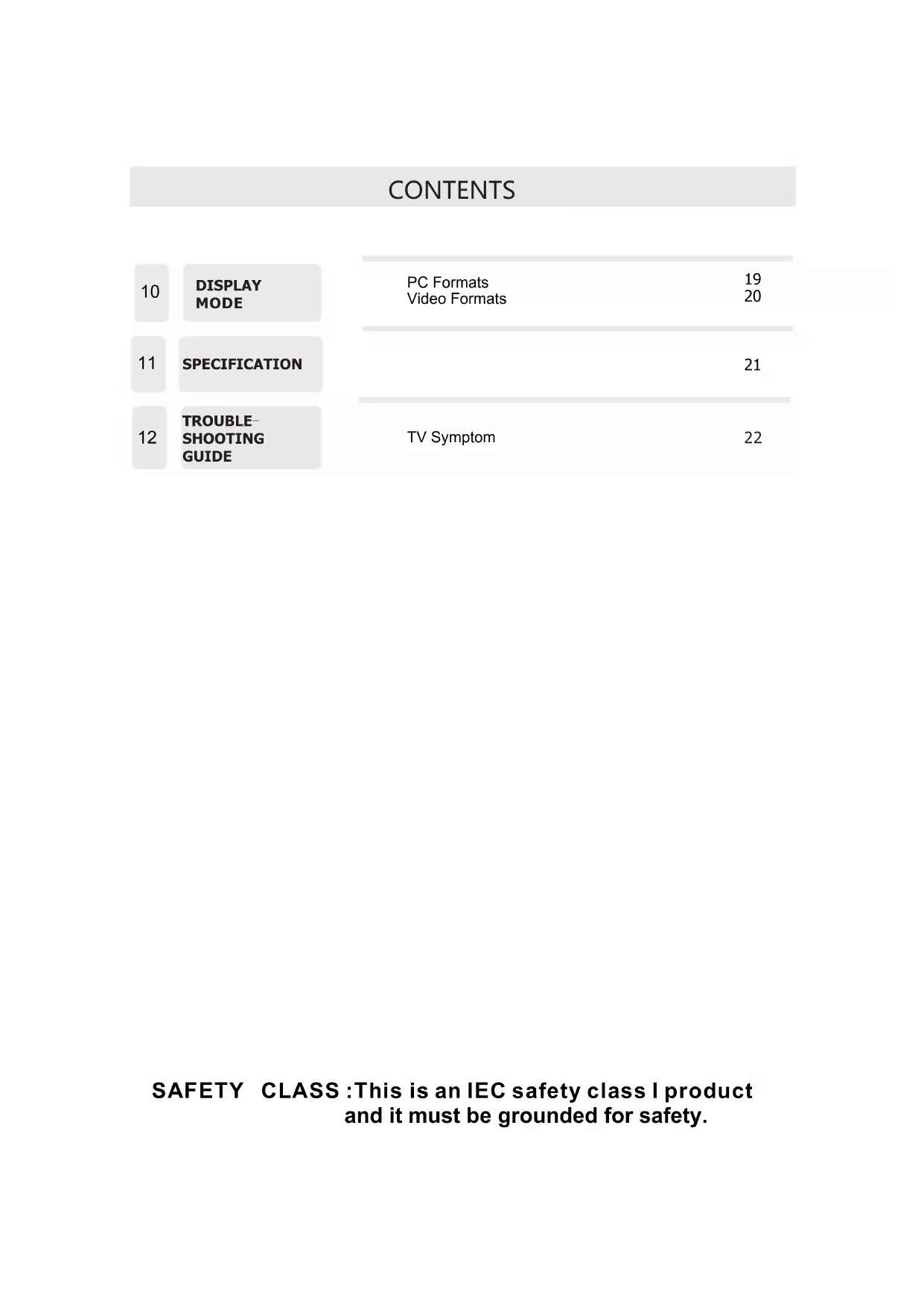

CONTENTS

10

DISPLAY MODE

PC Formats Video Formats

19 20

11

SPECIFICATION

21

12

TROUBLESHOOTINGGUIDE

TV Symptom

22

SAFETY PRECAUTION

• CAUTION MARKING WAS LOCATED AT THE REAR OF THE APPARATUS.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE AVIS RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle,is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral Triangle is intended to alert the user to The presence of important operating and

maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO REVENT FIRE OR SHOCK HAZARD,DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
- SHOULD ANY TROUBLE OCCUR, DISCONNECT THE AC POWER CORD AND REFER SERVICING TO A QUALIFIED TECHNICIAN.

PLACEMENT INFORMATION

• Do not use this unit in places that are extremely hot, cold, dusty or humid.
• Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, by placing it on bedding or carpeting.

SAFETY INFORMATION

• When connecting or disconnecting the AC power cord, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.
• When you are not going to use the unit for a long period of time, disconnect the AC power cord.

RATING PLATE LOCATION

The rating plate is located on the rear of the unit.

FCC STATEMENTS

NOTE: This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and receiver.
  -Connect the unit into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the unit.

IMPORTANT SAFETY INSTRUCTIONS

1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with a dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat.
9)Do not defect the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A groundingtype plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your wall outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments / accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13)Unplug this apparatus during lightning Storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15)To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

ACCESSIONS

Please check and identify the supplied accessories.

Rematteecomitobl x1

Battery(AA) 2

Warranty Card x 1

Instruction Manual x1

Base stand and 5 screws

Screw driver x1

GETTING STARTED

USING THE REMOTE CONTROL

• Point the remote control at the remote sensor located on the unit.
• When there is a strong ambient light source, the performance of the infrared remote sensor
  may be degraded, causing unreliable operation.
  The recommended effective distance for remote operation is about 16 feet (5 meters).

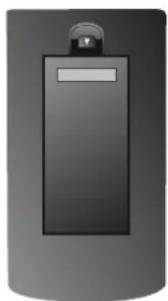

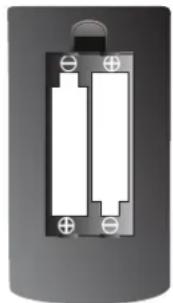

TO INSTALL THE BATTERIES

1. Open the battery door.

2. Insert 2 "AA" batteris

BATTERY REPLACEMENT

When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace the batteries.

CAUTION : Danger of explosion if battery is incorrectly replaced.

NOTES

• If the remote control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosion.
• Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries.
  Always remove batteries as soon as they become weak.
  -Weak batteries can leak and severely damage the remote control.

WARNING:

Do not dispose batteries in a fire. Batteries may explode or leak.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

CONTROL REFERENCE GUIDE

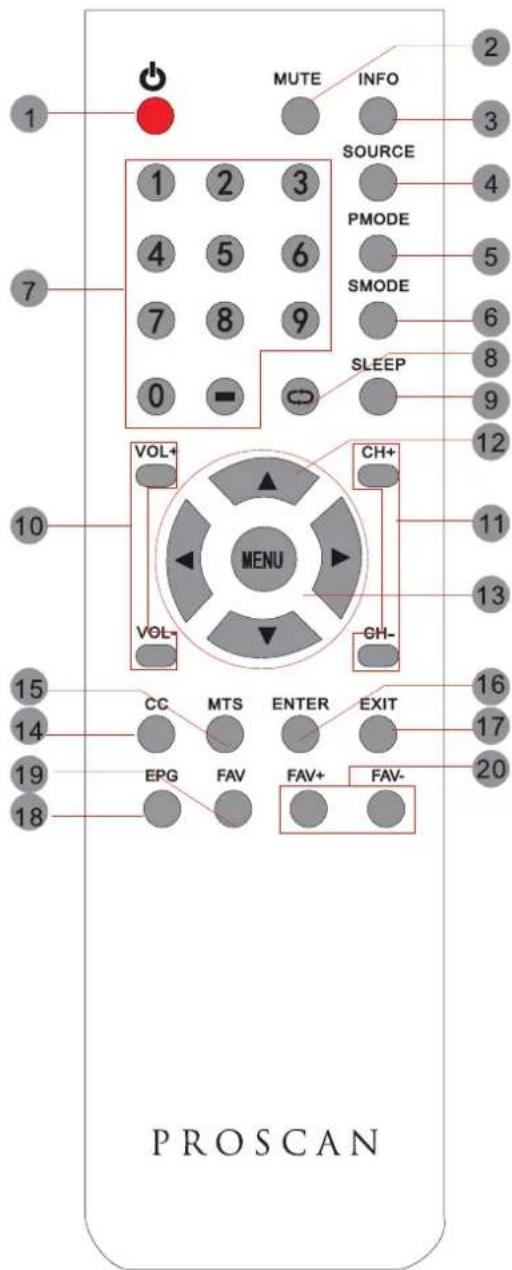

REMOTE CONTROL

Universal Remote Code: 1218
Universal Remote Control is not included.

1.STANDBY

To switch on the TV or make the TV into standby mode.

2.MUTE

Press this button to mute or restore sound.

3.INFO

Show the information of the program you are watching.

4.SOURCE

Press this button to select an input source.

5.PMODE

Press this button to select a picture mode for different picture qualities.

6.SMODE

Press this button to select sound setting for different sound effects.

7.0-9

Allows you to change the channel of the TV.

Switches back and forth between the current and previous channels.

9.SLEEP

To select the amount of time before your TV turns Off automatically.

10.VOL+/VOL-

Increases/Decreases the Volume control.

11.CH+/CH-

Skipping to the next/previous channel on TV mode.

Moves the cursor upward/downward/to the left/to the right when making a selection.

13 MENU

Displays the OSD Menu of the TV.

14.CC

Press the button to enter into the CC mode.

15.MTS

To change among STEREO, MONO and SAP. If there is no second language available for the signal received, LED Display audio will output to mono.

16.ENTER

Press to confirm selections on a menu screen.

17.Exit

Press this button to exit the on screen display.

18.EPG

Press this button to select the electronic programme guide in DTV mode.

19.FAV

Press this button to show the favourite list.

1. FAV+/FAV-

Press this button to go through the FAV channel list.

CONTROL REFERENCE GUIDE

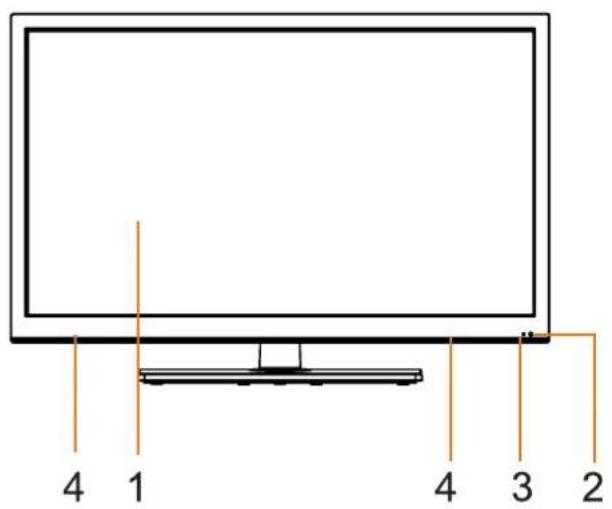

FRONT VIEW

1.Color Screen
2.Remote Sensor

Do not block this sensor or the remote control will not work.

3.Standby Indicator

Indicates whether the unit is ON or in STANDBY (OFF) mode.

Light in red: The unit is in STANDBY.
Light in blue:The unit is turned ON.
4. Speakers

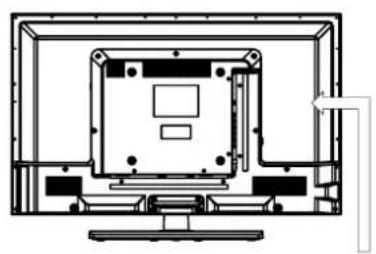

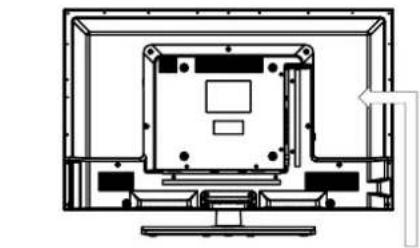

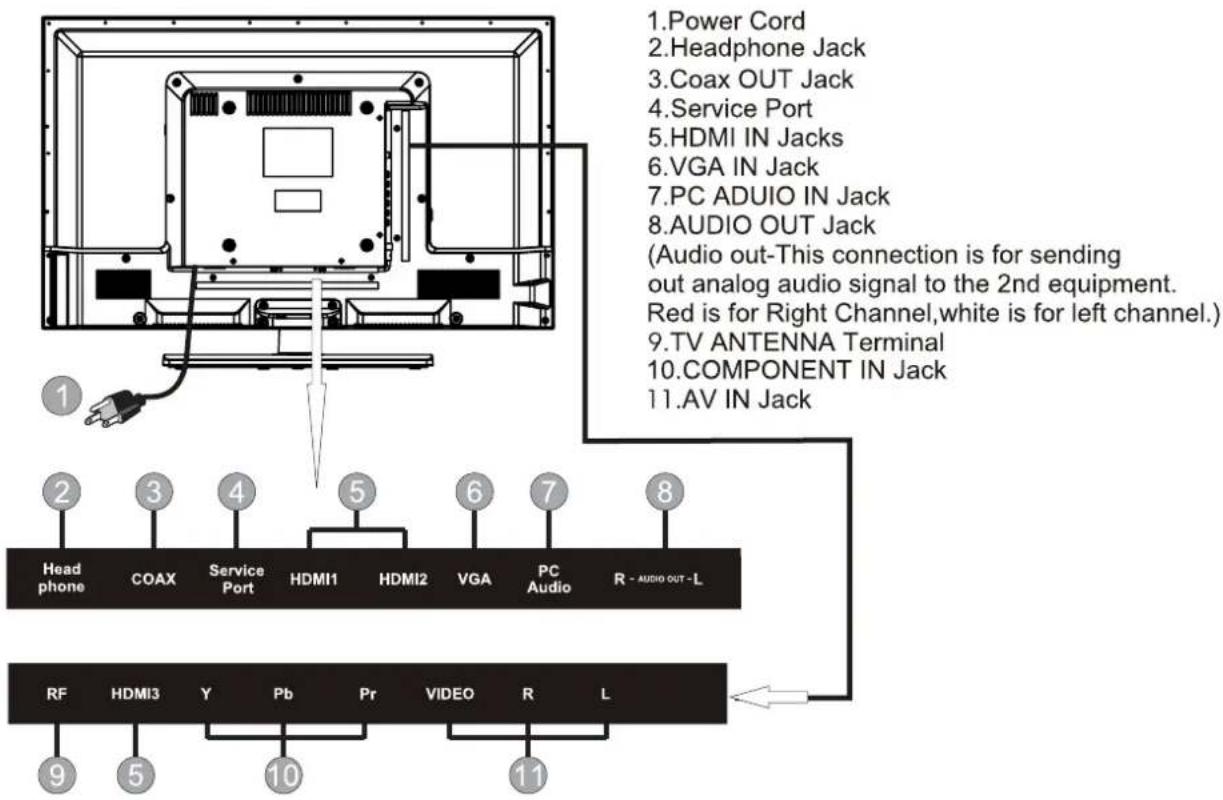

BACK VIEW

CONTROL REFERENCE GUIDE

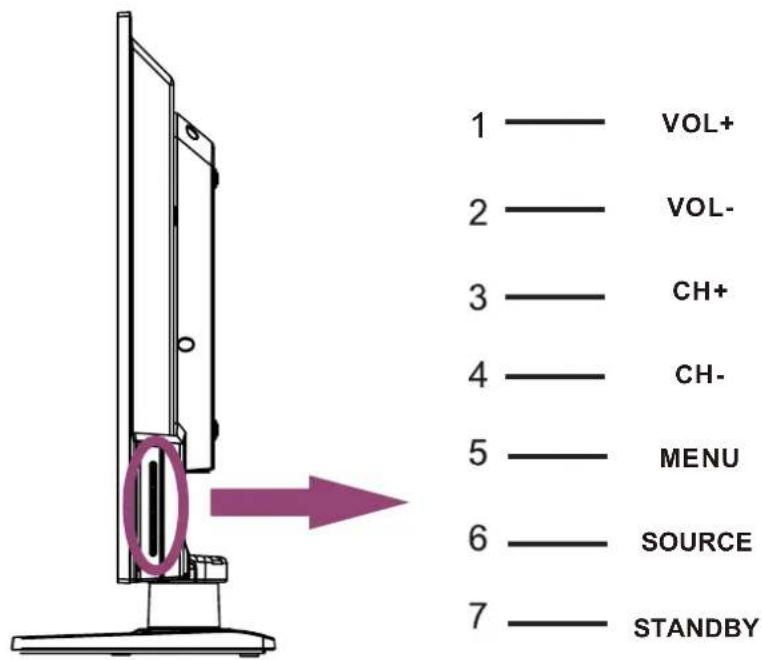

SIDE VIEW

1. VOL+ Button

This button increases the TV's volume. If a sub-menu is active, pressing this button will move the select right.

2. VOL-Button

This button decreases the TV's volume. If a sub-menu is active, pressing this button will move the selection left.

3. CH+ Button

This button changes the TV channel up.If the OSD is active,this button functions as up for the menu.

4.CH-Button

This button changes the TV channel down.If the OSD is active,this button functions as down for the menu.

5. Menu Button

This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD.

6. SOURCE Button

Press to select the input source of the TV.

7. STANDBY Button

Turn on the TV by pressing the button once. Press the button again to turn off the TV.

CONNECTIONS

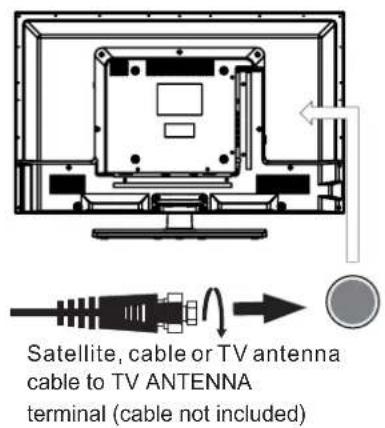

CONNECTING ATV ANTENNA / CABLE / SATELLITE

To view television channels correctly, a signal must be received from one of the following sources:

-An indoor or outdoor aerial antenna
-A cable system
-A satellite system

NOTE

For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna. Should you require the use of a temporary antenna, please ensure that you purchase an antenna with sufficient ability to receive in weak signal areas. Only when you are in close proximity to a transmitter will a temporary antenna reproduce a signal as strongly as a fixed antenna.

CONNECTING AN A/V DEVICE

To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)

VIDEO OUTPUT

To connect A/V devices such as a VCR, video game system or camcorder.

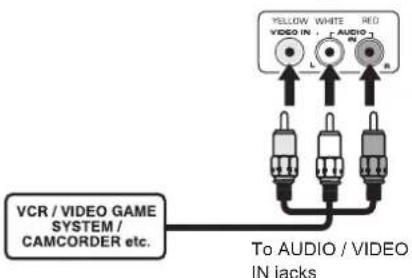

Connecting to a VCR / Video Game System / Camcorder

Connect the AUDIO /VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment (AUDIO VIDEO OUT) to this unit (AV in)

NOTE

Please refer to the user manual for the other equipment for more information.

To AUDIO /VIDEO OUT jacks

CONNECTIONS

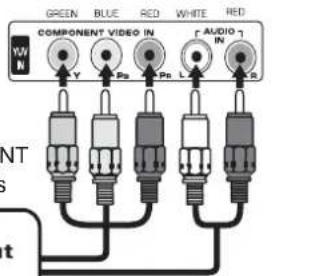

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONMIPONTMENT

High-Definition (HD) Devices with component video output must be connected to the YPbPr input.

Connect the component video cable and audio cable (not included) as shown.

Make sure you connect the component video cable and audio cable from the other equipment

(COMPONENT OUT and AUDIO OUT) to the unit COMPONENT IN.

NOTE

When connecting a DVD player to the television, the picture resolution is solely dependent upon the resolution supported by the DVD player attached. DVD player resolutions vary from 480i to 1080i. and this television can support DVD players up to a maximum resolution of 1080i.

• May require a subscription for receiving HD channels, check with your cable/satellite service provider for details.

To COMPONENT
VIDEO OUT jacks
To COMPONENT AUDIO
OUT jacks

COMPONENT IN

To COMPONENT
VIDEO IN jacks

To COMPONENT AUDIO IN jacks

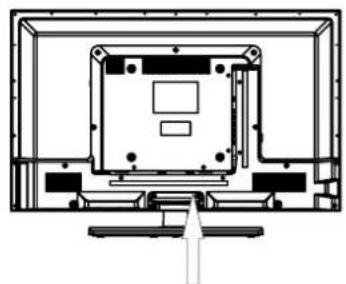

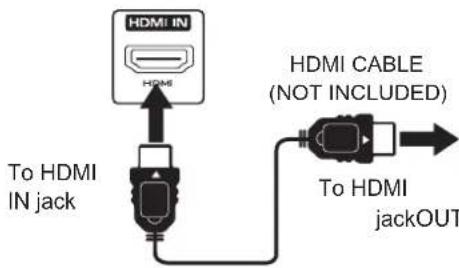

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant or HDMIcompliant displays.

HDMI has the capability to support standard, enhanced or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

Connect the HDMI cable (not included) as shown:

Make sure you connect the cable from the source equipment ( ) HDHOT ( HDMI ).

CONNECTIONS

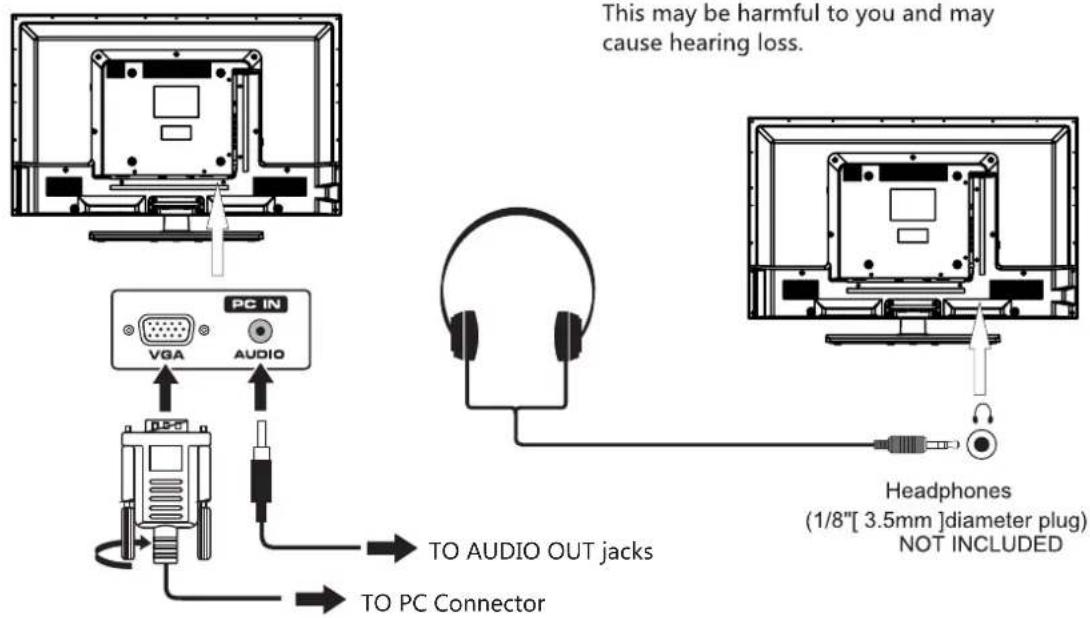

CONNECTING A PC

Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown.

Make sure you connect the cable from the computer (VGA) to this AUDIO - PC OUT (VGA)AUDIO - PC IN

CONNECTING HEADPHONES

• Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level.

• When headphones are connected, no sound will come from the front speakers.

NOTE

Avoiding listening to sound at high Levels for prolonged period of time. This may be harmful to you and may cause hearing loss.

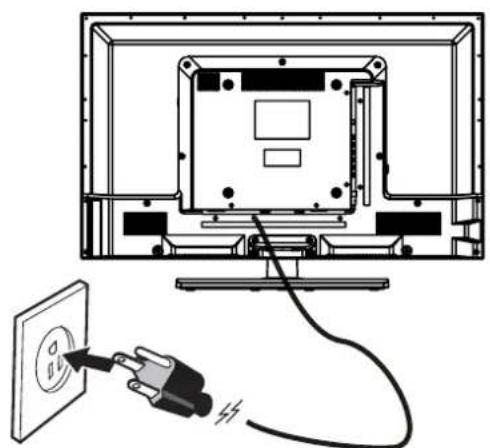

You can power on your TV unit before you make sure the power cord is inserted well. At the same time, please check that the rated voltage of your unit matches your local Voltage.

NOTE

• Insert the power plug fully into the socket outlet. (If the power plug is loose, it could generate heat and cause fire.)
• Ensure that the power plug is easily accessible.
• Ensure the earth pin on the power plug is securely connected to prevent electrical shock.
• Do not touch the power plug with a wet hand. (This may cause electrical shock.)
• Do not use any power cord other than that provided with this TV. (This may cause fire or electrical shock
• Do not damage the power cord.

(A damaged cord may cause fire or electrical shock)
- Do not move the TV with the cord plugged in the socket outlet.
- Do not place a heavy object on the cord or place the cord near a high-temperature object.
- Do not twist the cord, bend it excessively, or stretch it.
- Do not pull on the cord. Hold onto the power plug body when disconnecting cord.
- Do not use a damaged power plug or socket outlet.

To AC wall outlet

CONNECTIONS

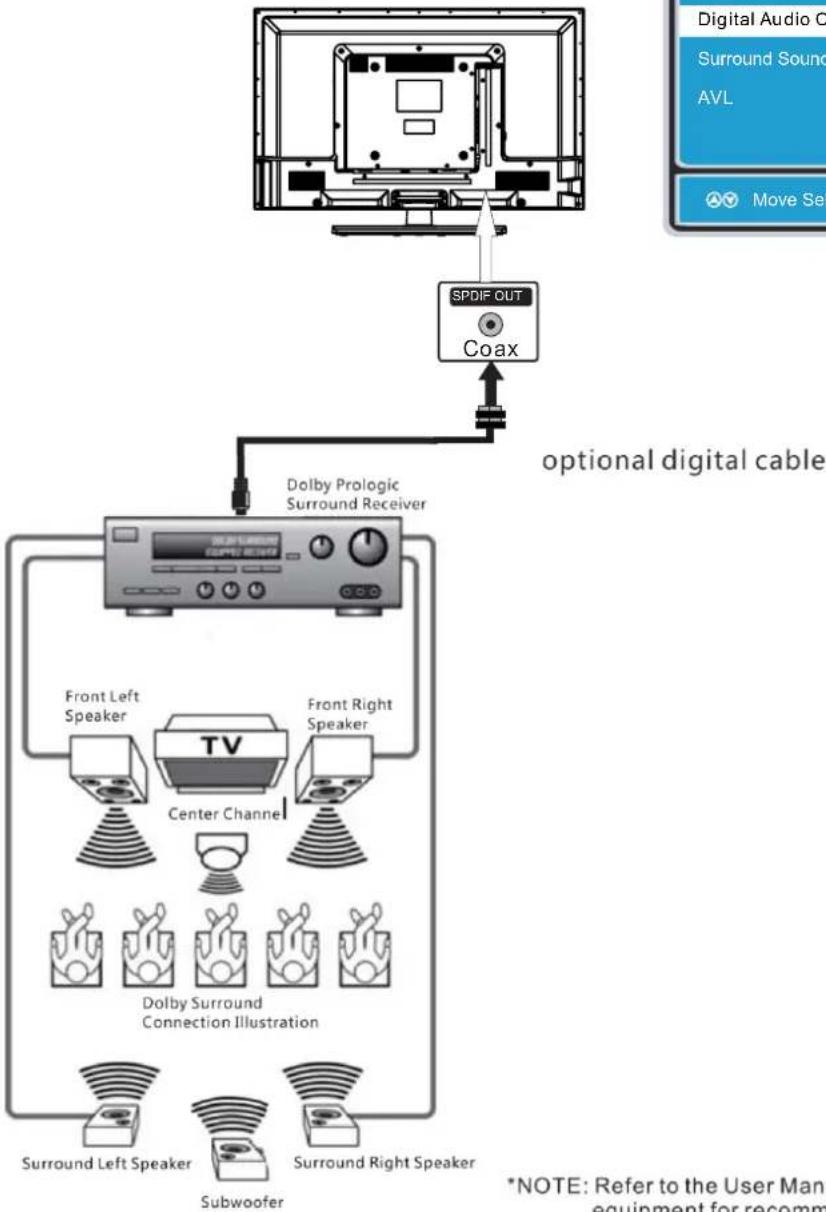

Connection to a Home Theater Audio System

For BEST audio performance

Connecting to a Home Theater System

Dolby Digital can deliver optimal 2 channel stereo or surround sound with five discrete full range channels plus a sixth channel for a subwoofer.

Enjoy optimal sound reproduction from your system with a Dolby Digital amplifier that incorporates a digital coaxial input. Connect an optional digital cable directly to the television's Coax audio output to listen through all inputs except VGA.

(The VGA does not support digital audio)

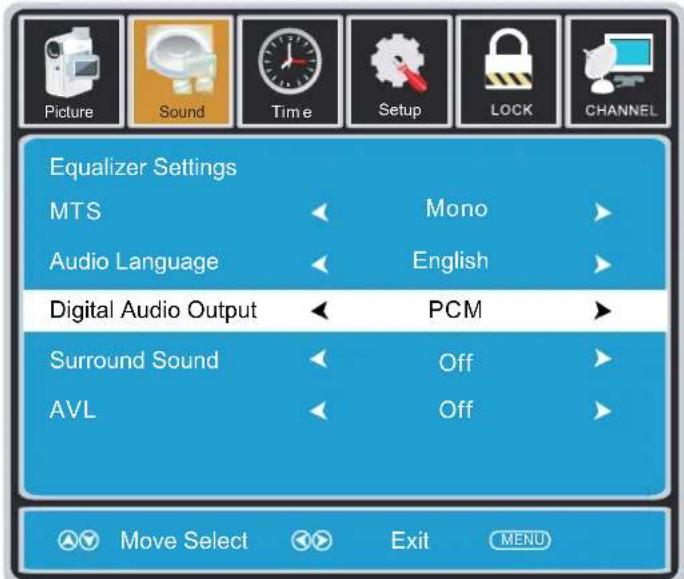

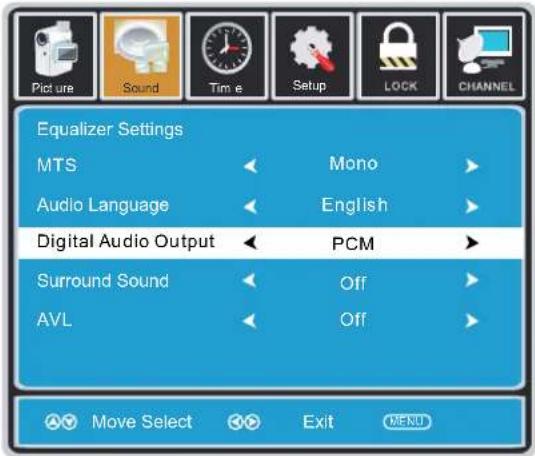

How To Setup Digital Output

Press the MENU button on the remote control Press the right arrow button to select sound Press the down arrow button to highlight SPDIF type right Raw or PCM

*NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings.

WALL MOUNT INSTALLATION

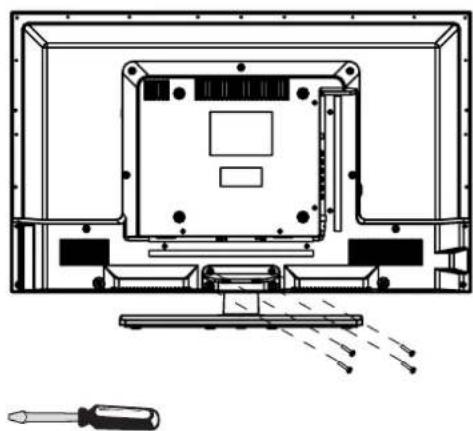

INSTALLING REMOVING THE BASE STAND

WARNING : The LED Display is very fragile, and must be protected at all times when removing the base Stand .

Be sure that no hard or sharp object or anything that could scratch or damage the LED display comes into contact with it. Do NOT exert pressure on the front of the unit at any time because the screen could crack.

1 Disconnect all cables or cords connected to the unit.
2. Lay the unit down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material such as a pillow or thick piece of foam beneath the screen
3. To remove the base stand, loosen screws off the holes then pull downwards to release the base stand

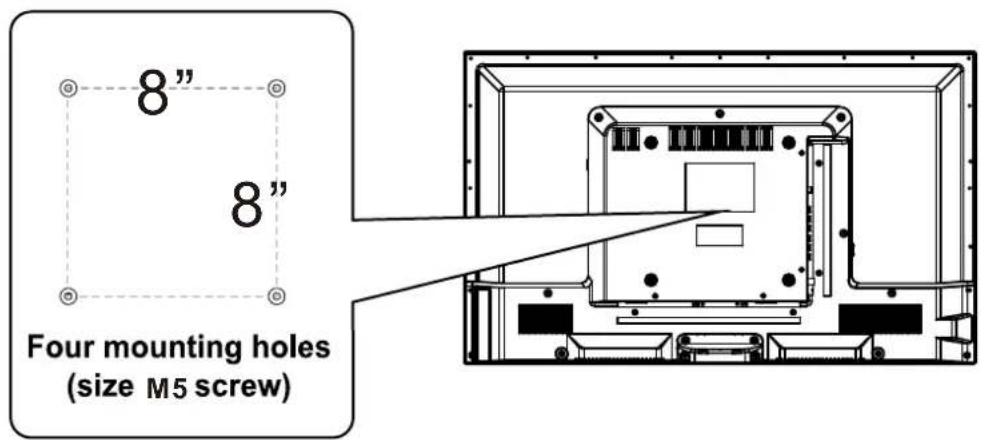

MOUNTING ON THE WALL

This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 8'' × 8'' (200mm x 200mm) mounting kit designed for flat-panel TVs (not supplied). Mount this unit according to the instructions included in the mounting kit. Length of screw should not exceed 8 mm.

NOTE

Remove the base stand before mounting the unit on the wall.

INITIAL SETUP

PUTTING THE UNIT ON A PROPER PLACE

When you turn on your television set for the first time, be sure to place it on a solid stable surface.

To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator).

Do not obstruct the ventilation grid at the rear and be sure to leave sufficient gaps around the unit.

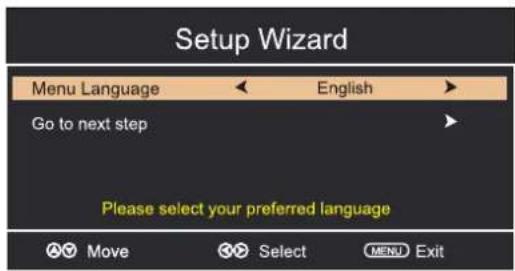

TURNING THE UNIT ON FOR THE FIRST TIME

After you have initially connected your TV antenna or cable, turn the television ON.

A screen will display asking you to run a Channel Auto Scan to search and receive available local digital channels.

It is here where you will select antenna options and run .Channel Auto Scan

Channels will be stored in the TV tuner.

Press the bMENu n the remote control. Using the buttons, scroll to highlight chaneel mode. Press the button to highlight AIR/CABLE.

SOURCE SELECTION

1. Press the SOURCE button on the remote control.
2. Use the or button to select the options (TV,AV,YPBPR,HDMI1,HDMI2,HDMI3,PC)

and select any of them using the button or the ENTER (The screen will change to your desired source).

Note: Before wa tching please ma ke sure all necessary cables and devices are connected.

TV SETUP

CHANNEL MENU

Press MENU button to display the main menu.

Press / button to select CHANNEL in the main menu, it will highlight the first option.

AIR/CABLE

This feature allows you to switch between air (such as using antenna) and cable.

AUTO SCAN

This feature searches channels automatically for you.

FAVORITES

This feature gives the favorite list of channels added by you.

CHANNEL LIST

This feature shows the list of stored channels.

SHOW / HIDE

This feature tells you if you have chosen for channel to be skipped.

CHANNEL NUMBER

This feature tells you what channel you are currently on.

CHANNEL LABEL

This feature changes the name of the channel.

Please Note:

The channel options are only available when you select TV as your SOURCE.

When you open the OSD menu on other sources (HDMI, AV, Component, PC, Media) these options will be grayed out.

TV SETUP

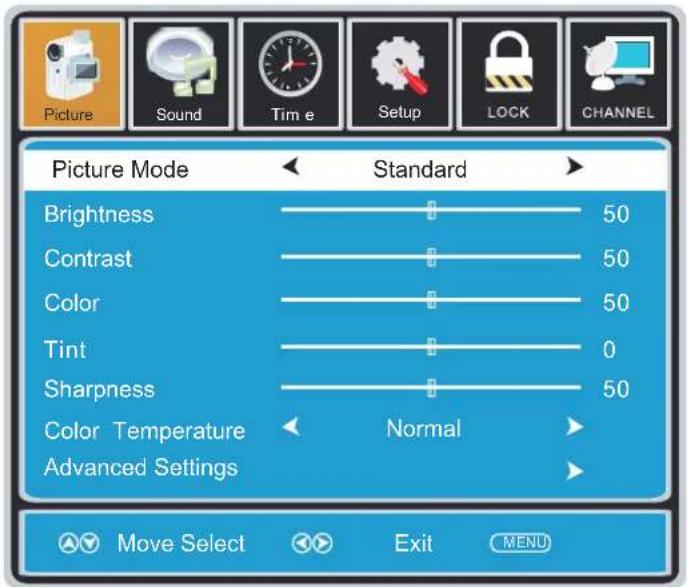

PICTURE MENU

Press MENU button to display the main menu.

Press / button to select PICTURE in the main menu, it will highlight the first option.

PICTURE MODE

This feature changes various color modes for the TV.

BRIGHTNESS

This feature changes the picture's detail in dark colors.

CONTRAST

This feature changes the difference between dark and bright objects.

COLOR

This feature changes the amount of color in the picture.

TINT

This feature changes the white balance of the color.

SHARPNESS

This feature changes the picture quality.

COLOR TEMPERATURE

This feature adjusts the color temperature of the TV, giving warm, normal, cool.

ADVANCED SETTINGS

a)ASPECT RATIO This feature changes the various aspects of the TV's video. (Aspects include wide, zoom, cinema, normal).
b)NOISE REDUCTION This feature reduces general pixilation by blurring them.
c)DYNAMIC CONTRAST This feature allows the TV to automatically adjust the contrast of the TV depending on the picture you are viewing.

TV SETUP

SOUND MENU

Press MENU button to display the main menu.

Press button to select SOUND in the main menu, it will highlight the first option.

EQUALIZER SETTINGS

This feature enables the internal equalizer of the speakers.

You can adjust the settings individually or use the presets (standard, music, movie, sports, user).

MTS

This feature adjusts the second audio programming in analog channels.

AUDIO LANGUAGE

This feature adjusts the digital second audio programming in digital channels.

DIGITAL AUDIO OUTPUT

This feature adjusts the digital audio output.

SURROUND SOUND

This feature adjusts the dimensional surround effect on or off (for built-in speakers only).

AVL

This feature adjusts the auto volume leveler enabling volume protection from overly loud commercials.

Please Note:

AUDIO LANGUAGE and MTS are dependent on the broadcasting station's support and are only available under the source TV.

TV SETUP

TIME MENU

Press MENU button to display the main menu.

Press / button to select TIME in the main menu, it will highlight the first option.

SLEEP TIMER

This timer automatically turns off the TV at the designated time.

TIME ZONE

This option adjusts the global time zone for the TV.

This option toggles the daylight saving time feature.

TIME FORMAT

This option adjusts the display format for the time.(IE.Under 24 hour format 1PM would display as 13:00).

AUTO CLOCK

This option enables the TV to sync time with the antenna.

(Put it on AUTO if you have an antenna attached to the TV.If you have CABLE or SATELLITE or anything else please use make sure AUTO CLOCK is turned off)

CLOCK

This option adjusts the time and date of the TV. You need to disable AUTOCLOCK in order to use this function.

Please Note:

The TIME function will only keep accurate time if the TV is plugged into a power source.

If the TV is unplugged or the power strip is turned off, the TV's time will not be accurate.

TV SETUP

SETUP MENU

Press MENU button to display the main menu.

Press / button to select SETUP in the main menu, it will highlight the first option.

MENULANGUAGE

This option changes the language of the TV's OSD menu.

TRANSPARENT

This option changes the transparency of the menu allowing background TV images to show through.

OSD TIMEOUT

This option changes the time which the TV's OSD menu automatically goes off.

CLOSED CAPTION

This option displays words on the TV.

INPUT LABEL

This option changes the source names to your personal preference.

OTHER SETTINGS

This option adjusts miscellaneous options of the TV.

AUDIO ONLY-This option turns off the screen while the audio is still playing.

RESTORE DEFAULT

This option restores all the changes in the OSD menu back to the default factory settings.

SETUP WIZARD

This option enables the TV to show you the setup wizard of the TV again.

Please Note:

Closed captioning is only available under AV and TV ports.

Closed captioning depends on your TV program's support. Sometimes due to the TV channel or the signal, closed captioning will not be available.

In United States, closed captioning under analog signals is CC1.

In United States, closed captioning under digital signal is Service1.

TV SETUP

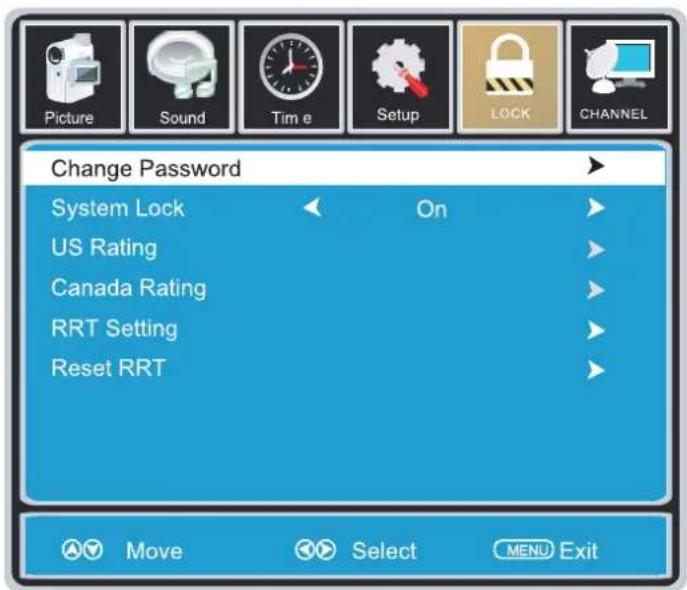

LOCK MENU

Press MENU button to display the main menu.

Press / button to select LOCK in the main menu, it will highlight the first option.

Press "0000" for the lock password.

CHANGE PASSWORD

This option allows you to change the LOCK menu password.

SYSTEM LOCK

This option enables parental locking and filtering for the TV.

US RATING

This option filters US TV programming and movies.

CANADA RATING

This option filters CANADA TV ratings.

RRT SETTING -

This feature is a downloadable rating filter based on TV broadcasts. With the transition of TV broadcasts to digital, future changes, and enhancements in how TV shows are rated for content are possible.

RESET RRT

This option resets the RRT5 settings.

Please Note:

Please refer to RATINGS EXPLAINED for more information on ratings definitions.

Downloadable rating and clear downloadable data might be grayed out depending on the Tvs tations support.

RRT5 options are based on TV broadcasts, if it is grayed out, then it is not available in your region.

DISPLAY MODE

PC FORMATS

SUPPORTED PC INPUT MODE
Resolutia	H i o aor z nt l Scanning Frequency (KHz)	Vertica Scanning Freqecy (Hz)	Format
640 x 480	31.5	60.0	DOS
800 x 600	35.1	56.2	VESA
800 x 600	37.9	60.0	VESA
1024 x 768	48.4	60.0	VESA
1360 x 768	47.7	60.0	VESA

NOTE:

This product does not support the display mode not listed above. In order to achieve the best display effect, please select the above-listed 5 display modes input signal.

Because of the difference of display drivers output signal (especially non-standard signal output), the display image may appear little disturbance which can be adjusted on the PC menu.

To prolong this unit's service life, please set your computer to power management mode.

DISPLAY MODE

VIDEO FORMATS

SUPPORTED COMPONENT / HDMI INPUT MODE
e iR180 on	Horizontal Scanning Frequency (KHz)	Vertical Scanning Frequency (Hz)	Format
720 480	31.47	59.94	480 i
720 480	15.734	59.94	480 p
1280 720	37.5	50	720 p
1280 720	45	60	720 p
1920 1Q80	31.25	50	1080 i
1920 1Q80	33.75	60	1080 i
1920 1Q80	27	24	1080 p
1920 1Q80	56.25	50	1080 p
1920 1Q80	67.50	60	1080 p

NOTE:

The above listed formats are also related to the AV devices you are about to connect. Before you connect this unit with others please read all instructions carefully and make sure all necessary cables are connected.

This unit may be incompatible with some other formats which are not meet the above conditions.

SPECIFICATION

Model Description 32"LED TV
Panel	Panel Type	LED Panel
	Diagonal Size	32 inches
	Screen Format 16 9:
	Resolution	1366 x 768
	Brightness	300 nit
	Contrast	3000:1
	View Angle	176(H)/176(V)
	Response Time	6.5 ms
	Maximum Color	16.7M colors
Systems	Color System	ATSC/QAM/NTSC
	Sound System	M
	Audio System	BTSC
	Sound Output	L/R Speaker: 10 W + 10W
Input/OutputJacks	RF Input 75 ohm external terminal
	HDMI Input	Video 480i 480p 720p 1080i, 1080p.: , , , Audio: Two channel linear PCM 32, 44.1 and 48kHz, 16, 20 and 24 bits
	PG-RGB Input	D sub 15pinG: 0.7Vp-p, 75ohmsB: 0.7Vp-p, 75ohmsR: 0.7Vp-p, 75ohms
	Composite Video Input	1.0 Vp-p, 75ohms RCA
	Component/Y Pb Pr Input	RCAY: 1.0 Vp-p, 75ohms, 0.3V negative syncPb: 0.7Vp-p, 75ohmsPr: 0.7Vp-p, 75ohms
	Sound Input	AV AUDIO: For CVBS/COMPONENT Audio inputPC AUDIO: For PC RGB Audio input500mV rms, Impedance: 20k ohms
Power	Power Requirement	100-240V~ 50/60Hz
	Rated Power Consumption	80 W

This manual is only for your reference.

Specifications are subject to update without prior notice.

TROUBLESHOOTING GUIDE

SYMPTOM CAUSE AND REMEDY(

TV

Bad Picture (snow, Check the location of the antenna and adjust it if necessary.
multiple images -Make sure the antenna cable is firmly connected.
distortion,blurry) -Make sure all input cables are firmly connected.
No sound. Increase the volume.
- Check whether the mute function has been activated on the Remote Control.

Black and White Check the PICTURE setting within the PICTURE menu.
picture. Check to make sure the program you are watching is broadcast in Color and not Black & White.

No picture or sound. -Make sure the unit is plugged in and turned on.

• Make sure that the ATV mode is selected.
• Try a new channel to check for possible station trouble.
• Make sure the antenna is connected properly.
• Increase the volume.
• Make sure the antenna or audio/video source device is working properly.
• Make sure all cables are firmly connected.
• Check for local interference.

Coloredpatches of make sure there are no unshielded electrical devices nearby picture. that are causing interference.
- Turn the TV off for 30 minutes, then try it again.

Panel function key does Under the influence of electrostatic phenomenon, the product not respond correctly. may malfunction and require usertopowerreset.
- Unplug and re-plug the AC power cord.

The display monitor's LED TV takes inside lighten phosphor. It may increase the panel goes hot. temperature of the screen in some occasions. It's not a defect.
Unusual dots Black dots and Bright points may appear on the LED screen. This is a structural property of the LED panel and is not a defect.

Stripes on screen Adjust the impulse phase may decrease stripes. (RGB in )

The top of the monitor It may occur during long-time working. It's not a defect. gets hot.

Unable to select a certain channel. The channel may be skipped. Choose this channel by directly selecting the buttons from the remote control.
Disorder display at power on. This may be caused because of a very short interval between POWER OFF and ON.
- Unplug the power and restart.

CONTENU

1	MISES EN GARDE DE SECURITÉ		1
2	CONSIGNES DE SÉCURITÉ IMPORTANTES		2
3	ACCESSIONS		3
4	PRÉPARATIFS		3
5	GUIDE DE RÉFERENCE DES COMMANDES	Télécommande	4 5 6
		Vue De Devant
		Vue Arriere
		Vue Arriere
6	CONNEXIONS	Connexion Antenne	7
		Connexion AV	7
		Connexion Y Pb Pr	8
		Connexion HDMI	8
		Connexion VGA	9
		Connexion Headphone	9
		Branchement du cordon d'alimentation	9
		Connexion Coax(SPDIF)	10
7	MONTAGE MURAL		11
8	INSTALLATION RAPIDE	Mise De L'appareil Dans Une Place Propre	12
		Selection De Source	12
		Mise En Circuit Initiale De L'Appareil	12
9	RÉGLAGE INITIAL DU TÉLÉVISEUR	Menu Program(CHANNEL)	13
		Menu Image	14
		Menu Audio	15
		Menu Heure	16
		Menu Option	17
		Menu Verro(LOCK)	18

CONTENU

10

MODE D'AFFICHAGE

Formats Informatiques Formats Video

19 20

15

CHARACTERISTIQUES

21

16

GUIDED PANNAGEE

Symptôme TV

22

Universal Remote Code: 1218

1. Haut/Bas/Gauche/Droite
